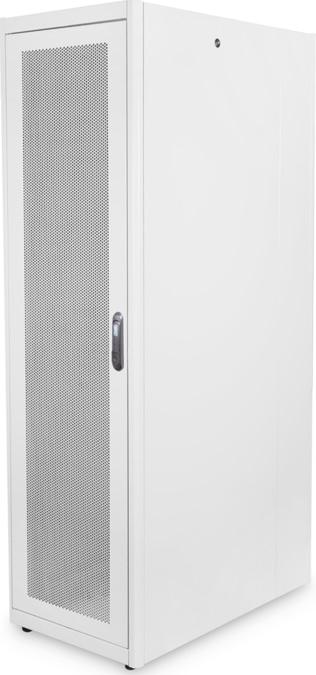

Included in delivery: brush strip set of M6 assembly bolts (16 pcs) set of floor-leveller feet 1,5 m edge sealing 2 pairs of 19’’ mounting sections Basic version ensures optimum installation and configuration. Welded structure ensures safety of use even at maximum load. Used primarily as a network cabinet/distributionpoint. Sheet steel housing with welded frame, completely pre-assembled, self ventilated, Surface finish: powder painted in RAL 9005 - black (other colors on request), Protection IP20 in accordance with PN 92/E-08106/EN 60529/IEC 529. (does not apply to brush cable entries), Indoor use, . Cabinets can be arranged in line using line-up bolts after removing side walls (Part No.11190130) Cabinet frame fully welded - 1,5 mm thick sheet steel on 4 x leveling feet M10. Front door: window made of safety glass (optionally: full steel, full glass, punched perforated plate), opening angle 180 degrees. Left or right door opening options, Cabinet rear panel - 1 mm. thick sheet steel, removable with two single point locks (Optionally: full steel or perforated, left or right side mounted door), Cabinet side panels - 1 mm thick sheet steel, removable with two single point locks, Two pairs of the profile rails (AL-Zn coated) each arranged at the front and rear on the inside. Each profile with unit labeling, Maximum spacing between front and rear profile rails: - cabinet depth 600 mm - max 472 mm - cabinet depth 800 mm - max 672 mm - cabinet depth 900 mm - max 772 mm - cabinet depth 1000 mm - max 872 mm Possibility to increase maximum weight of equipment mounted in the cabinet SRS by using cabinet max load strengthen kit, Cables let in entry optionally either from roof or base, either, through top or bottom of the rear side of cabinet, pre-punched opening (Dimensions: 450 x 90 mm), In the roof and base of cabinet 2 x 4U blind plates (pre - punched opening) for fan units (possible configurations 1 or 2 x 2 fan units, 1 x 4 fan units, 1 x 6 fan units), Optionally: plinth standard or with tilt protection cabinet wheel kit - 11190143 (maximum load capacity 150 kg.) heavy duty castor set - (maximum load capacity 500 kg.) for cabinets 600 width - 11190160, and for 800 width - 11190180 optional 19" swing frame 90° opening plinths, shelves, fan units, light units, power distribution units, blanking covers, cable management accessories etc.
