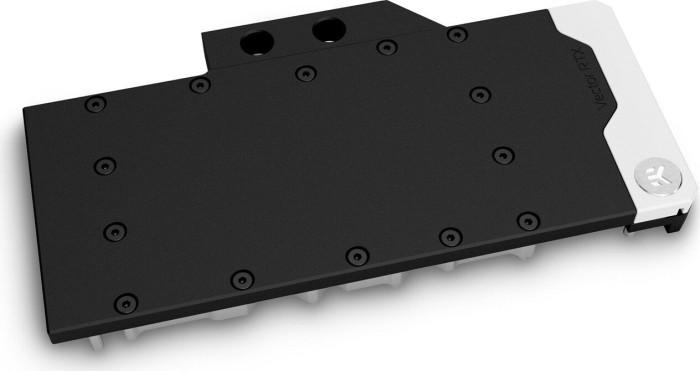

EK Water Blocks EK-Quantum Vector Trinity RTX 3080/3090 D-RGB

The EK-Quantum Vector Trinity RTX 3080/3090 D-RGB GPU cooler, has been further developed based on the 2nd generation Vector series and designed for the Zotac Trinity RTX 3080 and 3090 graphics cards. The Vector water block directly cools the GPU, VRAM and VRM (voltage regulation module), as the cooling fluid is routed directly over these critical areas. The base of the block is made of nickel-plated copper, while the top is made of acetal. Furthermore, the cooler has D-RGB lighting, with a total of 12 individually addressable LEDs, which makes the end piece shine pleasantly. The lighting is compatible with all common RGB sync technologies of the major motherboard manufacturers, such as ASRock Polychrome Sync, ASUS Aura Sync, Gigabyte RGB Fusion and MSI Mystic Light. Since the GPU cooler does not have a backplate, it is recommended to order a matching backplate. Such a backplate not only improves stability, but also promotes cooling performance, as it also serves as a passive cooler. Technical Data: Dimensions: 231 x 124 x 20.5mm (L x H x W) Material: Nickel-Plated Copper, Acetal Threads: G1/4" D-RGB cable length: 500mm D-RGB LED count: 12 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Scope of Delivery: EK-Quantum Vector Trinity RTX 3080/3090 D-RGB series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g) Compatibility VGA FullCover Zotac Zotac Gaming GeForce RTX 3080 AMP Extreme Holo, 10GB GDDR6X, HDMI, 3x DP (ZT-A30800B-10P) (visual) VGA FullCover Zotac Zotac Gaming GeForce RTX 3080 AMP Holo, 10GB GDDR6X, HDMI, 3x DP (ZT-A30800F-10P) (visual) VGA FullCover Zotac Zotac GAMING GeForce RTX 3080 Trinity (ZT-A30800D-10P) VGA FullCover Zotac Zotac Gaming GeForce RTX 3080 Trinity OC, 10GB GDDR6X, HDMI, 3x DP (ZT-A30800J-10P) VGA FullCover Zotac Zotac GAMING GeForce RTX 3090 Trinity (ZT-A30900D-10P)
