Alphacool Case Fan Rise Aurora 140 mm

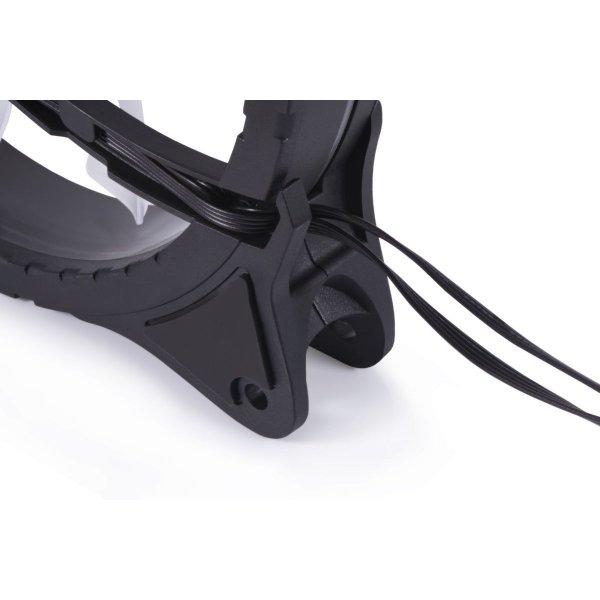

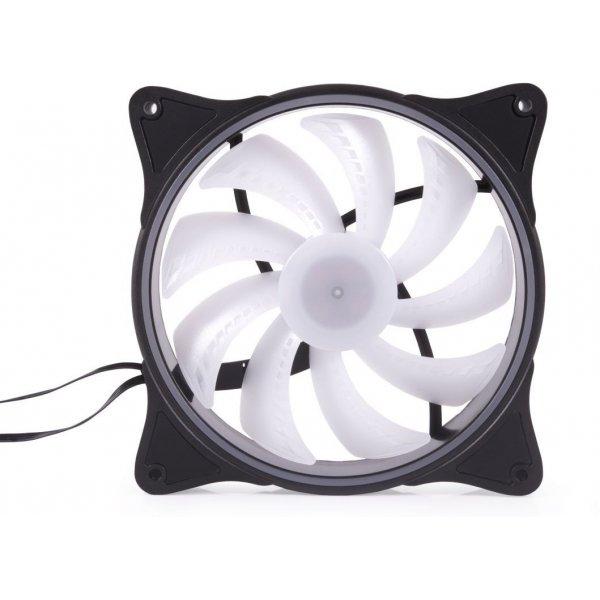

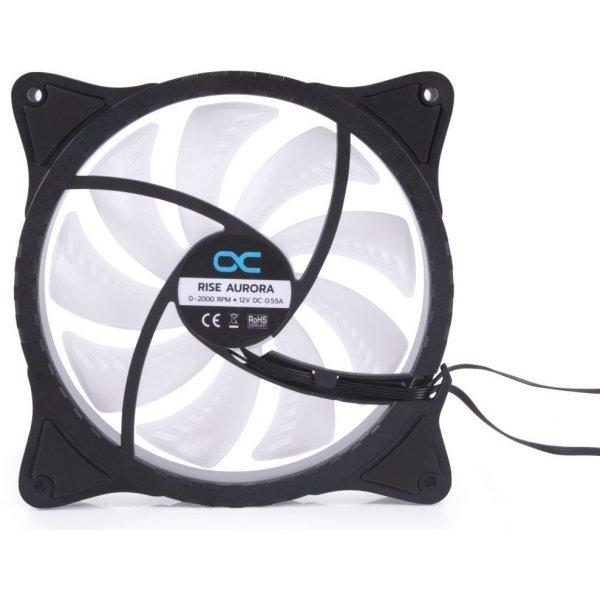

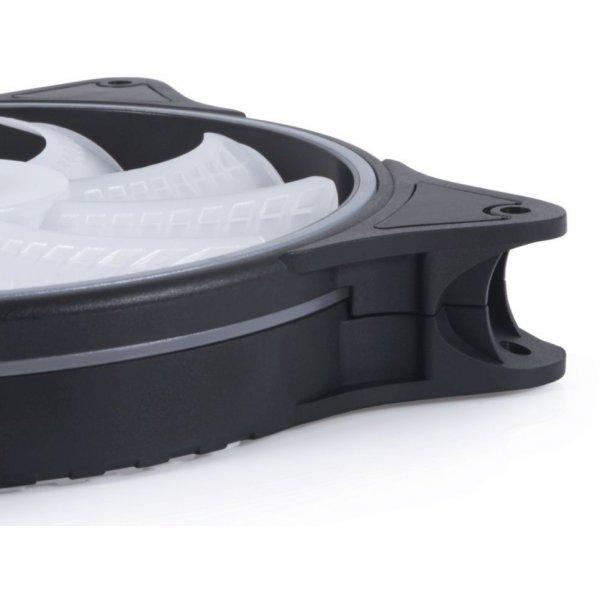

The Alphacool Rise fan offers a wide range of control as well as superior Digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fan's special design can create some unique effects whilst offering performance. Brilliant illuminationThere are 24 digitally addressable 5V RGB LEDs built into the frame and hub that illuminate the entire fan. This creates a unique illumination that looks very impressive. Thanks to the recessed light diffusers, the light is distributed evenly, and you will not see sporadic uneven lighting. Wide control range and silentThe fan can be controlled from 0 to 2000 rpm via the 4-pin PWM connector. In addition, it offers a silent mode, with which the fan can be regulated down to 0 rpm and then they will only start when they are needed above 600rpm. At 800 rpm, the fan is almost silent. At 2000 rpm, it offers an air flow rate of 154.1m3/h coupled with a high static pressure of 2.20mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for alternatively, as a case fan. Decouplers are located directly on the corners of the frame. The soft foam pads reduce the transmission of vibrations to the case, which in turn reduces noise. Tear-off edges on the fan blades also provide a significant reduction in noise. Connectors?The fan is controlled via a 4-pin PWM connector. The cable is 40 cm long. This allows the fan to be connected to the motherboard or a fan controller without the need for additional adapter cables or extensions. The digital aRGB LED illumination is controlled via a JST 3-pin connector and adapters are available to change this into a standard 3 pin aRGB connector if required. Technical data fan L x W x H 140 x 140 x 25 mm Speed 0—2000 rpm (+/-10%) Bearing Sleeve Bearing Connection 4-Pin PWM Cable length 40 cm Voltage 12V DC Power consumption 6,6W (max) Current consumption 0,50A (0,55 max) Static pressure 2,20 H2O Max. air flow 154,1 m³/h Noise max. 38,4 dB(A) MTBF 30.000h Speedometer signal Yes Auto-Restart Yes Technical data aRGB LED type 5V aRGB Connection 3-Pin JST Cable length 50 cm (Splitter after 40 cm) Max. current consumption LEDs 3,5W LED quantity Frame: 16 / Hub: 8 Downloads:Datasheet PDF
