Fluke Ampertangid AC/DC 30A DC-100kHz

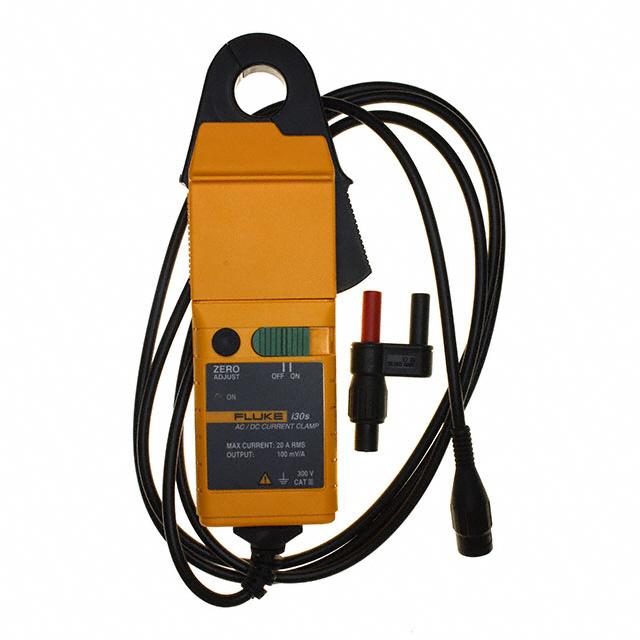

Fluke i30s AC/DC vooluklamberi30s vooluklamber põhineb Hall Effect tehnoloogial, mida kasutatakse nii alalis- kui ka vahelduvvoolu mõõtmiseks. i30s'i võib kasutada koos ostsilloskoopide ja muude sobivate registreerimisseadmetega täpseks mittesekkuvaks voolu mõõtmiseks.Fluke i30s AC/DC Current ClampElectrical specificationsSpecified current range30 mA to 30 A DC, 30 mA to 20 A AC rmsUsable current range5 mA to 30 A DC, 30 mA to 20 A AC rmsCrest factor1.4 inOutput sensitivity100 mV/AAccuracy (at +25°C)DC ±1 % of reading ±2 mAAC ± 0.5 dB of reading ±2 mAResolution±1 mALoad impedance> 100 kΩConductor position sensitivity±1% relative to center readingFrequency rangeDC to 100 kHz (-0.5 dB)Phase shift below 1 kHz< 2°Temperature coefficient±0.01% of reading / °CPower supply9 V Alkaline, MN1604/PP3, 30 hours, low battery indicatorWorking voltage (see Safety Standards section)300 V AC rms or DCGeneral SpecificationsMaximum conductor size19 mm diameterOutput connectionSafety BNC connector, supplied with safety 4 mm adapterOutput zeroManual adjust via thumbwheelCable length2 mOperating temperature range0°C to +50°CStorage temperature range (with battery removed)-20°C to +85°COperating humidity15% to 85% (non-condensing)Weight250 gSafetyIEC 61010-1, Pollution Degree 2IEC 61010-2- 032: CAT III 300VUse of the probe on uninsulated conductors is limited to 300 V ac rms or dc andfrequencies below 1 kHz.EMC CompatibilityIEC 61326-1: Portable Electromagnetic Environment
