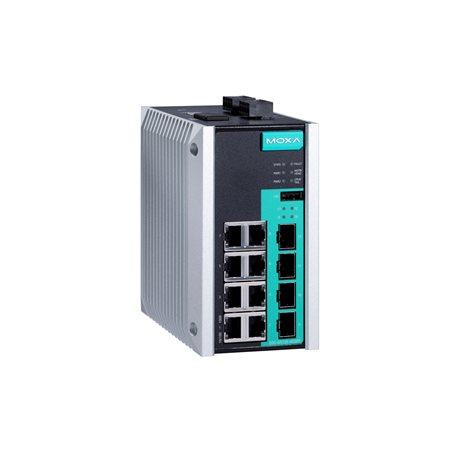

Moxa pakub laia valikut PoE/PoE+ lüliteid, millel on kuni 48-portilised fiiberoptilised Gigabit PoE+-portid ja kuni 60 W väljundvõimsus pordi kohta, et tagada kiire andmeedastus ja samal ajal suure võimsusega seadmete toitmine pikkade vahemaade taha. Tööstusklassi disainiga meie PoE-kommutaatorid pakuvad ülepingekaitse 3 kV LAN-pordi kohta ning Smart PoE haldusfunktsioone, mis lihtsustavad PoE-võrgu kasutuselevõttu ja hooldust.12-portiline täis-Gigabiti hallatav Ethernet-kommutaator 8 10/100/1000BaseT(X) porti, 4 Gigabiti SFP-pesa, -10 kuni 60°C töötemperatuurigaInput/Output InterfaceAlarm Contact Channels1Relay output with current carrying capacity of 1 A @ 24 VDCButtonsReset buttonDigital Input Channels1Digital Inputs+13 to +30 V for state 1-30 to +3 V for state 0Max. input current: 8 mAEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector)8Auto negotiation speedFull/Half duplex modeAuto MDI/MDI-X connection100/1000BaseSFP Slots4Ethernet Software FeaturesFilter802.1Q VLANBPDU FilterBPDU GuardGMRPGVRPIGMP v1/v2/v3Port-based VLANIndustrial ProtocolsEtherNet/IPModbus TCPPROFINET IO DeviceManagementLLDPBack Pressure Flow ControlBOOTPPort MirrorDHCP Option 66/67/82DHCP Server/ClientFiber checkFlow controlIPv4/IPv6RARPRMONSCPSMTPSNMP InformSNMPv1/v2c/v3SyslogTelnetTFTPMIBEthernet-like MIBMIB-IIBridge MIBP-BRIDGE MIBQ-BRIDGE MIBRMON MIB Groups 1, 2, 3, 9RSTP MIBRedundancy ProtocolsLink AggregationMRPMSTPRSTPSTPTurbo ChainTurbo Ring v1/v2SecurityBroadcast storm protectionHTTPS/SSLTACACS+SNMPv3MAB authenticationSticky MACNTP authenticationIP ACLMAC ACLPort LockRADIUSSSHSMTP with TLSTime ManagementNTP Server/ClientSNTPSwitch PropertiesIGMP Groups2048Jumbo Frame Size9.6 KBMAC Table Size8 KMax. No. of VLANs256Packet Buffer Size4 MbitsPriority Queues4VLAN ID RangeVID 1 to 4094USB InterfaceStorage PortUSB Type ALED InterfaceLED IndicatorsPWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL, smart PoE LED (EDS-G512E-8PoE-4GSFP Series only)Serial InterfaceConsole PortUSB-serial console (Type B connector)DIP Switch ConfigurationDIP SwitchesTurbo Ring, Master, Coupler, ReservePower ParametersConnection2 removable 4-contact terminal block(s)Input Current0.34 A @ 24 VDCInput Voltage12/24/48/-48 VDCOperating Voltage9.6 to 60 VDCOverload Current ProtectionSupportedReverse Polarity ProtectionSupportedPhysical CharacteristicsHousingMetalIP RatingIP30Dimensions79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)Weight1,440 g (3.18 lb)InstallationDIN-rail mountingWall mounting (with optional kit)Environmental LimitsOperating Temperature-10 to 60°C (14 to 140°F)Storage Temperature (package included)-40 to 85°C (-40 to 185°F)Ambient Relative Humidity5 to 95% (non-condensing)Standards and CertificationsSafetyUL 508EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/mIEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kVIEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kVEMIFCC Part 15B Class AHazardous LocationsClass I Division 2ATEXMaritimeLRABSDNVNKPower SubstationIEC 61850-3IEEE 1613RailwayEN 50121-4Traffic ControlNEMA TS2ShockIEC 60068-2-27FreefallIEC 60068-2-32VibrationIEC 60068-2-6MTBFTime816,823 hrsStandardsTelcordia (Bellcore), GBWarrantyWarranty Period5 years
