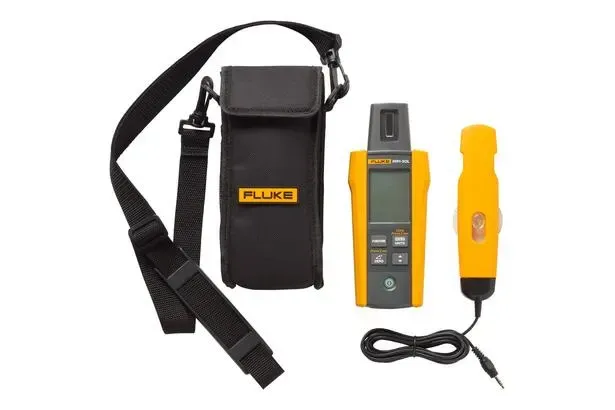

Fluke IRR2-BT traadita päikesekiirguse mõõtur

Fluke IRR2-BT Solar Irradiance Meter Pro (mõõtur või toode) pakub digitaalseid mõõtmisi seoses fotogalvaaniliste (PV) paneelidega. Mõõtur mõõdab ja loeb:  Päikesekiirguse (W/m2 ) fotogalvaanilise (PV) paneeli pinnal  Temperatuuri (°F või °C) fotogalvaanilise (PV) paneeli pinnal  Fotogalvaanilise (PV) paneeli kaldenurk (kraadides)  Ilmakaarte kraadid kompassifunktsiooni abil Mõõtur saab mõõtmisi traadita edastada SMFT-1000 PV analüsaatorile (analüsaator). Neid andmeid kasutatakse päikesepaneeli IV-kõvera jõudluse analüüsimiseks ja muude katuse kaldenurga ja kompassi mõõtmiste jaoks. Märkus Mõõtur ei ühenda nutitelefonide ega muude nutiseadmetega. Kui mõõtur on analüsaatoriga sünkroniseeritud (traadita ühenduse ulatusest väljas), salvestab mõõtur andmed automaatselt mällu. Need andmed saab hiljem edastada SMFT-1000-le.SpecificationsIrradianceMeasuring range..................100 to 1400 W/m²NoteCalibration is performed at a solar spectral irradiance ofAM1.5 (ASTM G-173).Resolution ..............................1 W/m²Measuring Accuracy...........±(5 % + 5 Digit)Temperature MeasurementMeasuring range (°C) ..........-30 °C to 100 °C (-22 °F to 212 °F)Resolution ..............................0.1 °C (0.2 °F / 1 °F @ >100 °F)Measuring Accuracy...........±1 °C (±2 °F) @ -10 °C to 75 °C(14 °F to 167 °F),±2 °C (±4 °F) @ -30 °C to -10 °C(-22 °F to 14 °F) and 75 °C to 100 °C(167 °F to 212 °F)NoteTemperature measurement response time: ~30 sec.14Inclination AngleMeasuring range..................-90° to +90°Resolution ..............................0.1°Measuring Accuracy...........±1.5° @ -50° to +50°±2.5° @ -85° to -50° and +50° to +85°±3.5° @ -90° to -85° and +85° to +90°NoteInclination accuracy is specified as the angle between avertical and the absolute horizontal plane/true horizontalbaseline. The Product is calibrated to true horizontal 0°CompassMeasuring Range.................0° to 360°Resolution ..............................1°Measuring Accuracy...........±7°NoteMeasurements valid for device inclination between -20°and +20° to horizontal. Outside that range, --- shows onthe LCD. Result is in reference to magnetic north.MemoryType .........................................EEPROMSize (kB/records) ..................64 kB/6400Recording Time ....................up to 17 hoursRTC.................................................Yes (super CAP supply)Communication .........................LBT: only with SMFT modelsSize.................................................150 mm x 80 mm x 35 mm(5.90 in x 3.14 in x 1.37 in)Weight ...........................................231g (0.5 lb)Power Supply and Battery LifeBatteries .................................4x AA IEC LR6Battery Life (typical)............50 hoursTemperatureOperatingIRR2-BT .............................-20 °C to 35 °C, 95 % RH35 °C to 50 °C, 40 % RH80PR-IRR...........................-30 °C to 100 °CStorage ...................................-30 °C to 60 °C (humidity
