Planet Switch: 8 x 10/100/1000Mbps PoE+, 2 x 100/1000X SFP, L2, -40 kuni 75°C

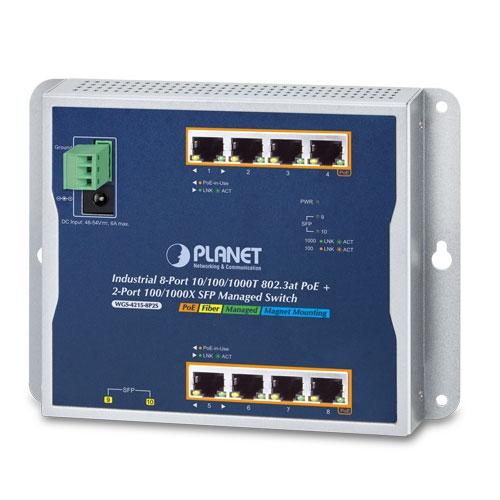

Easily-deployed and Expanded NetworkDesigned to be installed in a wall enclosure or simply mounted on a wall in any convenient location, PLANET WGS-4215-8P2S, an innovative Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Wall-mounted Managed Switch, offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-4215-8P2S is able to operate reliably, stably and quietly in any environment without affecting its performance. With a total power budget of up to 200 watts for different kinds of PoE applications and featuring ultra networking speed and operating temperature ranging from -40 to 75 degrees C in a compact but rugged IP30 metal housing, the WGS-4215-8P2S is an ideal solution to meeting the demand for the following network applications:Building/Home automation networkInternet of things (IoT)IP surveillanceWireless LANCybersecurity Network Solution to Minimize Security RisksThe WGS-4215-8P2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.Redundant Ring, Fast Recovery for Critical Network ApplicationsThe WGS-4215-8P2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.Built-in Unique PoE Functions for Powered Devices ManagementAs it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-4215-8P2S features the following special PoE management functions:PD alive checkScheduled power recyclingPoE schedulePoE usage monitoringPoE extensionIntelligent Powered Device Alive CheckThe WGS-4215-8P2S can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the WGS-4215-8P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.Scheduled Power RecyclingThe WGS-4215-8P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.PoE Schedule for Energy SavingsUnder the trend of energy saving worldwide and contributing to environmental protection, the WGS-4215-8P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.802.3at PoE+ Power and Ethernet Data Transmission Distance ExtensionIn the “Extend” operation mode, the WGS-4215-8P2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the WGS-4215-8P2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.Innovative Wall-mount InstallationThe WGS-4215-8P2S is specially designed to be installed in a narrow environment, such as wall enclosure. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-4215-8P2S placed in an enclosure very convenient for technicians. The WGS-4215-8P2S can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.Environmentally Hardened DesignWith IP30, flat but rugged metal housing protection, the WGS-4215-8P2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the WGS-4215-8P2S can be placed in almost any difficult environment.IPv6/IPv4 Dual Stack ManagementSupporting both IPv6 and IPv4 protocols, the WGS-4215-8P2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.Robust Layer 2 FeaturesThe WGS-4215-8P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the WGS-4215-8P2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. Efficient Traffic ControlThe WGS-4215-8P2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.Powerful SecurityPLANET WGS-4215-8P2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.User-friendly and Secure ManagementFor efficient management, the WGS-4215-8P2S is equipped with Command line, Web and SNMP management interfaces.With the built-in Web-based management interface, the WGS-4215-8P2S offers an easy-to-use, platform-independent management and configuration facility.For text-based management, it can be accessed via Telnet and the console port.By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.Moreover, the WGS-4215-8P2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.Remote Management SolutionPLANET's Universal Network Management System (UNI-NMS) and CloudViewer App support IT staff to remotely manage all network devices and monitor the PDs' operation statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer App, all kinds of businesses can now be speedily and efficiently managed from one platform.Flexibility and Long-distance Extension SolutionThe two mini-GBIC slots built in the WGS-4215-8P2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.Intelligent SFP Diagnosis MechanismThe WGS-4215-8P2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.Industrial LTE Cat 4 gateway packs all essential features for any industry: fast and reliable internet connection, combination of Ethernet and serial communication, secure power connector, I/O ports, and time synchronization services.TRB245 can be used to integrate modern and legacy industrial equipment in one solution via RS232 or RS485 interfaces.A wide range of software features like SMS control, Firewall, OpenVPN, IPSec, RMS ensures that data can be reached securely.Dual SIM functionality with auto-failover and a backup WAN ensure stable connectivity even if the primary connection is lost.Hardware SpecificationsCopper PortsEight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X portsPoE Inject PortEight with 802.3at PoE+ injector function (Ports1 to 8)SFP/mini-GBIC SlotsTwo 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual modeReset Button< 5 sec: System reboot> 5 sec: Factory defaultLEDPower LED: Power (Green)PoE Port (Port-1 to Port-8): PoE-in-Use (Amber) LNK/ACT (Green)100/1000X SFP Ports (Port 9 to Port 10): 1000 LNK/ACT (Green) 100 LNK/ACT (Amber)ConnectorRemovable 3-pin terminal block for power input Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) Pin 3 for earth groundDC power jack with 2.0mm central polePower Requirements48~54V DC, 5A (max.) terminal block power input48~54V DC, 5A (max.) DC jack power inputNote: The two power input interfaces don’t support power redundant function.Power Consumption/ DissipationMax. 210 watts/716 BTUDimensions (W x D x H)178 x 24.2 x 134 mmWeight640gESD ProtectionContact Discharge 6KV DCAir Discharge 8KV DCEnclosureIP30 metalInstallationFixed wall mount, magnetic wall mount or DIN railSwitch SpecificationsSwitch ArchitectureStore-and-ForwardSwitch Fabric20Gbps/non-blockingSwitch Throughput@64 bytes14.8Mpps @64 bytesMAC Address Table8K entriesShared Data Buffer4.1 megabitsFlow ControlIEEE 802.3x pause frame for full duplexBack pressure for half duplexJumbo Frame10KBPower over EthernetPoE StandardIEEE 802.3af/802.3at Power over Ethernet PSEPoE Power Supply TypeEnd-spanPoE Power OutputIEEE 802.3af Standard Per port 48V~54V DC (depending on the power supply), max. 15.4 wattsIEEE 802.3at Standard Per port 50V~54V DC (depending on the power supply), max. 36 wattsPower Pin Assignment1/2(+), 3/6(-)PoE Power Budget200 watts (depending on power input)Max. Number of Class 2 PDs8Max. Number of Class 3 PDs8Max. Number of Class 4 PDs7PoE Management FunctionsPoE ManagementPD Alive CheckScheduled Power RecyclingPoE SchedulePoE Usage MonitoringPoE ExtensionEnhanced PoE ModeStandard/Legacy/ForceActive PoE Device Live DetectionYesPoE Power RecyclingYes, daily or predefined schedulePoE Schedule4 schedule profilePoE Extend ModeYes, max. up to 250 metersLayer 2 FunctionsPort MirroringTX/RX/BothMany-to-1 monitorUp to 4 sessionsVLAN802.1Q tagged-based VLANUp to 256 VLAN groups, out of 4094 VLAN IDs802.1ad Q-in-Q tunneling (VLAN stacking)Voice VLANProtocol VLANPrivate VLAN (Protected port)GVRPManagement VLANLink AggregationIEEE 802.3ad LACP and static trunkSupports 5 groups with 8 ports per trunkSpanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)STP BPDU guard, BPDU filtering and BPDU forwardingIGMP SnoopingIPv4 IGMP (v2/v3) snoopingIGMP querierUp to 256 multicast groupsMLD SnoopingIPv6 MLD (v1/v2) snooping, up to 256 multicast groupsQoS8 mapping IDs to 8 level priority queues Port Number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packetsTraffic classification based, strict priority and WRRIngress/Egress Rate Limit per port bandwidth controlRingSupports ERPS, and complies with ITU-T G.8032Recovery time < 450msSecurity FunctionsAccess Control ListIPv4/IPv6 IP-based ACL/MAC-based ACLIPv4/IPv6 IP-based ACE/MAC-based ACEMax. 256 ACL entriesPort SecurityIEEE 802.1X – Port-based authenticationBuilt-in RADIUS client to co-operate with RADIUS serverRADIUS/TACACS+ user access authenticationMAC SecurityIP-MAC port bindingMAC filterStatic MAC address, Max. 256 static MAC entriesEnhanced SecurityDHCP Snooping and DHCP Option82STP BPDU guard, BPDU filtering and BPDU forwardingDoS attack preventionARP inspectionIP source guardManagement FunctionsBasic Management InterfacesWeb browser; Telnet; SNMP v1, v2cSecure Management InterfacesSSHv2, TLS v1.2, SNMPv3Switch ManagementFirmware upgrade by HTTP/TFTP protocol through Ethernet networkConfiguration upload/download through HTTP/TFTPLLDP protocolSNTPPLANET Smart Discovery UtilityPLANET NMS System/CloudViewerEvent ManagementRemote/Local SyslogSystem logSNMP MIBsRFC 1213 MIB-IIRFC 1215 Generic TrapsRFC 1493 Bridge MIBRFC 2674 Bridge MIB ExtensionsRFC 2737 Entity MIB (Version 2)RFC 2819 RMON (1, 2, 3, 9)RFC 2863 Interface Group MIBRFC 3635 Ethernet-like MIBRFC 3621 Power Ethernet MIBStandards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)IEC 60068-2-27 (shock)IEC 60068-2-6 (vibration)Standards ComplianceIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TX/100BASE-FXIEEE 802.3z Gigabit SX/LXIEEE 802.3ab Gigabit 1000BASE-TIEEE 802.3x Flow Control and Back PressureIEEE 802.3ad Port Trunk with LACPIEEE 802.1D Spanning Tree ProtocolIEEE 802.1w Rapid Spanning Tree ProtocolIEEE 802.1s Multiple Spanning Tree ProtocolIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN TaggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPIEEE 802.3af Power over EthernetIEEE 802.3at Power over Ethernet PlusIEEE 802.3az Energy Efficient Ethernet (EEE)RFC 768 UDPRFC 783 TFTPRFC 793 TCPRFC 791 IPRFC 792 ICMPRFC 2068 HTTPRFC 1112 IGMP v1RFC 2236 IGMP v2RFC 3376 IGMP v3RFC 2710 MLD v1RFC 3810 MLD v2ITU G.8032 ERPS RingEnvironmentOperatingTemperature: -40 ~ 75 degrees CRelative Humidity: 5 ~ 95% (non-condensing)StorageTemperature: -40 ~ 85 degrees CRelative Humidity: 5 ~ 95% (non-condensing)AccessoriesStandard AccessoriesQuick Installation Guide QR Code Sheet x 13-pin Terminal Block Connector x 1Wall-mounted Kit x 1DIN-rail Kit x 1Magnet Kit x 1RJ45 Dust Cap x 8SFP Dust Cap x 2
