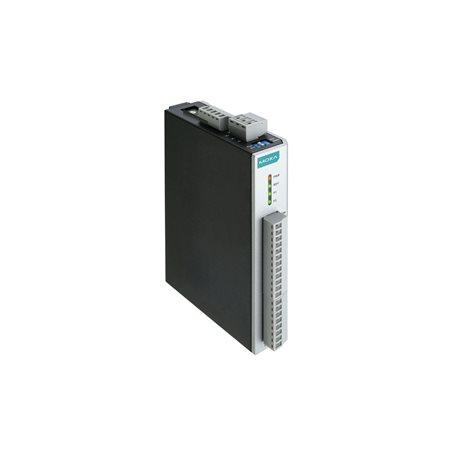

Võrguseade MOXA ioLogik RS-485 remote I/O, 6 DIs, 6 Relays, -10 kuni 75°C

Meie universaalsed kontrollerid ja I/O-tooted kasutavad Click&Go juhtimisloogikat, mis sisaldab meie aktiivset seiretehnoloogiat ja toetab mitmekülgset OT/IT-protokollide kogumit, et aidata teil hõlpsasti konfigureerida, kasutusele võtta ja realiseerida IIoT rakendusi, näiteks energiaseiret, rajatiste seiret ja masinate OEM-rakendusi.Input/Output InterfaceButtonsReset buttonDigital Input Channels6Isolation3k VDC or 2k VrmsRelay Channels6Digital InputsConnectorScrew-fastened Euroblock terminalCounter Frequency2.5 kHzDigital Filtering Time IntervalSoftware configurableDry ContactOn: short to GNDOff: openI/O ModeDI or event counterPoints per COM6 channelsSensor TypeDry contactWet Contact (NPN or PNP)Wet Contact (DI to COM)On: 10 to 30 VDCOff: 0 to 3 VDCRelaysBreakdown Voltage500 VACConnectorScrew-fastened Euroblock terminalContact Current RatingResistive load: 5 A @ 30 VDC, 250 VAC, 110 VACContact Resistance100 milli-ohms (max.)Electrical Endurance100,000 operations @ 5 A resistive loadInitial Insulation Resistance1,000 mega-ohms (min.) @ 500 VDCMechanical Endurance5,000,000 operationsPulse Output Frequency0.3 Hz at rated loadTypeForm A (N.O.) power relayNoteAmbient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.LED InterfaceLED IndicatorsPWR, RDY, P1, P2Serial InterfaceBaudrate1200 bps to 921.6 kbpsConnectorTerminal blockNo. of Ports2ParityNoneEvenOddPull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohmsSerial StandardsRS-485Stop Bits1, 2Surge1 kVESD15 kVData Bits8Flow ControlNoneXON/XOFFSerial SignalsRS-485-2wData+, Data-, GNDSerial Software FeaturesIndustrial ProtocolsModbus RTU Server (slave)Power ParametersPower ConnectorScrew-fastened Euroblock terminalNo. of Power Inputs1Input Voltage12 to 48 VDCPower Consumption207 mA @ 24 VDCPhysical CharacteristicsHousingPlasticDimensions27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)Weight200 g (0.44 lb)InstallationDIN-rail mountingWall mountingWiringI/O cable, 16 to 26 AWGPower cable, 12 to 24 AWGEnvironmental LimitsOperating Temperature-10 to 75°C (14 to 167°F)Storage Temperature (package included)-40 to 85°C (-40 to 185°F)Ambient Relative Humidity5 to 95% (non-condensing)Altitude2000 m Standards and CertificationsEMCEN 55032/24EMICISPR 32, FCC Part 15B Class AEMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/mIEC 61000-4-4 EFT: Power: 0.5 kVIEC 61000-4-5 Surge: Power: 2 kVIEC 61000-4-6 CS: 3 VIEC 61000-4-8 PFMFSafetyUL 508ShockIEC 60068-2-27VibrationIEC 60068-2-6DeclarationGreen ProductRoHS, CRoHS, WEEEMTBFTime1,239,293 hrsStandardsTelcordia SR332WarrantyWarranty Period2 years
