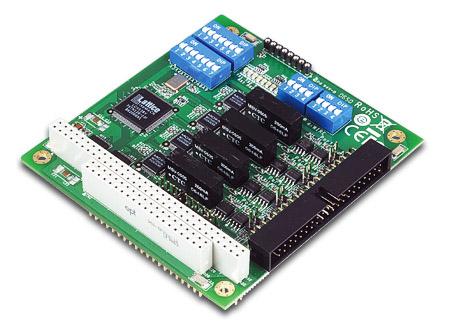

Võrguseade MOXA Switch RS-422/485 PC/104 moodul, opt. isol. 2KV, -40 kuni +85°,4 porti

Features and Benefits 921.6 kbps maximum baudrate for super fast data transmission On-chip S/W flow control Built-in 15 kV ESD protection IRQ settings, I/O settings, and serial interface are jumper and DIP switch selectable Onboard Tx and Rx LED indicators for each port Windows CE 5.0/6.0 and Windows XP embedded operating systems supported Wide temperature model available for -40 to 85°C environments Overview The CA-134I PC/104 modules are reliable, high performance, multiport serial communication solutions that have 4 RS-422/485 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and the CA-134Is’ versatile driver support makes the modules suitable for a wide range of applications.• Hardware Comm. Controller 16C550C or compatible x 4 Bus PC/104 bus Connector 40-pin box header DIP Switches I/O base address, interrupt vector, serial interface• Serial Interface Number of Ports 4 Serial Standards RS-422/485 Max. No. of Boards per PC 4• Serial Line Protection ESD Protection 15 kV on the board Electrical Isolation 2 kV• Performance Baudrate 50 bps to 921.6 kbps• Serial Communication Parameters Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports) FIFO 64 bytes• Serial Signals RS-422 TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-4w TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-2w Data+(B), Data-(A), GND• Operating Systems Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008 (x86/x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded Fixed TTY Drivers QNX 4, QNX 6 Linux Real TTY Drivers Linux 2.4.x, 2.6.x Note Please refer to Moxa’s website for the latest driver support information.• Physical Characteristics Dimensions 90 x 96 mm (3.54 x 3.78 in)• Environmental Limits Operating Temperature Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) Altitude Up to 2000 m Note Please contact Moxa if you require products guaranteed to function properly at higher altitudes.• Standards and Certifications EMC CE, FCC EMI EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A EMS EN 55024, IEC 61000-6-2, IEC 61000-6-4, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS) Green Product RoHS, CRoHS, WEEE• MTBF (mean time between failures) Time 339,822 hrs Database Telcordia (Bellcore), GB• Power Requirements Power Consumption 220 mA @ 5 VDC• Warranty Warranty Period 5 years Details See www.moxa.com/warranty
