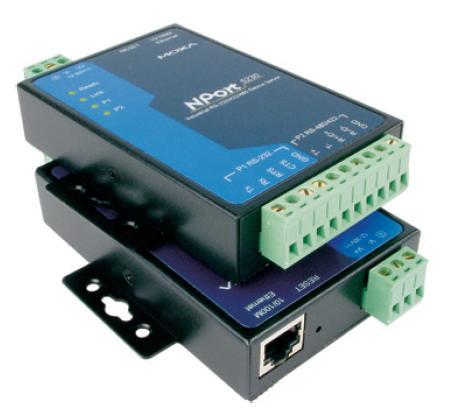

Võrguseade MOXA RS-422/485 server, 2 porti, -40 kuni 75°C, opt. Isol. 2KV

Our NPort device servers make your serial devices network-ready in an instant. Their compact size makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Ethernet Interface 10/100BaseT(X) Ports (RJ45 connector) 1 Magnetic Isolation Protection 1.5 kV (built-in) Ethernet Software Features Management DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x Android API Android 3.1.x and later MIB RFC1213, RFC1317 Serial Interface Connector Terminal block No. of Ports 2 Serial Standards RS-422, RS-485 Operation Modes Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP Baudrate Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400 Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control XON/XOFF RS-485 Data Direction Control ADDC® (automatic data direction control) Isolation 2 kV Serial Signals RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND Power Parameters Input Current 365 mA @ 12 VDC Input Voltage 12 to 48 VDC No. of Power Inputs 1 Power Connector 1 removable 3-contact terminal block(s) Reliability Automatic Reboot Trigger Built-in WDT Alert Tools Built-in buzzer and RTC (real-time clock) Physical Characteristics Housing Metal Dimensions (with ears) 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in) Dimensions (without ears) 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in) Weight 380 g (0.84 lb) Installation Desktop, DIN-rail mounting (with optional kit), Wall mounting Environmental Limits Operating Temperature -40 to 75°C (-40 to 167°F) Storage Temperature (package included) -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% (non-condensing) Standards and Certifications EMC EN 55032/24 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs Safety UL 60950-1 Maritime DNV Declaration Green Product RoHS, CRoHS, WEEE MTBF Time 309,383 hrs Standards Telcordia (Bellcore) Standard TR/SR Warranty Warranty Period 5 years
