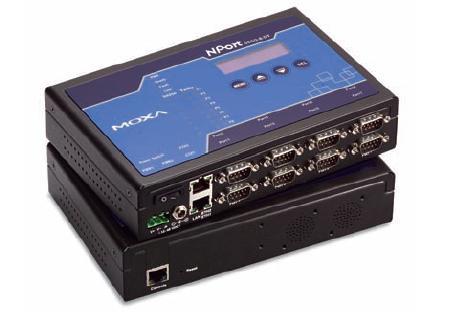

Võrguseade MOXA Switch RS-232/422/485 device server, 8 x DB9M porti, 12-48VDC toide, opt. Isol. 2KV

8 serial ports supporting RS-232/422/485Compact desktop design10/100M auto-sensing EthernetEasy IP address configuration with LCD panelConfigure by Telnet, web browser, or Windows utilitySocket modes: TCP server, TCP client, UDP, Real COMSNMP MIB-II for network management NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available. Convenient Design for RS-485 Applications The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port. Convenient Power Inputs The NPort 5650-8-DT device servers support both power terminal blocks and power jacks for ease of use and greater flexibility. Users can connect the terminal block directly to a DC power source, or use the power jack to connect to an AC circuit through an adapter. LED Indicators to Ease Your Maintenance Tasks The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort 5600’s LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices. Two Ethernet Ports for Convenient Cascade Wiring The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet switch, reducing wiring costs. 10/100BaseT(X) Ports (RJ45 connector) 2 Magnetic Isolation Protection 1.5 kV (built-in) Configuration Options Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility Management ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP Filter IGMP v1/v2 MIB RFC1213, RFC1317 Time Management SNTP Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x Fixed TTY Drivers SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Android API Android 3.1.x and later Connector 8-pin RJ45: NPort 5610-8-DT-J/5650-8-DT-J DB9 male: NPort 5610-8-DT models/NPort 5650-8-DT models/NPort 5650I-8-DT models No. of Ports 8 Serial Standards NPort 5610-8-DT Series: RS-232 NPort 5650-8-DT Series: RS-232/422/485 Baudrate Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS, DTR/DSR, XON/XOFF Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms Terminator for RS-485 120 ohms RS-485 Data Direction Control ADDC® (automatic data direction control) Isolation -I models: 2 kV Surge 0.5 kV Console Port RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1) RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND Input Current NPort 5610-8-DT/NPort 5610-8-DT-J/NPort 5610-8-DT-T: 611 mA @ 12 VDC NPort 5650-8-DT/NPort 5650-8-DT-J/NPort 5650-8-DT-T: 615 mA @ 12 VDC NPort 5650I-8-DT/NPort 5650I-8-DT-T: 1066 mA @ 12 VDC No. of Power Inputs 2 Input Voltage 12 to 48 VDC Power Connector 1 removable 3-contact terminal block(s) 1 power input jack Reverse Polarity Protection Supported Automatic Reboot Trigger Built-in WDT Alert Tools Built-in buzzer and RTC (real-time clock) Housing Metal Dimensions (with ears) 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in) Dimensions (without ears) 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in) Dimensions (with DIN-rail kit on bottom panel) 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in) Weight NPort 5610-8-DT: 1,570 g (3.46 lb) NPort 5610-8-DT-J: 1,520 g (3.35 lb) NPort 5610-8-DT-T: 1,320 g (2.91 lb) NPort 5650-8-DT: 1,590 g (3.51 lb) NPort 5650-8-DT-J: 1,540 g (3.40 lb) NPort 5650-8-DT-T: 1,340 g (2.95 lb) NPort 5650I-8-DT: 1,660 g (3.66 lb) NPort 5650I-8-DT-T: 1,410 g (3.11 lb) Installation Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit) Interactive Interface LCD panel display Push buttons for configuration Operating Temperature Standard models: 0 to 55°C (32 to 131°F) Wide T models: -40 to 75°C (-40 to 167°F) Storage Temperature (package included) -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% (non-condensing) EMC EN 55032/35 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs Safety UL 60950-1, IEC 62368-1 Green Product RoHS, CRoHS, WEEE Time 836,374 hrs Standards Telcordia (Bellcore) Standard Warranty Period 5 years
