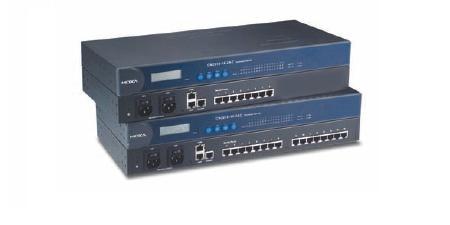

Võrguseade MOXA Serial seadmete server, RS-232/422/485 x 8 porti, 2 x LAN

Moxa's terminal servers are equipped with the specialized functions and security features needed to establish reliable terminal connections to a network, and can connect various devices such as terminals, modems, data switches, mainframe computers, and POS devices to make them available to network hosts and process. Ethernet Interface 10/100BaseT(X) Ports (RJ45 connector) 2 Magnetic Isolation Protection 1.5 kV (built-in) Ethernet Software Features Configuration Options Serial Console, Telnet Console, Windows Utility, Device Search Utility (DSU), Web Console (HTTP/HTTPS) Management ARP, BOOTP, DDNS, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SLIP MIB MIB-II Security HTTPS/SSL, RADIUS, SSH, PAP, CHAP Unicast Routing RIPV1/V2, Static Route Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Android API Android 3.1.x and later Serial Interface Connector 8-pin RJ45 No. of Ports 16 Serial Standards RS-232, RS-422, RS-485 Operation Modes Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM mode, Disabled Baudrate 50 bps to 921.6 kbps Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control None, RTS/CTS, DTR/DSR, XON/XOFF RS-485 Data Direction Control ADDC® (automatic data direction control) Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms Terminator for RS-485 120 ohms Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1) Serial Signals RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND Power Parameters No. of Power Inputs 2 Input Current 130 A @ 110 VAC Input Voltage 100 to 240 VAC (47 to 63 Hz) Reliability Automatic Reboot Trigger Built-in WDT Alert Tools Built-in buzzer and RTC (real-time clock) Physical Characteristics Housing Metal Installation 19-inch rack mounting Dimensions (with ears) 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in) Dimensions (without ears) 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in) Weight 2,640 g (5.82 lb) Environmental Limits Operating Temperature 0 to 55°C (32 to 131°F) Storage Temperature (package included) 0 to 55°C (32 to 131°F) Ambient Relative Humidity 5 to 95% (non-condensing) Standards and Certifications EMC EN 55032/24 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs Safety UL 60950-1 Vibration IEC 60068-2-6 Freefall IEC 60068-2-32 Declaration Green Product RoHS, CRoHS, WEEE MTBF Time 442,699 hrs Standards Telcordia (Bellcore) Standard TR/SR Warranty Warranty Period 5 years
