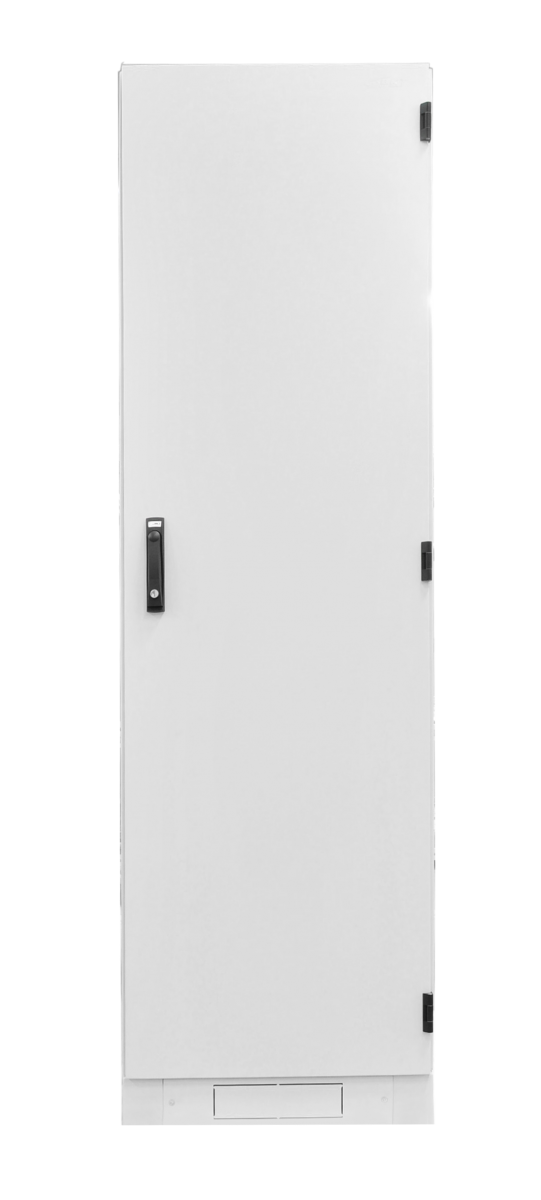

BKT Elektronik Tööstuslik seadmekapp IP54 32U 1640x800x800 k,l,s, metalluks, sokkel, üks külgsein, hall

Application For indoor installation Protection of mounted active and passive devices against unauthorized access Protection of mounted devices against adverse ambient factors (dust, oil, etc.)Standards RoHS – Restriction of dangerous substances penetrating to the environment from electrical and electronic equipment waste EN ISO 9001:2008 – Quality management EN ISO 14001:2004 - Environmental management PN-EN 60529 – Degrees of protection provided by enclosures (IP code)Features Two sets of 19” 42U mounting profiles Removable sectional floor with a foam-sealed cable penetration Three point closing system Handles with inserts, code 1333 One side wall included (second wall: optional accessory) 100mm tall pedestal with knock-out cable penetration blanks Max. static load : 1500kg The door can be mounted right and left The ability to connect cabinets in series after the use of dedicated mounting elements Roof with blanc for a foam-sealed cable penetration and lifting lug installation Door opening angle: ca. 270° All parts electrically bondedConstruction Galvanised steel sheet Steel section frame Metal sheet front/back door Two component polyurethane gasket (hot melt foamed-in-place) RAL7035 colour IP54 protection degree
