Võrguseade Fluke Ampertangide komplekt logeriga 400A, AC, FlukeConnect

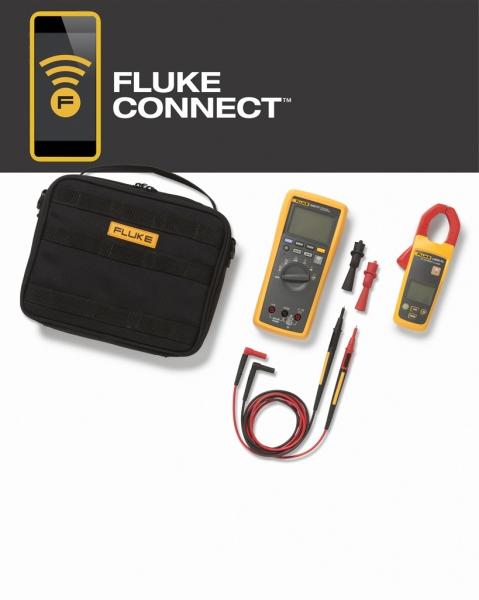

Fluke a3000 FC traadita vahelduvvoolu mõõtekomplektFluke a3000 FC Wireless AC Current Clamp Kit on osa Fluke Connect® juhtmevabade testimisvahendite meeskonnast.Ühendage a3000 FC Wireless AC Current Clamp Module oma testpunktiga ja vaadake tulemusi kuni 20 meetri kaugusel asuval 3000 FC Wireless Digital Multimeter'il.Säästate aega, kuna mitme mõõtmise kogumine vähendab jooksmist. Kasutage mitut moodulit kolmefaasiliste süsteemide mõõtmiseks, eraldiseisva mõõtmisvahendina või kombineerige neid teiste Fluke Connect™ moodulitega süsteemiks mitme mõõtmise jaoks.Lühikese vahemaa tagant saate moodulite näitusid vaadata isegi läbi suletud elektrikilpide. Lisaks ei pea enam andmeid üles kirjutama, sest FC Wireless AC Current Clamp Module salvestab kuni 65 000 komplekti ajamärgistatud min/max/avg näitusid, kasutades lisavarustusena saadavat PC-adapterit. Fluke Connecti traadita testimisvahendid pakuvad ka suuremat turvalisust, võimaldades teil vaadata mõõtmistulemusi testimiskohast eraldi.Nüüd saate mõõtmisi teha liikuvatel masinatel, kusjuures ainult mõõtemoodul on ohus.Fluke 3000 FC Series Wireless Multimeter* For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading] + [Number of least significant digits]).AC VoltageRange¹ / resolution600.0 mV / 0.1 mV6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V1000 V / 1 VAccuracy2 3 445 Hz to 500 Hz1.0% + 3500 Hz to 1 kHz2.0% + 31. All AC voltage ranges are specified from 1% of range to 100% of range.2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3.4. Do not exceed 107 V-Hz.DC Voltage, Continuity, Resistance, Diode Test and CapacitancemVRange / resolution600.0 mV / 0.1 mVAccuracy0.09% + 2VRange / resolution6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V1000 V / 1 VAccuracy0.09% + 20.15% + 2)))Range / resolution600 Ω / 1 ΩAccuracyMeter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.ΩRange / resolution600.0 Ω / 0.1 Ω6.000 kΩ / 0.001 kΩ60.00 kΩ / 0.01 kΩ60.00 kΩ / 0.1 kΩ600.0 kΩ / 0.001 MΩ50.00 MΩ / 0.01 MΩAccuracy0.5% + 20.5% + 11.5% + 3Diode testRange / resolution2.000 V / 0.001 VAccuracy1% + 2µFRange / resolution1000 nF / 1 nF10.00 μF / 0.01 μF100.0 μF / 0.1 μF9999 μF1 / 1 μFAccuracy1.2% + 210% typical1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2.AC and DC CurrentmA AC(45 Hz to 1 kHz)Range1 / resolution60.00 mA / 0.01 mA400.0 mA3/ 0.1 mAAccuracy1.5% + 3mA DC2Range1 / resolution60.00 mA / 0.01 mA400.0 mA3/ 0.1 mAAccuracy0.5% + 31. All AC current ranges are specified from 5% of range to 100% of range.2. Input burden voltage (typical): 400 mA input 2 mV/mA.3. 400.0 mA accuracy specified up to 600 mA overload.FrequencyRange / resolution99.99 Hz / 0.01 Hz999.9 Hz / 0.1 Hz9.999 kHz / 0.001 kHz99.99 kHz / 0.01 kHzAccuracy10.1% + 11. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.Input CharacteristicsOverload protection1100 VrmsInput impedance (nominal)> 10 MΩ < 100 pFCommon mode rejection ratio(1 kΩ unbalance)> 120 dB at DC, 50 Hz or 60 HzNormal mode rejection> 60 dB at 50 Hz or 60 HzOverload protection1100 VrmsInput impedance (nominal)> 10 MΩ < 100 pFCommon mode rejection ratio(1 kΩ unbalance)> 60 dB, DC to 60 HzNormal mode rejection> 60 dB at 50 Hz or 60 HzOverload protection1100 VrmsInput impedance (nominal)> 10 MΩ < 100 pFCommon mode rejection ratio(1 kΩ unbalance)> 120 dB at DC, 50 Hz or 60 HzNormal mode rejection> 60 dB at 50 Hz or 60 HzOpen Circuit Test VoltageOverload protection1100 VrmsInput impedance (nominal)< 2.7 VDCFull scale voltage to 6 MΩFull scale voltage 50 MΩ< 0.7 VDC< 0.9 VDCTypical short circuit current< 350 mAOverload protection1100 VrmsInput impedance (nominal)< 2.7 VDCFull scale voltage to 6 MΩFull scale voltage 50 MΩ2.000 VDCTypical short circuit current< 1.1 mAmA FunctionOverload protectionFused, 44/100 A, 1000 V FAST FuseOverload600 mA overload for 2 minutes maximum, 10 minutes rest minimumMIN/MAX Recording AccuracyDC functions±12 counts for changes > 350 mS in duration.AC functions±40 counts for changes > 900 mS in duration.General SpecificationsMaximum voltage between any terminal and earth ground1000 VDC or AC rmsΩ fuse protection from A inputs0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part onlyDisplay (LCD)Update rate4/secVolts, amps, ohms6000 countsFrequency10,000 countsCapacitance1,000 countsBattery typeThree AA Alkaline batteries, NEDA 15A IEC LR6Battery life250 hours minimumRF communications2.4 GHZ ISM BandRF communication rangeOpen air, unobstructedUp to 20 mObstructed, sheetrock wallUp to 6.5 mObstructed, concrete wall, or steel electrical enclosureUp to 3.5 mTemperatureOperating-10°C to 50°CStorage-40°C to 60°CTemperature coefficient0.1 x (specified accuracy) / °C (< 18°C or > 28°C)Relative humidity0% to 90% (0°C to 35°C)0% to 75% (35°C to 40°C)0% to 45% (40°C to 50°C)AltitudeOperating2,000 mStorage12,000 mElectromagnetic compatibilityEMI, RFI, EMC, RFEN 61326-1:2006, EN 61326-2-2:2006ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489V1.8.1:2008FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLESafety complianceANSI/ISA 61010-1 / (82.02.01): 3rd editionCAN/CSA-C22.2 No 61010-1-12: 3rd editionUL 61010-1: 3rd editionIEC/EN 61010-1:2010CertificationsCSA, FCC, CEIngress Protection (IP) ratingIP54Pollution Degree2Size (H x W x L)4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)Weight340 g (12 oz)WarrantyThree yearsNot compatible with Fluke CNX test toolsFluke a3000 FC Wireless AC Current Clamp ModuleSpecificationsRange0.5 A to 400.0 AResolution0.1 AAccuracy400.0 A: 2% ±5 digits (10 Hz to 100 Hz), 2.5% ±5 digits (100 Hz to 500 Hz)InrushMax displayed reading999.9ACrest factor (50 Hz / 60 Hz)3 at 500 A2.5 at 600 A1.42 at 1000 AAdd 2% for C.F. > 2LCD w/backlight3½ digitsLog rate/interval1 sec minimum/adjustable by PCBattery type2 AA, NEDA 15 A, IEC LR6Battery life400 hoursMemoryRecord up to 65,000 readingsRF communications2.4 GHZ ISM BandRF communication rangeOpen air, unobstructedUp to 20 mObstructed, sheetrock wallUp to 6.5 mObstructed, concrete wall or steel electrical enclosureUp to 3.5 mOperating temperature-10°C to +50°CStorage temperature-40°C to +60°CTemperature coefficientAdd 0.1 x (specified accuracy) / °C (< 18°C or > 28°C)Operating humidity90% at 35°C75% at 40°C45% at 50°CAltitudeOperating2,000 mStorage12,000 mEMCEN 61326-1:2006Safety complianceIEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2Safety ratingCAT III 600 VCertificationsCSA, CE, FCC: T68-FBLE IC: 6627A-FBLEIngress Protection (IP) ratingIP30Pollution Degree2Jaw opening34 mm (1.33 in)Size (H x W x D)20.3 x 7.49 x 3.55 cm (8 x 2.95 x 1.4 in)Weight.22 kg (8 oz)WarrantyThree yearsNot compatible with Fluke CNX test tools
