Võrguseade Fluke 6000A 430 THIN FLEXI 61CM 4PACK

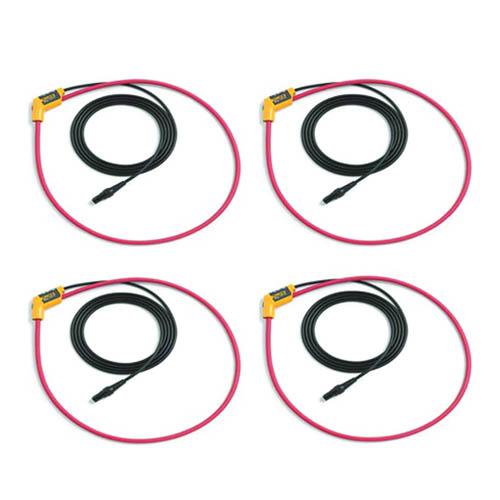

Fluke i430 Flex 4 Packi430 Flex on vahelduvvooluandur, mis kasutab Rogowski põhimõtet. Paindlik ja kerge mõõtepea võimaldab kiiret ja lihtsat paigaldamist raskesti ligipääsetavates kohtades, ilma patareide või välise toiteallikata.Saadaval on ka 4 tk i430 vooluklambri pakend, mida saab kasutada suure voolu mõõtmiseks. Flex-klamber sobib ümber soonte ja suurte või raskesti ligipääsetavate juhtmete. See 4-pakk sobib ideaalselt kasutamiseks koos 3-faasiliste tööriistadega, nagu näiteks Fluke 430-seeria. Fluke i430 Flex 4 PackGeneral SpecificationsProbe and cable materialTPE rubber, reinforced insulationUL94 V-0, Colour: RED Munsell 7.5R 1/14Couplings materialPolypropylene, UL94 V-0Probe cable length610 mmProbe cable diameter12.4 mmProbe cable bend radius40 mmOutput cable length2.5 meters RG58Output connectorSafety BNC ConnectorOperating range-20 to +90°CStorage temperature-40 to +105°COperating humidity15% to 85% (non condensing)Degree of protection (Probe)IP41SpecificationsCurrent range3000 A AC rmsVoltage output (@ 1000 A rms, 50 Hz)85 mVAccuracy±1% of reading(@ 25°C, 50 Hz)Linearity (10% to 100% of range)±0.2% of readingNoise (10 Hz – 7 kHz)1.0 mV AC rmsOutput impedance82 Ω minLoad impedance50 kΩInternal resistance per 100 mm probe length10.5 Ω ± 5%Bandwidth (-3 dB)10 Hz to 7 kHzPhase error (45 – 65 Hz)±1°Position sensitivity±2% of reading max.Temperature coefficient±0.08% max of reading per °CWorking voltage (see Safety Standards section)1000 V AC rms or DC (head)30 V max. (output)Safety SpecificationsSafety standardsBS EN 61010-1 2001BS EN 61010-2-032 2002BS EN 61010-031 2002, 1000 Vrms, Category III, Pollution Degree 2Use of the probe on uninsulated conductors is limited to 1000 V AC rms or DC and frequencies below 1 kHz.Please note that this probe is designed to work with Fluke 435, if used with other productssafety rating for the output to earth is limited to 600 V AC rms or DC.
