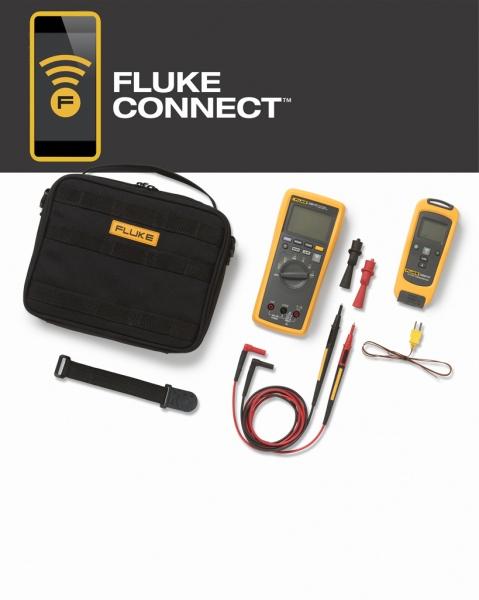

Võrguseade Fluke FC Wireless Essential Kit w T3000FC

Fluke t3000 FC juhtmevaba temperatuurikomplektFluke FC t3000 Wireless Temperature Kit on osa Fluke Connecti juhtmevabade testimisvahendite meeskonnast.Ühendage t3000 FC Wireless Temperature Module oma testpunktiga ja vaadake tulemusi kuni 20 meetri kaugusel olevast 3000 FC Wireless Digital Multimeter'ist.Säästate aega, kuna mitme mõõtmise kogumine vähendab jooksmist. Kasutage mitut moodulit kolmefaasiliste süsteemide mõõtmiseks, eraldiseisva mõõtmisvahendina või kombineerige neid teiste Fluke Connect® moodulitega süsteemiks mitme mõõtmise jaoks.Lühikese vahemaa tagant saate moodulite näitusid vaadata isegi läbi suletud elektrikilpide. Lisaks ei pea enam andmeid üles kirjutama, kuna Fluke Connecti kaugmoodulid salvestavad kuni 65 000 komplekti ajamärgistatud min/max/avg näitusid, kasutades lisavarustuses olevat PC-adapterit. Fluke Connecti traadita testimisvahendid pakuvad ka suuremat turvalisust, võimaldades teil vaadata näidikuid testimiskohast eraldi.Nüüd saate mõõtmisi teha liikuvatel masinatel, kusjuures ainult mõõtemoodul on ohus.Fluke t3000 FC Wireless Temperature KitFluke 3000 FC Wireless Digital Multimeter* For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading] + [Number of least significant digits]).AC VoltageRange 1ResolutionAccuracy 2 3 4Accuracy 2 3 445 Hz to 500 Hz500 Hz to 1 kHz600.0 mV0.1 mV1.0% + 32.0% + 36.000 V0.001 V60.00 V0.01 V600.0 V0.1 V1000 V1 V1. All AC voltage ranges are specified from 1% of range to 100% of range.2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3.4. Do not exceed 107 V-Hz.DC Voltage, Continuity, Resistance, Diode Test and CapacitanceFunctionRangeResolutionAccuracymV600.0 mV0.1 mV0.09% + 2V6.000 V0.001 V0.09% + 260.00 V0.01 V600.0 V0.1 V1000 V1 V0.15% + 2Ω600 Ω1 ΩMeter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.Ω600.0 Ω0.1 Ω0.5% + 26.000 kΩ0.001 kΩ0.5% + 160.00 kΩ0.01 kΩ60.00 kΩ0.1 kΩ600.0 kΩ0.001 MΩ50.00 MΩ0.01 MΩ1.5% + 3Diode test2.000 V0.001 V1% + 2µF1000 nF1 nF1.2% + 210.00 μF0.01 μF100.0 μF0.1 μF9999 μF11 μF10% typical1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2.AC and DC CurrentFunctionRange 1ResolutionAccuracymA AC(45 Hz to 1 kHz)60.00 mA0.01 mA1.5% + 3400.0 mA 30.1 mAmA DC 260.00 mA0.01 mA0.5% + 3400.0 mA 30.1 mA1. All AC current ranges are specified from 5% of range to 100% of range.2. Input burden voltage (typical): 400 mA input 2 mV/mA.3. 400.0 mA accuracy specified up to 600 mA overload.FrequencyRangeResolutionAccuracy 199.99 Hz0.01 Hz0.1% + 1999.9 Hz0.1 Hz9.999 kHz0.001 kHz99.99 kHz0.01 kHz1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.Input CharacteristicsFunctionOverloadprotectionInput impedance(nominal)Common mode rejection ratio(1 kΩ unbalance)Normal mode rejection1100 Vrms> 10 MΩ < 100 pF> 120 dB at DC, 50 Hz or 60 Hz> 60 dB at 50 Hz or 60 Hz1100 Vrms> 10 MΩ < 100 pF> 60 dB, DC to 60 Hz1100 Vrms> 10 MΩ < 100 pF> 120 dB at DC, 50 Hz or 60 Hz> 60 dB at 50 Hz or 60 HzOpen circuit test voltageFull scale voltageTypical short circuit currentTo 6 MΩ50 MΩ1100 V RMS< 2.7 VDC< 0.7 VDC< 0.9 VDC< 350 mA1100 Vrms< 2.7 VDC2.000 VDC< 1.1 mAmA FunctionOverload ProtectionFused, 44/100 A, 1000 V FAST FuseOverload600 mA overload for 2 minutes maximum, 10 minutes rest minimumMIN/MAX Recording AccuracyDC functionsThe specified accuracy of the measurement function ± 12 counts for changes > 350 mS in duration.AC functionsThe specified accuracy of the measurement function ± 40 counts for changes > 900 mS in duration.General SpecificationsMaximum voltage between any terminal and earth ground1000 VDC or AC rmsΩ fuse protection from A inputs0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part onlyDisplay (LCD)Update rate4/secVolts, amps, ohms6000 countsFrequency10,000 countsCapacitance1,000 countsBattery typeThree AA Alkaline batteries, NEDA 15A IEC LR6Battery life250 hours minimumRF communications2.4 GHZ ISM BandRF communication rangeOpen air, unobstructedUp to 20 mObstructed, sheetrock wallUp to 6.5 mObstructed, concrete wall, or steel electrical enclosureUp to 3.5 mTemperatureOperating-10°C to 50°CStorage-40°C to 60°CTemperature coefficient0.1 x (specified accuracy) / °C (< 18°C or > 28°C)Relative humidity0% to 90% (0°C to 35°C)0% to 75% (35°C to 40°C)0% to 45% (40°C to 50°C)AltitudeOperating2,000 mStorage12,000 mElectromagnetic compatibilityEMI, RFI, EMC, RFEN 61326-1:2006, EN 61326-2-2:2006ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLESafety complianceANSI/ISA 61010-1 / (82.02.01)3rd editionCAN/CSA-C22.2 No 61010-1-123rd editionUL 61010-13rd editionIEC/EN 61010-12010CertificationsCSA, FCC, CEIngress Protection (IP) ratingIP54Pollution degree2Size (H x W x L)4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)Weight340 g (12 oz)WarrantyThree yearsNot compatible with Fluke CNX test toolsFluke t3000 FC Wireless K-Type Temperature ModuleGeneral SpecificationsRange K-Type-200°C to 1372°CResolution0.1°CAccuracy±[0.5% + 0.5°C] countsInput terminalsK-type miniLCD w/backlight3 ½ digitsLog rate/interval1 sec minimum/adjustable by PCBattery type2 AA, NEDA 15 A, IEC LR6Battery life400 hoursMemoryRecord up to 65,000 readingsRF communications2.4 GHZ ISM BandRF communication rangeOpen air, unobstructedUp to 20 mObstructed, sheetrock wallUp to 6.5 mObstructed, concrete wall or steel electrical enclosureUp to 3.5 mOperating temperature-10°C to +50°CStorage temperature-40°C to +60°CTemperature coefficient0.01% of reading +0.03°C per °CTemperature scaleITS-90Operating humidity90% at 35°C, 75% at 40°C, 45% at 50°CAltitudeOperating2,000 mStorage12,000 mEMCEN 61326-1:2006Safety complianceIEC 61010-1, CAT I, 3rd edition Pollution Degree 2CertificationsCSA, CE, FCC: T68-FBLE IC: 6627A-FBLEIngress Protection (IP) ratingIP42Pollution Degree2Size (H x W x D)16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in)Weight.22 kg (8 oz)WarrantyThree yearsNot compatible with Fluke CNX test tools
