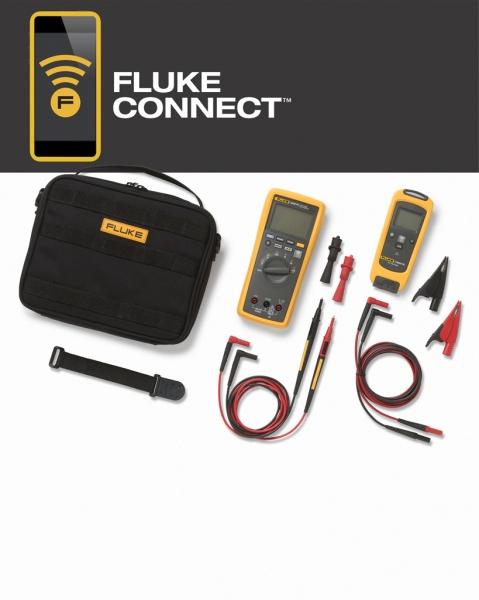

Võrguseade Fluke FC Wireless AC voltmeeter logeriga, KIT

Fluke v3000 FC Wireless Voltage Kit on osa Fluke Connecti juhtmevabade testimisvahendite meeskonnast.Ühendage traadita vahelduvvoolupinge moodul v3000 FC oma testpunktiga ja vaadake tulemusi kuni 20 meetri kaugusel asuval traadita digitaalsel multimeetril 3000 FC.Säästate aega, kuna mitme mõõtmise kogumine vähendab jooksu. Kasutage mitut moodulit kolmefaasiliste süsteemide mõõtmiseks, eraldiseisva mõõtmisvahendina või kombineerige teiste Fluke Connect ™ moodulitega süsteemiks mitme mõõtmise jaoks.Lühikese vahemaa tagant saate moodulite näitusid vaadata isegi läbi suletud elektrikilpide. Lisaks ei pea enam andmeid üles kirjutama, sest FC Wireless Temperature Module salvestab kuni 65 000 komplekti ajamärgistatud min/max/avg näitusid, kasutades lisavarustusena saadavat PC-adapterit. Fluke Connecti traadita testimisvahendid pakuvad ka suuremat turvalisust, võimaldades teil vaadata mõõtmistulemusi testimiskohast eraldi.Nüüd saate mõõtmisi teha liikuvatel masinatel, kusjuures ainult mõõtemoodul on ohus.Fluke FC Wireless v3000 Voltage Kit võimaldab paljude tavaliste elektriliste parameetrite mõõtmist.Fluke 3000 FC seeria juhtmevaba multimeeter koos Fluke Connect™ rakendusega sisaldab kõiki vajalikke seadmeid mugavaks testimiseks ja mõõtmise tõrkeotsinguks:Vahelduv- ja alalispinge mõõtmised kuni 1000 Vvahelduv- ja alalisvoolu mõõtmine 0,01 mA eraldusvõimegaPidevuse, takistuse, dioodi testi, mahtuvuse ja sageduse mõõtmisedMIN/MAX salvestamineCAT III 1000 V, Cat IV 600 V; IP54Fluke v3000 FC traadita vahelduvvoolupingemooduliga saate:Mõõtke kuni 1000 V tõelise ruutkeskmist vahelduvvooluKasutada eraldiseisva mõõtjana või süsteemi osanakasutada logimisfunktsiooni kuni 65 000 mõõtetulemuse salvestamiseks ja salvestamiseks.Fluke v3000 FC traadita vahelduvvoolupinge komplektSisaldab:Fluke 3000 FC seeria traadita multimeeterFluke v3000 vahelduvvoolu pinge moodulTL175 testjuhtmedTL224 testjuhtmedAC175 AlligatorklambridAC285 AlligatorklambridMagnetiline riputusrihm Fluke 3000 FC Wireless Digital Multimeter * For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading] + [Number of least significant digits]). Detailed Specifications AC Voltage Range 1ResolutionAccuracy 234Accuracy 23445 Hz to 500 Hz500 Hz to 1 kHz 600.0 mV 0.1 mV 1.0% + 3 2.0% + 3 6.000 V 0.001 V 60.00 V 0.01 V 600.0 V 0.1 V 1000 V 1 V 1. All AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz. DC Voltage, Continuity, Resistance, Diode Test and Capacitance FunctionRangeResolutionAccuracy mV 600.0 mV 0.1 mV 0.09% + 2 V 6.000 V 0.001 V 0.09% + 2 60.00 V 0.01 V 600.0 V 0.1 V 1000 V 1 V 0.15% + 2 Ω 600 Ω 1 Ω Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. Ω 600.0 Ω 0.1 Ω 0.5% + 2 6.000 kΩ 0.001 kΩ 0.5% + 1 60.00 kΩ 0.01 kΩ 60.00 kΩ 0.1 kΩ 600.0 kΩ 0.001 MΩ 50.00 MΩ 0.01 MΩ 1.5% + 3 Diode test 2.000 V 0.001 V 1% + 2 µF 1000 nF 1 nF 1.2% + 2 10.00 μF 0.01 μF 100.0 μF 0.1 μF 9999 μF1 1 μF 10% typical 1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2. AC and DC Current FunctionRange 1ResolutionAccuracy mA AC (45 Hz to 1 kHz) 60.00 mA 0.01 mA 1.5% + 3 400.0 mA 3 0.1 mA mA DC 2 60.00 mA 0.01 mA 0.5% + 3 400.0 mA 3 0.1 mA 1. All AC current ranges are specified from 5% of range to 100% of range. 2. Input burden voltage (typical): 400 mA input 2 mV/mA. 3. 400.0 mA accuracy specified up to 600 mA overload. Frequency RangeResolutionAccuracy 1 99.99 Hz 0.01 Hz 0.1% + 1 999.9 Hz 0.1 Hz 9.999 kHz 0.001 kHz 99.99 kHz 0.01 kHz 1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps. Input Characteristics FunctionOverload protectionInput impedance (nominal)Common mode rejection ratio (1 kΩ unbalance)Normal mode rejection 1100 Vrms > 10 MΩ < 100 pF > 120 dB at DC, 50 Hz or 60 Hz > 60 dB at 50 Hz or 60 Hz 1100 Vrms > 10 MΩ < 100 pF > 60 dB, DC to 60 Hz 1100 Vrms > 10 MΩ < 100 pF > 120 dB at DC, 50 Hz or 60 Hz > 60 dB at 50 Hz or 60 Hz Open circuit test voltageFull scale voltageTypical short circuit currentTo 6 MΩ50 MΩ 1100 Vrms < 2.7 VDC < 0.7 VDC < 0.9 VDC < 350 mA 1100 Vrms < 2.7 VDC 2.000 VDC < 1.1 mA mA Function Overload Protection Fused, 44/100 A, 1000 V FAST Fuse Overload 600 mA overload for 2 minutes maximum, 10 minutes rest minimum MIN/MAX Recording Accuracy DC functions The specified accuracy of the measurement function ±12 counts for changes > 350 mS in duration. AC functions The specified accuracy of the measurement function ±40 counts for changes > 900 mS in duration. General Specifications Maximum voltage between any terminal and earth ground 1000 VDC or AC rms Ω fuse protection from A inputs 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only Display (LCD)Update rate 4/secVolts, amps, ohms 6000 countsFrequency 10,000 countsCapacitance 1,000 counts Battery type Three AA Alkaline batteries, NEDA 15A IEC LR6 Battery life 250 hours minimum RF communications 2.4 GHZ ISM Band RF communication rangeOpen air, unobstructed Up to 20 mObstructed, sheetrock wall Up to 6.5 mObstructed, concrete wall, or steel electrical enclosure Up to 3.5 m TemperatureOperating -10°C to 50°CStorage -40°C to 60°C Temperature coefficient 0.1 x (specified accuracy) / °C (< 18°C or > 28°C) Relative humidity 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) AltitudeOperating 2,000 mStorage 12,000 m Electromagnetic compatibility EMI, RFI, EMC, RF EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE Safety complianceANSI/ISA 61010-1 / (82.02.01) 3rd editionCAN/CSA-C22.2 No 61010-1-12 3rd editionUL 61010-1 3rd editionIEC/EN 61010-1 2010 Certifications CSA, FCC, CE Ingress Protection (IP) rating IP54 Pollution degree 2 Size (H x W x L) 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) Weight 340 g (12 oz) Warranty Three years Not compatible with Fluke CNX test tools Fluke v3000 FC Wireless AC Voltage Module Accuracy is specified as ±([% of reading] + [number of least significant digits]). All ranges are autoranging. Accuracy is specified from 5% to 100% of the range obtained by autoranging, from 18°C to 28°C. Specifications Range ¹ / Resolution 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V Accuracy 23445 Hz to 500 Hz 1.0% + 3 500 Hz to 1 kHz 2.0% + 3 1. All AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz. General Specifications LCD w/ backlight 3½ digits, 6000 counts, updates 4/sec Battery type 2 AA, NEDA 15 A, IEC LR6 Battery life 400 Hours Memory Record up to 65000 readings RF communications 2.4 GHZ ISM Band RF communication rangeOpen air, unobstructed Up to 20 m Obstructed, sheetrock wall Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure Up to 3.5 m Operating temperature -10°C to +50°C Storage temperature -40°C to +60°C Temperature coefficient 0.1 x (specified accuracy) / °C (< 18°C or > 28°C) Operating humidity 90% at 35°C, 45% at 40°C, 45% at 50°C AltitudeOperating 2,000 m Storage 12,000 m EMC EN 61326-1:2006 Safety complianceANSI/ISA 61010-1 / (82.02.01) 3rd edition CAN/CSA-C22.2 No 61010-1-12 3rd edition UL 61010-1 3rd edition IEC/EN 61010-1 2010 Safety rating CAT IV 600 V, CAT III 1000 V Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE Ingress Protection (IP) rating IP42 Pollution Degree 2 Size (H x W x D) 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in) Weight .22 kg (8 oz) Warranty Three years Not compatible with Fluke CNX test tools
