Võrguseade Fluke 116/62 MAX+ multimeeter ja IR-termomeetri komplekt

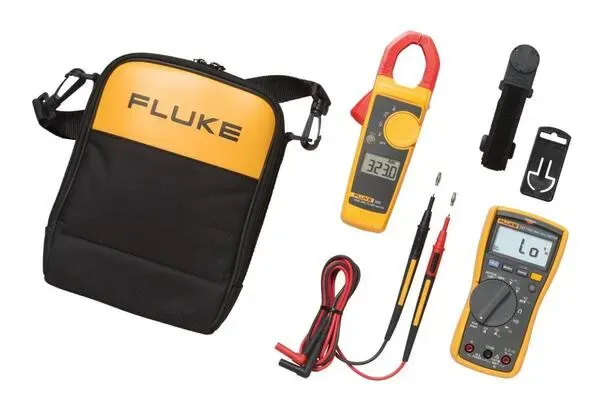

Fluke117 digitaalmultimeeter. Elektrikute poolt disainitud. Fluke poolt konstrueeritud.VoltAlert™ tehnoloogia kontaktivaba pinge tuvastamiseks.AutoVolt automaatne vahelduvvoolu/alalisvoolu pinge valik.Madal sisendtakistus: aitab vältida vale näitude tekkimist varipinge tõttu.Suur valge LED-taustvalgustus töötamiseks halvasti valgustatud kohtades.True-rms täpsete mõõtmiste jaoks mittelineaarsete koormuste puhul.Mõõdab 10 A (20 A ülekoormus 30 sekundiks).Takistus, jätkuvus, sagedus ja mahtuvus.Min/Max/Keskmine signaali kõikumiste registreerimiseks.Kompaktne ergonoomiline disain ühe käega kasutamiseks.CAT III 600 V ohutusklass.Fluke 323 True-rms klemm-mõõtur. Vastupidav. Usaldusväärne. Täpne.400 A vahelduvvoolu mõõtmine.600 V vahelduv- ja alalisvoolu mõõtmine.True-rms vahelduvvoolu ja -pinge täpseks mõõtmiseks mittelineaarsete signaalide puhul.Takistuse mõõtmine kuni 40 k? koos pidevuse tuvastamisega.Õhuke, ergonoomiline disain.CAT IV 300 V/CAT III 600 V ohutustase.Fluke 117 and 323 Electrician’s Multimeter Combo KitFluke 117 Digital MultimeterSpecificationsMaximum voltage between any terminal and earth ground600 VSurge protection6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2Fuse for A input11 A, 1000 V FAST Fuse (Fluke PN 803293)DisplayDigital: 6,000 counts, updates 4 per secondBar graph33 segments, updates 32 per secondOperating temperature-10°C to +50°CStorage temperature-40°C to +60°CBattery type9 volt Alkaline, NEDA 1604A/ IEC 6LR61Battery life400 hours typical, without backlightAccuracy SpecificationsDC millivoltsRange/Resolution600.0 mV / 0.1 mVAccuracy±([% of reading] + [counts]): 0.5% + 2DC voltsRange/Resolution6.000 V / 0.001 V60.00 V / 0.01 V600.00 V / 0.1 VAccuracy±([% of reading] + [counts]): 0.5% + 2Auto voltsRange/Resolution600.0 V / 0.1 VAccuracy2.0% + 3 (DC, 45 Hz to 500 Hz)4.0% + 3 (500 Hz to 1 kHz)AC millivolts¹ True RMSRange/Resolution600.0 mV / 0.1 mVAccuracy1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)AC volts¹ True RMSRange/Resolution6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 VAccuracy1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)ContinuityRange/Resolution600 Ω / 1 ΩAccuracyBeeper on < 20 Ω, off > 250 Ω; detects opens or shorts of500 μs or longer.OhmsRange/Resolution600.0 Ω / 0.1 Ω6.000 kΩ / 0.001 kΩ60.00 kΩ / 0.01 kΩ600.0 kΩ / 0.1 kΩ6.000 MΩ / 0.001 MΩAccuracy0.9% + 1Range/Resolution40.00 MΩ / 0.01 MΩAccuracy5% + 2Diode testRange/Resolution2.00 V / 0.001 VAccuracy0.9% + 2CapacitanceRange/Resolution1000 nF / 1 nF10.00 μF / 0.01 μF100.0 μF / 0.1 μF9999 μF / 1 μF100 μF to 1000 μFAccuracy1.9% + 2Range/Resolution> 1000 μFAccuracy5% + 20%Lo-Z capacitanceRange1 nF to 500 μFAccuracy10% + 2 typicalAC amps True RMS (45 Hz to 500 Hz)Range/Resolution6.000 A / 0.1 A10.00 A / 0.01 AAccuracy1.5% + 320 A continuous overload for 30 seconds maxDC ampsRange/Resolution6.000 A / 0.1 A10.00 A / 0.01 AAccuracy1.0% + 320 A continuous overload for 30 seconds maxHz (V or A input)²Range/Resolution99.99 Hz / 0.01 Hz999.99 Hz / 0.1 Hz9.999 Hz / 0.001 Hz50.00 Hz / 0.01 HzAccuracy0.1% + 21. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.• Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.• Temperature Range/Resolution: -40°F to 752°F / 0.2°F.Mechanical and General SpecificationsSize167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)Weight550 gWarranty3 yearsFluke 323 True RMS Clamp MeterSpecificationsAC currentRange400.0 AAccuracy2% ±5 digits(45 Hz to 65 Hz)2.5% ±5 digits(65 Hz to 400 Hz)AC voltageRange600.0 VAccuracy1.5% ±5 digitsDC voltageRange600.0 VAccuracy1.0% ±5 digitsResistanceRange/Resolution400.0 Ω/ 4000 ΩAccuracy1.0% ±5 digitsContinuity≤ 70 ΩAC responseTrue RMSData holdYesSizeH x W x D (mm)207 x 75 x 34Max wire diameter30 mm (600 MCM)Weight265 gCategory ratingCAT III 600 VCAT IV 300 VWarrantyTwo-year
