Võrguseade Ubiquiti 60 GHz raadiolink: PtMP, 2 Gbps 8 km, 5GHz backup radio, IP X6, passive PoE toide

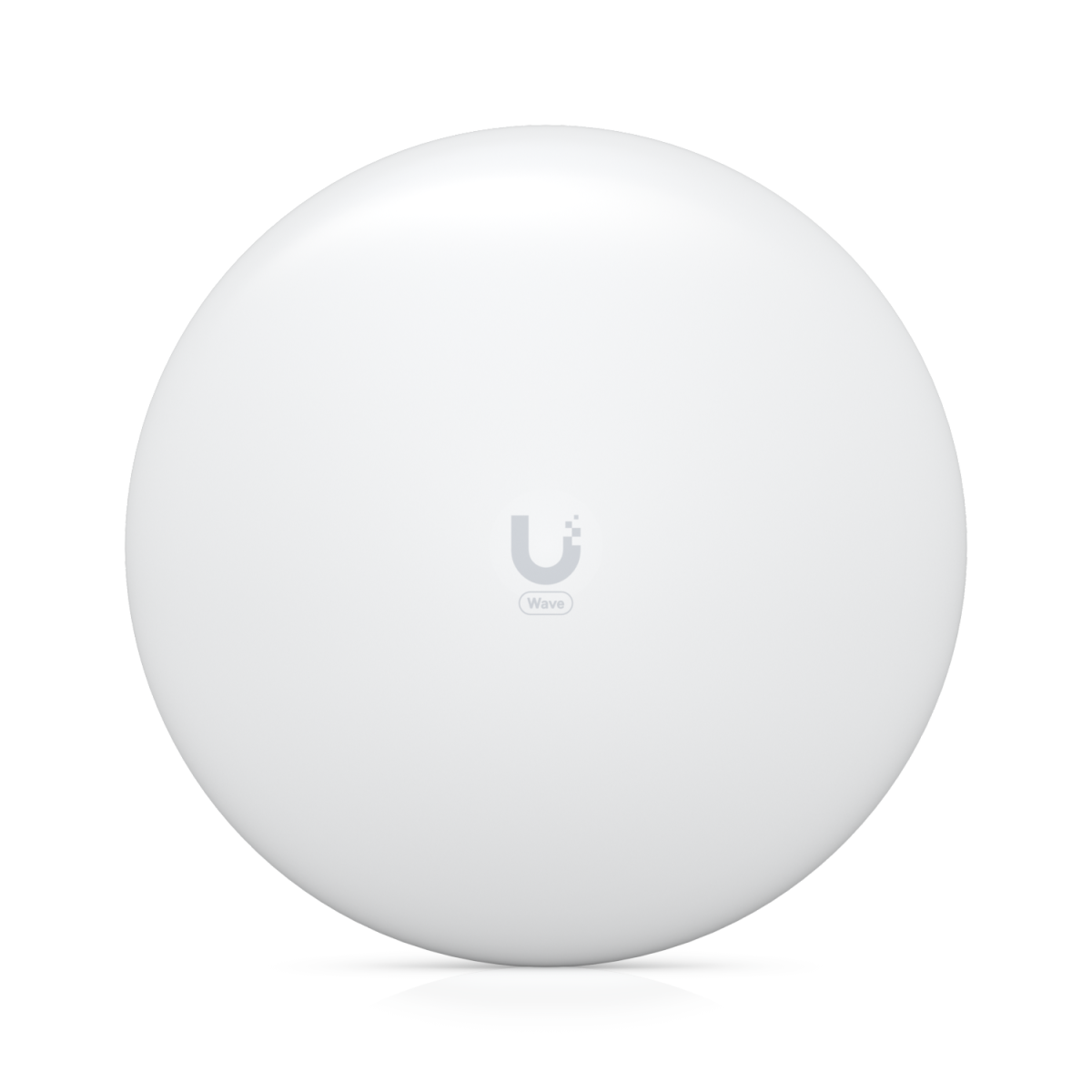

60 GHz PtMP jaam, mida toetab Wave Technology.Zoom inMechanicalDimensionsØ424.4 x 166.2 mm (Ø16.7 x 6.5")WeightWithout mount: 2.6 kg (5.7 lb)With mount: 3.8 kg (8.4 lb)Enclosure materialUV stabilized plasticMount materialStainless steelPole mount diameter25 to 76.2 mm (1 to 3") on pipe outer diameterWind loading286 N at 200 km/h (64.3 lbf at 125 mph)WeatherproofingIPX6HardwareProcessorDual-core ARM® Cortex®-A53 at 1 GHzMemoryDDR3L 512 MBNetworking interface(1) GbE RJ45 portMax. power consumption20WPower methodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC onlyPower supply48V DC, 0.65A gigabit PoE adapter (Included)Can be powered by a UISP Router or UISP SwitchSupported voltage range44–54V DC22–27V DCGPSYesButtonFactory resetLEDsPower, Ethernet, GPS, linkAmbient operating temperature-40 to 60° C (-40 to 140° F)Ambient operating humidity5 to 95% noncondensingCertificationsFCC, IC, CESoftwareOperating modePtMP station, PtP**FW version 3.2.0 and later.Ubiquiti specific featuresWave AI, discovery protocolServicesUISP, ping watchdog, NTP client, SNMPToolsAntenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*, traffic shaping***FW version 3.3.0 and later.**FW version 3.4.0 and later.NetworkBridge/Router* mode*Router is available in PtMP station mode only.Application requirementsUISP: Version 1.4.5 and laterSystemTotal throughput2 GbpsMax. range8+ kmEncryptionWPA2-PSK (AES)RFOperating frequency*57–71 GHz*Depends on regulatory region.Channel bandwidth2160, 1080, 540* MHz*FW version 3.3.0 and later.Operating channels*58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz*Depends on regulatory region.Modulation16QAM, QPSKAntenna gain46 dBiPolarizationVertically linearBeamwidthAzimuth: 3 dB 1°Elevation: 3 dB 1°Back-Up RFWiFi standard802.11ax (WiFi 6)Operating frequency*US/CAWorldwideU-NII-1 5150 - 5250 MHzU-NII-2A 5250 - 5350 MHzU-NII-2C 5470 - 5725 MHzU-NII-3 5725 - 5850 MHz5150 - 5875 MHz*Depends on regulatory region.Channel bandwidth20, 40, 80 MHzModulationBPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)Antenna gain22 dBiPolarizationDual-linearBeamwidthAzimuth: 3 dB 8°Elevation: 3 dB 8°Cross-pol isolation20 dBLEDsPowerFlashing white: bootup in progressWhite: not connected to UISP applicationBlue: connected to UISP applicationFlashing blue: locate in progressBlue/white: firmware upgrade in progressEthernetFlashing blue: Ethernet traffic detectedGPSBlue: receiving at least (4) GPS satellite signalLinksWhite: 5GHz linkBlue: 60GHz link
