Tasker Datakaabel, LIYCY 2x0,25mm², sukkvarje

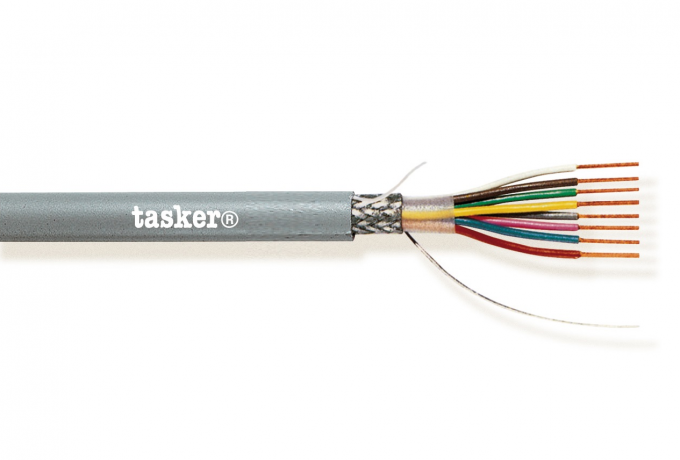

KIRJELDUSPunutud varjestatud LiYCY kaablidJuhtmed: O.F.C. punasest vasest keermestatud.Aheraine värvid: DIN 47100 standardidTühjendusjuhe: O.F.C. tinatatud vasest keermestatud.Kogu varjestus: Punutud kate 85% välismetallist tinatatud vasest.Punutud varjestatud LiYCY-kaabel andmeedastuseks ja elektroonikaks vastavalt standarditele VDE 0812 / VDE 0207.NOTE The picture don’t represent the real number of conductors.CATEGORY Shielded Cable (See Data Network Catalogue)APPLICATIONS Data transmission and electronics.A: Grey Soft PVC Sheath. Outer cable Diam. Ø 4,60 (±0,10) mm.B: Braided Shielding in O.F.C. Tinned Copper, covering 85% + Drain Wire.C: Cores Insulation with Soft PVC colored following DIN 47100 Standards. Color Code: White, Brown. Diam. Ø 1,30 (±0,10) mm. Stranded with waste filler between conductors and wrapped with Mylar Tape.D: Stranded O.F.C. Red Copper formation 14x0,15 mm. Nom. Cross section 2x0,25 mm².MARKING tasker® C210 LiYCY 2x0,25 – 23 AWG Low Voltage Computer Cable made in ItalyCUSTOM PRODUCTION This product may be custom produced also in L.S.Z.H. polymer, PE, PUR, with or without Metallic Armor.Cable PropertiesConductor Resistance 75,85 Ω/KmCapacity Core/Core 110 pF/mtCapacity Core/Shield 190 pF/mtMax Rated Voltage 49 VOperative Temperature -15/+70°C
