Tasker Kaablid Datakaabel, LIYCY 12x0,25mm², sukkvarje

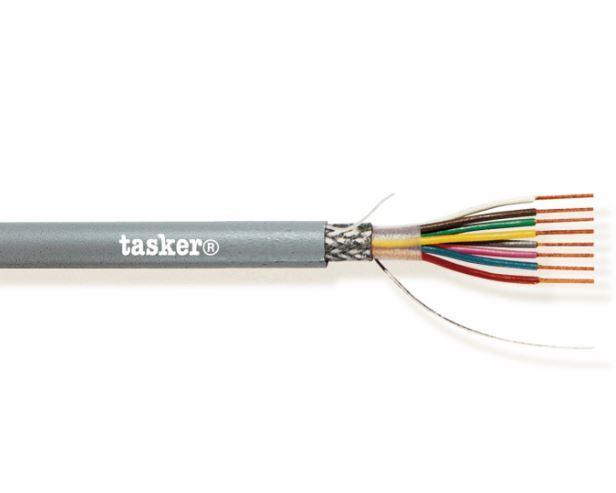

KIRJELDUSPunutud varjestatud LiYCY kaablid, 0,25 mm ristlõikegaJuhtmed: O.F.C. punasest vasest keermestatud.Aheraine värvid: DIN 47100 standardidTühjendusjuhe: keermestatud lõõmutatud vasest.Kogu varjestus: Punutud kate 85% välismetallist tinatatud vasest.Punutud varjestatud LiYCY-kaabel andmeedastuseks ja elektroonikaks vastavalt standarditele VDE 0812 / VDE 0207.NOTE CATEGORY APPLICATIONS The picture don’t represent the real number of conductors.Shielded Cable (See Data Network Catalogue)Data transmission and electronicsA: Grey Soft PVC Sheath. Outer cable Ø: 8,10 (±0,10) mm.B: Braided Shielding in O.F.C. Tinned Copper, covering 85% + Drain Wire.C: Cores Insulation with Soft PVC– DIN 47100 Standards. Color Code: White, Brown, Green, Yellow, Grey, Pink, Blue, Red, Black, Violet, Grey/Pink, Red/Blue. Diam. Ø 1,30 (±0,10) mm. Stranded with waste filler between conductors and wrapped with Mylar Tape.D: Stranded O.F.C. Red Copper formation 14x0,15 mm. Nom. Cross section 12x0,25 mm².MARKING CUSTOM PRODUCTION tasker® C216 LiYCY 12x0,25 – 23 AWG Low Voltage Computer Cable made in ItalyThis product may be custom produced also in L.S.Z.H. polymer, PE, PUR, with or without Metallic Armor.Cable PropertiesConductor Resistance 75,85 Ω/KmCapacity Core/Core 80 pF/mtCapacity Core/Shield 150 pF/mtMax Rated Voltage 49 VOperative Temperature -15/+70°C
