Tasker Datakaabel, LIYCY 16x0,25mm², sukkvarje

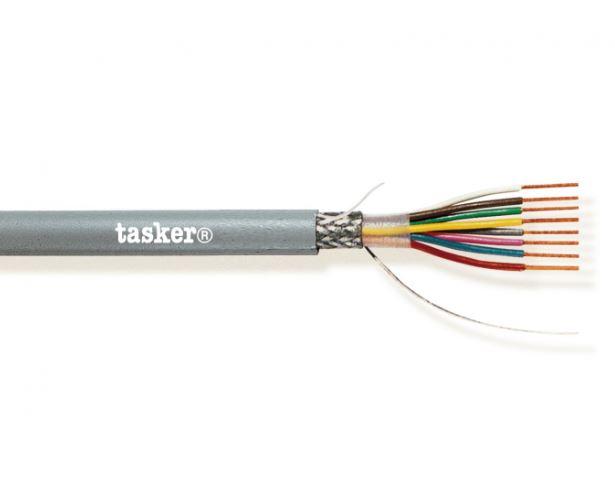

KIRJELDUSPunutud varjestatud LiYCY kaablidJuhtmed: O.F.C. punasest vasest keermestatud.Aheraine värvid: DIN 47100 standardidTühjendusjuhe: O.F.C. tinatatud vasest keermestatud.Kogu varjestus: Punutud kate 85% välismetallist tinatatud vasest.Punutud varjestatud LiYCY-kaabel andmeedastuseks ja elektroonikaks vastavalt standarditele VDE 0812 / VDE 0207.NOTE CATEGORY APPLICATIONSThe picture don’t represent the real number of conductors.Shielded Cable (See Data Network Catalogue)Data transmission and electronicsA: Grey Soft PVC Sheath. Outer cable Ø: 9,00 (±0,20) mm.B: Braided Shielding in O.F.C. Tinned Copper, covering 85% + Drain Wire.C: Cores Insulation with Soft PVC– DIN 47100 Standards. Color Code: White, Brown, Green, Yellow, Grey, Pink, Blue, Red, Black, Violet, Grey/Pink, Red/Blue, White/Green, Brown/Green, White/Yellow, Yellow/Brown. Diam. Ø 1,30 (±0,20) mm. Stranded with waste filler between conductors and wrapped with Mylar Tape.D: Stranded O.F.C. Red Copper formation 14x0,15 mm. Nom. Cross section 14x0,25 mm².MARKING CUSTOM PRODUCTION tasker® C218 LiYCY 16x0,25 mm² – Low Voltage Computer Cable – Made in ItalyThis product may be custom produced also in L.S.Z.H. polymer, PE, PUR, with or without Metallic Armor.Cable Properties Conductor Resistance 75,85 Ω/KmCapacity Core/Core 70 pF/mCapacity Core/Shield 150 pF/mMax Rated Voltage 49 VOperative Temperature -15/+70°C
