Tasker Datakaabel, LIYCY 14x0,14mm², sukkvarje

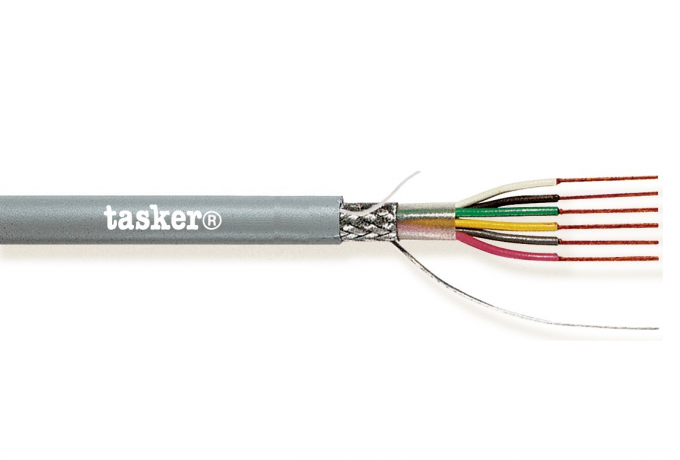

KIRJELDUSPunutud varjestatud LiYCY kaablidJuhtmed: O.F.C. punasest vasest keermestatud.Aheraine värvid: DIN 47100 standardidTühjendusjuhe: O.F.C. tinatatud vasest keermestatud.Kogu varjestus: Punutud kate 85% välismetallist tinatatud vasest.Punutud varjestatud LiYCY-kaabel andmeedastuseks ja elektroonikaks vastavalt standarditele VDE 0812 / VDE 0207.NOTE The picture don’t represent the real number of conductorsCATEGORY Shielded Cable for Data (See Data Network Catalogue)APPLICATIONS Data transmissions and electronicsA: Grey Soft PVC Sheath. Outer cable diam. Ø 7,20 (±0,20) mm.B: Braided Shielding O.F.C. Tinned Copper covering 85% + Drain WireC: Cores Insulation with Soft PVC. Core diam. Ø 1,10 (±0,20) mm. Color Code DIN 47100 Standards: White, Brown, Green, Yellow, Grey, Pink, Blue, Red, Black, Violet, Grey/Pink, Red/Blue, White/Green, Brown/Green. Stranded with waste filler between conductors and wrapped with Mylar Tape.D: Stranded O.F.C. Red Copper, formation 18x0,10 mm. Nom. Cross section 14x0,14 mm².MARKING tasker® C249 LiYCY 14x0, 14 - 26 AWG LOW VOLTAGE Computer Cable Made In ItalyCUSTOM PRODUCTION This product may be custom produced also in LSZH, PE, PUR, with or without Metallic Armor.Cable PropertiesConductor Resistance 138 Ω/KmCapacity Core/Core 80 pF/mtCapacity Core/Shield 150 pF/mtMax Rated Voltage 49 VOperative Temperature -15/+70°C
