Alphacool ES Laing DDC310 Pump - Single black plastic bottom
Tootekood: 13991GTIN: 4250197139915Pumps for water cooling
The Alphacool ES Solution Laing DDC310 pump serves as the foundation for various 1 to 4U server solutions from Alphacool. The unit is based around the very popular Alphacool DDC pump and has been coupled with a simple pump base to maintain compatibility with various Enterprise Solution reservoirs. Compact and powerful. The flat design of the Laing DDC310 pump saves space and fits with the corresponding Enterprise reservoirs from chassis as small as a 1U server rack. This results in a very powerful pump that can be used in the smallest of spaces. The DDC310 variant offers with a delivery height of 2.44m enough power to operate an extensive water loop. The performance is enough to operate a dual or quad socket system including reservoir and radiators. The performance of the pump is also sufficient to operate a render server with up to 4 graphics cards. Spherical Ceramic Bearing The pump uses a shaftless ball motor or spherical bearing. The motor is driven by magnets while the rotor is mounted on a ball-ceramic bearing. This makes the pump maintenance-free, as the bearing is self-adjusting and maintenance-free. The pump is lubricated by the coolant during operation. This makes the Alphacool ES Solution Laing DDC310 pump a so-called wet rotor pump. Due to its design, even small particles of dirt are no problem for the pump. Installation and Commissioning The pump is delivered with a classic plastic bottom which ensures a high compatibility to all Enterprise Solution products. However, the pump can also be mounted on all existing DDC pump tops from Alphacool. The pump comes with a corresponding O-ring, only the mounting screws must be used from the respective reservoir, as these may differ in length. The power is supplied via a 4-pin Molex connector, the speed can be read out via a 3-pin Molex connector. This is usually done via the 3-pin fan connector on the mainboard or via an appropriate fan controller. Technical data Dimensions (L x W x H) 62 x 62 x 30mm Material Stainless steel, Carbon (FH821Z2), Ceramic (Al2O3 99,5%), Luranyl KR 2403 GW T4 (PPE+PS) , Fortron 1140L4 (PPS) Weight 170g Speed 3250 rpm Max power consumption 8W Voltage 12V DC Power connector 4-Pin Molex PWM control n/a Tacho-Signal yes (3-Pin Molex) Max. working temperature ambiente 10°C - 50°C Max. working temperature water 10°C - 60°C Max. head of pump 2,28m Max. flow 200 l/h Color black Revision DDC4.CF-XTXXWX-01 BP54
The Alphacool ES Pressure Valve is designed to manage pressure fluctuations in closed-loop water cooling systems. Developed for use in servers, workstations, and industrial environments, it safeguards individual components from excessive pressure build-up. Thanks to its compact dimensions—just 20.0 mm in height and 16.0 mm in diameter—the valve is well-suited for installations where space is limited. The G1/4" thread ensures straightforward integration into existing cooling circuits. Installation is versatile, allowing the valve to be positioned where it most effectively contributes to system reliability. Engineered for continuous use under demanding conditions, the valve features a durable housing that resists both thermal and mechanical stress. Its precision valve mechanism guarantees reliable performance throughout its entire operational lifespan. Technical specifications Type: Pressure equalizing valve to limit the pressure increase in the closed system Dimensions: 20.0 mm x 16.0 mm Material Valve body: brass (CuZn39Pb3) Compression spring material: stainless steel (X10CrNi18-8) Material O-ring: NBR Shore 70 Working pressure: 2bar Burst pressure: 4bar Working temperature (in degrees Celsius): -20 ~ +100 Recommended liquids: water, deionized water, glycol water, propanediol water etc. Thread type: G1/4’, external thread 5mm Weight: 18g Color: silver/black
Tootekood: 17635GTIN: 4250197176354Liquids for water cooling
Reinstwasser für Wasserkühlungen, frei von organischen und anorganischen Stoffen, demineralisiert und deionisiert, verhindert das Bilden von Rückständen
The Alphacool ES RTX 4000 Ada Ge. GPU cooler was developed for the Enterprise Series, but not only impresses with its improved cooling performance and compact design, but also with its matt carbon look.Connections at the rear?By using a thin and extremely stable carbon plate, it was possible to design this as a single-slot cooler without having to compromise on the copper base. In combination with the connections positioned at the rear, several coolers can be stacked on top of each other with ease. This well thought-out design saves space, simplifies tubing and enables seamless integration into the water loop.More performance!Alphacool has given special attention to increasing cooling performance. In addition to optimising the water flow within the cooler and the thickness of the copper block, 1mm high-performance heat conducting pads are used. These measures ensure that the components to be cooled are closer to the cooler, which leads to significantly more effective cooling of all important components.Copper or aluminium?High-quality copper is used for all water-bearing parts, which offers almost twice the thermal conductivity of aluminium. The copper is also chrome-plated instead of nickel-plated, which provides additional protection for the cooler. The chrome plating is more resistant to acids, scratches and other damages, which effectively prevents coatings from flaking off.Thermal paste & thermal padsThe scope of delivery includes Apex thermal compound, which is the most durable thermal compound Alphacool offers with its low silicone content. This electrically non-conductive paste is ideal for high contact pressures and is easy to work with thanks to its viscosity. Soft, high-performance thermal pads are also supplied, which adapt perfectly to the components to be cooled. Compatibility:- Nvidia RTX 4000 Ada Generation, 20GB GDDR6, 4x DP, bulk (900-5G190-2270-000) Technical dataDimensions (L x W x H)241,25 x 96,70 x 17,50mmHeight of the backplate1mmWeight (total)1100gCooler base materialChome-plated copperCooler top materialCarbonThreads2 x G1/4"Maximum working temperature60 °CPressure tested8 BarColorBlackWarranty: 3 years???? Warranty Terms
Alphacool is expanding its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server cases and workstations and enable efficient cooling, even in densely populated systems. By using a thin and extremely stable carbon plate, this cooler could be designed as a single-slot cooler without compromising on the copper block. Combined with the rear-mounted brass connectors, multiple coolers can be easily stacked on top of each other or side by side in the server case. This sophisticated design saves space, simplifies piping, and enables seamless integration into the water loop. High-quality copper is used for all water-carrying parts, which offers almost twice the thermal conductivity of aluminum. Furthermore, the copper is chrome-plated instead of nickel-plated, providing additional protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing coatings from chipping. Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new Nvidia GeForce RTX generation. Compatibility: - MSI GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC - MSI GeForce RTX™ 5070 Ti 16G SHADOW 3X OC - MSI GeForce RTX™ 5070 Ti 16G VENTUS 3X OC (V531-092R) - Inno3D GeForce RTX™ 5080 iChill Frostbite (C50803-16D7X-1760FB) - Inno3D GeForce RTX™ 5080 iChill X3 (C50803-16D7X-176069H) - Inno3D GeForce RTX™ 5080 X3 (N50803-16D7-176068N) - Inno3D GeForce RTX™ 5080 X3 OC (N50803-16D7X-17603930) - Inno3D GeForce RTX™ 5080 X3 OC White (N50803-16D7X-17605211) - MSI GeForce RTX™ 5080 16G SHADOW 3X OC (G5080-16S3C) - MSI GeForce RTX™ 5080 16G VENTUS 3X OC (V531-095R) - MSI GeForce RTX™ 5080 16G VENTUS 3X OC Plus (V531-001R) Technical data cooler Complete dimensions (L x W x H) 186.50 x 95.75 x 21.19 mm Radiator base material chrome-plated copper Material radiator top Acrylic Material Terminal Brass Material connection thread Brass Maximum working temperature 60°C Pressure tested 0.8 bar Connections 2 x G1/4" Thickness of radiator base 3.25 mm Thick cooling fins 0.4 mm Distance between cooling fins 0.4 mm Color transparent Technical data backplate Dimensions (L x W x H) 171.50 x 95.75 x 3 mm Thick backplate without spacers 1 mm Material aluminum Warranty: 3 years
Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server enclosures and workstations, enabling efficient cooling even in densely packed systems.By employing a thin yet extremely robust carbon plate, these coolers have been designed as 1-slot units without compromising the integrity of the copper block. Paired with rear-placed brass connectors, multiple coolers can be easily stacked on top of each other or side by side within a server case. This thoughtful design saves space, simplifies tubing, and allows for seamless integration into the water circuit.All water-bearing parts are made from high-quality copper, which offers nearly twice the thermal conductivity of aluminum. Additionally, the copper is chrome-plated rather than nickel-plated, providing extra protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing the chipping of coatings.The GPU water cooler has undergone a complete technical overhaul. To optimize cooling performance, the spacing between the cooler and the components on the PCB was redefined and tested. The water flow was simulated using state-of-the-art software and validated through practical trials. These extensive tests led to improvements in the cooler base and nozzle, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation. Compatibility:- Inno3D GeForce RTX™ 5090 iChill Frostbite (C50903-32D7X-1759FB)- Inno3D GeForce RTX™ 5090 iChill X3 (C50903-32D7X-175967H)- Inno3D GeForce RTX™ 5090 X3 (N50903-32D7-17593928)- Inno3D GeForce RTX™ 5090 X3 OC (N50903-32D7X-17593928)- MSI GeForce RTX™ 5090 32G VENTUS 3X OC (MS-V530 VER:1.1) Technical data coolerDimensions total (L x W x H)224,29 x 119,32 x 21,34mmMaterial coolerchrome-plated copperMaterial cooler topCarbonMaterial terminalBrassMaterial Connection threadBrassMax working temperature60°CPressure tested2,0 barThreads2 x G1/4"Thickness cooler bottom3,25mmThickness cooling fins0,4mmDistance cooling fins0,4mmTechnical data backplateDimensions (L x W x H)224,29 x 119,32 x 3mmThick backplate without spacers1mmMaterialCarbonWarranty: 3 years???? Warranty Terms
Tootekood: 18674GTIN: 4250197186742Internal power cables and adapters
An extension cable for 4-pin PWM fans. Available in various lengths. Sleeving provides additional protection, stability and increased lifetime. Technical detailsLength30cmConnections4-pin to 4-pinMaterialPlastic, sleevedColorblack
Tootekood: 18720GTIN: 4250197187206Internal power cables and adapters
An extension cable for 4-pin PWM fans. Available in various lengths. Sleeving provides additional protection, stability and increased lifetime. Technical detailsLength30cmConnections4-pin to 4-pinMaterialPlastic, sleevedColorwhite
Tootekood: 18675GTIN: 4250197186759Internal power cables and adapters
An extension cable for 4-pin PWM fans. Available in various lengths. Sleeving provides additional protection, stability and increased lifetime. Technical detailsLength60cmConnections4-pin to 4-pinMaterialPlastic, sleevedColorblack
The ideal supplement for cooling of Mosfet or RAM modules on graphics cards. For sufficient cooling of these components, heatsinks such as this one are required. As a result, lower temperatures and better overclocking performance can be achieved. Being made completely from Aluminum, these heatsinks allow very efficient cooling of the cooled components. A low height of only 15mm allows installation even under large graphics card coolers. Technical specifications: Dimensions: 15x15x15mm (LxWxH) Material: Black anodized Aluminium Weight: 4g each This is a kit of 10 Alphacool GPU heatsinks 15x15mm Download 3D-file (.stp)
The ideal supplement for cooling of Mosfet or RAM modules on graphics cards. For sufficient cooling of these components, heatsinks such as this one are required. As a result, lower temperatures and better overclocking performance can be achieved. Being made completely from Aluminum, these heatsinks allow very efficient cooling of the cooled components. A low height of only 15mm allows installation even under large graphics card coolers. Technical specifications: Dimensions: 7x7x15mm (LxWxH) Material: Black anodized Aluminium Weight: 2g each This is a kit of 10 Alphacool GPU heatsinks 7x7mm Download 3D-file (.stp)
The small heat sinks are the perfect addition for cooling various electronic components such as the graphics card VRam, the voltage transformer on a motherboard, or even in a power amplifier or in RC vehicles. To ensure maximum heat capacity and cooling performance, the coolers are made of copper. Alphacool uses a special coating to prevent the infamous greenish discolouration on copper as much as possible. This increases the lifespan of the cooler and ensures steady cooling performance. The coolers can be installed onto the desired components with optional thermal paste or self-adhesive thermal pads. Technical Data Dimensions: 10 x 10mm Material: Fullcopper Scope of Delivery Alphacool GPU RAM Copper Heatsinks 10x10mm - 10pcs
The small heat sinks are the perfect addition for cooling various electronic components such as the graphics card VRam, the voltage transformer on a motherboard, or even in a power amplifier or in RC vehicles. To ensure maximum heat capacity and cooling performance, the coolers are made of copper. Alphacool uses a special coating to prevent the infamous greenish discolouration on copper as much as possible. This increases the lifespan of the cooler and ensures steady cooling performance. The coolers can be installed onto the desired components with optional thermal paste or self-adhesive thermal pads. Technical Data Dimensions: 14 x 14mm Material: Fullcopper Scope of Delivery Alphacool GPU RAM Copper Heatsinks 14x14mm - 10pcs
The small heat sinks are the perfect addition for cooling various electronic components such as the graphics card VRam, the voltage transformer on a motherboard, or even in a power amplifier or in RC vehicles. To ensure maximum heat capacity and cooling performance, the coolers are made of copper. Alphacool uses a special coating to prevent the infamous greenish discolouration on copper as much as possible. This increases the lifespan of the cooler and ensures steady cooling performance. The coolers can be installed onto the desired components with optional thermal paste or self-adhesive thermal pads. Technical Data Dimensions: 6,5 x 6,5mm Material: Fullcopper Scope of Delivery Alphacool GPU RAM Copper Heatsinks 6,5x6,5mm - 10pcs
Connect your graphics cards with the new Alphacool GPX SLI Connector and embrace the power! You get optimal cooling performance thanks to the serial water flow and your system looks great. ARGB - Stay in Control of Your LightingLight your system the way you want to. Thanks to addressable RGB you retain full control over your lighting. The high-quality acrylic allows the the ARGB LED's shine in rich, vibrant colours. These can be easily controlled by the Alphacool Aurora Eiscontrol. Mounting - Easier Than Ever BeforeThanks to the ¼" thread, installation is simple using the included fittings. Simply install them into your Alphacool EisBlock GPX Cooler and plug your Alphacool GPX SLI Connector onto it. Thanks to the double secured O-ring, you can even plug it on already mounted coolers. Expand the system - Make It YOUR ProjectThe Alphacool GPX SLI connectors are compatible with all new models of the Alphacool Eisblock series from 2080/2080Ti M02. All previous models can easily be upgraded with the Alphacool GPX SLI Upgrade Kit (1015976). The SLI Connectorl is available in 3 PCI-E Space and 4 PCI-E Space. Technical details Dimensions (LxWxH): 58 x 93,96 x 23mm Net weight: 195g Working temperature: Max 60°C Voltage: 5 VDC Certificates: CE, FC, ROHS Scope of delivery 1x GPX SLI Connector Plexi aRGB X3 4x SLI Adapter G 1/4“ Manual for download here Datasheet for download here
Alphacool HardTube 12/10mm Acrylic (PMMA) Clear 80cm - Set of 4 (320cm)
Tootekood: 18527GTIN: 4250197185271Tubing for water cooling
The HardTube Project has become a reality! Alphacool is breaking new ground and setting a new standard! Up till now, the most commonly used method for connecting water cooling systems was normal PVC tubing - but now, Alphacool is offering another way to set up your system. HardTubes provide more organisation for a system, giving it a distinctly more structured appearance. The plexiglass tubes can be fitted to a system easily with the right bending tools, without requiring extra angled pieces. In order to install the tubes into a system, they must be cut to the correct length. The following variants are available HardTube 13/10mm Plexi Clear 20cm, 40cm, 60cm, and 80cm HardTube 16/12mm Plexi Clear 20cm, 40cm, 60cm, and 80cm (now available as a 4-pack) Components can be attached to the tubes, cut to the correct length, with a little effort. Scope of delivery Alphacool HardTube 12/10mm Plexi (PMMA) Clear 80cm - 4 pcs. Please note: not compatible with Monsoon fittings
Tootekood: ROH1020311GTIN: 4250197184991Fittings for watercooling
Transparente Tube von Alphacool, mit 90°-Winkel, 10/30 cm, aus Borosilikatglas, besonders kratzfest und langlebig, zum Verbinden von Wakü-Komponenten, 16/11mm (Außen-/Innendurchmesser), klar
Tootekood: ROH1020312GTIN: 4250197185004Fittings for watercooling
Transparente Tube von Alphacool, mit 90°-Winkel, 20/40 cm, aus Borosilikatglas, besonders kratzfest und langlebig, zum Verbinden von Wakü-Komponenten, 16/11mm (Außen-/Innendurchmesser), klar
Tootekood: ROH1020313GTIN: 4250197184953Tubing for water cooling
Transparente 400-mm-Tube von Alphacool, aus Borosilikatglas, besonders kratzfest und langlebig, zum Verbinden von Wakü-Komponenten, 16/11mm (Außen-/Innendurchmesser), klar
Tootekood: ROH1020314GTIN: 4250197184960Tubing for water cooling
Transparente 600-mm-Tube von Alphacool, aus Borosilikatglas, besonders kratzfest und langlebig, zum Verbinden von Wakü-Komponenten, 16/11mm (Außen-/Innendurchmesser), klar

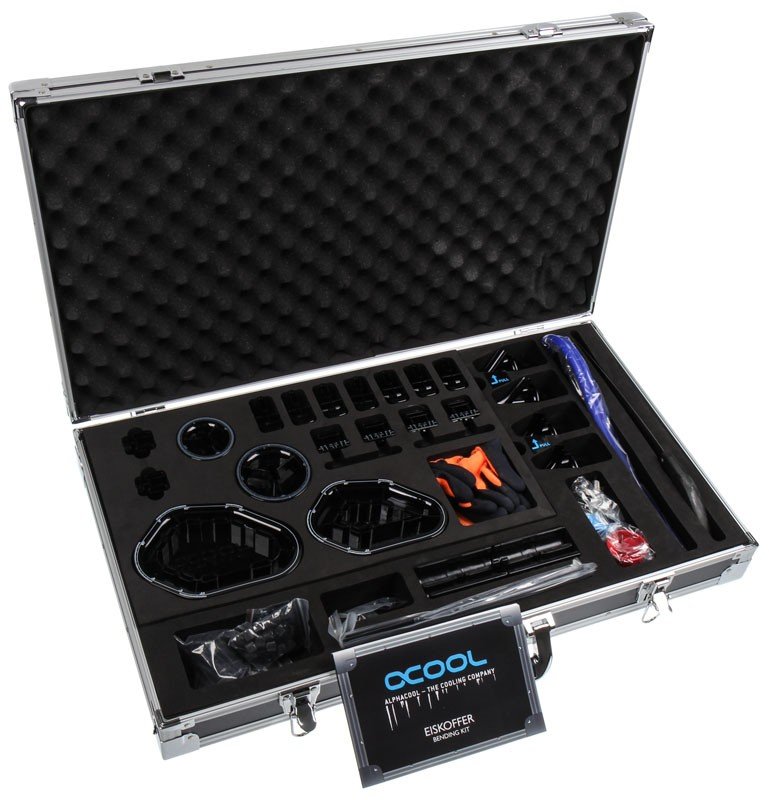

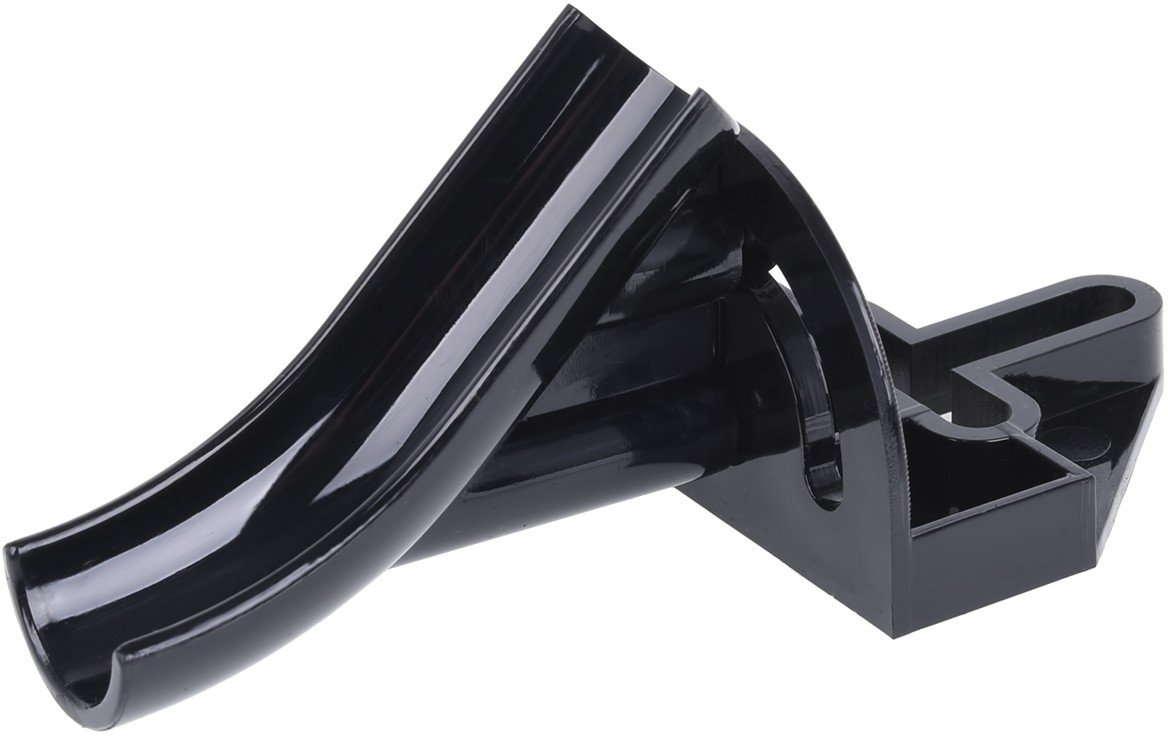

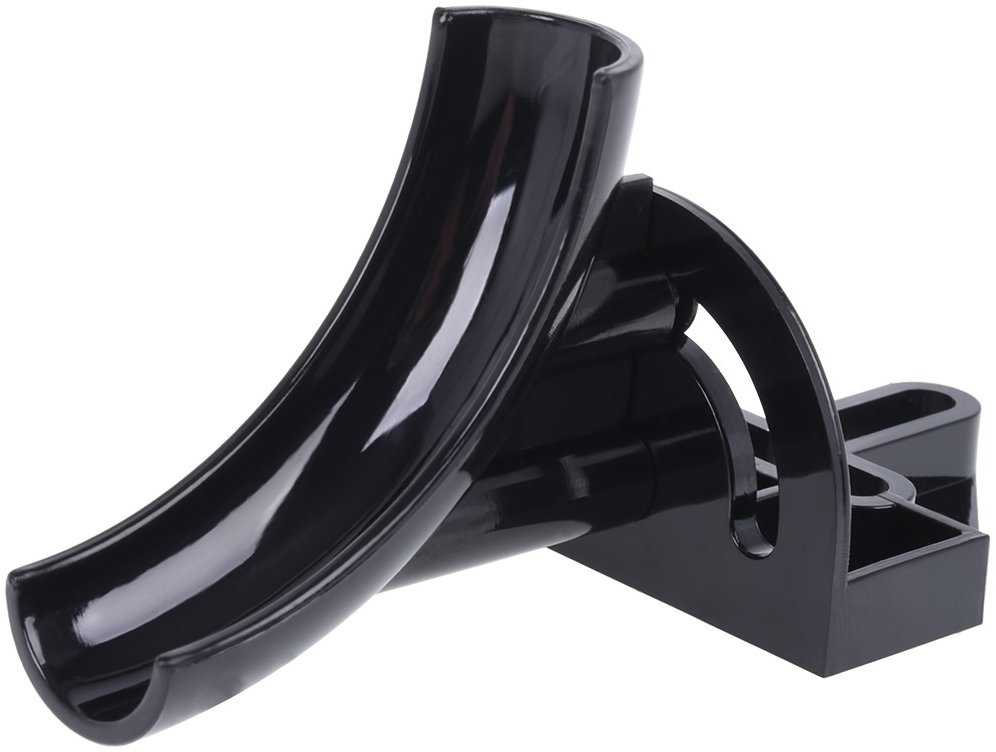

The Alphacool HardTube Bending Kit Basic is a versatile tool set for all those who want to equip their PC with Hardtubes. The Hardtube Basic Kit contains the most important tools needed for bending HardTubes.Alphacool Acrylic Tubing Pipe Reamer (article 29115)The Alphacool deburring tool has three sharp edges, with steel blades to deburr cut HardTube from the inside and remove rough sections. On the other side of the tool are the steel blades to deburr the cut outside edge of the HardTube. Making a perfect seal with your connectors.Alphacool Eiskoffer HardTube saw tool (article 29134)With this mitre box, cutting HardTubes is a cinch. Its special rubberised channels for 13mm and 16mm HardTubes prevent the tubes from sliding around and getting scratched. The mitre box can be anchored with two small screw clamps.Alphacool Acrylic Double Bending Tool 12/14/16mm (article 29124)Alphacool now has a bending tool for different sizes, which makes laying and bending HardTubes super easy! HardTubes with a thickness of 12-14 mm as well as 16mm are all no problem. Curves of up to 180° bend neatly and easily. With the red rubber measurement guide, you can set the size of the straight section of tubing in centimeters.Alphacool pit saw for Acryl/PETG tubes (article 29125)The Alphacool pit saw for acryl/PETG tubes is no ordinary saw from the hardware store. Its special saw blade with fine teeth makes it perfectly suited for cutting acryl/PETG tubes. This saw blade eliminates the usual problems. Even when first placed against the tube, the teeth cut through the acryl so smoothly that there is no slipping around. Any breaking or ripping of the tube at the last few cuts is also eliminated, thanks to the fine saw teeth. It’s a familiar problem: you want to make a straight cut with the saw, but because of the thin saw blade, every cut you make gets a little more crooked?! Not an issue here. This saw blade is just thick enough not to tilt, but still thin enough to get a precise cut. With Alphacool’s pit saw, every cut is neat and straight, down to the last pull.Alphacool Silicon Bending Insert 100cm with 10mm & 13mm diameter (article 29117 & 29126)For perfect bends in the Alphacool HardTubes now there is the perfect solution. Simply insert the silicone inside the HardTube and heat the desired location. Thanks to the extremely heat-resistant silicone the pipe can be bent without the curved point kinking. After cooling, the silicone can be easily removed. Technical data
