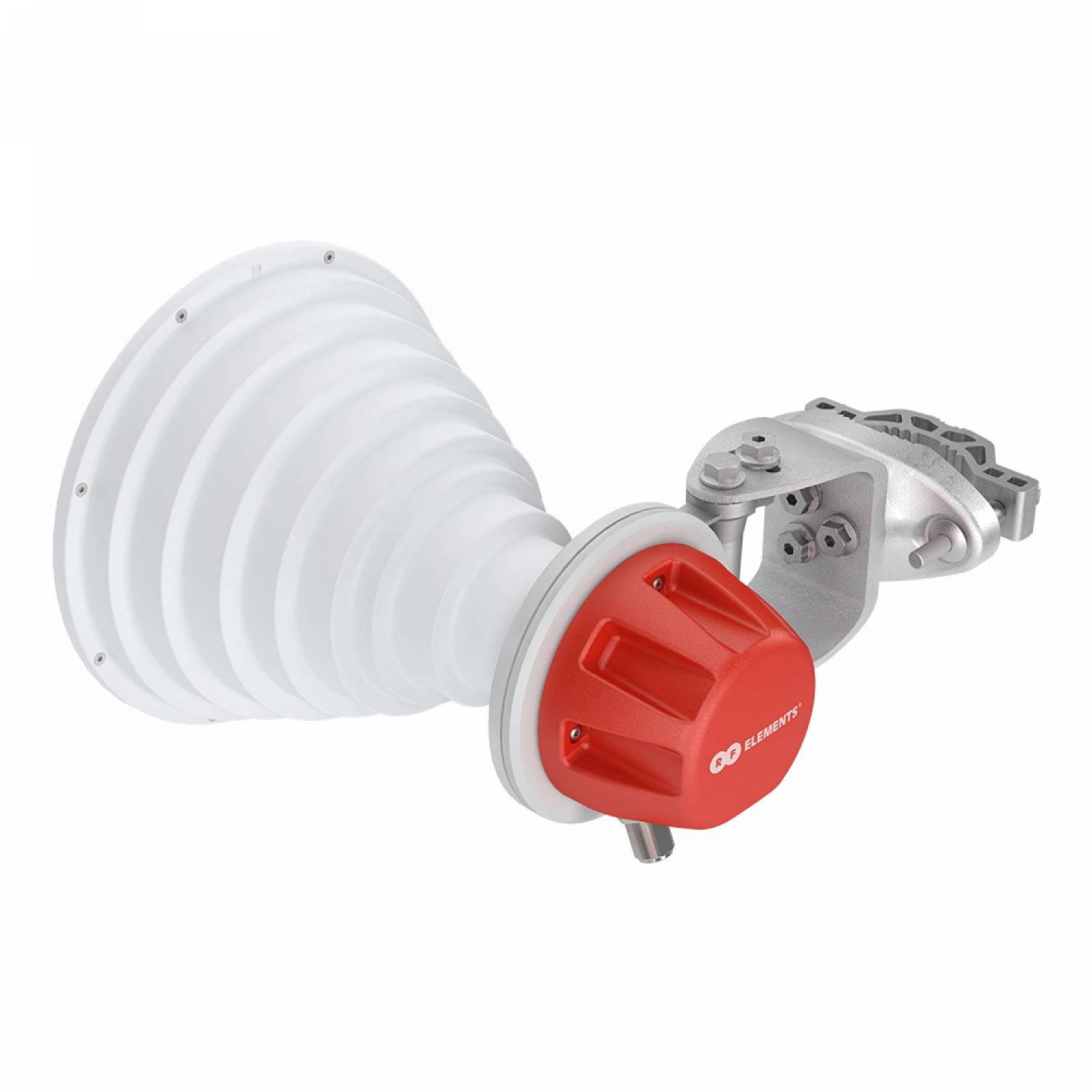

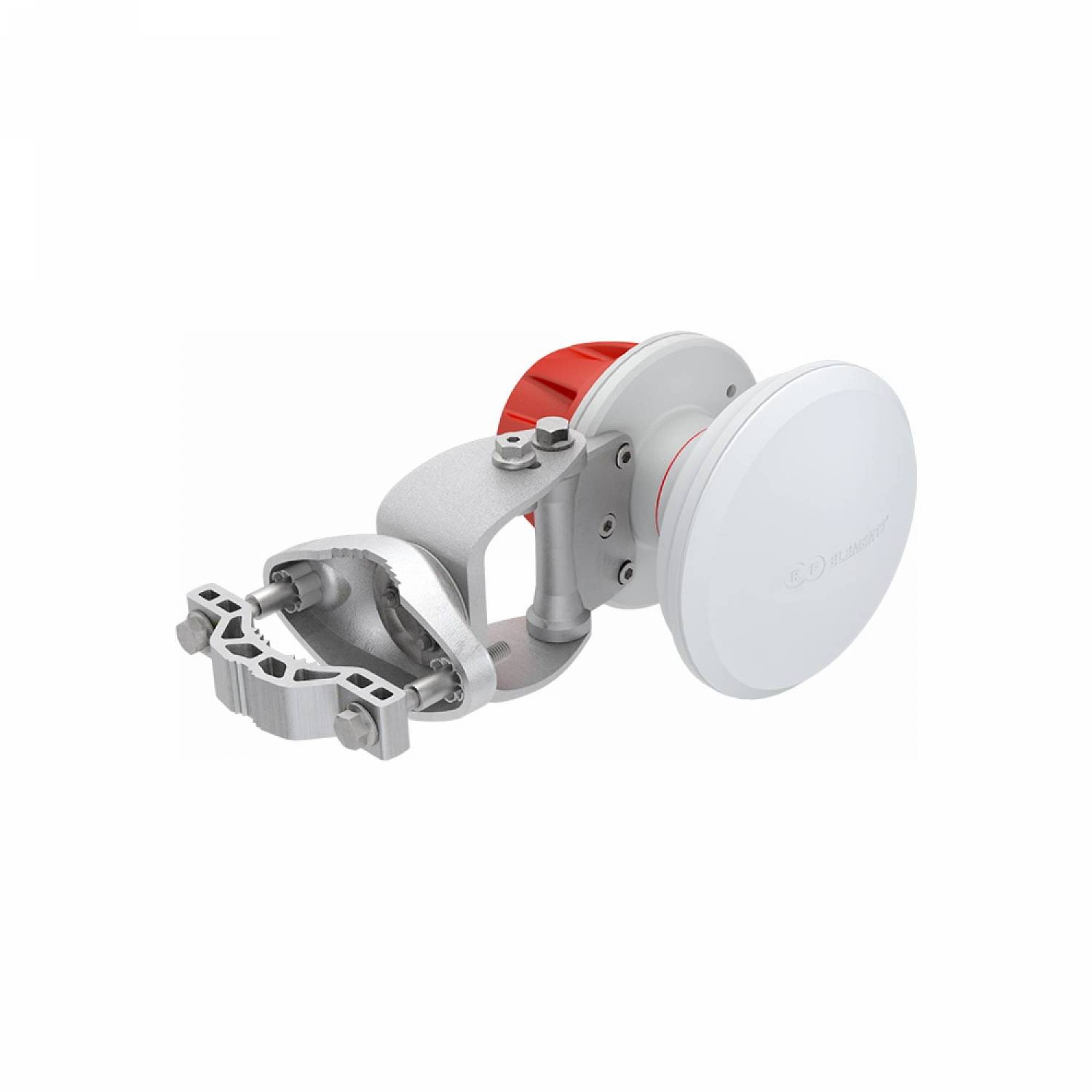

Symmetrical Horn CC Antennas Gen2 offer unique RF performance in a compact package. Scalar horn antennas have symmetrical main beam with identical beam width in Vertical and Horizontal plane. Exceptionally small side lobes ensure remarkable interference suppression. HG3-CC Gen2 Antennas are ideal for coverage of areas with clients close to the installation site where null zone issues exist. High density AP clusters and radio co-location is made possible due to unique radiation patterns and compact size.Symmetrical Horn CC Antennas Gen2 feature multiple improvements of RF performance and design namely optically lighter body and significantly improved bracket. Radome is made of more resistant material and all of HG3-CC Gen2 antennas use only two radome sizes. HG3-CC Gen2 antenna is equipped with N-female connectors.30° Symmetrical Beam Antenna HG3-CC-S30Frequency Range: 5180 - 6400 MHzGain: 18.4 dBiAzimuth Beam Width -6 dB: H 30° / V 30°Elevation Beam Width -6 dB: H 30° / V 30°Mechanical Tilt: ± 25°Pole Mounting Diameter: 30 - 90 mmUnique Beam PerformanceSymmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical.N-type ConnectorsSymmetrical Horn Carrier Class Antennas feature N-type female connectors used with wide range of Radios. For example mimosaTM Cambium NetworksTM PMP450 LigoWaveTM and many others. Users of UBNTTM Rocket M5 Titanium MikroTikTM connectorized radios (NetBoxTM BaseBoxTM and NetMetalTM) can also utilize coaxial ports on Carrier Class Symmetrical Horn Antennas.
HG3-TP-S4040° Symmetrical Horn TP Antennas Gen2 Game Changing Sector AntennaSymmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPortTM (TP) connector. Deployed in field since 2014 they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection network scalability and throughput increase.Approved by tens of thousands installations all around the globe RF elements Symmetrical Horn TP Antennas are the new standard for fast and sustainable wireless. Unique Beam PerformanceSymmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical. No Side LobesSymmetrical Horn TP Antennas have no side lobes they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently being basically "deaf" outside their main beam. Wideband PerformanceThe beam pattern does not vary with frequency and the antenna gain is balanced over a very wide frequency range. These features make Symmetrical Horns TP antennas excellent sector antennas. Excellent Gain Across SpectrumSymmetrical Horn TP Gen2 Antennas cover an ultra-wideband spectrum: 5180-6400 MHz! Coverage Without NullMainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high the customers that are too close will suffer from low AP signal. Co-Location MiracleSymmetrical Horn TP Antennas have naturally attenuated side lobes and extremely low back radiation. Symmetrical Horn TP Antennas are perfect for high density cluster sector installations with high co-location requirements.Wide selection of beam angles allows for a wide range of deployment scenarios covering high distance sectors as well as MicroPoPs. Breakthrough ScalabilitySymmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than a traditional sector technology.Symmetrical Horn TP Antennas come with precise radiation angles ranging from 30 to 90 degrees: a wide range of models suitable for any situation. Ultimate Spectrum Efficiency For EveryoneSymmetrical Horn TP antennas allow for a very dense co-location of very narrow sectors with excellent isolation. They unlock the RF performance that was simply not possible before. This benefit is available independently of radio platforms TwistPortTM Connector Symmetrical Horn TP Antennas feature our industry-changing TwistPortTM connector a patent-pending quick-locking waveguide port. TwistPortTM is virtually lossless: with radios built according to our Reference design there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - “twist and lock” - all done with one hand! Cross-Platform CompatibilityOur wide range of TwistPortTM Adaptors allows you to connect most popular connectorized radios from other vendors such as UBNTTM MimosaTM MikroTikTM or Cambium NetworksTM directly to any TwistPortTM-enabled antenna. Compact SizeSymmetrical Horn TP Antennas are very compact with only 20-25% footprint of traditional sector antennas. This compact size saves tower rental fees and makes it possible to install Symmetrical Horn TP Antennas in places where regular sectors would not be allowed due to their shape and size. Easy InstallationSymmetrical Horn TP Antennas come pre-assembled from the factory and ready for immediate deployment. The installation is very easy and requires only a single tool. Robust and DurableSymmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. We use only the best materials: die cast stamped and extruded aluminium; high quality ABS plastic high density polyethylene; and stainless steel hardware. Unique Bracket FeaturesNew improved bracket allows for easy left or right side of the pole installation. No need to reverse radome as with Gen1. For comfortable and secure installation on thinner tubes just reverse the bracket clamp.

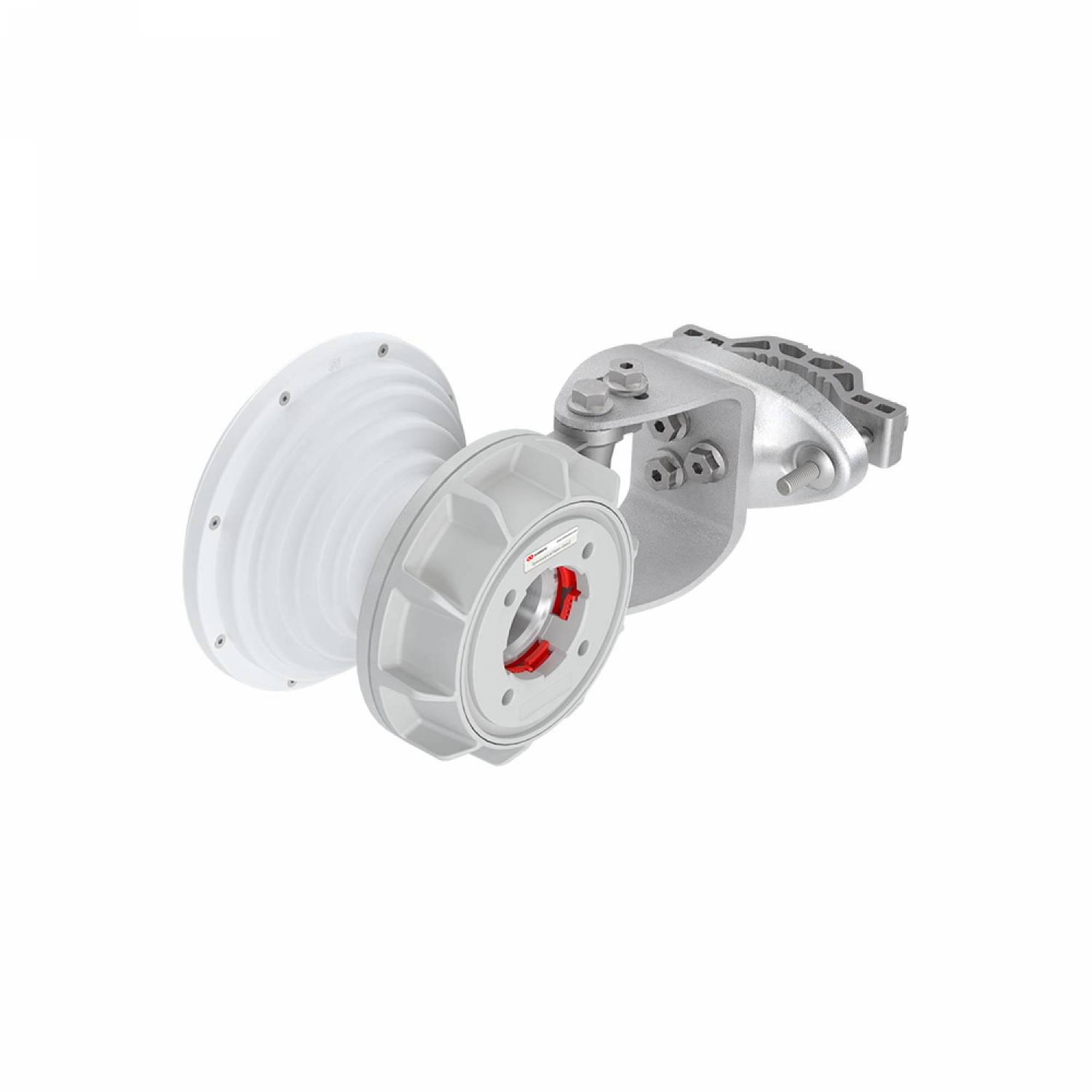

HG3-TP-S5050° Symmetrical Horn TP Antennas Gen2 Game Changing Sector AntennaSymmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPortTM (TP) connector. Deployed in field since 2014 they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection network scalability and throughput increase.Approved by tens of thousands installations all around the globe RF elements Symmetrical Horn TP Antennas are the new standard for fast and sustainable wireless. Unique Beam PerformanceSymmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical. No Side LobesSymmetrical Horn TP Antennas have no side lobes they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently being basically "deaf" outside their main beam. Wideband PerformanceThe beam pattern does not vary with frequency and the antenna gain is balanced over a very wide frequency range. These features make Symmetrical Horns TP antennas excellent sector antennas. Excellent Gain Across SpectrumSymmetrical Horn TP Gen2 Antennas cover an ultra-wideband spectrum: 5180-6400 MHz! Coverage Without NullMainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high the customers that are too close will suffer from low AP signal. Co-Location MiracleSymmetrical Horn TP Antennas have naturally attenuated side lobes and extremely low back radiation. Symmetrical Horn TP Antennas are perfect for high density cluster sector installations with high co-location requirements.Wide selection of beam angles allows for a wide range of deployment scenarios covering high distance sectors as well as MicroPoPs. Breakthrough ScalabilitySymmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than a traditional sector technology.Symmetrical Horn TP Antennas come with precise radiation angles ranging from 30 to 90 degrees: a wide range of models suitable for any situation. Ultimate Spectrum Efficiency For EveryoneSymmetrical Horn TP antennas allow for a very dense co-location of very narrow sectors with excellent isolation. They unlock the RF performance that was simply not possible before. This benefit is available independently of radio platforms TwistPortTM Connector Symmetrical Horn TP Antennas feature our industry-changing TwistPortTM connector a patent-pending quick-locking waveguide port. TwistPortTM is virtually lossless: with radios built according to our Reference design there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - “twist and lock” - all done with one hand! Cross-Platform CompatibilityOur wide range of TwistPortTM Adaptors allows you to connect most popular connectorized radios from other vendors such as UBNTTM MimosaTM MikroTikTM or Cambium NetworksTM directly to any TwistPortTM-enabled antenna. Compact SizeSymmetrical Horn TP Antennas are very compact with only 20-25% footprint of traditional sector antennas. This compact size saves tower rental fees and makes it possible to install Symmetrical Horn TP Antennas in places where regular sectors would not be allowed due to their shape and size. Easy InstallationSymmetrical Horn TP Antennas come pre-assembled from the factory and ready for immediate deployment. The installation is very easy and requires only a single tool. Robust and DurableSymmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. We use only the best materials: die cast stamped and extruded aluminium; high quality ABS plastic high density polyethylene; and stainless steel hardware. Unique Bracket FeaturesNew improved bracket allows for easy left or right side of the pole installation. No need to reverse radome as with Gen1. For comfortable and secure installation on thinner tubes just reverse the bracket clamp.
Symmetrical Horn CC Antennas Gen2 offer unique RF performance in a compact package. Scalar horn antennas have symmetrical main beam with identical beam width in Vertical and Horizontal plane. Exceptionally small side lobes ensure remarkable interference suppression. HG3-CC Gen2 Antennas are ideal for coverage of areas with clients close to the installation site where null zone issues exist. High density AP clusters and radio co-location is made possible due to unique radiation patterns and compact size.Symmetrical Horn CC Antennas Gen2 feature multiple improvements of RF performance and design namely optically lighter body and significantly improved bracket. Radome is made of more resistant material and all of HG3-CC Gen2 antennas use only two radome sizes. HG3-CC Gen2 antenna is equipped with N-female connectors.60° Symmetrical Beam Antenna HG3-CC-S60Frequency Range: 5180 - 6400 MHzGain: 13.2 dBiAzimuth Beam Width -6 dB: H 60° / V 60°Elevation Beam Width -6 dB: H 60° / V 60°Mechanical Tilt: ± 25°Pole Mounting Diameter: 30 - 80 mmUnique Beam PerformanceSymmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical.N-type ConnectorsSymmetrical Horn Carrier Class Antennas feature N-type female connectors used with wide range of Radios. For example mimosaTM Cambium NetworksTM PMP450 LigoWaveTM and many others. Users of UBNTTM Rocket M5 Titanium MikroTikTM connectorized radios (NetBoxTM BaseBoxTM and NetMetalTM) can also utilize coaxial ports on Carrier Class Symmetrical Horn Antennas.

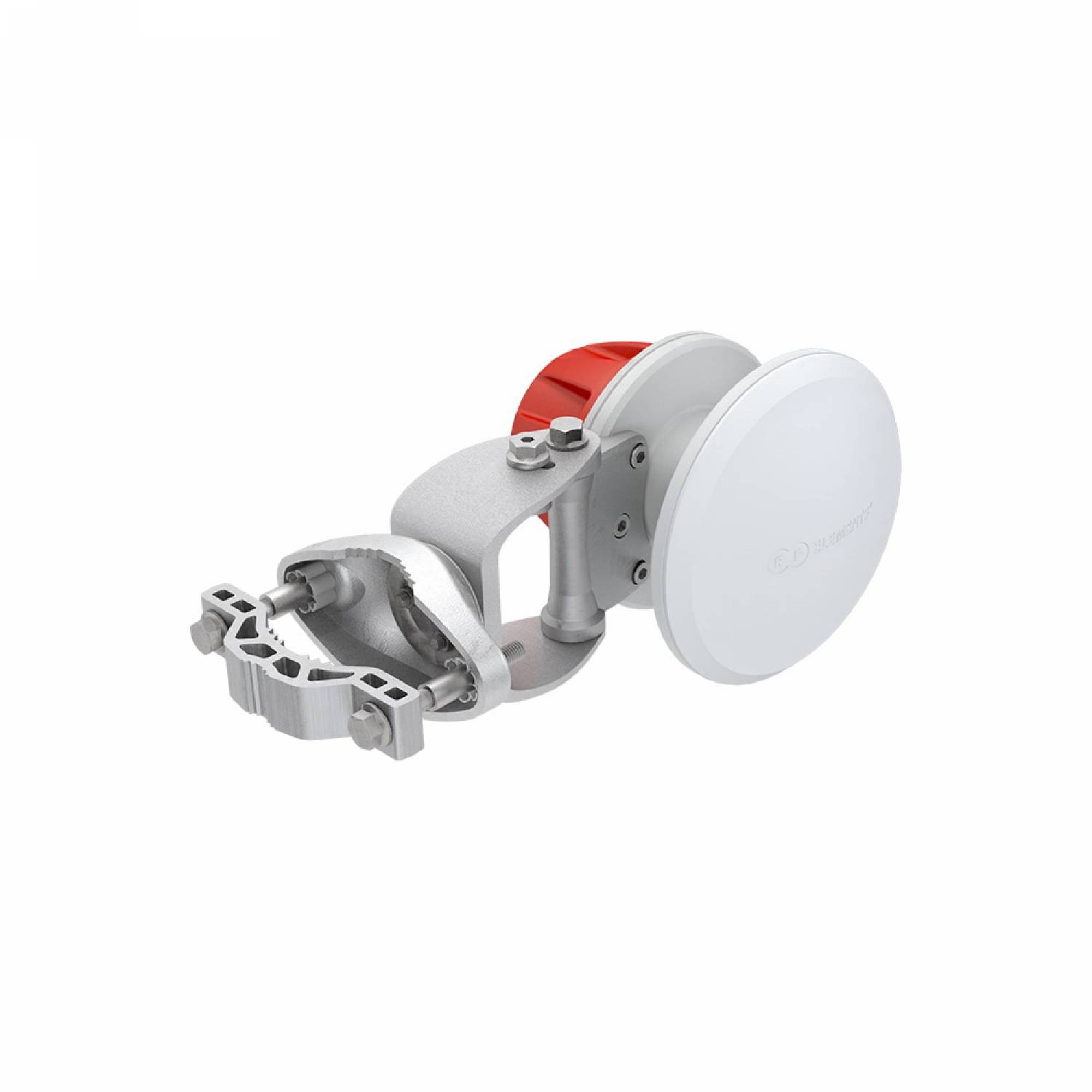

HG3-CC-S7070° Symmetrical Horn CC Antennas Gen2 Game Changing Sector AntennaSymmetrical Horn Carrier Class Gen2 is a scalar horn with the same size of main beam in horizontal and vertical planes equipped with N-female connectors. Since 2014 our horns address major weaknesses of mainstream sector antenna technologies and provide excellent noise rejection network scalability and throughput improvement.Approved by tens of thousands of installations all around the globe RF elements Symmetrical Horn Carrier Class Antennas are the new standard for fast and sustainable wireless. Unique Beam PerformanceSymmetrical Horn CC Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical. No Side LobesSymmetrical Horn CC Antennas have no side lobes they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently being basically "deaf" outside their main beam. Wideband PerformanceThe radiation pattern of Symmetrical Horn CC Gen2 is frequency independent and its gain is stable over the whole bandwidth of operation. These features make Symmetrical Horn CC Gen2 excellent sector antennas. Excellent Gain Across SpectrumSymmetrical Horn CC Gen2 Antenna covers ultra-wide bandwidth: 5180-6400 MHz! At the same time gain is stable over the whole band. Coverage Without NullMainstream sector antennas have a radiation pattern that is wide in azimuth but flat in elevation plane. If an AP is too high customers that are positioned too close will suffer from low AP signal. Breakthrough ScalabilitySymmetrical Horn CC Gen2 facilitates breakthrough scalability of wireless networks. Unique beam performance and great co-location characteristics allow for higher density sectors compared to traditional sector technology.Symmetrical Horn CC Gen2 features precise main beam widths spanning from 30 to 90 degrees: a range of models suitable for any situation. Ultimate Spectrum Efficiency For EveryoneSymmetrical Horn CC Gen2 antenna supports dense co-location of narrow sectors with excellent isolation. It unlocks the RF performance not possible before. This is an advantage horns have irrespective of radio platform used. N-type ConnectorsSymmetrical Horn Carrier Class Antennas feature N-type female connectors used with wide range of Radios. For example mimosaTM Cambium NetworksTM PMP450 LigoWaveTM and many others. Users of UBNTTM Rocket M5 Titanium MikroTikTM connectorized radios (NetBoxTM BaseBoxTM and NetMetalTM) can also utilize coaxial ports on Carrier Class Symmetrical Horn Antennas. Compact SizeSymmetrical Horn CC Gen2 Antenna is compact with only 20-25% footprint of traditional sector antennas. Compact size saves tower rental fees and makes it possible to install Symmetrical Horn CC Gen2 Antenna where regular sectors would not be allowed due to their shape and size. Robust and DurableSymmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. We use only the best materials: die cast stamped and extruded aluminium; high quality ABS plastic high density polyethylene; and stainless steel hardware.

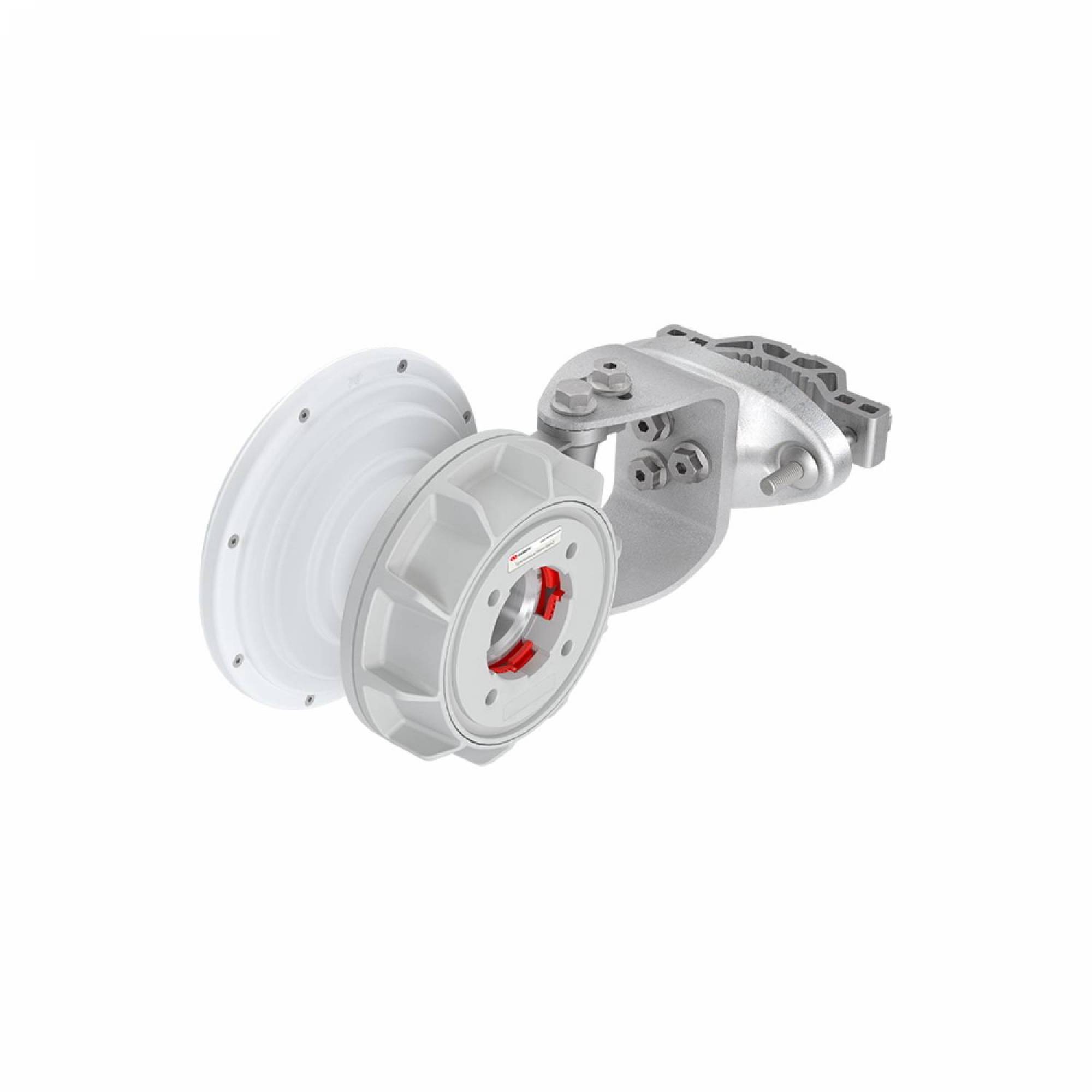

HG3-TP-S7070° Symmetrical Horn TP Antennas Gen2 Game Changing Sector AntennaSymmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPortTM (TP) connector. Deployed in field since 2014 they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection network scalability and throughput increase.Approved by tens of thousands installations all around the globe RF elements Symmetrical Horn TP Antennas are the new standard for fast and sustainable wireless. Unique Beam PerformanceSymmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical. No Side LobesSymmetrical Horn TP Antennas have no side lobes they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently being basically "deaf" outside their main beam. Wideband PerformanceThe beam pattern does not vary with frequency and the antenna gain is balanced over a very wide frequency range. These features make Symmetrical Horns TP antennas excellent sector antennas. Excellent Gain Across SpectrumSymmetrical Horn TP Gen2 Antennas cover an ultra-wideband spectrum: 5180-6400 MHz! Coverage Without NullMainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high the customers that are too close will suffer from low AP signal. Co-Location MiracleSymmetrical Horn TP Antennas have naturally attenuated side lobes and extremely low back radiation. Symmetrical Horn TP Antennas are perfect for high density cluster sector installations with high co-location requirements.Wide selection of beam angles allows for a wide range of deployment scenarios covering high distance sectors as well as MicroPoPs. Breakthrough ScalabilitySymmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than a traditional sector technology.Symmetrical Horn TP Antennas come with precise radiation angles ranging from 30 to 90 degrees: a wide range of models suitable for any situation. Ultimate Spectrum Efficiency For EveryoneSymmetrical Horn TP antennas allow for a very dense co-location of very narrow sectors with excellent isolation. They unlock the RF performance that was simply not possible before. This benefit is available independently of radio platforms TwistPortTM Connector Symmetrical Horn TP Antennas feature our industry-changing TwistPortTM connector a patent-pending quick-locking waveguide port. TwistPortTM is virtually lossless: with radios built according to our Reference design there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - “twist and lock” - all done with one hand! Cross-Platform CompatibilityOur wide range of TwistPortTM Adaptors allows you to connect most popular connectorized radios from other vendors such as UBNTTM MimosaTM MikroTikTM or Cambium NetworksTM directly to any TwistPortTM-enabled antenna. Compact SizeSymmetrical Horn TP Antennas are very compact with only 20-25% footprint of traditional sector antennas. This compact size saves tower rental fees and makes it possible to install Symmetrical Horn TP Antennas in places where regular sectors would not be allowed due to their shape and size. Easy InstallationSymmetrical Horn TP Antennas come pre-assembled from the factory and ready for immediate deployment. The installation is very easy and requires only a single tool. Robust and DurableSymmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. We use only the best materials: die cast stamped and extruded aluminium; high quality ABS plastic high density polyethylene; and stainless steel hardware. Unique Bracket FeaturesNew improved bracket allows for easy left or right side of the pole installation. No need to reverse radome as with Gen1. For comfortable and secure installation on thinner tubes just reverse the bracket clamp.
HG3-CC-S8080° Symmetrical Horn CC Antennas Gen2 Game Changing Sector AntennaSymmetrical Horn Carrier Class Gen2 is a scalar horn with the same size of main beam in horizontal and vertical planes equipped with N-female connectors. Since 2014 our horns address major weaknesses of mainstream sector antenna technologies and provide excellent noise rejection network scalability and throughput improvement.Approved by tens of thousands of installations all around the globe RF elements Symmetrical Horn Carrier Class Antennas are the new standard for fast and sustainable wireless. Unique Beam PerformanceSymmetrical Horn CC Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical. No Side LobesSymmetrical Horn CC Antennas have no side lobes they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently being basically "deaf" outside their main beam. Wideband PerformanceThe radiation pattern of Symmetrical Horn CC Gen2 is frequency independent and its gain is stable over the whole bandwidth of operation. These features make Symmetrical Horn CC Gen2 excellent sector antennas. Excellent Gain Across SpectrumSymmetrical Horn CC Gen2 Antenna covers ultra-wide bandwidth: 5180-6400 MHz! At the same time gain is stable over the whole band. Coverage Without NullMainstream sector antennas have a radiation pattern that is wide in azimuth but flat in elevation plane. If an AP is too high customers that are positioned too close will suffer from low AP signal. Breakthrough ScalabilitySymmetrical Horn CC Gen2 facilitates breakthrough scalability of wireless networks. Unique beam performance and great co-location characteristics allow for higher density sectors compared to traditional sector technology.Symmetrical Horn CC Gen2 features precise main beam widths spanning from 30 to 90 degrees: a range of models suitable for any situation. Ultimate Spectrum Efficiency For EveryoneSymmetrical Horn CC Gen2 antenna supports dense co-location of narrow sectors with excellent isolation. It unlocks the RF performance not possible before. This is an advantage horns have irrespective of radio platform used. N-type ConnectorsSymmetrical Horn Carrier Class Antennas feature N-type female connectors used with wide range of Radios. For example mimosaTM Cambium NetworksTM PMP450 LigoWaveTM and many others. Users of UBNTTM Rocket M5 Titanium MikroTikTM connectorized radios (NetBoxTM BaseBoxTM and NetMetalTM) can also utilize coaxial ports on Carrier Class Symmetrical Horn Antennas. Compact SizeSymmetrical Horn CC Gen2 Antenna is compact with only 20-25% footprint of traditional sector antennas. Compact size saves tower rental fees and makes it possible to install Symmetrical Horn CC Gen2 Antenna where regular sectors would not be allowed due to their shape and size. Robust and DurableSymmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. We use only the best materials: die cast stamped and extruded aluminium; high quality ABS plastic high density polyethylene; and stainless steel hardware.
Symmetrical Horn CC Antennas Gen2 offer unique RF performance in a compact package. Scalar horn antennas have symmetrical main beam with identical beam width in Vertical and Horizontal plane. Exceptionally small side lobes ensure remarkable interference suppression. HG3-CC Gen2 Antennas are ideal for coverage of areas with clients close to the installation site where null zone issues exist. High density AP clusters and radio co-location is made possible due to unique radiation patterns and compact size.Symmetrical Horn CC Antennas Gen2 feature multiple improvements of RF performance and design namely optically lighter body and significantly improved bracket. Radome is made of more resistant material and all of HG3-CC Gen2 antennas use only two radome sizes. HG3-CC Gen2 antenna is equipped with N-female connectors.90° Symmetrical Beam Antenna HG3-CC-S90Frequency Range: 5180 - 6400 MHzGain: 9.6 dBiAzimuth Beam Width -6 dB: H 60° / V 60°Elevation Beam Width -6 dB: H 60° / V 60°Mechanical Tilt: ± 25°Pole Mounting Diameter: 30 - 80 mmUnique Beam PerformanceSymmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical.N-type ConnectorsSymmetrical Horn Carrier Class Antennas feature N-type female connectors used with wide range of Radios. For example mimosaTM Cambium NetworksTM PMP450 LigoWaveTM and many others. Users of UBNTTM Rocket M5 Titanium MikroTikTM connectorized radios (NetBoxTM BaseBoxTM and NetMetalTM) can also utilize coaxial ports on Carrier Class Symmetrical Horn Antennas.

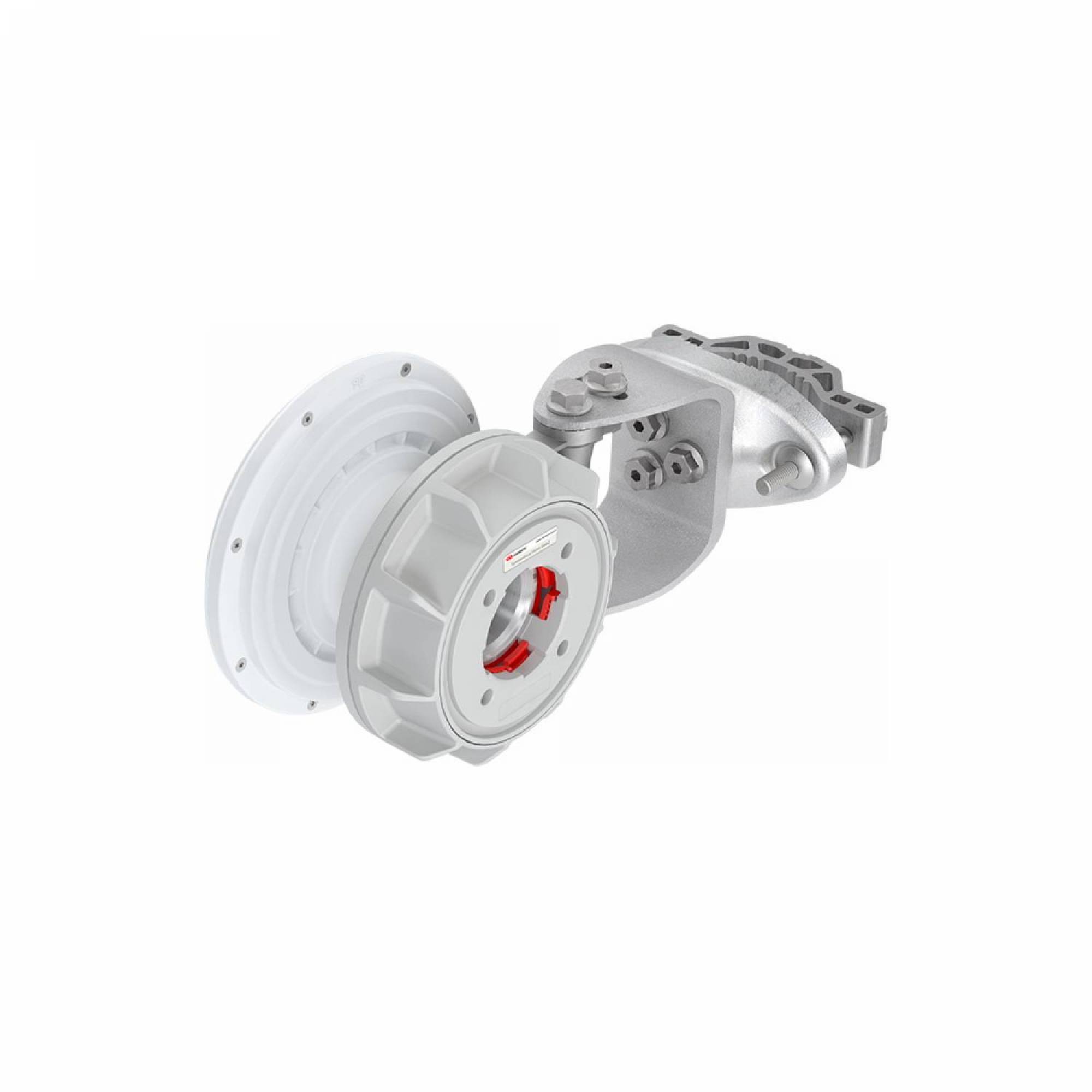

HG3-TP-S9090° Symmetrical Horn TP Antennas Gen2 Game Changing Sector AntennaSymmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPortTM (TP) connector. Deployed in field since 2014 they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection network scalability and throughput increase.Approved by tens of thousands installations all around the globe RF elements Symmetrical Horn TP Antennas are the new standard for fast and sustainable wireless. Unique Beam PerformanceSymmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical. No Side LobesSymmetrical Horn TP Antennas have no side lobes they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently being basically "deaf" outside their main beam. Wideband PerformanceThe beam pattern does not vary with frequency and the antenna gain is balanced over a very wide frequency range. These features make Symmetrical Horns TP antennas excellent sector antennas. Excellent Gain Across SpectrumSymmetrical Horn TP Gen2 Antennas cover an ultra-wideband spectrum: 5180-6400 MHz! Coverage Without NullMainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high the customers that are too close will suffer from low AP signal. Co-Location MiracleSymmetrical Horn TP Antennas have naturally attenuated side lobes and extremely low back radiation. Symmetrical Horn TP Antennas are perfect for high density cluster sector installations with high co-location requirements.Wide selection of beam angles allows for a wide range of deployment scenarios covering high distance sectors as well as MicroPoPs. Breakthrough ScalabilitySymmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than a traditional sector technology.Symmetrical Horn TP Antennas come with precise radiation angles ranging from 30 to 90 degrees: a wide range of models suitable for any situation. Ultimate Spectrum Efficiency For EveryoneSymmetrical Horn TP antennas allow for a very dense co-location of very narrow sectors with excellent isolation. They unlock the RF performance that was simply not possible before. This benefit is available independently of radio platforms TwistPortTM Connector Symmetrical Horn TP Antennas feature our industry-changing TwistPortTM connector a patent-pending quick-locking waveguide port. TwistPortTM is virtually lossless: with radios built according to our Reference design there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - “twist and lock” - all done with one hand! Cross-Platform CompatibilityOur wide range of TwistPortTM Adaptors allows you to connect most popular connectorized radios from other vendors such as UBNTTM MimosaTM MikroTikTM or Cambium NetworksTM directly to any TwistPortTM-enabled antenna. Compact SizeSymmetrical Horn TP Antennas are very compact with only 20-25% footprint of traditional sector antennas. This compact size saves tower rental fees and makes it possible to install Symmetrical Horn TP Antennas in places where regular sectors would not be allowed due to their shape and size. Easy InstallationSymmetrical Horn TP Antennas come pre-assembled from the factory and ready for immediate deployment. The installation is very easy and requires only a single tool. Robust and DurableSymmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. We use only the best materials: die cast stamped and extruded aluminium; high quality ABS plastic high density polyethylene; and stainless steel hardware. Unique Bracket FeaturesNew improved bracket allows for easy left or right side of the pole installation. No need to reverse radome as with Gen1. For comfortable and secure installation on thinner tubes just reverse the bracket clamp.

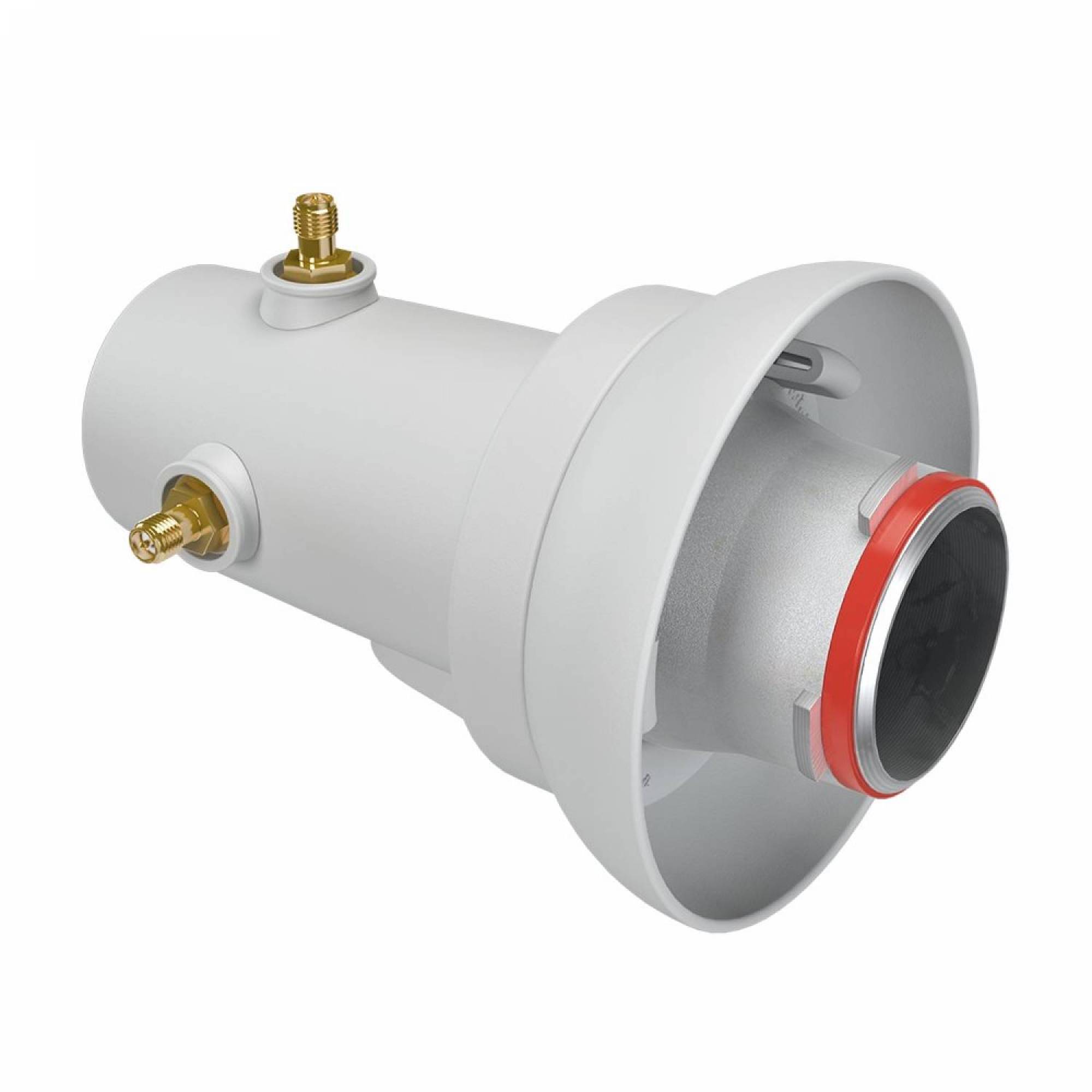

TwistPort Adaptor (TPA) adapts 3rd party radios to RF elements® proprietary TwistPortTM waveguide connector. We typically provide custom made TPA for specific 3rd party radios following their shape and connector setup. Custom designed TPA allows for the best RF performance minimal RF loss and excellent user experience.Not all radios are able to fit custom designed TPA. They might be too bulky too heavy or simply we do not know about them. For these radios we created TPA that provides RP-SMA male connector interface.RP-SMA Coaxial InterfaceTPA-SMA provides industry most used RP-SMA male coaxial interface in dual linear H+V polarization.Antenna Connection: TwistPortTM - Quick Locking Waveguide PortRadio Connection: 2x RP-SMA maleMaterials: Insert - Aluminium AlloyAdaptor - UV stabilized and weather resistant ABS plasticFlame Rating: UL 94 HBTemperature: -40°C to +60°C (-40°F to +140°F)Wind Survival: 160 km/hFrequency Range: 5180 - 6400 MHzPolarization: Dual Linear H + VAntenna Compatibility: Any TwistPortTM Compatible Antenna

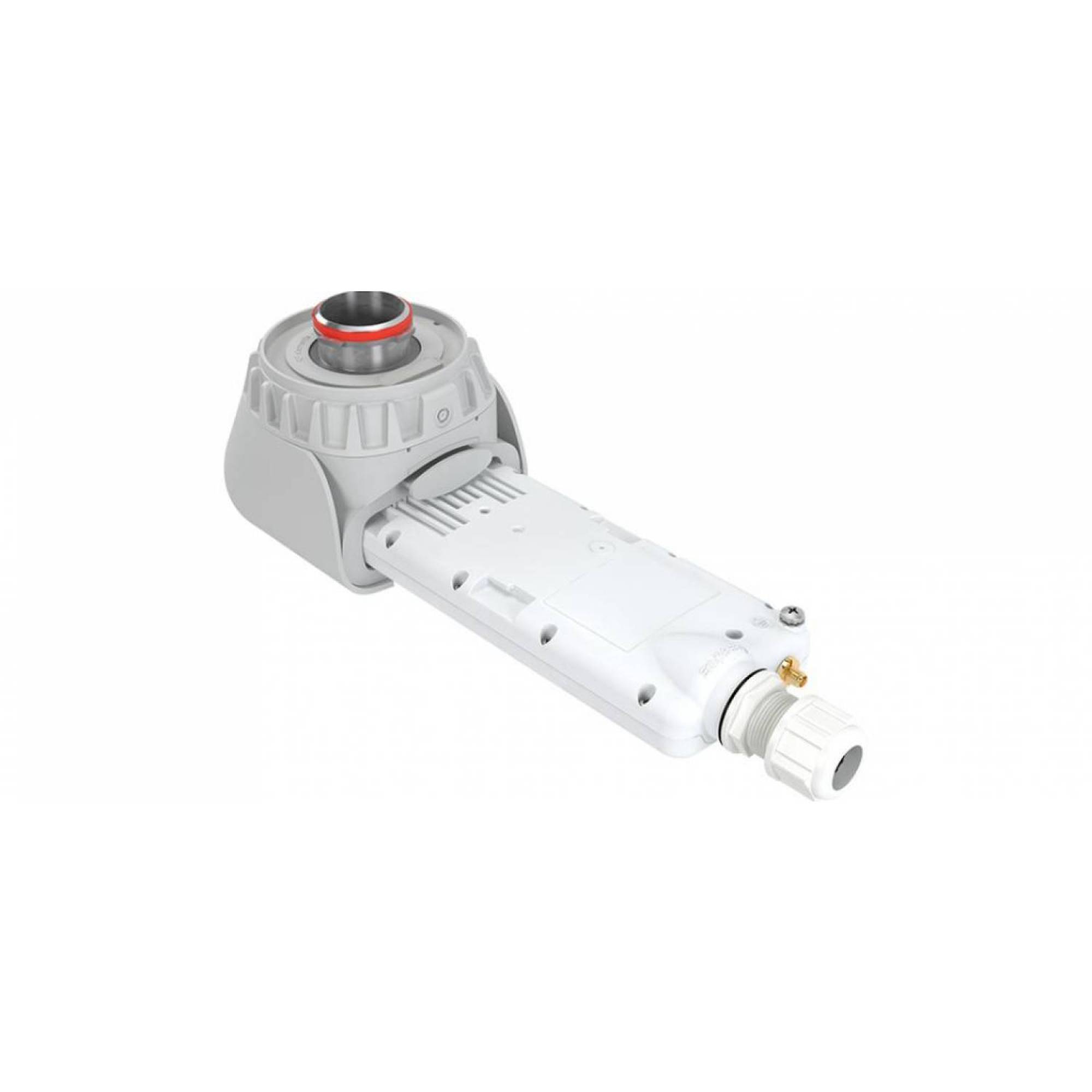

TwistPort Adaptor for ePMPIntegrates ePMP connectorized radios into TwistPort eco-system. What is TwistPort AdaptorTwistPort Adaptor converts 3rd party radio coaxial interface into RF elements® proprietary TwistPort waveguide connector. Integration of the radio is smooth and requires no tools. Making 3rd party radios compatible with TwistPort enables using the radio with any TwistPort antenna ever made with superior performance noise immunity and network scalability. Designed For ePMPTwistPort Adaptor for ePMP is compatible with Cambium Networks ePMP 1000 AP/CSM ePMP Force 300 CSM and ePMP 3000L AP. Market Leading PerformanceTwistPort Adaptors cover an ultra-wideband spectrum of 5180-6400 MHz and perform with superb efficiency and great VSWR.

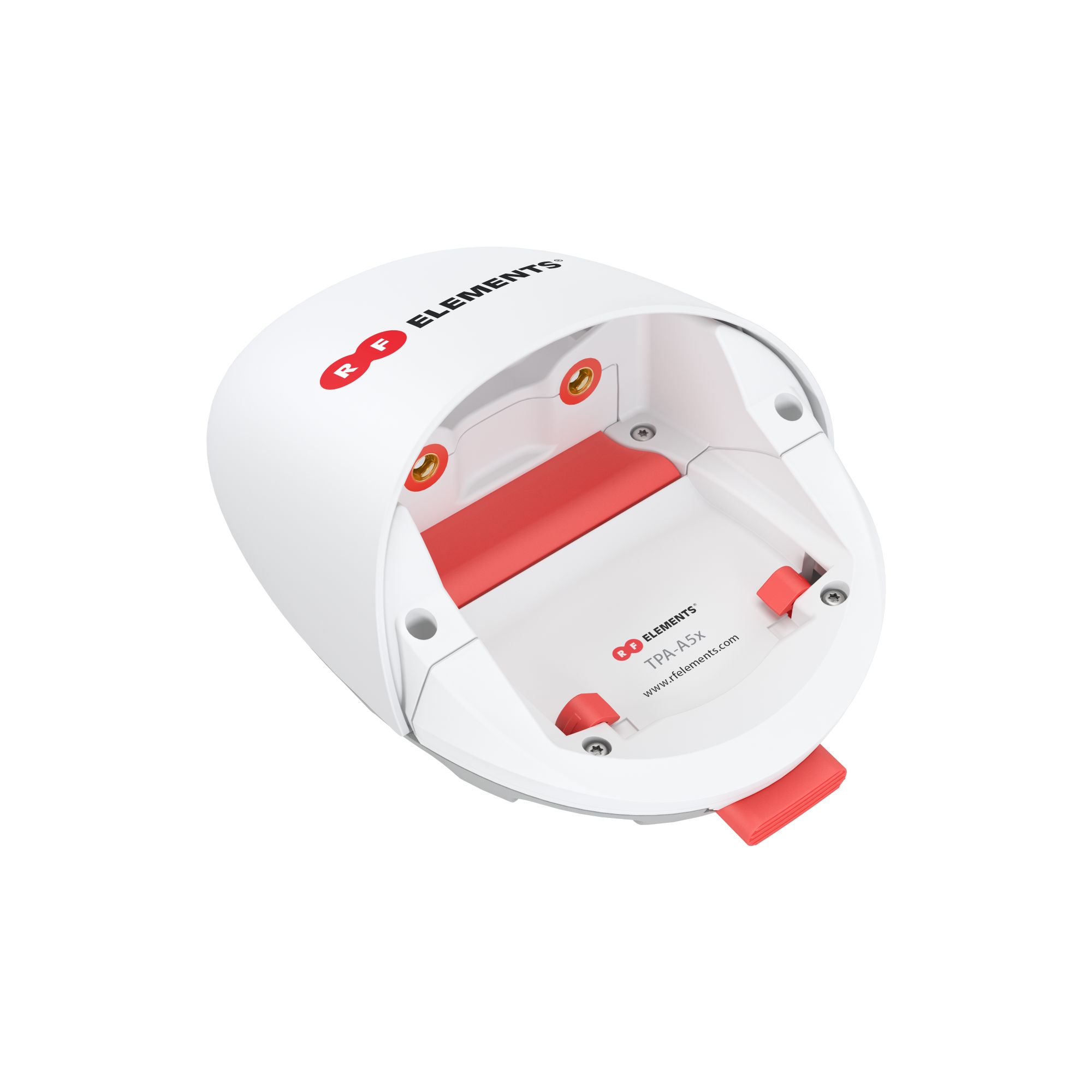

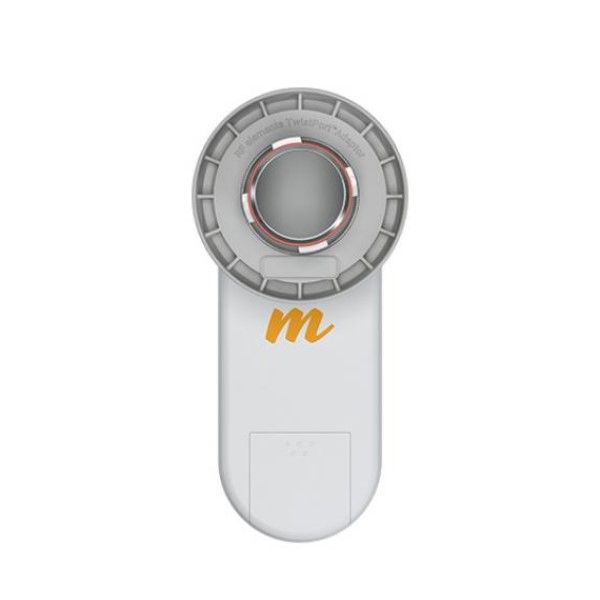

TwistPortTM Adaptor converts 3rd party radio interface into RF elements® male TwistPortTM interface. The radio installation is seamless and requires no tools. The adaptor makes the 3rd party radios compatible with every TwistPortTM antenna with superior performance noise immunity and network scalability.For Mimosa A5xTwistPortTM Adaptor for A5x is compatible with Mimosa A5x radio with a pair of RP-SMA connectors.Market Leading PerformanceThe frequency band of TwistPortTM Adaptors operation is ultra-wide: 5180 - 6400 MHz. Thanks to the extremely low loss of waveguide the maximum power is delivered from the radio to the antenna.

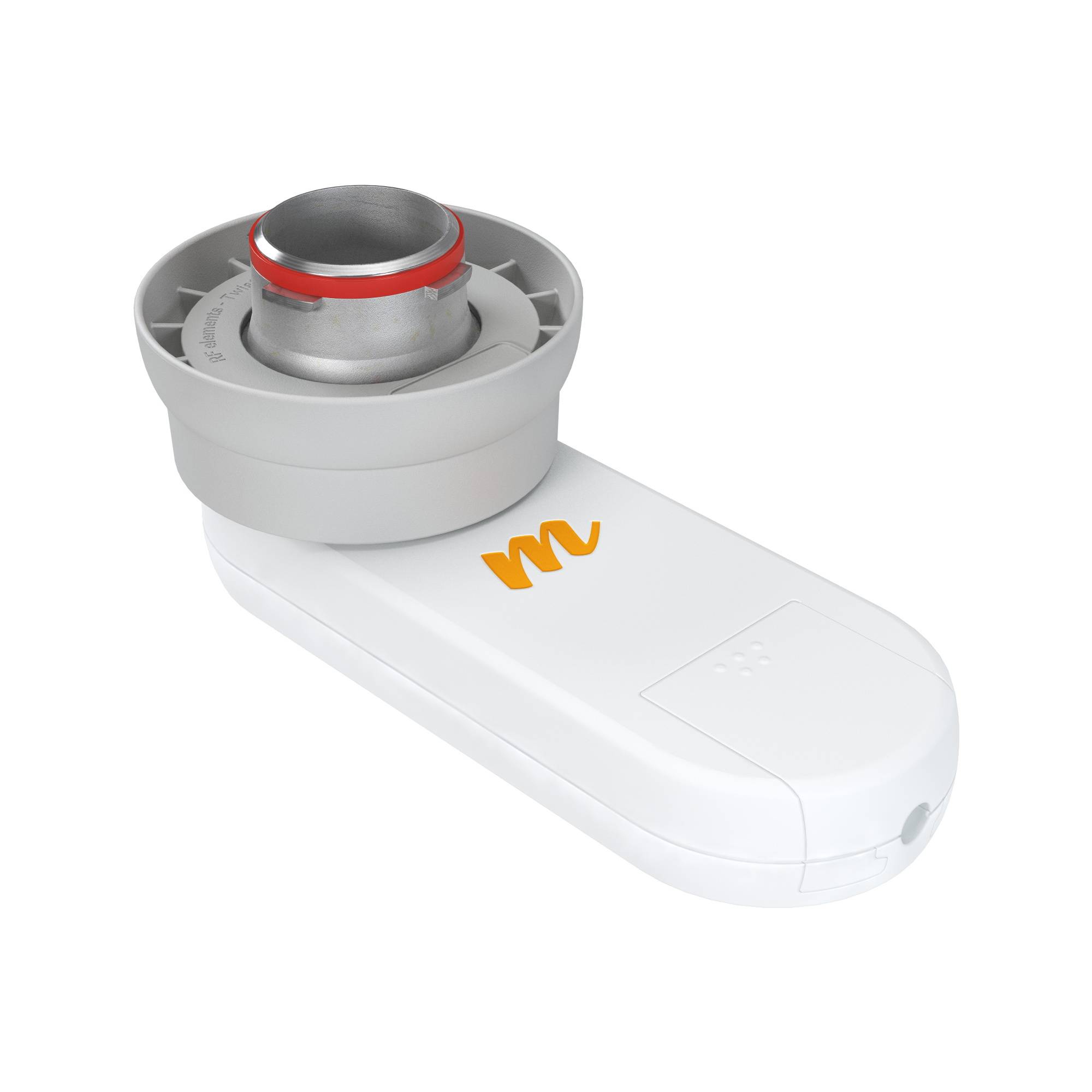

TPA-C5xTwistPort Adaptor for Mimosa C5x What is TwistPortTM Adaptor TwistPort Adaptor TPA-C5x adapts Mimosa® C5x radios to RF elements® proprietary TwistPort waveguide connector. Integration of the radio is smooth and easy. Making Mimosa® C5x radios compatible with TwistPort allows for using the radio with any TwistPort antenna ever made and enable superior performance noise immunity and network scalability. Dual Slant or H+VTPA-C5x allows to choose between Dual Slant polarization setup or H+V polarization setup. Market Leading PerformanceTwistPort Adaptors cover an ultra-wideband spectrum of 5180-6400 MHz and perform with superb efficiency with very well managed VSWR across the spectrum.

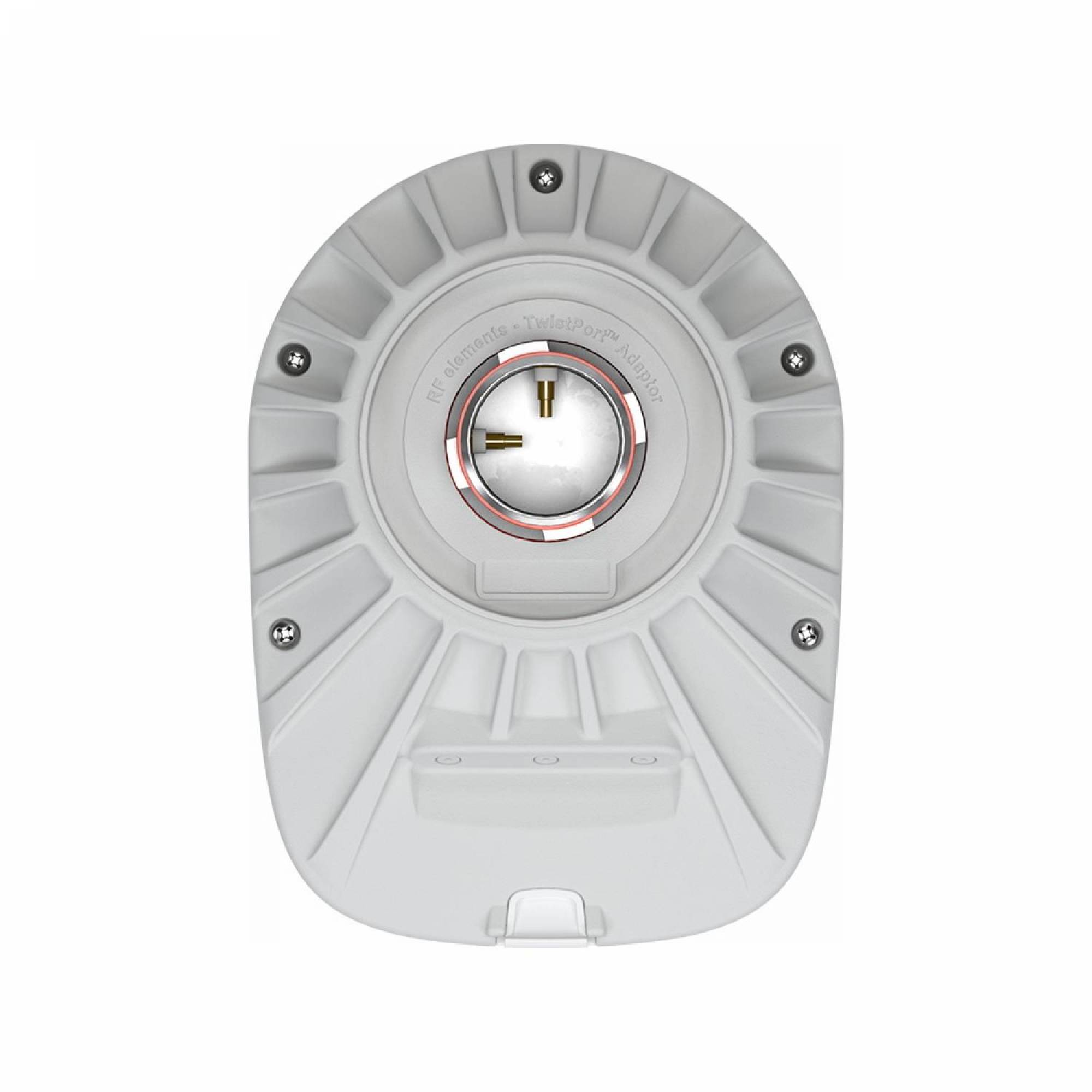

TPA-RBP is cost effective and practical alternative of TPA compatible with MikroTikTM RouterBOARDTM 9XX 7XX and 4XX series as well as with the recent M11 series. It incorporates popular RB922 board.Frequency Range: 5180 - 6400 MHzPolarization: Dual Linear H + VAntenna Connection: TwistPortTM - Quick Locking Waveguide PortRadio Connection: 2x Right Angle MMCXWhat is TwistPortTM AdaptorTwistPort Adaptor adapts 3rd party radios to RF elements® proprietary TwistPortTM waveguide connector. Integration of the radio is smooth and requires no tools. Making 3rd party radios compatible with TwistPortTM allows for using the radio with any TwistPortTM antenna ever made and enable superior performance noise immunity and network scalability. Made For MikroTikTPA-RBP is cost effective and practical alternative of TPA compatible with MikroTikTM RouterBOARDTM 9XX 7XX and 4XX series as well as with the recent M11 series. It incorporates popular RB922 board.Improved FeederTPA-RBP is equipped with the newest generation of feeding elements. Transition to TwistPortTM waveguide connector is terminated with two MMCX pigtails with single layer shield.

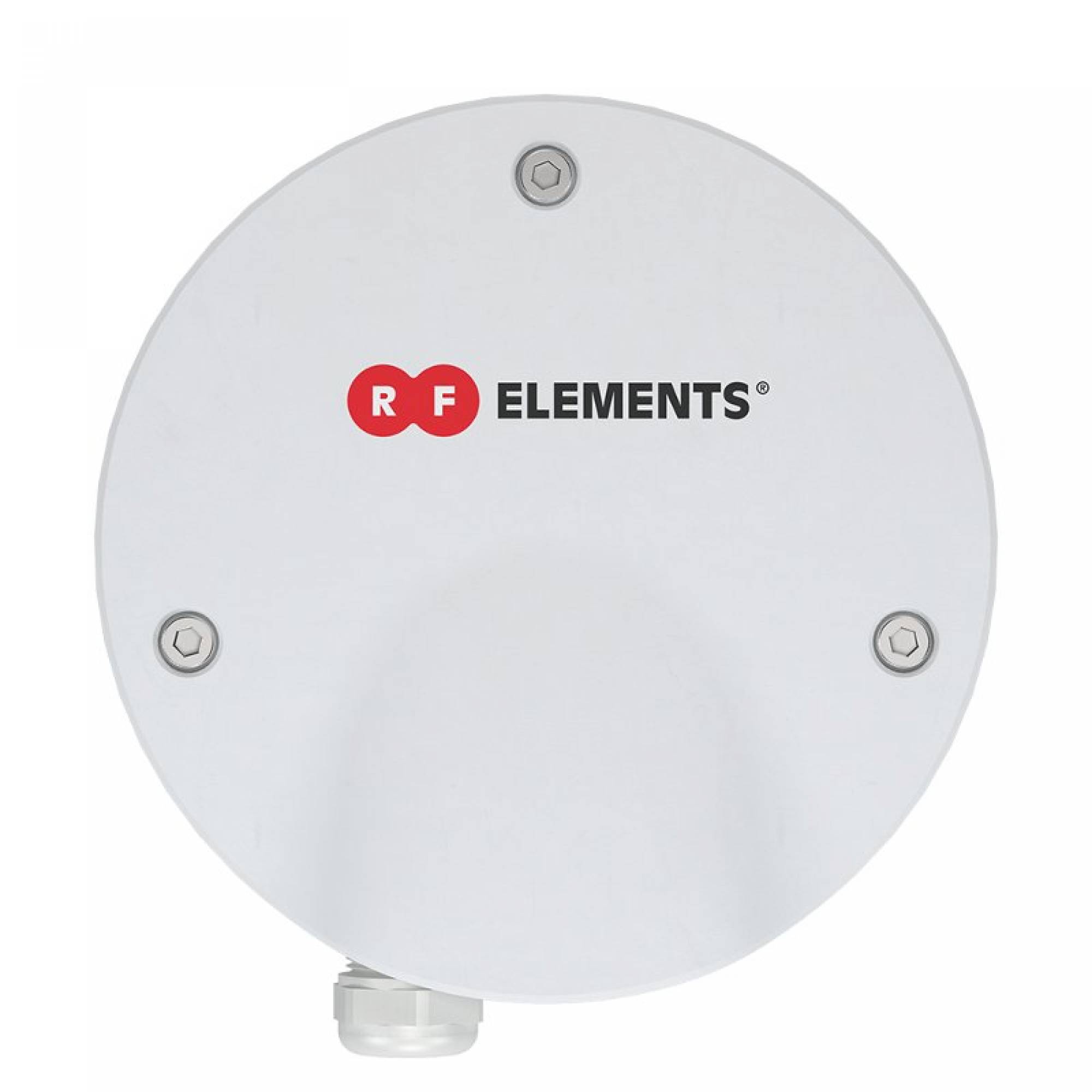

TPA-RBC makes the RouterBoard™ M11 series 9 series 7 series and 4 series compatible with all TwistPort™ Antennas.TwistPort™ Adaptors are equipped with our proprietary quick-locking waveguide port. TPA-RBC is made of cast aluminium and provides premium protection for MikroTik™ RouterBoard.Frequency Range: 5180 - 6400 MHzPolarization: Dual Linear H + VAntenna Connection: TwistPortTM - Quick Locking Waveguide PortRadio Connection: 2x Right Angle MMCXWhat is TwistPortTM AdaptorAluminium Enclosure

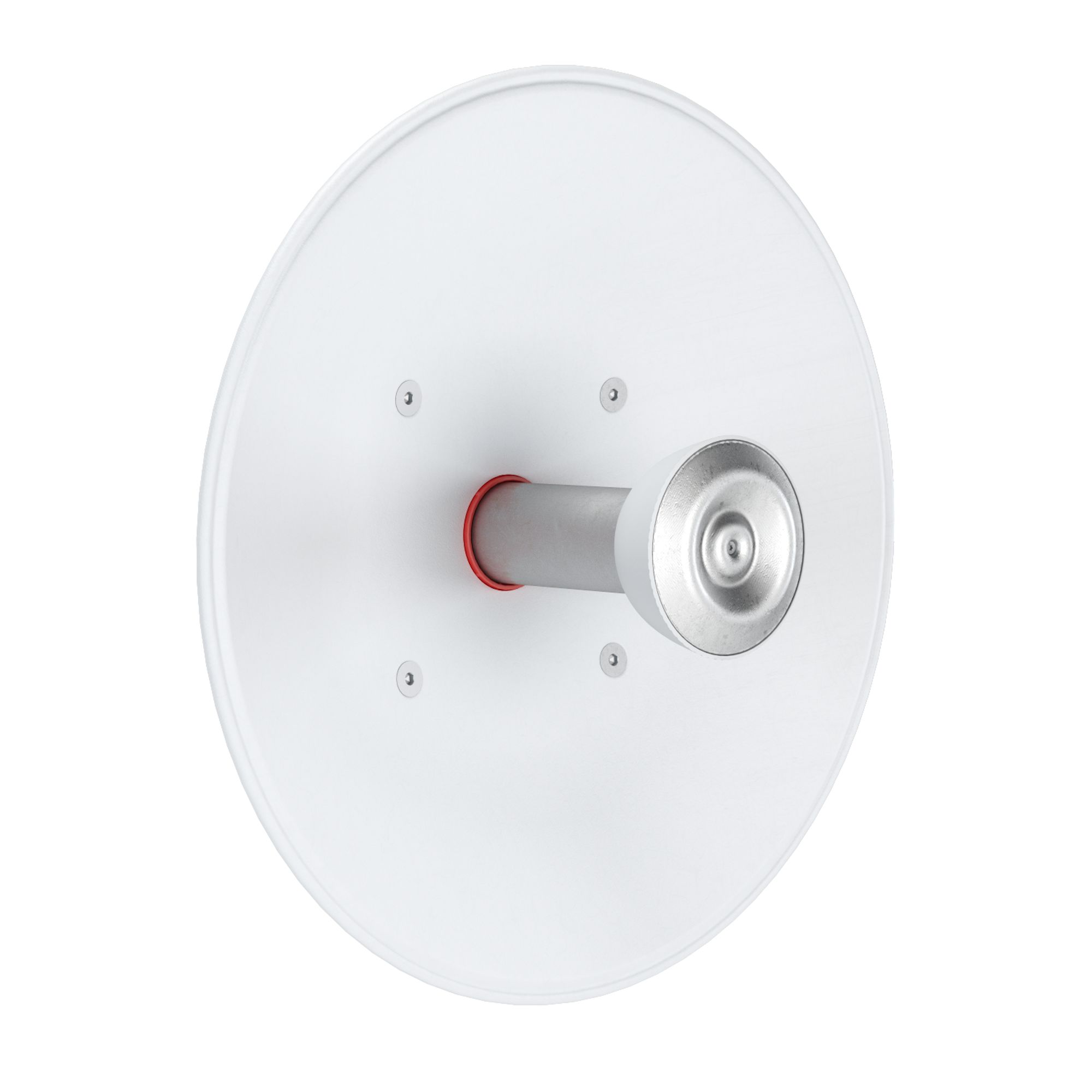

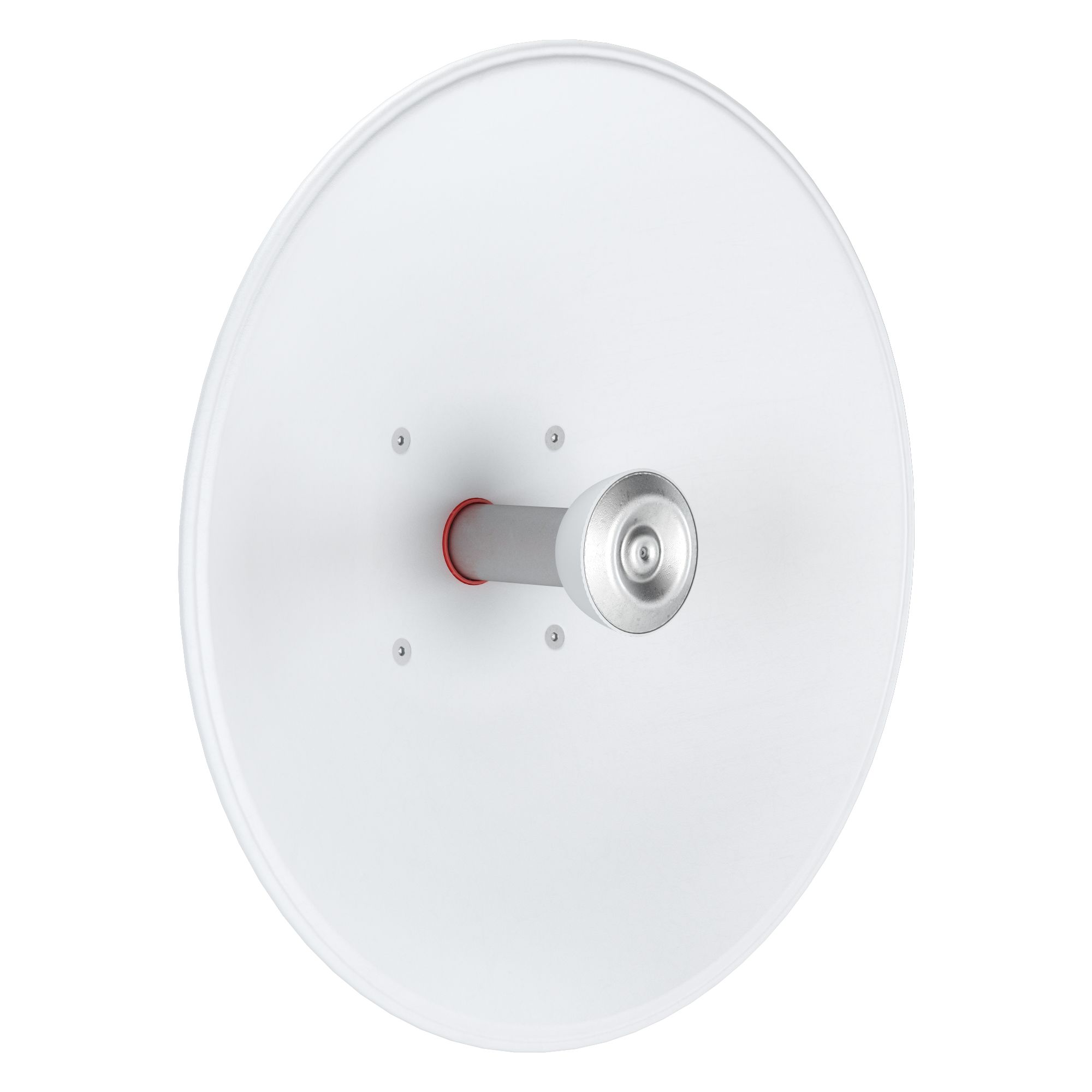

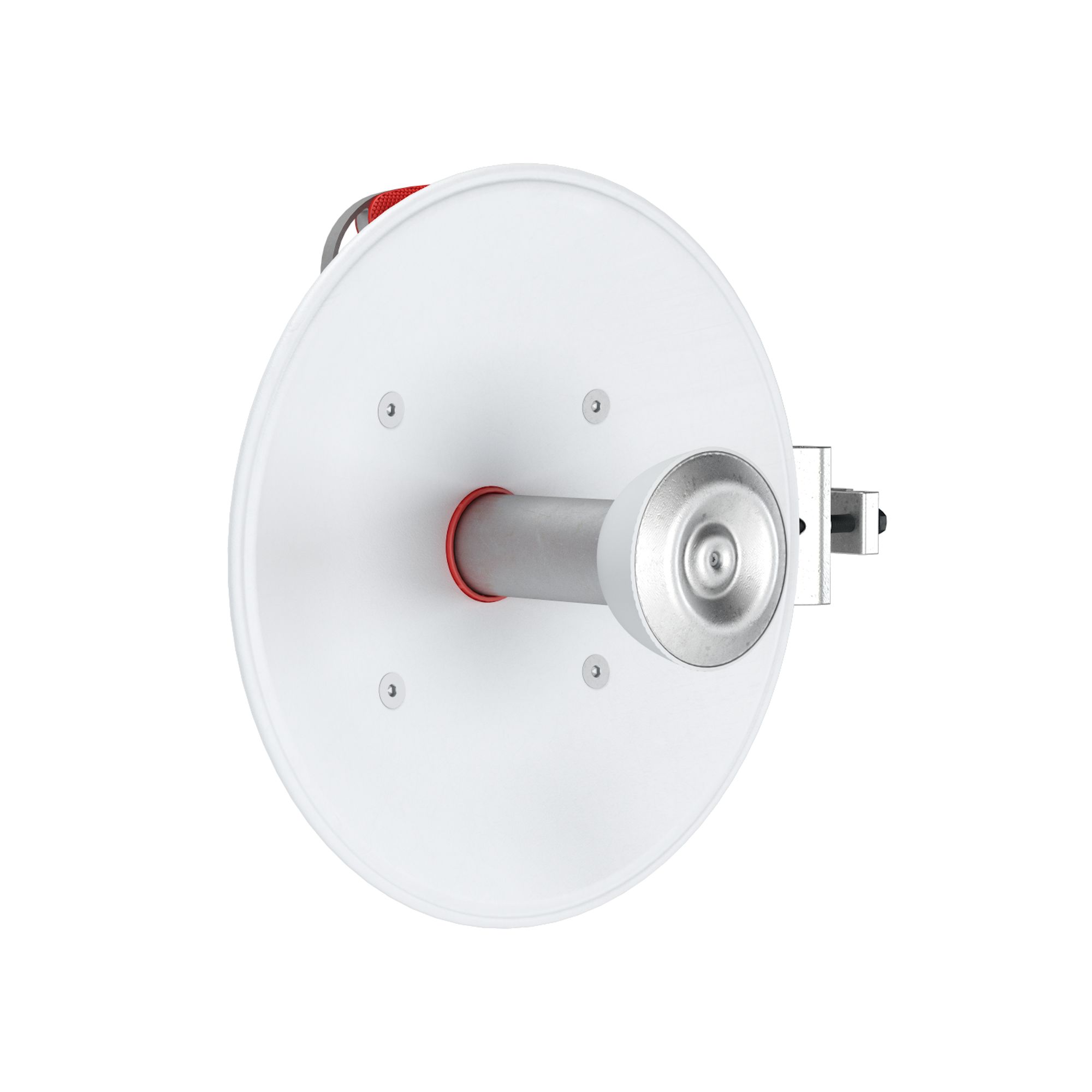

High Gain Directional AntennasUltraDishTM TP Antennas are parabolic dish antennas with a wide gain range and lossless TwistPortTM connector. The UltraDish TP Antennas have high directivity and suppressed side lobes for the ultimate performance.Beam PerformanceThe radiation pattern of UltraDishTM TP Antennas with suppressed side lobes minimizes the collected and transmitted interference in high-noise areas. The flexible gain of UltraDishTM TP Antennas is achieved by adjusting the size of the main reflector size that focuses the signal fed via the TwistPortTM connector.Wideband 5.1 - 6.4 GHzStable antenna gain is important for reliable link performance. The gain of all three UltraDishTM TP Antennas is stable in the whole useful bandwidth - from 5.1 up to 6.4 GHz letting you leverage the whole spectrum between UNII-1 and UNII-5 bands with stable performance regardless of the channel used.TwistPort ConnectorTwistPortTM is RF Elements patent-pending quick-locking waveguide connector with practically zero loss. It connects antennas to an RF radio and embodies the new standard for scalable high-performance and easy-to-use wireless equipment.Easy ConnectionTwistPortTM operation is extremely easy. The mounting and RF connection of the radio is combined into a single elegant and highly functional "twist and lock" design. A single-handed radio installation is now a real option!LosslessTwistPortTM connector is practically lossless. With no coaxial connectors or cables there is no loss introduced during the delivery of the signal from the radio to an antenna. The ultra-low loss of waveguide makes TwistPortTM losses practically unmeasurable.Cross-Platform CompatibilityUltraDishTM TP Antennas can be used with any radio with a TwistPortTM interface and a variety of third-party radios connected through a TwistPortTM Adaptor.Innovative MountUltraDishTM TP Antennas feature an innovative mounting system design optimized for simplicity and durability. The installation and aiming adjustment is quick easy and can be done within minutes.
High Gain Directional AntennasUltraDishTM TP Antennas are parabolic dish antennas with a wide gain range and lossless TwistPortTM connector. The UltraDish TP Antennas have high directivity and suppressed side lobes for the ultimate performance.Beam PerformanceThe radiation pattern of UltraDishTM TP Antennas with suppressed side lobes minimizes the collected and transmitted interference in high-noise areas. The flexible gain of UltraDishTM TP Antennas is achieved by adjusting the size of the main reflector size that focuses the signal fed via the TwistPortTM connector.Wideband 5.1 - 6.4 GHzStable antenna gain is important for reliable link performance. The gain of all three UltraDishTM TP Antennas is stable in the whole useful bandwidth - from 5.1 up to 6.4 GHz letting you leverage the whole spectrum between UNII-1 and UNII-5 bands with stable performance regardless of the channel used.TwistPort ConnectorTwistPortTM is RF Elements patent-pending quick-locking waveguide connector with practically zero loss. It connects antennas to an RF radio and embodies the new standard for scalable high-performance and easy-to-use wireless equipment.Easy ConnectionTwistPortTM operation is extremely easy. The mounting and RF connection of the radio is combined into a single elegant and highly functional "twist and lock" design. A single-handed radio installation is now a real option!LosslessTwistPortTM connector is practically lossless. With no coaxial connectors or cables there is no loss introduced during the delivery of the signal from the radio to an antenna. The ultra-low loss of waveguide makes TwistPortTM losses practically unmeasurable.Cross-Platform CompatibilityUltraDishTM TP Antennas can be used with any radio with a TwistPortTM interface and a variety of third-party radios connected through a TwistPortTM Adaptor.Innovative MountUltraDishTM TP Antennas feature an innovative mounting system design optimized for simplicity and durability. The installation and aiming adjustment is quick easy and can be done within minutes.
High Gain Directional AntennasUltraDishTM TP Antennas are parabolic dish antennas with a wide gain range and lossless TwistPortTM connector. The UltraDish TP Antennas have high directivity and suppressed side lobes for the ultimate performance.Beam PerformanceThe radiation pattern of UltraDishTM TP Antennas with suppressed side lobes minimizes the collected and transmitted interference in high-noise areas. The flexible gain of UltraDishTM TP Antennas is achieved by adjusting the size of the main reflector size that focuses the signal fed via the TwistPortTM connector.Wideband 5.1 - 6.4 GHzStable antenna gain is important for reliable link performance. The gain of all three UltraDishTM TP Antennas is stable in the whole useful bandwidth - from 5.1 up to 6.4 GHz letting you leverage the whole spectrum between UNII-1 and UNII-5 bands with stable performance regardless of the channel used.TwistPort ConnectorTwistPortTM is RF Elements patent-pending quick-locking waveguide connector with practically zero loss. It connects antennas to an RF radio and embodies the new standard for scalable high-performance and easy-to-use wireless equipment.Easy ConnectionTwistPortTM operation is extremely easy. The mounting and RF connection of the radio is combined into a single elegant and highly functional "twist and lock" design. A single-handed radio installation is now a real option!LosslessTwistPortTM connector is practically lossless. With no coaxial connectors or cables there is no loss introduced during the delivery of the signal from the radio to an antenna. The ultra-low loss of waveguide makes TwistPortTM losses practically unmeasurable.Cross-Platform CompatibilityUltraDishTM TP Antennas can be used with any radio with a TwistPortTM interface and a variety of third-party radios connected through a TwistPortTM Adaptor.Innovative MountUltraDishTM TP Antennas feature an innovative mounting system design optimized for simplicity and durability. The installation and aiming adjustment is quick easy and can be done within minutes.

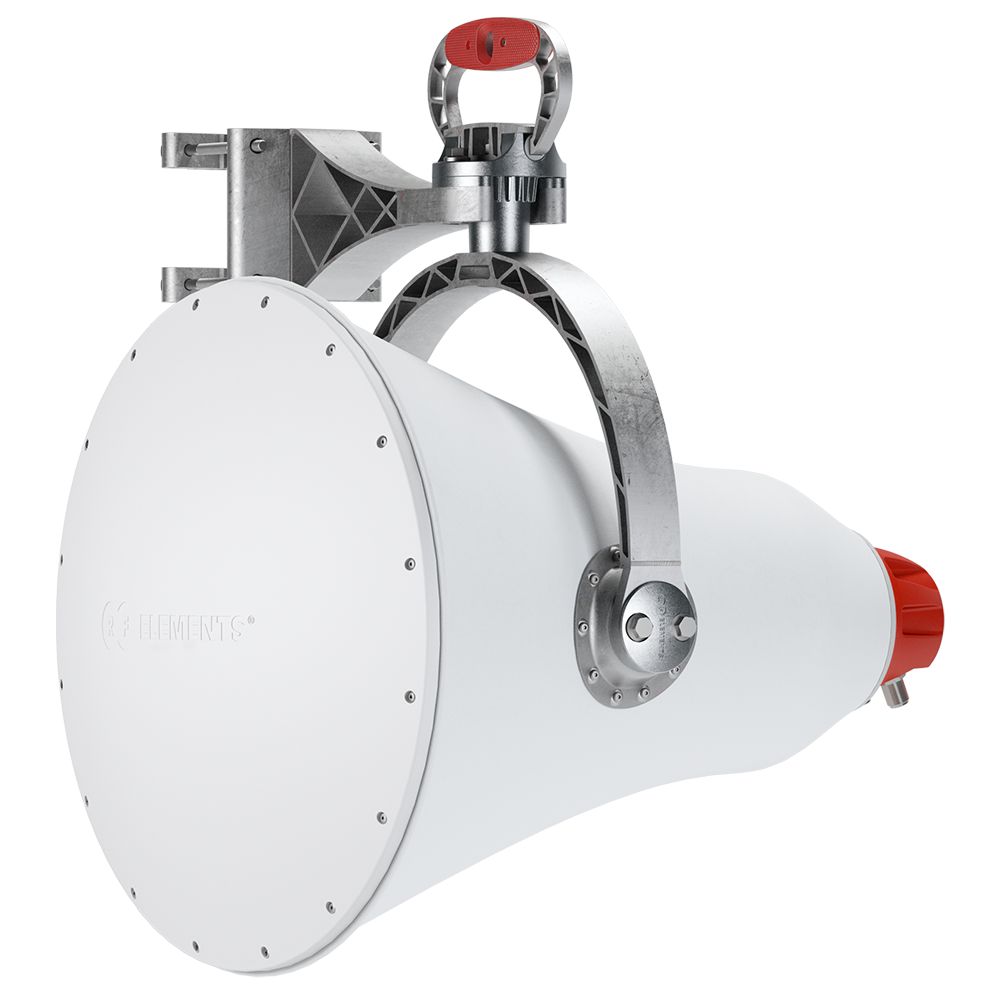

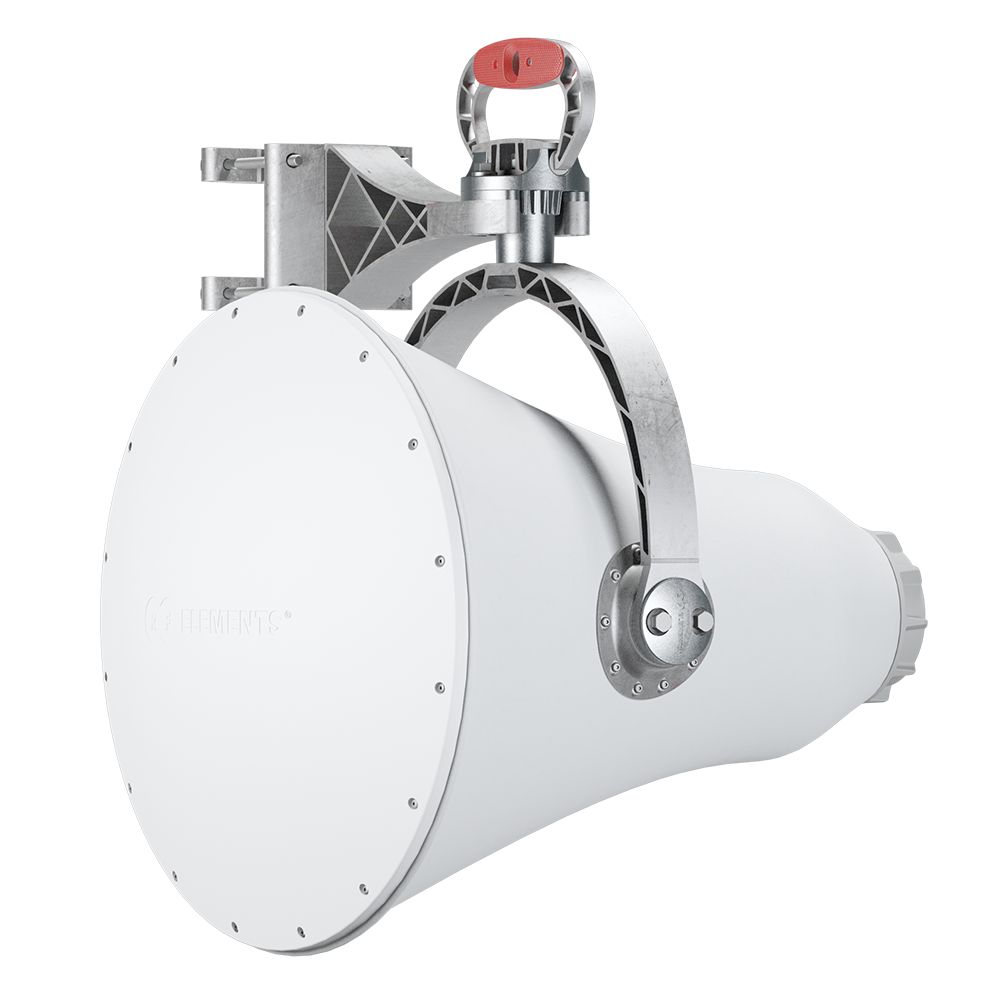

Ultimate Noise Rejecting Horn AntennaUltraHornTM CC is horn antenna with high gain and high directivity. UltraHornTM offers superb noise rejection due to symmetrical beam with no side lobes. These unique features make UltraHornTM CC ideal for long distance links in high noise environment. UltraHornTM delivers excellent performance as a narrow sector antenna for high noise environment. High performance antenna characteristics allow for precise network planning of dense co-location in very challenging RF conditions.Unique Beam Without Side LobesUltraHornTM CC is highly directive antenna: radiated energy is focused only to the main beam due to the absence of side lobes. Precise radiation pattern of UltraHornTM CC allows you to deploy long distance links in high noise environment with unprecedented performance. When implementing highly granular network coverage pattern UltraHornTM delivers excellent performance as a narrow sector antenna.Ultimate Noise RejectionUltraHornTM CC antenna lacks any side lobes which results into efficient noise rejection. Energy radiated in undesired directions is a direct source of noise: radios transmit and also receive signal from unwanted directions and sources. Side lobes of most mainstream directional antennas are immense. Sometimes almost as big as half of the main lobe gain having enormous impact on overall performance of a link. UltraHornTM CC antenna receives and transmits significantly less noise achieving incredible performance in noisy environment.No Accessories NeededUltraHornTM CC comes as a thorough antenna solution for a high performance wireless link. There is no need to spend extra money on radomes or shrouds. Any additional shielding only burdens the tower and your budget. UltraHornTM CC has everything that is needed.
Ultimate Noise Rejecting Horn AntennaUltraHornTM TP antennas are highly directional scalar horn antennas. They offer all the benefits of scalar horns: ultra noise rejection lossless connection of radio and symmetrical beam with no side lobes. These unique radiation properties make them excellent antennas for long links in environments with a high level of noise.Unique Beam Without Side LobesUltraHornTM TP antennas are truly directional antennas: signal is focused only to a main beam without any side lobes. Precise radiation patterns of UltraHornTM TP antennas allow you to create long links in high noise environment with unprecedented performance. The optimal beamwidth makes aiming very simple compared to other point-to-point antennas.Ultimate Noise RejectionUltraHornTM TP antennas do not have side lobes which allows them to reject noise. Side radiation is directly related to noise: radios transmit and also receive interference from unwanted directions. Side lobes from most mainstream point-to-point antennas are huge sometimes almost half the size of the main lobe and thus having a huge impact on overall performance. UltraHornTM TP antennas receive significantly less noise allowing them to achieve amazing performance in noisy environments.Zero LossUltraHornTM TP Antennas feature our industry changing TwistPortTM connector a patent pending quicklocking waveguide port. There are no coaxial RF connectors or RF cables anymore that makes TwistPortTM virtually lossless connector. Connection of radio is brilliantly simple - “twist and lock” - all done with one hand!No Accessories NeededUltraHornTM TP antennas come as a complete antenna solution for a point-to-point link. There is no need to spend more money for radomes or shrouds. No extra costs for additional shielding that burdens the tower and does not work properly. UltraHornTM TP antennas have everything. Just buy an appropriate TwistPortTM Adaptor to connect your radio and deploy. That’s it!

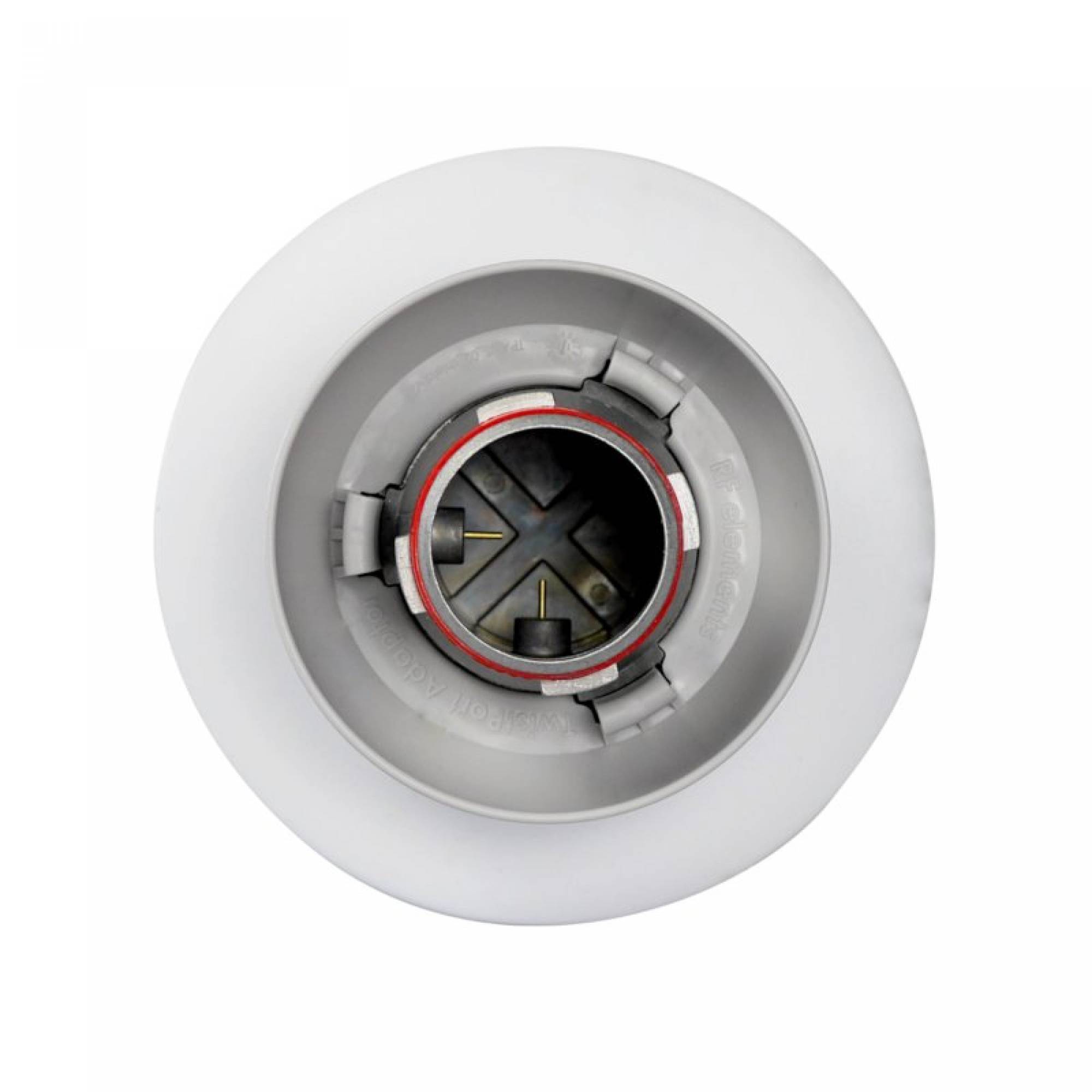

The TwistPort™ Adaptor for airFiber® LTU / PrismStation™ 5AC / IsoStation™ 5AC / IsoStation™ M5 makes the radios compatible with all TwistPort™ Antennas. TwistPort™ Adaptors are equipped with our original quick-locking waveguide port. Connecting and disconnecting the IsoStation™ radio series from the TwistPort™ Adaptor is very simple and requires no tools. Antenna Connection: TwistPortTM - Quick Locking Waveguide PortRadio Connection: WaveguideMaterials: Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plasticFlame Rating: UL 94 HBTemperature: -40°C to +60°C (-40°F to +140°F)Wind Survival: 160 km/hFrequency Range: 5180 - 6400 MHzPolarization: Dual Linear H + VAntenna Compatibility: Any TwistPortTM Compatible AntennaRadio Compatibility: UbiquitiTM: PrismStationTM 5AC IsoStationTM 5AC IsoStationTM M5 airFiber® LTU
