FMT100Special and small waterproof GNSS tracker with built-in accelerometer and gyroscope.Teltonika FMT100 small smart and waterproof GNSS SPECIAL tracker with Bluetooth connectivity and internal backup battery. Biggest in its class internal High Gain GNSS antenna allows mounting directly on car battery under the hood. FMT100 is equipped with special clamp connector for fast power cable connection to the car battery. Solid waterproof case and built-in accelerometer & gyroscope sensors with extremely accurate crash trace functionality makes this device perfectly suitable for insurance market solutions.

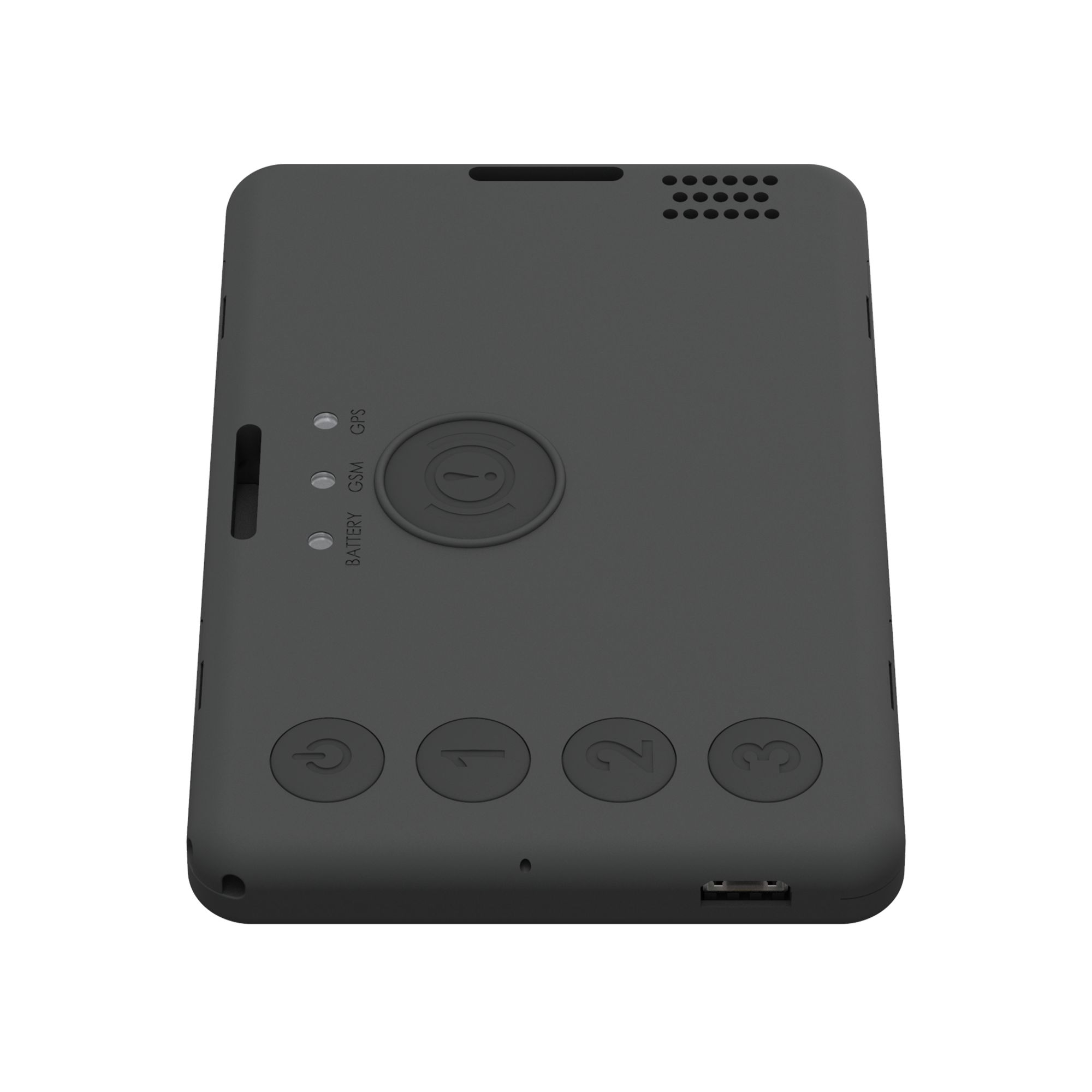

GH5200 is an AUTONOMOUS personal tracker with GNSS GSM and Bluetooth connectivity. Device is designed for everyone who performs activity without close or direct supervision of others: for example healthcare visitors maintenance workers lone workers or employees working out of standard working hours. The tracker offers high quality voice communication programmable LED indications and 1050mAh battery to meet latest legislation for lone workers safety and protection.
To attach DIN rail adapter to the device: 1. Locate the groove for attaching adapter on the bottom of the device. 2. Line up smaller holes in the middle of DIN rail adapter with the groove on the device. 3. Secure adapter with two screws.

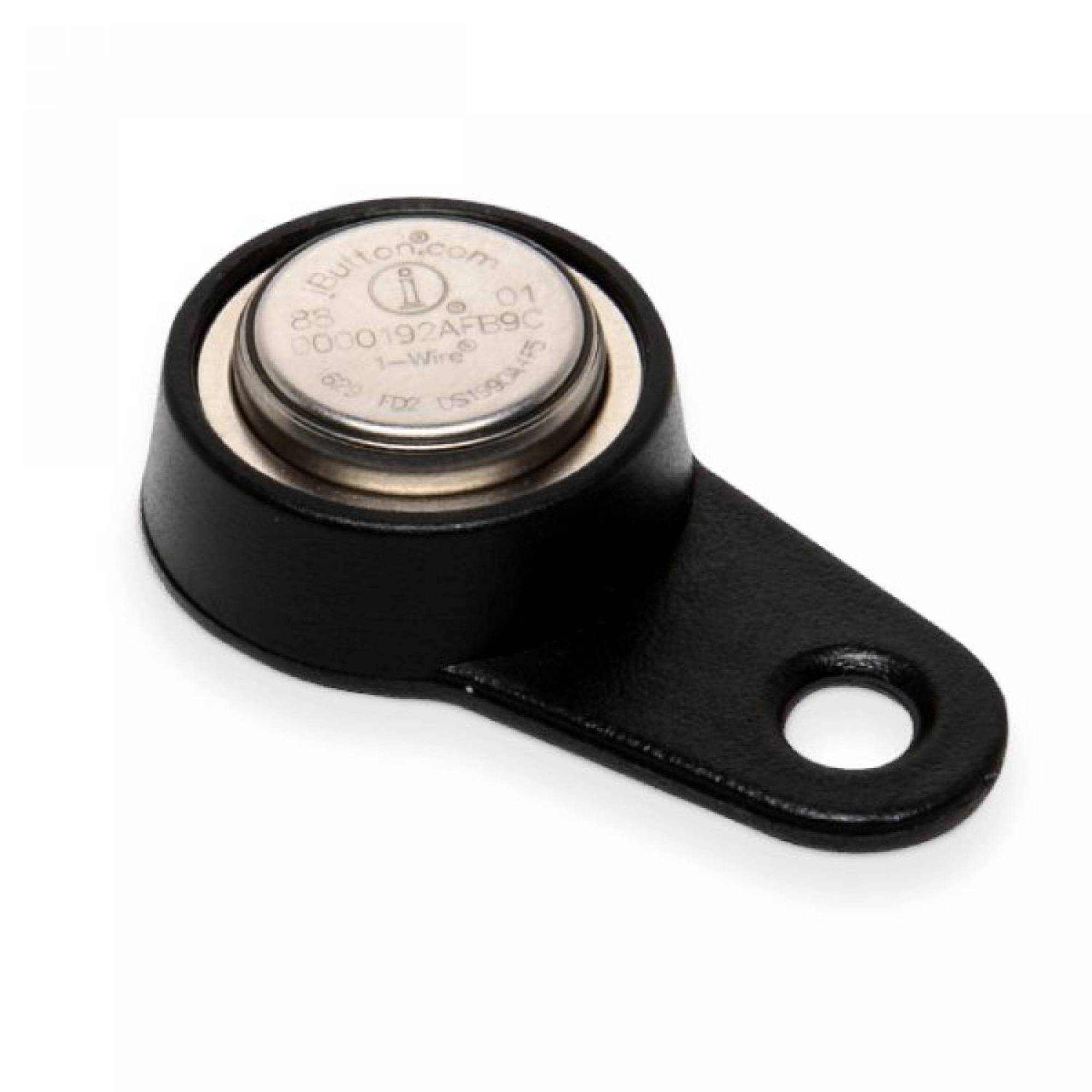

One of the implemented features for fleet management devices is 1-Wire data protocol which enables connection of iButton. The iButton device is perfect for any application where AVL data needs to travel along with a person or object identification.iButton is a solution for fleet management tracker in following cases:Driver authorization – gives ability to use vehicle only for specific iButton owners and identify which driver is on the road.Immobilizer – without iButton authorization you can not run engine starter and and use vehicle.AutoGeofencing – gives ability to know when car leaves customized areas without iButton authorization.

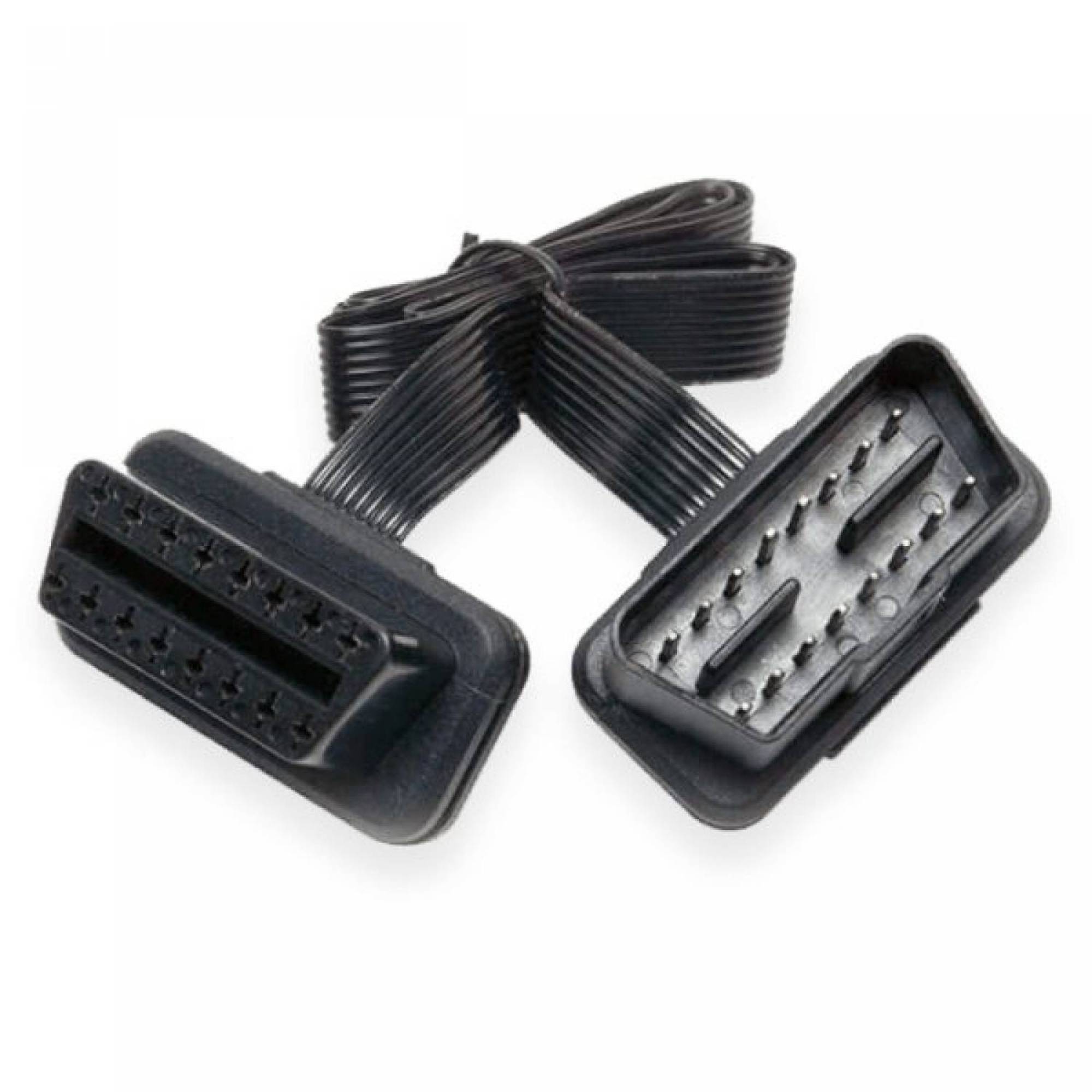

OBDII connection extension cable is a solution for OBDII tracker in following cases: When OBDII socket is in a hard to reach place and vehicle parts are interfering with GPS signal When vehicle parts need to be removed/opened to access OBDII socket When tracker is plugged in vehicle parts no longer fit or close Cable length: 50 cm Unsealed one-piece OBD male / female connector Suitable for all light vehicles with OBDII socket

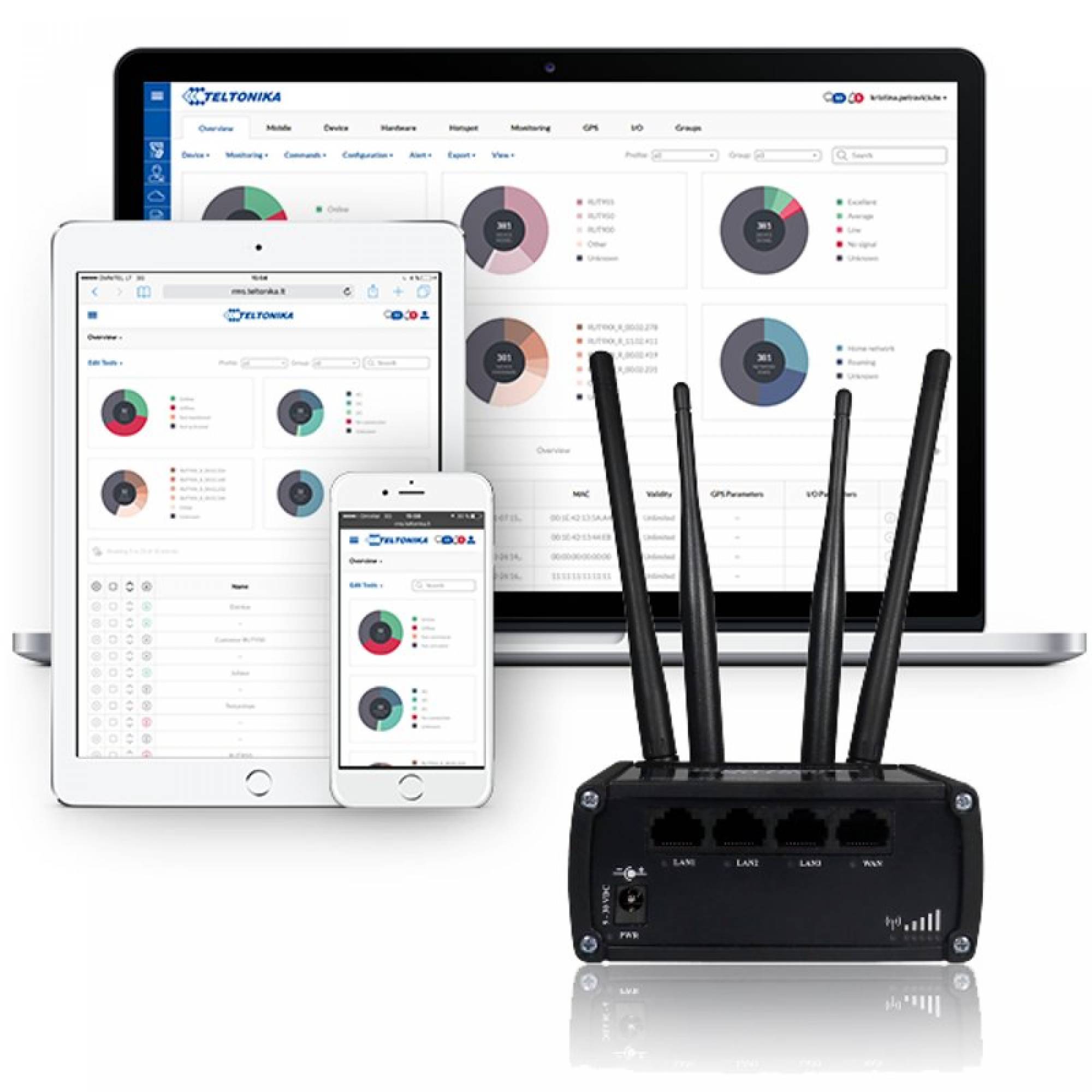

License Coverage: If You have 12 licenses and 1 monitored devices you will see license coverage for 12 monthsIf You have 12 licenses and 2 monitored devices you will see license coverage for 6 months 1 License cover: 1 device per months To generate the license please write in order comment your Teltonika ID (login) and license will be transferred to your account. Remote Management System (RMS) is designed to conveniently monitor and manage all your Teltonika networking devices including RUT2XX RUT8XX and RUT9XX routers.The system allows to securely gather status information of your devices and to change their configuration even if the devices do not have public IP addresses. Try RMS for free by clicking this link and registering your free demo account! Centralized system Access monitor and control whole router fleet from within a single web browser-based interface. Compatible with browsers across all platforms requires no installation or additional plug-ins.Firmware and configuration updates Deploy your desired configuration template or new firmware version to multiple units or groups of units at the same time. Over-the-air bulk upgrade and configuration significantly reduces the costs of system maintenance.Accessibility and security Your routers will not be dependent on having a public IP address for remote access decreasing maintenance costs and increasing effectiveness. Communication between routers and main server is secured by hardcoded OpenVPN connection which requires no configuration and protects communication channel from tampering.Maintenance and diagnostics Users receive information that helps them to visualize the unit’s location and check performance indicators like temperature signal strength and all device details. For proactive diagnostics – remotely reboot devices download troubleshooting or system event files for in-depth health analysis.Statistics Improve overall performance and efficiency of your whole network based on conclusions of reporting tools that allow creation of custom reports related to device availability performance and exceptions. Actively know how your network is behaving.

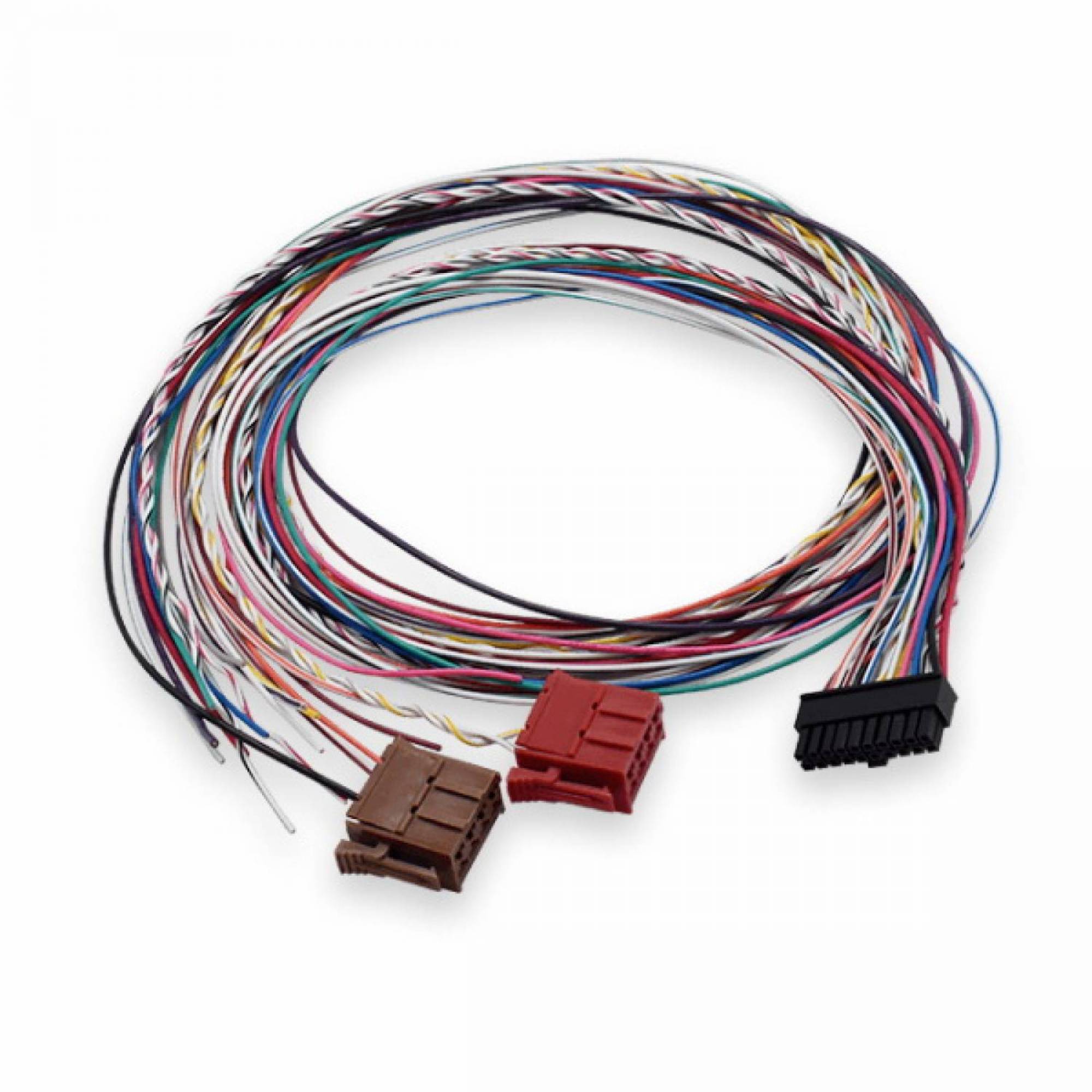

Tacho cable has two twisted pairs for CAN connection and two additional sockets dedicated for easy tachograph connection.Tacho cable makes easier connection for following cases: Remote Tachograph file download – gives ability to download files from tachograph remotely FMS CAN J1939 – reads CAN data from heavy vehicles FMS J1939 standard Live Vehicle data from Tachograph (Kline) – reads live tachograph data Cable can be used with FM6300 FMB630 and FMB640 devices.

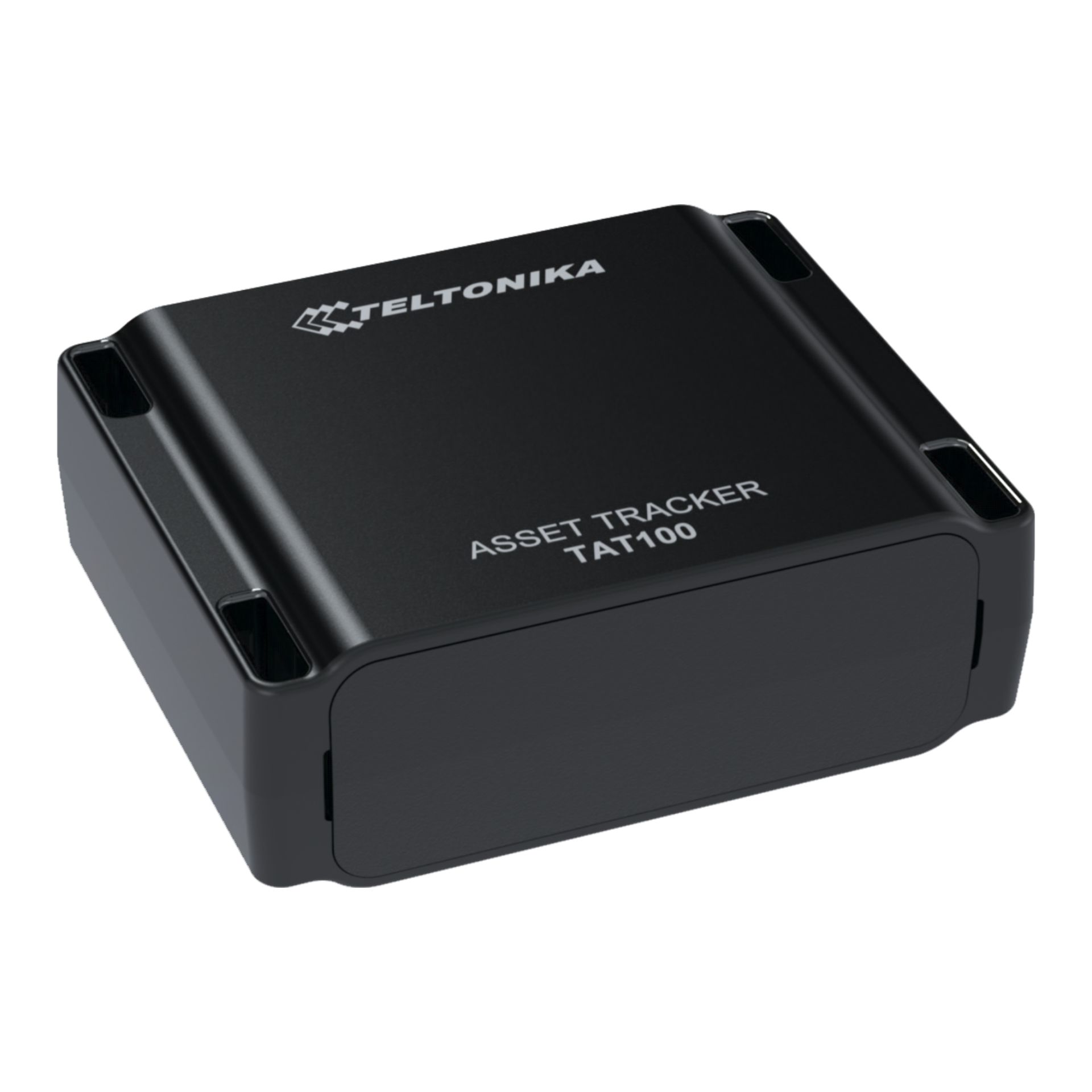

TAT100 – brand new Asset Tracking device with internal battery which could last up to 1 year while sending data once per day. TAT100 is a device for asset tracking and additional protection against thefts of valuable goods as well as it could be used in wide range of applications from tools tracking to container tracking. It is a robust waterproof solution with extremely easy mounting. The usage of the battery mainly depends on how long you want to monitor your goods. The device uses low power BlueNRG-232 chipset TM2500 module internal GNSS GSM antennas 2 low self-discharge Li-SOCl2 batteries.Use cases: parcel tracking leasing generators tools tracking container tracking construction equipment monitoring.

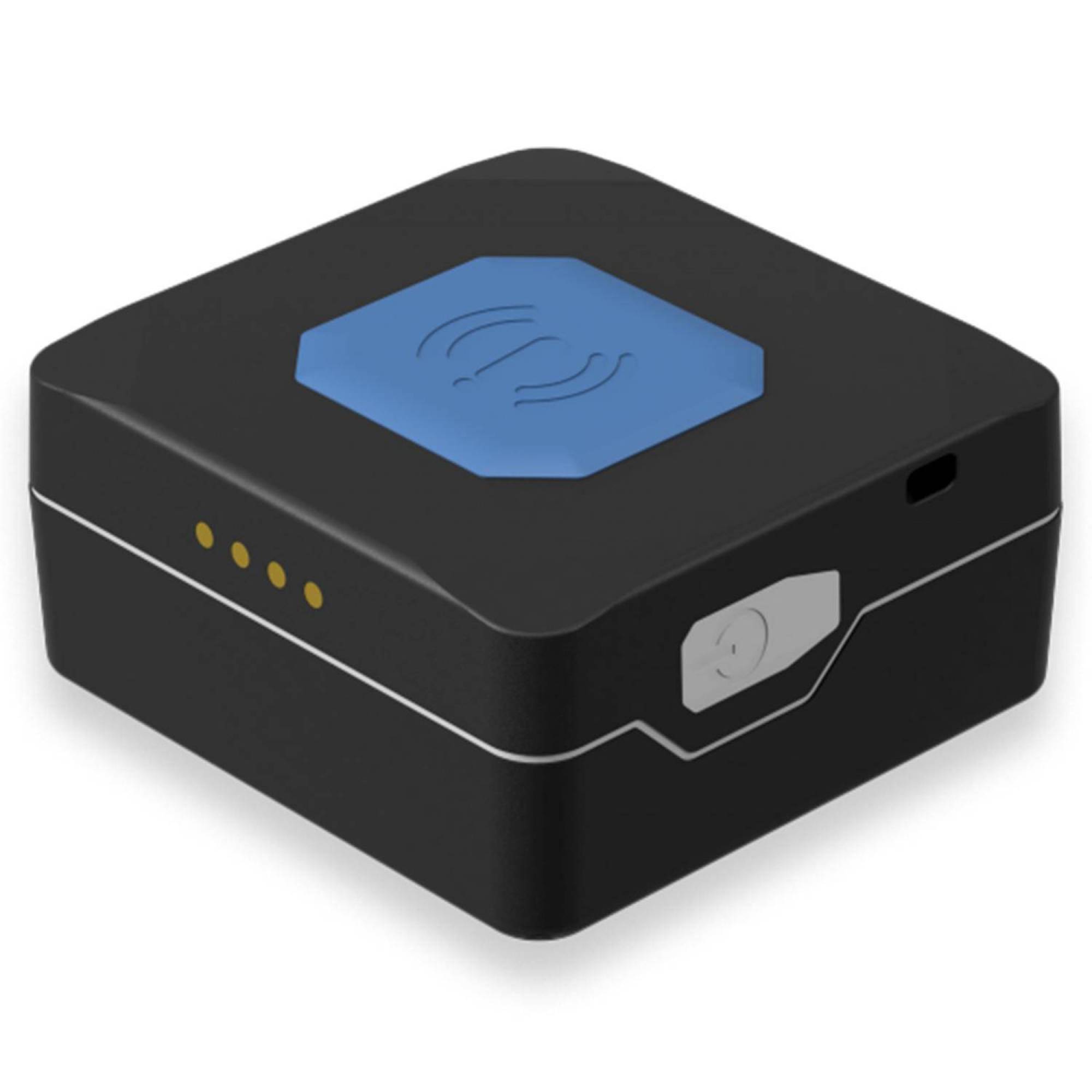

Teltonika TMT250 is an AUTONOMOUS personal tracker with GNSS GSM and Bluetooth connectivity. This mini tracker is designed for people pets car monitoring employees control sport events etc. IP67 waterproof case ensures outside usage in harsh conditions moreover large battery‘s capacity expands application range where long battery lifetime is needed. In addition to that TMT250 supports hands-free firmware and configuration update via Bluetooth. Module Name TM2500 Technology GSM/GPRS+GPS+BLUE-TOOTH GNSS GNSS GPS GLONASS GALILEO BEIDOU SBAS QZSS DGPS Receiver 33 channel Tracking sensitivity -165 dBM Accuracy < 3 m Hot start < 1 s Warm start < 25 s Cold start < 35 s Cellular Technology GSM 2G bands Quad-band 850 / 900 / 1800 / 1900 MHz Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps) GPRS Mobile Station Class B Data support SMS (text/data) Power Charging voltage 5V DC Battery 800 mAh Li-Ion battery (3.04 Wh) Power consumption 1 5 mA (Ultra Deep Sleep) 3 5 mA (Deep Sleep) 4 mA (Online Sleep) 8 mA (GPS Sleep) 44 mA (nominal) Blue-tooth Specification 4.0 + LE Supported peripherals Headset Interface Configurable buttons 2 GNSS antenna Internal High Gain GSM antenna Internal High Gain USB 2.0 Magnetic USB contact LED indication 1 RGB LED SIM Micro-SIM Memory 128MB internal flash memory Physical specification Dimensions 44 x 43 x 20 mm (L x W x H) Weight 40 g Operating environment Operating temperature -25 °C to +55 °C Storage temperature -40 °C to +70 °C Operating humidity 5% to 95% non-condensing Ingress Protection Rating IP67 Features Sensors Accelerometer Gyroscope Scenarios Over speeding Man – down Alarm Auto Geofence Manual Geofence Action on call. Sleep modes GPS Sleep Online Deep Sleep Deep Sleep Ultra Deep Sleep Configuration and firmware update FOTA Web FOTA FMB Configurator (USB Blue-tooth) FMBT mobile application SMS Configuration Events Debug GPRS commands Configuration Debug Time Synchronization GPS NITZ NTP Certification & Approvals Regulatory (pending) CE/RED EAC RoHS REACH ANATEL

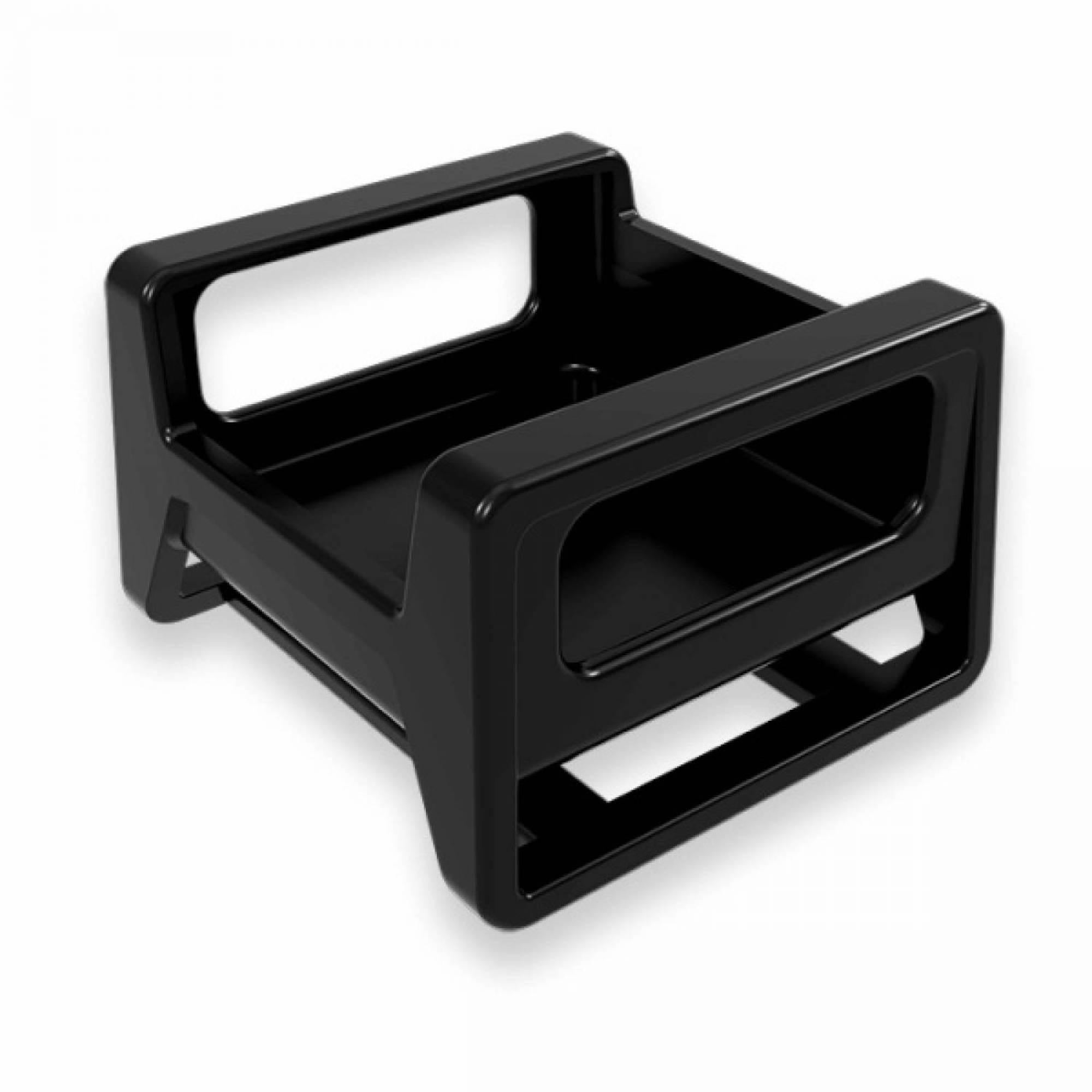

Rubber holder is designed to fasten device to belt or pets collar. Device maintains stable position while in it so it is perfectly suitable for man-down feature usage. * - TMT250 tracker is shown for demonstration purposes only and sold separately!

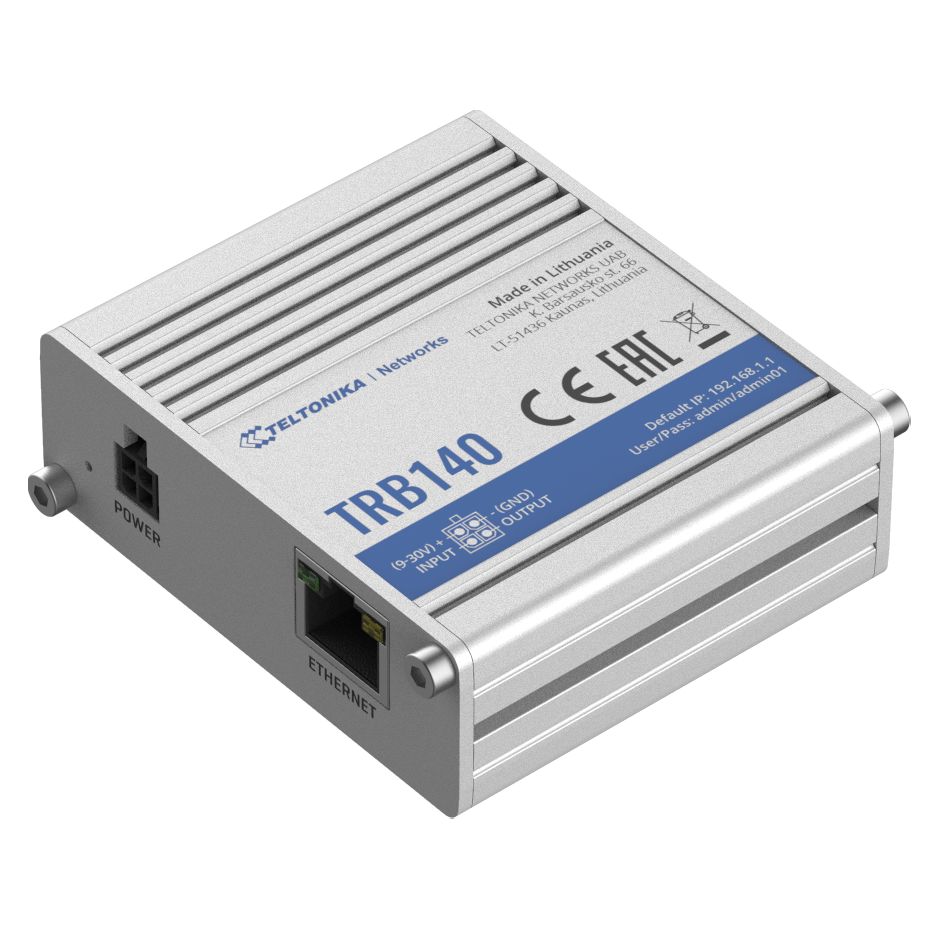

Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port Digital Inputs/Outputs and micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control Firewall Open VPN IPsec RMS and FOTA support.

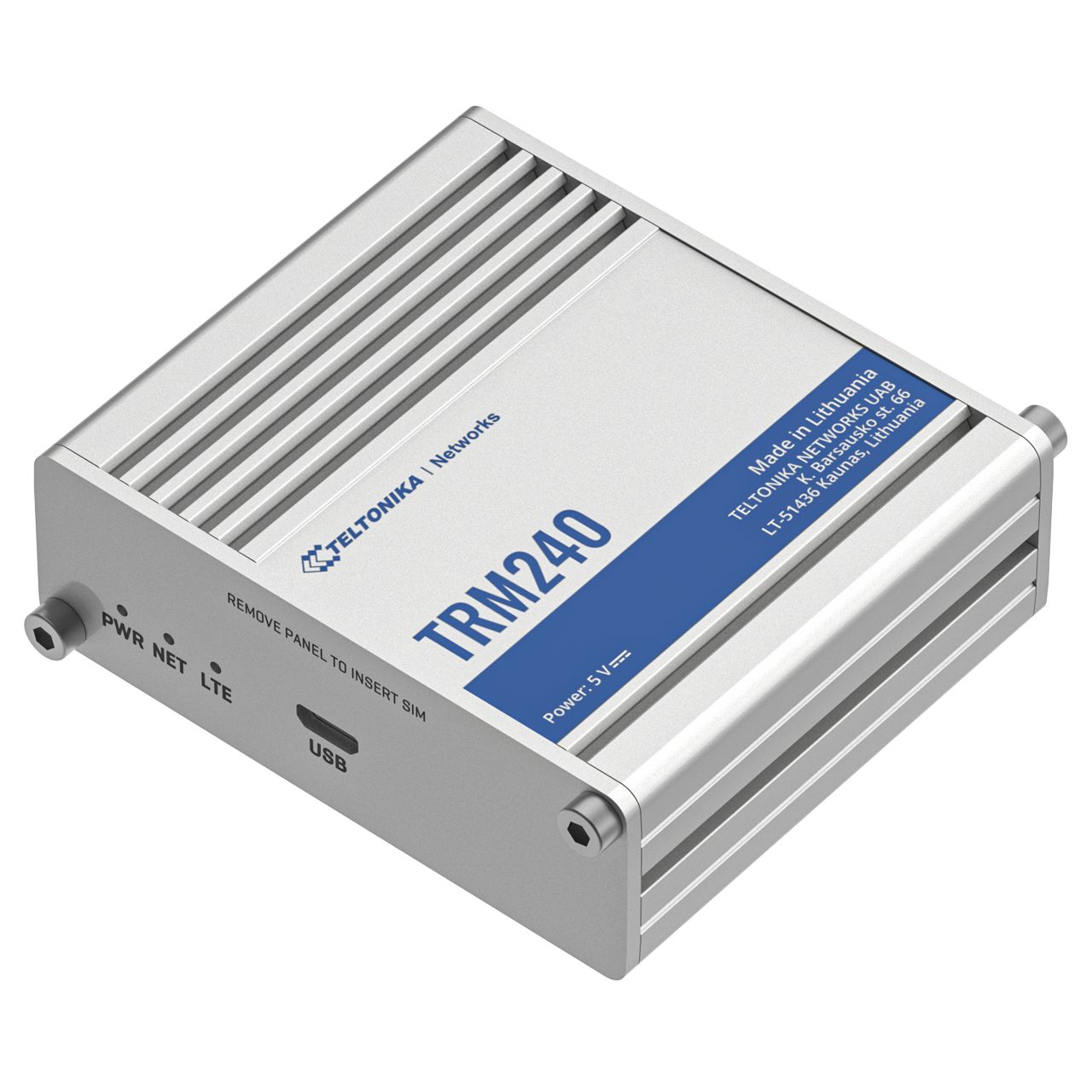

TRM240 is an Industrial LTE Cat 1 Modem with rugged aluminium housing USB interface and external antenna for better signal coverage. This product is backwards compatible with 3G and 2G technologies and is the most cost-efficient option for upgrading existing industrial and public infrastructure with modern M2M connectivity.Industrial Cellular LTE Cat 1 Modem TRM240 is a compact and simple connectivity device able to provide cellular capabilities to equipment across all market segments. It is backwards compatible to 3G and 2G therefore it is the universal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructure. It offers long and stable lifecycle important for IIoT projects because you can use conventional cellular technologies and enjoy more cost-efficient data plans using LTE Cat 1. TRM240 comes with USB interface for power & communication drivers supporting all relevant platforms and one SMA connector for an external antenna to obtain better signal coverage.

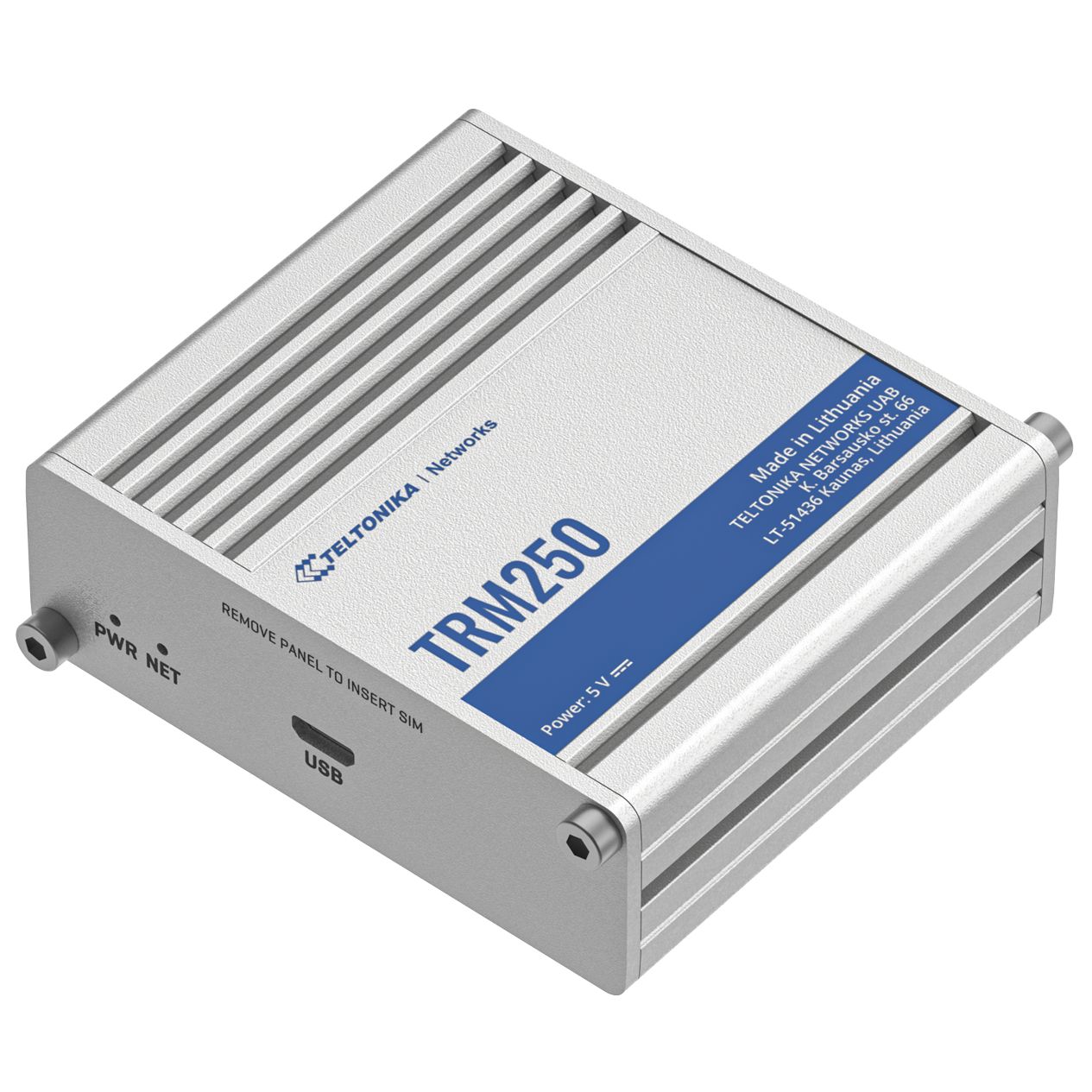

TRM250TRM250 is an Industrial Cellular modem with multiple LPWAN connectivity options. It features NB-IoT LTE Cat-M1 and is backwards compatible with EGPRS (2G). It offers an extremely long lifecycle and is the most flexible option when upgrading the connectivity of existing industrial equipment. TRM250 is equipped with a USB interface a rugged aluminium housing and is designed for large scale IIoT deployments. The Industrial Cellular Modem TRM250 is a rugged compact and extremely versatile connectivity device is able to provide cellular capabilities to equipment across IoT and Industrial IoT applications. This futureproof product features both NB-IoT and LTE Cat-M1 LPWAN communication options and is backwards compatible with 2G. This means that you can upgrade your existing infrastructure with a cost-efficient and reliable connectivity device which will adapt to the changing telecommunications environment and will enable you to use the best cellular M2M technologies for many years to come. Easy to deploy easy to use and even easier to maintain TRM250 comes with a USB interface for power & communication drivers supporting all relevant platforms and one SMA connector for an external antenna to obtain better signal coverage.
