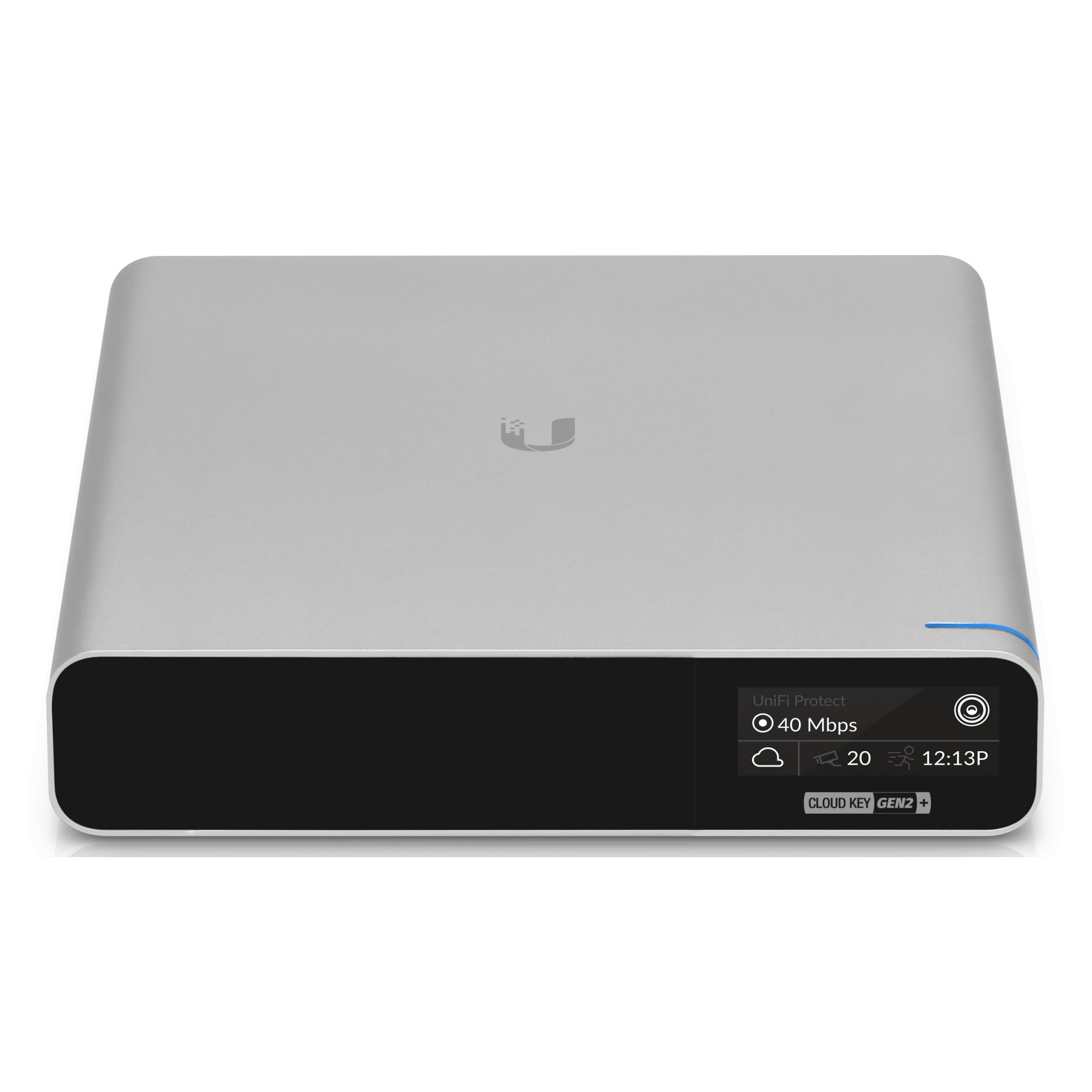

Manage your UniFi networking and video devices simultaneously with the new multi-application UniFi Cloud Key G2 Plus. Designed for easy deployment the Cloud Key G2 Plus can be quickly configured over Bluetooth using the UniFi mobile applications. The front panel display shows vital system stats for your UniFi networking hardware and UniFi Protect video cameras. A built-in battery provides protection against power loss. For video storage it also includes an eight-core processor with 3 GB RAM a 1 TB SATA HDD for video storage (which is upgradeable to 5 TB) and 32 GB eMMC flash storage and utilizes the latest version of the UniFi Controller with hybrid cloud technology.Features:Includes UniFi Protect video surveillance softwareIncludes UniFi SDN network management softwareEasy setup with UniFi and UniFi Protect mobile appsPowered by 802.3af PoE or QC 2.0 USB-CBuilt-in battery for automatic safe shutdown 1 TB 2.5" hard drive included (upgradeable to 5 TB) Front panel display for at-a-glance system details4x Faster Performance than the original Cloud Key

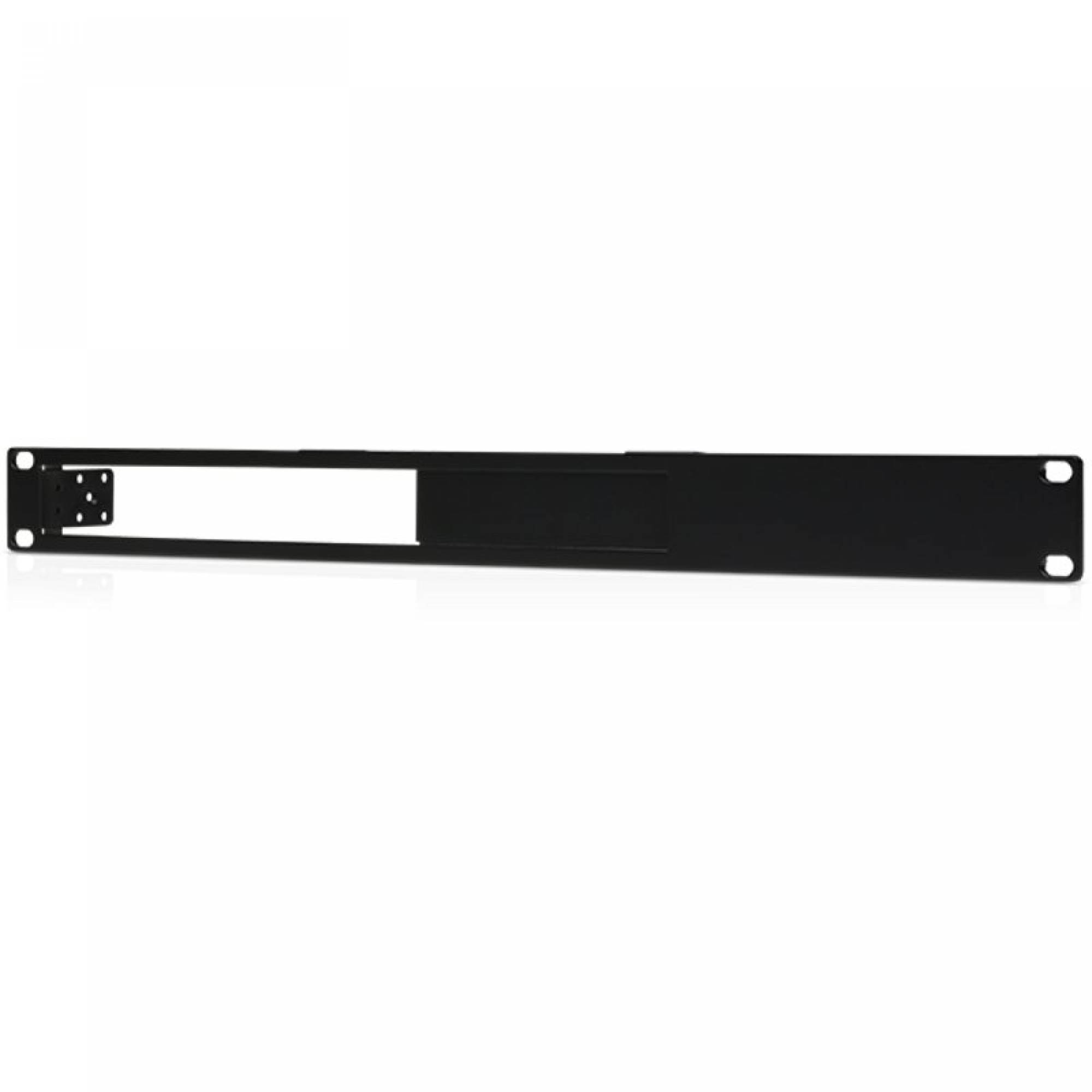

Ubiquiti's adjustable EdgeRouter Rack Mount Kit allows you to install the various smaller Edge Products into 19 inch racks. The mounting ear on one side slides in and out to accommodate various sized devices.Currently compatible with: EdgeRouter 4 (ER-4) EdgeRouter 6P (ER-6P) EdgeRouter 10X (ER-10X) EdgeRouter 12 (ER-12) EdgeSwitch 10X (ES-10X) EdgeSwitch 10XP (ES-10XP) EdgeRouter 12P (ER-12P)

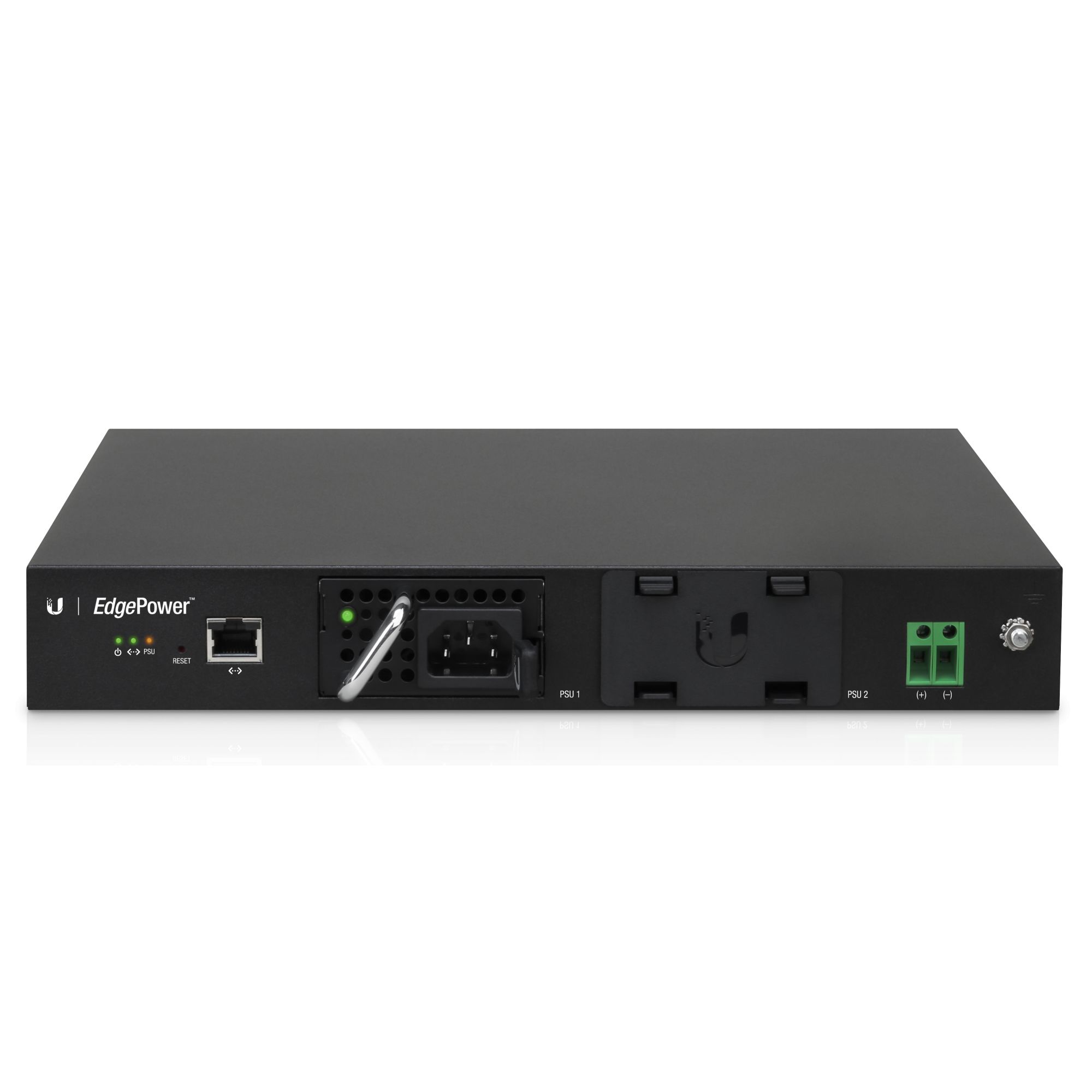

The EdgePower is a high-power modular PSU system designed to connect to EdgePoint routers/switches and provide reliable power to attached PoE devices. The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power or be configured to provide up to 150W of power with an automatic PSU backup. The EdgePower consists of a rack‑mountable two-bay housing and control unit and includes one AC‑DC 54V 150W PSU module. The second PSU bay can house an AC-DC or DC‑DC PSU module (sold separately): EP-54V-150W-AC EP-54V-150W-DC

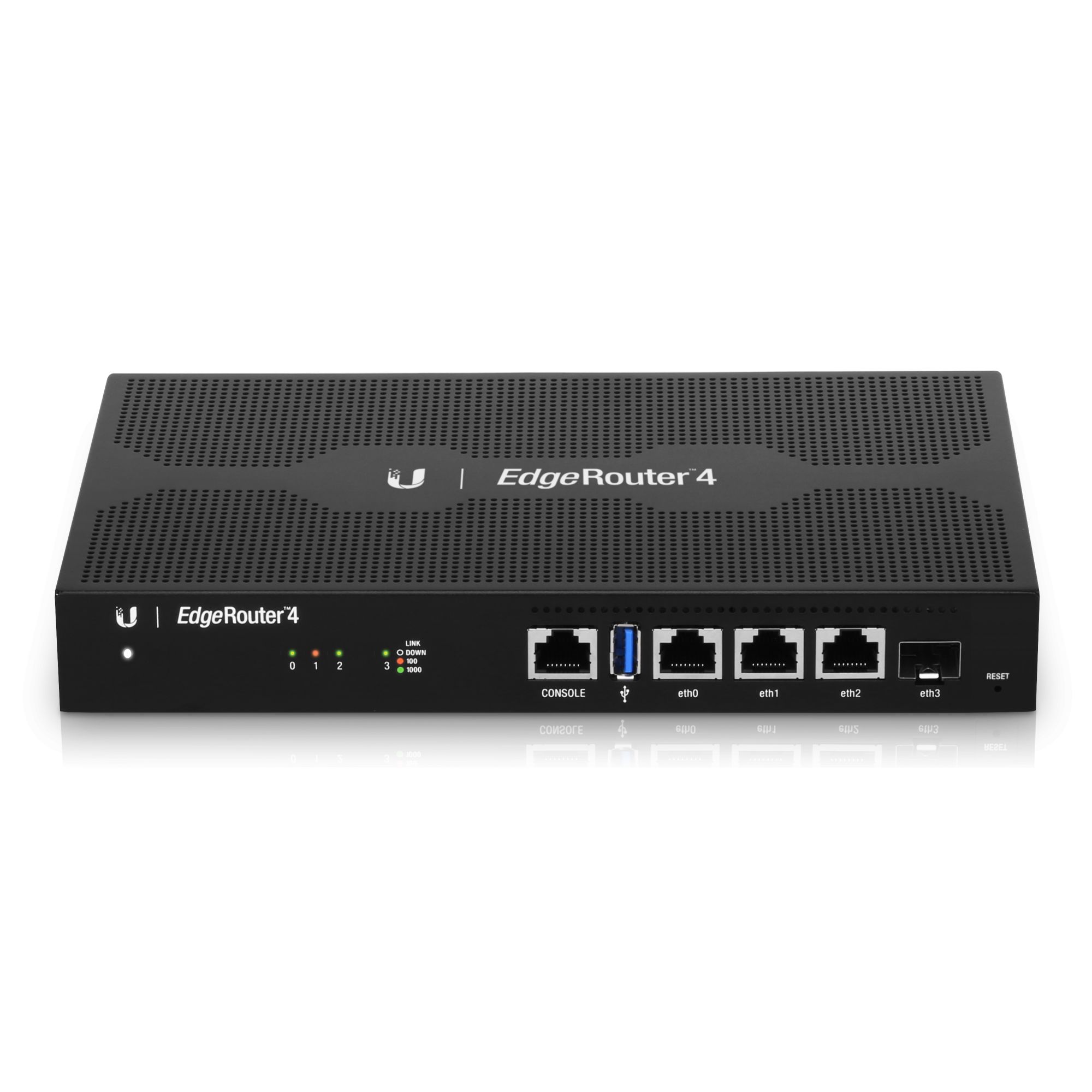

Price/Performance Breakthrough The EdgeRouter™ 4 offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 4 Gbps. Versatile Design The EdgeRouter 4 can be rack-mounted with the use of the EdgeRouter Rack Mount Kit model ER-RMKIT (sold separately). Centralized Management The EdgeRouter 4 is supported and managed by UNMS™ (Ubiquiti® Network Management System) a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.

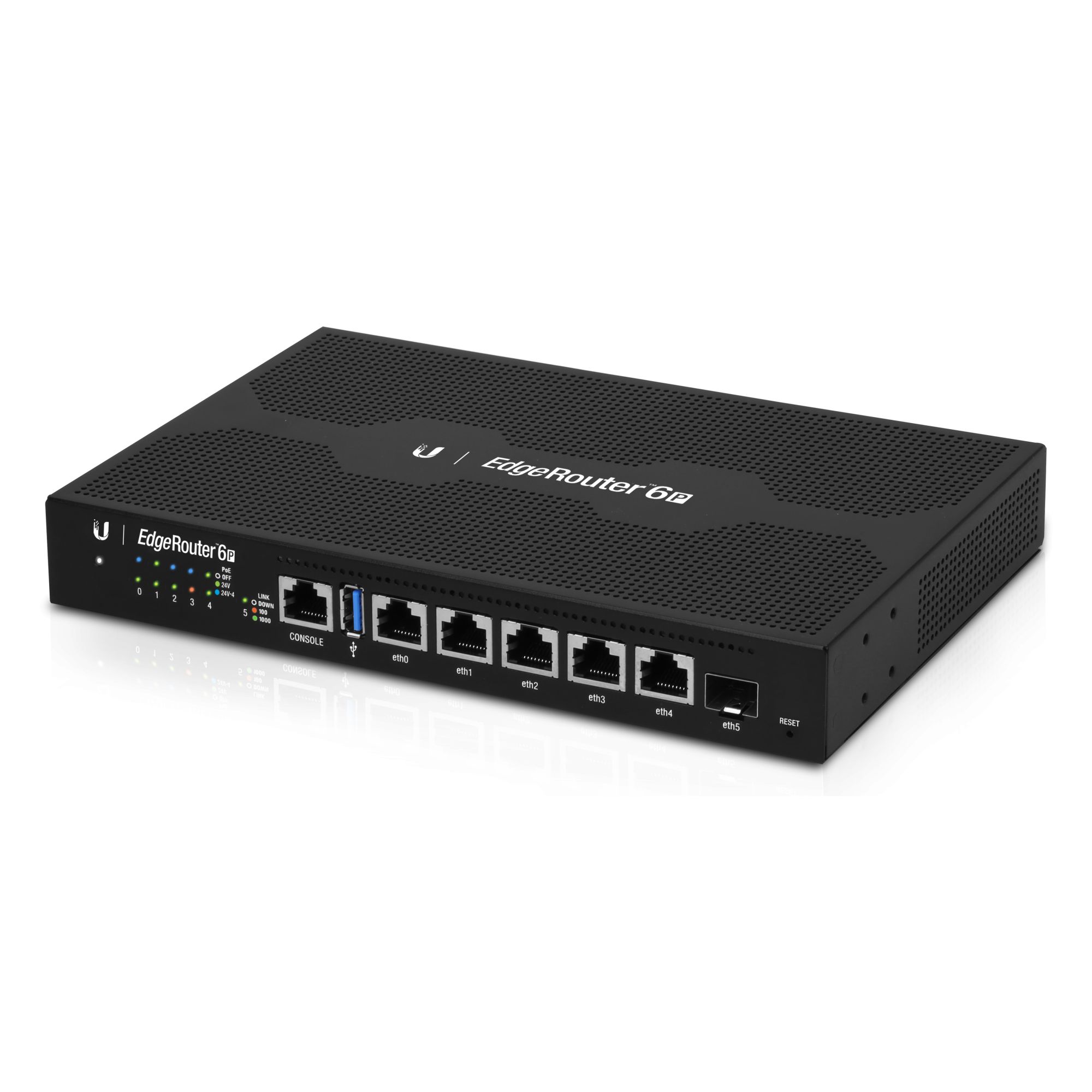

Price/Performance Breakthrough The EdgeRouter™ 6P offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 4 Gbps. Versatile Design The EdgeRouter 6p can be rack-mounted with the use of the EdgeRouter Rack Mount Kit model ER-RMKIT (sold separately). Centralized Management The EdgeRouter 6P is supported and managed by UNMS™ (Ubiquiti® Network Management System) a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.

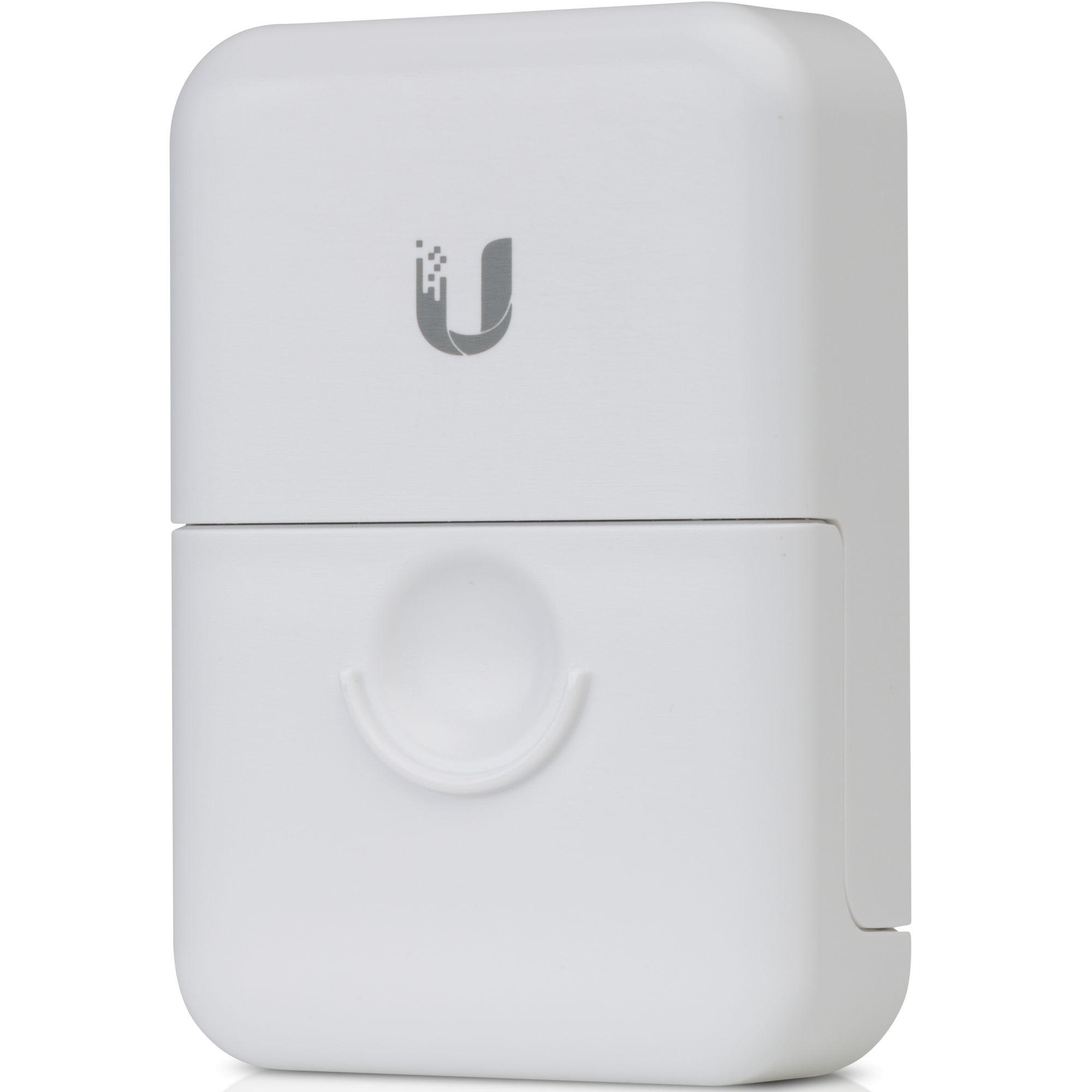

Ethernet Surge Protector Gen2 - It's an updated version of the original ETH-SP. Improves the surge protection performance significantly.ESD Protection for Outdoor PoE DevicesDamaging electrostatic discharge attacks and surges are diverted to the ETH-SP-G2 and safely discharged into the ground so network devices are protected.Additional ESD ProtectionAll Ubiquiti® airMAX® devices are equipped with built-in ESD protection so the ETH‑SP-G2 adds another layer of protection to your outdoor high-speed network.Plug and Play InstallationConnect the ground and Ethernet cables in between your network devices.

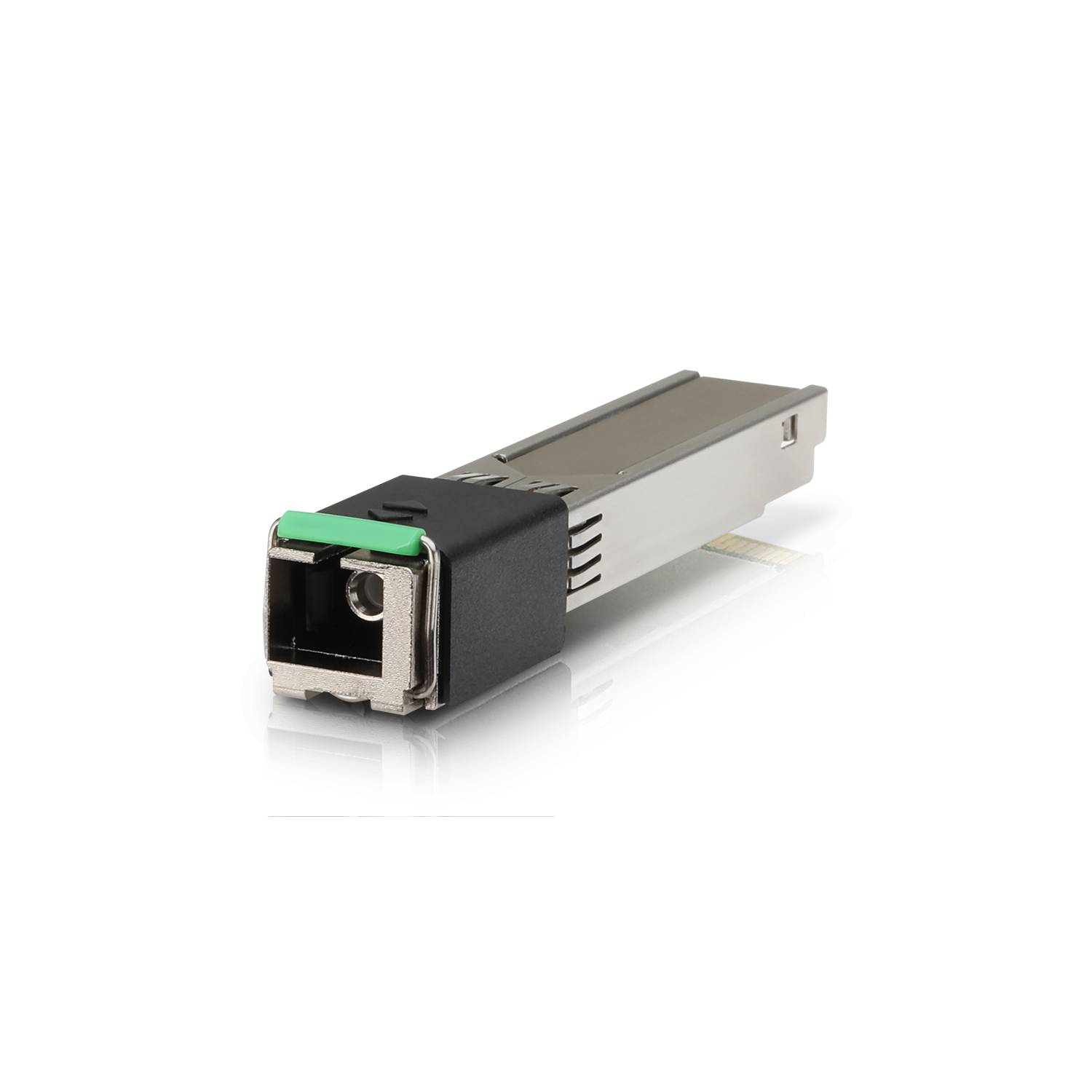

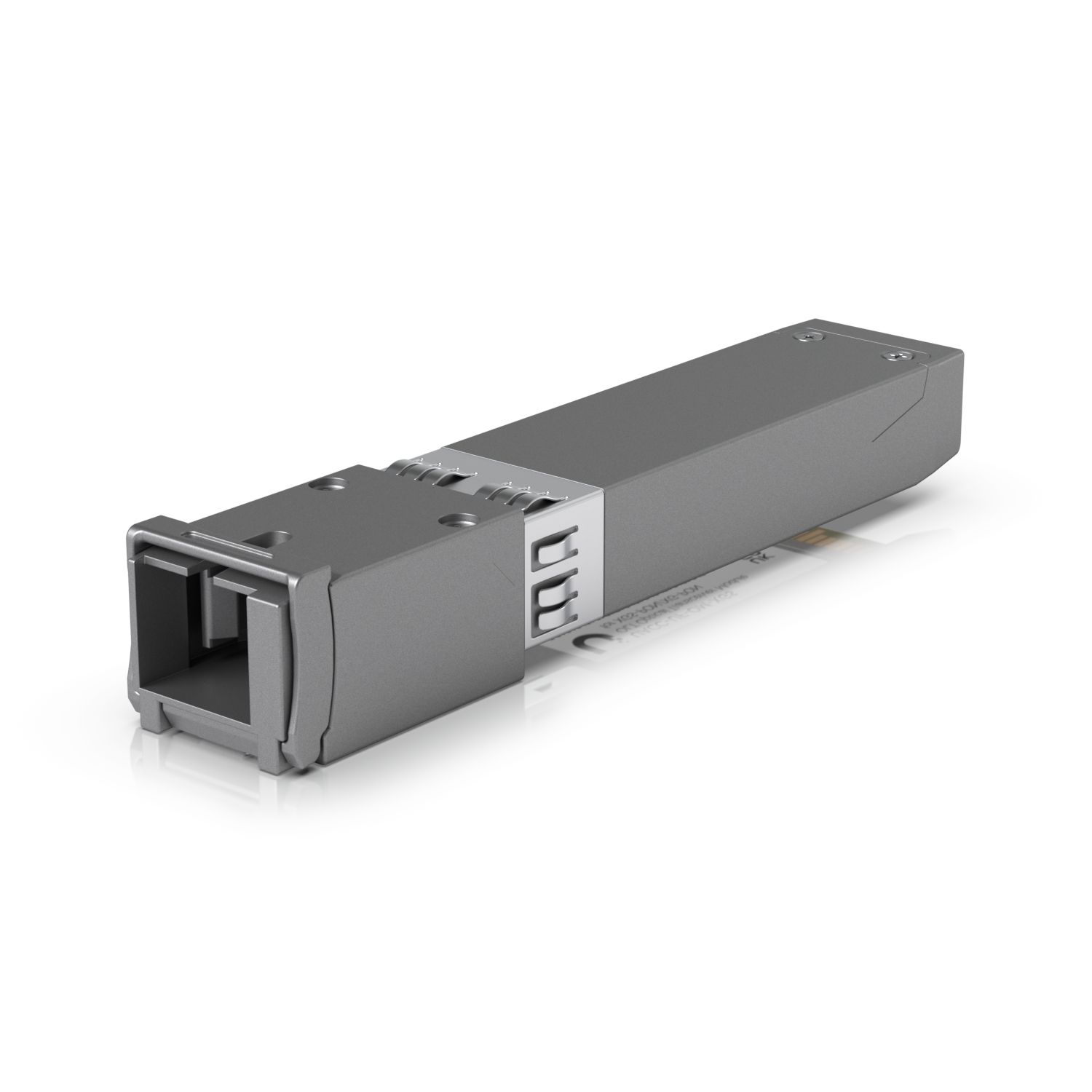

UF-InstantUFiber Instant Optical TransceiverGigabit Passive Optical Network CPEFeatures: High-Performance GPON CPE Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure Supports up to 20 km GPON Links Powerful Layer 2/3 Management Features (1) GPON WAN Port SC/APC (1) 1Gbps SFP interface

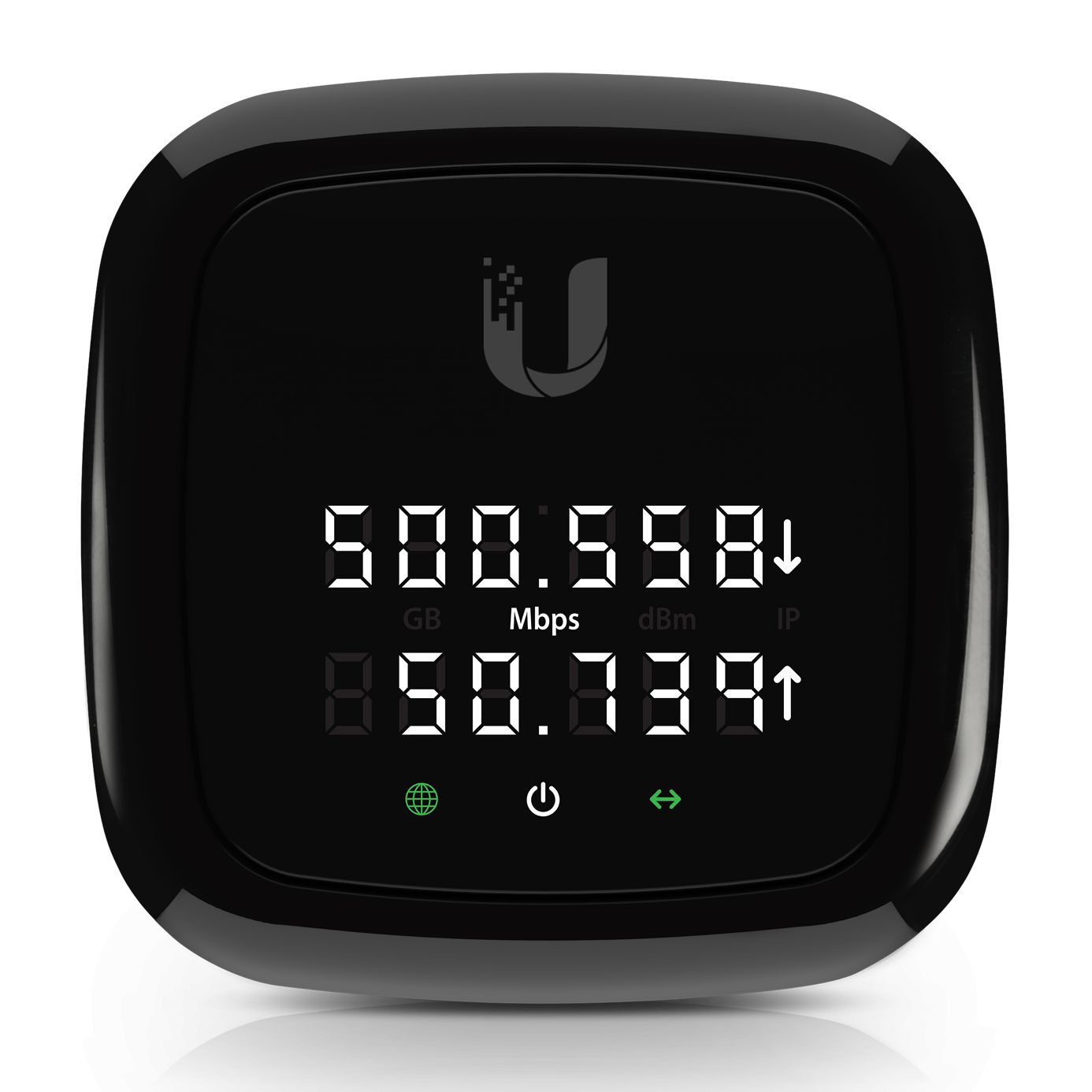

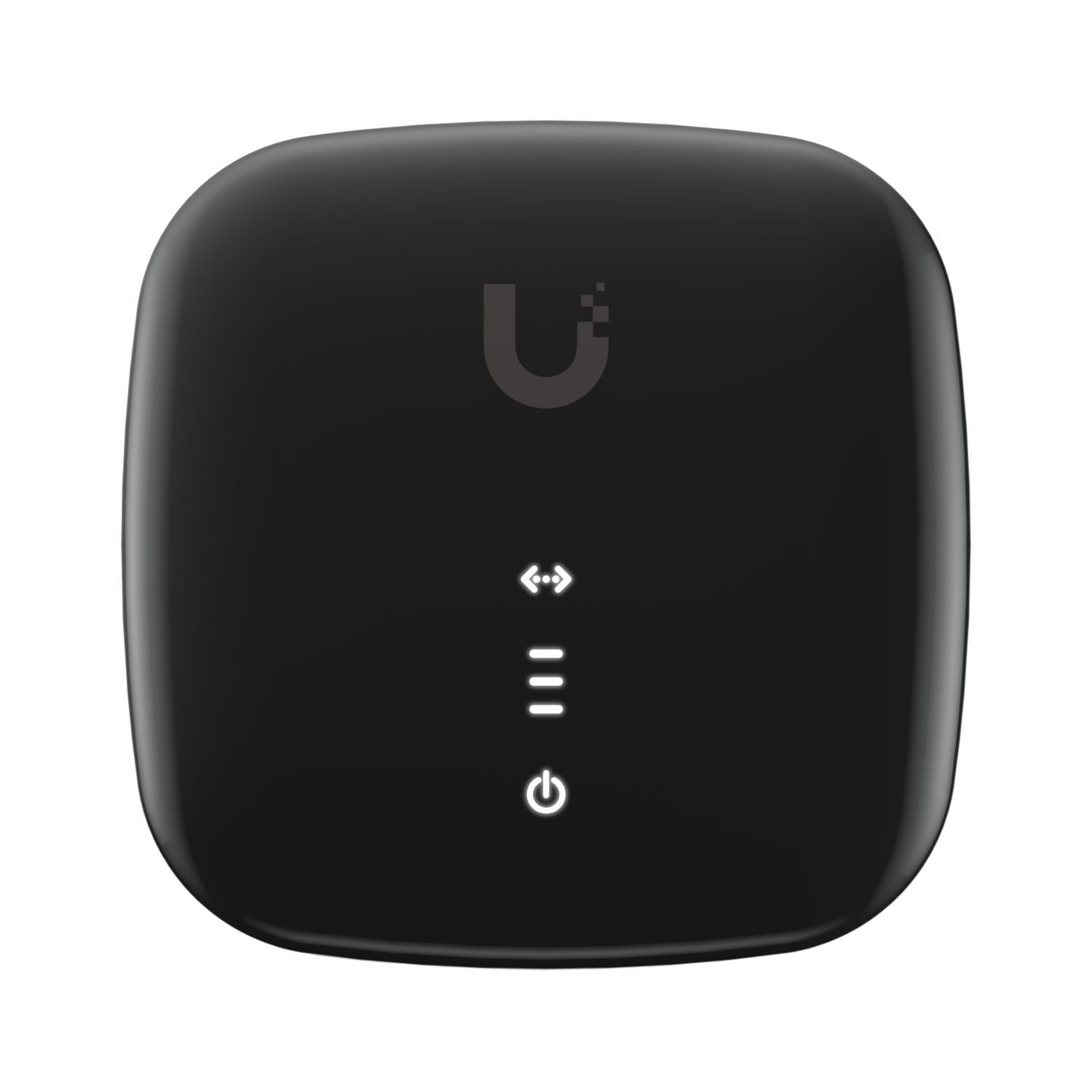

GPON Optical Network Unit. The UFiber Nano G is a robust high-performance GPON CPE that features an informational LED display and a sleek sophisticated industrial design. Features: • WAN: (1) GPON Port• LAN: (1) Gigabit Ethernet Port• GPON Speeds: 2.488 Gbps Downstream (RX) 1.244 Gbps Upstream (TX)• Wavelengths: 1490 nm Downstream (RX) 1310 nm Upstream (TX)• Display: Digital LED for Status Reporting• Max. Power Consumption: 7W• Power Method: 24V Passive PoE• Mounting: Wall-Mountable (Indoor) Status Display The easy-to-read display provides status information: IP address signal strength and current throughput.Power over Ethernet The Nano G is powered by 24V passive PoE – a single cable to carry both power and data. Designed for Integration Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km the Nano G integrates with the UFiber OLT and third-party OLT devices.

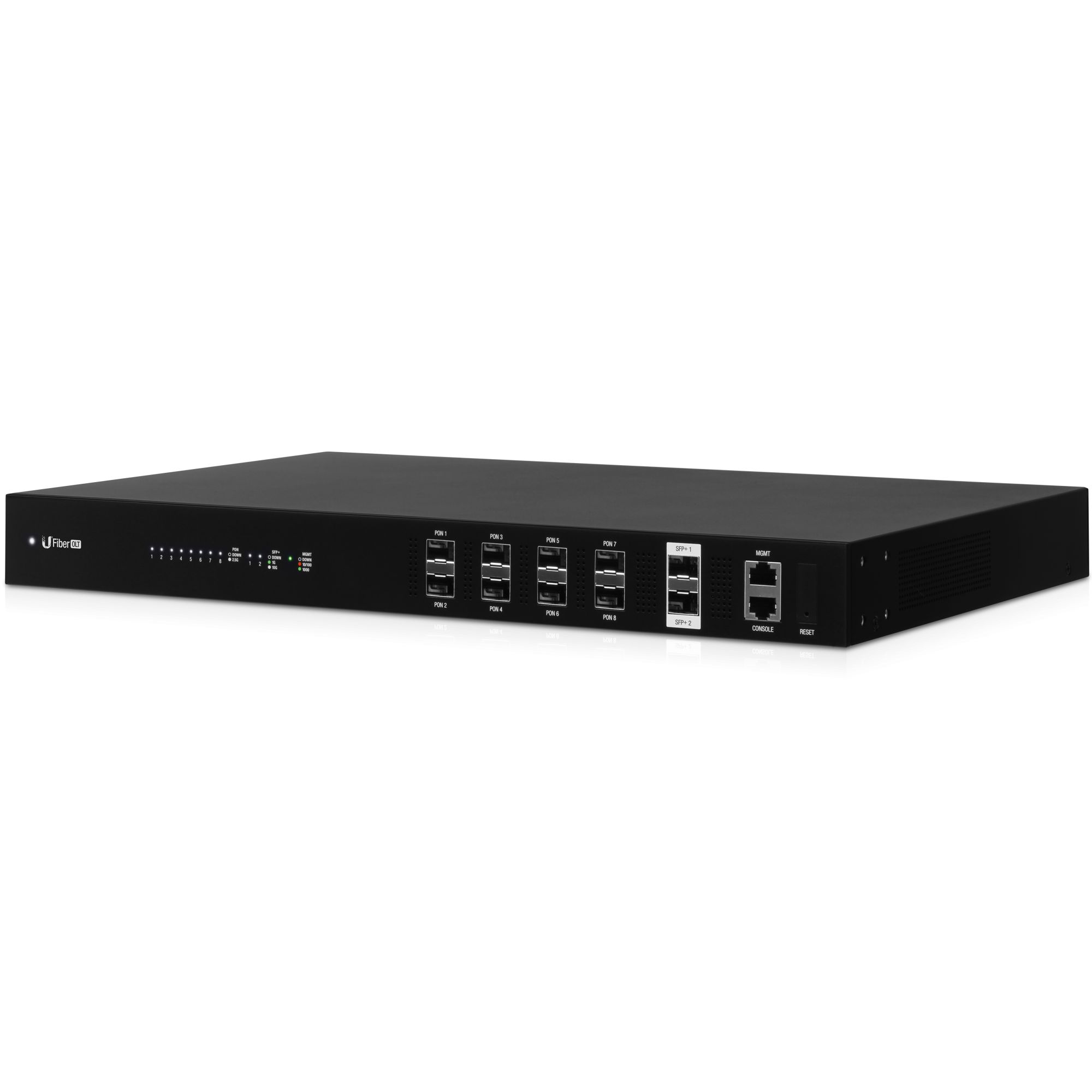

GPON Optical Line Terminal Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines manuals and paid support licenses. Introducing the UFiber OLT – a fiber solution that anyone can deploy. Features: 8 Gigabit Passive Optical Network PortsSupports up to 1024 Clients (128 per PON Port)Up to 2.488 Gbps TX and 1.244 Gbps RXTwo 1G/10G SFP+ Ethernet PortsFlexible Layer 2/3 Management FeaturesFastEthernet port for managementConsole serial port for management Centralized Management Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.Rackmount Design The 1U-high metal chassis allows for convenient mounting in a standard-sized 19"‑wide rack. Client and Uplink Connectivity The OLT features eight PON ports to connect up to 1024 Nano G devices and two SFP+ ports deliver up to 20 Gbps of uplink connectivity. Power Versatility Featuring low power consumption the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module either an AC/DC backup or a DC/DC power module.

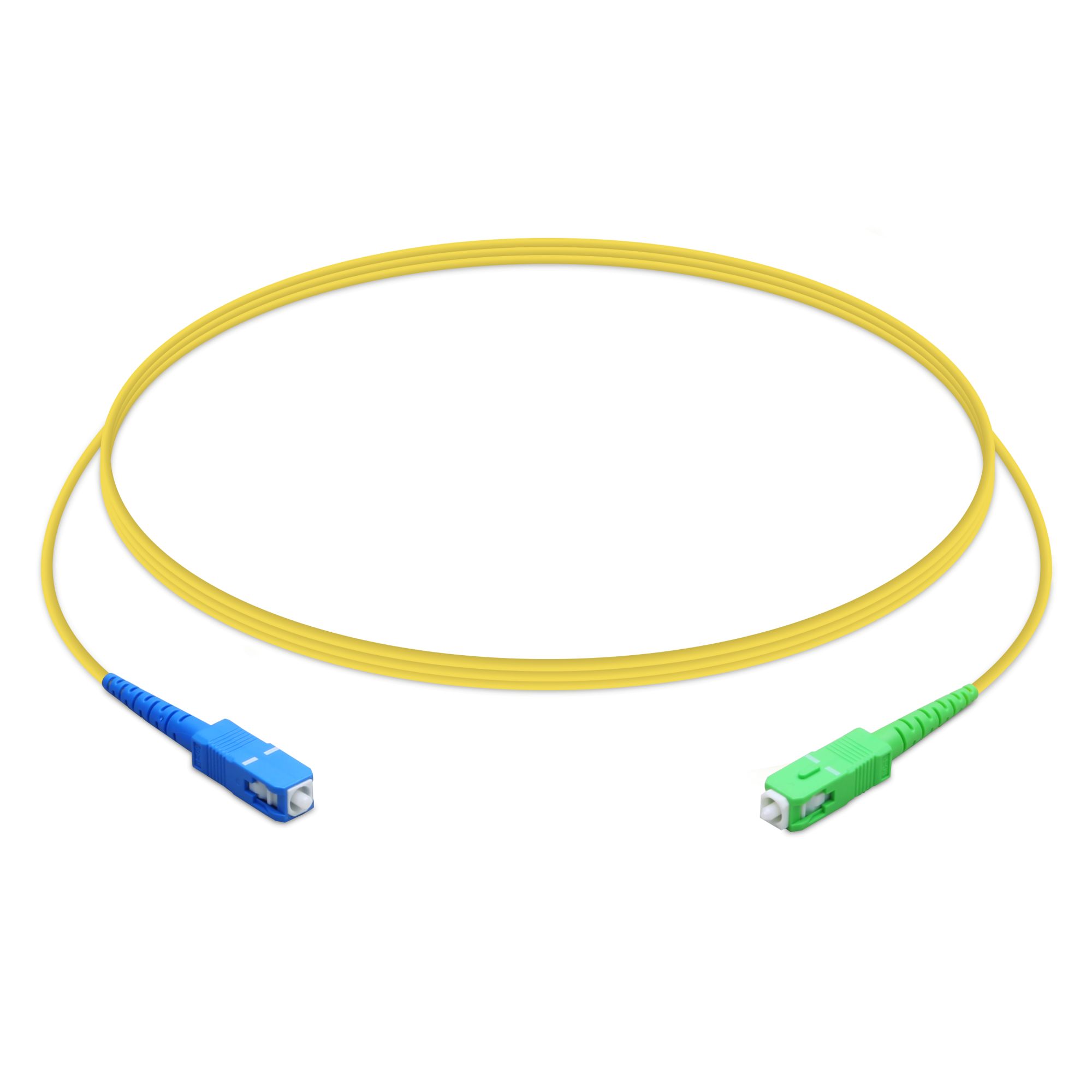

The UF-SM-PATCH-APC-APC features an SC/UPC connector on one end of the cable and a SC/APC connector on the other end to help you build out your GPON network.Features: SC/UPC to SC/APC SM G.657A1 fiber Simplex 2.0mm jacket PVC 1.5m length

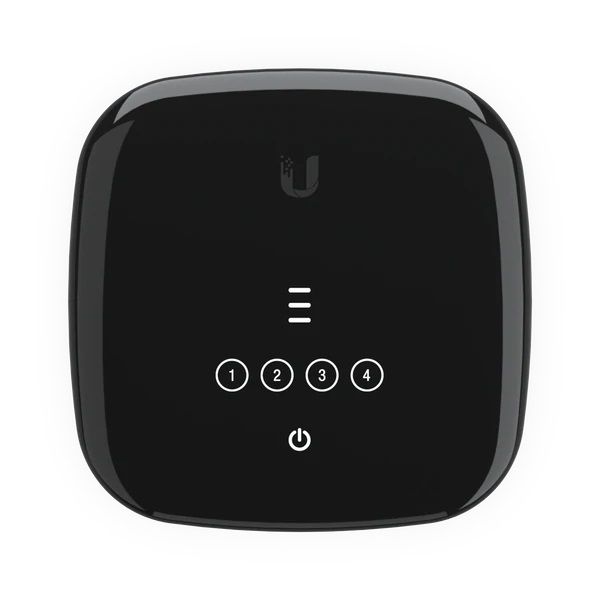

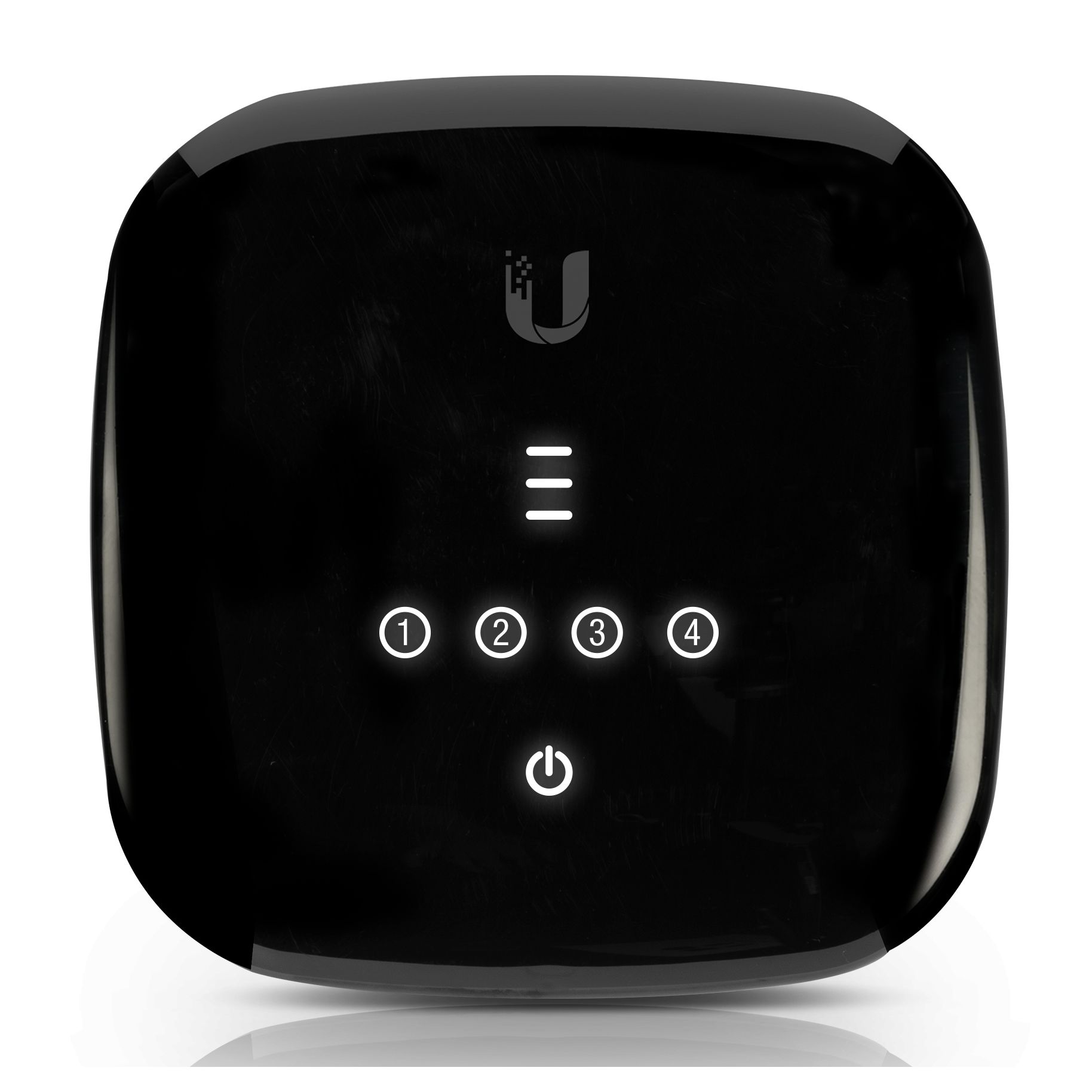

Sporting a sleek industrial design the U Fiber WiFi is a robust high‑performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi. Features: High-Performance GPON CPELED diodes for easy diagnosticsUp to 2.4 Gbps Downstream and 1.2 Gbps UpstreamSupports up to 20 km GPON LinksPowerful Layer 2/3 Management FeaturesGPON WAN Port4x RJ45 Gigabit LAN PortSC/APC Fiber Connector802.11n Wi‑Fi Status LEDs The easy-to-read LEDs provide status information: Ethernet connection signal strength and power.Versatile Power The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1 or by 24VDC. Designed for Integration Up to 128 UFiber WiFi devices can be connected to a single GPON port. Supporting GPON links of up to 20 km the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.

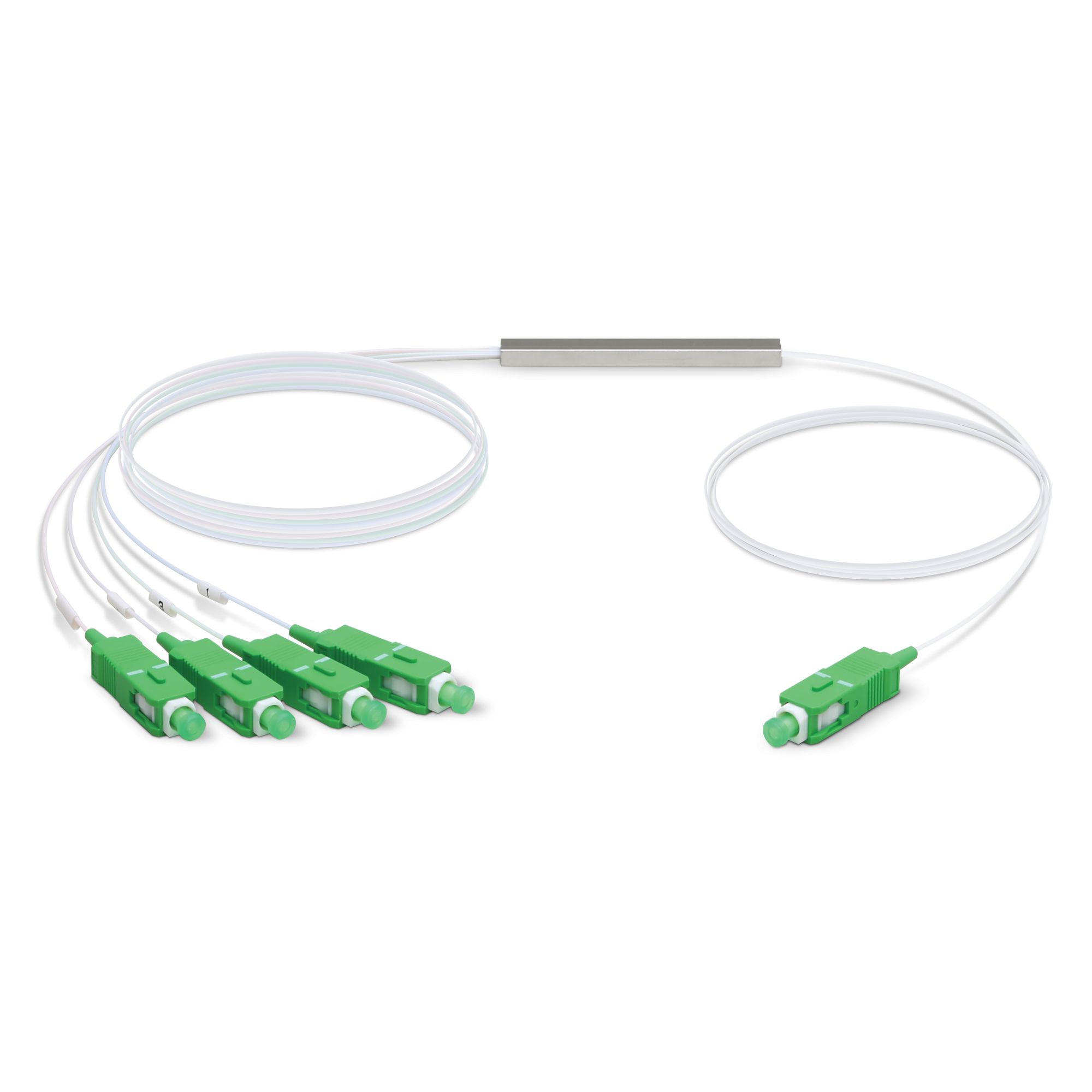

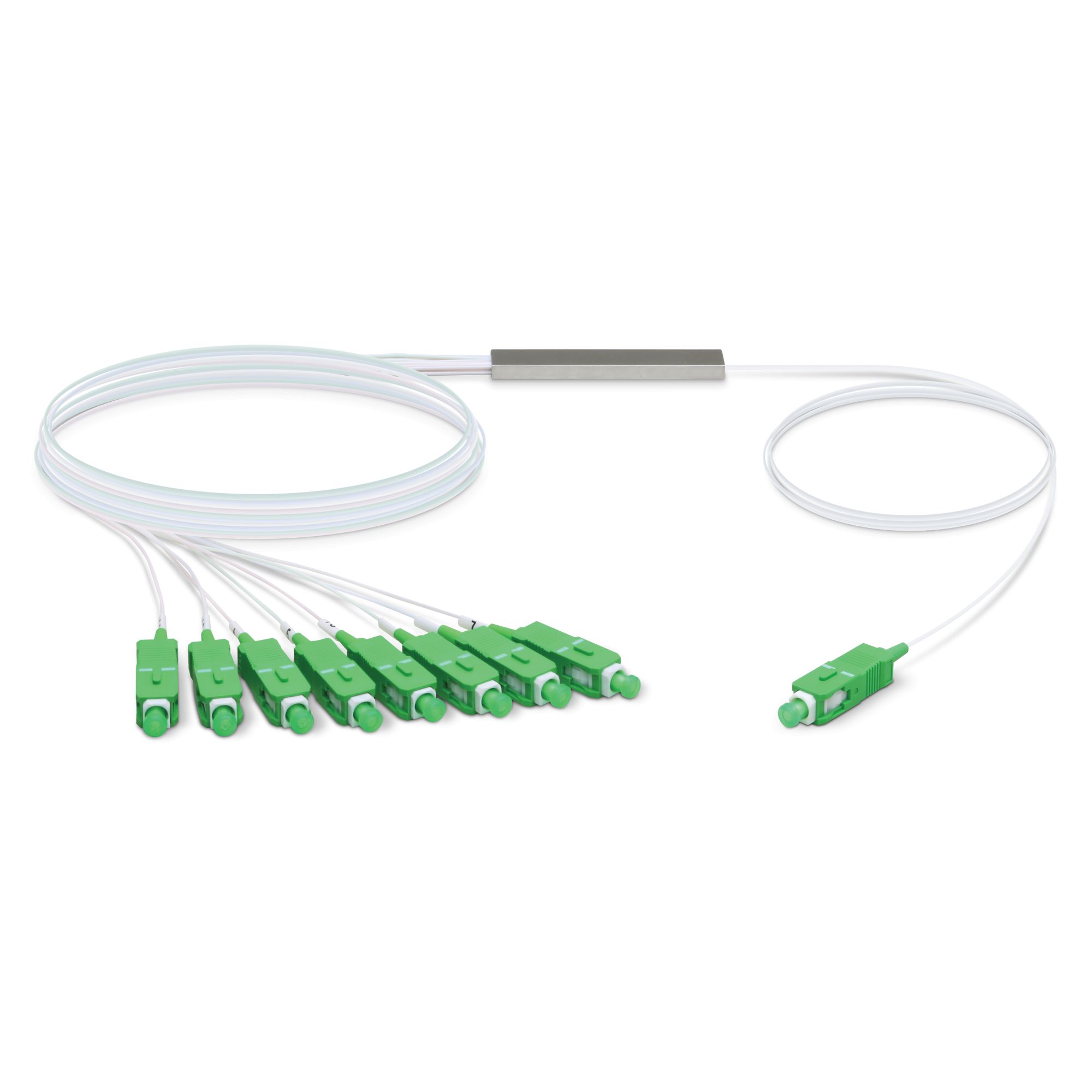

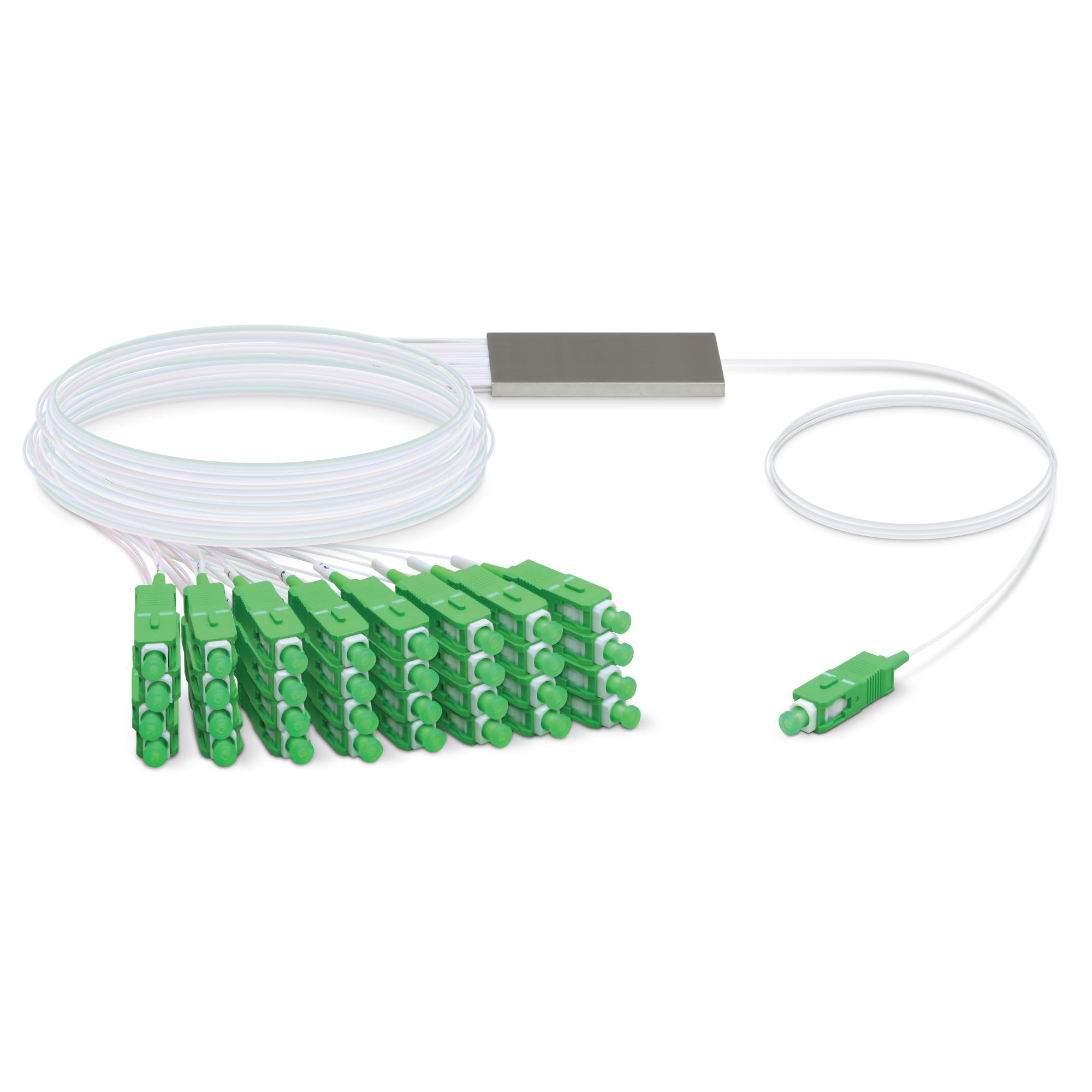

The UFiber splitter carries data from a UFiber OLT’s long-haul cable and shares it with multiple UFiber ONUs. Available with 4 8 16 or 32 outputs. PLC Splitters UF-SPLITTER-4 UF-SPLITTER-8 UF-SPLITTER-16 UF-SPLITTER-32 Input (1) SC/APC (1) SC/APC (1) SC/APC (1) SC/APC Outputs (4) SC/APC (8) SC/APC (16) SC/APC (32) SC/APC Insertion Loss with Connectors 7.4 dB 10.5 dB 13.7 dB 17.0 dB Uniformity Loss 0.6 dB 0.8 dB 1.2 dB 1.5 dB Polarization Dependent Loss 0.3 dB 0.3 dB 0.3 dB 0.3 dB Wavelength Bandwidth 1260-1650 nm 1260-1650 nm 1260-1650 nm 1260-1650 nm Return Loss (All Ports) 50 dB 50 dB 50 dB 50 dB Directivity 55 dB 55 dB 55 dB 55 dB Fiber Type G657A1 G657A1 G657A1 G657A1 Operating Temperature -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) Total Length 4.06m (13.32') 4.06 m (13.32') 4.06 m (13.32') 4.08 m (13.39') Weight 58 g (2.0 oz) 62 g (2.2 oz) 110 g (3.9 oz) 160 g (5.6 oz)
The UFiber splitter carries data from a UFiber OLT’s long-haul cable and shares it with multiple UFiber ONUs. Available with 4 8 16 or 32 outputs. PLC Splitters UF-SPLITTER-4 UF-SPLITTER-8 UF-SPLITTER-16 UF-SPLITTER-32 Input (1) SC/APC (1) SC/APC (1) SC/APC (1) SC/APC Outputs (4) SC/APC (8) SC/APC (16) SC/APC (32) SC/APC Insertion Loss with Connectors 7.4 dB 10.5 dB 13.7 dB 17.0 dB Uniformity Loss 0.6 dB 0.8 dB 1.2 dB 1.5 dB Polarization Dependent Loss 0.3 dB 0.3 dB 0.3 dB 0.3 dB Wavelength Bandwidth 1260-1650 nm 1260-1650 nm 1260-1650 nm 1260-1650 nm Return Loss (All Ports) 50 dB 50 dB 50 dB 50 dB Directivity 55 dB 55 dB 55 dB 55 dB Fiber Type G657A1 G657A1 G657A1 G657A1 Operating Temperature -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) Total Length 4.06m (13.32') 4.06 m (13.32') 4.06 m (13.32') 4.08 m (13.39') Weight 58 g (2.0 oz) 62 g (2.2 oz) 110 g (3.9 oz) 160 g (5.6 oz)
The UFiber splitter carries data from a UFiber OLT’s long-haul cable and shares it with multiple UFiber ONUs. Available with 4 8 16 or 32 outputs. PLC Splitters UF-SPLITTER-4 UF-SPLITTER-8 UF-SPLITTER-16 UF-SPLITTER-32 Input (1) SC/APC (1) SC/APC (1) SC/APC (1) SC/APC Outputs (4) SC/APC (8) SC/APC (16) SC/APC (32) SC/APC Insertion Loss with Connectors 7.4 dB 10.5 dB 13.7 dB 17.0 dB Uniformity Loss 0.6 dB 0.8 dB 1.2 dB 1.5 dB Polarization Dependent Loss 0.3 dB 0.3 dB 0.3 dB 0.3 dB Wavelength Bandwidth 1260-1650 nm 1260-1650 nm 1260-1650 nm 1260-1650 nm Return Loss (All Ports) 50 dB 50 dB 50 dB 50 dB Directivity 55 dB 55 dB 55 dB 55 dB Fiber Type G657A1 G657A1 G657A1 G657A1 Operating Temperature -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) Total Length 4.06m (13.32') 4.06 m (13.32') 4.06 m (13.32') 4.08 m (13.39') Weight 58 g (2.0 oz) 62 g (2.2 oz) 110 g (3.9 oz) 160 g (5.6 oz)

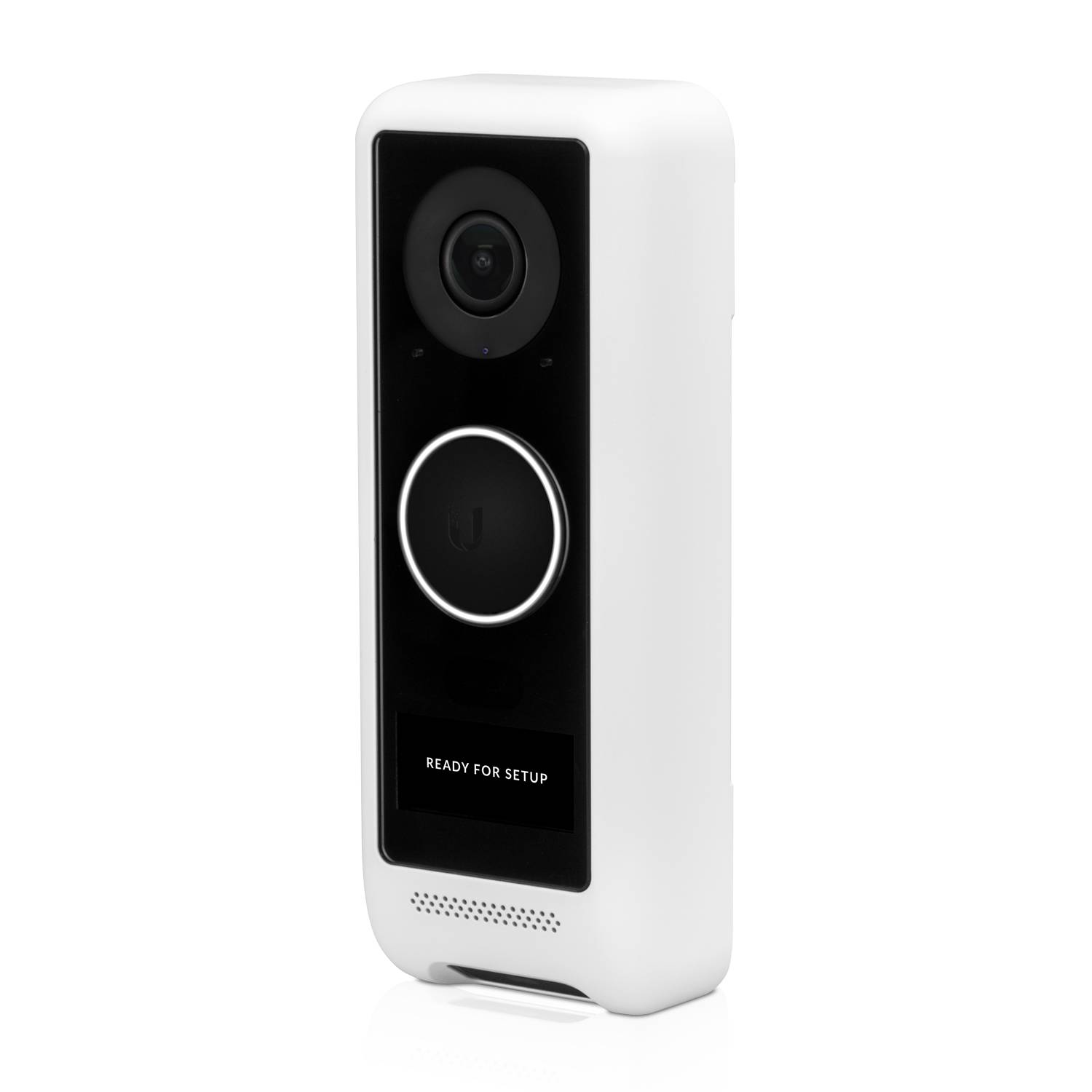

UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio сommunication.The camera features a high-quality 5MP sensor with enhanced night vision. Image streams can be viewed in up to 1600x1200 (2MP) HD at 30 FPS. UniFi Protect G4 Doorbell includes a PIR sensor for instant motion detection alerts. Integration with UniFi Protect provides an easy-to-use interface.Features: 1600x1200 (2MP) HD stream with night vision[ Integrated entrance lighting Real-time two-way audio with echo cancellation Built-in display Dual-band 802.11ac Wi-Fi PIR motion detection sensor Weather-resistant UniFi Protect integration Note: UniFI Protect is required to run this product with full functionality Ubiquiti recommend using it with UniFi Dream Machine PRO or UniFi Protect Network Video Recorder

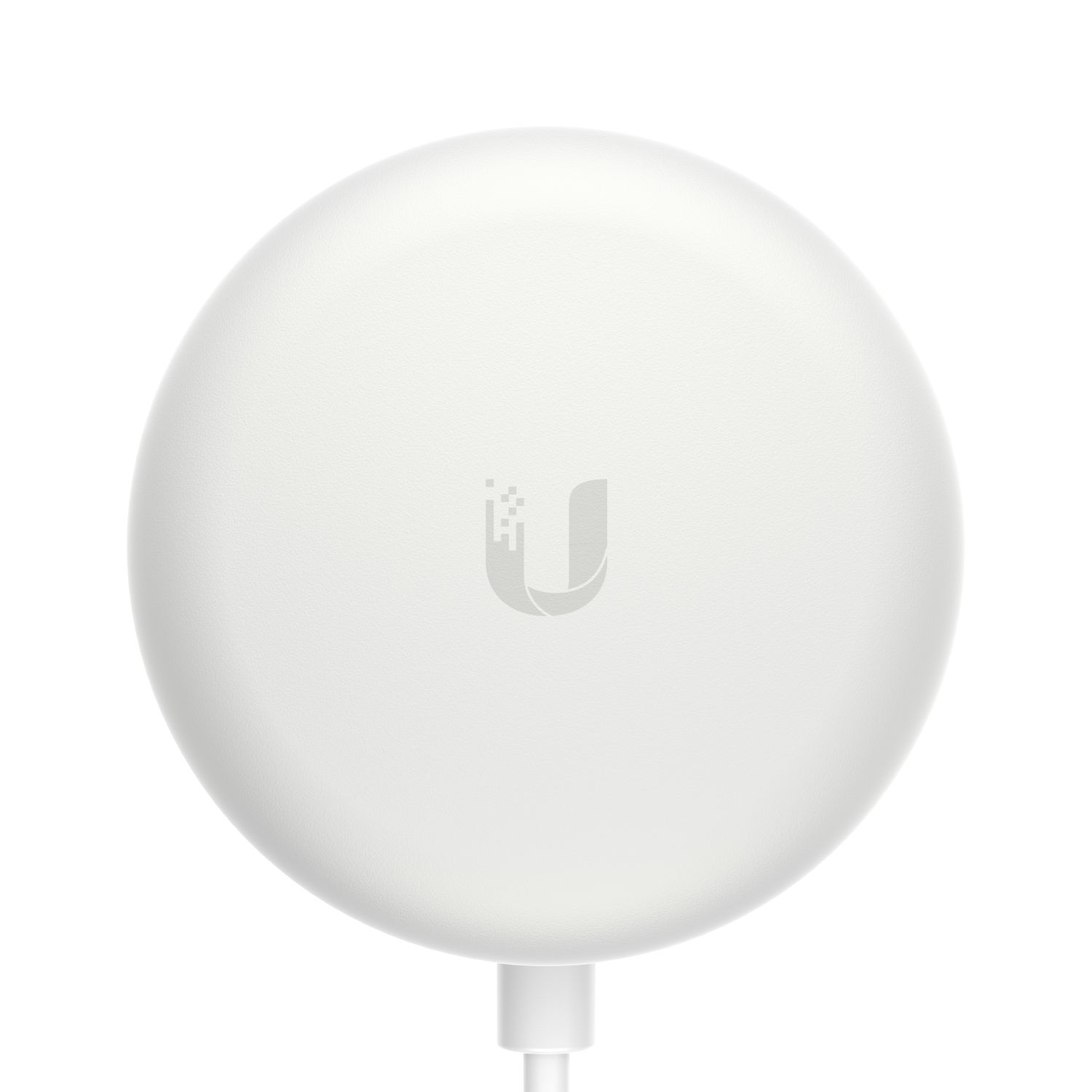

The UVC-G4-Doorbell-PS is an optional power adapter for the UVC-G4-Doorbell. Instead of using existing electrical wiring one end connects to the doorbell and the other end plugs into a standard EU electrical outlet. Maximum distance: 6 m (19' 8")
