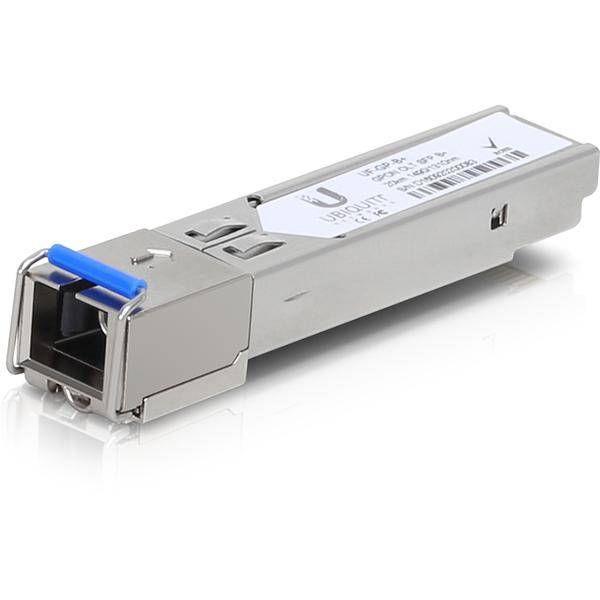

The UF-GP-B+ SFP module is designed to be used with the ports on the UF-OLT. It is a Single-Mode SC/UPC module offering an upstream data rate of up to 1.25Gbps and a downstream rate of up to 2.5Gbps. Supported Media: Single-Mode FibreConnector Type: SC/UPCTX Wavelength: 1490nmRX Wavelength: 1310nmDownstream Data Rate: 2.5GbpsUpstream Data Rate: 1.25GbpsCable Distance: 20km

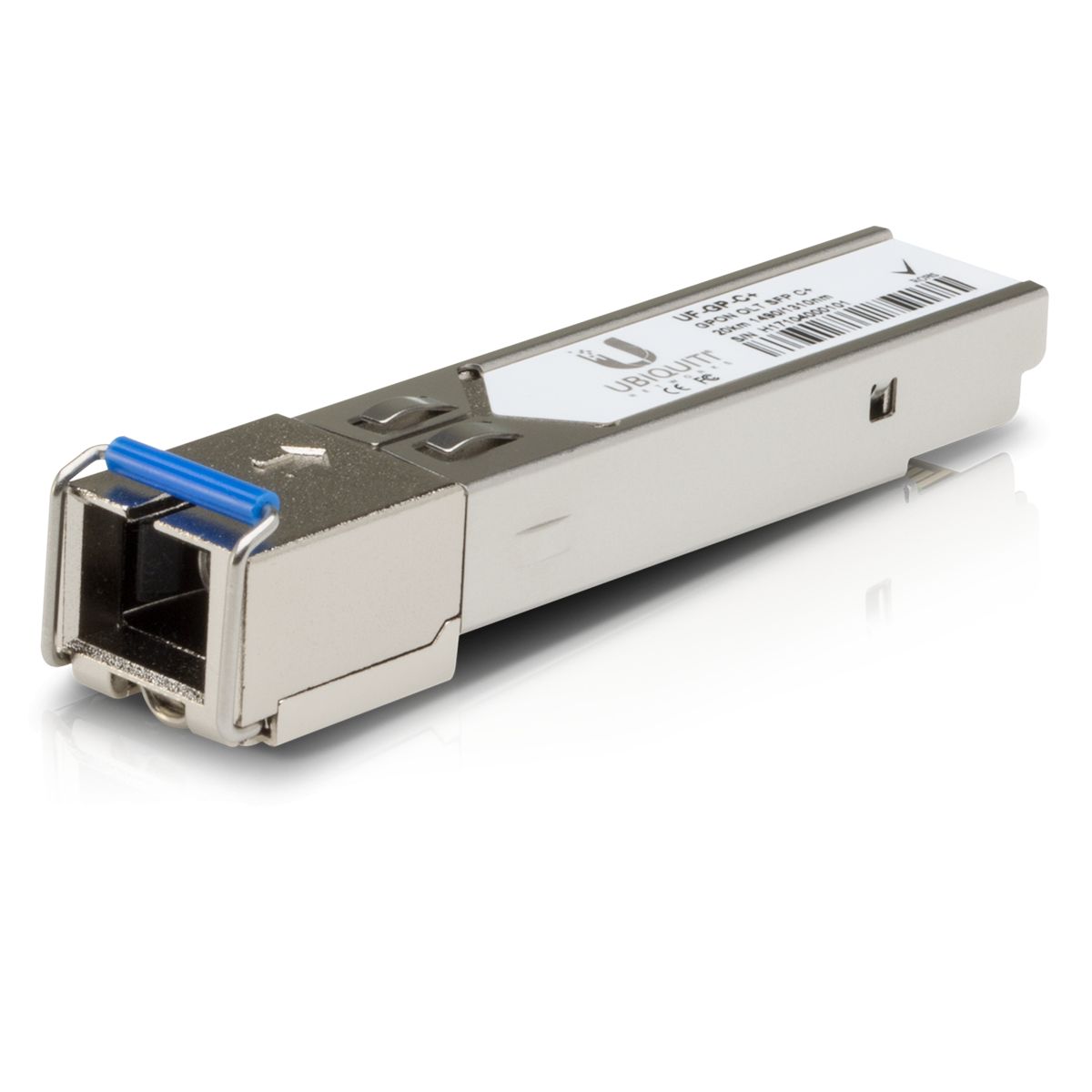

The UF-GP-C+ SFP module is designed to be used with the ports on the UF-OLT. It is a Single-Mode SC/UPC module offering an upstream data rate of up to 1.25Gbps and a downstream rate of up to 2.5Gbps. Supported Media: Single-Mode FibreConnector Type: SC/UPCTX Wavelength: 1490nmRX Wavelength: 1310nmDownstream Data Rate: 2.5GbpsTx power range: 3 to 7 dBmRx power range: -12 to -30 dBmUpstream Data Rate: 1.25GbpsCable Distance: 20km

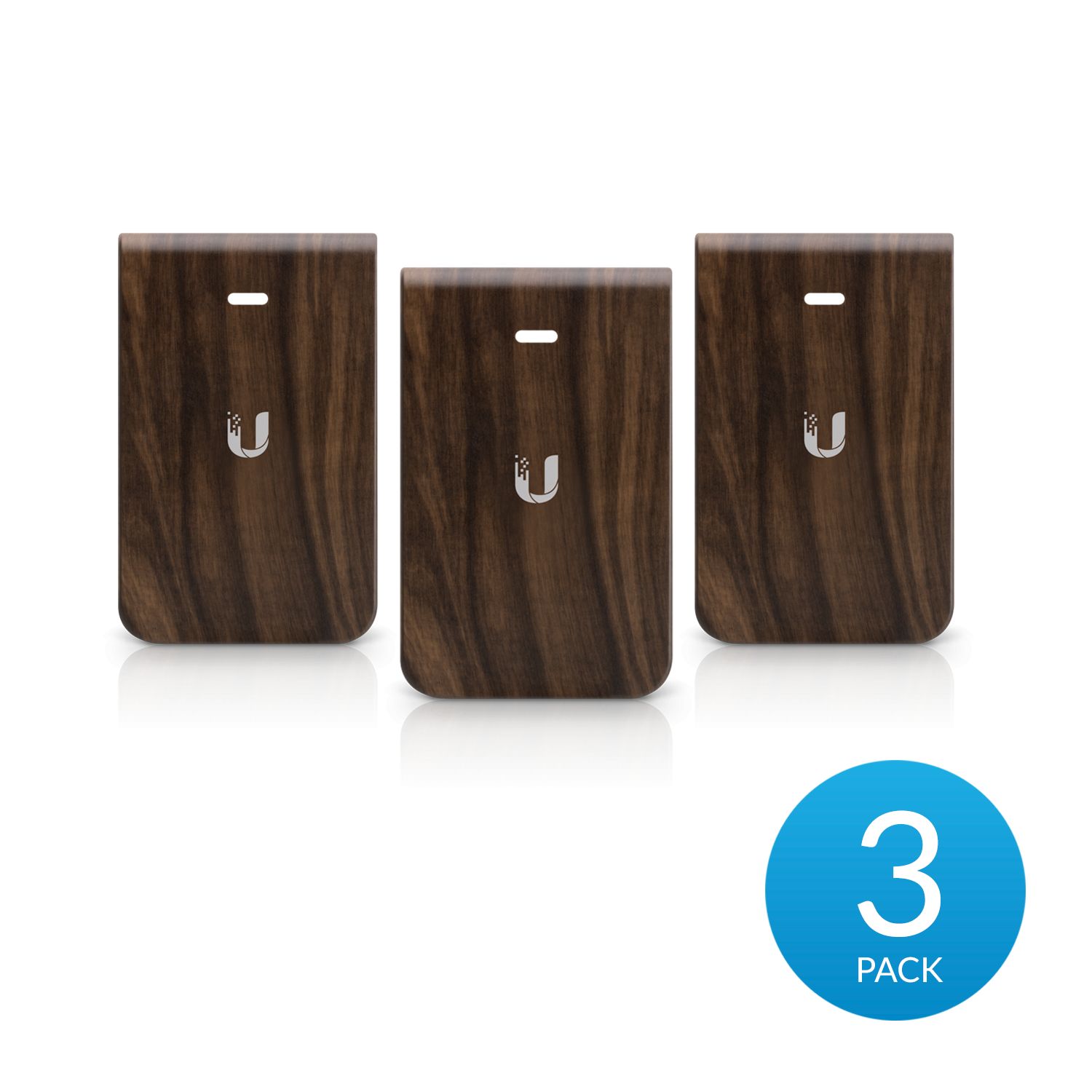

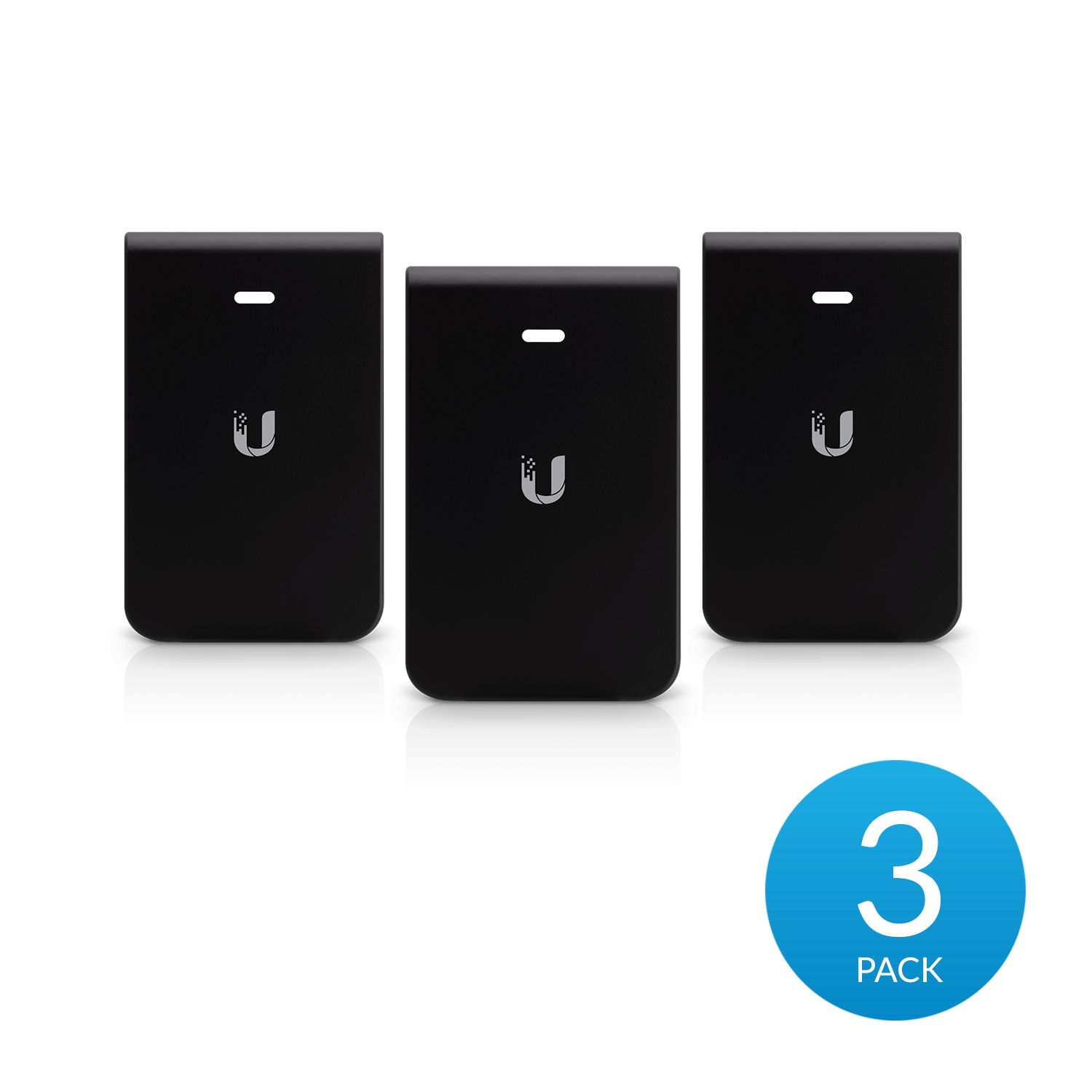

With the UniFi In-Wall HD Cover the In-Wall HD AP blends seamlessly into a variety of backgrounds. Available in five different designs and sold as a 3-Pack. * - UniFi In-Wall HD AP sold separately!
With the UniFi In-Wall HD Cover the In-Wall HD AP blends seamlessly into a variety of backgrounds. Available in five different designs and sold as a 3-Pack. * - UniFi In-Wall HD AP sold separately!

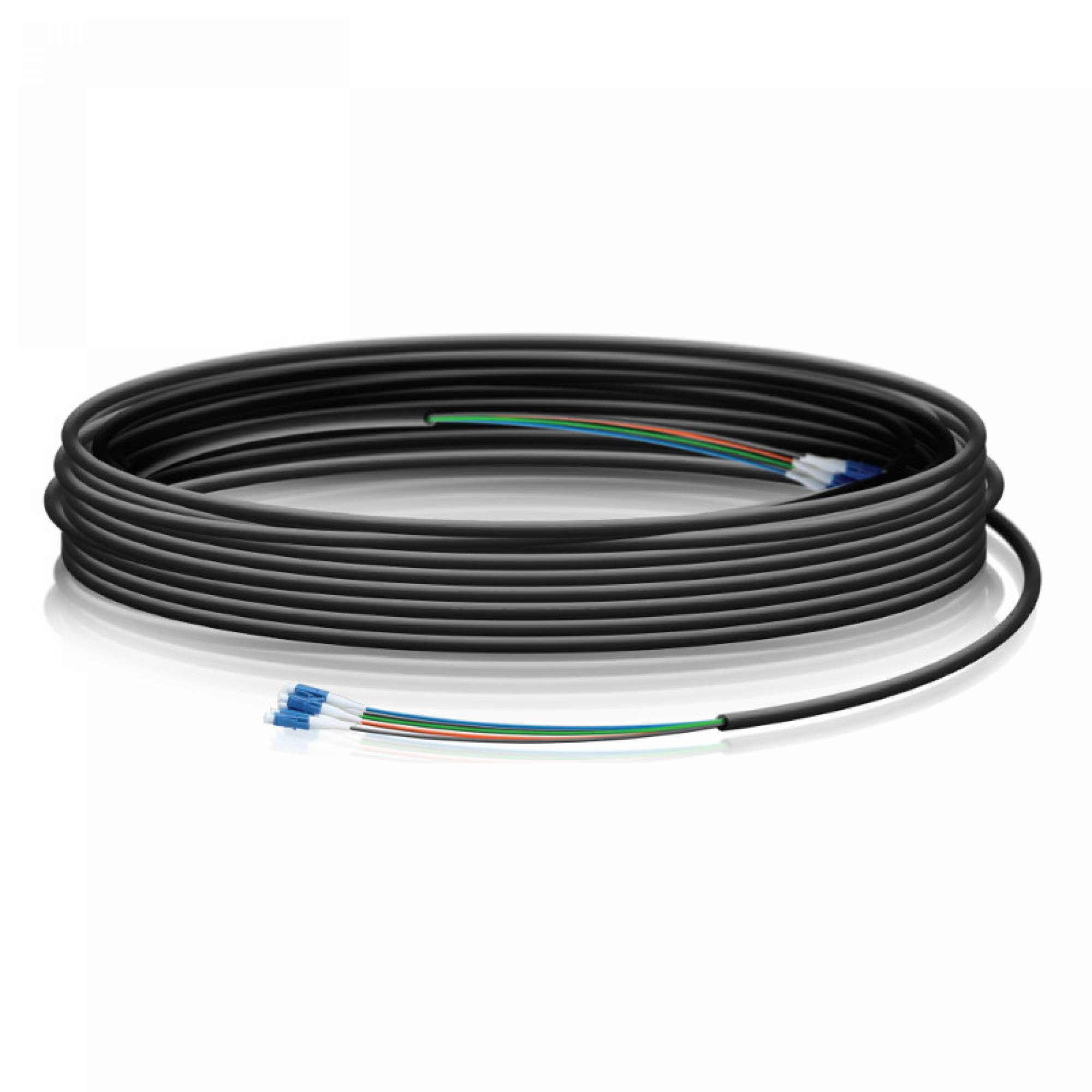

Build your outdoor fiber network using our FiberCable. Lightweight and flexible FiberCable is ideal for tower deployments of our outdoor routing and switching products such as EdgePoint. Outdoor-Rated Jacket with Ripcord Integrated Weatherproof Tape Kevlar Yarn for Added Tensile Strength Outer Diameter of Cable: 6.0 ± 0.2 mm Six-Strand Single-Mode (G.657.A2) Outer Diameter of Fiber Strand: 0.25 mm Nominal Insertion Loss 1310 nm: ≤0.5 dB/km 1550 nm: ≤0.5 dB/km
Build your outdoor fiber network using our FiberCable. Lightweight and flexible FiberCable is ideal for tower deployments of our outdoor routing and switching products such as EdgePoint. Outdoor-Rated Jacket with Ripcord Integrated Weatherproof Tape Kevlar Yarn for Added Tensile Strength Outer Diameter of Cable: 6.0 ± 0.2 mm Six-Strand Single-Mode (G.657.A2) Outer Diameter of Fiber Strand: 0.25 mm Nominal Insertion Loss 1310 nm: ≤0.5 dB/km 1550 nm: ≤0.5 dB/km
Build your outdoor fiber network using our FiberCable. Lightweight and flexible FiberCable is ideal for tower deployments of our outdoor routing and switching products such as EdgePoint. Outdoor-Rated Jacket with Ripcord Integrated Weatherproof Tape Kevlar Yarn for Added Tensile Strength Outer Diameter of Cable: 6.0 ± 0.2 mm Six-Strand Single-Mode (G.657.A2) Outer Diameter of Fiber Strand: 0.25 mm Nominal Insertion Loss 1310 nm: ≤0.5 dB/km 1550 nm: ≤0.5 dB/km

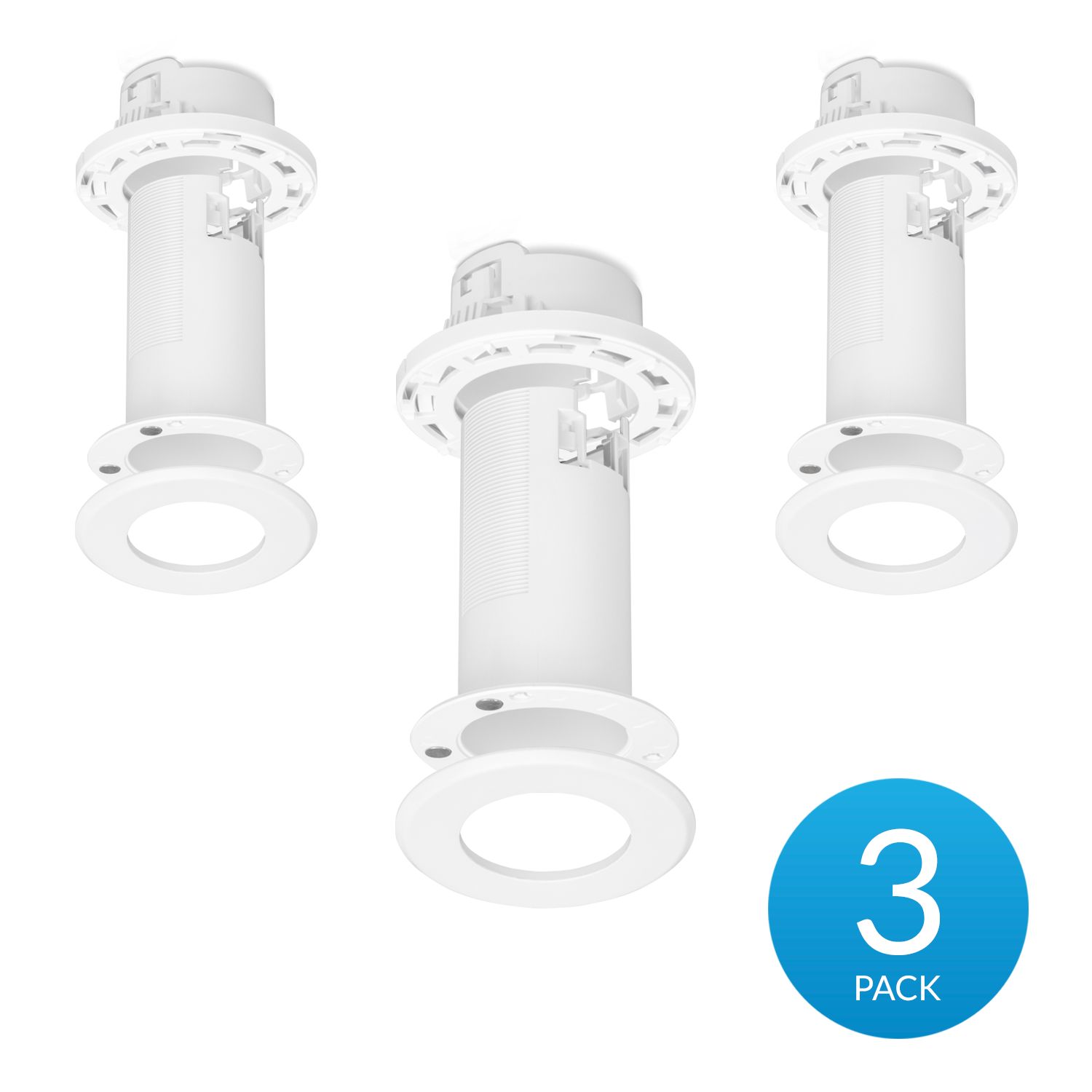

FlexHD-CM-3Ceiling Mount for UniFi FlexHDRecessed ceiling mount accessory for the UniFi FLEX HD access point. Mount the UAP-FlexHD to a drop ceiling tile drywall ceiling or solid ceiling for discreet low profile appearance. Sliding retainer with locking threads and a snap-in mechanism for the UAP-FlexHD make mounting simple. Magnetic face place hides the bracket for a stylish finish.Features: Low profile (2” 51mm) discreet ceiling installation Guided snap-in locking mechanism for UAP-FlexHD Adjustable sliding retainer for mounting without screws Magnetic 3 1/3” inch (85 mm) face plate Requires 2 1/8” inch (54 mm) cutout Includes drywall mounting hardware and anchors

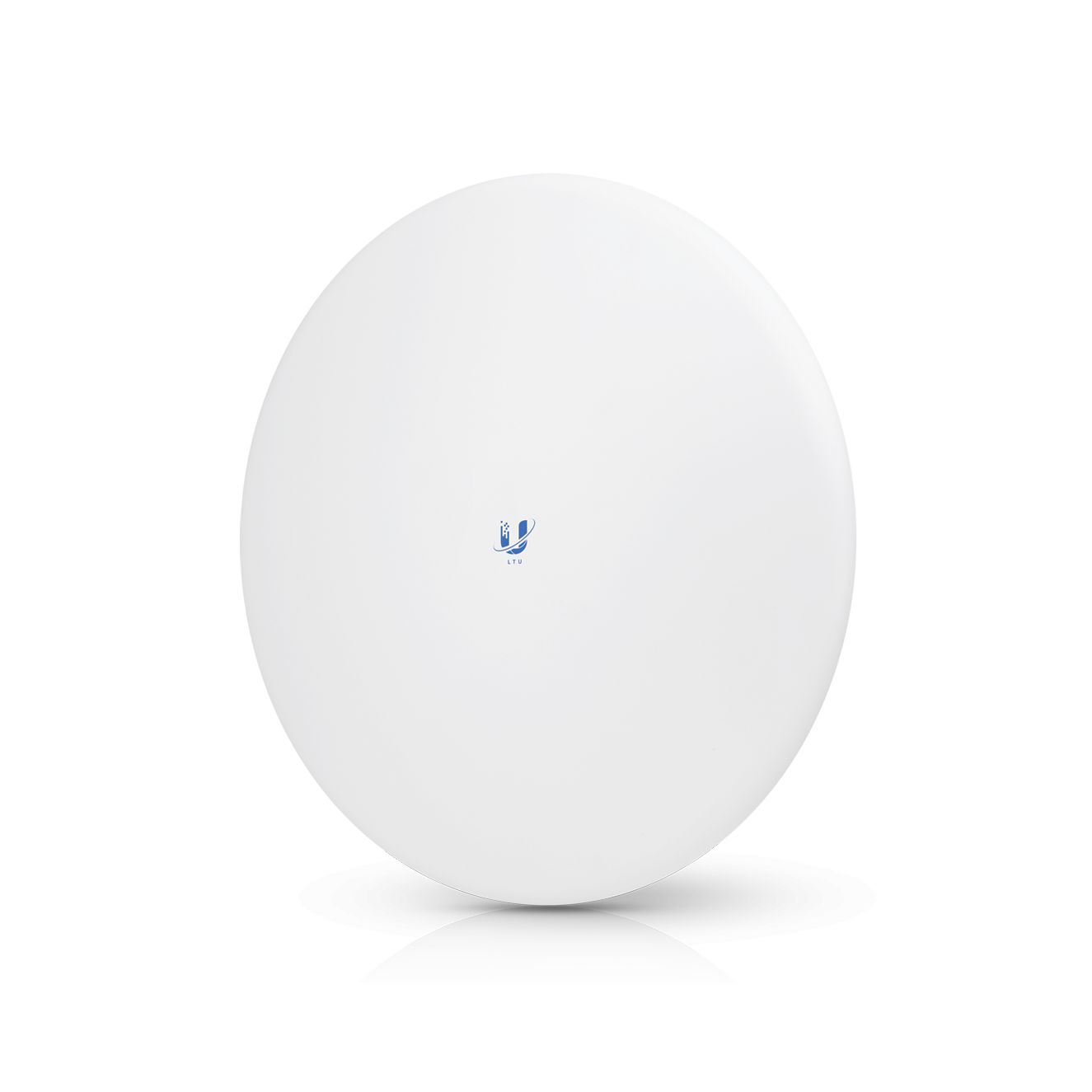

LTU-PRO Incorporating innovative industrial design with advanced technology the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Features: PtMP CPE 1024 QAM 10/20/30/40/50 MHz channel bandwidth Central configuration management from AP side Frequency split Automatic power adjustments Router mode support Functions in a PtMP environment with the LTU-Rocket as the basestation. Featuring an integrated 24 dBi dish antenna the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point‑to‑MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.Proprietary LTU Technology Based on Ubiquiti’s LTU technology the LTU Pro is not impeded by the limitations of standard 802.11 Wi‑Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps (1) of real TCP/IP throughput and modulation rates of up to 4096QAM (2).(1) 1+ Gbps with future firmware upgrade.(2) Available with future firmware upgrade.CPE ModesThe LTU Pro supports both bridged and built-in hardware NAT router modes to suit your specific deployment.Frequency SplitThe LTU Pro can use different frequencies for TX and RX to avoid interference.Robust Pole Mount DesignThe LTU Pro is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.* Please note that manufacturer's instructions for the installation configuration and use of the equipment must be strictly observed.

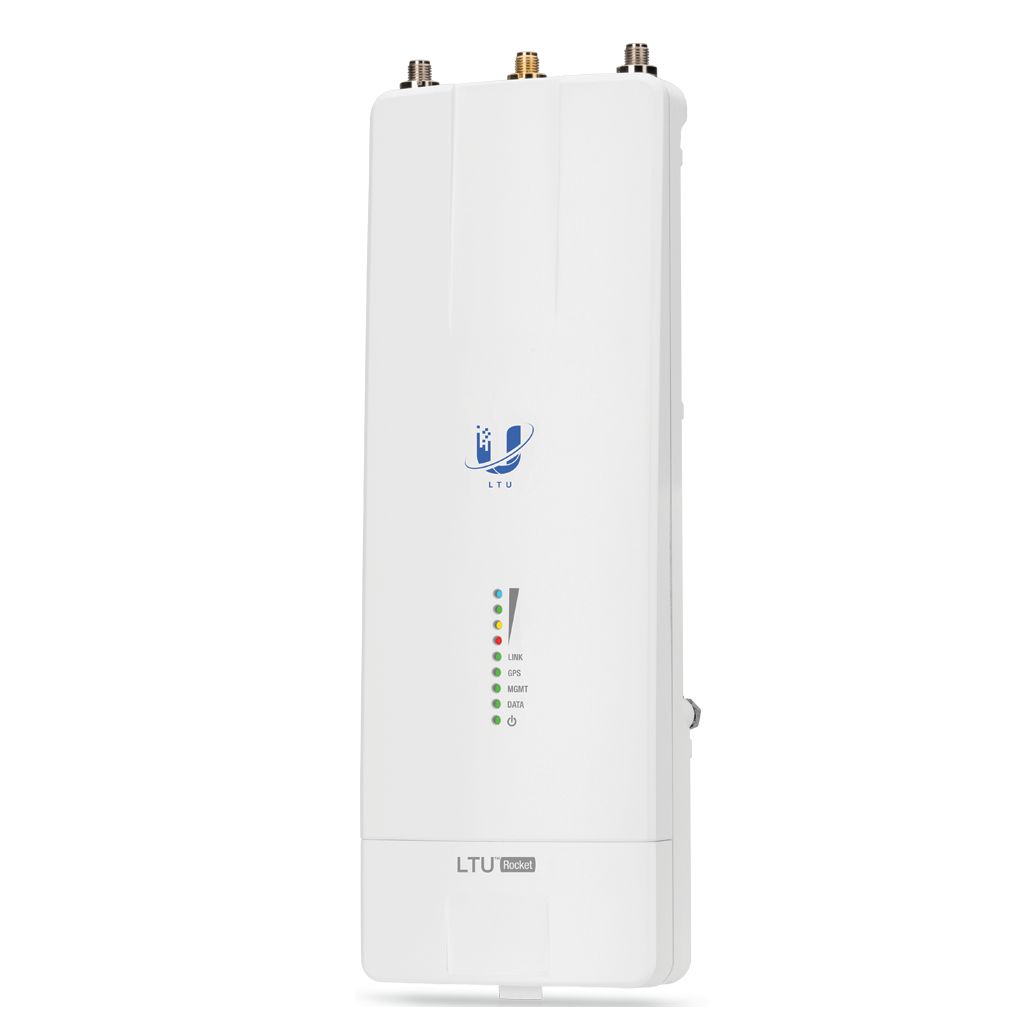

LTU-ROCKET Ubiquiti introduces the LTU Rocket® the first Point-to-Multi-Point (PtMP) BaseStation radio in LTU™ product family. Operating in the 5 GHz frequency band the LTU Rocket is a spectrally efficient noise-resilient PtMP AP specifically designed for wireless ISPs (WISPs).Incorporating Ubiquiti’s proprietary LTU technology the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing proprietary RF filtering and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades. Functions in a PtMP environment using the LTU-Pro LTU-Lite for subscriber stations.Primary features of the LTU Rocket include:• 600+ Mbps PtMP performance(1)• Up to 64 client connections per AP(2)• 2+ Million pps• Proprietary RF filtering (1) 1+ Gbps with future firmware upgrade. (2) 255 client connections with future firmware upgrade.Superior PerformanceLTU is a new proprietary technology with custom silicon and radio design that break through the limitations of 802.11 Wi-Fi technology. This enables LTU to deliver far superior performance over previous airMAX products that are based on 802.11 Wi-Fi.The LTU Rocket is designed for WISPs from the ground floor up. Its core communications processing engine enables low latency long-range capability DFS flexibility higher constellations better power output and improved receive sensitivity.Seamless CompatibilityThe LTU Rocket is designed to be paired with a variety of Ubiquiti antennas to suit the needs of each installation. The radio includes a mounting bracket that allows it to be used with a 5 GHz airMAX® Sector antenna or airMAX Omni antenna for a complete 5 GHz PtMP BaseStation. You can even pair three LTU Rocket radios with the airPrism® 5 GHz 3x30° HD Sector Antenna for co-location deployments.The LTU Rocket also works with any CPE device in the LTU family such as the LTU-Pro.* Please note that manufacturer's instructions for the installation configuration and use of the equipment must be strictly observed.

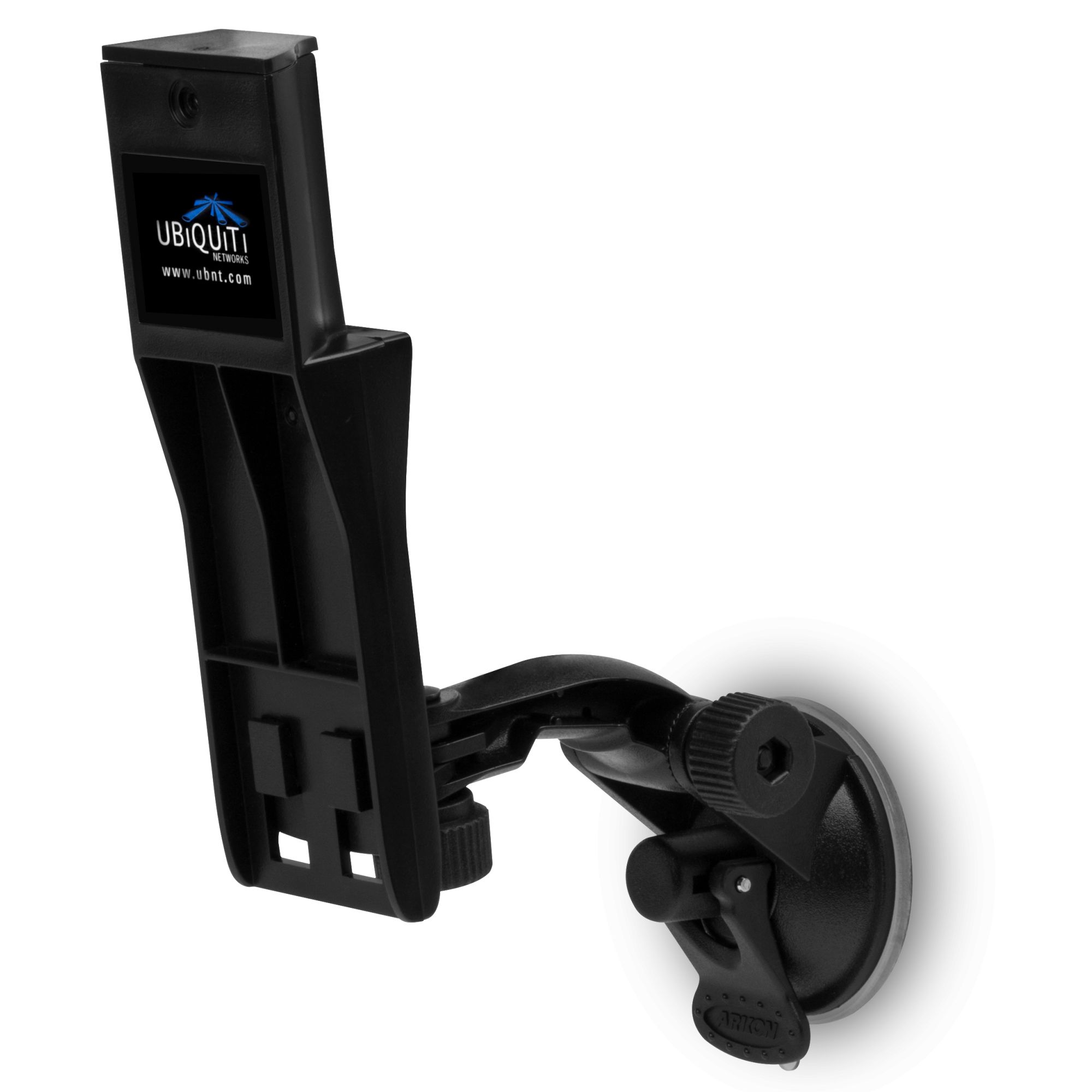

NS Window/Wall Mount If you have seen the trends most of the houses offices and space that we have are very limited and a good number of networking technologies require substantial space. By mounting the NanoStation either on the window or the wall you can now reclaim whatever limited space you have. Different Positions The NS Window/Wall Mount can be installed on the wall with the help of the mounting brackets or the windows via the suction cup. This type of flexibility makes it easier for you to create the network that you truly like or need. Are you one who likes to change his or her mind? Whether it is because you want to get better connection or you have found a better spot the NS Window/Wall Mount is extremely flexible. You can simply remove the suction and attach the mount so you can place the NanoStation on the wall and do things vice versa. Everything You Need Found in the Kit With NS Window/Wall Mount you can already save a lot of money. For one they have been designed to work with NanoStation so you will not have any problem fitting them in. There is no need to buy additional supplies. Speaking of parts all the things you need are already included in the kit. If you need the installation manual you can already download it online. You can also save because you do not have to pay for an installation expert to do it for you. Strong The NS Window/Wall Mount has a very strong suction and mount to ensure that it can definitely hold the NanoStation or other wireless networking technologies in place. It doesn’t wear immediately so you may be able to use it for a long time. Moreover its strength or durability is a sign of its being low maintenance.

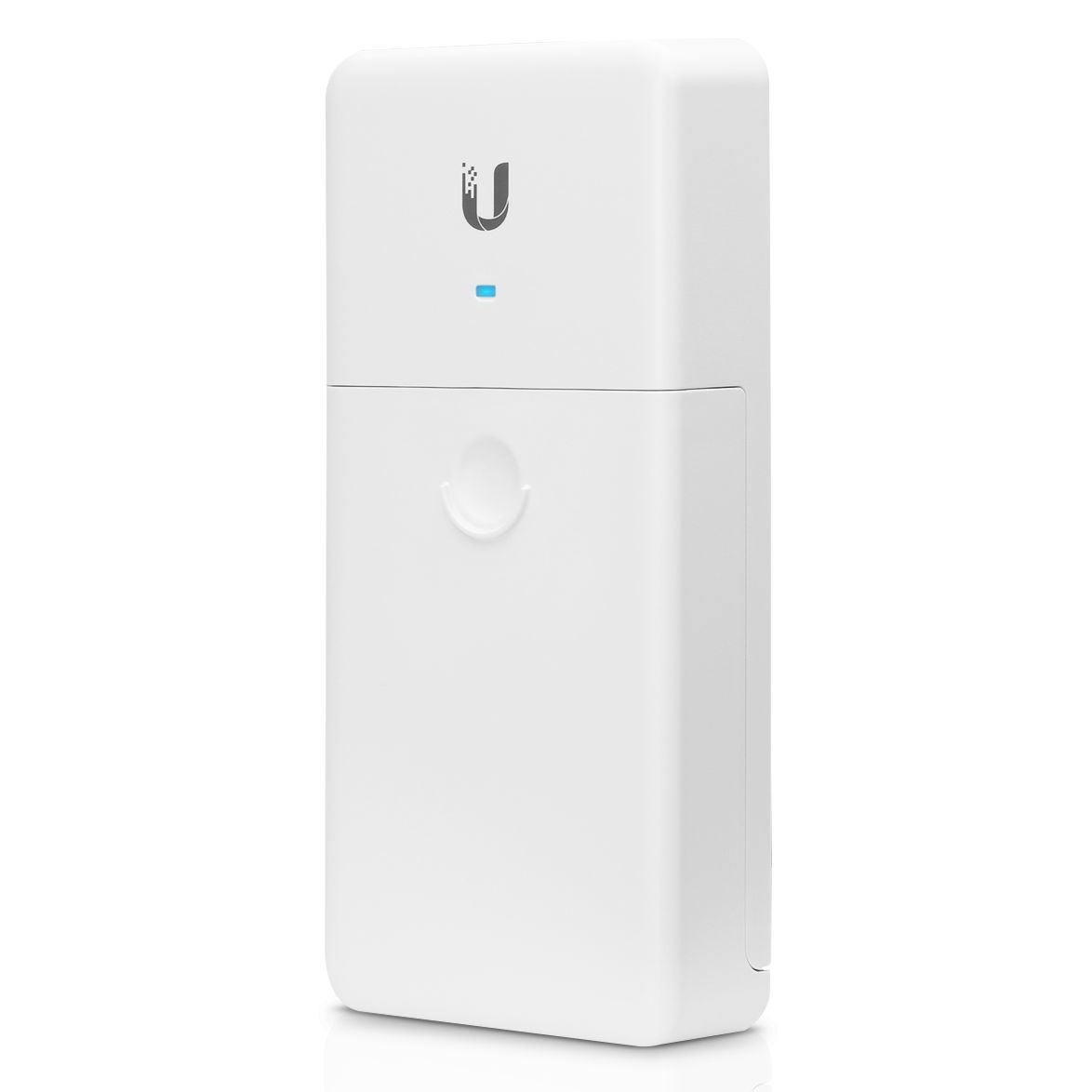

The NanoSwitch N-SW is an outdoor 4-port Gigabit switch with PoE passthrough.Power Strip Simplicity for 24V Devices Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with "always on" 24V 2-pair output on three ports.PoE Passthrough PoE In - RJ45 port supports 10/100/1000 Ethernet connections and supports passive 24V 2-pair PoE to power the switch. PoE Out - RJ45 ports support 10/100/1000 Ethernet connections and the three passive 24V 2-pair PoE ports provide up to 24W PoE output. Designed for Outdoor Durability The NanoSwitch features an outdoor weatherproof form factor.Operating Temperature: -30 to 70° C (-22 to 158° F)

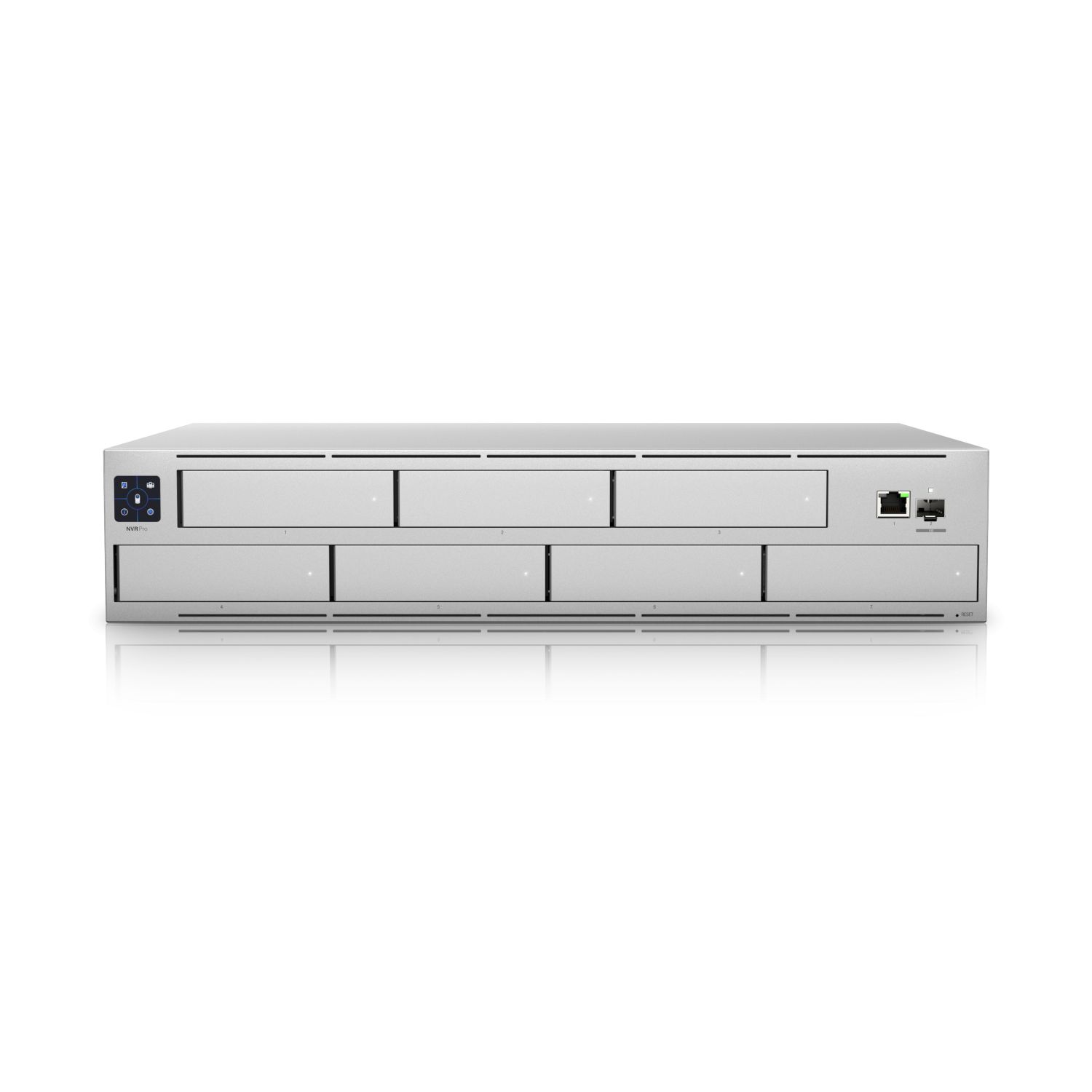

Enterprise network video recorder can provide up to 50 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras.UniFi Protect Network Video Recorder Pro integrates UniFi® Protect with a scalable 7-drive bay NVR. It supports up to (7) SSD/HDDs in RAID 1 or RAID 5 configuration for reliable worry-free video storage. The 1.3" touchscreen display conveniently offers video event preview*. Additional features include 10G SFP+ and Gigabit RJ45 LAN ports for local video access a 2U rackmountable enclosure and UniFi SmartPower Redundant Power System (USP-RPS*) support to help protect against an internal PSU failure or interruption.Features: (7) 2.5"/3.5" Drive Bays (1) 10G SFP+ Port (1) Gigabit RJ45 Port 2U Rackmountable (Kit Included) 1.3" Touchscreen with Video Event Preview UniFi Protect Integrated with NVR Bluetooth for Easy Setup with UniFi Protect App Automated Secure RAID 1/5 USP-RPS* Support for Redundant Power Backup Managed by UniFi Protect App. Available on iOS version 1.4.3 or higher and Android version 1.3.9 or higher

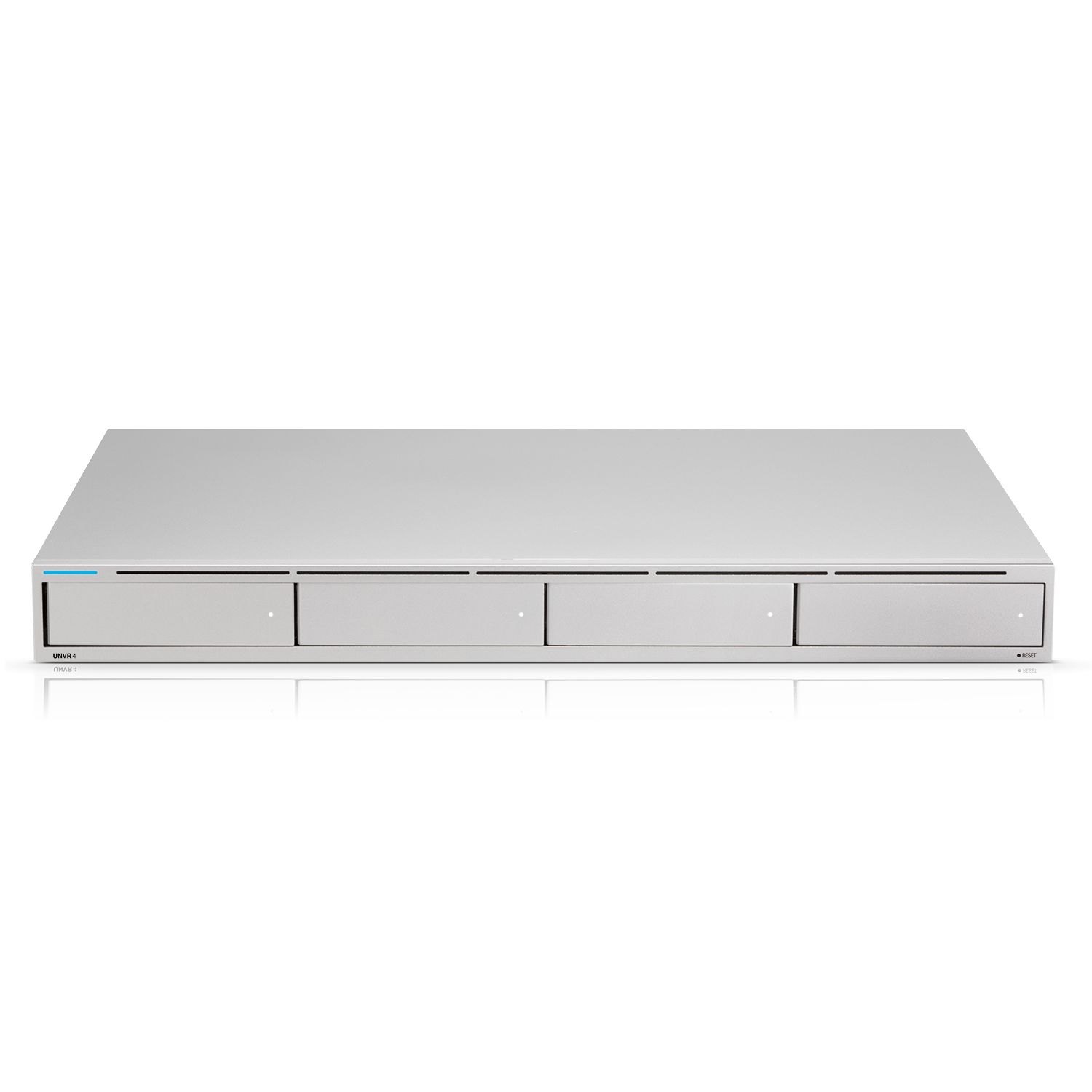

The UniFi® NVR 4 is an enterprise network video recorder that integrates an NVR the UniFi Protect software and a 4-drive bay. The UNVR-4 unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration the UNVR-4 can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras. Features: (4) 2.5"/3.5" Drive bays (1) 10G SFP+ port (1) Gigabit RJ45 port 1U rackmountable (kit included) Plug and Play UniFi Protect system with NVR Automated secure RAID 1 or RAID 5 configuration Supports USP-RPS for PSU failover

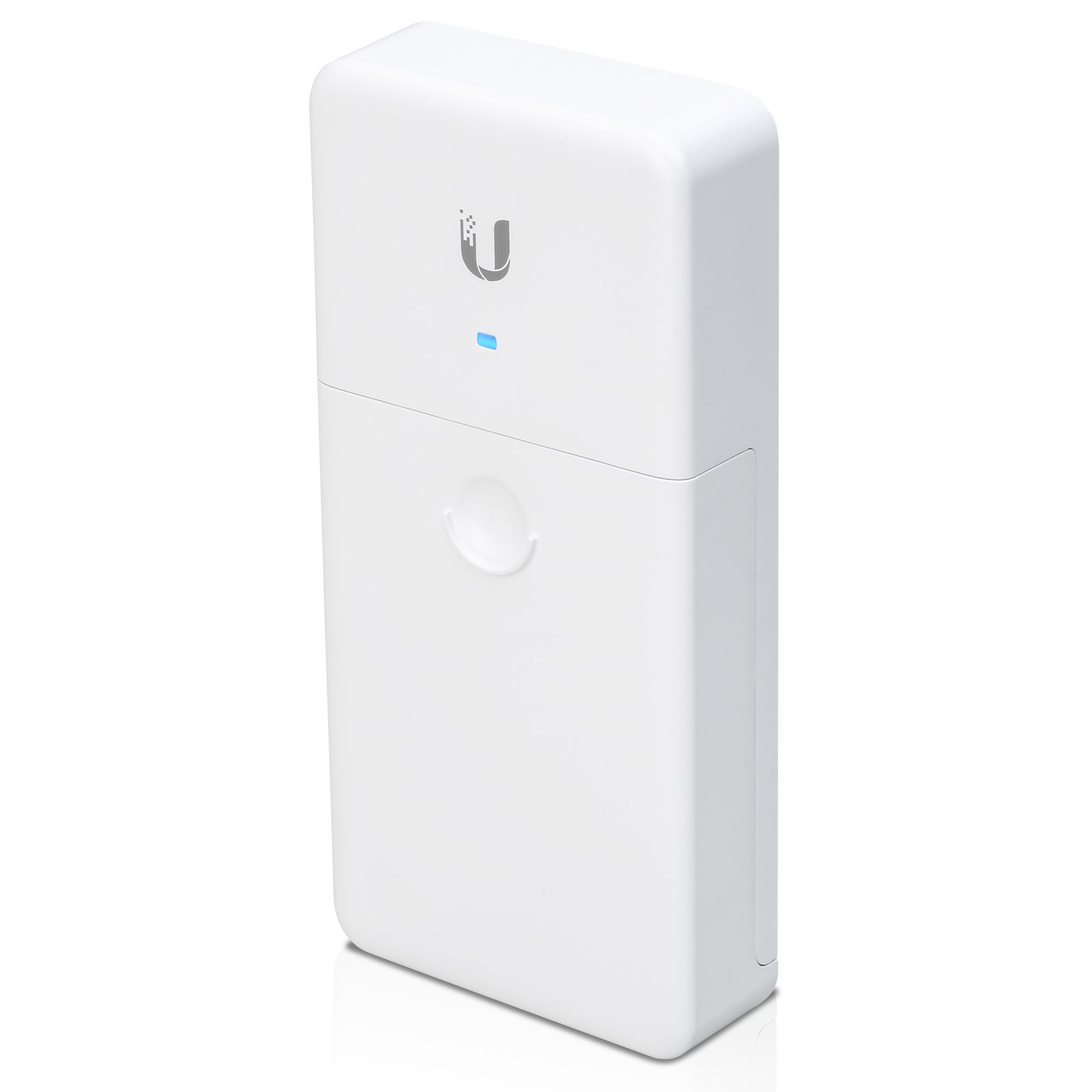

Fiber + Power Solution for Outdoor PoE DevicesOvercome PoE limitations with the next-generation FiberPoE™ model F-POE-G2. The FiberPoE Gen 2 is a low-cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE Gen 2 provide significant EMI and ESD protection over typical PoE installations. The FiberPoE Gen 2 also features a durable weatherproof form factor and enhanced surge protection. Fiber-to-Ethernet ConversionThe FiberPoE provides fiber connectivity to any PoE device.Designed for Outdoor DurabilityThe FiberPoE features an outdoor weatherproof form factor with integrated strain relief management.Power VersatilityThe FiberPoE allows separate power from standard Ethernet cables or standard terminal block / power cable support. There are three ways to configure the input and output power:

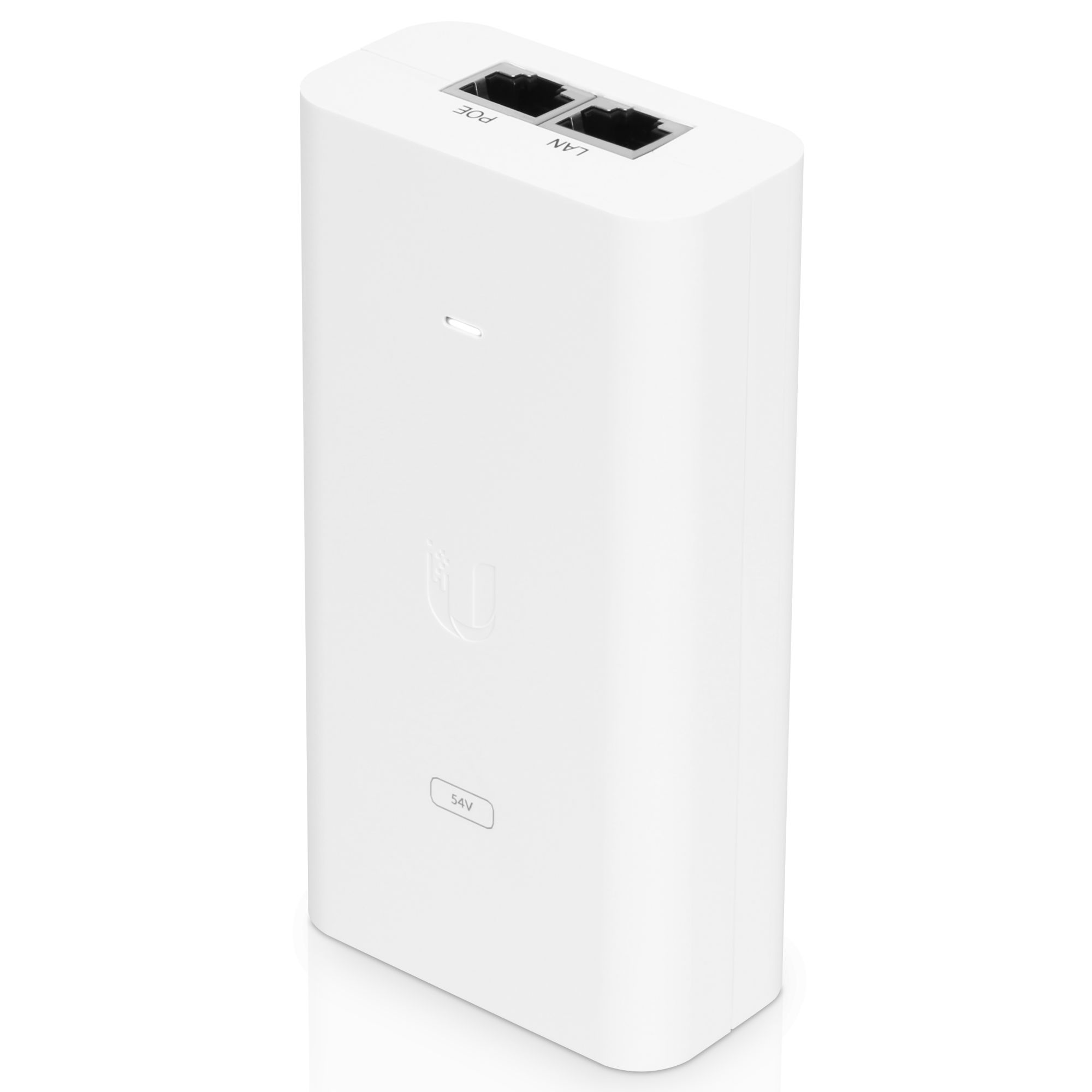

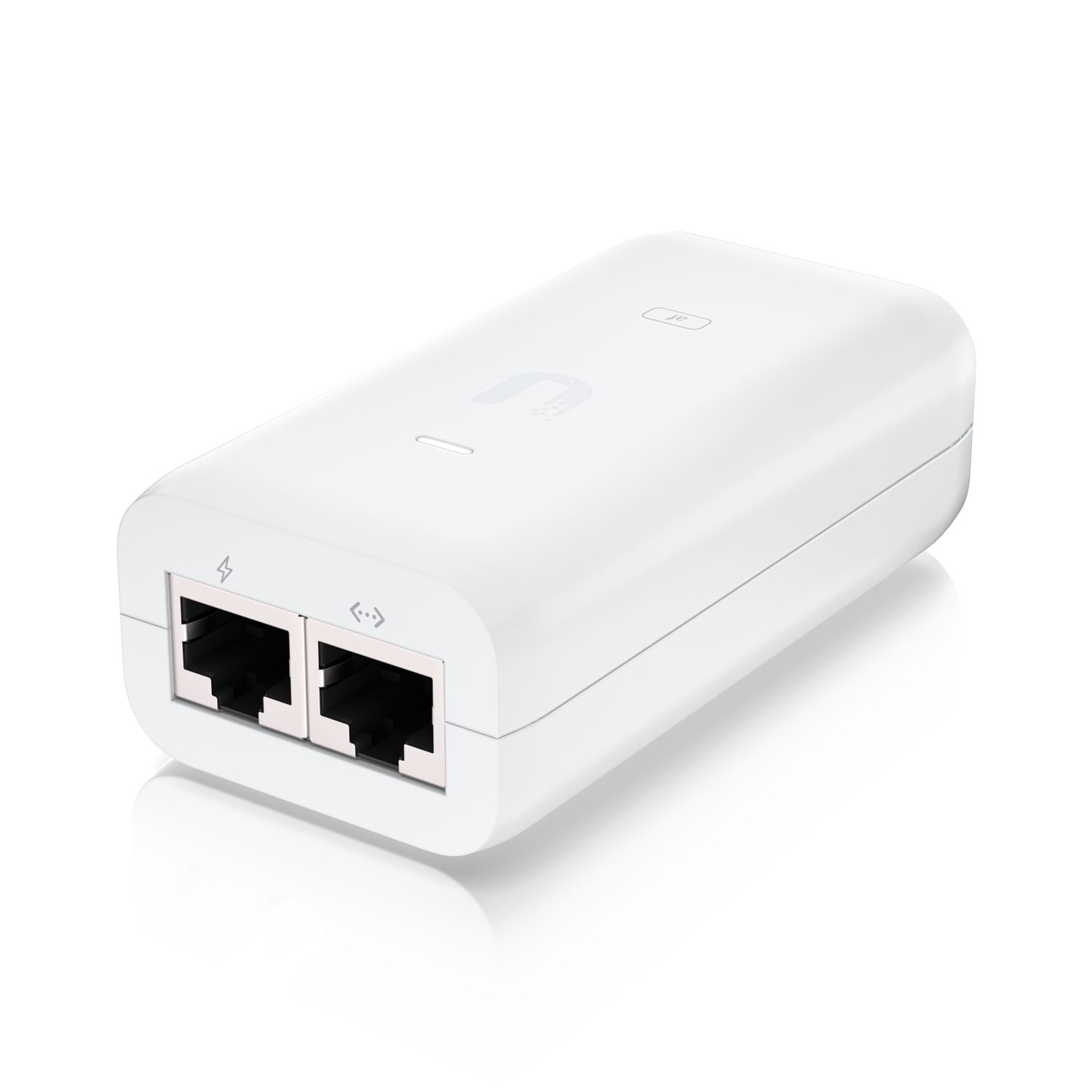

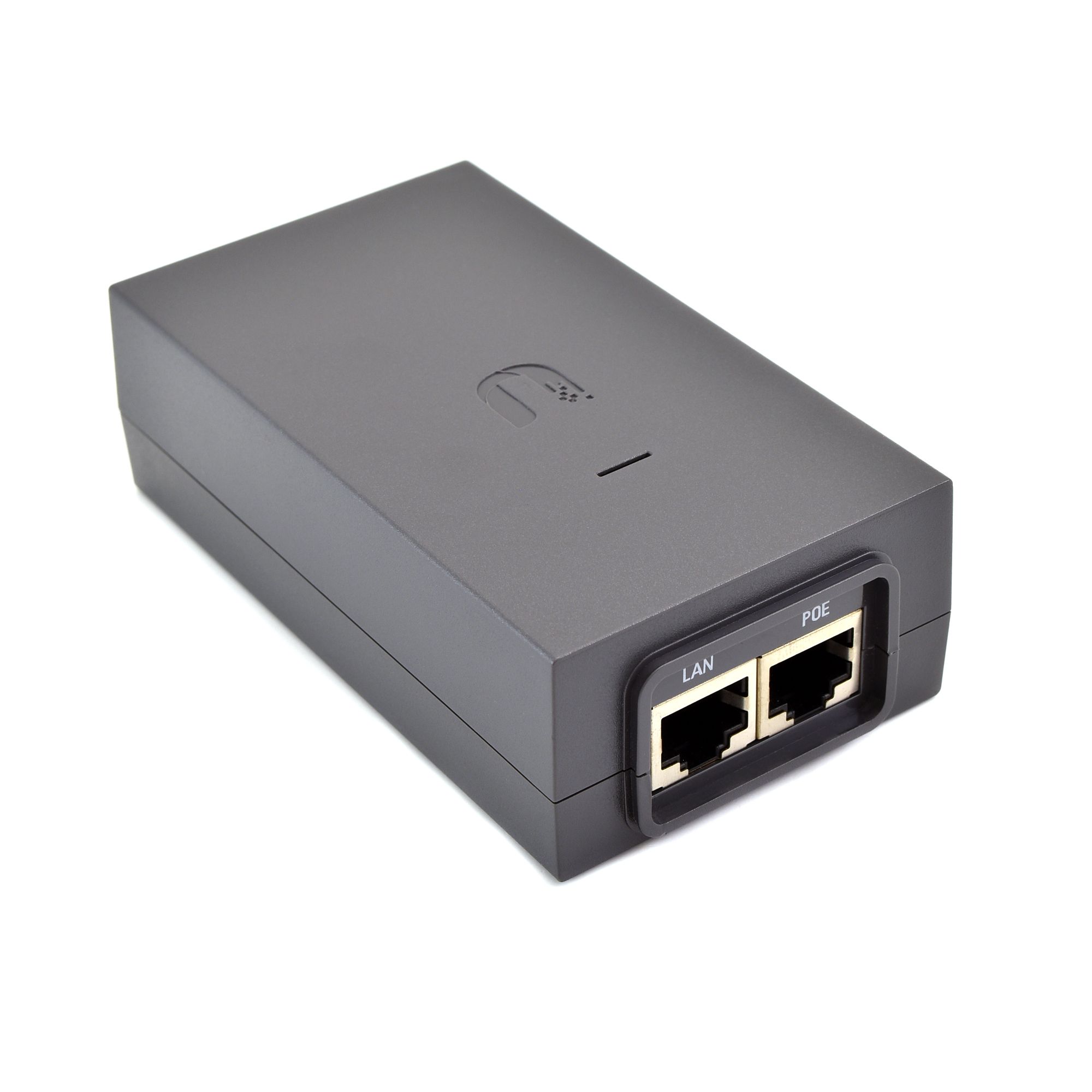

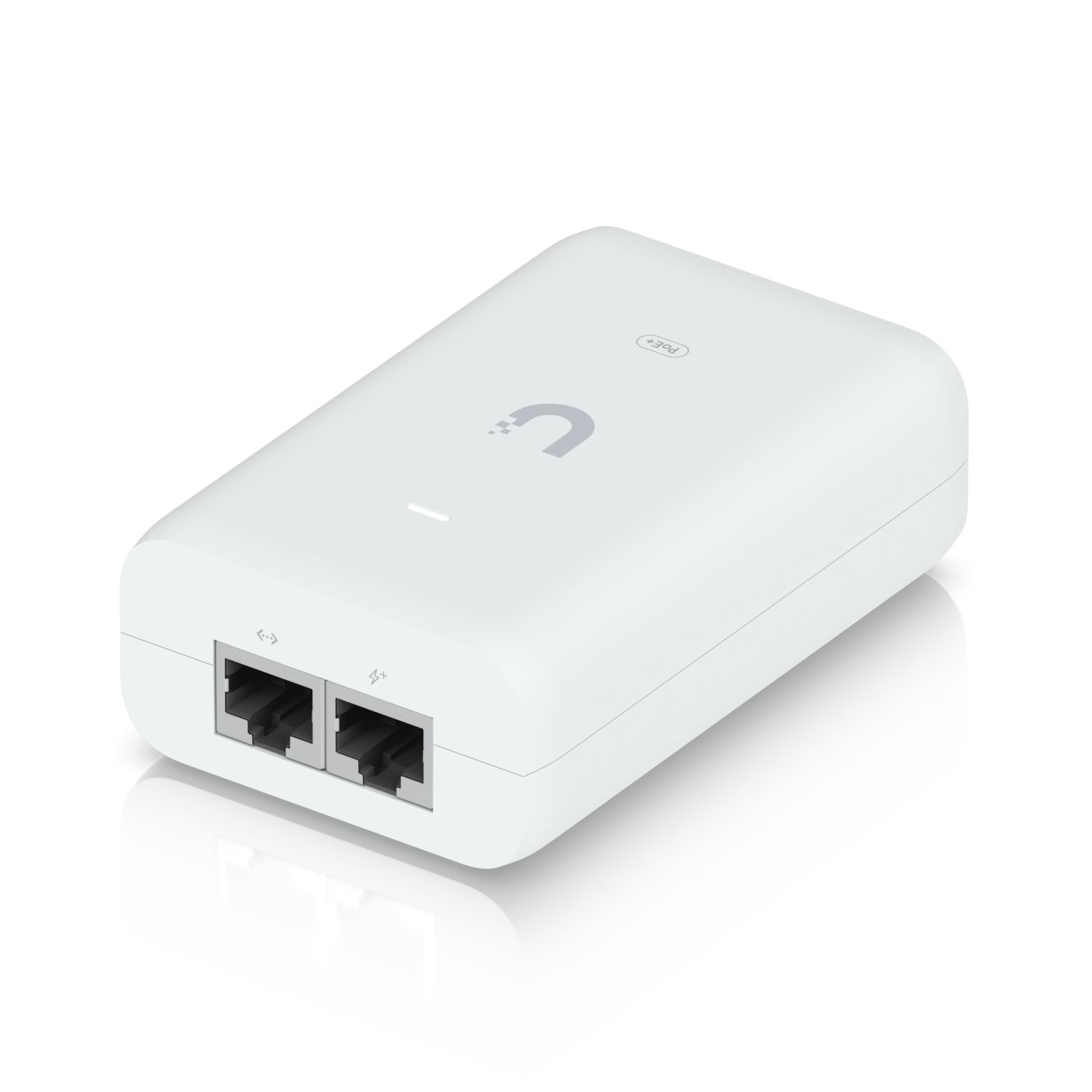

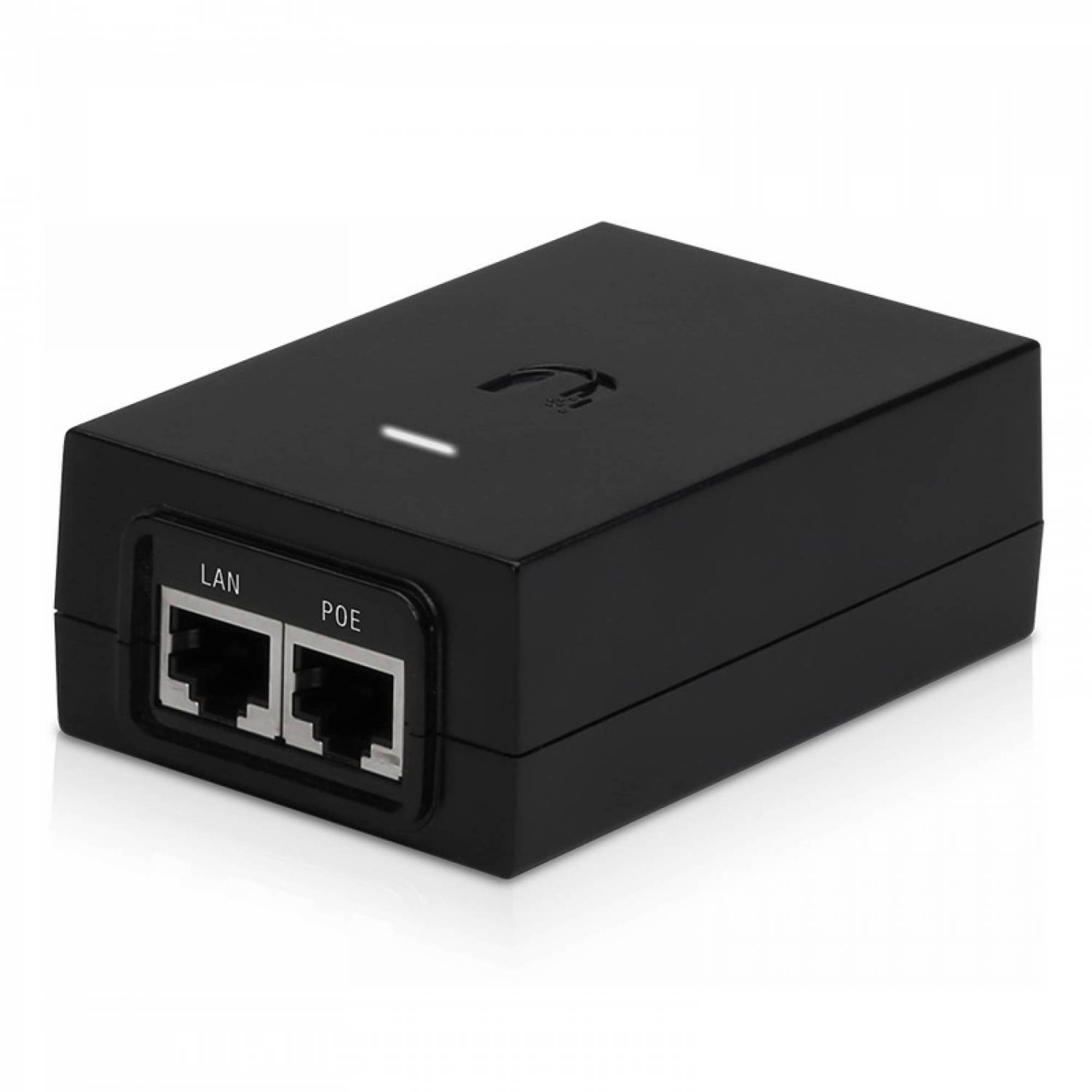

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices: Surge protection Clamping protection Maximum surge discharge Peak pulse currenе AC cable with earth ground Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter TOUGHCableTM and TOUGHCable Connectors.

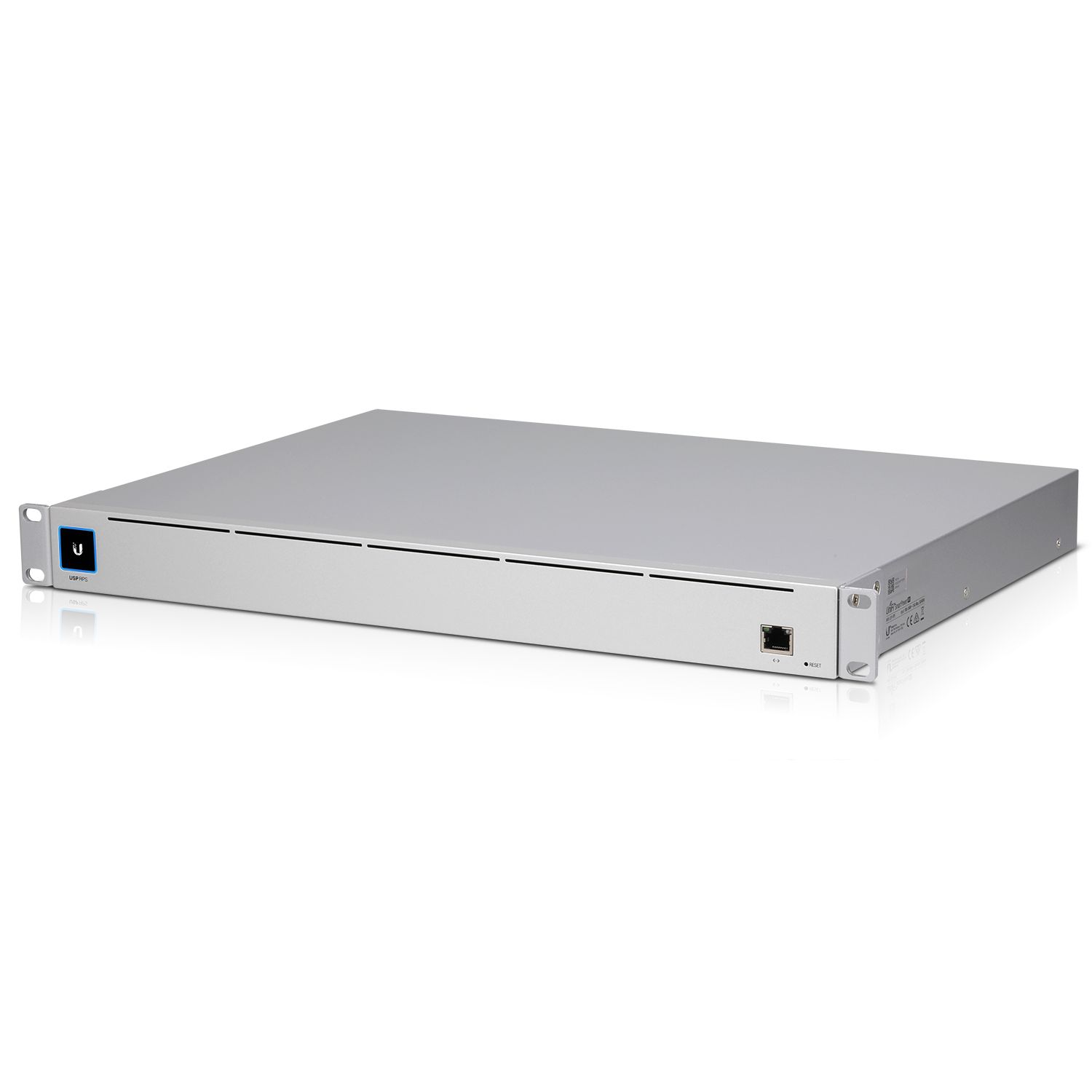

USP-RPSThe UniFi® SmartPower Redundant Power System model USP-RPS is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget the USP-RPS can protect a variety of high-power devices including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.Features: (6) USP DC output ports (1) Ethernet port 1U Rackmountable (kit included) 1.3" Touchscreen display with status information Managed by UniFi Network Controller version: 5.12.11 or later

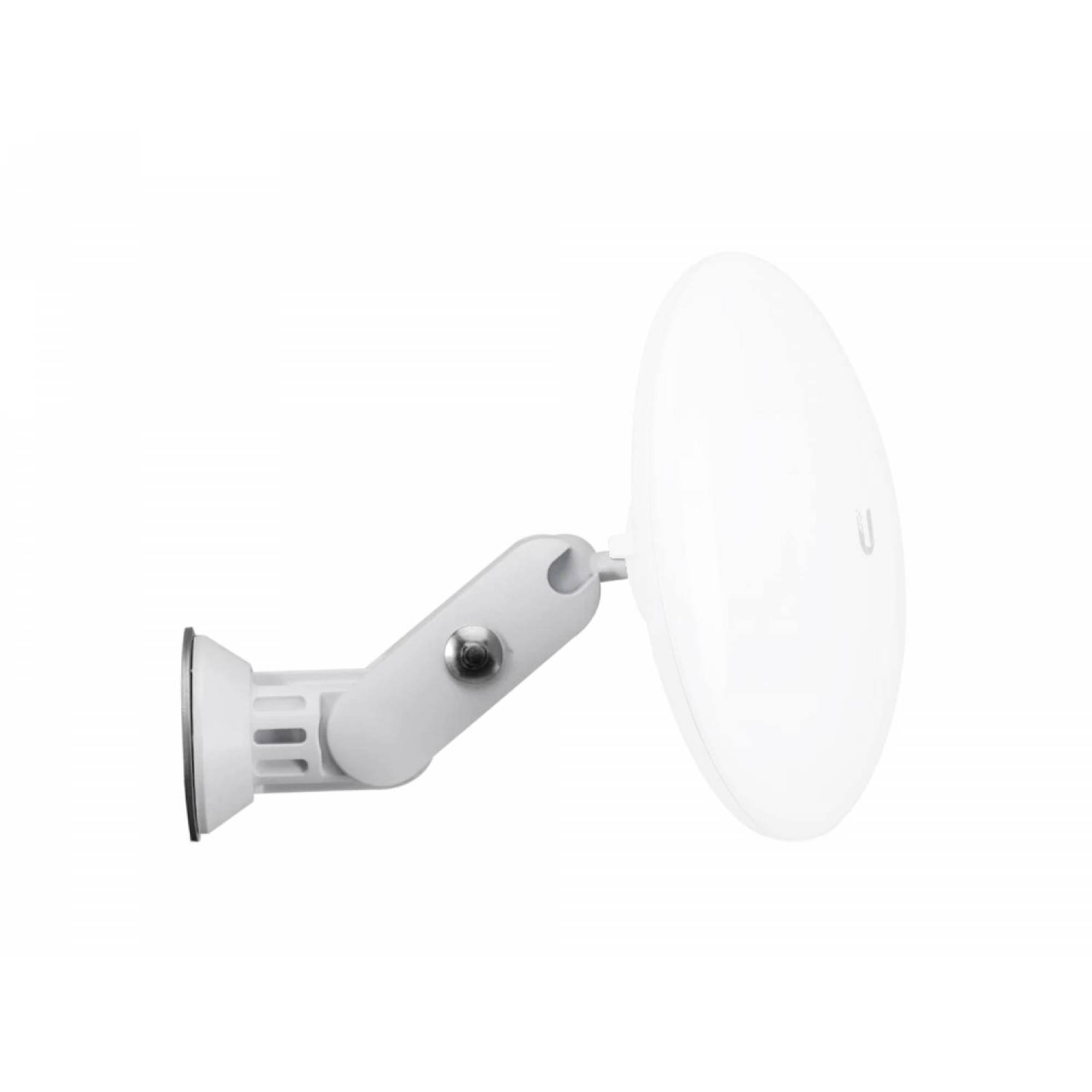

Quick-MountToolless Quick-Mounts for Ubiquiti CPE Products.Designed for additional mounting flexibility and device alignment options the Quick-Mount accessory kit features an easy-to-use toolless design.Features: No tools required Quick and easy installation Supports NanoStation NanoStation Loco and NanoBeam devices Flexible easy alignment
Tootekood: POE-15-12WGTIN: 810354022968PoE & Power
Specifications Output Voltage 15 V Output Rating 0.8A (18W) Input Voltage AC 100~240V Input Frequency 50~60Hz Operating Temperature 0C~+40C Storage Temperature -20C~+85C
