<p><b>Key Features</b><br />AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors<br />Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution<br />Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support<br />Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector<br />Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance<br />EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design<br />Fast Networks：2.5GbE LAN & Wi-Fi 6E<br />Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s<br />Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP<br />Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card</p>

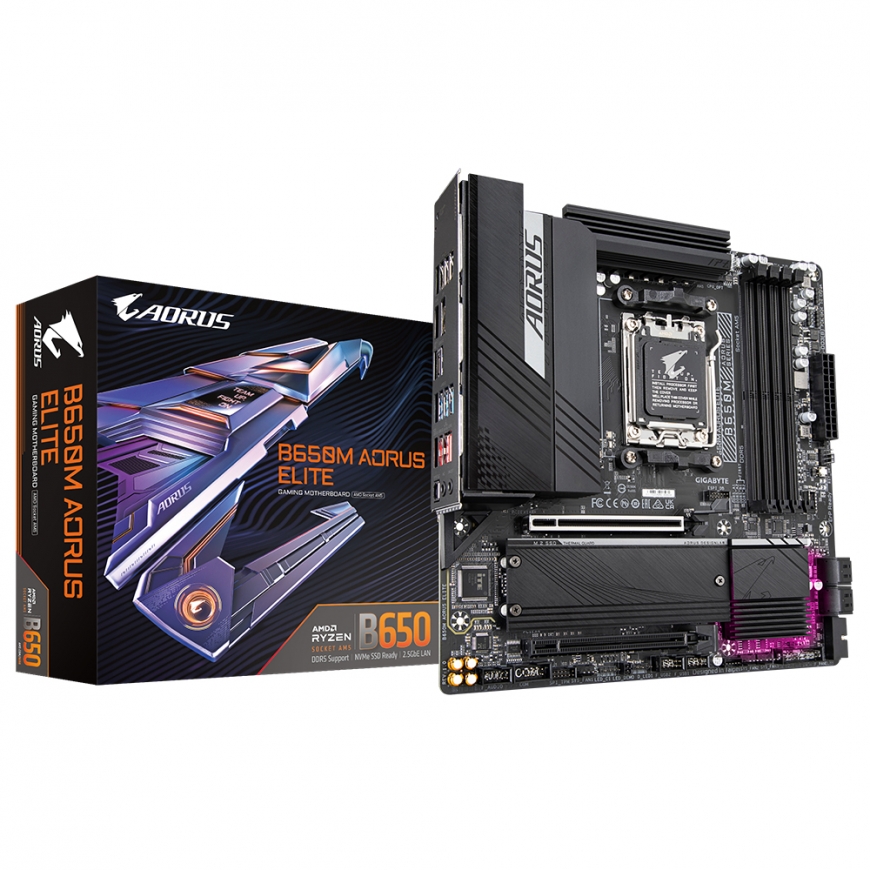

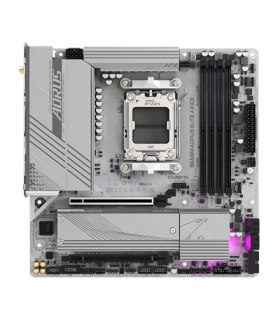

The GIGABYTE AORUS B650M ELITE motherboard delivers features designed for high-performance computing. Built on the AMD B650 chipset, this micro ATX motherboard supports Ryzen processors and is compatible with DDR5 SDRAM. With four DIMM slots, it accommodates a range of memory speeds, including options at 5600 MHz and beyond, ensuring performance for demanding applications. The board's solid pin power connectors and advanced 12+2+1 phase power design promote stable power delivery for enhanced system reliability.Featuring a wide array of connectivity options, the AORUS B650M ELITE includes multiple USB ports, HDMI, and DisplayPort outputs, allowing for seamless connectivity with various peripherals and high-resolution displays. It possesses hardware monitoring capabilities, such as water cooling flow rate and fan control, enabling users to maintain optimal thermal performance. The BIOS offers comprehensive features, supporting newer technologies like AMD EXPO and Intel Extreme Memory Profiles (XMP), which streamline memory overclocking. This motherboard is built to handle the rigors of gaming and high-performance tasks with a DIY-friendly design that caters to enthusiasts.
<b>Durable Performance</b><br />GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.<br /><br /><b>Digital VRM Design<br />5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs</b><br />GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.<br /><br /><b>EXPO & XMP Support<br />DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond</b><br />GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 7600 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.<br /><br /><b>EXPO & XMP Support<br />Unlock DDR5 Voltage<br />Secure Mode</b><br />MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.<br /><br />- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control<br />- Transforms Native DDR5 memory module to Overclocked DDR5 memory<br />- Increases DDR5 memory overclocking performance and capability<br />- Supports all PMIC vendors for maximum compatibility<br /><br /><b>EXPO & XMP Support<br />GIGABYTE Exclusive DDR5 Circuit Design<br />Programmable Mode</b><br />GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.<br /><br /><b>EXPO & XMP Support<br />Shielded Memory Routing</b><br />All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.<br /><br /><b>EXPO & XMP Support<br />EXPO and XMP Dual Support</b><br />GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.<br /><br /><b>EXPO & XMP Support<br />DDR5 Auto Booster</b><br />Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.<br /><br /><b>EXPO & XMP Support<br />AMD EXPO™ and Intel® XMP 3.0 User Profile</b><br />- SPD Re-defined or retrieve from database<br />- Performance Simulation<br />- Save/Load Profile<br />- Overclocked Performance<br />- Profile Clearance<br />Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.<br /><br /><b>Future Connectivity</b><br />The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.<br /><br /><b>802.11ax Wi-Fi 6E</b><br />The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.<br /><br /><b>2.5GbE LAN</b><br />Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.<br /><br /><b>PCIe 4.0 Hardware Design</b><br />GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.<br /><br /><b>Hi-Fi Audio<br />High-End Audio Capacitors</b><br />GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.<br /><br /><b>Audio Noise Guard</b><br />GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.<br /><br /><b>Easy Friendly</b><br />Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.<br /><br /><b>EZ-Latch</b><br />Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.<br /><br /><b>Q-Flash Plus</b><br />Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!<br /><br />- STEP 1: Plug 24pin & 8pin power supply cable on motherboard<br />- STEP 2: Download motherboard BIOS file and rename to ''gigabyte.bin'', save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port<br />- STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.<br /><br /><b>Smart Fan 6</b><br />Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.<br /><br /><b>Cooling Features</b><br />- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection<br />- Precision Control: Multiple temperature/fan speed control points for precise fan curve<br />- Dual Curve Mode: Slope/Stair dual mode for different user scenario<br />- Fan Stop: Fan can stop completely below users' specified temperature point<br /><br /><b>Smart Fan 6 BIOS UI</b><br />1. <b>Improve fan curve UI:</b> We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.<br />2. <b>Slope/Stair dual graph mode:</b> Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.<br />3. <b>Manual Input:</b> For advanced users, we provide fan speed manual input for more precise control.<br />4. <b>EZ Tuning:</b> Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.<br />5. <b>Fan curve profile:</b> Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.<br /><br /><b>GIGABYTE Control Center</b><br />GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.<br /><br />- Unified software platform for all Gigabyte supported products<br />- Intuitive user interface for an eased experience<br />- Modularized control components only for installed hardware<br />- Auto update function to keep system up to date and support future products
