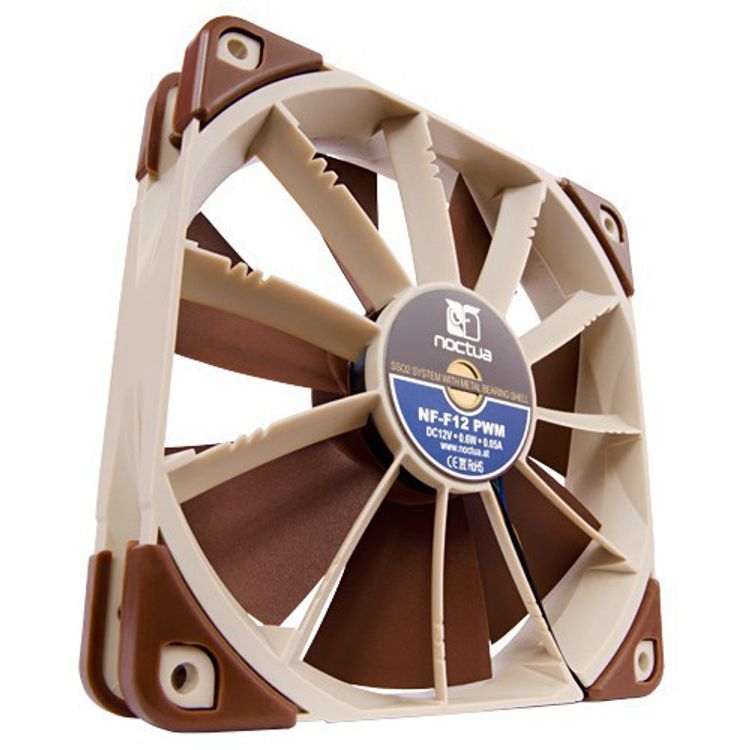

A combination of 11 stator blades with the specially developed seven-bladed rotor and the Focused Flow™ system achieves the excellent static pressure of the NF-F12 and focusses the airflow for superior cooling performance on air coolers and radiators. At the same time the advanced aerodynamic design as well as the SSO bearing of the second generation and Noctua's newly designed PWM IC for fully automatic control make for an impressively low noise emission level. The NF-F12 offers a modular cable system, integrated anti-vibration pads as well as two speed settings for maximum flexibility. Its impressive performance, extensive features and Noctua's proven premium quality make the NF-F12 an exquisite choice for air coolers, radiators and other pressure-sensitive applications. A feature overview can be found hereTechnical specifications:Dimensions : 120x120x25mmColour: Frame: beige/brwon, fan blades: brownConnector: 4Pin PWMOperating voltage range: 3,5-14VAirflow: 93,4 m³/h / 55 CFMAirflow with LNA: 74,3 / 44 CFMNominal speed: 1500 +/- 10% rpmNominal speed with LNA: 900 +/- 10% rpmMinimum speed: 300rpmNoise emissions: 22,4 dBANoise emission with LNA: 18,6 dBAStatic pressure:: 2,61 mm H2OStatic pressure with LNA: 1,83 mm H2OCurrent draw: 0,05 APower consumption: 0,6 WNominal voltage: 12 VAn English mounting manual can be found hereThis way to the information sheet.Extent of delivery:1x Noctua NF-F12 PWM ( 120x120x25mm ) Low-Noise adaptor (L.N.A.)4-Pin Y-cable30cm cable extension4x Vibration-Compensators4x fan screwsPlease note the difference between a 4-Pin power connector (Molex) and a 4-Pin fan connector (PWM).This product has been tested for you:HardwaremaxTech-Reviewe
