EK Water Blocks EK-AC GeForce RTX 3080 – Backplate – CNC-machined backplate for EK-AC water blocks EK Water Blocks EK-AC GeForce RTX 3080 – Backplate is a CNC-machined retention backplate made from anodised aluminium and designed for the matching EK-AC water blocks. It covers the entire length of the graphics card PCB, acts as an aesthetic upgrade, and additionally provides passive cooling for the backside of the voltage regulation module (VRM) and the GPU core. The part is CNC-machined from anodised aluminium, which is more rigid and more scratch-resistant than painted plastic. Key Features Anodised aluminium: The anodised surface is more scratch-resistant than paint and keeps its colour over time. Passive additional cooling: Thermal pads transfer heat from the back of the PCB to the surrounding air. Full PCB coverage: Covering the entire length of the PCB protects the card mechanically and prevents sagging. Developed for custom loops: Designed for use in custom loops. Technical Specifications TypeEK Water Blocks EK-AC GeForce RTX 3080 – Backplate ManufacturerEK Water Blocks Manufacturer P/N3831109835791 SeriesEK-AC GPU PlatformNVIDIA GeForce Scope of Delivery EK-AC GeForce RTX 3080 – Backplate All necessary mounting screws EK Water Blocks EK-AC GeForce RTX 3080 – Backplate adds a carefully manufactured component to your custom loop.
EK Water Blocks EK-AC Trinity RTX 3080 – Backplate – CNC-machined backplate for EK-AC water blocks EK Water Blocks EK-AC Trinity RTX 3080 – Backplate is a CNC-machined retention backplate made from anodised aluminium and designed for the matching EK-AC water blocks. It covers the whole length of the graphics card PCB, acts as an aesthetic upgrade and additionally provides passive cooling for the backside of the voltage regulation module (VRM) and the GPU core. The part is CNC-machined from anodised aluminium, which is more rigid and more scratch-resistant than painted plastic. Key Features Anodised aluminium: The anodised surface is more scratch-resistant than paint and keeps its colour over time. Passive additional cooling: Thermal pads transfer heat from the back of the PCB to the surrounding air. Full PCB coverage: Covering the entire length of the PCB protects the card mechanically and prevents sagging. Developed for custom loops: Designed for use in custom loops. Technical Specifications TypeEK Water Blocks EK-AC Trinity RTX 3080 – Backplate ManufacturerEK Water Blocks Manufacturer P/N3831109835784 SeriesEK-AC GPU PlatformNVIDIA GeForce Scope of Delivery EK-AC GeForce RTX 3080 – Backplate All necessary mounting screws EK Water Blocks EK-AC Trinity RTX 3080 – Backplate adds a carefully manufactured component to your custom loop.

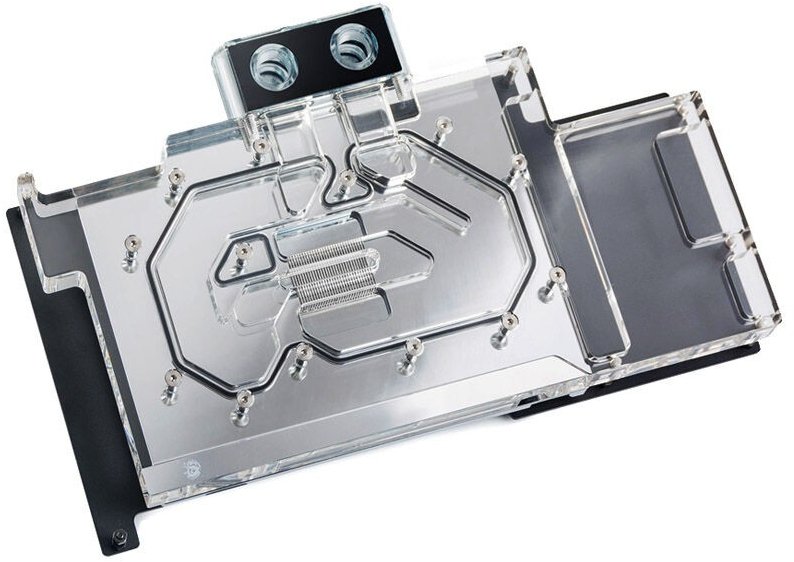

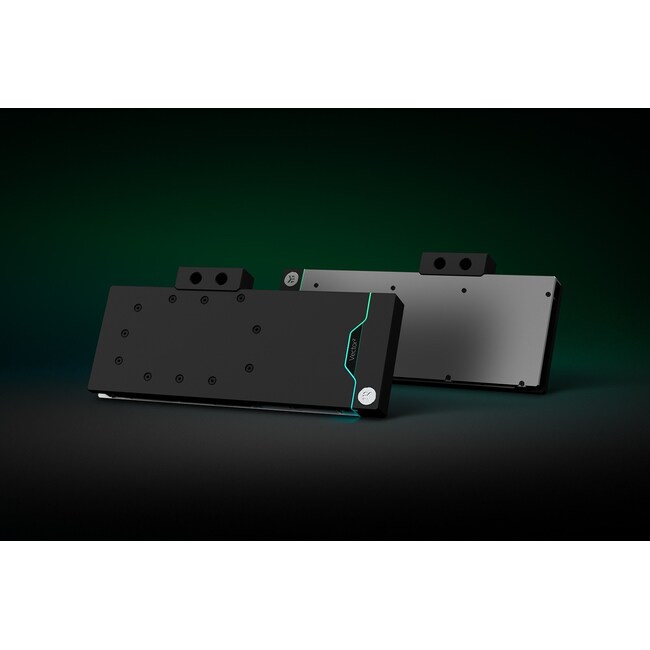

EK Water Blocks EK-Pro GPU WB RE RTX 3080/3090 - Nickel + Inox – Full-cover water block for graphics cards EK Water Blocks EK-Pro GPU WB RE RTX 3080/3090 - Nickel + Inox is a full-cover water block that spans the entire length of the graphics card. The coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper. The dimensions are 230.2 x 152.6 x 22 mm. A matching backplate for the rear of the graphics card is already included. Key Features Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well. GPU, VRAM and VRM in one block: Coolant flows directly over the graphics chip, memory and voltage regulation module – not just the core. Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance. EPDM gasket: The internal EPDM gasket grips the tube and keeps the connection permanently sealed. Check compatibility: EK recommends checking the exact fit for your graphics card in the EK Cooling Configurator beforehand. CNC-machined cold plate: The electrolytic copper base ensures rapid heat transfer. Nickel + Inox version: Matches fittings and components with the same finish. Technical Specifications TypeEK Water Blocks EK-Pro GPU WB RE RTX 3080/3090 - Nickel + Inox ManufacturerEK Water Blocks Manufacturer P/N3831109848616 SeriesEK-Pro FinishNickel + Inox ThreadG1/4" Dimensions230.2 x 152.6 x 22 mm GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Pro GPU WB RE RTX 3080/3090 - Nickel + Inox Backplate Mounting mechanism with screw-in brass standoffs All necessary mounting screws, nuts and washers Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The factory backplate of the graphics card cannot be reused. Given the variety on the market, EK guarantees fit only for fittings from its own range.
EK-Quantum Vector FE RTX 3080 Backplate - Black is a CNC machined retention backplate made from black anodized aluminum for the EK-Quantum Vector FE RTX 3080 - Special Edition water block. The backplate covers the backside of the graphics card's PCB and serves as an aesthetic add-on. It provides additional passive cooling for the GPU core and rear of the printed circuit board VRM section. Due to the small size of both the card and the water block, the backplate boasts a ribbed design for additional passive cooling power. Enclosed EK-Quantum Vector FE RTX 3080 Backplate - Black Mounting screws Thermal pads
EK-Quantum Vector FE RTX 3080 Backplate - Silver is a CNC machined retention backplate made from silver anodized aluminum for the EK-Quantum Vector FE RTX 3080 - Special Edition water block. The backplate covers the backside of the graphics card's PCB and serves as an aesthetic add-on. It provides additional passive cooling for the GPU core and rear of the printed circuit board VRM section. Due to the small size of both the card and the water block, the backplate boasts a ribbed design for additional passive cooling power. Enclosed EK-Quantum Vector FE RTX 3080 Backplate - Silver Mounting screws Thermal pads
Backplate für GPU-Wasserkühlung, für EK-Quantum Vector FTW3 RTX 3080/3090, aus POM Acetal, bietet erhöhte Stabilität, mit Wärmeleitpads, für aktive Kühlung des PCBs
EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate D-RGB - Acryl is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector FTW3 RTX 3080/3090 water blocks and actively cool the backside of all EVGA® GeForce RTX™ 3080 and 3090 FTW3 GPU. EK-Quantum Vector FTW3 RTX 3080/3090 Active BackplateThe EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate comes with a new terminal that replaces the stock terminal arriving with the Vector water block and links the water block and Vector Active Backplate into a single unit. This way, the whole enclosure requires only one inlet and one outlet, removing unnecessary additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks, allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 8 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The rest of the backplate is made of nickel-plated aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acrylic terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. D-RGB lighting on EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Technical Specification Dimensions: (LxHxW) - 303x151x37.8mm D-RGB cable length: 500mm D-RGB LED count: 8 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Enclosed EK-Quantum Vector FTW3 RTX 3080/3090 Active Backplate D-RGB - Acryl Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.
The EK-Quantum Vector FTW3 RTX 3080/3090 backplate is intended for the EK-Quantum Vector FTW3 RTX 3080/3090 graphics card cooler of the same name. A backplate is particularly suitable for giving the graphics card more stability. As the backplate is kept very simple, it is rounded off by a small but elegant EK logo. Technical Data Material: Nickel-Plated Aluminium Color: Nickel Scope of Delivery EK-Quantum Vector FTW3 RTX 3080/3090 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

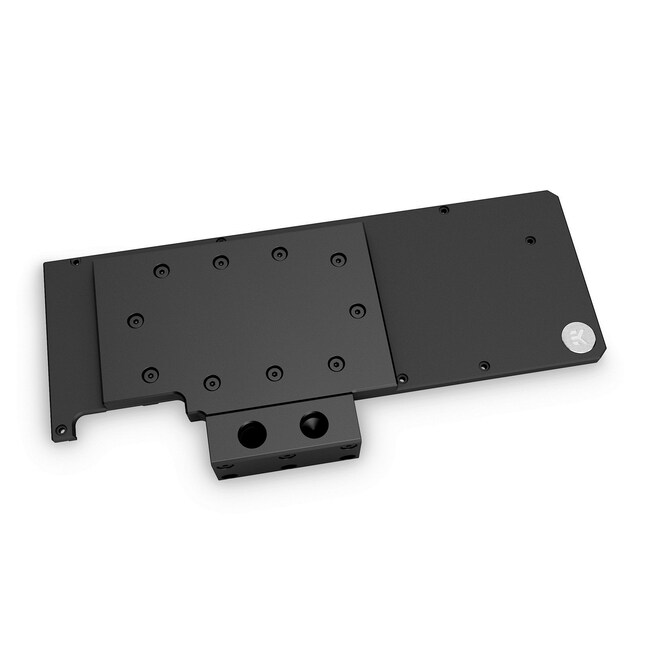

EK-Quantum Vector RE RTX 3080/3090 Active Backplate - Acetal is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector RE RTX 3080/3090 water blocks and actively cool the backside of a reference design NVIDIA® GeForce RTX™ 3080 and 3090 GPU. EK-Quantum Vector RE RTX 3080/3090 Active BackplateEK-Quantum Vector RE RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of this stealthy active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable Black POM acetal. The rest of the backplate is made of anodized aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. Technical Specification: Dimensions: (LxHxW) - 223x124x15mm Enclosed: EK-Quantum Vector RE RTX 3080/3090 Active Backplate - Acetal Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.
EK-Quantum Vector RE RTX 3080/3090 Active Backplate D-RGB - Acryl is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector RE RTX 3080/3090 water blocks and actively cool the backside of a reference design NVIDIA® GeForce RTX™ 3080 and 3090 GPU. EK-Quantum Vector RE RTX 3080/3090 Active BackplateEK-Quantum Vector RE RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The rest of the backplate is made of nickel-plated aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acrylic terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. D-RGB lighting on EK-Quantum Vector RE RTX 3080/3090 Active Backplate D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Technical Specification Dimensions: (LxHxW) - 223x124x15mm D-RGB cable length: 500mm D-RGB LED count: 8 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Enclosed EK-Quantum Vector RE RTX 3080/3090 Active Backplate D-RGB - Acryl Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.
EK-Quantum Vector RTX 3080/3090 Backplate - Black is a CNC-milled backplate made of black anodised aluminium that fits all EK-Quantum Vector RTX 3080/3090 water blocks. The backplate covers the full length of the graphics card PCB, serves as an aesthetic addition and also provides passive cooling for the back of the voltage regulator module (VRM), the GPU core and the VRAM on the 3090 cards. Enclosed: EK-Quantum Vector RTX 3080/3090 rear panel - Black Assembly mechanism Thermal pads

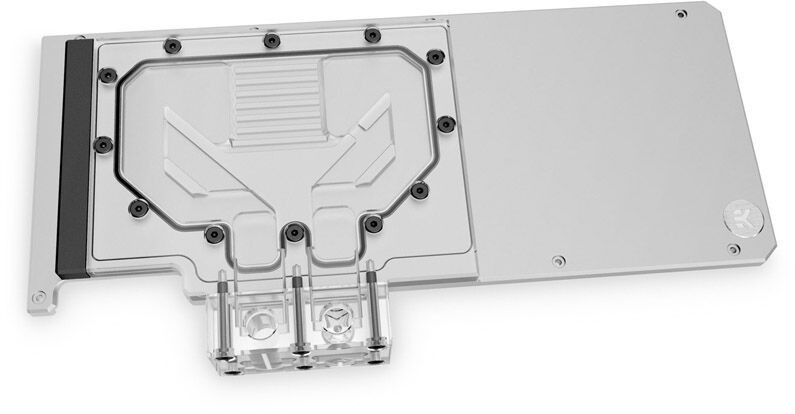

EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acrylic – Active, water-cooled backplate for EK-Quantum Vector water blocks EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acrylic is an active backplate that does not just cover the back of the graphics card but is connected directly to the custom loop. Together with the matching EK-Quantum Vector water block, it actively cools the back of the PCB and the components located there. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are - 281x154x33 mm. Lighting is provided by 8 addressable D-RGB LEDs, connected via a 500 mm cable. Key Features Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance. Transparent acrylic top: The clear top reveals the coolant inside and showcases the lighting. EPDM gasket: The internal EPDM gasket grips the tube and keeps the connection permanently sealed. Check compatibility: EK recommends checking the exact fit for your graphics card in the EK Cooling Configurator beforehand. Active liquid cooling of the backside: The backplate is plumbed into the loop and cools the back of the PCB with coolant. Used only together with the water block: The active backplate is exclusively used in combination with the corresponding GPU water block. Technical Specifications TypeEK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acrylic ManufacturerEK Water Blocks Manufacturer P/N3831109836538 SeriesEK-Quantum Vector FinishAcrylic Dimensions- 281x154x33 mm Cable Length500 mm D-RGB LEDs8 ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi All necessary mounting screws, nuts and washers EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. Given the variety on the market, EK guarantees fit only for fittings from its own range. With EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acrylic you extend your GPU water block with an actively cooled backplate in Acrylic.
EK-Quantum Vector Strix RTX 3080/3090 Backplate - Nickel is a CNC-milled backplate made of nickel-plated aluminium that fits all EK-Quantum Vector Strix RTX 3070/3080/3090 water blocks. The backplate covers the full length of the graphics card PCB, serves as an aesthetic addition and also provides passive cooling for the back of the voltage regulator module (VRM), the GPU core and the VRAM on the 3090 cards. Enclosed: EK-Quantum Vector Strix RTX 3070/3080/3090 back plate - nickel Assembly mechanism Thermal pads
EK-Quantum Vector Strix RTX 3080/3090 Backplate - Black is a CNC-milled backplate made of black anodised aluminium that fits all EK-Quantum Vector Strix RTX 3080/3090 water blocks. The backplate covers the full length of the graphics card PCB, serves as an aesthetic addition and also provides passive cooling for the back of the voltage regulator module (VRM), the GPU core and the VRAM on the 3090 cards. Enclosed: EK-Quantum Vector Strix RTX 3070/3080/3090 back plate - Black Assembly mechanism Thermal pads
EK Water Blocks EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal: Active, Water-Cooled Backplate for Additional Cooling Performance EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal is designed for graphics cards of the Trinity RTX 3080/3090 Active Backplate series. Unlike a passive backplate, the active backplate has coolant flowing directly through it, measurably contributing to the cooling of rear-mounted components. Key Features: Nickel-Plated Copper Cold Plate: Ensures efficient heat transfer from the GPU and memory chips. Acetal Components: Combine an appealing look with high-quality workmanship. Addressable D-RGB Lighting: Individually controllable lighting for a cohesive look in the loop. G1/4" Ports: Compatible with all common water cooling components with a standard G1/4" port. Technical Specifications: Type: EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal Compatibility: Trinity RTX 3080/3090 Active Backplate Material: Acetal Ports: G1/4" Ideal for: EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal is ideal for: owners of a compatible Trinity RTX 3080/3090 Active Backplate graphics card switching to water cooling users seeking maximum cooling performance with minimal noise With EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal, you get a high-quality cooling solution for your Trinity RTX 3080/3090 Active Backplate graphics card.
EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB - Acryl is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector Trinity RTX 3080/3090 water blocks and actively cool the backside of all ZOTAC® GeForce RTX™ 3080 and 3090 Trinity GPU. EK-Quantum Vector Trinity RTX 3080/3090 Active BackplateEK-Quantum Vector Trinity RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The rest of the backplate is made of nickel-plated aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acrylic terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. D-RGB lighting on EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Technical Specification Dimensions: (LxHxW) - 231x124x15mm D-RGB cable length: 500mm D-RGB LED count: 8 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Enclosed EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB - Acryl Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.
EK Water Blocks EK-Quantum Vector Trinity RTX 3080/3090 Backplate - Black – CNC-machined backplate for EK-Quantum Vector water blocks EK Water Blocks EK-Quantum Vector Trinity RTX 3080/3090 Backplate - Black is a CNC-machined retention backplate made from anodised aluminium and designed for the matching EK-Quantum Vector water blocks. It covers the entire length of the graphics card PCB, acts as an aesthetic upgrade, and additionally provides passive cooling for the backside of the voltage regulation module (VRM) and the GPU core. The part is CNC-machined from anodised aluminium, which is more rigid and more scratch-resistant than painted plastic. Key Features GPU, VRAM and VRM in one block: Coolant flows directly over the graphics chip, memory and voltage regulation module – not just the core. Anodised aluminium: The anodised surface is more scratch-resistant than paint and keeps its colour over time. Passive additional cooling: Thermal pads transfer heat from the back of the PCB to the surrounding air. Full PCB coverage: Covering the entire length of the PCB protects the card mechanically and prevents sagging. Black finish: Matched to the water blocks and fittings of the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector Trinity RTX 3080/3090 Backplate - Black ManufacturerEK Water Blocks Manufacturer P/N3831109833087 SeriesEK-Quantum Vector FinishBlack ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector Trinity RTX 3080/3090 Backplate - Black Mounting mechanism (the backplate screws are in a separate compartment) Thermal pads
EK Water Blocks EK-Quantum Vector Trinity RTX 3080/3090 Backplate - Nickel – CNC-machined backplate for EK-Quantum Vector water blocks EK Water Blocks EK-Quantum Vector Trinity RTX 3080/3090 Backplate - Nickel is a CNC-machined retention backplate made from anodised aluminium and designed for the matching EK-Quantum Vector water blocks. It covers the full length of the graphics card PCB, acts as an aesthetic upgrade, and additionally provides passive cooling for the backside of the voltage regulation module (VRM) and the GPU core. The part is CNC-machined from nickel-plated aluminium, which is more rigid and more scratch-resistant than painted plastic. Key Features GPU, VRAM and VRM in one block: Coolant flows directly over the graphics chip, memory and voltage regulation module – not just the core. Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance. CNC-machined aluminium backplate: Made from anodised aluminium for a rigid, durable construction. Passive additional cooling: Thermal pads transfer heat from the back of the PCB to the surrounding air. Full PCB coverage: Covering the entire length of the PCB protects the card mechanically and prevents sagging. Nickel finish: Matched to the water blocks and fittings of the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector Trinity RTX 3080/3090 Backplate - Nickel ManufacturerEK Water Blocks Manufacturer P/N3831109833094 SeriesEK-Quantum Vector FinishNickel ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector Trinity RTX 3080/3090 Backplate - Nickel Mounting mechanism (the backplate screws are in a separate compartment) Thermal pads
EK-Quantum Vector TRIO RTX 3080/3090 Active Backplate - Acetal is a state-of-the-art addition to the EK® Quantum Line. It complements the existing EK-Quantum Vector TRIO RTX 3080/3090 water blocks and actively cools the back of all MSI® TRIO and SUPRIM GeForce RTX™ 3080 and 3090 GPUs. The EK-Quantum Vector TRIO RTX 3080/3090 Active Backplate comes with a new connector that replaces the stock connector on the Vector water block, connecting the water block and Vector Active Backplate into one unit. This way, the entire case only needs one inlet and one outlet, eliminating unnecessary extra tubing and reducing clutter. It is the ultimate aesthetic and performance solution where your GPU is sandwiched between two water blocks, allowing for maximum cooling. Technical specification: Dimensions: (LxHxW) - 307x153x38mm Scope of delivery: EK-Quantum Vector TRIO RTX 3080/3090 Active Backplate - Plexi Required mounting screws, nuts and washers 1x nickel-plated brass connector G1/4" EK-Loop Multi Allen key (6mm, 8mm, 9mm) Thermal Pads
The EK Water Blocks EK-Quantum Vector Trio RTX 3080/3090 Backplate - Black Backplate is made of aluminum. This ensures improved cooling. Technical specifications: Material: aluminum Color: Black Weight: Dimensions: 307.62 x 128 x 5.2mm Scope of delivery: EK Water Blocks EK-Quantum Vector Trio RTX 3080/3090 Backplate - Black
The EK Water Blocks EK-Quantum Vector Trio RTX 3080/3090 Backplate - Nickel Backplate is made of aluminum. This ensures improved cooling. Technical specifications: Material: aluminum Silver Weight: Dimensions: 307.62 x 128 x 5.2mm Scope of delivery: EK Water Blocks EK-Quantum Vector Trio RTX 3080/3090 Backplate - Nickel
EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate - Acetal is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector XC3 RTX 3080/3090 water blocks and actively cool the backside of all EVGA® GeForce RTX™ 3080 and 3090 XC3 GPU. EK-Quantum Vector XC3 RTX 3080/3090 Active BackplateEK-Quantum Vector XC3 RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of this stealthy active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable Black POM acetal. The rest of the backplate is made of anodized aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. Technical Specification Dimensions: (LxHxW) - 274x124x15mm Enclosed EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate - Acetal Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.
EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate D-RGB - Acryl is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector XC3 RTX 3080/3090 water blocks and actively cool the backside of all EVGA® GeForce RTX™ 3080 and 3090 XC3 GPU. EK-Quantum Vector XC3 RTX 3080/3090 Active BackplateEK-Quantum Vector XC3 RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The rest of the backplate is made of nickel-plated aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acrylic terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. D-RGB lighting on EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Technical Specification: Dimensions: (LxHxW) - 274x124x15mm D-RGB cable length: 500mm D-RGB LED count: 8 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Enclosed: EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate D-RGB - Acryl Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.
