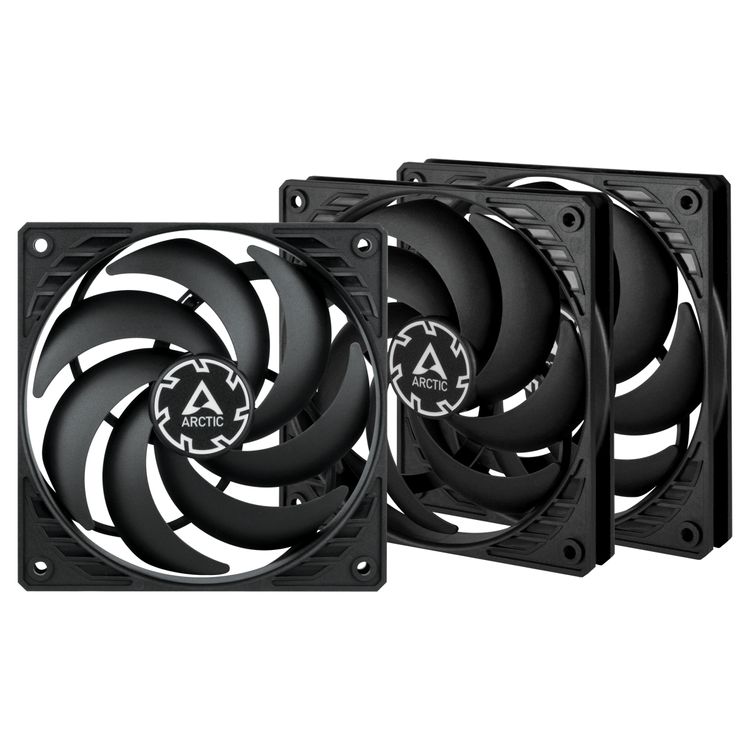

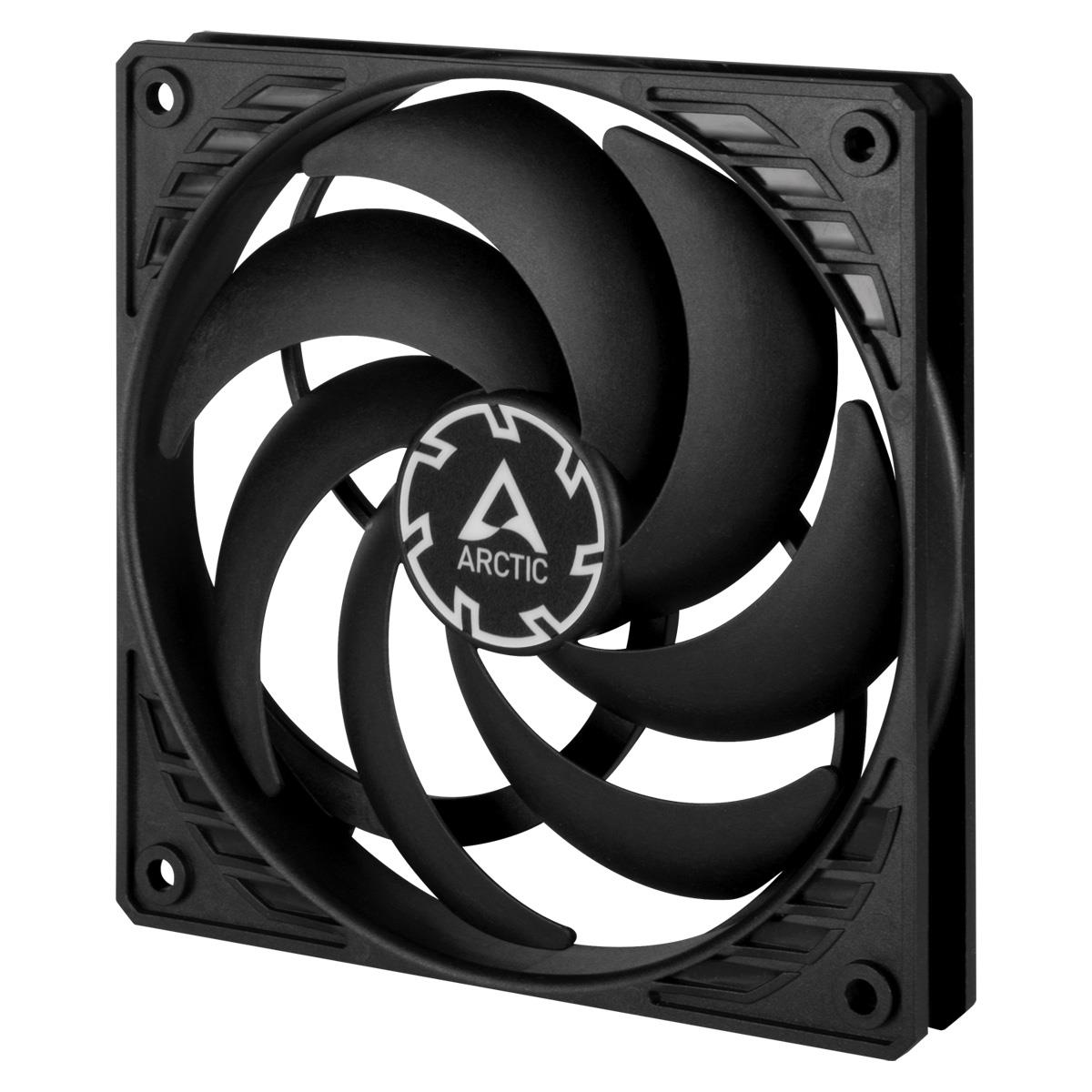

During the development of the P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.The motor is powered by a neodymium-iron-boron magnet ring, which allows the P12 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.Even at low speeds, the operating sound of the Arctic motor is barely noticeable.Due to a sinus-magnetizing, the innovative motor only creates about 5% of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the motor.A lower motor temperature roughly doubles the lifespan of a fan. The Arctic motor has a longer service life through its low coil temperature. The P12 PWM PST is able to switch into silent passive mode when the PWM signal is below 5% due to its motor. This allows working at your PC in complete silence without any unwanted noise.

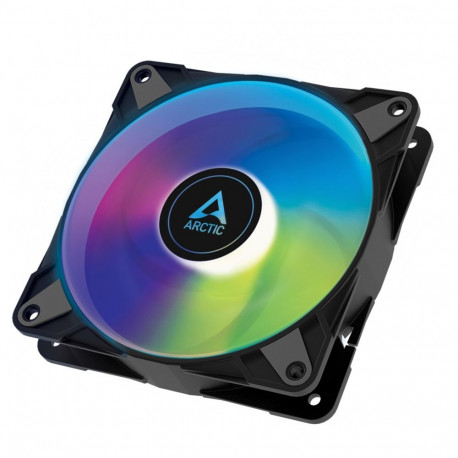

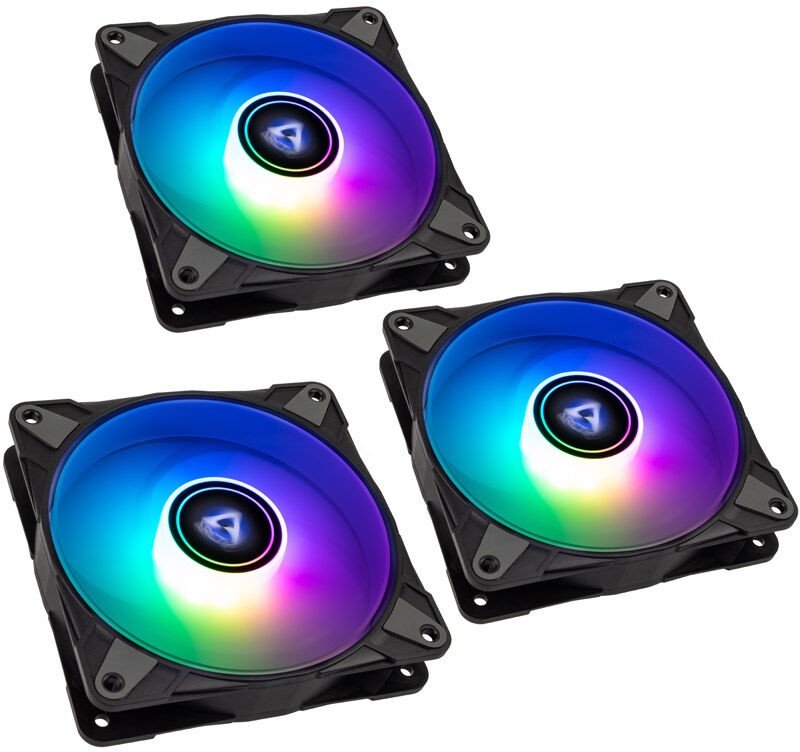

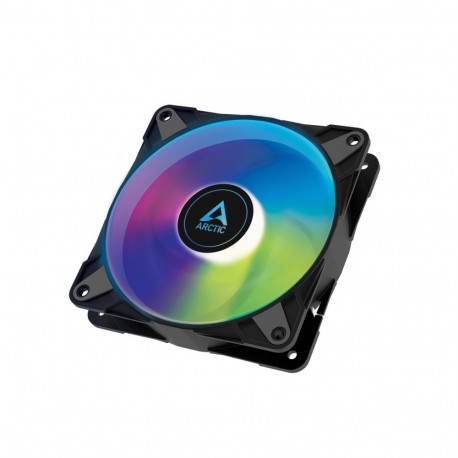

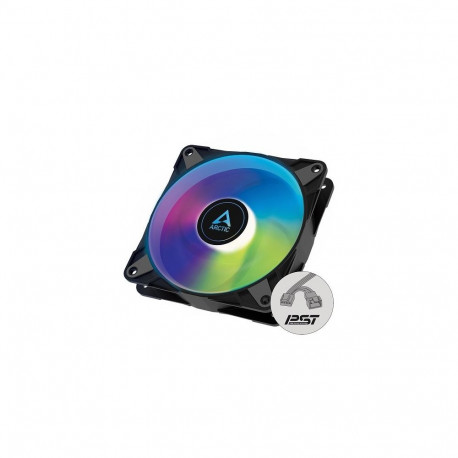

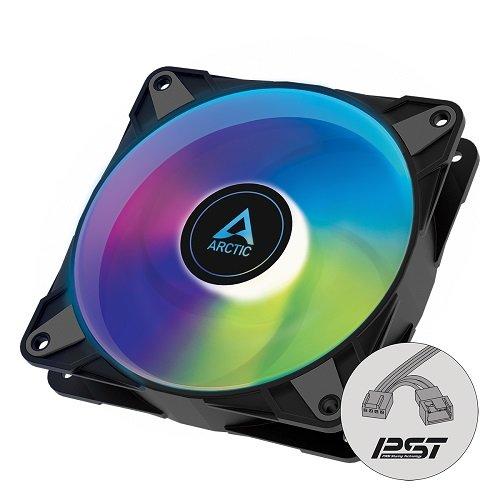

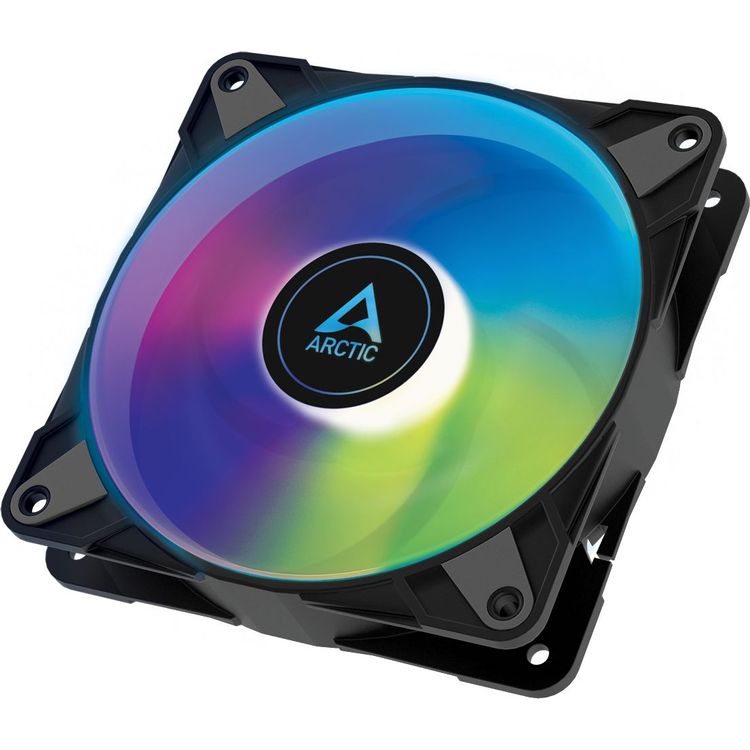

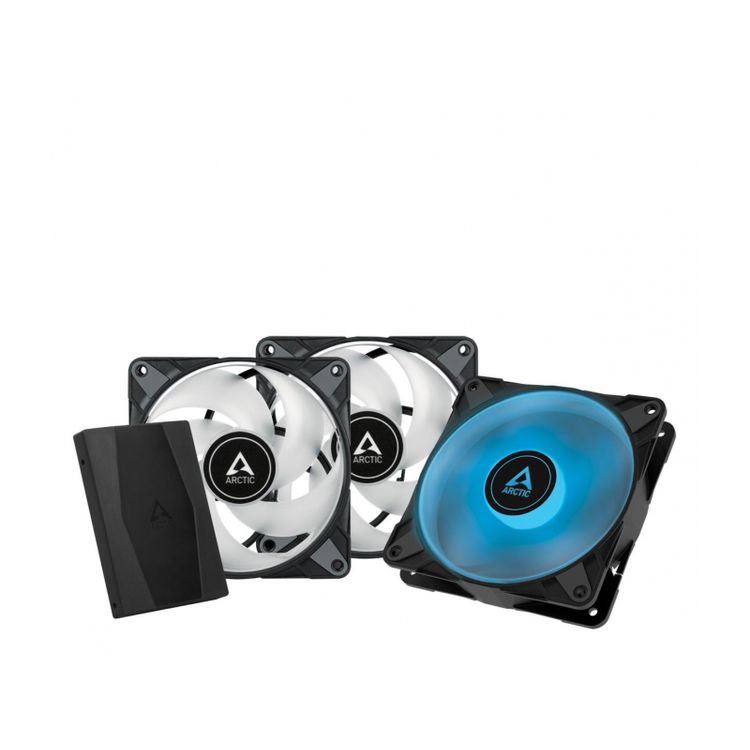

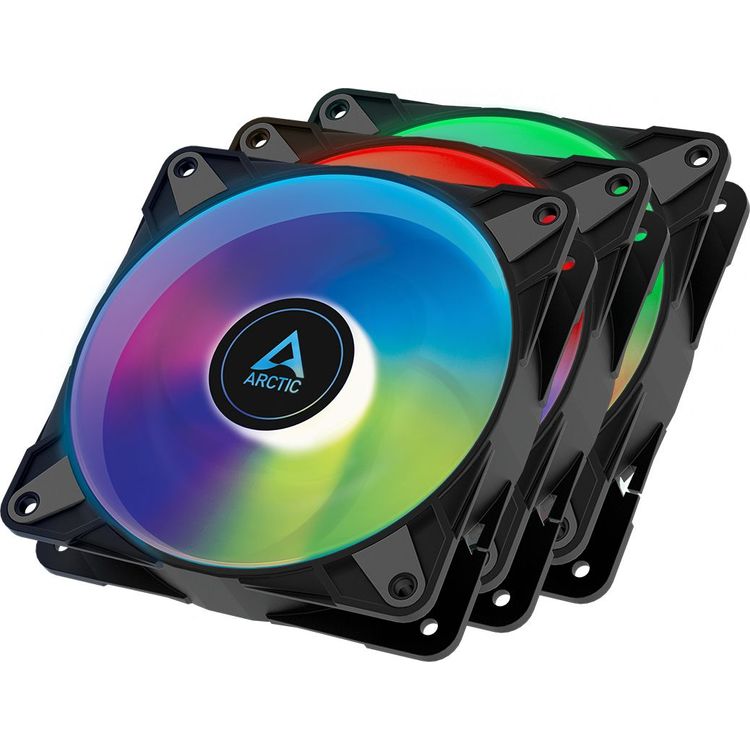

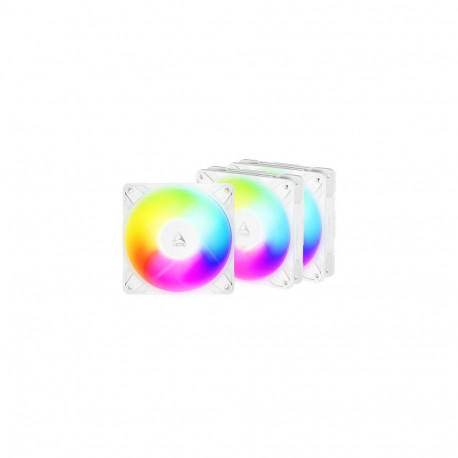

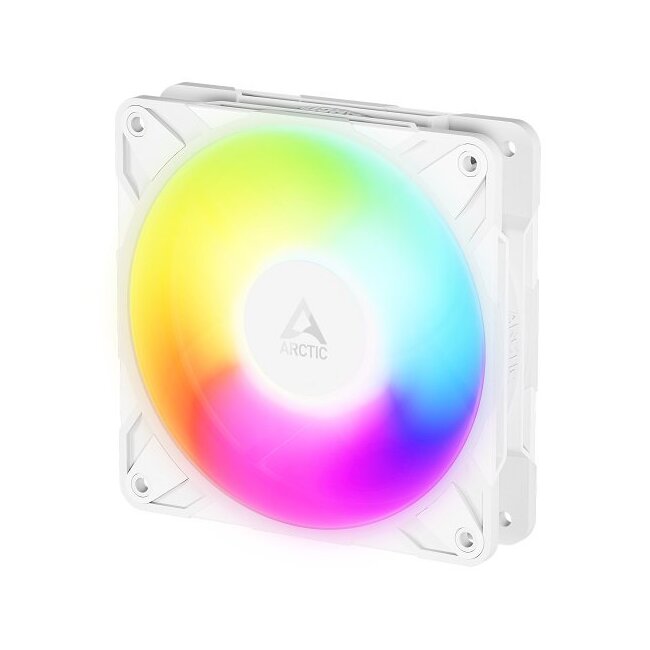

• Arvuti korpus Ventilaator 12 cm 2000 RPM • 48,8 cfm 1,85 mmH2O Fluid Dynamic Bearing (FDB) • Impulsi-laiuse modulatsiooni (PWM) tugi • Must, Valge • 1 tk ARCTIC P12 PWM PST A-RGB 0dB, Ventilaator, 12 cm, 0 RPM, 2000 RPM, 82,91 m³/h, Must, Valge

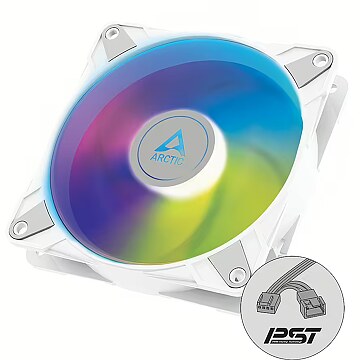

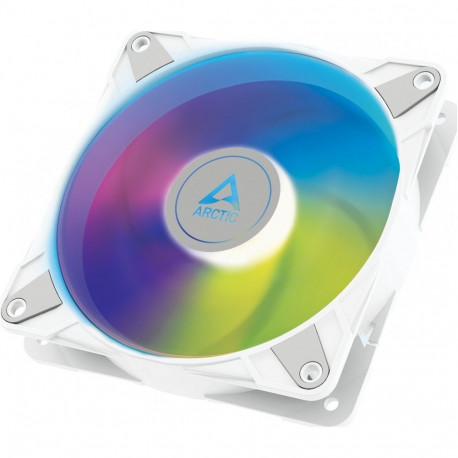

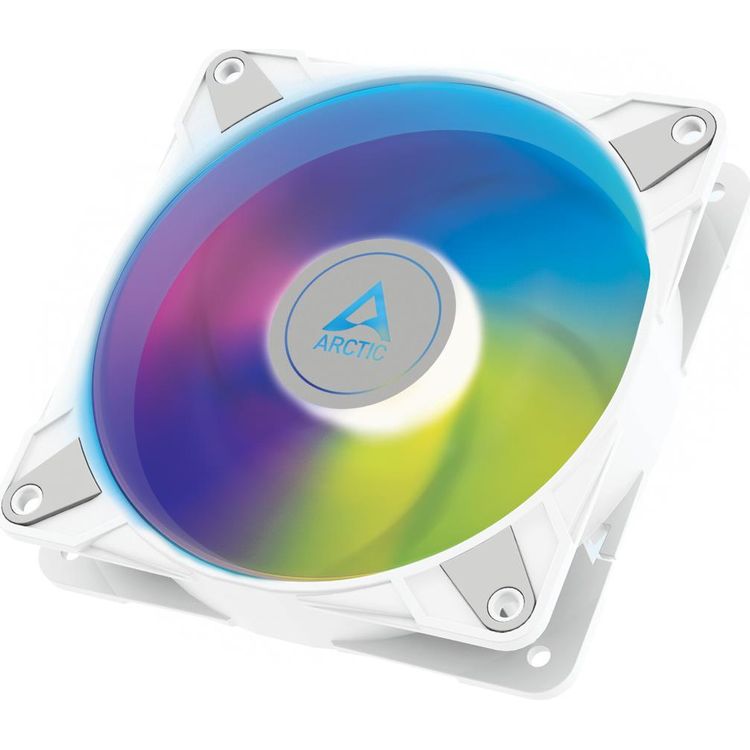

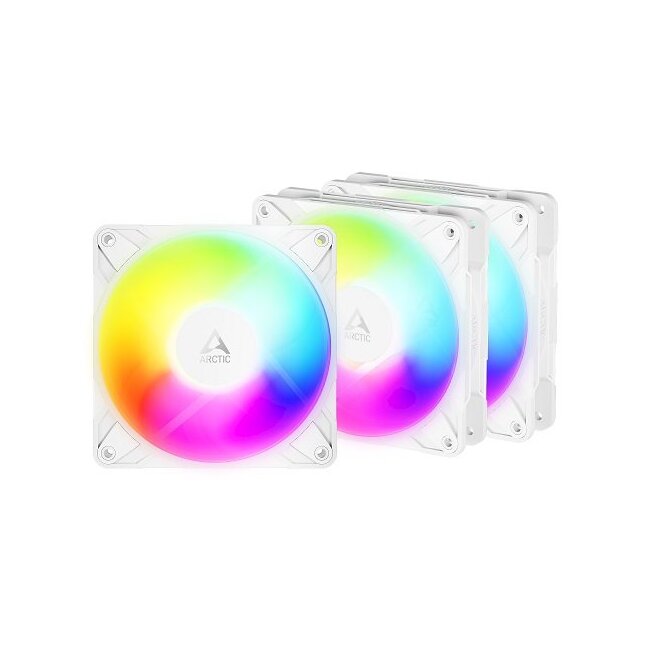

• Arvuti korpus Ventilaator 12 cm 2000 RPM • 48,8 cfm 85 mmH2O Fluid Dynamic Bearing (FDB) • Impulsi-laiuse modulatsiooni (PWM) tugi • Valge • 1 tk ARCTIC P12 PWM PST A-RGB 0dB, Ventilaator, 12 cm, 0 RPM, 2000 RPM, 82,91 m³/h, Valge

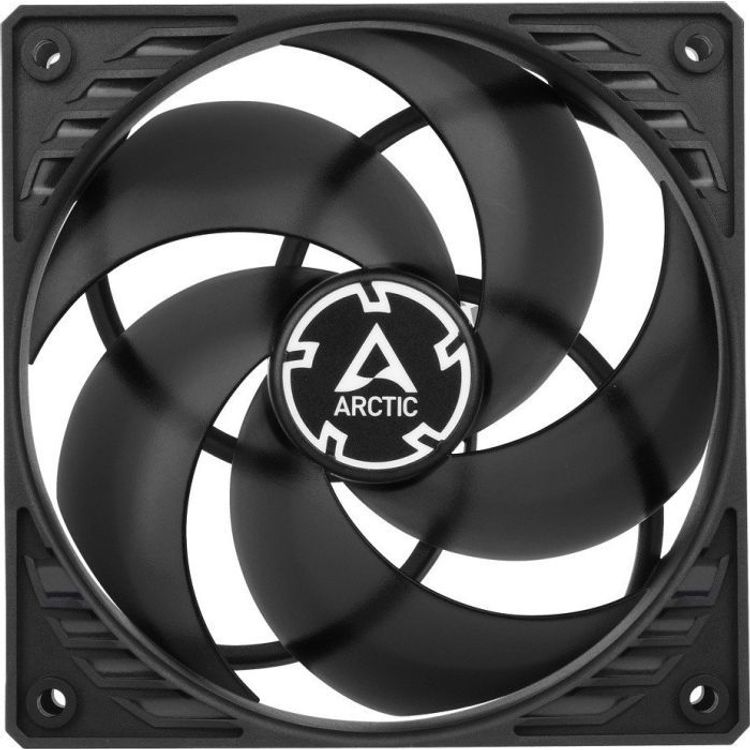

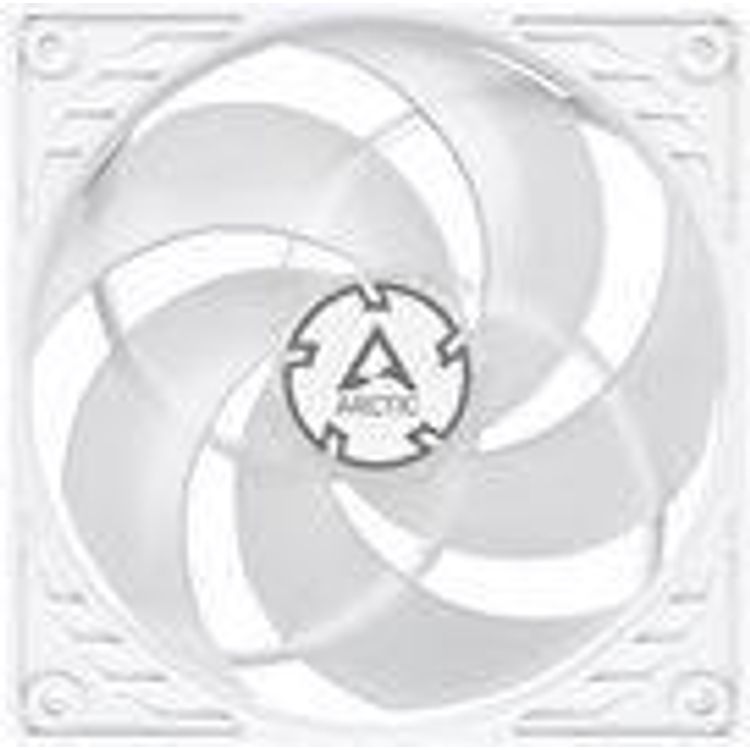

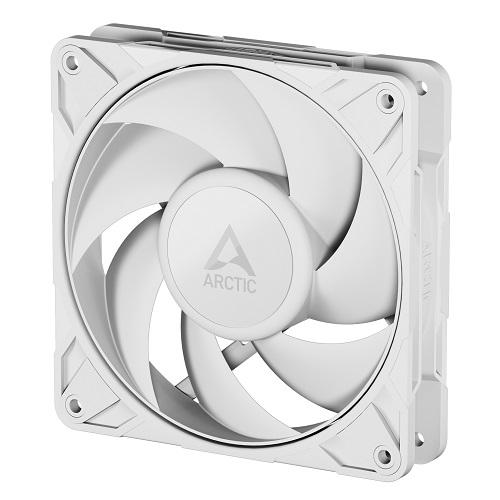

• Arvuti korpus Ventilaator 12 cm 1800 RPM • 24,5 dB 56,3 cfm 2,2 mmH2O Fluid Dynamic Bearing (FDB) • Impulsi-laiuse modulatsiooni (PWM) tugi • Läbipaistev, Valge ARCTIC P12 PWM PST, Ventilaator, 12 cm, 200 RPM, 1800 RPM, 0,3 soon, 95,65 m³/h

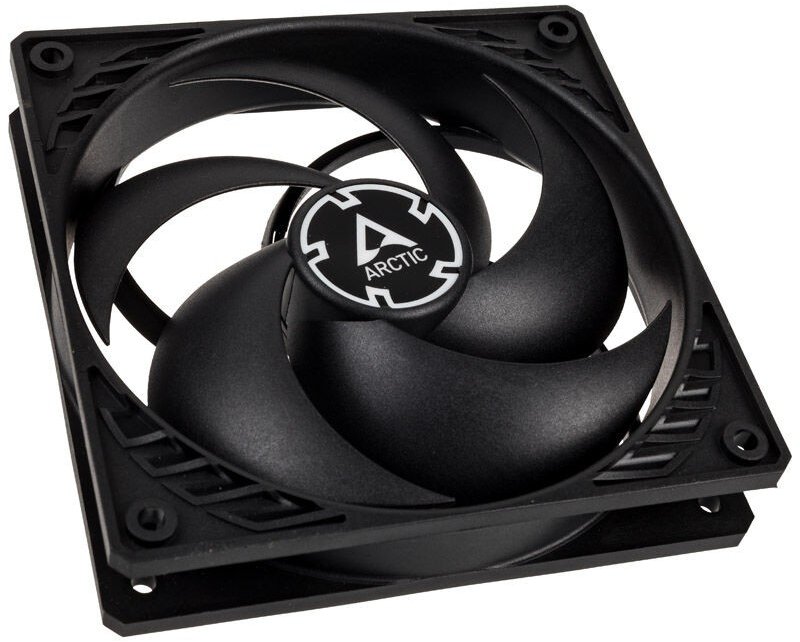

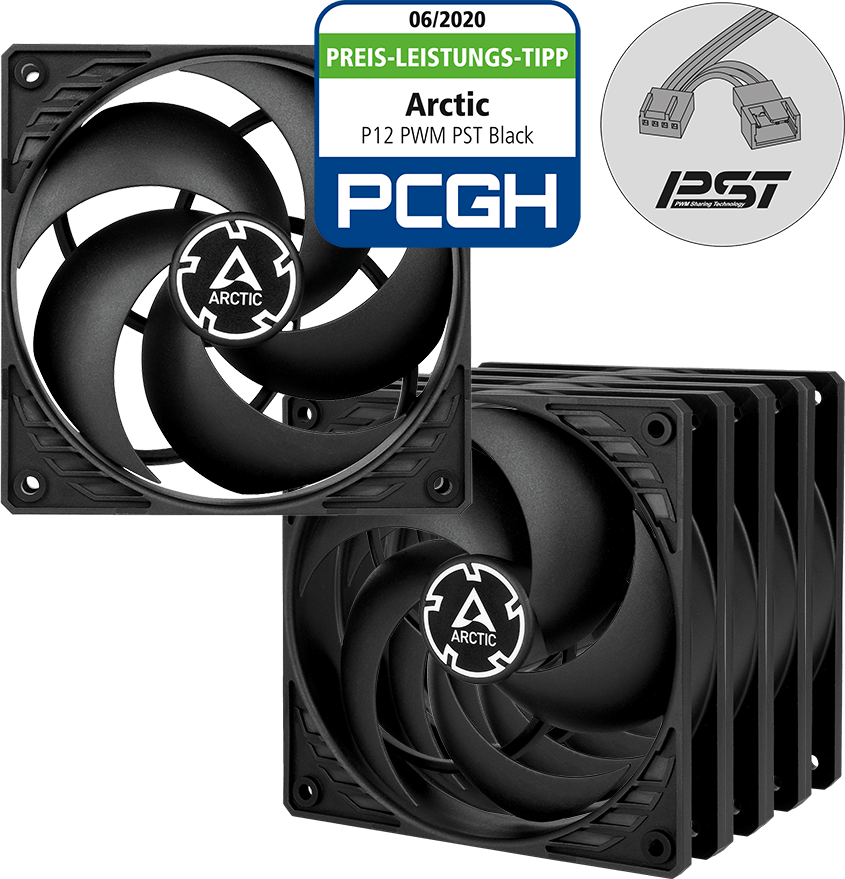

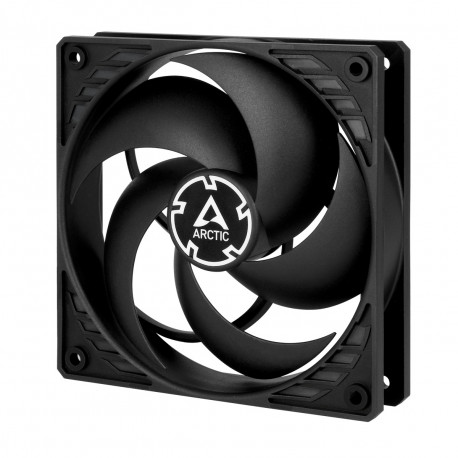

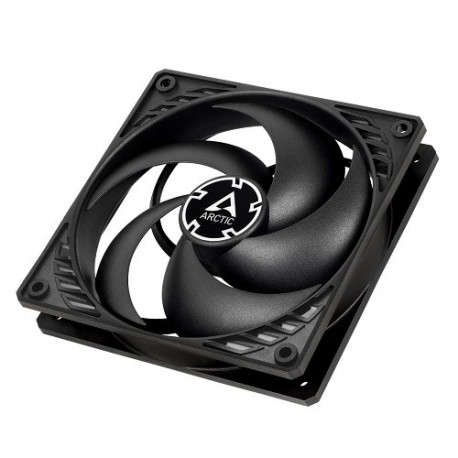

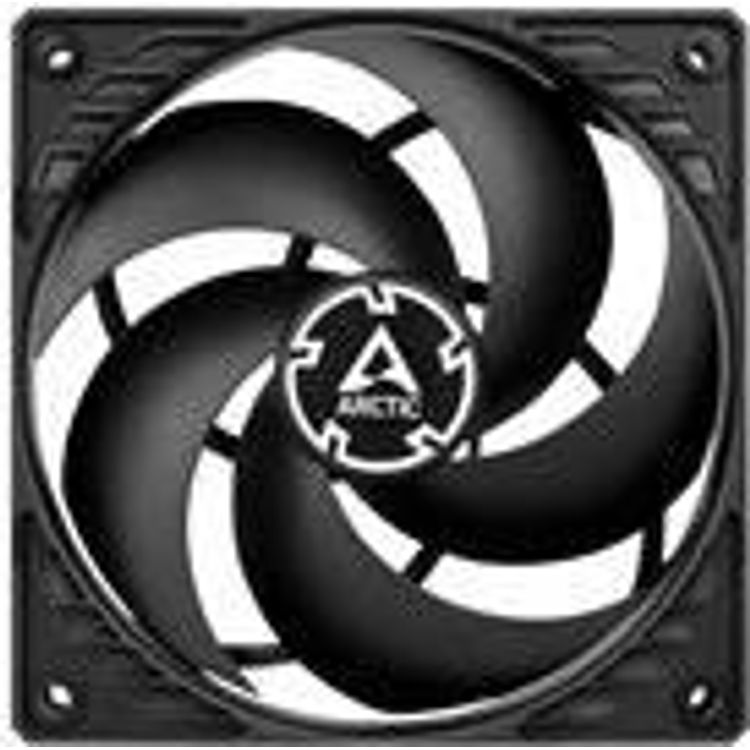

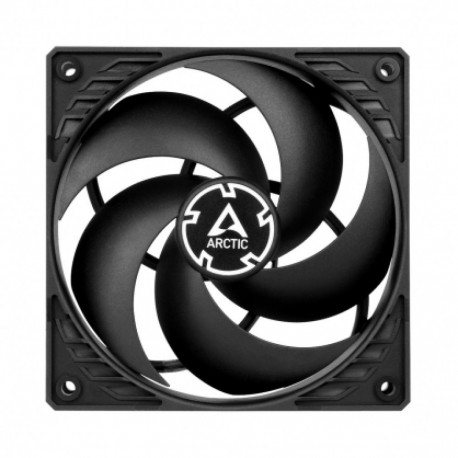

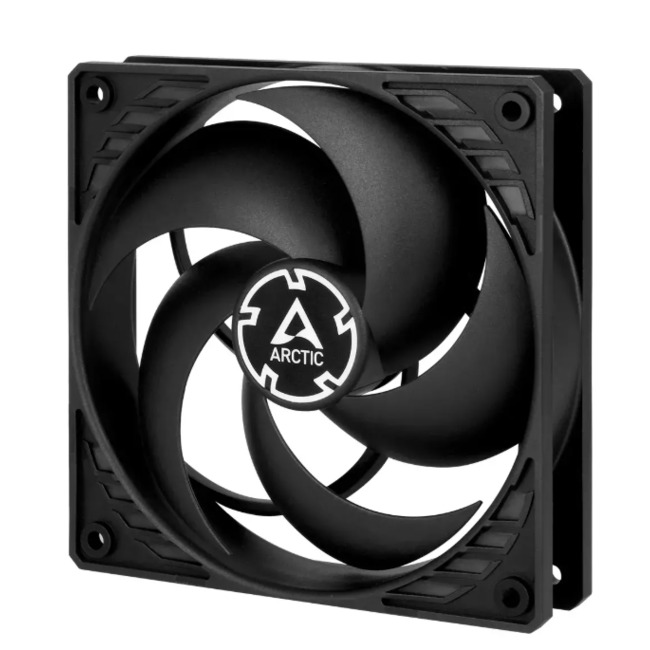

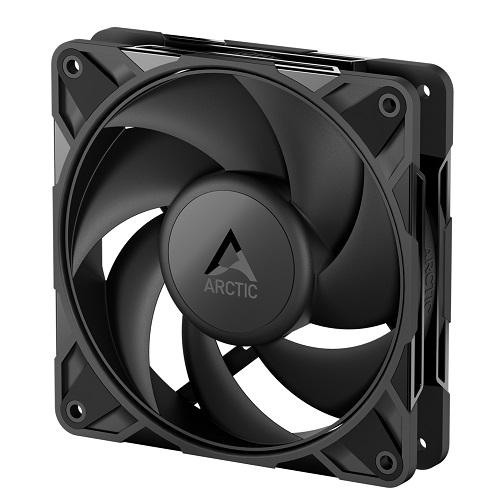

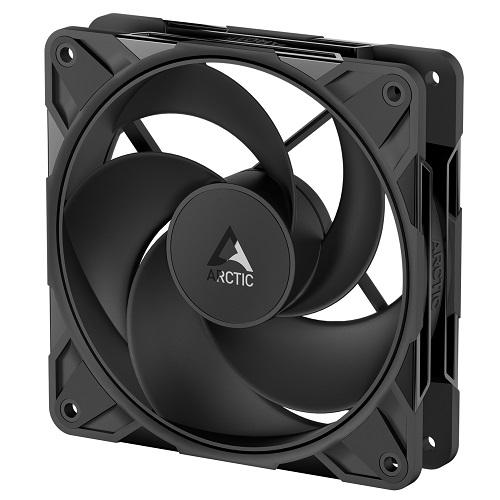

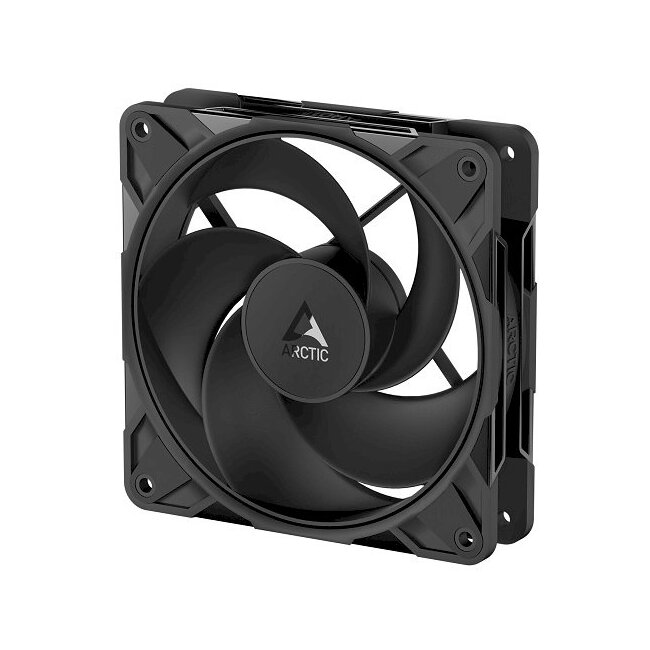

• Arvuti korpus Ventilaator 12 cm 1800 RPM • 56,3 cfm 2,2 mmH2O Fluid Dynamic Bearing (FDB) • Impulsi-laiuse modulatsiooni (PWM) tugi • Must ARCTIC P12 PWM PST, Ventilaator, 12 cm, 200 RPM, 1800 RPM, 0,3 soon, 95,65 m³/h

OPTIMISED FOR STATIC PRESSUREDuring the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators. STRONG COOLING PERFORMANCENumerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. MORE EFFICIENT TECHNOLOGYThe motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance. FOR CONTINUOUS OPERATIONThe premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential. MAXIMUM QUIETNESS, MINIMUM VIBRATIONEven at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. EXTENDED LIFE SPANA 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years. 200 TO 1800 RPM REGULATED VIA PWMWith a wide range of regulation and the PWM Sharing Technology (PST), the P12 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed. Technical Data Performance Fan Speed: 200 - 1800 rpm Airflow: 56.3 CFM/ 95.7 m³/h Static Pressure: 2.20 mm H₂O Noise Level: 0.3 Sone Operating Ambient Temperature: 0 - 40 °C Fan Fan Frame: Standard Control Type: PWM PST Connector: 4-Pin-Connector + 4-Pin-Socket Fan Bearing: Dual Ball Bearing Electric Characteristics Typical Voltage: 12 V DC Starting Voltage: 3.9 V Current/ Voltage: 0.08 A / 12 V Cable Lenght: 400 mm Size & Weight Lenght: 120 mm Width: 120 mm Height: 25 mm Weight: 145 g

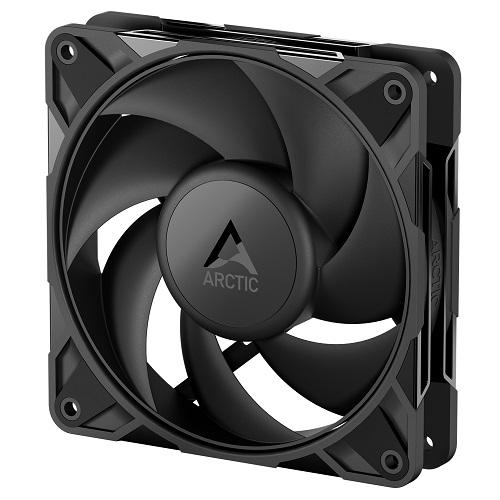

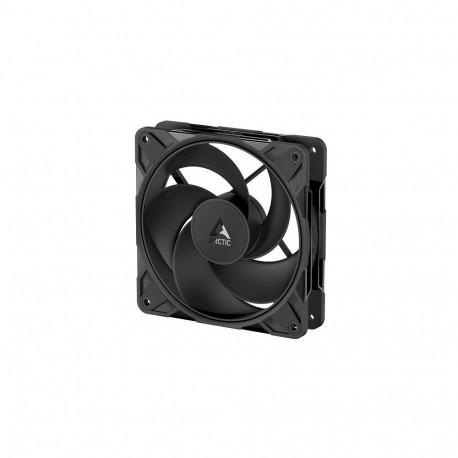

• Arvuti korpus Ventilaator 12 cm 1800 RPM • 24,5 dB 56,3 cfm 2,2 mmH2O Topelt-kuullaager • Impulsi-laiuse modulatsiooni (PWM) tugi • Must ARCTIC P12 PWM PST CO, Ventilaator, 12 cm, 200 RPM, 1800 RPM, 0,3 soon, 95,65 m³/h

ARCTIC P12 PWM PST CO Musttuul 120mm Must

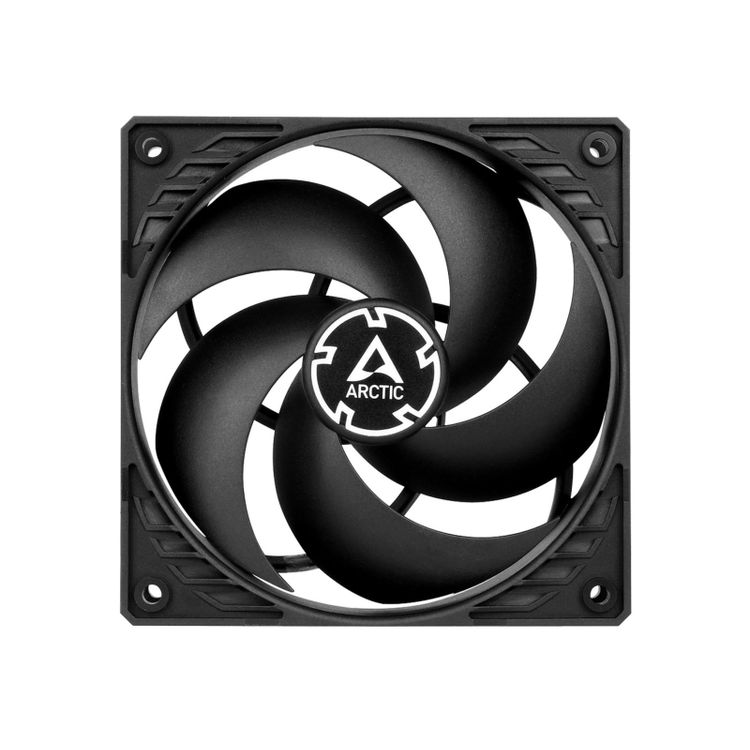

During the development of the new P12 PWM PST special emphasis was placed on a focused air flow and a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heat sinks, radiators as well as in pinhole and filters. Technical Details Fan: 120 mm, 200 - 1,800 rpm (PWM controlled) Air flow: 56.3 CFM / 95.65 m³ / h (@ 1,800 rpm) Noise level: 0.3 sone (@ 1,800 rpm) Static pressure: 2.2 mm H2O (@ 1,800 rpm) Typical voltage: + 12 V DC Starting voltage: 3.9 V DC Cable length: 400 mm Sub PST Cable Length: 50 mm
