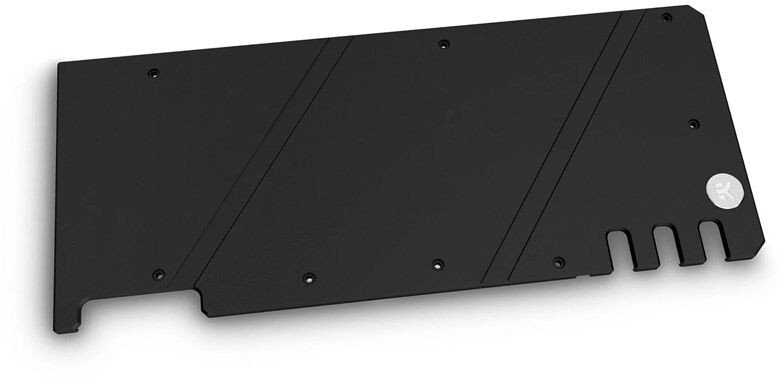

EK-Quantum Vector Xtreme RTX 3080/3090 Backplate - Black is a CNC machined retention backplate made from black anodized aluminum, that fits all EK-Quantum Vector Xtreme RTX 3080/3090 water blocks. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM), the GPU core, and rear-mounted VRAM on the 3090 cards. Enclosed EK-Quantum Vector Xtreme RTX 3080/3090 Backplate - Black Mounting mechanism (the backplate screws are on the other side - separate compartment)* Thermal pads

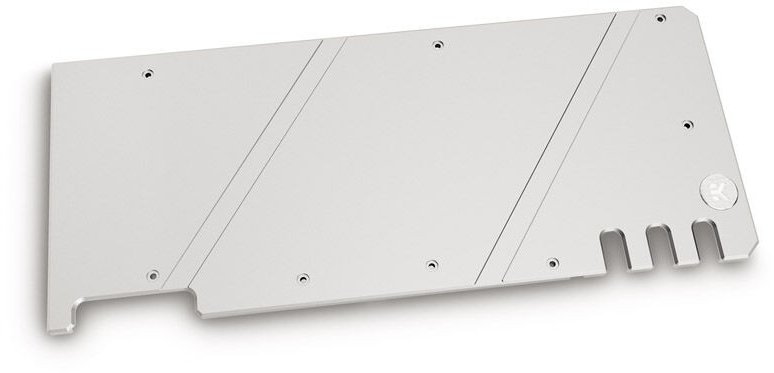

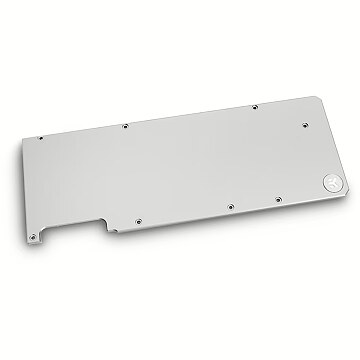

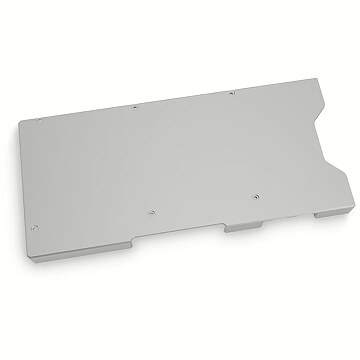

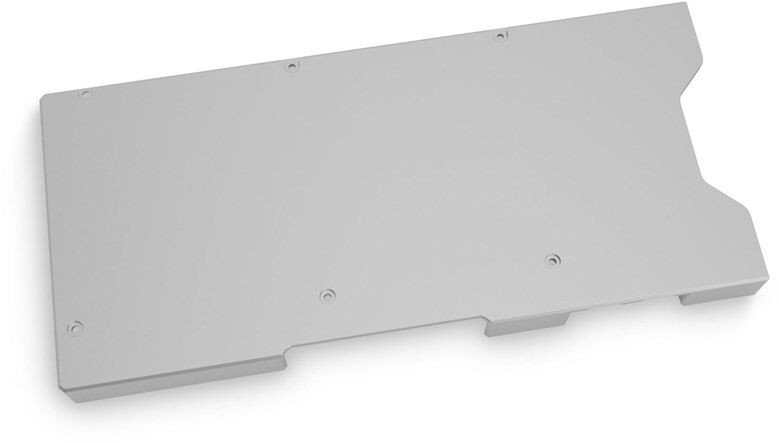

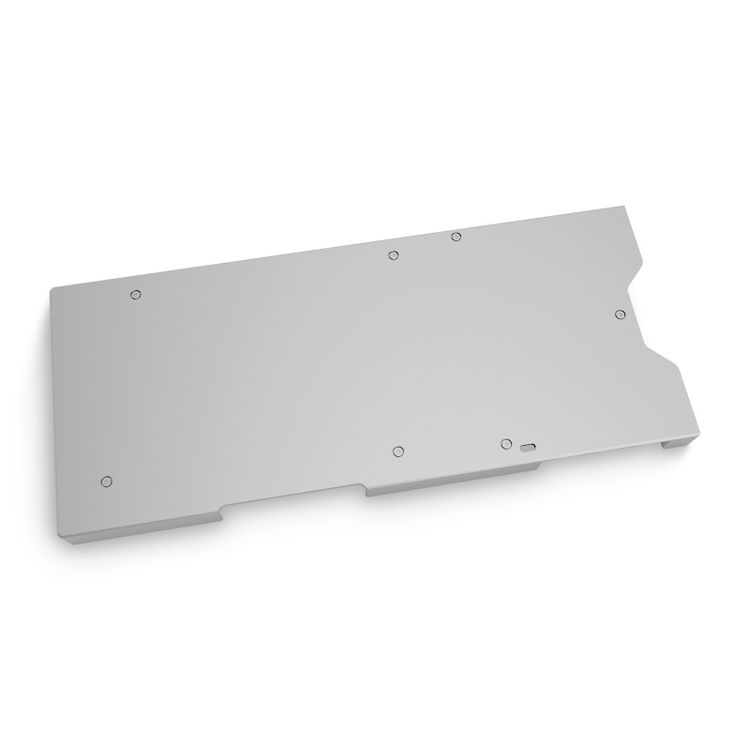

EK-Quantum Vector Xtreme RTX 3080/3090 Backplate - Nickel is a CNC machined retention backplate made from nickel-plated aluminum, that fits all EK-Quantum Vector Xtreme RTX 3080/3090 water blocks. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM), the GPU core, and rear-mounted VRAM on the 3090 cards. Enclosed EK-Quantum Vector Xtreme RTX 3080/3090 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment)* Thermal pads
This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for AORUS® Xtreme and Master RTX 3080 and 3090 graphics cards based on the latest NVIDIA® Ampere™ architecture. An EK water block for Xtreme and Master RTX 3080 and 3090EK-Quantum Vector Xtreme 3080/3090 D-RGB - Nickel + Acryl water block is compatible with Aorus Xtreme and Master RTX 3080 and RTX 3090 graphics cards. The Vector water block actively cools the GPU, VRAM (on the front), power stages, and chokes in the VRM (voltage regulation module). These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of nickel-plated high-grade copper, while its top is CNC-machined out of glass-like cast Acrylic. These 2nd generation Vector GPU water blocks also feature Acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector Xtreme RTX 3080/3090 D-RGB water blockThe aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the EK-Quantum Vector Xtreme 3080/3090 water blockEK recommends the purchase of a retention backplate, especially for the 3090 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section. Technical Specification Dimensions: (LxHxW) - 295x150.5x20.5mm Enclosed EK-Quantum Vector Xtreme RTX 3080/3090 D-RGB series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

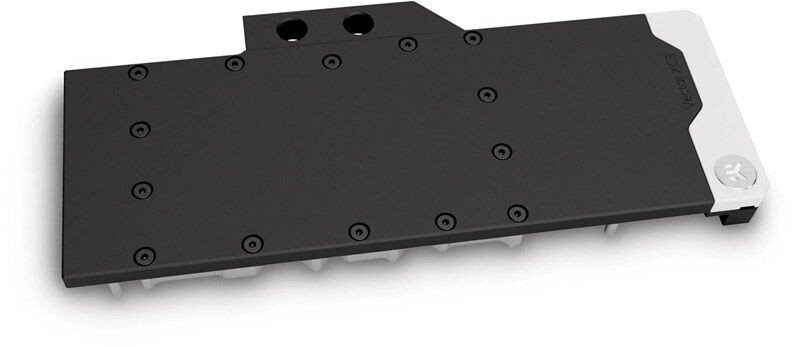

EK Water Blocks EK-Quantum Vector2 FTW3 RTX 3080/90 D-RGB - Nickel + Acetal – Full-cover water block for graphics cards EK Water Blocks EK-Quantum Vector2 FTW3 RTX 3080/90 D-RGB - Nickel + Acetal is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of black acetal. The dimensions are 328,5 x 155 x 27 mm. Lighting is provided by 19 addressable D-RGB LEDs, connected via a 50 cm cable. A matching backplate for the rear of the graphics card is already included. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well. 10 mm thick copper cold plate: The solid copper base absorbs load peaks and spreads the heat evenly across the cooling surface. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Rotatable magnetic covers: They hide the terminal screws and can be rotated so the branding stays upright even with an inverted or vertically mounted card. Direct cooling of all key components: GPU, VRAM and VRM are all covered by the coolant flow. Nickel + Acetal version: Matches fittings and components with the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 FTW3 RTX 3080/90 D-RGB - Nickel + Acetal ManufacturerEK Water Blocks Manufacturer P/N3831109891223 SeriesEK-Quantum Vector² FinishNickel + Acetal Dimensions328,5 x 155 x 27 mm D-RGB LEDs19 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector² FTW3 RTX 3080/3090 D-RGB EK-Quantum Vector² FTW3 RTX 3080/90 Backplate - Black Mounting mechanism with screw-in brass standoffs All necessary mounting screws, nuts and washers 2x nickel-plated brass plug G1/4" EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Thermal grease EK-TIM Ectotherm (1 g) Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The block is not compatible with NVLink and NVIDIA SLI. The factory backplate of the graphics card cannot be reused. Given the variety on the market, EK guarantees fit only for fittings from its own range. With EK Water Blocks EK-Quantum Vector2 FTW3 RTX 3080/90 D-RGB - Nickel + Acetal your graphics card runs quietly and at stable performance in the Nickel + Acetal version.

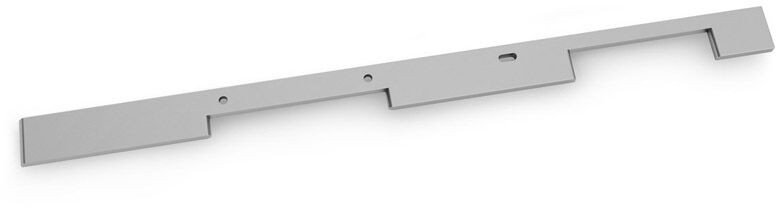

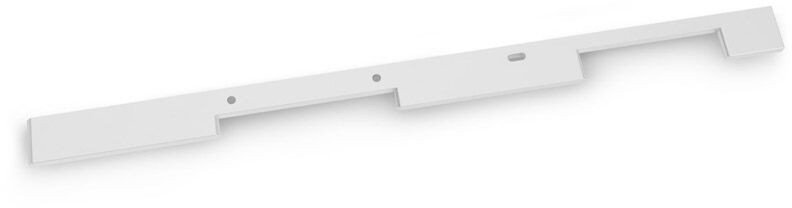

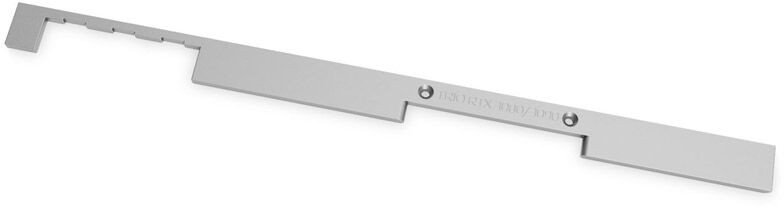

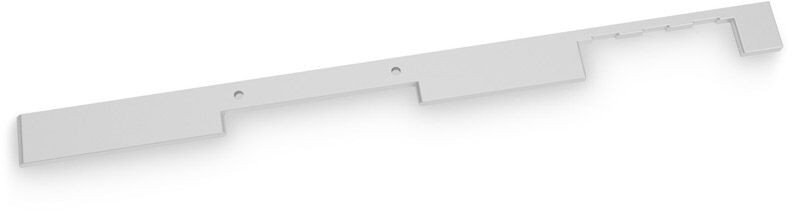

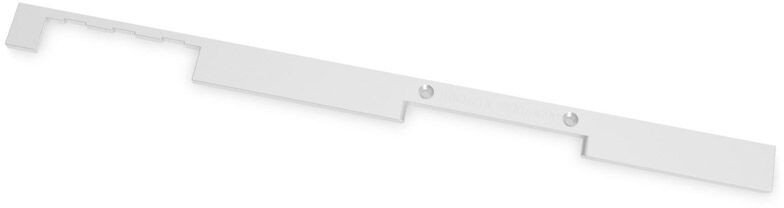

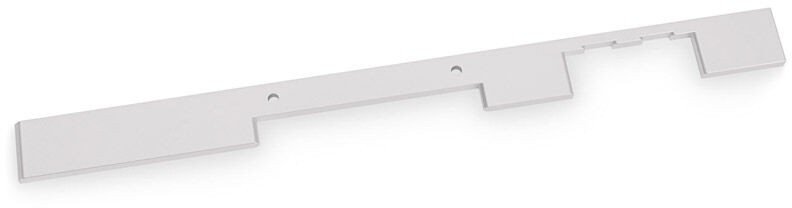

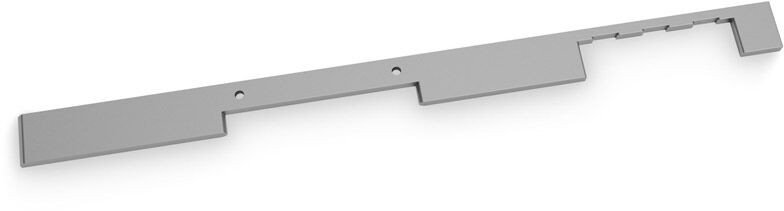

EK Water Blocks EK-Quantum Vector2 RE RTX 3080/90 ABP Side Cover - Nickel – Side cover for active backplates of the EK-Quantum Vector² series EK Water Blocks EK-Quantum Vector2 RE RTX 3080/90 ABP Side Cover - Nickel is a metal plate that closes the gap between the GPU water block and the active backplate. It hides the terminal side of the PCB so that no part of the board remains visible, and is used exclusively together with the water block and the active backplate. The part is CNC-machined from nickel-plated aluminium, which is more rigid and more scratch-resistant than painted plastic. Key Features Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance. Clean finish: Hides the terminal side of the PCB for a consistent appearance. Aluminium with anodised finish: A rigid metal plate rather than plastic. Precise fit: Matched exactly to the water block and active backplate of the same series. Nickel version: Visually complements products with the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 RE RTX 3080/90 ABP Side Cover - Nickel ManufacturerEK Water Blocks Manufacturer P/N3831109862018 SeriesEK-Quantum Vector² FinishNickel GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector2 RE RTX 3080/90 ABP Side Cover - Nickel Important notes The part is used exclusively together with the water block and the active backplate. EK Water Blocks EK-Quantum Vector2 RE RTX 3080/90 ABP Side Cover - Nickel completes the appearance of a graphics card equipped with an active backplate.

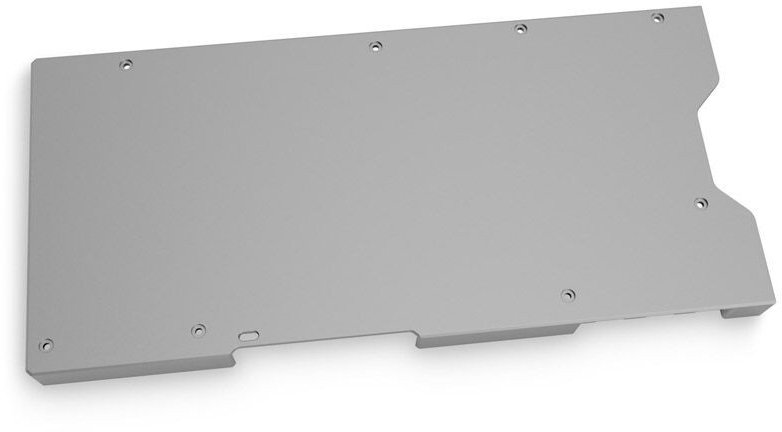

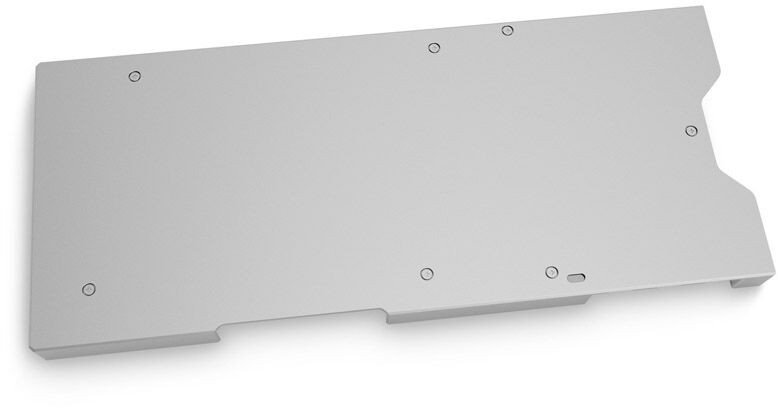

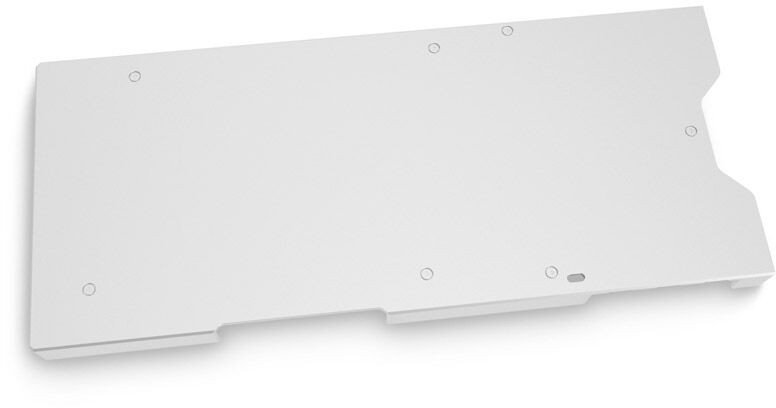

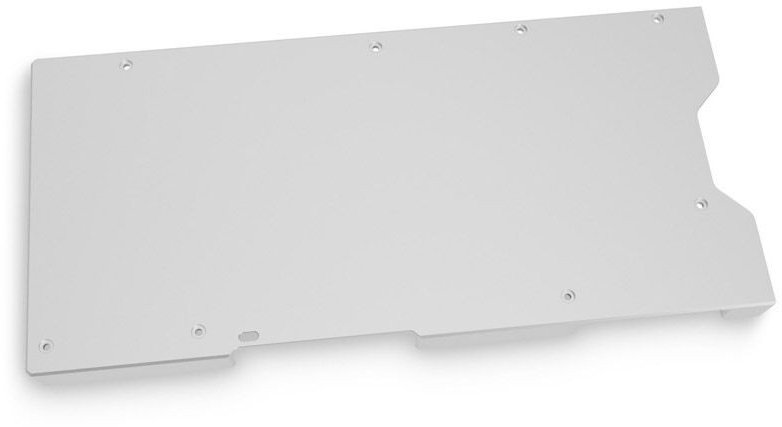

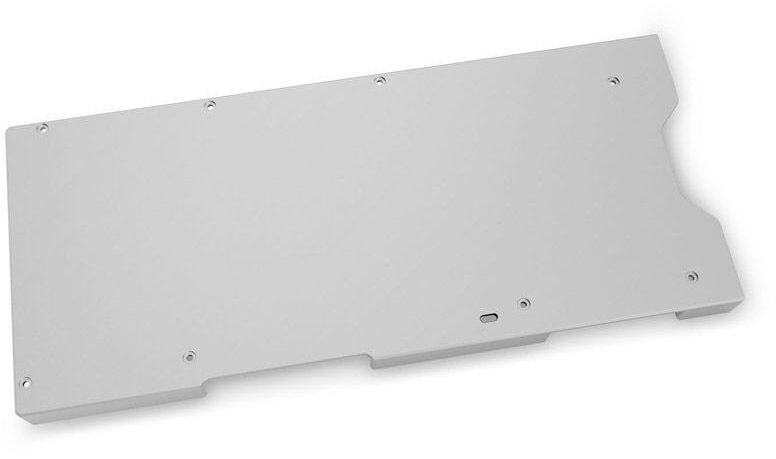

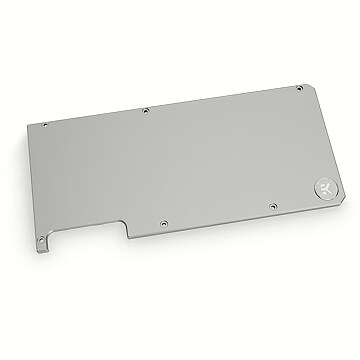

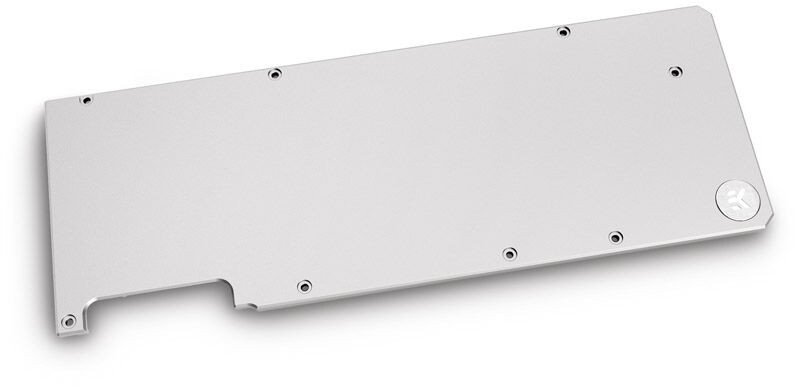

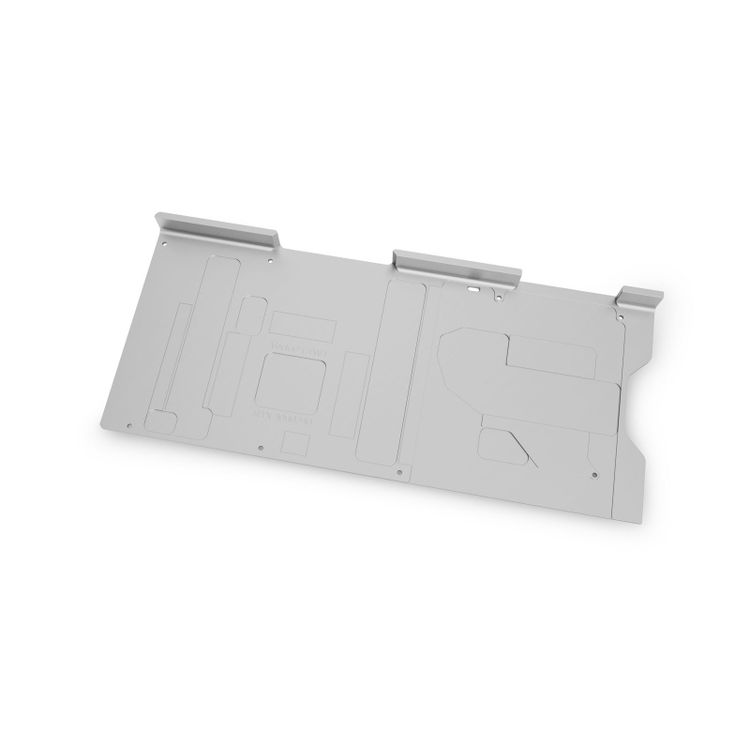

EK Water Blocks EK-Quantum Vector2 RE RTX 3080/90 Backplate - Nickel – CNC-machined backplate for EK-Quantum Vector² water blocks EK Water Blocks EK-Quantum Vector2 RE RTX 3080/90 Backplate - Nickel is a CNC-machined retention backplate made from anodised aluminium and designed for the matching EK-Quantum Vector² water blocks. It covers the entire length of the graphics card PCB, acts as an aesthetic upgrade, and additionally provides passive cooling for the back of the voltage regulation module (VRM) and the GPU core. The part is CNC-machined from nickel-plated aluminium, which is more rigid and more scratch-resistant than painted plastic. Key Features Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance. CNC-machined aluminium backplate: Made from anodised aluminium for a rigid, durable construction. Passive additional cooling: Thermal pads transfer heat from the back of the PCB to the surrounding air. Full PCB coverage: Covering the entire length of the PCB protects the card mechanically and prevents sagging. Nickel finish: Matched to the water blocks and fittings of the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 RE RTX 3080/90 Backplate - Nickel ManufacturerEK Water Blocks Manufacturer P/N3831109858875 SeriesEK-Quantum Vector² FinishNickel GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector² RE RTX 3080/90 Backplate - Nickel Mounting mechanism Thermal pads
EK Water Blocks EK-Quantum Vector2 Strix RTX 3080/90 ABP D-RGB - Nickel + Acetal – Full-cover water block for graphics cards EK Water Blocks EK-Quantum Vector2 Strix RTX 3080/90 ABP D-RGB - Nickel + Acetal is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of black acetal. The dimensions are 307,5 x 155 x 41 mm. Lighting is provided by 38 addressable D-RGB LEDs, connected via a 50 cm cable. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Direct Link terminal with four ports: The four-port layout allows serial and parallel connections from adjacent or opposing sides. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Rotatable magnetic covers: They hide the terminal screws and can be rotated so the branding stays upright even with an inverted or vertically mounted card. Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance. CNC-machined cold plate: The electrolytic copper base ensures rapid heat transfer. Low flow restriction: The cooling engine is designed for even flow distribution and works with low-speed pumps as well. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 Strix RTX 3080/90 ABP D-RGB - Nickel + Acetal ManufacturerEK Water Blocks Manufacturer P/N3831109891360 SeriesEK-Quantum Vector² FinishNickel + Acetal Dimensions307,5 x 155 x 41 mm D-RGB LEDs38 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector² Strix RTX 3080/90 ABP D-RGB - Nickel + Acetal All necessary mounting screws, nuts and washers EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. Given the variety on the market, EK guarantees fit only for fittings from its own range. With EK Water Blocks EK-Quantum Vector2 Strix RTX 3080/90 ABP D-RGB - Nickel + Acetal your graphics card runs quietly and at stable performance in the Nickel + Acetal version.
EK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic – Full-cover water block for graphics cards EK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are 334,5 x 155 x 41 mm. Lighting is provided by 18 addressable D-RGB LEDs, connected via a 50 cm cable. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Direct Link terminal with four ports: The four-port layout allows serial and parallel connections from adjacent or opposing sides. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Rotatable magnetic covers: They hide the terminal screws and can be rotated so the branding stays upright even with an inverted or vertically mounted card. Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance. CNC-machined cold plate: The electrolytic copper base ensures rapid heat transfer. Low flow restriction: The cooling engine is designed for even flow distribution and works with low-speed pumps as well. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic ManufacturerEK Water Blocks Manufacturer P/N3831109862582 SeriesEK-Quantum Vector² FinishNickel + Acrylic Dimensions334,5 x 155 x 41 mm D-RGB LEDs18 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector² Trio RTX 3080/90 ABP D-RGB - Nickel + Plexi All necessary mounting screws, nuts and washers EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. Given the variety on the market, EK guarantees fit only for fittings from its own range. With EK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic your graphics card runs quietly and at stable performance in the Nickel + Acrylic version.
EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acetal – Full-cover water block for graphics cards EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acetal is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of black acetal. The dimensions are 302,5 x 134 x 27 mm. Lighting is provided by 28 addressable D-RGB LEDs, connected via a 50 cm cable. A matching backplate for the rear of the graphics card is already included. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well. 10 mm thick copper cold plate: The solid copper base absorbs load peaks and spreads the heat evenly across the cooling surface. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Rotatable magnetic covers: They hide the terminal screws and can be rotated so the branding stays upright even with an inverted or vertically mounted card. Direct cooling of all key components: GPU, VRAM and VRM are all covered by the coolant flow. Nickel + Acetal version: Matches fittings and components with the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acetal ManufacturerEK Water Blocks Manufacturer P/N3831109892244 SeriesEK-Quantum Vector² FinishNickel + Acetal Dimensions302,5 x 134 x 27 mm D-RGB LEDs28 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Compatibility EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acetal is compatible with: EVGA XC3 RTX 3080 EVGA XC3 RTX 3080 Ti EVGA XC3 RTX 3090 Scope of Delivery EK-Quantum Vector² XC3 RTX 3080/90 D-RGB EK-Quantum Vector² XC3 RTX 3080/90 Backplate - Black Mounting mechanism with screw-in brass standoffs All necessary mounting screws, nuts and washers Thermal pad installation quick start guide 2x nickel-plated brass plug G1/4" EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The block is not compatible with NVLink and NVIDIA SLI. The factory backplate of the graphics card cannot be reused. Given the variety on the market, EK guarantees fit only for fittings from its own range. With EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acetal your graphics card runs quietly and at stable performance in the Nickel + Acetal version.
EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acrylic – Full-cover water block for graphics cards EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acrylic is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are 302 x 134 x 27 mm. Lighting is provided by 17 addressable D-RGB LEDs, connected via a 50 cm cable. A matching backplate for the rear of the graphics card is already included. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well. 10 mm thick copper cold plate: The solid copper base absorbs load peaks and spreads the heat evenly across the cooling surface. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Rotatable magnetic covers: They hide the terminal screws and can be rotated so the branding stays upright even with an inverted or vertically mounted card. Direct cooling of all key components: GPU, VRAM and VRM are all covered by the coolant flow. Nickel + Acrylic version: Matches fittings and components with the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acrylic ManufacturerEK Water Blocks Manufacturer P/N3831109892251 SeriesEK-Quantum Vector² FinishNickel + Acrylic Dimensions302 x 134 x 27 mm D-RGB LEDs17 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Compatibility EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acrylic is compatible with: EVGA XC3 RTX 3080 EVGA XC3 RTX 3080 Ti EVGA XC3 RTX 3090 Scope of Delivery EK-Quantum Vector² XC3 RTX 3080/90 D-RGB EK-Quantum Vector² XC3 RTX 3080/90 Backplate - Black Mounting mechanism with screw-in brass standoffs All necessary mounting screws, nuts and washers Thermal pad installation quick start guide 2x nickel-plated brass plug G1/4" EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The block is not compatible with NVLink and NVIDIA SLI. The factory backplate of the graphics card cannot be reused. Given the variety on the market, EK guarantees fit only for fittings from its own range. With EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 D-RGB - Nickel + Acrylic your graphics card runs quietly and at stable performance in the Nickel + Acrylic version.
EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 ABP D-RGB - Nickel + Acrylic – Full-cover water block for graphics cards EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 ABP D-RGB - Nickel + Acrylic is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are 308,5x148x41 mm. Lighting is provided by 15 addressable D-RGB LEDs, connected via a 50 cm cable. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Direct Link terminal with four ports: The four-port layout allows serial and parallel connections from adjacent or opposing sides. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Rotatable magnetic covers: They hide the terminal screws and can be rotated so the branding stays upright even with an inverted or vertically mounted card. Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance. CNC-machined cold plate: The electrolytic copper base ensures rapid heat transfer. Low flow restriction: The cooling engine is designed for even flow distribution and works with low-speed pumps as well. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 ABP D-RGB - Nickel + Acrylic ManufacturerEK Water Blocks Manufacturer P/N3831109896105 SeriesEK-Quantum Vector² FinishNickel + Acrylic Dimensions308,5x148x41 mm D-RGB LEDs15 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector² Xtreme RTX 3080/90 ABP D-RGB - Nickel + Plexi All necessary mounting screws, nuts and washers EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The block is not compatible with NVLink and NVIDIA SLI. Given the variety on the market, EK guarantees fit only for fittings from its own range. With EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 ABP D-RGB - Nickel + Acrylic, your graphics card runs quietly and at stable performance in the Nickel + Acrylic version.
EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 ABP D-RGB Set - Nickel + Acrylic – Set consisting of a GPU water block and an active backplate EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 ABP D-RGB Set - Nickel + Acrylic is a complete cooling set: it includes the full-cover water block for the front of the graphics card, plus an active, water-cooled backplate for the rear. GPU, memory, voltage regulation module and the back of the PCB are all cooled in a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are 308,5x148x41 mm. Lighting is provided by 30 addressable D-RGB LEDs, connected via a 50 cm cable. A matching backplate for the rear of the graphics card is already included. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well. 10 mm thick copper cold plate: The solid copper base absorbs load peaks and spreads the heat evenly across the cooling surface. Direct Link terminal with four ports: The four-port layout allows serial and parallel connections from adjacent or opposing sides. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with common motherboard sync technologies. Cooling of front and back: Water block and active backplate work together in one loop. Nickel + Acrylic version: Water block and backplate share the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 ABP D-RGB Set - Nickel + Acrylic ManufacturerEK Water Blocks Manufacturer P/N3831109896082 SeriesEK-Quantum Vector² FinishNickel + Acrylic Dimensions308,5x148x41 mm D-RGB LEDs30 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector² Xtreme RTX 3080/90 D-RGB - Nickel + Plexi EK-Quantum Vector² Xtreme RTX 3080/90 ABP D-RGB - Nickel + Plexi EK-Quantum Vector² Xtreme RTX 3080/90 ABP Side cover - Black All necessary mounting screws, nuts and washers Thermal pad installation quick start guide 2x nickel-plated brass plug G1/4" EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The block is not compatible with NVLink and NVIDIA SLI. The factory backplate of the graphics card cannot be reused. Given the variety on the market, EK guarantees fit only for fittings from its own range. EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 ABP D-RGB Set - Nickel + Acrylic combines a water block and an active backplate in Nickel + Acrylic into a complete cooling solution for the graphics card.

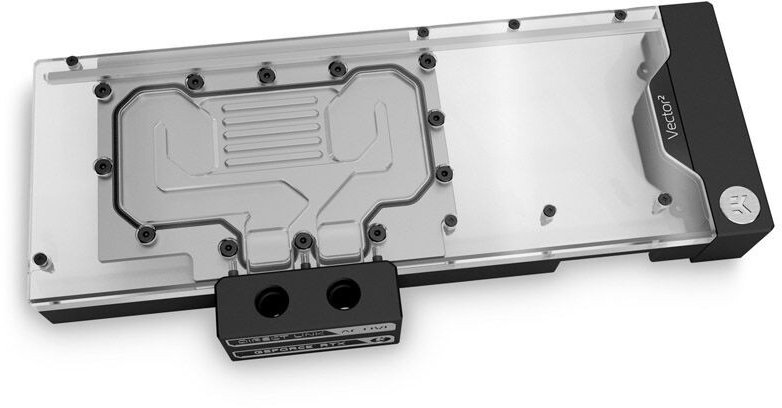

EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 D-RGB - Nickel + Acrylic – Full-cover water block for graphics cards EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 D-RGB - Nickel + Acrylic is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are 308,5x148x25 mm. Lighting is provided by 15 addressable D-RGB LEDs, connected via a 50 cm cable. A matching backplate for the rear of the graphics card is already included. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well. 10 mm thick copper cold plate: The solid copper base absorbs load peaks and spreads the heat evenly across the cooling surface. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Rotatable magnetic covers: They hide the terminal screws and can be rotated so the branding stays upright even with an inverted or vertically mounted card. Direct cooling of all key components: GPU, VRAM and VRM are all covered by the coolant flow. Nickel + Acrylic version: Matches fittings and components with the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 D-RGB - Nickel + Acrylic ManufacturerEK Water Blocks Manufacturer P/N3831109896044 SeriesEK-Quantum Vector² FinishNickel + Acrylic Dimensions308,5x148x25 mm D-RGB LEDs15 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Compatibility EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 D-RGB - Nickel + Acrylic is compatible with: Aorus Xtreme RTX 3080 Aorus Xtreme RTX 3080 Ti Aorus Xtreme RTX 3090 Scope of Delivery EK-Quantum Vector² Xtreme RTX 3080/90 D-RGB EK-Quantum Vector² Xtreme RTX 3080/90 Backplate - Black Mounting mechanism with screw-in brass standoffs All necessary mounting screws, nuts and washers Thermal pad installation quick start guide 2x nickel-plated brass plug G1/4" EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The block is not compatible with NVLink and NVIDIA SLI. The factory backplate of the graphics card cannot be reused. Given the variety on the market, EK guarantees fit only for fittings from its own range. With EK Water Blocks EK-Quantum Vector2 Xtreme RTX 3080/90 D-RGB - Nickel + Acrylic your graphics card runs quietly and at stable performance in the Nickel + Acrylic version.
Backplate mit aktiver Kühlung von EK Water Blocks, für MSI Trio und Suprim 3080 / 3080 Ti und 3090, vernickelter Kupferboden, Acetal-Deckel, adressierbare RGB-Beleuchtung
Backplate mit aktiver Kühlung von EK Water Blocks, für EVGA XC3 RTX 3080 / 3080 Ti und 3090, vernickelter Kupferboden, Acetal-Deckel, adressierbare RGB-Beleuchtung
Backplate mit aktiver Kühlung von EK Water Blocks, für EVGA XC3 RTX 3080 / 3080 Ti und 3090, vernickelter Kupferboden, Acryl-Deckel, adressierbare RGB-Beleuchtung

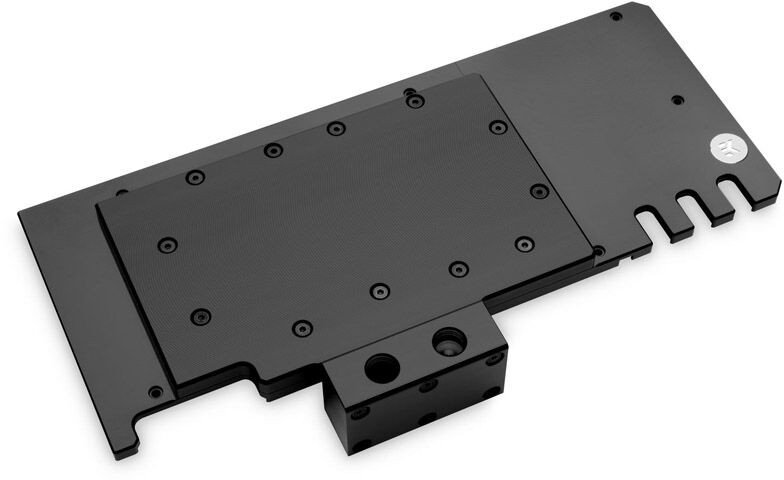

EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acetal is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector Strix RTX 3080/3090 water blocks and actively cool the backside of a ROG® GeForce RTX™ 3080 and 3090 Strix GPU. EK-Quantum Vector Strix RTX 3080/3090 Active BackplateThe EK-Quantum Vector Strix RTX 3080/3090 Active Backplate comes with a new terminal that replaces the stock terminal arriving with the Vector water block and links the water block and Vector Active backplate into a single unit. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 8 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of this stealthy active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable Black POM acetal. The rest of the backplate is made of anodized aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. Technical Specification Dimensions: (LxHxW) - 281x154x33mm Enclosed EK-Quantum Vector Strix RTX 3080/3090 Active Backplate - Acetal Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.
EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 ABP Set D-RGB - Nickel + Acetal – Set consisting of GPU water block and active backplate EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 ABP Set D-RGB - Nickel + Acetal is a complete cooling set: it contains the full-cover water block for the front of the graphics card plus an active, water-cooled backplate for the rear. GPU, memory, voltage regulation module and the back of the PCB are all cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of black acetal. The dimensions are 302,5 x 134 x 41 mm. Lighting is provided by 28 addressable D-RGB LEDs, connected via a 50 cm cable. A matching backplate for the rear of the graphics card is already included. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well. 10 mm thick copper cold plate: The solid copper base absorbs load peaks and spreads the heat evenly across the cooling surface. Direct Link terminal with four ports: The four-port layout allows serial and parallel connections from adjacent or opposing sides. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Cooling of front and back: Water block and active backplate work together in one loop. Nickel + Acetal version: Water block and backplate share the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 ABP Set D-RGB - Nickel + Acetal ManufacturerEK Water Blocks Manufacturer P/N3831109892213 SeriesEK-Quantum Vector² FinishNickel + Acetal Dimensions302,5 x 134 x 41 mm D-RGB LEDs28 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector² XC3 RTX 3080/90 D-RGB - Nickel + Acetal EK-Quantum Vector² XC3 RTX 3080/90 ABP D-RGB - Nickel + Acetal EK-Quantum Vector² XC3 RTX 3080/90 ABP Side cover - Black All necessary mounting screws, nuts and washers Thermal pad installation quick start guide 2x nickel-plated brass plug G1/4" EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The block is not compatible with NVLink and NVIDIA SLI. The factory backplate of the graphics card cannot be reused. Given the variety on the market, EK guarantees fit only for fittings from its own range. EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 ABP Set D-RGB - Nickel + Acetal combines water block and active backplate in Nickel + Acetal into a complete cooling solution for the graphics card.
EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 ABP Set D-RGB - Nickel + Acrylic – Set consisting of GPU water block and active backplate EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 ABP Set D-RGB - Nickel + Acrylic is a complete cooling set: it contains the full-cover water block for the front of the graphics card plus an active, water-cooled backplate for the rear. GPU, memory, voltage regulation module and the back of the PCB are all cooled within a single loop. The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are 302,5 x 134 x 41 mm. Lighting is provided by 34 addressable D-RGB LEDs, connected via a 50 cm cable. A matching backplate for the rear of the graphics card is already included. Key Features EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment. Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well. 10 mm thick copper cold plate: The solid copper base absorbs load peaks and spreads the heat evenly across the cooling surface. Direct Link terminal with four ports: The four-port layout allows serial and parallel connections from adjacent or opposing sides. Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies. Cooling of front and back: Water block and active backplate work together in one loop. Nickel + Acrylic version: Water block and backplate share the same finish. Technical Specifications TypeEK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 ABP Set D-RGB - Nickel + Acrylic ManufacturerEK Water Blocks Manufacturer P/N3831109892206 SeriesEK-Quantum Vector² FinishNickel + Acrylic Dimensions302,5 x 134 x 41 mm D-RGB LEDs34 Cable Length50 cm ThreadG1/4" GPU PlatformNVIDIA GeForce ManufacturingMade in Slovenia – Europe Scope of Delivery EK-Quantum Vector² XC3 RTX 3080/90 D-RGB - Nickel + Plexi EK-Quantum Vector² XC3 RTX 3080/90 ABP D-RGB - Nickel + Plexi EK-Quantum Vector² XC3 RTX 3080/90 ABP Side cover - Black All necessary mounting screws, nuts and washers Thermal pad installation quick start guide 2x nickel-plated brass plug G1/4" EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) Thermal pads Important notes Do not run together with aluminium components in the same loop – mixing different metals causes corrosion. Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces. The block is not compatible with NVLink and NVIDIA SLI. The factory backplate of the graphics card cannot be reused. Given the variety on the market, EK guarantees fit only for fittings from its own range. EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 ABP Set D-RGB - Nickel + Acrylic combines water block and active backplate in Nickel + Acrylic into a complete cooling solution for the graphics card.
