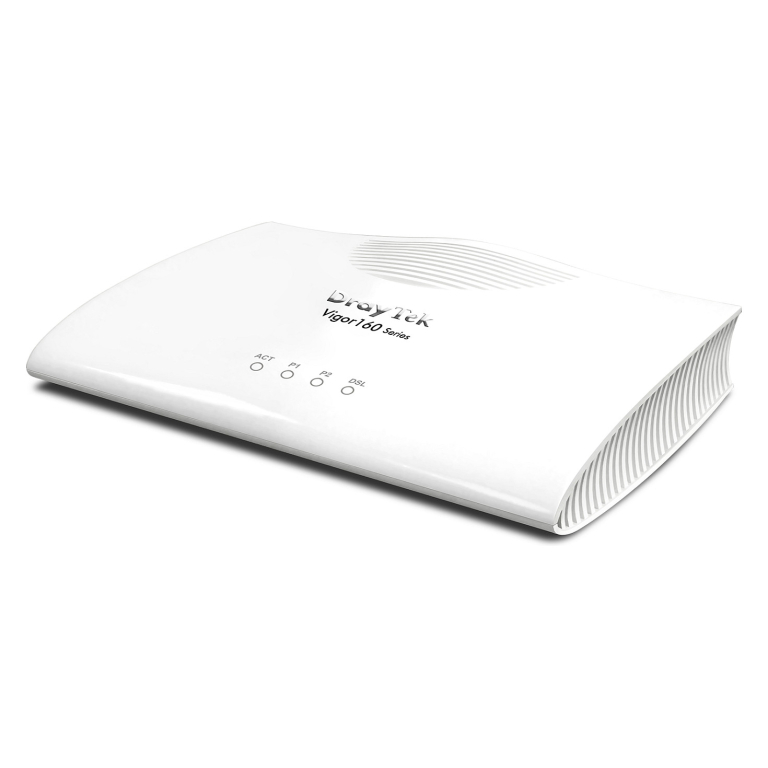

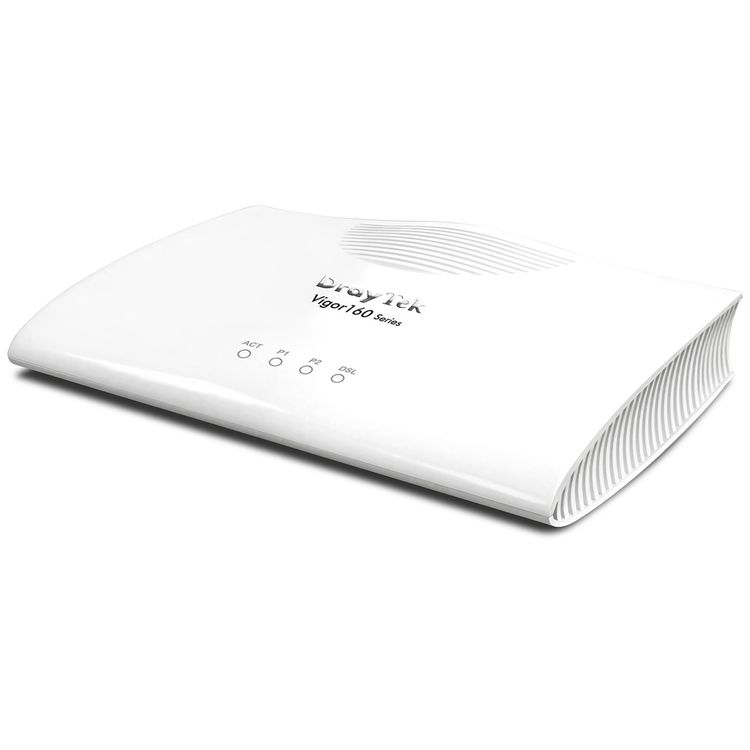

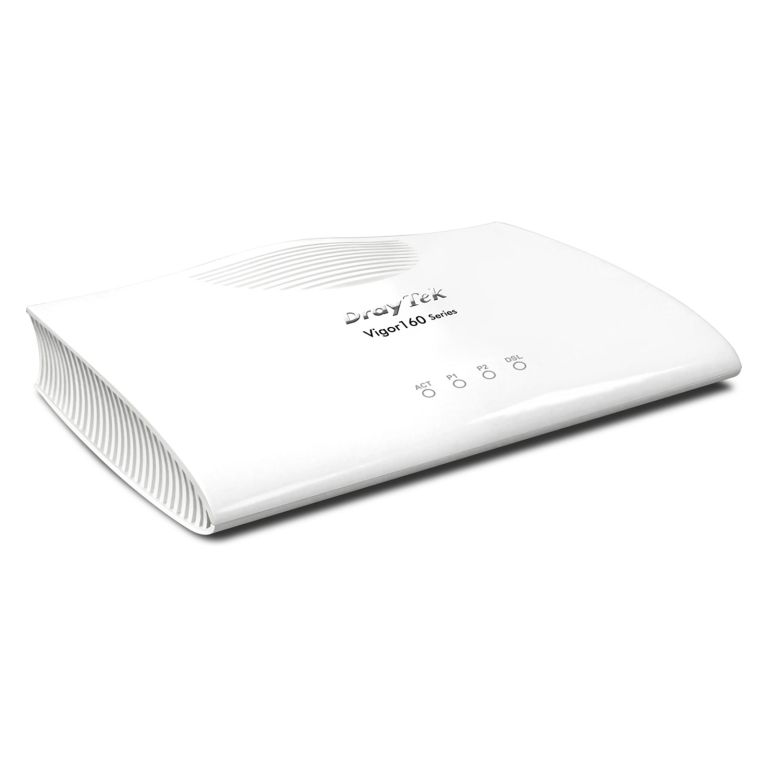

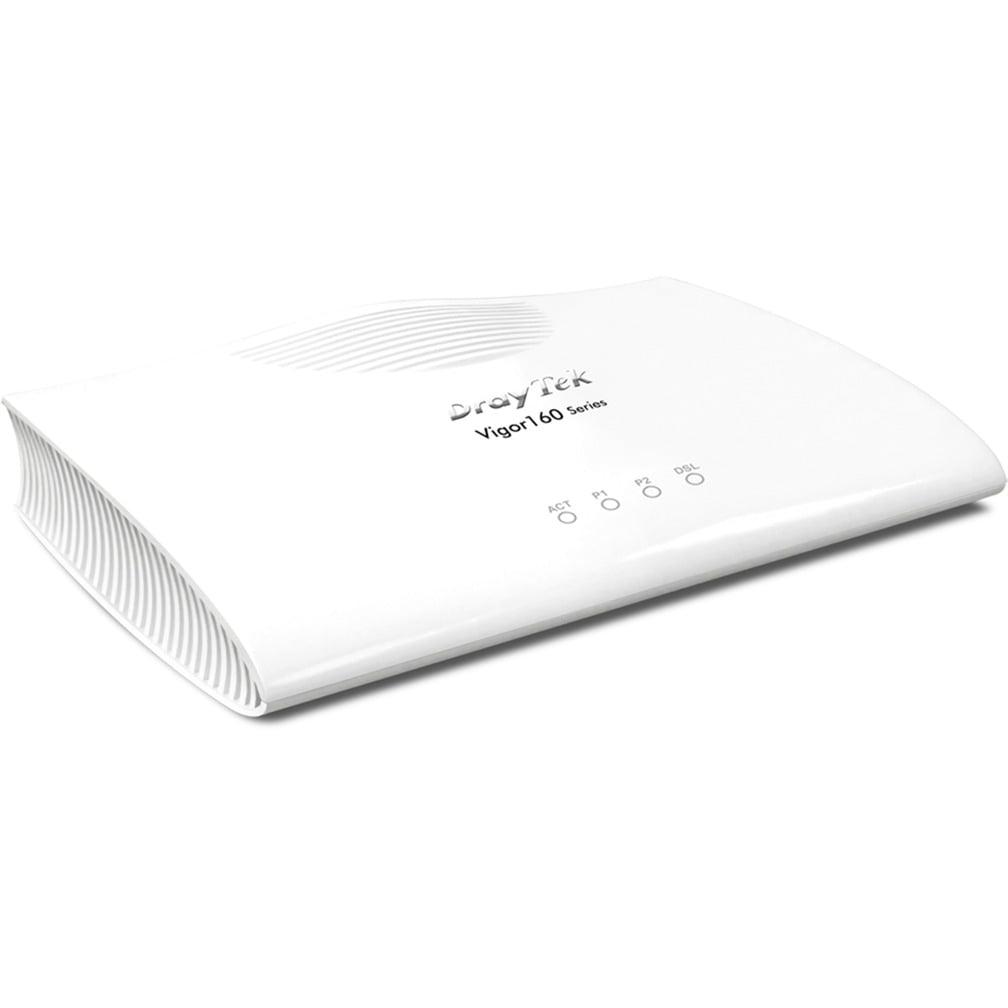

The DrayTek Vigor 166 Gen.2 is a versatile desktop modem for G.fast, VDSL and ADSL connections. It supports G.fast connections at 106MHz and 212MHz, as well as VDSL, VDSL2, ADSL2 and ADSL2+, making it suitable for business networks using different DSL access technologies. The device can operate as a standalone modem or be configured as a router or bridge according to the network requirements. It is supplied configured as a standalone modem and can be set up through a user-friendly web interface, which provides access to the main configuration and network management functions. The modem supports ADSL standards ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus) and T1.413 Issue 2. VDSL support includes ITU-T VDSL2 G.993.2 and G993.5 (Vectoring), with VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a and 35b. For G.fast connections, the Vigor 166 Gen.2 supports Gen.1 at 106 MHz and Gen.2 at 212 MHz, as well as Annex-Q, Multi-VLAN, Multi-PVC and G.Fast G.9701 profiles 106a and 106b. WAN protocol support includes RFC-2684/RFC-1483 Multiprotocol over AAL5, RFC-2516 PPP over Ethernet, RFC-2364 PPP over AAL5, PPPoE Pass Through, PPPoE / PPPoA Relay and transparent bridge for MPoA. The integrated network functions include an RJ-45 network connection with Auto-MDI/MDIX, DHCP client, relay and server, dynamic DNS, NTP client, time scheduling, static route, DNS cache and proxy, RIP v1/v2, 100 UPnP sessions and 10.000 NAT sessions. Switch functions include 802.1q Bridge, IGMP-Snooping and IP-to-MAC address binding, while IGMP Proxy V2 / V3 is also supported. The firewall provides NAT, DMZ Host, port forwarding and Open Port, MAC address filtering, SPI (Stateful Packet Inspection), DoS protection, e-mail notification and logging through Syslog, as well as schedule control. The supplied accessories include 1x wall-mount drilling template, 2x wall-mount screws, 2x wall plugs, 1x power supply, 1x Ethernet cable, 1x quick-start guide, 1x TAE to RJ11 DSL cable and 1x RJ11 to RJ45 DSL cable. Product type: modem EAN: 4710484742612 Manufacturer code: v166-A-Gen2-DE-AT-CH Form factor: desktop Application: business Network connection: RJ-45 Network connection feature: Auto-MDI/MDIX DSL types: VDSL, VDSL2, ADSL2, ADSL2+ G.fast type: G.fast Operating modes: router / bridge configurable IGMP Proxy: V2 / V3 UPnP sessions: 100 NAT sessions: 10.000 G.fast profiles: Gen.1: 106 MHz; Gen.2: 212 MHz; G.Fast G.9701 Profile 106a and 106b VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b Included accessories: 1x wall-mount drilling template, 2x wall-mount screws, 2x wall plugs, 1x power supply, 1x Ethernet cable, 1x quick-start guide, 1x TAE to RJ11 DSL cable, 1x RJ11 to RJ45 DSL cable
