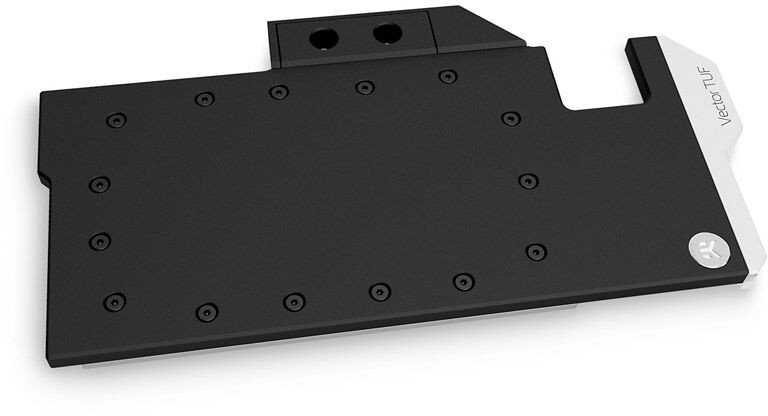

Backplate für GPU-Wasserkühlung, für EK-Quantum Vector TUF 6800/6900, aus anodisiertem Aluminium, bietet erhöhte Stabilität, mit Wärmeleitpad für passive Kühlung der PCB-Komponenten

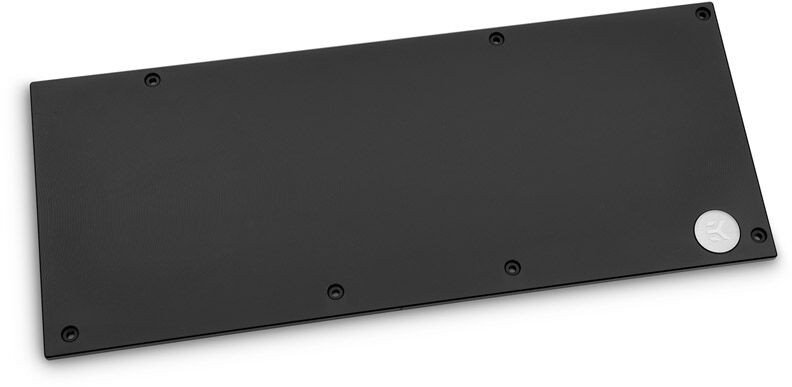

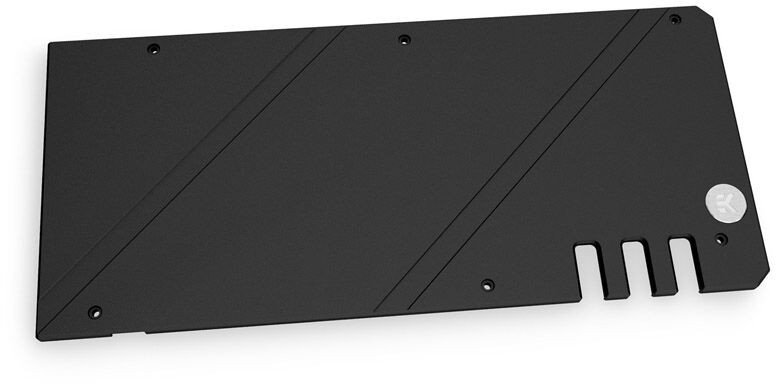

EK-Classic GPU Backplate RX 6800/6900 – Black is a CNC machined retention backplate made from black anodized aluminum for the EK-Classic GPU Water Block RX 6800/6900 D-RGB. The backplate covers the whole length of the graphics card PCB, serves as an aesthetic add-on. Enclosed EK-Classic GPU Backplate RX 6800/6900 – Black Mounting mechanism Thermal pads
EK-Quantum Vector N+ RX 6800XT/6900XT is a 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for SAPPHIRE NITRO+ 6800XT and 6900XT graphics cards based on the latest AMD® RDNA2™ architecture. EK-Quantum Vector N+ RX 6800XT/6900XT water block for SAPPHIRE NITRO+ GAMING RX 6800 XT and 6900 XT GPUsEK-Quantum Vector N+ RX 6800XT/6900XT water block is compatible with SAPPHIRE NITRO Radeon RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of high-grade nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM Acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum N+ Vector RX 6800XT/6900XT D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the N+ 6800XT/6900XT water blockEK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections. Technical Specification Dimensions: (LxHxW) - 285x149x16.5mm Enclosed EK-Quantum Vector N+ RX 6800XT/6900XT series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

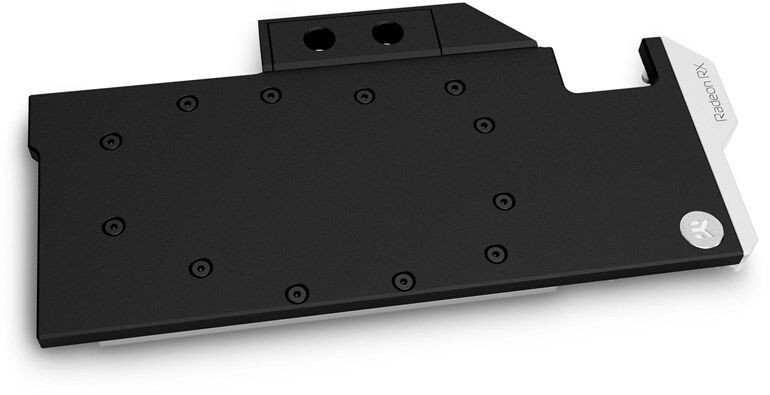

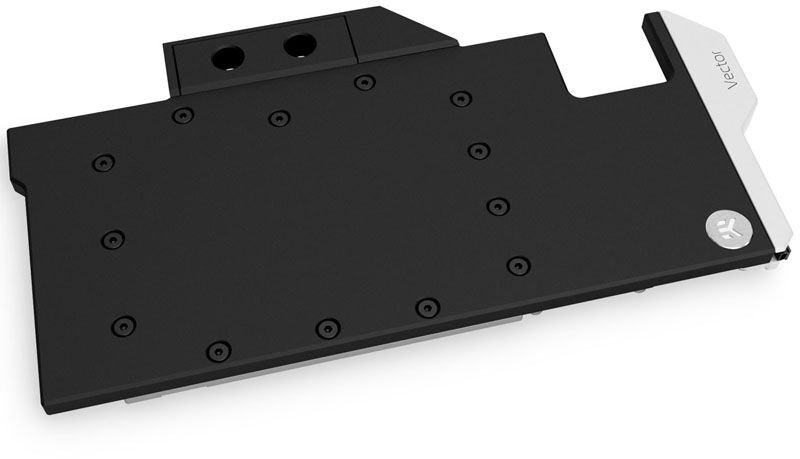

The EK-Quantum Vector RX 6800/6900 GPU cooler, has been further developed based on the 2nd generation Vector series and is compatible with most reference designs of RX 6800, RX 6800XT and RX 6900 graphics cards. The Vector RE water block directly cools the GPU, the VRAM and the VRM (voltage regulation module), as the cooling fluid is routed directly over these critical areas. The base of the block is made of copper, while the top is made entirely of black durable POM acetal. Since the GPU cooler does not have a backplate, it is recommended to order a matching backplate. Such a backplate not only improves stability, but also promotes cooling performance, as it also serves as a passive cooler. Technical Data: Dimensions: 283 x 139 x 16.5mm (L x H x W) Material: Copper, Acetal Threads: G1/4" Scope of Delivery: EK-Quantum Vector RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g) Compatibility AMD Radeon RX 6800 AMD Radeon RX 6800 XT AMD Radeon RX 6900 XT ASROCK Radeon RX 6800 16GB (visual) ASROCK Radeon RX 6900 XT 16GB (visual) ASUS Radeon RX 6800 XT 16GB(visual) ASUS Radeon RX 6800, RX6800-16G, 16GB GDDR6 (90YV0FY0-U0NA00) (visual) ASUS Radeon RX 6900 XT 16GB (RX6900XT-16G) (visual) BIOSTAR Radeon RX 6900 XT 16GB (visual) GIGABYTE Radeon RX 6800 16GB (visual) GIGABYTE Radeon RX 6800 XT 16GB (visual) Gigabyte Radeon RX 6900 XT, 16GB GDDR6, HDMI, 2x DP, USB-C (GV-R69XT-16GC-B) (visual) MSI Radeon RX 6800 16GB (visual) MSI Radeon RX 6800 XT 16GB (visual) MSI Radeon RX 6900 XT 16GB (visual) POWERCOLOR Radeon RX 6900 XT 16GB (visual) SAPPHIRE Radeon RX 6800 16GB (visual) SAPPHIRE Radeon RX 6900 XT 16GB (21308-01-20G) (visual) SAPPHIRE RX 6800 XT 16GB (visual)

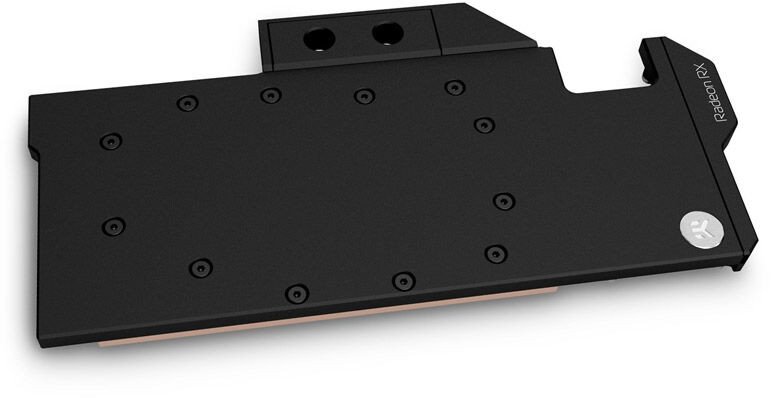

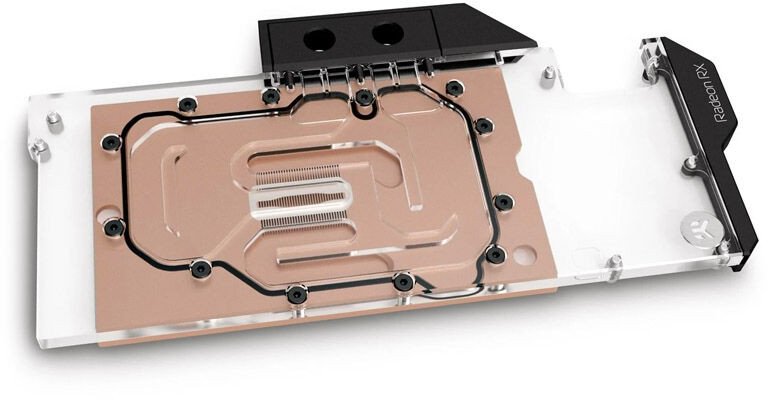

The EK-Quantum Vector RX 6800/6900 GPU cooler, has been further developed based on the 2nd generation Vector series and is compatible with most reference designs of RX 6800, RX 6800XT and RX 6900 graphics cards. The Vector RE water block directly cools the GPU, the VRAM and the VRM (voltage regulation module), as the cooling fluid is routed directly over these critical areas. The base of the block is made of copper, while the top is acrylic. Since the GPU cooler does not have a backplate, it is recommended to order a matching backplate. Such a backplate not only improves stability, but also promotes cooling performance, as it also serves as a passive cooler. Technical Data: Dimensions: 283 x 139 x 16.5mm (L x H x W) Material: Copper, Acryl Threads: G1/4" Scope of Delivery: EK-Quantum Vector RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g) Compatibility AMD Radeon RX 6800 AMD Radeon RX 6800 XT AMD Radeon RX 6900 XT ASROCK Radeon RX 6800 16GB (visual) ASROCK Radeon RX 6900 XT 16GB (visual) ASUS Radeon RX 6800 XT 16GB(visual) ASUS Radeon RX 6800, RX6800-16G, 16GB GDDR6 (90YV0FY0-U0NA00) (visual) ASUS Radeon RX 6900 XT 16GB (RX6900XT-16G) (visual) BIOSTAR Radeon RX 6900 XT 16GB (visual) GIGABYTE Radeon RX 6800 16GB (visual) GIGABYTE Radeon RX 6800 XT 16GB (visual) Gigabyte Radeon RX 6900 XT, 16GB GDDR6, HDMI, 2x DP, USB-C (GV-R69XT-16GC-B) (visual) MSI Radeon RX 6800 16GB (visual) MSI Radeon RX 6800 XT 16GB (visual) MSI Radeon RX 6900 XT 16GB (visual) POWERCOLOR Radeon RX 6900 XT 16GB (visual) SAPPHIRE Radeon RX 6800 16GB (visual) SAPPHIRE Radeon RX 6900 XT 16GB (21308-01-20G) (visual) SAPPHIRE RX 6800 XT 16GB (visual)
The EK-Quantum Vector RX 6800/6900 GPU cooler, has been further developed based on the 2nd generation Vector series and is compatible with most reference designs of RX 6800, RX 6800XT and RX 6900 graphics cards. The Vector RE water block directly cools the GPU, the VRAM and the VRM (voltage regulation module), as the cooling fluid is routed directly over these critical areas. The base of the block is made of nickel-plated copper, while the top is made entirely of black durable POM acetal. The end piece of the cooler has D-RGB lighting, with a total of 6 individually addressable LEDs, which makes the end piece shine pleasantly. The lighting is compatible with all common RGB Sync technologies of the major motherboard manufacturers, such as ASRock Polychrome Sync, ASUS Aura Sync, Gigabyte RGB Fusion and MSI Mystic Light. Since the GPU cooler does not have a backplate, it is recommended to order a matching backplate. Such a backplate not only improves stability, but also promotes cooling performance, as it also serves as a passive cooler. Technical Data: Dimensions: 283 x 139 x 16.5mm (L x H x W) Material: Nickel-Plated Copper, Acetal Threads: G1/4" Scope of Delivery: EK-Quantum Vector RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g) Compatibility AMD Radeon RX 6800 AMD Radeon RX 6800 XT AMD Radeon RX 6900 XT ASROCK Radeon RX 6800 16GB (visual) ASROCK Radeon RX 6900 XT 16GB (visual) ASUS Radeon RX 6800 XT 16GB(visual) ASUS Radeon RX 6800, RX6800-16G, 16GB GDDR6 (90YV0FY0-U0NA00) (visual) ASUS Radeon RX 6900 XT 16GB (RX6900XT-16G) (visual) BIOSTAR Radeon RX 6900 XT 16GB (visual) GIGABYTE Radeon RX 6800 16GB (visual) GIGABYTE Radeon RX 6800 XT 16GB (visual) Gigabyte Radeon RX 6900 XT, 16GB GDDR6, HDMI, 2x DP, USB-C (GV-R69XT-16GC-B) (visual) MSI Radeon RX 6800 16GB (visual) MSI Radeon RX 6800 XT 16GB (visual) MSI Radeon RX 6900 XT 16GB (visual) POWERCOLOR Radeon RX 6900 XT 16GB (visual) SAPPHIRE Radeon RX 6800 16GB (visual) SAPPHIRE Radeon RX 6900 XT 16GB (21308-01-20G) (visual) SAPPHIRE RX 6800 XT 16GB (visual)
EK-Quantum Vector Strix RX 6800/6900 Backplate - Black is a CNC machined retention backplate made from black anodized aluminum, that fits all EK-Quantum Vector Strix RX 6800/6900 water blocks. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM), VRAM, and the GPU core. Enclosed EK-Quantum Vector RX Strix 6800/6900 Backplate - Black Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

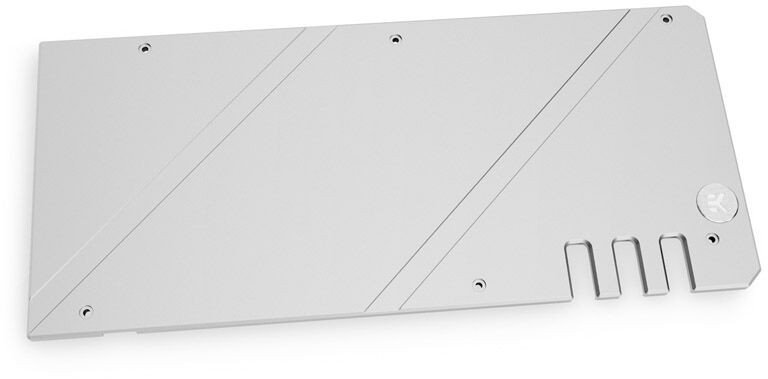

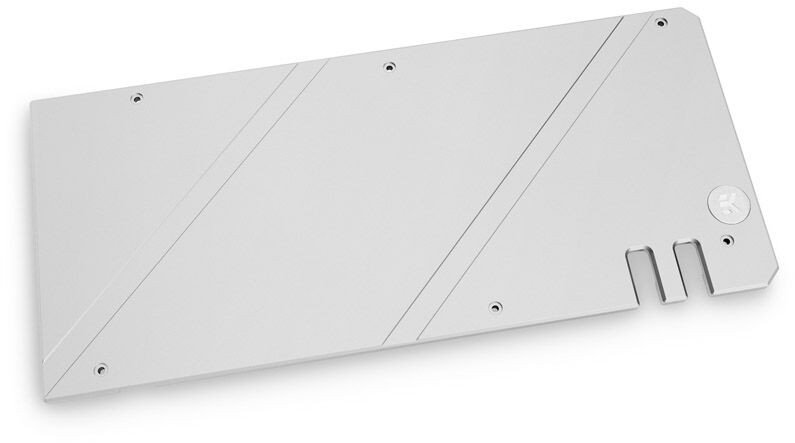

EK-Quantum Vector Strix RX 6800/6900 Backplate - Nickel is a CNC machined retention backplate made from nickel-plated aluminum, that fits all EK-Quantum Vector Strix RX 6800/6900 water blocks. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM), VRAM, and the GPU core. Enclosed EK-Quantum Vector RX Strix 6800/6900 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

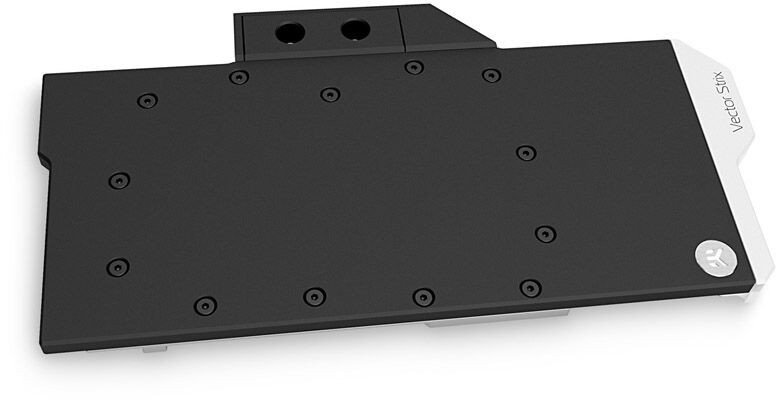

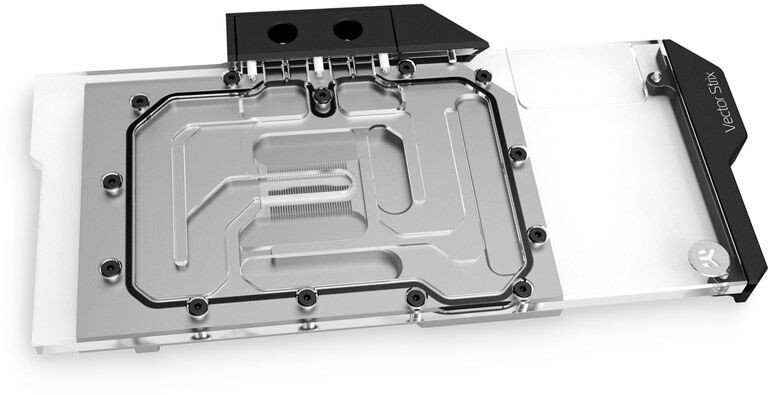

EK-Quantum Vector Strix RX 6800/6900 is a 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for ROG Strix RX 6800, 6800XT, 6900XT graphics cards based on the latest AMD® RDNA2™ architecture. EK-Quantum Vector Strix RX 6800/6900 water block for ROG Strix GAMING RX 6800 and 6900 GPUsEK-Quantum Vector RX 6800/6900 water block is compatible with ASUS® ROG Strix GAMING Radeon RX 6800, RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of high-grade nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector Strix RX 6800/6900 D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the Strix 6800/6900 water blockEK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections. Technical Specification Dimensions: (LxHxW) - 300.5x157x19.5mm Enclosed EK-Quantum Vector Strix RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)
EK-Quantum Vector Strix RX 6800/6900 is a 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for ROG Strix RX 6800, 6800XT, 6900XT graphics cards based on the latest AMD® RDNA2™ architecture. EK-Quantum Vector Strix RX 6800/6900 water block for ROG Strix GAMING RX 6800 and 6900 GPUsEK-Quantum Vector RX 6800/6900 water block is compatible with ASUS® ROG Strix GAMING Radeon RX 6800, RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of high-grade nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector Strix RX 6800/6900 D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the Strix 6800/6900 water blockEK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections. Technical Specification Dimensions: (LxHxW) - 300.5x157x19.5mm Enclosed EK-Quantum Vector Strix RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)
Full-Block-GPU-Kühler für Custom-Wasserkühlungen, für ASUS TUF RX 6800/6900-Grafikkarten, Deckel aus schwarzem Acetal, Boden aus vernickeltem Kupfer, integrierte digitale RGB-Beleuchtung (3-Pin, 5VDG)
