Tootekood: CSV-1381GTIN: 8719214472719Cables and adapters
The Club 3D CSV-1381 is a 3 to 1 HDMI 2.1a switch that routes your high-definition video and digital audio from any of the HDMI inputs to an 8K60Hz/4K120Hz HDMI output.

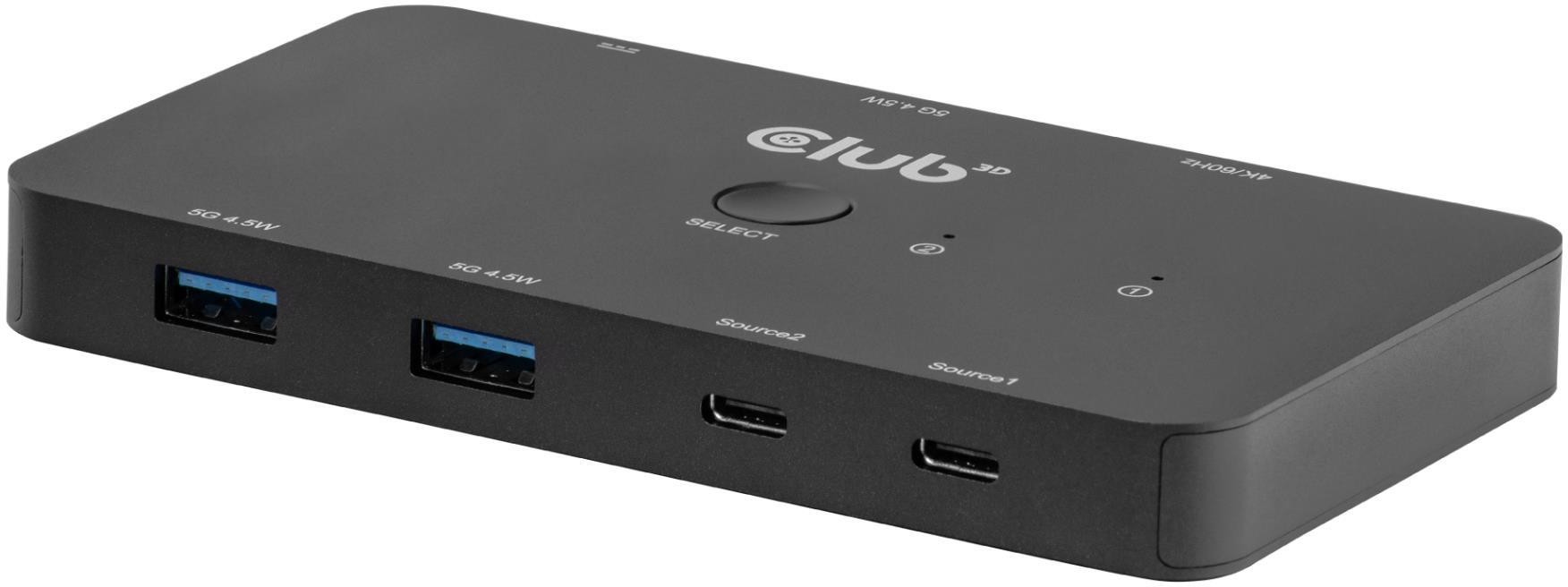

The Club 3D CSV-1585 is an MST dual (HDMI+DP) display dock with KVM functionality. Two USB Type-C inputs for connecting two different hosts to improve the productivity between the two hosts quickly, just one click on the top button or by clicking the connected cable remote button. 3x USB Type-A+3x USB Type-C provide enough connection for external devices with up to 5 Gbps data transfer. 120 W DC power supply provides 65 W Power Delivery (PD) to charge your USB Type-C laptop or host devices. Compatible with any USB Type-C port DP Alt Mode enabled devices, like laptop, desktop pc, tablet, phone, etc. Support charging with PC1 and PC2 port, press the POWER SWITCH key to switch input power. Using 20 V / 6 A 120 W DC power adapter to supply power for docking station, among 65 W power charging for PC2 host at the same time. Supply external power for PC1 through USB Type-C1 port, the charging power depends on the PD adapter. With Kensington lock. Plug-and-Play.
Tootekood: CSV-1384GTIN: 8719214472832Cables and adapters
HDMI 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz The Club 3D CSV-1384 is a HDMI™ 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz. It can switch either of two sources to one display or switch one source to either of two displays. Press the switch button to select channel 1 or channel 2. With a piece of 0.5m / 1.64 ft length fixed HDMI™ cable (pigtail), this Switch not only reduces cost but also saves time for customers. This kind of HDMI™ Switcher routes high definition video (in multiple resolutions and up to 8K60Hz) and digital audio from the sources to display units.

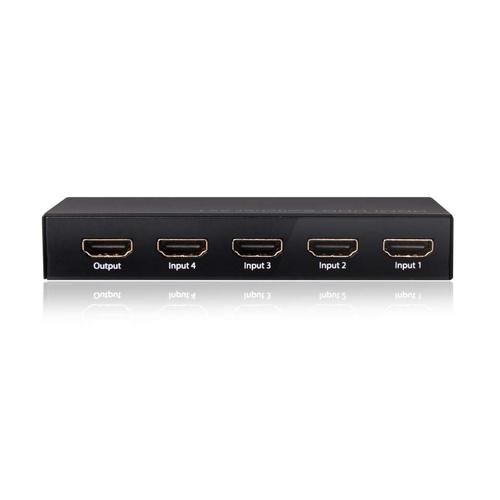

The SenseVision HDMI 2.0 UHD SwitchBox is a high-performance and small-sized HDMI 2.0 UHD switcher with four inputs and one output. It has a metal casing, which makes it very strong and sturdy. This HDMI 2.0 UHD SwitchBox routes high-definition video, in resolutions up to 4K, and digital audio from any of the 4 source inputs to the connected 4K UHD television, monitor or projector.
The Club 3D CSV-1382 is designed to enhance your audio and video experience with its versatile KVM and audio switch capabilities. Supporting resolutions up to 4096 x 2160, it ensures clear and vibrant images for your devices. With its multiple interface options, including HDMI, USB, and audio inputs/outputs, easily connect various devices while maintaining exceptional performance. Engineered for reliability, this device operates efficiently in a wide range of environmental conditions, from 0°C to 45°C. Its robust metal housing offers durability and excellent heat dissipation, providing peace of mind during operation. With support for HDR, 12-bit and 36-bit Deep Color, and multiple chroma subsampling options, the CSV-1382 delivers a rich visual experience for both gaming and professional use.

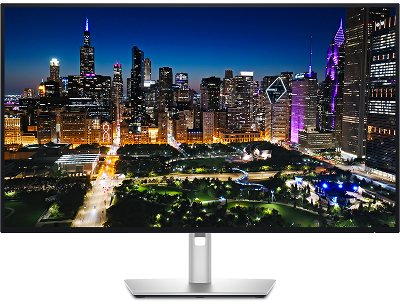

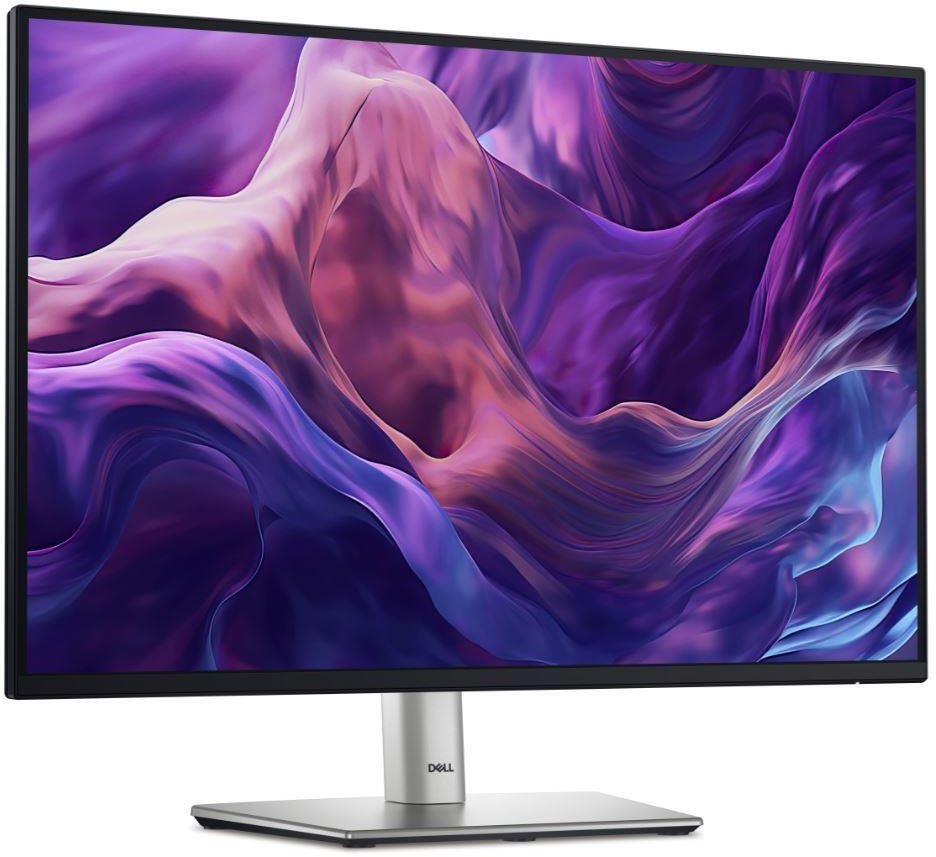

The Dell UltraSharp 32 4K Thunderbolt Hub Monitor U3225QE delivers visuals with its expansive 32-inch screen and a native resolution of 3840 x 2160. Designed for the creative professional, it features a pixel density of 140 PPI and supports 1.07 billion colors, ensuring vibrant and accurate images. Its anti-glare coating and flicker-free technology provide a comfortable viewing experience for extended use.Equipped with built-in devices such as a KVM switch and USB hub with USB Power Delivery up to 140 watts, this monitor enhances productivity by allowing multiple devices to connect seamlessly. Advanced features like picture-in-picture, ambient light sensor, and auto brightness control create an adaptable workspace tailored to any environment. With HDR600 certification, this monitor supports high dynamic range content, displaying rich details in shadows and highlights, suitable for visual projects that demand precision.
With this Delock DisplayPort switch up to two DisplayPort devices can be used with one DisplayPort monitor. With the button on the device or the remote control can be switched between the DisplayPort devices. The output is dual-mode capable (DP++), so that an HDMI or DVI monitor can be connected with a suitable adapter. NoteThe distance between the source and the Displayport switch should not be greater than 5 m at resolutions up to 2560 x 1600 or 1 m at a resolution of 4K @ 60 Hz.The distance between the Displayport switch and the monitor should not be greater than 15 m at resolutions up to 2560 x 1600 or 3 m at a resolution of 4K @ 60 Hz. Specification• Connector: Input: 2 x DisplayPort 20 pin female 1 x DC 5 V power connector Output: 1 x DisplayPort 20 pin female• Switching via button or infrared remote control• LED indicator for active port• DisplayPort 1.2 specification• DisplayPort output supports Dual Mode DP++• Audio input formats: 7.1 channel up to 192 kHz sample rate• Supports a resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)• Metal housing• Colour: black• Dimensions (LxWxH): ca. 90 x 73 x 31 mm Power supply specification• Wall power supply• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A• Output: 5 V / 1.0 A• Ground outside, plus inside• Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9 mm System requirements• A free DisplayPort female port• DisplayPort cable Package content• DisplayPort switch• Remote control• External power supply• User manual
This KVM switch by Delock is a convenient solution for connecting two computers with DisplayPort output to one DisplayPort monitor.Additionally there is an HDMI output for connection of two monitors, of which only one can be active at a time.Peripheral devicesFurthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.Flexible ControlThe active computer can be selected by mouse gesture, keyboard hotkey, button on the device or infrared remote control.Multi-Stream Transport (MST)With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub. NoteKVMs emulate a standard wired 104 key keyboard and wired generic 2 or 3 button scroll wheel mouse on their respective console ports. Whether or not a wireless or gaming mouse and keyboard work with KVM switches depends on several factors; in general, most wireless mice and keyboards do not support working with KVM switches. We recommend to use a standard wired mouse and keyboard with our KVM switches. Specification Connectors:Input:2 x DisplayPort female2 x USB 3.0 Type-B female4 x 3.5 mm 3 pin stereo jack female (audio)1 x 3.5 mm 3 pin stereo jack female for optional IR-receiver1 x DC 5 V power connector screwableOutput:1 x DisplayPort female1 x HDMI-A female2 x USB 3.0 Type-A female (USB 3.0 Hub)2 x USB 2.0 Type-A female (keyboard + mouse)4 x 3.5 mm 3 pin stereo jack female (audio)Switching via button, mouse button, hotkey or infrared remote controlAutomatic switching when turning a PC on or offSupports HDCP 1.4 and 2.2Supports HDRSupports MST (Multi-Stream Transport)Resolution up to:DisplayPort output:7680 x 4320 @ 30 Hz3840 x 2160 @ 120 Hz (SDR)3840 x 2160 @ 60 Hz (HDR)HDMI output:3840 x 2160 @ 60 Hz(depending on the system and the connected hardware)Robust metal housingColour: blackDimensions (LxWxH): ca. 178 x 75 x 26 mm Power supply specification Wall power supplyInput: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 AOutput: 5 V / 3 AGround outside, plus insideDimensions:inside: ø ca. 2.1 mmoutside: ø ca. 5.5 mm System requirements PC with DisplayPort female + USB Type-A femaleMonitor or TV with DisplayPort or HDMI interfaceConnection cables Package content KVM switch with USB and audioRemote control2 x cable USB 3.0 A male to USB 3.0 B male, length ca. 1.0 mExternal power supplyMounting brackets and screwsUser manual
This docking station by Delock can be connected to a MacBook with two adjacent Thunderbolt™ 3 ports, e.g. the MacBook Pro. It is also possible to insert one of the two USB-C™ plugs into the housing, so that the docking station can also be connected to other devices such as a smartphone, tablet or laptop. One monitor with 4K 30 Hz can be operated at the HDMI output port. One built-in USB Type-C™ port and two USB Type-A ports allows the use of peripherals.USB Type-C™ pass-throughOne of the two USB-C™ female ports is coupled to the insertable USB-C™ plug. This means that when it is extended (when used with a MacBook), the USB-C™ female port (pass-through) provides the full function of the USB-C™ interface. This port can transmit data at 10 Gbps, charge the device (PD 3.0), or connect another monitor with a resolution of up to 4K 60 Hz. In addition, as with MST, two additional monitors can be operated independently of each other (extended display).If the docking station is only operated with one USB Type-C™ port, the USB-C™ (pass-through) female port has no function.Integrated Card ReaderIn addition, the docking station with integrated card reader expands mobile devices by an SD and a Micro SD slot via the USB Type-C™ connection.USB Power Delivery (USB PD 3.0) support up to 100 wattThe docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. The docking station can also be used without a power supply.Small sturdy helperDue to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop and used as needed. NoteOnly one additional external monitor can be connected to MacBook devices with M1 chipset. Specification Connectors:2 x USB Type-C™ male1 x HDMI-A female2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female PD 2.01 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female PD 3.0 (pass-through)1 x SD slot1 x Micro SD slotResolution:HDMI up to 3840 x 2160 @ 30 HzUSB-C™ DP Alt Mode up to 3840 x 2160 @ 60 Hz (pass-through)(depending on the system and the connected hardware)Transmission of audio and video signalsSupports HDRSupports HDCP 1.4 and 2.2USB Power Delivery (PD)Slide switch for USB-C™ male1 x LED indicatorMetal housingColour: greyDimensions (LxWxH): ca. 125 x 35 x 12 mm System requirements Android 8.0 or aboveChrome OS 76.0 or aboveiPad Pro (2018)Linux Kernel 4.3 or aboveMac OS 10.15.1 or aboveWindows 7/7-64/8.1/8.1-64/10/10-64MacBook Pro with two adjacent Thunderbolt™ 3 portsDevice with a free USB Type-C™ port and DisplayPort alternate mode or with a freeThunderbolt™ 3 port

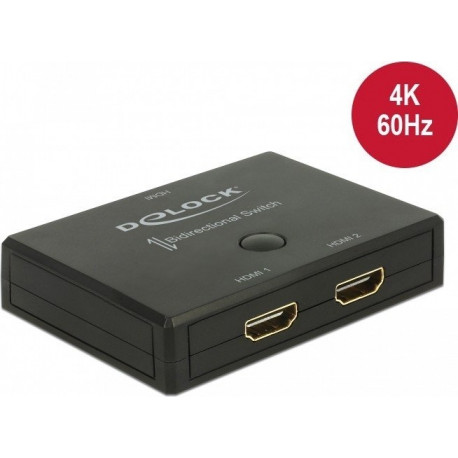

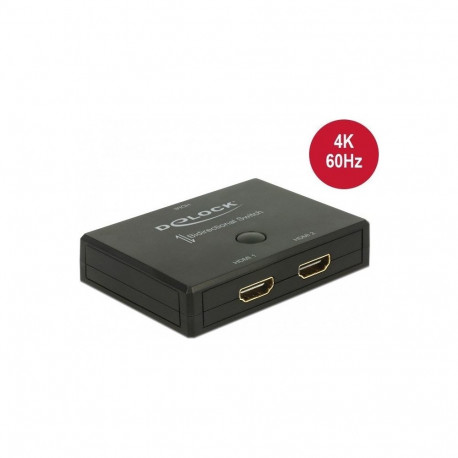

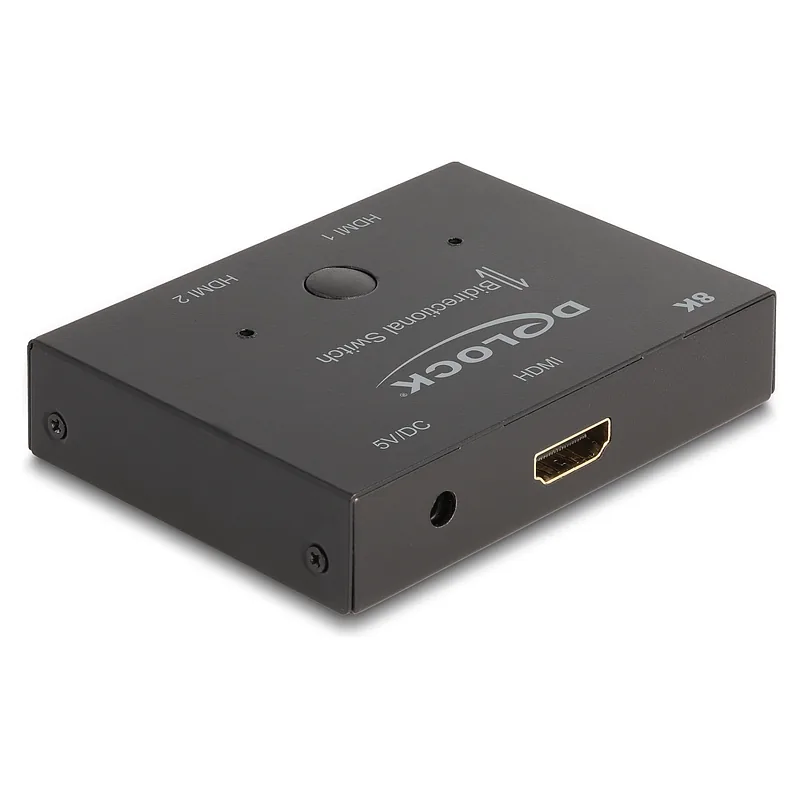

This HDMI switch by Delock is a manual bidirectional switch for connecting different devices with HDMI port. This switch offers two different applications.1.Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.2.An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible. Specification• Connectors: Function 1 Input: 2 x HDMI-A 19 pin female Output: 1 x HDMI-A 19 pin female Function 2 Input: 1 x HDMI-A 19 pin female Output: 2 x HDMI-A 19 pin female• High Speed HDMI specification• Supports HDR• HDMI port selection by button• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)• No external power supply needed• Plastic housing• Colour: black• Dimensions (LxWxH): ca. 82 x 62 x 17 mm System requirements• One free HDMI female• HDMI cable Package content• Switch bidirectional• User manual
This HDMI switch by Delock is a manual bidirectional switch for connecting different devices with HDMI port. This switch offers two different applications.1.Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.2.An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible. Specification• Connectors: Function 1 Input: 2 x HDMI-A female Output: 1 x HDMI-A female Function 2 Input: 1 x HDMI-A female Output: 2 x HDMI-A female• High Speed HDMI specification• Supports HDR• HDMI port selection by button• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)• No external power supply needed• Metal housing• Colour: black• Dimensions (LxWxH): ca. 53 x 50 x 20 mm System requirements• One free HDMI female• HDMI cable Package content• Switch bidirectional• User manual
This KVM switch by Delock is a convenient solution for connecting four computers with HDMI output to one HDMI monitor.Peripheral devicesFurthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.Flexible ControlThe active computer can be selected by mouse gesture, keyboard hotkey, button on the device or infrared remote control. NoteKVMs emulate a standard wired 104 key keyboard and wired generic 2 or 3 button scroll wheel mouse on their respective console ports. Whether or not a wireless or gaming mouse and keyboard work with KVM switches depends on several factors; in general, most wireless mice and keyboards do not support working with KVM switches. We recommend to use a standard wired mouse and keyboard with our KVM switches. Specification Connectors:Input:4 x HDMI-A female4 x USB 3.0 Type-B female8 x 3.5 mm 3 pin stereo jack female (audio)1 x 3.5 mm 3 pin stereo jack female for optional IR-receiver1 x DC 5 V power connector screwableOutput:1 x HDMI-A female2 x USB 3.0 Type-A female (USB 3.0 Hub)2 x USB 2.0 Type-A female (keyboard + mouse)4 x 3.5 mm 3 pin stereo jack female (audio)Switching via button, mouse button, hotkey or infrared remote controlAutomatic switching when turning a PC on or offSupports HDCP 1.4 and 2.2Supports HDRHDMI output:Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connectedhardware)Robust metal housingColour: blackDimensions (LxWxH): ca. 243 x 75 x 26 mm Power supply specification Wall power supplyInput: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 AOutput: 5 V / 3 AGround outside, plus insideDimensions:inside: ø ca. 2.1 mmoutside: ø ca. 5.5 mm System requirements PC with HDMI female + USB Type-A femaleMonitor or TV with HDMI connectorConnection cables Package content KVM switch with USB and audioRemote control4 x cable USB 3.0 A male to USB 3.0 B male, length ca. 1.0 mExternal power supplyMounting brackets and screwsUser manual
This KVM switch by Delock is a convenient solution for connecting two computers with HDMI output to one HDMI monitor.Peripheral devicesFurthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.Flexible ControlThe active computer can be selected by mouse gesture, keyboard hotkey, button on the device or infrared remote control. NoteKVMs emulate a standard wired 104 key keyboard and wired generic 2 or 3 button scroll wheel mouse on their respective console ports. Whether or not a wireless or gaming mouse and keyboard work with KVM switches depends on several factors; in general, most wireless mice and keyboards do not support working with KVM switches. We recommend to use a standard wired mouse and keyboard with our KVM switches. Specification Connectors:Input:2 x HDMI-A female2 x USB 3.0 Type-B female4 x 3.5 mm 3 pin stereo jack female (audio)1 x 3.5 mm 3 pin stereo jack female for optional IR-receiver1 x DC 5 V power connector screwableOutput:1 x HDMI-A female2 x USB 3.0 Type-A female (USB 3.0 Hub)2 x USB 2.0 Type-A female (keyboard + mouse)4 x 3.5 mm 3 pin stereo jack female (audio)Switching via button, mouse button, hotkey or infrared remote controlAutomatic switching when turning a PC on or offSupports HDCP 1.4 and 2.2Supports HDRHDMI output:Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connectedhardware)Robust metal housingColour: blackDimensions (LxWxH): ca. 178 x 75 x 26 mm Power supply specification Wall power supplyInput: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 AOutput: 5 V / 3 AGround outside, plus insideDimensions:inside: ø ca. 2.1 mmoutside: ø ca. 5.5 mm System requirements PC with HDMI female + USB Type-A femaleMonitor or TV with HDMI connectorConnection cables Package content KVM switch with USB and audioRemote control2 x cable USB 3.0 A male to USB 3.0 B male, length ca. 1.0 mExternal power supplyMounting brackets and screwsUser manual

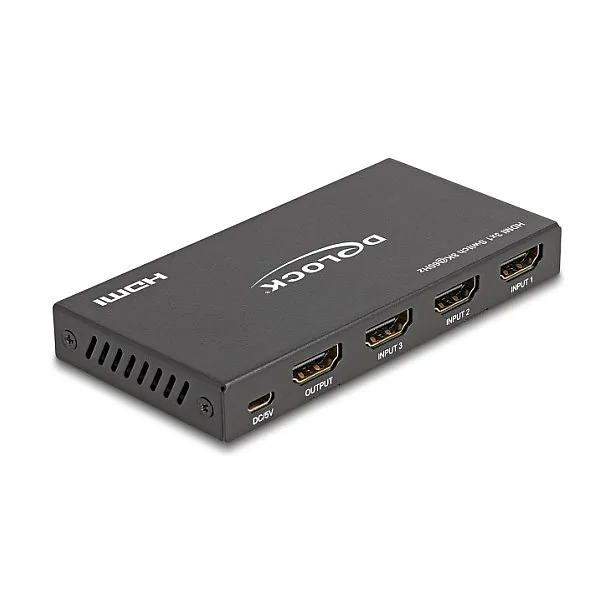

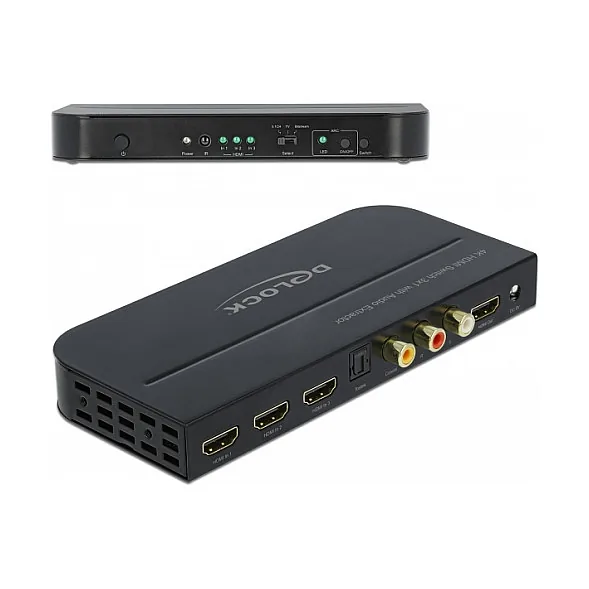

With this HDMI switch by Delock up to three HDMI devices can be used with one HDMI monitor, TV or projector. The button on the device or the remote control can be used to switch between the HDMI devices.Audio extractorThis function can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.Audio Return Channel (ARC)ARC can be enabled at the push of a button on the device or the remote control. Then the audio signal of the connected TV device is routed to the S/PDIF connectors of the switch. Specification Connectors:Input:3 x HDMI-A female1 x DC 5 V power connectorOutput:1 x HDMI-A female2 x RCA female (audio)1 x TOSLINK female S/PDIF1 x RCA female S/PDIFHDMI port switching: automatic function, via button or via infrared remote controlLED indicators for active HDMI portHigh Speed HDMI specificationSupports 3D displaysSupports HDCP 1.4 and 2.2Supports HDRResolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connectedhardware)Video bandwidth up to 600 MHz / 6 Gbps, max. 18 GbpsPower consumption: max. 5 WMetal housingRemovable wallmount bracketsColour: blackDimensions (LxWxH): ca. 168 x 75 x 21 mm Power supply specification Wall power supplyInput: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 AOutput: 5 V / 1 AGround outside, plus insideDimensions:inside: ø ca. 2.1 mmoutside: ø ca. 5.5 mmlength: ca. 9 mm System requirements A free HDMI femaleHDMI cable Package content HDMI switchRemote controlMounting brackets and screwsUSB power cable, length: ca. 0.5 mPower supplyUser manual
Tootekood: TRA18600GTIN: 4043619186006Video cables and adapters

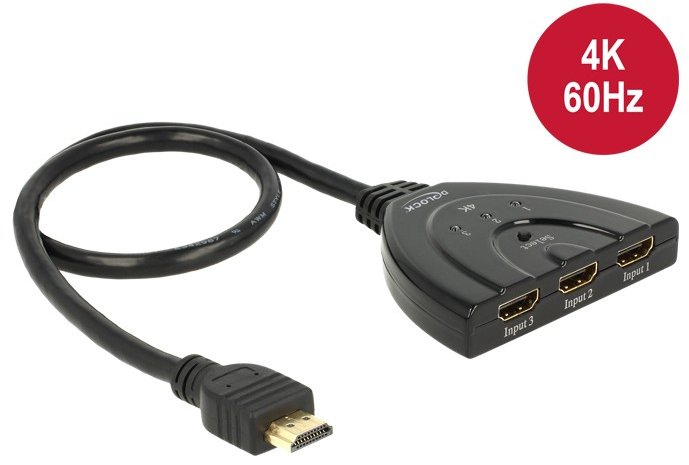

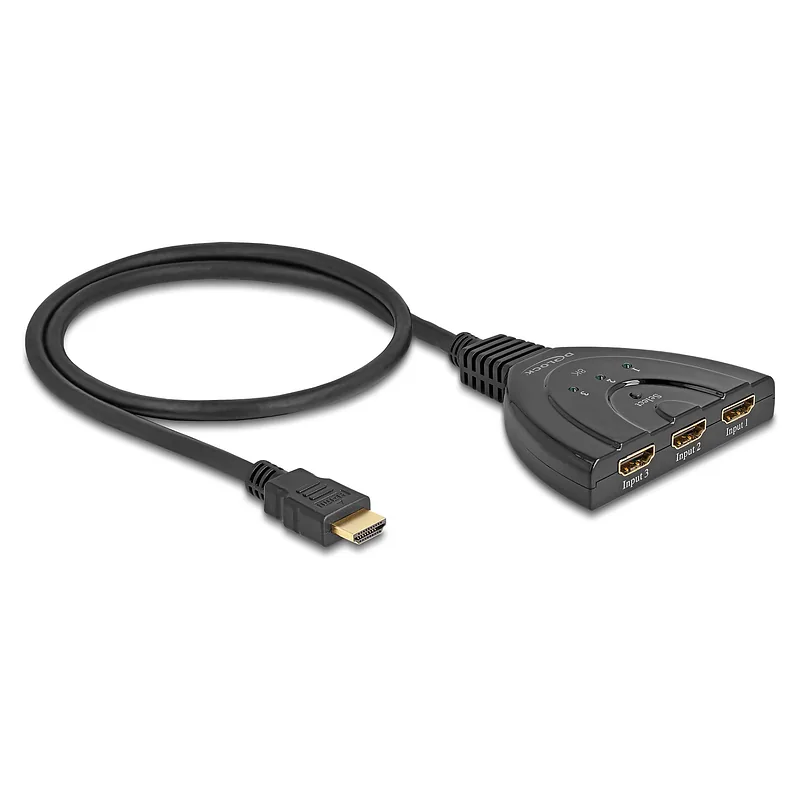

escription With this HDMI switch by Delock up to three HDMI devices can be used with one HDMI monitor, TV or beamer. The button on the device allows switching between the HDMI devices. Specification • Connectors: Input: 3 x HDMI-A 19 pin female Output: 1 x HDMI-A 19 pin male• HDMI port selection by button• LED indicators for active HDMI port• High Speed HDMI specification• Supports 3D displays• Supports HDCP 1.4 and 2.2• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)• Video bandwidth up to 600 MHz / 6 Gbps per channel, max. 18 Gbps• No external power supply needed• Plastic housing• Colour: black• Dimensions (LxWxH): ca. 81 x 62 x 16 mm• Cable length without connectors: ca. 50 cm System requirements • One free HDMI female• HDMI cable Package content • HDMI switch• User manual Package • Retail Box

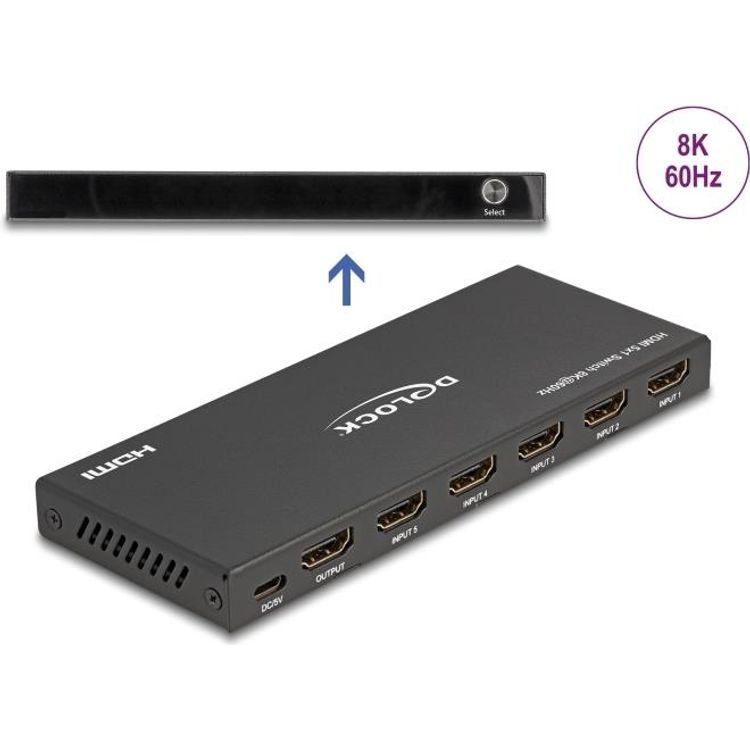

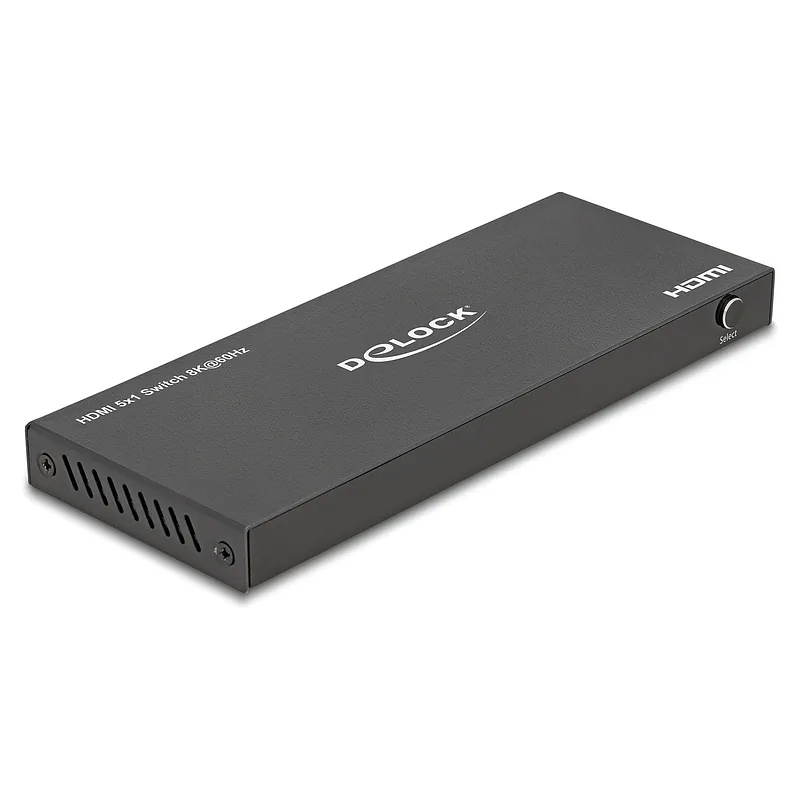

<h2 class="product_info_title">Description</h2> <p class="product_text">With this Delock HDMI switch up to five HDMI devices can be used with one HDMI monitor, TV or beamer. With the button on the device or the remote control you can switch between the HDMI devices.</p> <h2 class="product_info_title">Specification</h2> <p>• Connectors:<br /> Input:<br /> 5 x HDMI-A 19 pin female<br /> 1 x DC 5 V power connector<br /> Output:<br /> 1 x HDMI-A 19 pin female<br /> • HDMI port switching: automatic function, via button or via infrared remote control<br /> • LED indicators for active HDMI port<br /> • High Speed HDMI specification<br /> • Supports 3D displays<br /> • Supports HDCP 1.4 and 2.2<br /> • Supports HDR<br /> • Supports CEC<br /> • Supports a resolution up to 3840 x 2160 @ 60 Hz<br /> (depending on the system and the connected hardware)<br /> • Video bandwidth up to 600 MHz / 6 Gbps, 18 Gb/s max.<br /> • Power consumption: max. 2.0 W<br /> • Metal housing<br /> • Colour: black<br /> • Dimensions (LxWxH): ca. 123 x 51 x 20 mm</p>
