TG Putty is an electrically non-conductive alternative to conventional thermal pads. As an easy-to-apply and flexible gap filler, it compensates for height differences, making it ideal as a replacement for thermal pads on GPUs. Graphics cards typically feature several types of thermal pads of varying thicknesses from the factory, requiring different pads during replacement or when converting the cooler to a GPU water cooler. The application of TG Putty is performed using the included spatulas, which also enable large-area application. TG Putty can compensate for height differences ranging from 0.2 mm to 3.0 mm. For modifying a single, smaller graphics card without an active backplate (e.g., GeForce GTX 1060), approximately one 30-gram container of TG Putty is required. For larger graphics cards, such as a GeForce RTX 4090, one 30-gram container is generally sufficient for the memory (VRAM) and voltage regulators (VRM) on the front side. On the backside, there is often a uniform, larger gap between the PCB and the backplate on larger graphics cards. In this case, approximately two 30-gram containers are needed to completely fill this gap. Notes: TG Putty is not suitable for use on processors (IHS or Direct Die) or directly on the GPU die! Before application, the target surface should be thoroughly cleaned and degreased, for example, using TG Cleaning Wipes or conventional isopropanol.
Thermal Grizzly introduces the Thermal Putty series, a new product line specifically developed for upgrading graphics cards and replacing thermal pads between PCBs and heatsinks. However, the Thermal Putty can also be used by hobbyists and experienced technicians for a variety of devices such as notebooks, handhelds, and gaming consoles. Flexible alternative to thermal pads with a wide range of applications Especially suitable for heatsinks with varying distances to key components Pro-version with very high thermal conductivity for high-end components Safe to use thanks to its electrically insulating properties The flexible alternative to thermal pads: The Thermal Grizzly Putty Pro Thermal Grizzly Putty is an electrically non-conductive alternative to conventional thermal pads. As an easy-to-apply, flexible gap filler, it compensates for height differences and is therefore ideal as a replacement for thermal pads on graphics cards and other devices. Typically, several types of thermal pads in varying thicknesses are used from the manufacturer, so when replacing the pads or modifying the cooler to a GPU water cooler, you would need several different pads. This issue is solved by the flexible application of Thermal Grizzly Putty. How much Thermal Grizzly Putty do I need? To upgrade a single, smaller graphics card without a backplate (e.g., GeForce GTX 1060), about one 30-gram jar of Thermal Grizzly Putty is needed. For a larger graphics card such as a GeForce RTX 4090, a 30-gram jar is generally sufficient for the memory (VRAM) and voltage regulators (VRM) on the front side. On the back side, between the PCB and the backplate of larger graphics cards, there is often a uniform, larger gap. Here, about two 30-gram jars or one 100-gram jar are needed if you want to completely fill this space. Three versions for different applications With three different versions, the manufacturer offers the right product for every performance class. The Basic version is suitable for efficient components with low heat generation. The Advance version, with higher thermal conductivity, is intended for midrange components with greater power. For the high-end segment, Thermal Grizzly offers Putty Pro, which provides optimal cooling for your high-end components thanks to its outstanding thermal conductivity. Flexible and safe to use Before application, the target surface should be thoroughly cleaned and degreased, for example with Thermal Grizzly cleaning wipes or standard isopropanol. Thanks to its electrically insulating property, it can be spread over large areas with the included spatula. Alternatively, the Thermal Putty can be shaped by hand into small balls, which can be matched in size to the area to be covered (e.g., VRAM, SMD).
Product Details: Thermal Grizzly - Pro TG Putty Pro is a non-electrically conductive alternative to traditional thermal pads. This easy-to-apply and flexible material serves as a "gap filler," effectively compensating for height differences. It is an ideal replacement for thermal pads on graphics cards, where different pad thicknesses are typically used. When replacing pads or upgrading to a GPU water block, multiple thermal pad sizes are usually required. TG Putty can be applied using the included spatulas or by hand (gloves recommended). The spatula allows for smooth, even application over larger areas, while alternatively, the putty can be shaped into small beads that precisely fit components such as VRAM or SMDs. TG Putty can compensate for height differences ranging from 0.2 mm to 3.0 mm. Available Variants:TG Putty comes in three versions, each offering different levels of thermal conductivity: TG Putty Basic – Medium thermal conductivity TG Putty Advance – Good thermal conductivity TG Putty Pro – High thermal conductivity For upgrading a smaller graphics card without an active backplate (e.g., GeForce GTX 1060), a single 30g jar of TG Putty is usually sufficient. For larger models, such as the GeForce RTX 4090, one 30g jar typically covers the memory (VRAM) and voltage regulators (VRM) on the front side. Since high-end graphics cards often have a uniform gap between the PCB and the backplate, fully filling this space may require two 30g jars. Important Notes: TG Putty is not suitable for direct application on processors (IHS or Direct Die) or GPU chips. Before applying, ensure that the target surface is thoroughly cleaned and degreased using TG Cleaning Wipes or standard isopropanol. Package Contents: 1x TG Putty Pro 3x Spatulas
Tootekood: TG-WV-90-P-H1RGTIN: 4260711991356Internal power cables and adapters

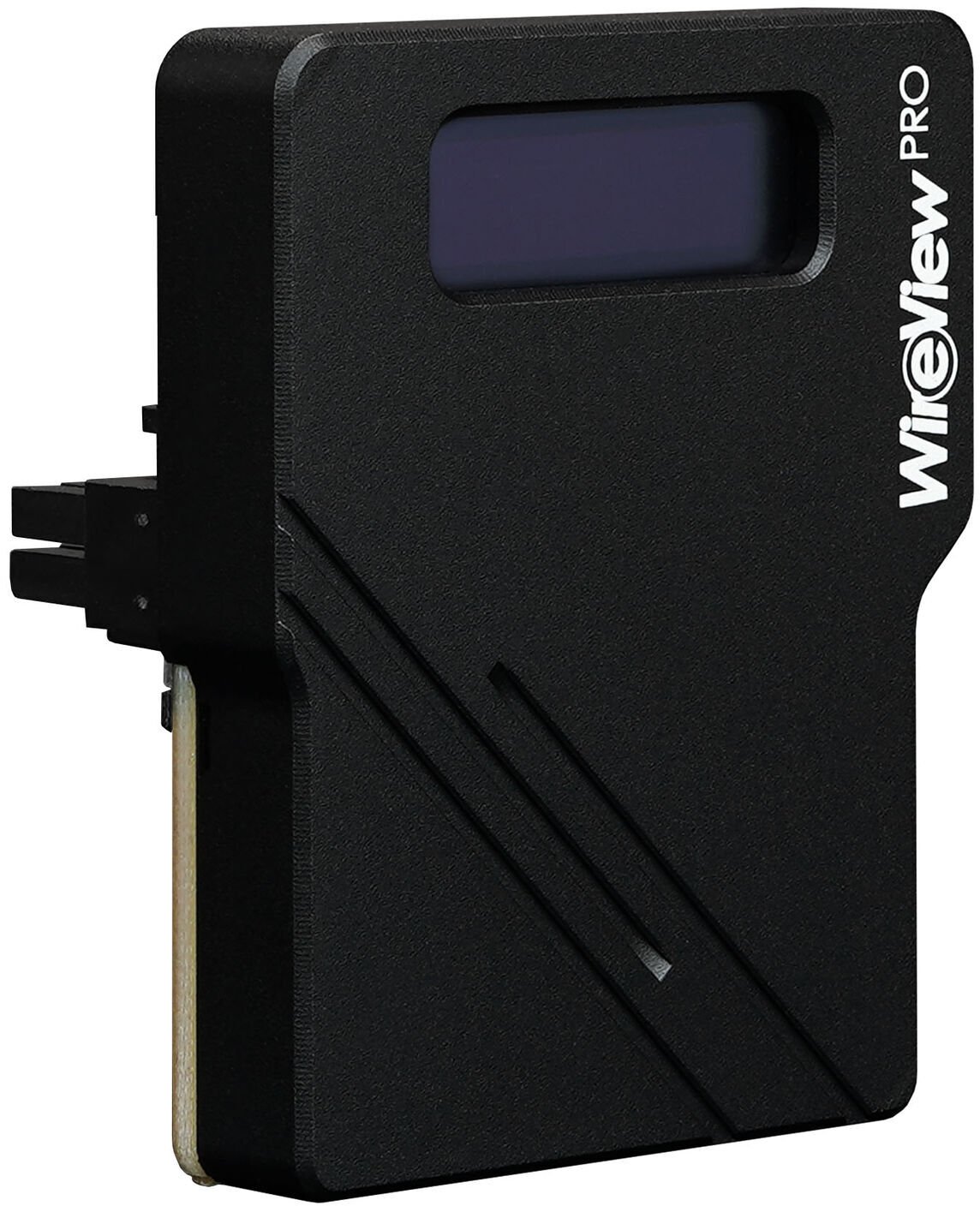

The WireView Pro GPU is an advanced device for measuring and monitoring the power consumption of graphics cards. Developed in collaboration with Jon "elmor" Sandström, the WireView Pro GPU connects to the graphics card's 12VHPWR power connector and links to the power supply via the power cable. Power consumption data is shown on an OLED display. The Pro version has been improved with connector detection and temperature sensors. An integrated buzzer provides an audible warning if an adjustable temperature or current limit is exceeded, if the cable is not properly connected, or if an incorrectly specified cable is in use. OLED display Power consumption measurement Power consumption recording Internal temperature sensors at the power connectors External temperature sensors Pin detection for sensor-pin connectors Alarm function Optimized cable management The WireView Pro GPU enables the measurement and monitoring of power consumption from graphics cards via the 12VHPWR power connector and records this data to determine power usage. This information can be used to calculate the operating cost of a graphics card or compare its consumption with other graphics cards. A special 60-second measurement cycle allows for a quick and convenient display of power consumption, making it especially useful for reviews. It can also be used to assess power consumption in specific scenarios or over certain periods. Additionally, it can detect power spikes that occur when using modern high-end graphics cards. The Pro version includes enhanced connector detection, temperature sensors, and an audible warning signal. The WireView Pro GPU’s connector detection identifies whether a cable specified for 150 watts, 300 watts, 450 watts, or 600 watts is being used. Please note that the WireView Pro GPU measures power consumption only through the power connector, not through the motherboard’s PCIe slot. If an incorrect cable is used or the cable is not properly connected, an audible warning will sound. Two temperature sensors located on the board at the power connectors monitor temperatures at those connectors. Up to 600 watts can pass through the connectors, potentially heating them and the surrounding board. An audible alarm will sound if the temperature exceeds an adjustable limit. Two additional temperature sensors (10K NTC) can be connected via cables; two sensors with cable lengths of 5 cm and 20 cm are included. The alarm can also be triggered if the adjustable current limit (amps) is exceeded. The WireView Pro GPU displays measured values on the OLED screen. By pressing a button, you can toggle through the displayed values. The following values may be shown: Current power consumption in watts (W) Current voltage in volts (V), current in amperes (A) Minimum and maximum power consumption in watts (W) Average power consumption over 60 seconds (RAVG in W) and total energy used (E in Wh) Measured temperatures of individual temperature sensors (°C) The WireView Pro GPU is available with the 12VHPWR 16-pin power connector (4x sensor + 12x power/ground) in "Normal" (N) and "Reverse" (R) versions: If the graphics card uses power connectors with the four sensor pins located between the PCB and the 12 power pins, the "N" version is required (PCB - 4x sensor pin - 12x power pins). If the graphics card uses power connectors with the 12 power pins located between the PCB and the four sensor pins, the "R" version is required (PCB - 12x power pins - 4x sensor pin). Note: When using the 12VHPWR adapter, ensure each of the three or four 8-pin PCIe connectors is connected to the power supply with a separate 8-pin PCIe cable. The use of splitters (Y-cables) is strongly discouraged! Warning – Important Notice: Risk of Injury! Depending on the graphics card used, especially with the GeForce RTX 4090, up to 450 watts of power can pass through the WireView connectors. This can cause the PCB at the WireView connector to heat to 60 degrees Celsius with an air-cooled card. With a water-cooled card and no airflow, the WireView PCB can heat up to 100 degrees Celsius! Do not touch the WireView casing during operation. After shutting down the system, allow the WireView to cool before handling.

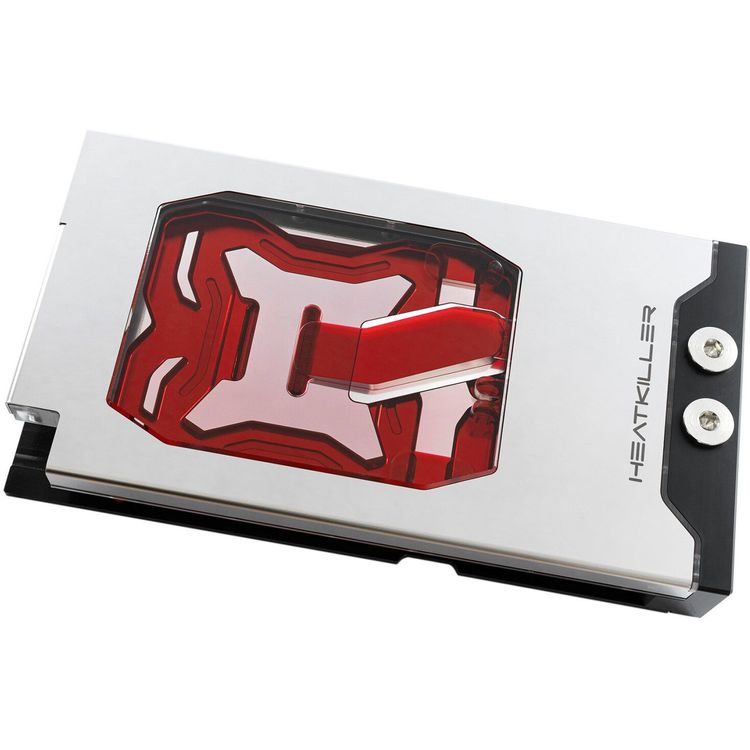

HEATKILLER V PRO graphics card coolers for Nvidia's RTX 4090 Founders Edition were specially developed to cope with the high power dissipation of 450 watts and more. In order to ensure a correspondingly high increase in performance, we opted for a modular high-performance base plate. Proven technologies such as the dual-layer airflow and the symmetrical cooling design have also been incorporated. The result in the form of the HEATKILLER V PRO series is impressive both visually and in terms of performance. Key points of the HK V PRO series: High performance base plate Selected high-performance thermal pads on GDDR6X RAM Dual layer inflow Symmetrical cooling design Design-integrated connection threads in the terminal Screwless design Insulating spacers made of high-performance plastic (Peek) Plug-in system for aRGB Stripes CNC cut thermal pads Modular high-performance base plate In order to increase the cooling performance in the area of the GPU core, we have integrated a modular high-performance base plate into the heat sink. This ensures significantly higher cooling performance than a monolithic design thanks to finely slotted fins and the resulting increase in the cooling surface. We have chosen the fin structure in such a way that, in addition to increasing the performance of the GPU core, the flow is also kept high. All distances to heat-relevant components have been kept small, which means that the heat from thermal problem areas such as GDDR6X RAM and voltage converters is ideally dissipated. The PEEK spacers made from high-performance plastic ideally insulate the cooler from the circuit board and make installation easier. The legendary Kryonaut thermal paste from Thermal Grizzly ensures the best possible heat transfer. Dual layer inflow and symmetrical cooling design The dual-layer inflow, like the symmetrical cooling design, can also be found in the PRO version of our HEATKILLER V GPU cooler. The increased inflow is particularly important for the high-performance base plate. The splitting of the water into two levels ensures better flow through the cooler. The wide and symmetrical flow paths optimize the flow and thus the general performance of the HEATKILLER V Pro cooler. Selected high-performance thermal pads for GDDR6X Our development department has invested a lot of time in finding the ideal thermal pads for the hot GDDR6X RAMs. We have found a thermal pad that significantly reduces the temperatures around the GDDR6X RAM compared to the very good standard pads. Design-integrated side connection threads Another innovation is the connection threads integrated into the side of the terminal. Together with the screwless cover and the backplate included in the package, the result is a cooler that looks like a single unit. In order to achieve the best possible appearance, the HK V PRO was designed so that no electronic components of the circuit board are visible. Backplate and aRGB in the package The new cooler design relies on assembly including a backplate. In our case, the black backplate ensures improved distribution of forces around the cooling block. In addition to an impressive look, this also results in better temperatures. The aRGB stripes used now have a modular structure and a compact plug-in system. Thanks to the high compatibility of our LEDs, the Heatkiller can be integrated into any lighting concept. The plug-in system also allows the cooler to be used quite easily without lighting. Made in Germany Production is carried out with the greatest care on our state-of-the-art CNC machinery in Waren an der Müritz. Many work steps are carried out by hand and each product is completed according to the four-eyes principle. Made in Germany, as you would imagine. Technical data: Base plate material: electrolytic copper nickel-plated Lid material: PLEXIGLAS® GS Cover material: polished stainless steel Material connection terminal: Acetal Dimensions: (LxWxH): 220 x 124 (incl. terminal) x 32.8mm (incl. backplate) Connection: 4x G ¼ inch (DIN ISO 228-1) Approved up to 1 bar Compatibility: NVIDIA GeForce RTX 4090 Founders Edition Scope of delivery: 1 x HEATKILLER® V PRO aRGB 1 x HEATKILLER® V PRO backplate black 1 x Dual Slot Bracket 1 x mounting material 1 x Thermal Grizzly Kryonaut thermal paste Chip manufacturer: NVIDIA for GPU chip series: GeForce® RTX 4090 Base material: nickel-plated copper Material upper part: ACRYLIC Frame material: stainless steel Lighting: aRGB pre-assembled Shipping weight: 1.93 kg Item weight: 1.93 kg
