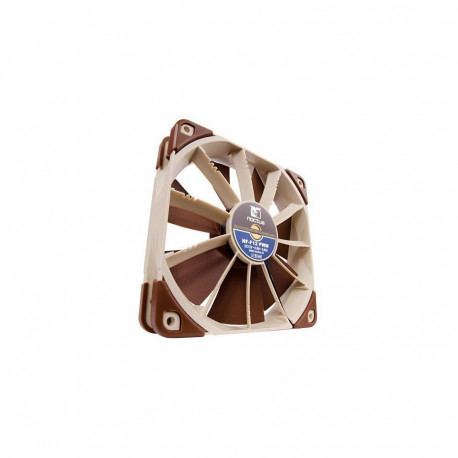

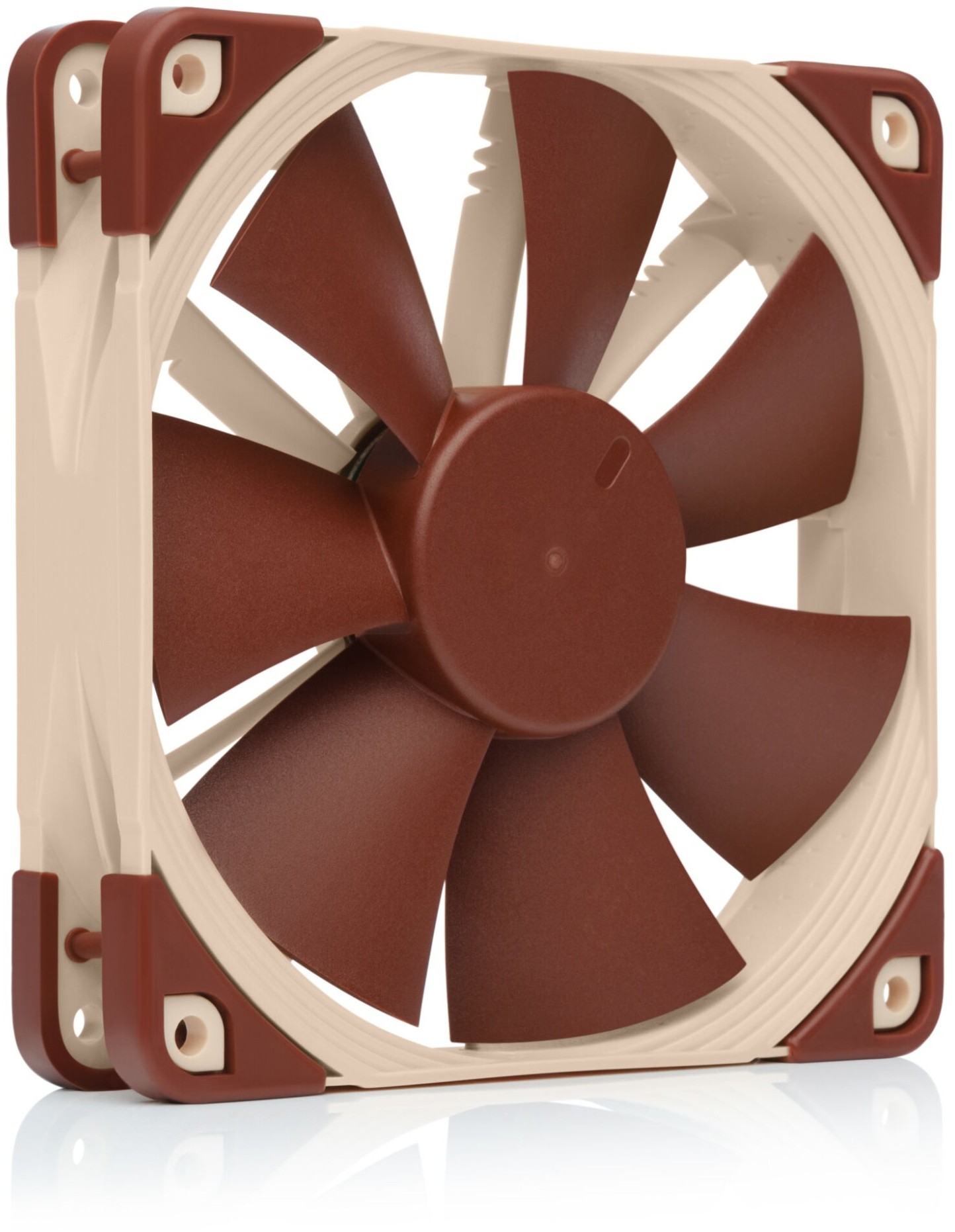

A combination of 11 stator blades with the specially developed seven-bladed rotor and the Focused Flow™ system achieves the excellent static pressure of the NF-F12 and focusses the airflow for superior cooling performance on air coolers and radiators. At the same time the advanced aerodynamic design as well as the SSO bearing of the second generation and Noctua's newly designed PWM IC for fully automatic control make for an impressively low noise emission level. The NF-F12 offers a modular cable system, integrated anti-vibration pads as well as two speed settings for maximum flexibility. Its impressive performance, extensive features and Noctua's proven premium quality make the NF-F12 an exquisite choice for air coolers, radiators and other pressure-sensitive applications. A feature overview can be found hereTechnical specifications:Dimensions : 120x120x25mmColour: Frame: beige/brwon, fan blades: brownConnector: 4Pin PWMOperating voltage range: 3,5-14VAirflow: 93,4 m³/h / 55 CFMAirflow with LNA: 74,3 / 44 CFMNominal speed: 1500 +/- 10% rpmNominal speed with LNA: 900 +/- 10% rpmMinimum speed: 300rpmNoise emissions: 22,4 dBANoise emission with LNA: 18,6 dBAStatic pressure:: 2,61 mm H2OStatic pressure with LNA: 1,83 mm H2OCurrent draw: 0,05 APower consumption: 0,6 WNominal voltage: 12 VAn English mounting manual can be found hereThis way to the information sheet.Extent of delivery:1x Noctua NF-F12 PWM ( 120x120x25mm ) Low-Noise adaptor (L.N.A.)4-Pin Y-cable30cm cable extension4x Vibration-Compensators4x fan screwsPlease note the difference between a 4-Pin power connector (Molex) and a 4-Pin fan connector (PWM).This product has been tested for you:HardwaremaxTech-Reviewe

Hochmoderner 120er-PWM-Fan von Noctua, Focused-Flow-Rahmen Heptaperf-Blattgeometrie, SS02-Lager, schwarzer Rahmen und Rotor

Preiswerter & leiser 120-mm-Lüfter von Noctua, 3-Pin-Anschluss mit 1.300 (U/min), 92,3 m³/h & 19,8 dB(A), 6 Jahre Garantie

Preiswerter & leiser 120-mm-Lüfter von Noctua, 4-Pin-PWM-Anschluss mit 300 - 1.300 (U/min), max. 92,3 m³/h & 19,8 dB(A), 6 Jahre Garantie

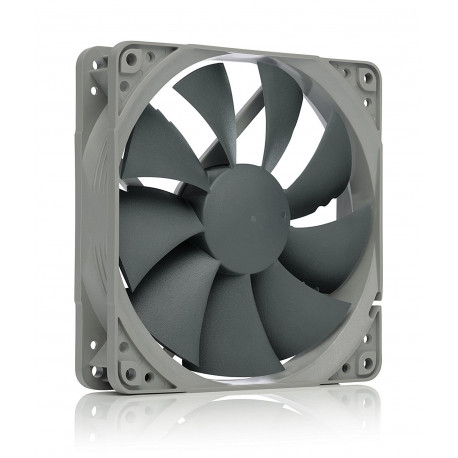

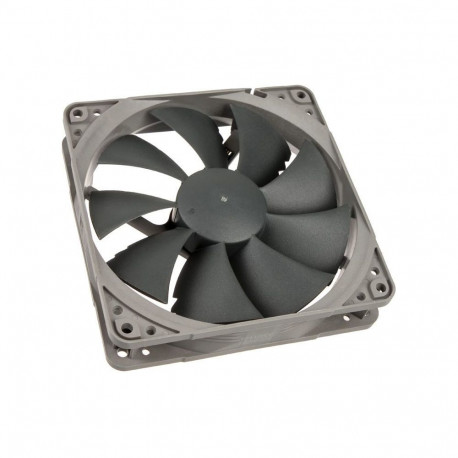

Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1700rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control. Technical Data: Dimensions: 120 x 120 x 25 mm Mounting hole spacing: 105 x 105 mm Connector & pin-configuration: 4-Pin PWM Cable length: 40cm Bearing: SSO-Bearing Blade geometry: Pressure-optimized Nine Blade Design with Vortex-Control Notches Rotational speed (+/- 10%): 1700 RPM Min. rotational speed (PWM, +/-20%): 450 RPM Airflow: 120,2 m³/h Acoustical noise: 25,1 dB(A) Static pressure: 2,83 mm H₂O Max. input power: 1,08 W Max. input current: 0,09 A Operating voltage: 12 V MTTF: > 150.000 h Warranty: 6 years Scope of delivery Fan screws
