The EK-Quantum Momentum Aorus Z490 Master D-RGB is the new Quantum Line monoblock designed specifically for the Gigabyte Aorus Z490 master motherboard. The monoblock is simple and elegant due to its black acetal. Based on the EK Momentum series, the CPU cooler has been further optimised in terms of performance and optimal coolant flow. The cooling plate is made of nickel-plated copper and impresses with its dense micro-rib structure. Thanks to the pre-installed nickel-plated brass screw-in spacers, installation is made easy. The supplied thermal pad is used on voltage regulator modules to improve stability and performance and extend the life of the motherboard. Enclosed: EK-Quantum Momentum Aorus Z490 Master D-RGB Monoblock Mounting mechanism Thermal grease EK-TIM Ectotherm Thermal pads

The EK-Quantum Momentum Aorus Z490 Master D-RGB is the new Quantum Line monoblock designed specifically for the Gigabyte Aorus Z490 master motherboard. The top side of the monoblock is made of acrylic glass and the integrated addressable D-RGB lighting sets the block perfectly in scene. Based on the EK Momentum series, the CPU cooler has been further optimised in terms of performance and optimum coolant flow. The cooling plate is made of nickel-plated copper and impresses with its dense micro-rib structure. Thanks to the pre-installed nickel-plated brass screw-in spacers, installation is made easy. The supplied thermal pad is used on voltage regulator modules to improve stability and performance and extend the life of the motherboard. The block is equipped with a 3-pin 5V addressable D-RGB LED strip compatible with the 3-pin 5V D_LED (addressable LED strip) headers of the Aorus Z490 Master. This product is also compatible with D-RGB controllers that support the pin assignment: +5V, D, Blocked, Ground. The arrow marking on the 3-pin LED connector must be aligned with the +5V marking on the D_LED (addressable LED strips). Technical Data D-RGB-Anschluss 3-polige 5V-Digital-LED-Stiftleiste (Pinbelegung: +5V, D, blockiert, Masse) Enclosed: EK-Quantum Momentum Aorus Z490 Master D-RGB Monoblock Mounting mechanism Thermal grease EK-TIM Ectotherm Thermal pads

The EK-Momentum Aorus Z490 Xtreme D-RGB monoblock effectively cools the CPU and voltage converters of a Gigabyte Aorus Z490 Xtreme motherboard thanks to the EK Magnitude CPU cooling. The nickel-plated copper base in particular ensures high thermal conductivity. The integrated RGB LED lighting is particularly attractive in combination with the acrylic glass. Of course, the lighting is also compatible with RGB Fusion 2.0 from Gigabyte and can thus be synchronised perfectly. Technical Data: Dimensions: 154,25 x 134,30 x 41,53 mm Material Base: Nickel-Plated Copper Material Cover: Acrylic Glass Thread: 2x G1/4" D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground) Compatibility: Intel 1200, Gigabyte Aorus Z490 Xtreme Scope of Delivery EK-Quantum Momentum Aorus Z490 Xtreme D-RGB Multiblock Mounting mechanism with bridge extenders Thermal grease Thermal Grizzly Hydronaut Thermal pads

EK-Quantum Momentum ROG XIII Hero - Acetal is the new Quantum Line monoblock specifically engineered for the ROG® Maximus XIII Hero – an Intel® Z590 chipset-based motherboard. Featuring the latest generation Velocity cooling engine with low restriction and high performance, this monoblock is boasting a stealthy black design that plays great with accent LED lighting on the ROG Maximus XIII Hero motherboard. EK® Momentum series monoblocks utilize the 5th generation of the award-winning EK® CPU water block cooling engine, further tweaked for performance and optimal coolant flow! This water block directly cools Intel® 1200 socket-type CPU, as well as the power regulation (MOSFET) module. Liquid flows directly over all critical areas, providing the enthusiasts with a great solution for high and stable overclocks. Like with every EK monoblock, the EK-Quantum Momentum ROG Maximus XIII Hero features a high flow design and it can be easily used with the system using a weaker water pump or lower pump speed settings as well. The Momentum monoblock also comes with sophisticated addressable D-RGB lightning which connects to a 3-pin ADD_Gen2 header on the motherboard. The purest nickel-plated copper available on the market is used for the cold plate which is precisely machined to a dense micro-fin structure. The nickel-plated brass screw-in standoffs are pre-installed and allow for easy installation. The top of the monoblock features a CNC machined black POM acetal top piece. The new cooling engine is characterized by the top-integrated jet nozzle which is combined with a thicker jet plate allowing a more precise bow control. The simplified water block structure offers a more optimized coolant flow and easier maintenance, while the jet plate ensures the best contact surface for the CPU. Unlike other solutions on the market, this is a true one-piece, sturdy and reliable liquid cooling product that requires only two connector fittings for proper operation. The enclosed thermal pad is used on voltage regulator modules to improve stability, performance, and prolong the lifespan of the motherboard. For the CPU, please use the enclosed (electrically non-conductive) thermal grease EK-TIM Ectotherm. Technical Data Material: Nickel, Acetal Threads: G1/4" Intel Socket: 1200 Enclosed EK-Quantum Momentum ROG Maximus XIII Hero Monoblock Mounting mechanism Thermal grease EK-TIM Ectotherm Thermal pads

EK-Quantum Momentum ROG Rampage VI Encore D-RGB is the new Quantum Line monoblock specifically engineered for the ROG Rampage VI Extreme Encore motherboard. Featuring the latest cooling engine with low restriction and high performance. The monoblock is equipped with a 3-pin D-RGB (addressable) LED strip and it offers unparalleled aesthetical customization alongside superior performance! The D-RGB LED in the monoblock is compatible with ASUS® Aura Sync which offers a fully addressable customization experience! EK® Momentum series monoblocks utilize the 5th generation of the award-winning EK® CPU water block cooling engine, further tweaked for performance and optimal coolant flow! It directly cools the Intel® Socket 2066 type CPU, as well as the power regulation (MOSFET) module providing the enthusiasts with a great solution for high and stable overclocks. Like with every EK monoblock, the EK-Quantum Momentum ROG Rampage VI Encore features a high flow design and it can be easily used with the system using weaker water pump or lower pump speed settings as well. Using a monoblock gets rid of the two small fans that can be found on this X299 motherboard, hidden under the VRM heatsink grill. The purest nickel-plated copper available on the market is used for the cold plate which is precisely machined to a dense micro-fin structure. The nickel-plated brass screw-in standoffs are pre-installed and allow for easy installation. Top of the monoblock features a CNC machined cast acrylic top piece. The new cooling engine is characterized by the top-integrated jet nozzle which is combined with a thicker jet plate allowing a more precise bow control. The simplified water block structure offers a more optimized coolant flow and easier maintenance, while the jet plate ensures the best contact surface for the CPU. The monoblock is delivered with a CNC machined, black anodized aluminum piece that acts as a heatsink for critical components under the I/O cover, such as the network chip, and at the same time, it is the mount for the factory I/O cover, that embodies the small OLED screen. Unlike other solution on the market, this is a true one-piece, sturdy and reliable liquid cooling product which requires only two connector fittings for proper operation. The enclosed thermal pad is used on voltage regulator modules to improve stability, performance and prolongs the lifespan of the motherboard. For the CPU, please use the enclosed (electrically non-conductive) thermal grease EK-TIM Ectotherm. The block is already equipped with 3-pin 5V Addressable D-RGB LED strip which is compatible with the motherboard 3-pin 5V Addressable D-RGB LED header. This product is also compatible with popular RGB sync technologies from all major motherboard manufacturers which support the pinout: +5V, D, Blocked, Ground. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the addressable gen2 LED header (ADD GEN2_1 and ADD GEN2_2 marked headers). Technical specifications: - RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, blocked, G) Enclosed: - EK-Quantum Momentum ROG Rampage VI Encore Monoblock - I/O heatsink - Mounting mechanism - Thermal grease EK-TIM Ectotherm - Thermal pads Made in Slovenia - Europe!

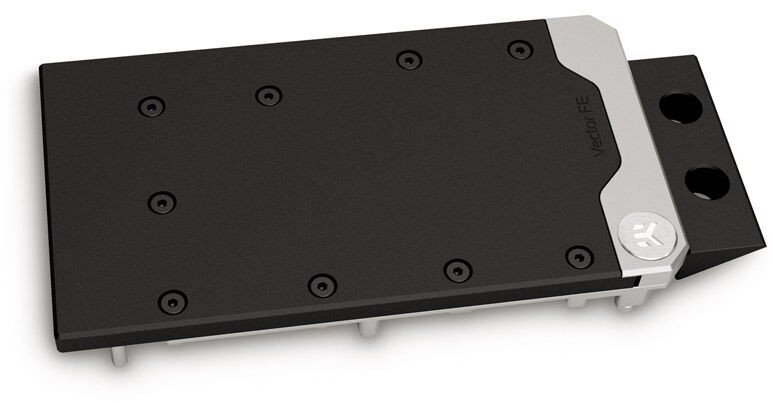

The EK Quantum Vector RE RTX 3070 from EK is a complete cooler for the Founders Edition of the RTX 3070 from Nvidia. The high-quality workmanship and the nickel-plated copper material used for the heat sink are striking. The nickel-plated copper covers all important areas of the graphics card, such as GPU, memory and voltage converter. The optimised channel structure results in very efficient and reliable cooling. Visually, the black acetal lid stands out, which is rounded off by a metallic trim. In addition, the cooler has four G1/4" connections, which, however, are found on the short side instead of on the upper long side as usual. Technical Data Dimensions: 205 x 98 x 21 mm Material Base: Nickel-Plated Copper Material Cover: Acetal Thread: 4x G1/4" Compatibility NVIDIA GeForce RTX 3070 (Founders Edition) Scope of Delivery EK-Quantum Vector RE RTX 3070 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

The EK-Quantum Vector FE RTX 3070 backplate is designed for the EK-Quantum Vector RTX FE 3070 graphics card cooler of the same name. A backplate is particularly suitable for giving the graphics card more stability. Since the backplate is kept very simple, it is rounded off by a small but elegant EK logo. Technical Data Material: Aluminium Color: Black Scope of Delivery EK-Quantum Vector FE RTX 3070 Backplate - Black Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

The EK-Quantum Vector FE RTX 3070 backplate is designed for the EK-Quantum Vector RTX FE 3070 graphics card cooler of the same name. A backplate is particularly suitable for giving the graphics card more stability. Since the backplate is kept very simple, it is rounded off by a small but elegant EK logo. Technical Data Material: Nickel-Plated Aluminium Color: Nickel Scope of Delivery EK-Quantum Vector FE RTX 3070 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

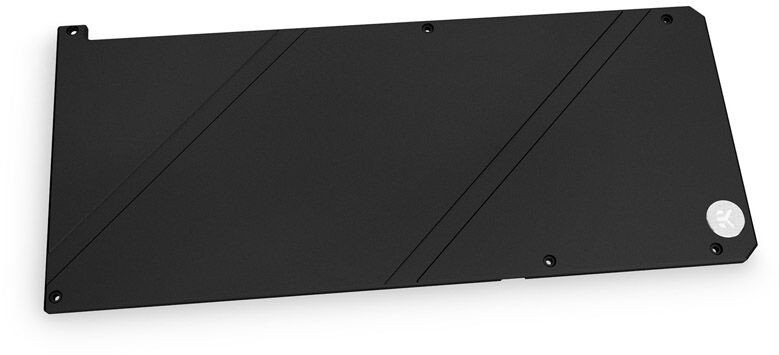

EK-Quantum Vector FE RTX 3080 Backplate - Black is a CNC machined retention backplate made from black anodized aluminum for the EK-Quantum Vector FE RTX 3080 - Special Edition water block. The backplate covers the backside of the graphics card's PCB and serves as an aesthetic add-on. It provides additional passive cooling for the GPU core and rear of the printed circuit board VRM section. Due to the small size of both the card and the water block, the backplate boasts a ribbed design for additional passive cooling power. Enclosed EK-Quantum Vector FE RTX 3080 Backplate - Black Mounting screws Thermal pads

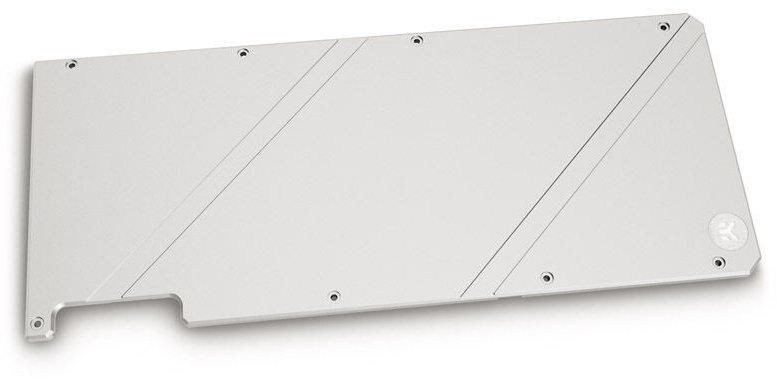

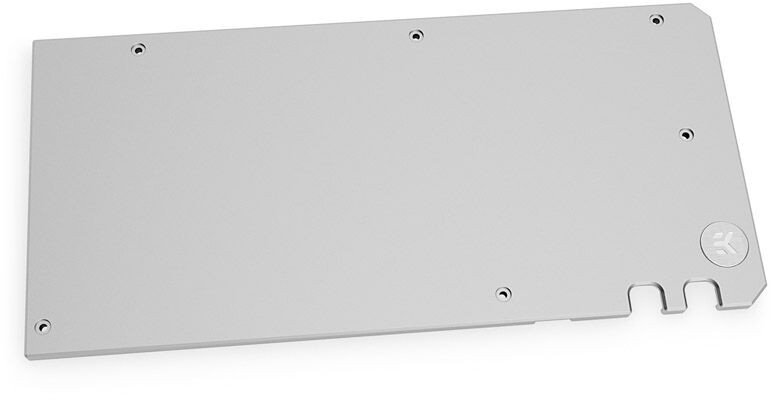

EK-Quantum Vector FE RTX 3080 Backplate - Silver is a CNC machined retention backplate made from silver anodized aluminum for the EK-Quantum Vector FE RTX 3080 - Special Edition water block. The backplate covers the backside of the graphics card's PCB and serves as an aesthetic add-on. It provides additional passive cooling for the GPU core and rear of the printed circuit board VRM section. Due to the small size of both the card and the water block, the backplate boasts a ribbed design for additional passive cooling power. Enclosed EK-Quantum Vector FE RTX 3080 Backplate - Silver Mounting screws Thermal pads

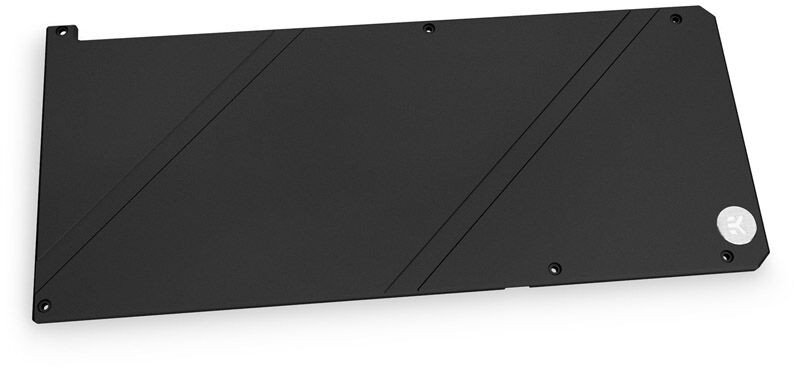

EK-Quantum Vector FE RTX 3090 Backplate - Black is a CNC machined retention backplate made from black anodized aluminum for the EK-Quantum Vector FE RTX 3090 - Special Edition water block. The backplate covers the backside of the graphics card's PCB and serves as an aesthetic add-on. It provides additional passive cooling for the GPU core, rear-mounted VRAM and backside of the printed circuit board VRM section. Due to the small size of both the card and the water block, the backplate boasts a ribbed design for additional passive cooling power and touches the active part of the water block for true hybrid cooling. Enclosed EK-Quantum Vector FE RTX 3090 Backplate - Black Mounting screws Thermal pads

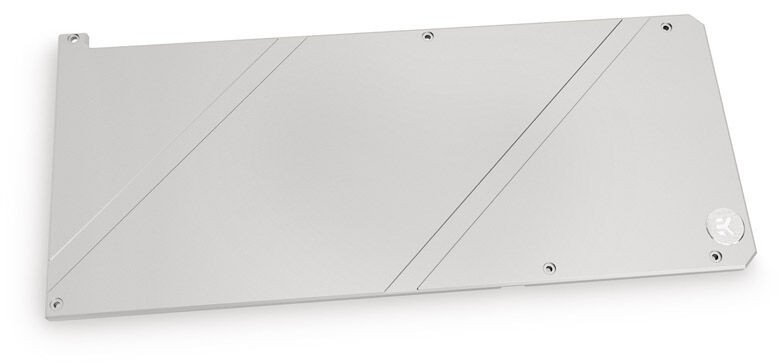

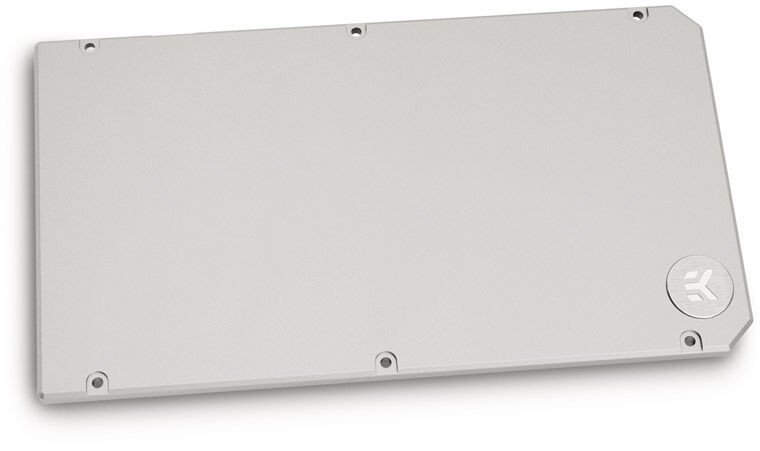

EK-Quantum Vector FE RTX 3090 Backplate - Silver is a CNC machined retention backplate made from silver anodized aluminum for the EK-Quantum Vector FE RTX 3090 - Special Edition water block. The backplate covers the backside of the graphics card's PCB and serves as an aesthetic add-on. It provides additional passive cooling for the GPU core, rear-mounted VRAM and backside of the printed circuit board VRM section. Due to the small size of both the card and the water block, the backplate boasts a ribbed design for additional passive cooling power and touches the active part of the water block for true hybrid cooling. Enclosed EK-Quantum Vector FE RTX 3090 Backplate - Silver Mounting screws Thermal pads

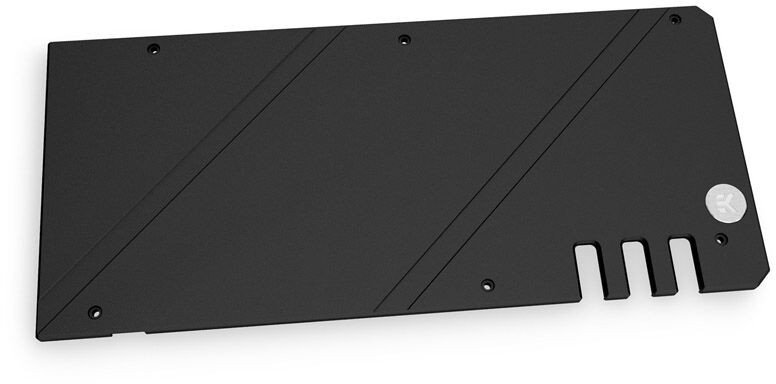

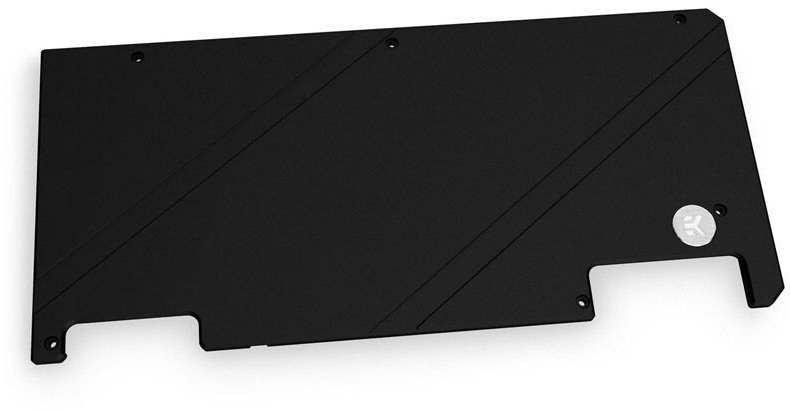

EK-Quantum Vector FTW3 RTX 3070 Backplate - Black is a CNC machined retention backplate made from black anodized aluminum, that fits all EK-Quantum Vector FTW3 RTX 3070 water blocks. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM) and the GPU core. Enclosed EK-Quantum Vector FTW3 RTX 3070 Backplate - Black Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

EK-Quantum Vector FTW3 RTX 3070 Backplate - Nickel is a CNC machined retention backplate made from nickel-plated aluminum, that fits all EK-Quantum Vector FTW3 RTX 3070 water blocks. The backplate covers the whole length of the graphics cards PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM) and the GPU core. Enclosed EK-Quantum Vector FTW3 RTX 3070 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

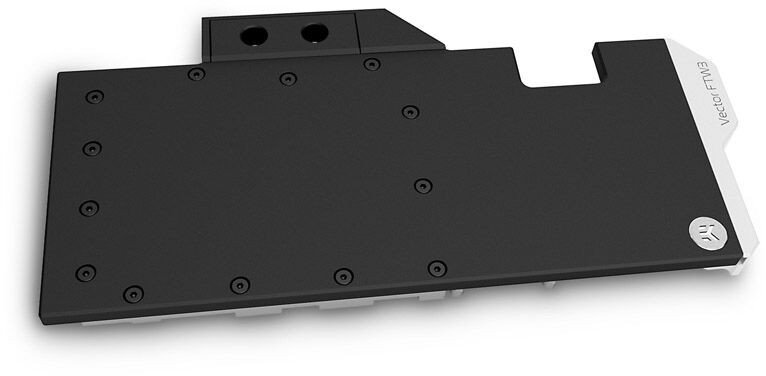

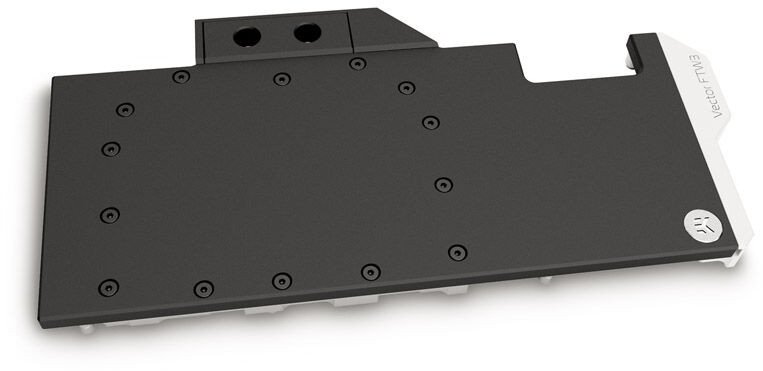

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for EVGA® FTW3 RTX 3070 graphics cards based on the latest NVIDIA® Ampere™ architecture. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator. An EK Water Block for FTW3 RTX 3070EK-Quantum Vector FTW3 3070 D-RGB water block is compatible with FTW3 RTX 3070 graphics cards. The Vector water block actively cools the GPU, VRAM, power stages, and chokes in the VRM (voltage regulation module). These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The fin array is populated by 28 microfins with 0.6mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards. The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable POM acetal. These 2nd generation Vector GPU water blocks also feature Acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector FTW3 RTX 3070 D-RGB water blockThe aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the EK-Quantum Vector FTW3 3070 water blockEK recommends the purchase of a retention backplate, especially for the 3070 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, and backside of the printed circuit board VRM section. Technical Specification Dimensions: (LxHxW) - 314x155x21mm Enclosed EK-Quantum Vector FTW3 RTX 3070 D-RGB series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

EK-Quantum Vector FTW3 RTX 3070 Ti Backplate - Black is a CNC machined retention backplate made of black anodized aluminum that fits all EK-Quantum Vector FTW3 RTX 3070 Ti water blocks. The backplate covers the entire length of the graphics card PCB, serves as an aesthetic add-on and also provides passive cooling for the back of the voltage regulation module (VRM) and the GPU core. Scope of delivery: EK-Quantum Vector FTW3 RTX 3070 Ti Backplate - Black Mounting mechanism (backplate screws are on the other side - separate compartment)* Thermal pads

EK-Quantum Vector FTW3 RTX 3070 Ti Backplate - Black is a CNC machined retention backplate made of black anodized aluminum that fits all EK-Quantum Vector FTW3 RTX 3070 Ti water blocks. The backplate covers the entire length of the graphics card PCB, serves as an aesthetic add-on and also provides passive cooling for the back of the voltage regulation module (VRM) and the GPU core. Scope of delivery: EK-Quantum Vector FTW3 RTX 3070 Ti Backplate - Black Mounting mechanism (backplate screws are on the other side - separate compartment)* Thermal pads

The EK-Quantum Vector FTW3 RTX 3080/3090 backplate is intended for the EK-Quantum Vector FTW3 RTX 3080/3090 graphics card cooler of the same name. A backplate is particularly suitable for giving the graphics card more stability. As the backplate is kept very simple, it is rounded off by a small but elegant EK logo. Technical Data Material: Nickel-Plated Aluminium Color: Nickel Scope of Delivery EK-Quantum Vector FTW3 RTX 3080/3090 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

The EK-Quantum Vector FTW3 RTX 3080/3090 D-RGB GPU cooler, has been further developed based on the 2nd generation Vector series and designed for the EVGA FTW3 RTX 3080 and 3090 graphics cards. The Vector water block directly cools the GPU, VRAM and VRM (voltage regulation module), as the cooling fluid is routed directly over these critical areas. The base of the block is made of nickel-plated copper, while the top is made of acetal. Furthermore, the cooler has D-RGB lighting, with a total of 9 individually addressable LEDs, which makes the end piece shine pleasantly. The lighting is compatible with all common RGB sync technologies of the major motherboard manufacturers, such as ASRock Polychrome Sync, ASUS Aura Sync, Gigabyte RGB Fusion and MSI Mystic Light. Since the GPU cooler does not have a backplate, it is recommended to order a matching backplate. Such a backplate not only improves stability, but also promotes cooling performance, as it also serves as a passive cooler. Technical Data: Dimensions: 314 x 155 x 20.5mm (L x H x W) Material: Nickel-Plated Copper, Acetal Threads: G1/4" Scope of Delivery: EK-Quantum Vector FTW3 RTX 3080/3090 D-RGB series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g) Compatibility EVGA GeForce RTX 3080 FTW3 Gaming (10G-P5-3895-KR) EVGA GeForce RTX 3080 FTW3 Ultra Gaming (10G-P5-3897-KR) EVGA GeForce RTX 3080 FTW3 Ultra Hybrid Gaming (10G-P5-3898-KR) EVGA GeForce RTX 3080 FTW3 Ultra Hydro Copper Gaming (10G-P5-3899-KR) EVGA GeForce RTX 3090 FTW3 Gaming (24G-P5-3985-KR) EVGA GeForce RTX 3090 FTW3 Ultra Gaming (24G-P5-3987-KR) EVGA GeForce RTX 3090 FTW3 Ultra Hybrid Gaming (24G-P5-3988-KR) EVGA GeForce RTX 3090 FTW3 Ultra Hydro Copper Gaming (24G-P5-3989-KR)

EK-Quantum Vector N+ RX 6800XT/6900XT is a 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for SAPPHIRE NITRO+ 6800XT and 6900XT graphics cards based on the latest AMD® RDNA2™ architecture. EK-Quantum Vector N+ RX 6800XT/6900XT water block for SAPPHIRE NITRO+ GAMING RX 6800 XT and 6900 XT GPUsEK-Quantum Vector N+ RX 6800XT/6900XT water block is compatible with SAPPHIRE NITRO Radeon RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of high-grade nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM Acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum N+ Vector RX 6800XT/6900XT D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the N+ 6800XT/6900XT water blockEK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections. Technical Specification Dimensions: (LxHxW) - 285x149x16.5mm Enclosed EK-Quantum Vector N+ RX 6800XT/6900XT series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

EK-Quantum Vector RE RTX 3080/3090 Active Backplate - Acetal is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector RE RTX 3080/3090 water blocks and actively cool the backside of a reference design NVIDIA® GeForce RTX™ 3080 and 3090 GPU. EK-Quantum Vector RE RTX 3080/3090 Active BackplateEK-Quantum Vector RE RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of this stealthy active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable Black POM acetal. The rest of the backplate is made of anodized aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. Technical Specification: Dimensions: (LxHxW) - 223x124x15mm Enclosed: EK-Quantum Vector RE RTX 3080/3090 Active Backplate - Acetal Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.

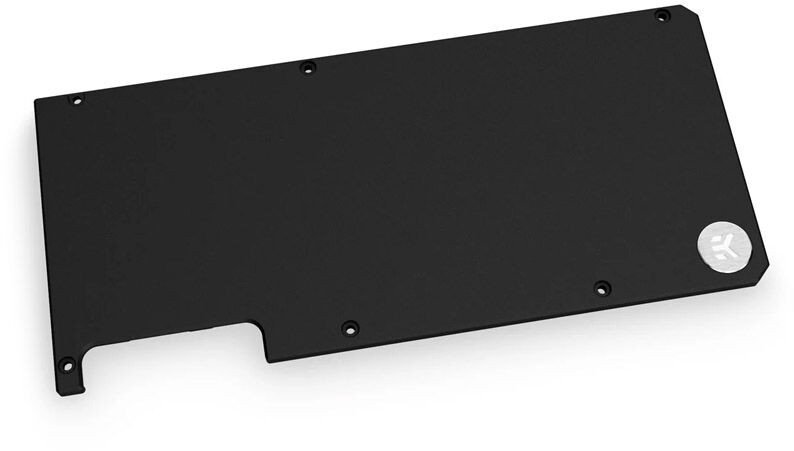

EK-Quantum Vector RTX 3080/3090 Backplate - Black is a CNC-milled backplate made of black anodised aluminium that fits all EK-Quantum Vector RTX 3080/3090 water blocks. The backplate covers the full length of the graphics card PCB, serves as an aesthetic addition and also provides passive cooling for the back of the voltage regulator module (VRM), the GPU core and the VRAM on the 3090 cards. Enclosed: EK-Quantum Vector RTX 3080/3090 rear panel - Black Assembly mechanism Thermal pads

EK-Quantum Vector RX 6700XT Backplate - Black is a CNC machined black anodized aluminum backplate that matches the EK-Quantum Vector RX 6700XT D-RGB - Nickel water block. The backplate covers the entire length of the graphics card board, serves as an aesthetic add-on and also provides passive cooling for the back of the voltage regulation module (VRM), VRAM and GPU core. Scope of delivery: EK-Quantum Vector RX 6700XT Backplate - Black Mounting mechanism (backplate screws are on the other side - separate compartment)* Thermal pads

EK-Quantum Vector RX 6700XT Backplate - Black is a CNC machined black anodized aluminum backplate that matches the EK-Quantum Vector RX 6700XT D-RGB - Nickel + Plexi water block. The backplate covers the entire length of the graphics card board, serves as an aesthetic add-on and also provides passive cooling for the back of the voltage regulation module (VRM), VRAM and GPU core. Scope of delivery: EK-Quantum Vector RX 6700XT Backplate - Black Mounting mechanism (backplate screws are on the other side - separate compartment)* Thermal pads

The EK-Quantum Vector RX 6800/6900 GPU cooler, has been further developed based on the 2nd generation Vector series and is compatible with most reference designs of RX 6800, RX 6800XT and RX 6900 graphics cards. The Vector RE water block directly cools the GPU, the VRAM and the VRM (voltage regulation module), as the cooling fluid is routed directly over these critical areas. The base of the block is made of copper, while the top is made entirely of black durable POM acetal. Since the GPU cooler does not have a backplate, it is recommended to order a matching backplate. Such a backplate not only improves stability, but also promotes cooling performance, as it also serves as a passive cooler. Technical Data: Dimensions: 283 x 139 x 16.5mm (L x H x W) Material: Copper, Acetal Threads: G1/4" Scope of Delivery: EK-Quantum Vector RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g) Compatibility AMD Radeon RX 6800 AMD Radeon RX 6800 XT AMD Radeon RX 6900 XT ASROCK Radeon RX 6800 16GB (visual) ASROCK Radeon RX 6900 XT 16GB (visual) ASUS Radeon RX 6800 XT 16GB(visual) ASUS Radeon RX 6800, RX6800-16G, 16GB GDDR6 (90YV0FY0-U0NA00) (visual) ASUS Radeon RX 6900 XT 16GB (RX6900XT-16G) (visual) BIOSTAR Radeon RX 6900 XT 16GB (visual) GIGABYTE Radeon RX 6800 16GB (visual) GIGABYTE Radeon RX 6800 XT 16GB (visual) Gigabyte Radeon RX 6900 XT, 16GB GDDR6, HDMI, 2x DP, USB-C (GV-R69XT-16GC-B) (visual) MSI Radeon RX 6800 16GB (visual) MSI Radeon RX 6800 XT 16GB (visual) MSI Radeon RX 6900 XT 16GB (visual) POWERCOLOR Radeon RX 6900 XT 16GB (visual) SAPPHIRE Radeon RX 6800 16GB (visual) SAPPHIRE Radeon RX 6900 XT 16GB (21308-01-20G) (visual) SAPPHIRE RX 6800 XT 16GB (visual)

The EK-Quantum Vector RX 6800/6900 GPU cooler, has been further developed based on the 2nd generation Vector series and is compatible with most reference designs of RX 6800, RX 6800XT and RX 6900 graphics cards. The Vector RE water block directly cools the GPU, the VRAM and the VRM (voltage regulation module), as the cooling fluid is routed directly over these critical areas. The base of the block is made of copper, while the top is acrylic. Since the GPU cooler does not have a backplate, it is recommended to order a matching backplate. Such a backplate not only improves stability, but also promotes cooling performance, as it also serves as a passive cooler. Technical Data: Dimensions: 283 x 139 x 16.5mm (L x H x W) Material: Copper, Acryl Threads: G1/4" Scope of Delivery: EK-Quantum Vector RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g) Compatibility AMD Radeon RX 6800 AMD Radeon RX 6800 XT AMD Radeon RX 6900 XT ASROCK Radeon RX 6800 16GB (visual) ASROCK Radeon RX 6900 XT 16GB (visual) ASUS Radeon RX 6800 XT 16GB(visual) ASUS Radeon RX 6800, RX6800-16G, 16GB GDDR6 (90YV0FY0-U0NA00) (visual) ASUS Radeon RX 6900 XT 16GB (RX6900XT-16G) (visual) BIOSTAR Radeon RX 6900 XT 16GB (visual) GIGABYTE Radeon RX 6800 16GB (visual) GIGABYTE Radeon RX 6800 XT 16GB (visual) Gigabyte Radeon RX 6900 XT, 16GB GDDR6, HDMI, 2x DP, USB-C (GV-R69XT-16GC-B) (visual) MSI Radeon RX 6800 16GB (visual) MSI Radeon RX 6800 XT 16GB (visual) MSI Radeon RX 6900 XT 16GB (visual) POWERCOLOR Radeon RX 6900 XT 16GB (visual) SAPPHIRE Radeon RX 6800 16GB (visual) SAPPHIRE Radeon RX 6900 XT 16GB (21308-01-20G) (visual) SAPPHIRE RX 6800 XT 16GB (visual)

The EK-Quantum Vector RX 6800/6900 GPU cooler, has been further developed based on the 2nd generation Vector series and is compatible with most reference designs of RX 6800, RX 6800XT and RX 6900 graphics cards. The Vector RE water block directly cools the GPU, the VRAM and the VRM (voltage regulation module), as the cooling fluid is routed directly over these critical areas. The base of the block is made of nickel-plated copper, while the top is made entirely of black durable POM acetal. The end piece of the cooler has D-RGB lighting, with a total of 6 individually addressable LEDs, which makes the end piece shine pleasantly. The lighting is compatible with all common RGB Sync technologies of the major motherboard manufacturers, such as ASRock Polychrome Sync, ASUS Aura Sync, Gigabyte RGB Fusion and MSI Mystic Light. Since the GPU cooler does not have a backplate, it is recommended to order a matching backplate. Such a backplate not only improves stability, but also promotes cooling performance, as it also serves as a passive cooler. Technical Data: Dimensions: 283 x 139 x 16.5mm (L x H x W) Material: Nickel-Plated Copper, Acetal Threads: G1/4" Scope of Delivery: EK-Quantum Vector RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g) Compatibility AMD Radeon RX 6800 AMD Radeon RX 6800 XT AMD Radeon RX 6900 XT ASROCK Radeon RX 6800 16GB (visual) ASROCK Radeon RX 6900 XT 16GB (visual) ASUS Radeon RX 6800 XT 16GB(visual) ASUS Radeon RX 6800, RX6800-16G, 16GB GDDR6 (90YV0FY0-U0NA00) (visual) ASUS Radeon RX 6900 XT 16GB (RX6900XT-16G) (visual) BIOSTAR Radeon RX 6900 XT 16GB (visual) GIGABYTE Radeon RX 6800 16GB (visual) GIGABYTE Radeon RX 6800 XT 16GB (visual) Gigabyte Radeon RX 6900 XT, 16GB GDDR6, HDMI, 2x DP, USB-C (GV-R69XT-16GC-B) (visual) MSI Radeon RX 6800 16GB (visual) MSI Radeon RX 6800 XT 16GB (visual) MSI Radeon RX 6900 XT 16GB (visual) POWERCOLOR Radeon RX 6900 XT 16GB (visual) SAPPHIRE Radeon RX 6800 16GB (visual) SAPPHIRE Radeon RX 6900 XT 16GB (21308-01-20G) (visual) SAPPHIRE RX 6800 XT 16GB (visual)

The EK-Quantum Vector Strix RTX 3070 D-RGB from EK is a complete cooler for the graphics card of the ROG Strix RTX 3070 from ASUS. The high-quality workmanship and the nickel-plated copper material used for the heat sink are striking. The copper covers all important areas of the graphics card, such as GPU, memory and voltage converter. The optimised channel structure provides very efficient and reliable cooling. Visually, the cooler is rounded off with a black acetal lid and has four G1/4" connections. But there's more: an addressable D-RGB strip is also integrated, which provides a little illumination even on dark gaming days. The graphics card cooler is compatible with the common RGB synchronisation technologies of all major mainboard manufacturers. Technical Data Material: Nickel-Plated Copper (bottom), Acetal (cover) Color: Black Thread: 4x G1/4" D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) D-RGB LED count: 6 D-RGB cable length: 500mm Compatibility Asus ROG Strix RTX 3070 Scope of Delivery EK-Quantum Vector Strix RTX 3070 D-RGB series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

EK-Quantum Vector Strix RTX 3070 D-RGB from EK is a complete cooler for the ROG Strix RTX 3070 from ASUS. The high-quality workmanship and the nickel-plated copper material used for the heat sink are striking. The nickel-plated copper covers all important areas of the graphics card, such as GPU, memory and voltage converter. The optimised channel structure results in very efficient and reliable cooling. Visually, the cooler is rounded off with a transparent acrylic glass lid and a black end piece. The integrated RGB lighting sets the scene perfectly for the EK Quantum. In addition, the cooler has four G1/4" connections. The graphics card cooler is compatible with the common RGB synchronisation technologies of all major mainboard manufacturers. Technical Data Dimensions: 293 x 154 x 16,5 mm Material Base: Nickel-Plated Copper Material Cover: Acryl Thread: 4x G1/4" D-RGB cable length: 500mm D-RGB LED count: 6 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Compatibility ASUS ROG Strix RTX 3070 Scope of Delivery EK-Quantum Vector Strix RTX 3070 D-RGB series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

EK-Quantum Vector Strix RX 5700 +XT Backplate is a CNC machined retention backplate made from black anodized aluminum for EK-Vector Radeon RX 5700 +XT series water blocks. Backplate covers the whole length of graphics cards PCB, serves as an aesthetic add-on and also provides passive cooling for the backside of the voltage regulation module (VRM). This backplate is guaranteed to be compatible with ROG Strix Radeon™ RX 5700 XT series graphics cards. Enclosed: - EK-Quantum Vector Strix RX 5700 +XT Backplate - Black - Mounting mechanism - Thermal pads Made in Slovenia - Europe!

EK-Quantum Vector Strix RX 6800/6900 Backplate - Black is a CNC machined retention backplate made from black anodized aluminum, that fits all EK-Quantum Vector Strix RX 6800/6900 water blocks. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM), VRAM, and the GPU core. Enclosed EK-Quantum Vector RX Strix 6800/6900 Backplate - Black Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

EK-Quantum Vector Strix RX 6800/6900 Backplate - Nickel is a CNC machined retention backplate made from nickel-plated aluminum, that fits all EK-Quantum Vector Strix RX 6800/6900 water blocks. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM), VRAM, and the GPU core. Enclosed EK-Quantum Vector RX Strix 6800/6900 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

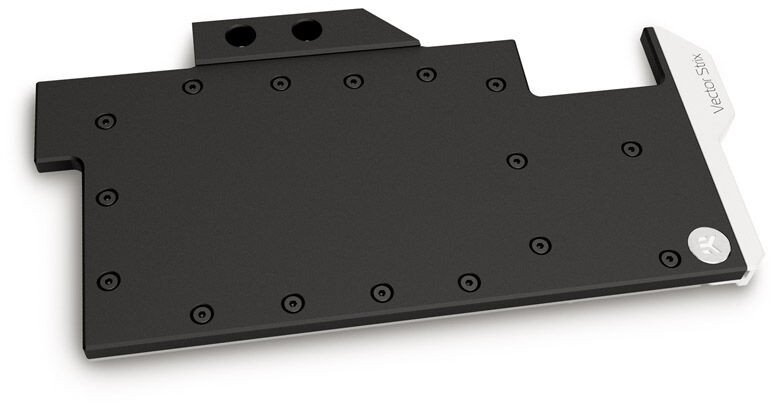

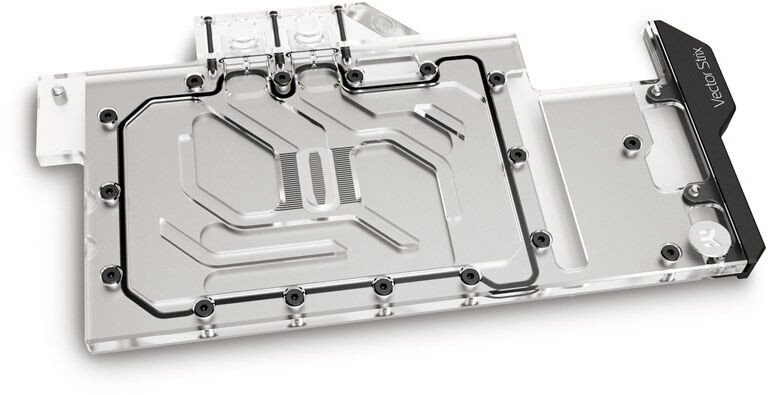

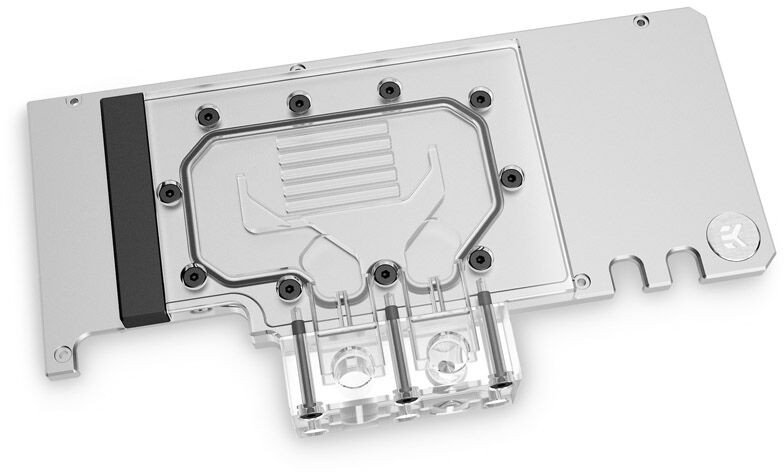

EK-Quantum Vector Strix RX 6800/6900 is a 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for ROG Strix RX 6800, 6800XT, 6900XT graphics cards based on the latest AMD® RDNA2™ architecture. EK-Quantum Vector Strix RX 6800/6900 water block for ROG Strix GAMING RX 6800 and 6900 GPUsEK-Quantum Vector RX 6800/6900 water block is compatible with ASUS® ROG Strix GAMING Radeon RX 6800, RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of high-grade nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector Strix RX 6800/6900 D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the Strix 6800/6900 water blockEK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections. Technical Specification Dimensions: (LxHxW) - 300.5x157x19.5mm Enclosed EK-Quantum Vector Strix RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

EK-Quantum Vector Strix RX 6800/6900 is a 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for ROG Strix RX 6800, 6800XT, 6900XT graphics cards based on the latest AMD® RDNA2™ architecture. EK-Quantum Vector Strix RX 6800/6900 water block for ROG Strix GAMING RX 6800 and 6900 GPUsEK-Quantum Vector RX 6800/6900 water block is compatible with ASUS® ROG Strix GAMING Radeon RX 6800, RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of high-grade nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector Strix RX 6800/6900 D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the Strix 6800/6900 water blockEK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections. Technical Specification Dimensions: (LxHxW) - 300.5x157x19.5mm Enclosed EK-Quantum Vector Strix RX 6800/6900 series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

EK-Quantum Vector Strix RTX 3080/3090 Backplate - Black is a CNC-milled backplate made of black anodised aluminium that fits all EK-Quantum Vector Strix RTX 3080/3090 water blocks. The backplate covers the full length of the graphics card PCB, serves as an aesthetic addition and also provides passive cooling for the back of the voltage regulator module (VRM), the GPU core and the VRAM on the 3090 cards. Enclosed: EK-Quantum Vector Strix RTX 3070/3080/3090 back plate - Black Assembly mechanism Thermal pads

EK-Quantum Vector Strix RTX 3080/3090 Backplate - Nickel is a CNC-milled backplate made of nickel-plated aluminium that fits all EK-Quantum Vector Strix RTX 3070/3080/3090 water blocks. The backplate covers the full length of the graphics card PCB, serves as an aesthetic addition and also provides passive cooling for the back of the voltage regulator module (VRM), the GPU core and the VRAM on the 3090 cards. Enclosed: EK-Quantum Vector Strix RTX 3070/3080/3090 back plate - nickel Assembly mechanism Thermal pads

EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB - Acryl is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector Trinity RTX 3080/3090 water blocks and actively cool the backside of all ZOTAC® GeForce RTX™ 3080 and 3090 Trinity GPU. EK-Quantum Vector Trinity RTX 3080/3090 Active BackplateEK-Quantum Vector Trinity RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The rest of the backplate is made of nickel-plated aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acrylic terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. D-RGB lighting on EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Technical Specification Dimensions: (LxHxW) - 231x124x15mm D-RGB cable length: 500mm D-RGB LED count: 8 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Enclosed EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB - Acryl Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.

EK-Quantum Vector TUF RTX 3070 Backplate - Nickel is a CNC machined retention backplate made from nickel-plated aluminum, that fits EK-Quantum Vector TUF RTX 3070 D-RGB - Nickel + Acryl water block. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM), the GPU core, and VRAM. Enclosed EK-Quantum Vector TUF RTX 3070 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment) Thermal pads

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for ASUS® TUF RTX 3070 graphics cards based on the latest NVIDIA® Ampere™ architecture. EK-Quantum Vector TUF 3070 D-RGB water block is compatible with ASUS TUF Gaming RTX 3070 graphics cards.The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with the power stages and inductors of the VRM. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. Additionally, this new design allows the terminal to be screwed directly onto the copper cold plate of the GPU block, making it more rigid and reducing the chances of damaging the water block. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector TUF RTX 3070 D-RGB water blockThe aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the EK-Quantum Vector TUF RTX 3070 D-RGB water blockEK recommends the purchase of a retention backplate. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, VRAM, and backside of the printed circuit board VRM section. Technical Specification Dimensions: (LxHxW) - 255x149x20.5mm D-RGB cable length: 500mm D-RGB LED count: 8 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Enclosed EK-Quantum Vector TUF RTX 3070 D-RGB series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate - Acetal is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector XC3 RTX 3080/3090 water blocks and actively cool the backside of all EVGA® GeForce RTX™ 3080 and 3090 XC3 GPU. EK-Quantum Vector XC3 RTX 3080/3090 Active BackplateEK-Quantum Vector XC3 RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. The base of this stealthy active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable Black POM acetal. The rest of the backplate is made of anodized aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings. Technical Specification Dimensions: (LxHxW) - 274x124x15mm Enclosed EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate - Acetal Necessary mounting screws, nuts, and washers 1x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Warning: EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads. Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package. EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.

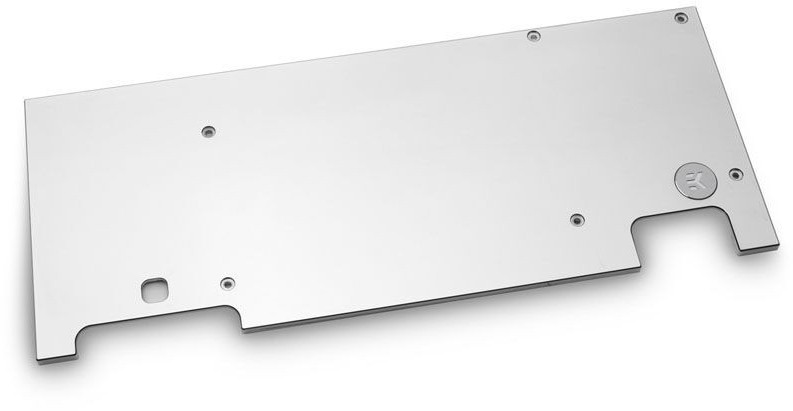

EK-Quantum Vector Xtreme RTX 3080/3090 Backplate - Nickel is a CNC machined retention backplate made from nickel-plated aluminum, that fits all EK-Quantum Vector Xtreme RTX 3080/3090 water blocks. The backplate covers the whole length of the graphics card's PCB, serves as an aesthetic add-on, and also provides passive cooling for the backside of the voltage regulation module (VRM), the GPU core, and rear-mounted VRAM on the 3090 cards. Enclosed EK-Quantum Vector Xtreme RTX 3080/3090 Backplate - Nickel Mounting mechanism (the backplate screws are on the other side - separate compartment)* Thermal pads

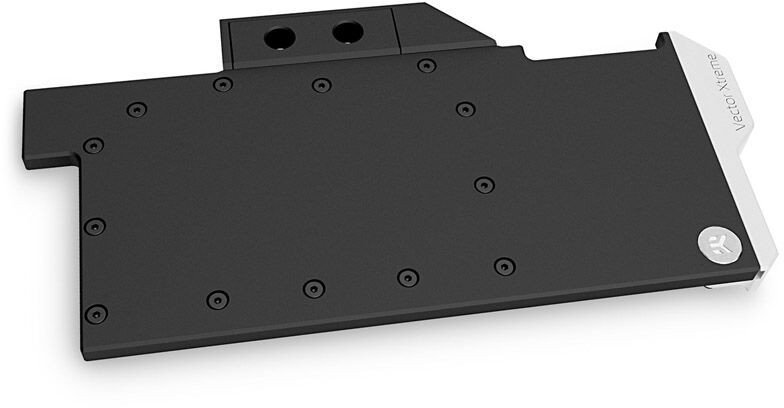

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for AORUS® Xtreme and Master RTX 3080 and 3090 graphics cards based on the latest NVIDIA® Ampere™ architecture. An EK water block for Xtreme and Master RTX 3080 and 3090EK-Quantum Vector Xtreme 3080/3090 D-RGB - Nickel + Acetal water block is compatible with Aorus Xtreme and Master RTX 3080 and RTX 3090 graphics cards. The Vector water block actively cools the GPU, VRAM (on the front), power stages, and chokes in the VRM (voltage regulation module). These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation. The base of the block is CNC-machined out of nickel-plated high-grade copper, while its top is CNC-machined out of durable black POM Acetal. These 2nd generation Vector GPU water blocks also feature Acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector Xtreme RTX 3080/3090 D-RGB water blockThe aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the EK-Quantum Vector Xtreme 3080/3090 water blockEK recommends the purchase of a retention backplate, especially for the 3090 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section. Technical Specification Dimensions: (LxHxW) - 295x150.5x20.5mm Enclosed EK-Quantum Vector Xtreme RTX 3080/3090 D-RGB series high-performance water block Mounting mechanism with screw-in brass standoffs Necessary mounting screws, nuts, and washers 2x Nickel plated brass plug G1/4” EK-Loop Multi Allen Key (6mm, 8mm, 9mm) Thermal pads Thermal grease EK-TIM Ectotherm (1g)

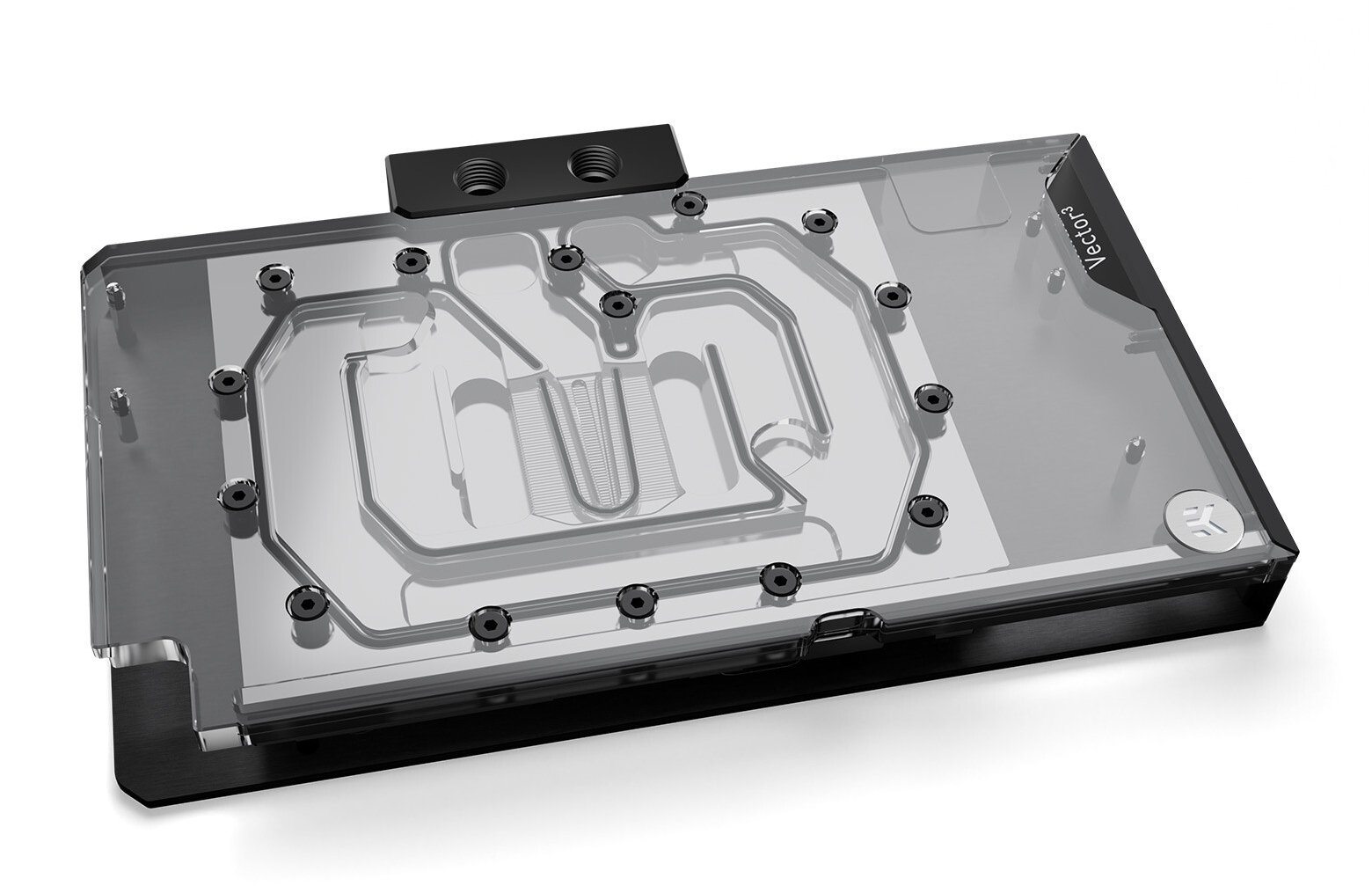

EK Water Blocks EK-Quantum Vector³ TUF RTX 5090 - Plexi: Ultimate Liquid Cooling for Your ASUS TUF RTX 5090 Experience the absolute pinnacle of high-performance liquid cooling with the EK-Quantum Vector³ TUF RTX 5090 – Plexi, designed specifically for the ASUS TUF Gaming GeForce RTX™ 5090 32GB GDDR7 and ASUS TUF Gaming GeForce RTX™ 5090 32GB GDDR7 OC Edition. This premium water block sets new standards in cooling performance, reliability, and aesthetics. With an enhanced, larger cooling engine, higher-performance thermal pads, and an innovative gasket design, the Vector³ TUF RTX 5090 ensures outstanding temperatures even under the most extreme workloads. Unmatched Cooling Performance Through Optimized Cooling Engine The redesigned cooling structure of the Vector³ TUF RTX 5090 maximizes heat transfer with an expanded fin array and optimized coolant flow paths. It actively cools the GPU core, VRAM, and power stages, while the included backplate provides passive cooling for PCB hotspots. Optimized Open Split-Flow Cooling Engine: Superior flow distribution for uniform cooling and reduced restriction. Low Hydraulic Restriction: Compatible with both high- and low-flow pump systems. Ideal for Overclocking & High-Load Applications: Maintain peak GPU performance with consistently low temperatures. Premium Materials and Precision Engineering The Vector³ TUF RTX 5090 is constructed with high-quality components for durability and top-tier performance: Nickel-Plated Electrolytic Copper Coldplate: Maximizes thermal conductivity and longevity. CNC-Machined Cast Acrylic Top: Showcases coolant flow with crystal-clear aesthetics. Black Anodized Aluminum Backplate: Increases cooling surface area and enhances structural integrity. Single O-Ring Seal Design: Minimizes potential failure points for long-term reliability. New Gasket System: Prevents coolant particle buildup between the coldplate and acrylic top, ensuring optimal performance. Pre-Cut High-Performance Thermal Pads: Next-generation thermal pads, partially pre-cut for seamless installation and optimized contact. Included Full-Coverage Backplate Each Vector³ TUF RTX 5090 water block comes with a backplate designed to: Passively cool PCB hotspots, including VRAM, core, and VRM sections. Provide a sleek, modern aesthetic with a black anodized aluminum finish. Simplify installation with pre-installed captive backplate screws. EK-Matrix7 Support – For Perfect Loop Planning The EK-Quantum Vector³ TUF RTX 5090 follows EK-Matrix7 standards, streamlining liquid cooling loop assembly by aligning ports and spacing components for intuitive tube routing. Perfect integration with EK-Quantum Reflection² distribution plates. Straightforward tube bending & loop planning for reduced setup time. Seamless vertical & horizontal GPU mounting for clean, professional builds. Addressable D-RGB Compatibility Addressable D-RGB LED lighting is integrated along the longest edge of both top and backside water blocks for enhanced uniformity and brightness. The PCB and diodes are housed within a clean aluminum extrusion. The individually addressable RGB LEDs are compatible with popular RGB sync technologies from all major motherboard manufacturers. Technical Specifications: Dimensions (L x H x W): 247 x 156 x 27 mm D-RGB LED Count: 13 D-RGB Connector: 3-pin 5V digital LED header D-RGB Cable Length: 500 mm Made in Slovenia – Europe! Maximize your ASUS TUF RTX 5090's potential with the unmatched liquid cooling performance and aesthetic of the EK-Quantum Vector³ TUF RTX 5090 – Plexi!

The EK-Vector Aorus RTX 2080 backplate is intended for the EK-Vector Aorus RTX 2080 cooler for graphics cards. A backplate is especially suitable to give the graphics card more stability. As the backplate is kept very simple, it is rounded off by a small but noble EK logo. Technical Data: Dimensions: 297 x 118,7 x 6,3 mm Material: Aluminium Colour: Silver Compatibility: EK Water Blocks EK-Vector Aorus RTX 2080 RGB - Nickel + Acryl Scope of Delivery: 1x EK-Vector Aorus RTX 2080 Backplate - Nickel, Mounting Mechanism, Thermal Pads

The EK-Vector Radeon RX 5700 +XT backplate is intended for the EK-Vector Radeon RX 5700 +XT RGB cooler of the same name. A backplate is particularly well suited to give the graphics card more stability. As the backplate is kept very simple, it is rounded off by a small but elegant EK logo. Technical Data: Material: Aluminium Colour: Silver Compatibility: EK Water Blocks EK-Vector Radeon RX 5700 +XT RGB - Nickel + Acetal, EK Water Blocks EK-Vector Radeon RX 5700 +XT RGB - Nickel + Plexi Scope of Delivery: 1x EK Water Blocks EK-Vector Radeon RX 5700 +XT Backplate - Nickel, Mounting Mechanism, Thermal Pads

The EK-Vector Strix RTX 2070 backplate is intended for the EK-Vector Strix RTX 2070 RGB cooler of the same name. A backplate is particularly suitable to give the graphics card more stability. As the backplate is kept very simple, it is rounded off by a small but elegant EK logo. Technical Data: Material: Aluminium Color: Schwarz Compatibility: ASUS GeForce RTX 2070 ROG Strix A8G, ASUS GeForce RTX 2070 ROG Strix 8G, ASUS GeForce RTX 2070 ROG Strix O8G, EK Water Blocks EK-Vector Strix RTX 2070 RGB - Nickel + Acryl, EK Water Blocks EK-Vector Strix RTX 2070 RGB - Nickel + Acetal Scope of Delivery: 1x EK-Vector Strix RTX 2070 Backplate - Schwarz, Mounting Mechanism, Thermal Pads

The EK-Vector Strix RTX 2070 backplate is intended for the EK-Vector Strix RTX 2070 RGB cooler of the same name. A backplate is particularly suitable to give the graphics card more stability. As the backplate is kept very simple, it is rounded off by a small but elegant EK logo. Technical Data: Material: Aluminium Color: Silver Compatibility: ASUS GeForce RTX 2070 ROG Strix A8G, ASUS GeForce RTX 2070 ROG Strix 8G, ASUS GeForce RTX 2070 ROG Strix O8G, EK Water Blocks EK-Vector Strix RTX 2070 RGB - Nickel + Acryl, EK Water Blocks EK-Vector Strix RTX 2070 RGB - Nickel + Acetal Scope of Delivery: 1x EK-Vector Strix RTX 2070 Backplate - Nickel, Mounting Mechanism, Thermal Pads

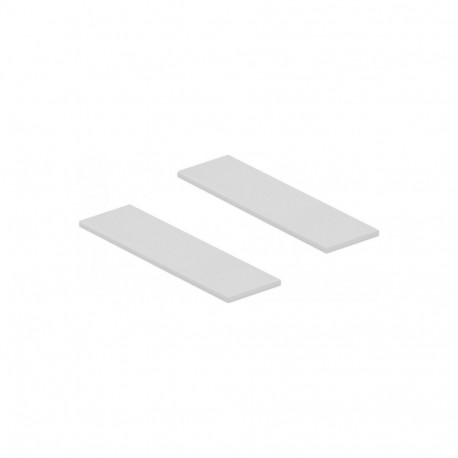

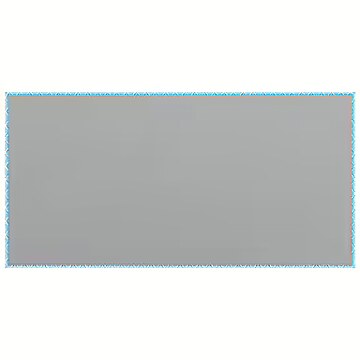

EK Water Blocks Thermal PAD

EK Water Blocks Thermal PAD

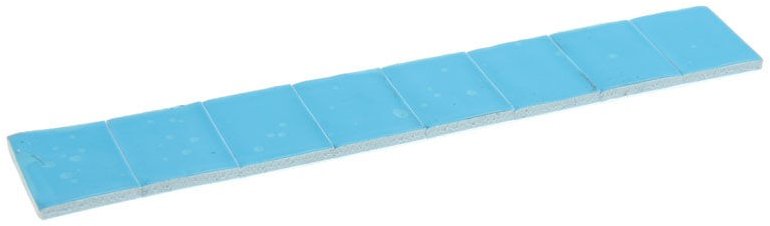

Thermal Pad von EK Water Blocks für hohe Wärmeleitfähigkeit (3,5 W/mK), 100 x 16 mm, vorgeschnitten in acht kleinere Stücke - 1,5 mm Stärke
