Tootekood: KSM56R46BD8-32MHGTIN: 740617360325Arvutid ja komponendid > Operatiivmälud (RAM)

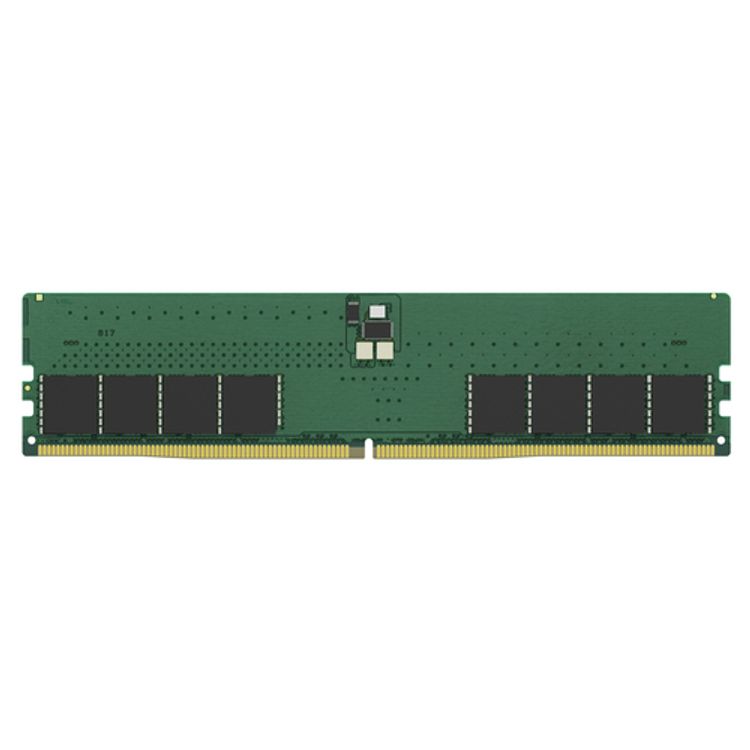

Kingston Server Premier DDR5 32 GB 5600 MT/s ECC Registered: professional memory module designed for compatible servers and workstations requiring high stability and data protection. 32 GB capacity and 5600 MT/s speed ensure efficient support for virtualization, databases, mass storage systems and other demanding business applications. The module uses Registered DIMM technology, which limits the load on the memory controller and enables stable operation of extensive server configurations. 2Rx8 organization and 80-bit design with ECC error correction allow single memory errors to be detected and corrected. Additional On-Die ECC technology protects data inside DRAM chips. The memory uses twenty Micron H-Die FBGA components with 2G x 8-bit organization. Parameters stored in the SPD chip comply with the JEDEC standard and include DDR5-5600 speed, 46-45-45 latencies and 1.1 V voltage. Gold-plated contacts increase the connection's resistance to oxidation, and the standard 288-pin RDIMM format ensures compatibility with appropriate server platforms supporting DDR5 Registered ECC memory. Device type Server memory module RAM EAN 0740617360325 Manufacturer number KSM56R46BD8-32MH Kingston Server Premier Series Memory type DDR5 SDRAM Capacity 32 GB Number of modules 1 Configuration 1x 32 GB Format 288-pin RDIMM Module type Registered DIMM ECC error correction 4G x 80 bit module organization Rank organization 2Rx8 Number of ranks 2 Memory speed 5600 MT/s CL46 CAS latency JEDEC timings 46-45-45 Operating voltage 1.1 V Voltage VPP 1.8 V Voltage VDDSPD From 1.8 to 2.0 V DRAM chip manufacturer Micron DRAM chip version H-Die Number of DRAM components 20 Single chip density 16 Gbit Single chip organization 2G x 8 bit On-Die ECC internal correction ECC design x80, two independent 40-bit input and output subchannels Number of internal banks 32 Hard and Soft Post Package Repair memory function I3C and I2C side access Gold-plated contacts Operating temperature From 0°C to 95°C Storage temperature From -55°C to 100°C Height 31.25 mm module Module length 133.35 mm Compatibility Compatible servers and workstations supporting DDR5 RDIMM ECC memory
