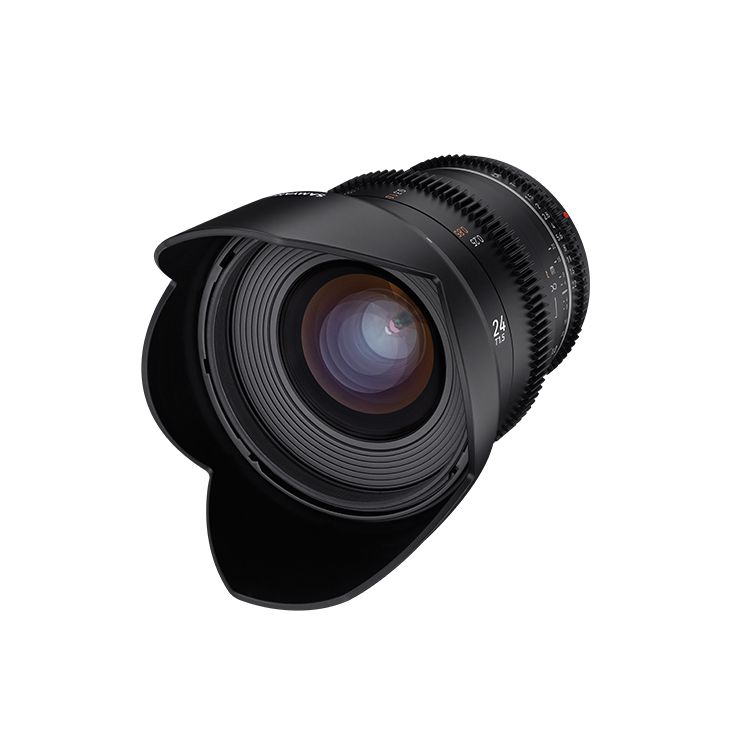

Samyang objektiiv MF 24mm TF1.5 VDSLR MK2 Fuji X

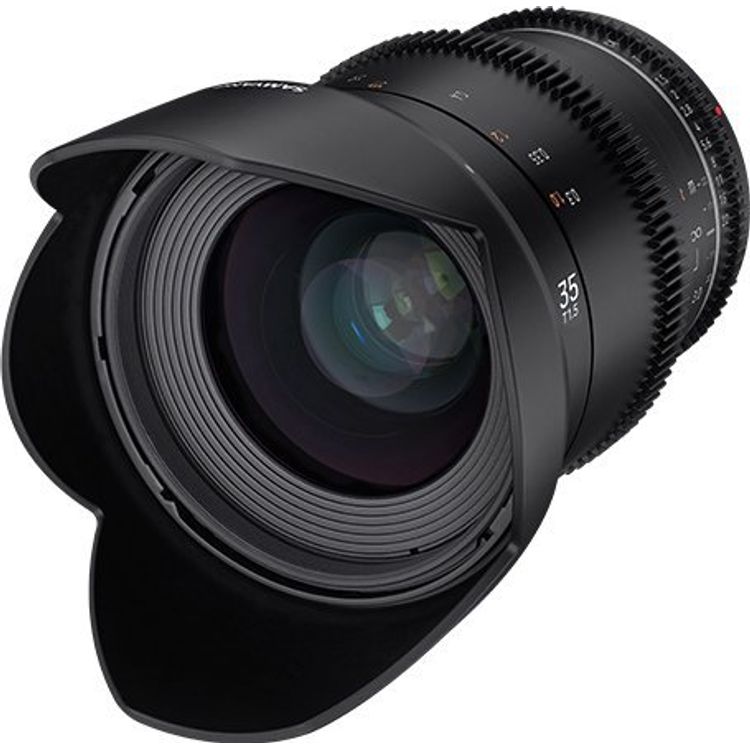

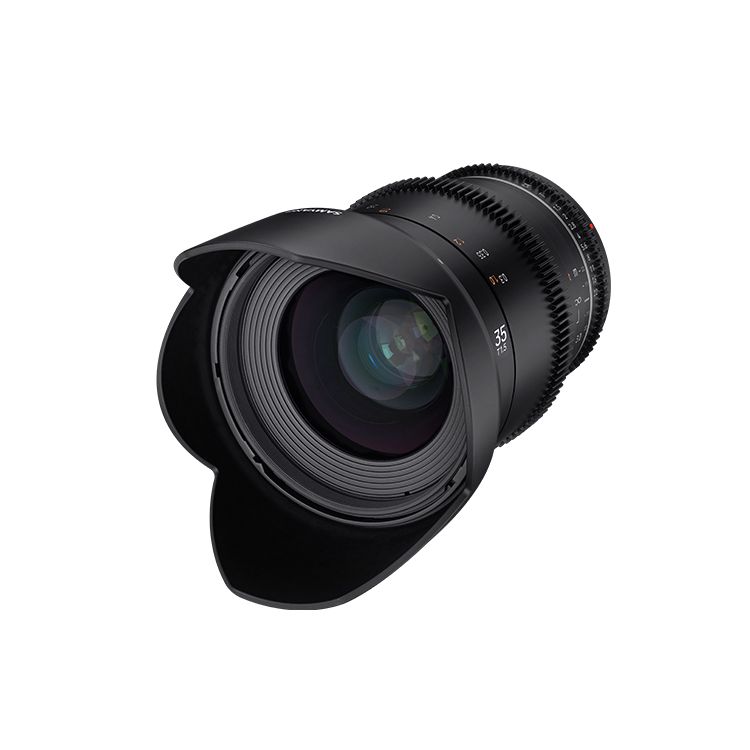

Samyang objektiiv MF 35mm TF1.5 VDSLR MK2 Fuji X

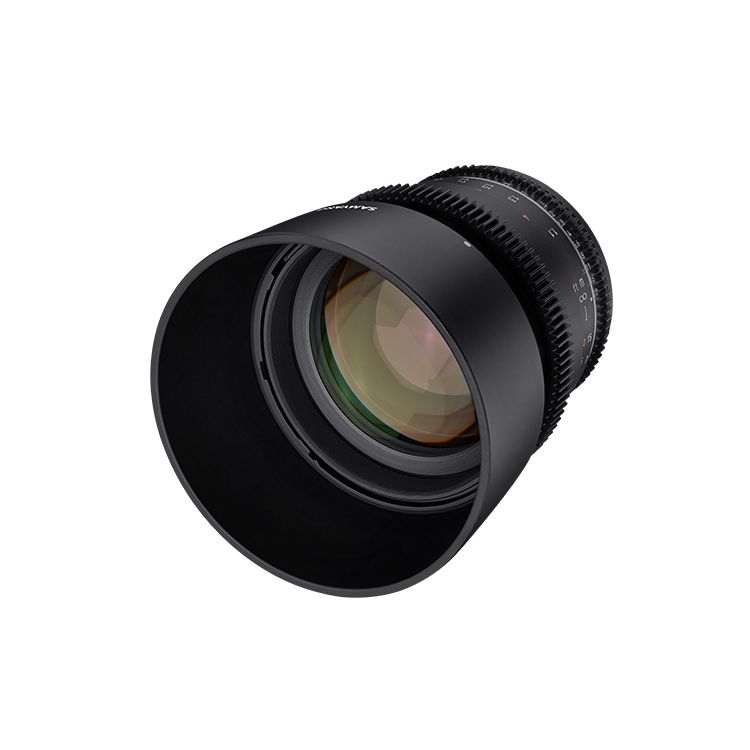

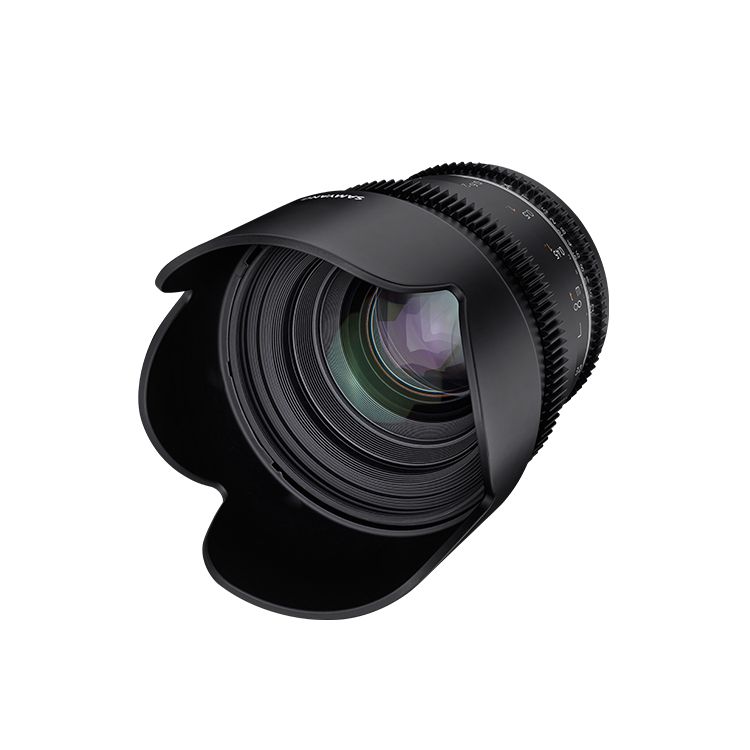

Samyang objektiiv MF 50mmmm TF1.5 VDSLR MK2 Canon EF

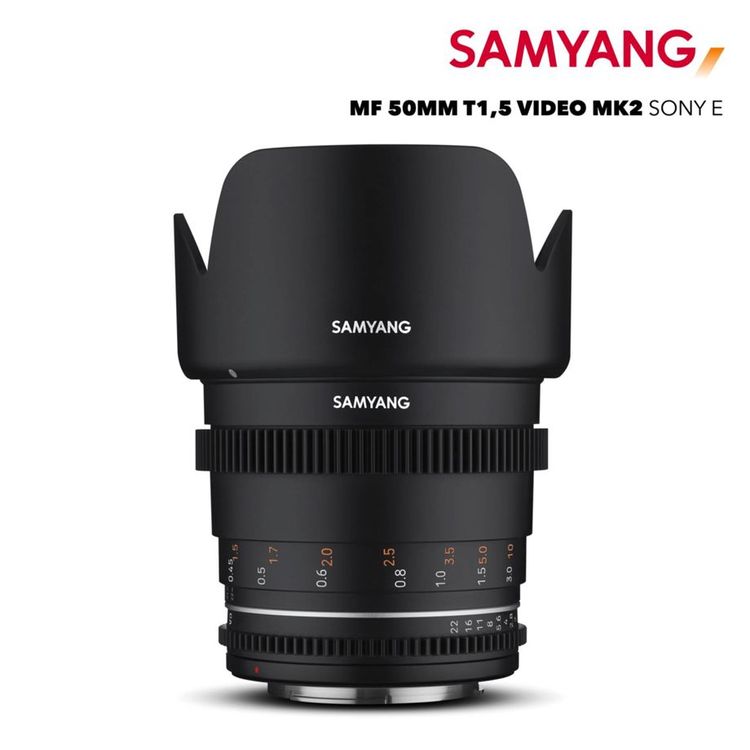

Samyang objektiiv MF 50mmmm TF1.5 VDSLR MK2 Sony E

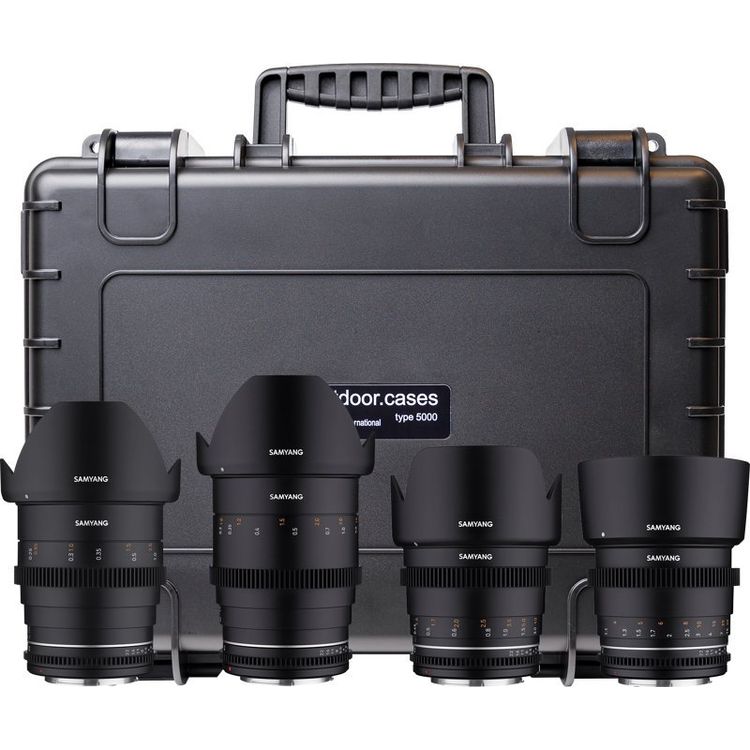

Samyang objektiiv VDSLR Kit 3 (8mm, 16mm, 35mm) Nikon

Samyang objektiiv VDSLR Kit 3 (8mm, 16mm, 35mm) Sony

• Ethernet WAN • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n • Gigabit Ethernet • ADSL VDSL • WPA, WPA2, WPA3

<div><div><span style="box-sizing: border-box; font-weight: bolder;">High Performance Gigabit Ethernet over Coaxial Solution </span></div><div> To fulfill the needs of long distance and higher speed required Ethernet over Coaxial applications, PLANET Technology offers a new-generation Ethernet over Coaxial Converter, VC-232G. It features 1 <span style="box-sizing: border-box; font-weight: bolder;">10/100/1000BASE-T RJ45</span> port and 1 <span style="box-sizing: border-box; font-weight: bolder;">BNC</span> female connector with a compact-sized metal housing, making the placement of the unit convenient. Working well with a pervasive coaxial network, the VC-232G provides an excellent bandwidth of up to a total duplex data rate of <span style="box-sizing: border-box; font-weight: bolder;">300Mbps</span> which can extend a maximum distance up to <span style="box-sizing: border-box; font-weight: bolder;">1.4km</span>. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable to another 100-meter UTP cable for any type of IP network device such as HD IP camera, wireless access point, NVR and digital signage.</div><div></div><div><span style="box-sizing: border-box; font-weight: bolder;">Superior Upstream and Downstream Transmission</span></div><div> The VC-232G is based on the two-core networking technology, <span style="box-sizing: border-box; font-weight: bolder;">Gigabit Ethernet</span> and <span style="box-sizing: border-box; font-weight: bolder;">VDSL2</span> (Very-high-data-rate Digital Subscriber Line 2). The VC-232G offers a stable yet high-speed point-to-point network access up to a duplex data transmission of 300Mbps. It provides 2 selective transmission modes -- <span style="box-sizing: border-box; font-weight: bolder;">asymmetric</span> mode or <span style="box-sizing: border-box; font-weight: bolder;">symmetric</span> mode -- for the transmission of upstream and downstream signals.</div><div> ?? Asymmetric mode – downstream up to <span style="box-sizing: border-box; font-weight: bolder;">200Mbps</span> and upstream up to <span style="box-sizing: border-box; font-weight: bolder;">100Mbps</span><br style="box-sizing: border-box;" /> ?? Symmetric mode – downstream up to <span style="box-sizing: border-box; font-weight: bolder;">150Mbps</span> and upstream up to <span style="box-sizing: border-box; font-weight: bolder;">150Mbps</span><br style="box-sizing: border-box;" /> The symmetric mode provides similar transmission rate on both downstream and upstream. On the other hand, the asymmetric mode performs higher transmission quality in short range. In all, when the VC-232G is in symmetric mode, it provides better upstream performance, and when it is in asymmetric mode, it gives better downstream performance.</div><div></div><div><span style="box-sizing: border-box; font-weight: bolder;">IP Ethernet over Long Distance Existing Coaxial Cables</span></div><div> The VC-232G is also a <span style="box-sizing: border-box; font-weight: bolder;">Long Reach Ethernet (LRE)</span> solution which provides a quick replacement and smooth migration solution from existing analog system to full digital system. A normal UTP cable can only be extended up to 100 meters, but with the VC-232G, the distance for Ethernet networking can be extended up to <span style="box-sizing: border-box; font-weight: bolder;">1,400 meters (4,593ft.)</span>, which is ideal for the following network applications:</div><div> ?? Long-distance IP network devices<br style="box-sizing: border-box;" /> ?? IP digital signage<br style="box-sizing: border-box;" /> ?? Cable TV to IPTV<br style="box-sizing: border-box;" /> ?? Distance video education<br style="box-sizing: border-box;" /> ?? Electronic billboards<br style="box-sizing: border-box;" /> ?? Other applications<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> If you have coaxial cable in your existing environment, you can install a pair of the VC-232G very simply without the need to build additional network wires, thus saving costs for network construction.</div><div></div><div><span style="box-sizing: border-box; font-weight: bolder;">Easy and Flexible Installation</span></div><div> The VC-232G offers two operation modes, the client-side CPE and central-side CO, making any network applications easy and flexible. The CPE or CO mode can be adjusted by using the built-in DIP switch. For point-to-point connection, one VC-232G in CPE mode and the other one in CO mode must be set up as a pair of converters to perform the connection. This enables the administrator to efficiently manage the network over coaxial cable, making long-distance transmission better.</div><div><span style="box-sizing: border-box; font-weight: bolder;">Point-to-Point Application -- LAN to LAN Connection</span></div><div> One set of the VC-232G could be used to link two local Area networks that are located in different places. Through the coaxial cable, it could set up a 200/100Mbps asymmetric backbone, but one VC-232G must be <span style="box-sizing: border-box; font-weight: bolder;">Master</span> (<span style="box-sizing: border-box; font-weight: bolder;">CO</span> mode) and the other one is <span style="box-sizing: border-box; font-weight: bolder;">Slave</span> (<span style="box-sizing: border-box; font-weight: bolder;">CPE</span> mode).</div><div><img src="https://www.planet.com.tw/storage/products/49072/VC-232G-1_L.png" style="box-sizing: border-box; border-style: none; vertical-align: middle; max-width: 100%; height: auto;" /></div><div><span style="box-sizing: border-box; font-weight: bolder;">Community/Campus Surveillance and Security over IP</span></div><div> To take advantage of digital surveillance system and keep the benefits of coaxial cable, the VC-232G helps the community, campus and enterprises to upgrade analog camera system to IP camera surveillance without using additional new wires. The VC-232G is a switching architecture with one RJ45 port and one BNC Ethernet over Coaxial port. Just plug in the UTP cable of IP camera to Ethernet port and the existing coaxial cable to the BNC connector to easily deploy and extend the distance with signal conversion by transmitting the Ethernet data from the standard coaxial cable.</div><div><img src="https://www.planet.com.tw/storage/products/49072/VC-232G-2_L.png" style="box-sizing: border-box; border-style: none; vertical-align: middle; max-width: 100%; height: auto;" /></div><div></div><div><img src="https://www.planet.com.tw/storage/products/49072/VC-232G-3_L.png" style="box-sizing: border-box; border-style: none; vertical-align: middle; max-width: 100%; height: auto;" /></div><ul style="box-sizing: border-box; margin: 0px; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" type="disc"><li style="box-sizing: border-box;"> ITU-T G.993.5 G.Vectoring and G.INP</li><li style="box-sizing: border-box;"> Upstream/Downstream bandwidth up to 200/100Mbps</li><li style="box-sizing: border-box;"> CO/CPE mode selectable via DIP switch</li><li style="box-sizing: border-box;"> Selectable target band plan and SNR margin</li><li style="box-sizing: border-box;"> Half duplex back pressure and IEEE 802.3x full duplex pause frame flow control</li><li style="box-sizing: border-box;"> One BNC connector for VDSL connection</li><li style="box-sizing: border-box;"> Uses existing RG59/RG6 coaxial cable</li><li style="box-sizing: border-box;"> Used in pairs to extend Point-to-Point connection up to 1.4km</li><li style="box-sizing: border-box;"> Supports a packet size of up to 1522 bytes, IEEE 802.1Q VLAN tag transparency</li><li style="box-sizing: border-box;"> Advantage of minimum installation time (Simply by Plug-and-Play)</li><li style="box-sizing: border-box;"> Supports extensive LED indicators for network diagnosis</li><li style="box-sizing: border-box;"> Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48)</li><li style="box-sizing: border-box;"> Compact in size and easy to install</li><li style="box-sizing: border-box;"><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> ?ITU-T G.993.1 VDSL?ITU-T G.993.1 VDSL?ITU-T G.997.1?ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)?ITU-T G.993.5 G. Vectoring?ITU-T G.998?G.INP <table style="border-collapse: collapse; width: 1140px; margin-bottom: 1rem; border-bottom: 1px solid rgb(222, 226, 230) !important;"><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Hardware Specifications</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> TP interface</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> VDSL Interface</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 1 BNC female Ethernet over Coaxial<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">Cabling</span><br style="box-sizing: border-box;" /> Coaxial cable: 75 ohm<br style="box-sizing: border-box;" /> RG-6/U cable, less than12Ω/1000 ft<br style="box-sizing: border-box;" /> RG-59/U cable, less than 30Ω/1000 ft.<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">Maximum Distance</span><br style="box-sizing: border-box;" /> Max. 1400m with data transmission (4,593ft.)</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Functionality</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"><span style="box-sizing: border-box; font-weight: bolder;">DIP-1</span>: Select CO or CPE mode<br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">DIP-2</span>: Select G.INP or Interleaved mode<br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">DIP-3</span>: Select Band Profile (Asymmetric or Symmetric)<br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">DIP-4</span>: Select SNR of 12dB or 8dB</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Dimensions (W x D x H)</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 70 x 97 x 26 mm</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Weight</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> 185g</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Power Requirement</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> DC 5V, 2A external power</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> LED Indicators</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> Power: <font color="Green" style="box-sizing: border-box;"><span style="box-sizing: border-box; font-weight: bolder;">Green</span></font><br style="box-sizing: border-box;" /> 1000BASE-T LNK/ACT: <font color="Green" style="box-sizing: border-box;"><span style="box-sizing: border-box; font-weight: bolder;">Green</span></font><br style="box-sizing: border-box;" /> VDSL: <font color="Green" style="box-sizing: border-box;"><span style="box-sizing: border-box; font-weight: bolder;">Green</span></font><br style="box-sizing: border-box;" /> CO: <font color="Green" style="box-sizing: border-box;"><span style="box-sizing: border-box; font-weight: bolder;">Green</span></font><br style="box-sizing: border-box;" /> CPE: <font color="Green" style="box-sizing: border-box;"><span style="box-sizing: border-box; font-weight: bolder;">Green</span></font></td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Housing</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> Metal</td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Switch Specifications</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Switch Processing Scheme</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> Store-and-Forward</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Address Table</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 2K entries</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Flow Control</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> Back pressure for half duplex<br style="box-sizing: border-box;" /> IEEE 802.3x pause frame for full duplex</td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> System Specifications</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> VDSL Compliance</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"></td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Standards Conformance</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Standards Compliance</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> IEEE 802.3 Ethernet<br style="box-sizing: border-box;" /> IEEE 802.3u Fast Ethernet<br style="box-sizing: border-box;" /> IEEE 802.3ab Gigabit Ethernet<br style="box-sizing: border-box;" /> IEEE 802.3x Full-duplex flow control<br style="box-sizing: border-box;" /> IEEE 802.1p Class of Service<br style="box-sizing: border-box;" /> ITU-T G.993.1 VDSL<br style="box-sizing: border-box;" /> ITU-T G.997.1<br style="box-sizing: border-box;" /> ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)<br style="box-sizing: border-box;" /> ITU-T G.993.5 G.Vectoring and G.INP<br style="box-sizing: border-box;" /> ITU-T G.998</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Regulatory Compliance</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> FCC Part 15 Class A, CE</td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Environment</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Temperature</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> Operating: 0~50 degrees C<br style="box-sizing: border-box;" /> Storage: -10~70 degrees C</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Humidity</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> Operating: 5~95% (non-condensing)<br style="box-sizing: border-box;" /> Storage: 5~95% (non-condensing)</td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Performance</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Coaxial Performance</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"><span style="box-sizing: border-box; font-weight: bolder;">Interleave(Upstream/Downstream: Mbps)</span><br style="box-sizing: border-box;" /> ?<span style="box-sizing: border-box; font-weight: bolder;">Asymmetric (8dB):</span><br style="box-sizing: border-box;" /> ?200m ->88Mbps/168Mbps<br style="box-sizing: border-box;" /> ?400m ->75Mbps/160Mbps<br style="box-sizing: border-box;" /> ?600m ->59Mbps/129Mbps<br style="box-sizing: border-box;" /> ?800m ->32Mbps/110Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> ?<span style="box-sizing: border-box; font-weight: bolder;">Asymmetric (12dB):</span><br style="box-sizing: border-box;" /> ?200m ->78Mbps/145Mbps<br style="box-sizing: border-box;" /> ?400m ->69Mbps/137Mbps<br style="box-sizing: border-box;" /> ?600m ->48Mbps/118Mbps<br style="box-sizing: border-box;" /> ?800m ->26Mbps/94Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> ?<span style="box-sizing: border-box; font-weight: bolder;">Symmetric (8dB):</span><br style="box-sizing: border-box;" /> ?200m ->129Mbps/131Mbps<br style="box-sizing: border-box;" /> ?400m ->117Mbps/122Mbps<br style="box-sizing: border-box;" /> ?600m ->101Mbps/92Mbps<br style="box-sizing: border-box;" /> ?800m ->62Mbps/73Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> ?<span style="box-sizing: border-box; font-weight: bolder;">Symmetric (12dB):</span><br style="box-sizing: border-box;" /> ?200m ->117Mbps/123Mbps<br style="box-sizing: border-box;" /> ?400m ->102Mbps/102Mbps<br style="box-sizing: border-box;" /> ?600m ->88Mbps/82Mbps<br style="box-sizing: border-box;" /> ?800m ->47Mbps/56Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">G.INP(Upstream/Downstream: Mbps)</span><br style="box-sizing: border-box;" /> ?<span style="box-sizing: border-box; font-weight: bolder;">Asymmetric (8dB):</span><br style="box-sizing: border-box;" /> ?200m ->95Mbps/200Mbps<br style="box-sizing: border-box;" /> ?400m ->82Mbps/175Mbps<br style="box-sizing: border-box;" /> ?600m ->59Mbps/151Mbps<br style="box-sizing: border-box;" /> ?800m ->37Mbps/122Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> ?<span style="box-sizing: border-box; font-weight: bolder;">Asymmetric (12dB):</span><br style="box-sizing: border-box;" /> ?200m ->89Mbps/181Mbps<br style="box-sizing: border-box;" /> ?400m ->71Mbps/156Mbps<br style="box-sizing: border-box;" /> ?600m ->46Mbps/136Mbps<br style="box-sizing: border-box;" /> ?800m ->30Mbps/102Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> ?<span style="box-sizing: border-box; font-weight: bolder;">Symmetric (8dB):</span><br style="box-sizing: border-box;" /> ?200m ->147Mbps/147Mbps<br style="box-sizing: border-box;" /> ?400m ->132Mbps/135Mbps<br style="box-sizing: border-box;" /> ?600m ->108Mbps/104Mbps<br style="box-sizing: border-box;" /> ?800m ->76Mbps/78Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> ?<span style="box-sizing: border-box; font-weight: bolder;">Symmetric (12dB):</span><br style="box-sizing: border-box;" /> ?200m ->138Mbps/143Mbps<br style="box-sizing: border-box;" /> ?400m ->116Mbps/120Mbps<br style="box-sizing: border-box;" /> ?600m ->91Mbps/89Mbps<br style="box-sizing: border-box;" /> ?800m ->58Mbps/60Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">Note:</span> As there are various resistance values in the category of RG-59/U or RG-6/U cable, the actual data rate will vary on the quality of the copper wire and environmental factors.</td></tr></tbody></table></li><li style="box-sizing: border-box;"><span style="box-sizing: border-box; font-weight: bolder;">VDSL-DMT</span></li><li style="box-sizing: border-box;"><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> ?ITU-T G.993.1 VDSL?ITU-T G.993.1 VDSL?ITU-T G.997.1?ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)?ITU-T G.993.5 G. Vectoring?ITU-T G.998?G.INP <table style="border-collapse: collapse; width: 1140px; margin-bottom: 1rem; border-bottom: 1px solid rgb(222, 226, 230) !important;"><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Hardware Specifications</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> TP interface</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> VDSL Interface</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 1 BNC female Ethernet over Coaxial<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">Cabling</span><br style="box-sizing: border-box;" /> Coaxial cable: 75 ohm<br style="box-sizing: border-box;" /> RG-6/U cable, less than12Ω/1000 ft<br style="box-sizing: border-box;" /> RG-59/U cable, less than 30Ω/1000 ft.<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">Maximum Distance</span><br style="box-sizing: border-box;" /> Max. 1400m with data transmission (4,593ft.)</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Functionality</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"><span style="box-sizing: border-box; font-weight: bolder;">DIP-1</span>: Select CO or CPE mode<br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">DIP-2</span>: Select G.INP or Interleaved mode<br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">DIP-3</span>: Select Band Profile (Asymmetric or Symmetric)<br style="box-sizing: border-box;" /><span style="box-sizing: border-box; font-weight: bolder;">DIP-4</span>: Select SNR of 12dB or 8dB</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Dimensions (W x D x H)</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 70 x 97 x 26 mm</td></tr><tr style="box-sizing: border

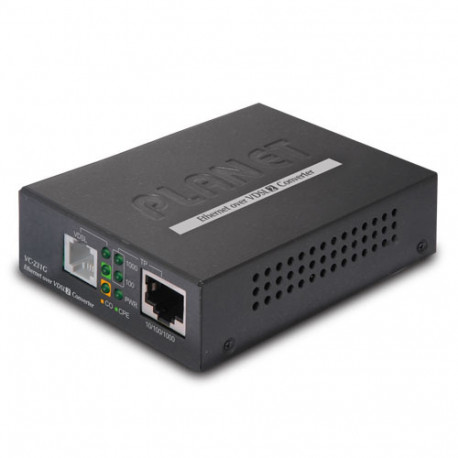

<div><div><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">00/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">PLANET VC-231 is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-231 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4km long range connections.</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">Implementing with Existing Telephone Copper Wires</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">The VC-231 is also a </span><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">Long Reach Ethernet (LRE)</span><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;"> converter providing one RJ-45 Ethernet port and one RJ-11 phone jack that is for VDSL2 connection. By using the additional Splitter from package of VC-231, the splitter can provide POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-231 with additional splitter into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-231 is ideal to be used as an Ethernet extender to an existing Ethernet network.</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">Delivering High-Demand Service Connectivity for ISP / Triple Play Devices</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">The VC-231 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-231 enables many multi-media services to work on the local Internet, such as </span><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">VOD (Video on Demand)</span><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">, </span><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">Voice over IP</span><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">,</span><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;"> Video phone</span><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">, </span><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">IPTV</span><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">, Internet caching server, distance education, and so on.</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">Easy & Flexible Installation</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">The Ethernet-over-VDSL2 Converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231 offers two modes, </span><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">CPE</span><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;"> and </span><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">CO</span><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231 and a CO mode VC-231 must be setup as one pair of converters to perform the connection.</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="box-sizing: border-box; font-weight: bolder; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">Providing Superior Upstream and Downstream Transmission Performance</span><br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;" /><span style="color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;">The VC-231 also defines symmetric band plan for the transmission of upstream and downstream signals, the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VC-231 is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VC-231 is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.</span></div><div><span style="box-sizing: border-box; font-weight: bolder;">Ethernet Distance Extension</span><br style="box-sizing: border-box;" /> Two VC-231 acting as a standalone pair is good for Ethernet distance extension over existing telephone wires. With just one pair of AWG-24 copper wire, you can easily connect two Ethernet networks together with the data rate of maximum 100/100Mbps. With the additional splitter, the telephone service can still be used while the VC-231 CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 Converter.</div><div><img src="https://www.planet.com.tw/storage/products/26448/VC-231-1_L.gif" style="box-sizing: border-box; border-style: none; vertical-align: middle; max-width: 100%; height: auto;" /></div><div><span style="box-sizing: border-box; font-weight: bolder;">MTU / MDU / Hospitality Solution</span><br style="box-sizing: border-box;" /> The VC-231 is a perfect solution to quickly providing cost-effective yet high speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels or hospitals. By utilizing the existing telephony infrastructure, network installation is straightforward and requires no new wiring. With up to 100/100Mbps transmission, Video on Demand, IP telephony and various broadband services can be easily provided.</div><div><img src="https://www.planet.com.tw/storage/products/26448/VC-231-2_L.gif" style="box-sizing: border-box; border-style: none; vertical-align: middle; max-width: 100%; height: auto;" /></div><div><span style="box-sizing: border-box; font-weight: bolder;">Last Mile of FTTx Deployment</span><br style="box-sizing: border-box;" /> The VC-231 is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high bandwidth VDSL2 over existing telephone wires in the <span style="box-sizing: border-box; font-weight: bolder;">“last mile”</span> from the ISP / Telecom / Service provider’s fiber node to the buildings and customers' houses. The 10/100Mbps port of the VC-231 can be directly connected to a PC or to Ethernet devices such as Ethernet Switches or Broadband Routers. It is excellent for phone line network built under Internet because every room or house can use the existing phone line to transmit data through the Internet and the whole building can share the Internet to the wider area network at a minimum cost.</div><div></div><div><img src="https://www.planet.com.tw/storage/products/26448/VC-231-3_L.gif" style="box-sizing: border-box; border-style: none; vertical-align: middle; max-width: 100%; height: auto;" /></div><ul style="box-sizing: border-box; margin: 0px; color: rgb(33, 37, 41); font-family: "Didact Gothic", Arial, "Microsoft JhengHei", sans-serif; font-size: 16px;"><li style="box-sizing: border-box;"> Cost-Effective VDSL2 <span style="box-sizing: border-box; font-weight: bolder;">Profile 17a/30a</span> CO / CPE bridge solution</li><li style="box-sizing: border-box;"> One box design, CO / CPE selectable via DIP Switch</li><li style="box-sizing: border-box;"> Defines symmetric band plan for the transmission of upstream and downstream signals</li><li style="box-sizing: border-box;"> Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards</li><li style="box-sizing: border-box;"> DMT (Discrete Multi-Tone) line coding</li><li style="box-sizing: border-box;"> Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control</li><li style="box-sizing: border-box;"> One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection</li><li style="box-sizing: border-box;"> Voice and data communication can be shared simultaneously based on the existing telephone wire</li><li style="box-sizing: border-box;"> One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X</li><li style="box-sizing: border-box;"> Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent</li><li style="box-sizing: border-box;"> VDSL2 stand-alone transceiver for simple bridge modem application</li><li style="box-sizing: border-box;"> Advantage of minimum installation time (Simply as Plug-and-Play)</li><li style="box-sizing: border-box;"> Selectable target profile and target SNR margin</li><li style="box-sizing: border-box;"> Supports extensive LED indicators for network diagnosis</li><li style="box-sizing: border-box;"> Co-work with PLANET MC family Media Chassis (MC-700 / MC-1500/ MC-1500R / MC-1500R48)</li><li style="box-sizing: border-box;"> Compact in size, easy installation</li><li style="box-sizing: border-box;"><table style="border-collapse: collapse; width: 1140px; margin-bottom: 1rem; border-bottom: 1px solid rgb(222, 226, 230) !important;"><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Hardware Specifications</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Ports</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> 10/100Base-TX??1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X<br style="box-sizing: border-box;" /> VDSL??1 RJ-11, female Phone Jack<br style="box-sizing: border-box;" /> PHONE??Additional Splitter for POST connection</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> DIP Switch & Functionality</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> • 4 position DIP switch<br style="box-sizing: border-box;" /> • <span style="box-sizing: border-box; font-weight: bolder;">CO</span> / <span style="box-sizing: border-box; font-weight: bolder;">CPE</span> mode select<br style="box-sizing: border-box;" /> • Selectable <span style="box-sizing: border-box; font-weight: bolder;">fast</span> and <span style="box-sizing: border-box; font-weight: bolder;">interleaved</span> mode<br style="box-sizing: border-box;" /> • Selectable target <span style="box-sizing: border-box; font-weight: bolder;">17a</span> / <span style="box-sizing: border-box; font-weight: bolder;">30a</span> profiles<br style="box-sizing: border-box;" /> • Selectable target <span style="box-sizing: border-box; font-weight: bolder;">SNR mode</span></td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Encoding</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> • VDSL-DMT<br style="box-sizing: border-box;" /> ?- ITU-T G.993.1 VDSL<br style="box-sizing: border-box;" /> ?- ITU-T G.997.1<br style="box-sizing: border-box;" /> ?- ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> LED Indicators</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> • One Power<br style="box-sizing: border-box;" /> • 3 for RJ-11/VDSL2<br style="box-sizing: border-box;" /> • 2 for per RJ-45 10/100Base-TX port</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Cabling</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> • Ethernet<br style="box-sizing: border-box;" /> ??10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)<br style="box-sizing: border-box;" /> ??100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)<br style="box-sizing: border-box;" /> • VDSL<br style="box-sizing: border-box;" /> ??Twisted-pair telephone wires (AWG24 or better) up to 1.4km</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Performance* (Downstream / Upstream)</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> • 17a profile<br style="box-sizing: border-box;" /> ?300m -> 86/65Mbps<br style="box-sizing: border-box;" /> ?400m -> 86/52Mbps<br style="box-sizing: border-box;" /> ?600m -> 81/36Mbps<br style="box-sizing: border-box;" /> ?800m -> 72/19Mbps<br style="box-sizing: border-box;" /> ?1000m -> 60/9Mbps<br style="box-sizing: border-box;" /> ?1200m -> 59/6Mbps<br style="box-sizing: border-box;" /> ?1400m -> 50/2Mbps<br style="box-sizing: border-box;" /><br style="box-sizing: border-box;" /> • 30a profile<br style="box-sizing: border-box;" /> ?300m -> 100/100Mbps<br style="box-sizing: border-box;" /> ?400m -> 90/90Mbps<br style="box-sizing: border-box;" /> ?600m -> 61/40Mbps<br style="box-sizing: border-box;" /> ?800m -> 54/8Mbps</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Power Requirements</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> 5V DC, 2A</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Power Consumption</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 6.6 Watts / 22 BTU</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Dimensions (W x D x H)</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> 97 x 70 x 26 mm</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Weight</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 199g</td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Environment</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Operating</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> Temperature: 0 ~ 50 degrees C<br style="box-sizing: border-box;" /> Relative Humidity: 10 ~ 90% (non-condensing)</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Storage</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> Temperature: -10 ~ 70 degrees C<br style="box-sizing: border-box;" /> Relative Humidity: 10 ~ 90% (non-condensing)</td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Switch Specifications</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Switch Processing Scheme</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> Store-and-Forward</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Address Table</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 1K entries</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Flow Control</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Switch fabric</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> 0.2Gbps</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Throughput (packet per second)</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> 0.14Mpps</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Network cables</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"><span style="box-sizing: border-box; font-weight: bolder;">10/100Base-TX:</span><br style="box-sizing: border-box;" /> 2-Pair UTP Cat. 3,4, 5 (100meters, max.)<br style="box-sizing: border-box;" /> EIA / TIA-568 100-ohm STP (100meters, max.)</td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> Standard Conformance</th></tr></thead><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); width: 228px; min-width: 150px; max-width: 300px;"> Regulation Compliance</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230);"> FCC Part 15 Class A, CE</td></tr><tr style="box-sizing: border-box;"><td style="box-sizing: border-box; vertical-align: top; padding: 0.3rem 8px; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247); width: 228px; min-width: 150px; max-width: 300px;"> Standards Compliance</td><td style="box-sizing: border-box; padding: 0.3rem 8px; vertical-align: top; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-left: 1px solid rgb(222, 226, 230); background-color: rgb(237, 240, 247);"> IEEE 802.3 10Base-T<br style="box-sizing: border-box;" /> IEEE 802.3u 100Base-TX<br style="box-sizing: border-box;" /> ITU-T<br style="box-sizing: border-box;" /> ?- G.993.1 (VDSL)<br style="box-sizing: border-box;" /> ?- G.997.1<br style="box-sizing: border-box;" /> ?- G.993.2 VDSL2 (Profile 17a/30a)</td></tr></tbody><thead style="box-sizing: border-box;"><tr style="box-sizing: border-box; color: rgb(255, 255, 255); background-color: rgb(127, 156, 211);"><th colspan="2" style="box-sizing: border-box; text-align: inherit; padding: 0.3rem 8px; vertical-align: bottom; border-top: 0px solid rgb(222, 226, 230); border-bottom: 0px solid rgb(222, 226, 230); border-right-color: transparent; border-left-color: transparent;"> * The actual data rate will vary on the quality of the copper wire and environment factors.</th></tr></thead></table></li></ul></div>

<div><div><span style="font-size: 13px;">150/150Mbps Downstream/Upstream, suure jõudlusega Gigabit Ethernet over Phone Wire lahendus</span></div><div><span style="font-size: 13px;">PLANET VC-231G, uue põlvkonna ja suure jõudlusega Gigabit Ethernet-over-VDSL2 konverter, töötab hästi koos läbiva telefoniliinivõrguga, mille sümmeetriline andmeside kiirus on kuni 150/150Mbps (G.INP, Sym, 8dB) 300m kaugusel ja 22/10Mbps 1,4km pikkusel distantsil. See põhineb kahesugusel võrgutehnoloogial, Gigabit Ethernetil ja VDSL2-l (Very-high-data-rate Digital Subscriber Line 2). VDSL2-tehnoloogia pakub absoluutselt kõige kiiremat andmeedastuskiirust olemasolevate vasest telefoniliinide kaudu, ilma et oleks vaja ümberjuhtimist.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Suure jõudlusega Ethernet üle VDSL2</span></div><div><span style="font-size: 13px;">Uusima VDSL2-tehnoloogia kaudu pakub PLANET VC-231G kiire juurdepääsu Internetile, kuni 190Mbps nii üles- kui ka allavoolu andmeedastuseks. Tänu integreeritud ITU-T uue G.993.5 vektoritehnoloogia toetusele töötab VC-231G koos vektorit võimaldavate DSLAMidega, et kõrvaldada ristlülitushäired ja suurendada maksimaalset ribalaiust olemasoleva vaskinfrastruktuuri kaudu.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Rakendamine koos olemasolevate telefonivaskjuhtmetega</span></div><div><span style="font-size: 13px;">VC-231G on ka Long Reach Ethernet (LRE) konverter, mis pakub ühte RJ45 Ethernet-porti ja ühte RJ11 telefonipesa, mis on mõeldud VDSL2-ühenduse jaoks. Kasutage VC-231G pakendis olevat täiendavat jaoturit, et jagada olemasolevat telefoniliini POTS-iga, seega ei ole olemasoleva vaskjuhtmestiku asendamine vajalik. Lihtsalt ühendage VC-231G koos täiendava splitteriga olemasolevasse RJ11-telefonipessa ja saate ühendada suure jõudlusega VDSL2-võrgu. See sobib ideaalselt olemasoleva Ethernet-võrgu laiendamiseks.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Kõrge nõudlusega teenuseühenduse pakkumine ISP/Triple Play seadmetele.</span></div><div><span style="font-size: 13px;">VC-231G pakub suurepärast ribalaiusnõudlust koduse meelelahutuse ja kommunikatsiooni triple play seadmetele. Tänu asümmeetrilisele andmeedastusele 190/100Mbps (G.INP, Asym, 8dB) võimaldab VC-231G kohalikus võrgus töötada paljude multimeedia teenuste, nagu VoD (video on demand), voice over IP, videotelefon, IPTV, Interneti vahemäluserver, kaugõpe jne.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Lihtne ja paindlik paigaldus</span></div><div><span style="font-size: 13px;">Ethernet-over-VDSL2-muundur on plug-and-play disainiga ja ühildub täielikult kõigi võrguprotokollidega. Lisaks saab iga üksiku pordi ja kogu süsteemi tööseisundit jälgida esipaneelil asuvate rikkalike diagnostiliste valgusdioodide abil. VC-231G pakub rakenduseks kahte režiimi, CPE ja CO - CPE režiimi kasutatakse kliendi poolel ja CO režiimi keskuse poolel. CPE- või CO-režiimi saab reguleerida sisseehitatud DIP-lüliti abil. Punkt-punkt ühenduseks tuleb CPE-režiimis VC-231G ja CO-režiimis VC-231G seadistada ühe konverteripaarina, et luua ühendus.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">ADSL2+ tagasilangus</span></div><div><span style="font-size: 13px;">Nende Interneti-teenusepakkujate jaoks, kes pakuvad endiselt ADSL-lairibateenust, võib VC-231G toetada ADSL2+ tehnoloogia abil kuni 24 Mbit/s edasisuunalist ja 1 Mbit/s ülesuunalist ülekandekiirust. VC-231G loob ühenduse ISPga ja seda saab pärast ISP võrgu uuendamist ka otse VDSL2-le üle lülitada.</span></div><div><span style="font-size: 13px;">Hardware Specifications</span></div><div><span style="font-size: 13px;">LAN Ports<span style="white-space:pre"></span>1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports</span></div><div><span style="font-size: 13px;">VDSL Port<span style="white-space:pre"></span>1 VDSL2 RJ11 female phone jack</span></div><div><span style="font-size: 13px;">Twisted-pair telephone wires (AWG-24 or better) up to 1.4km</span></div><div><span style="font-size: 13px;">Phone Port<span style="white-space:pre"></span>Additional splitter for POTS connection</span></div><div><span style="font-size: 13px;">Dimensions (W x D x H)<span style="white-space:pre"></span>97 x 70 x 26 mm</span></div><div><span style="font-size: 13px;">Weight<span style="white-space:pre"></span>184g</span></div><div><span style="font-size: 13px;">Power Requirements<span style="white-space:pre"></span>DC 5V, 2A external power</span></div><div><span style="font-size: 13px;">LED Indicators<span style="white-space:pre"></span>1 power: Green</span></div><div><span style="font-size: 13px;">1 1000BASE-T LNK/ACT: Green</span></div><div><span style="font-size: 13px;">1 100BASE-TX LNK/ACK: Green</span></div><div><span style="font-size: 13px;">1 VDSL:Green</span></div><div><span style="font-size: 13px;">1 CO: Green</span></div><div><span style="font-size: 13px;">1 CPE: Green</span></div><div><span style="font-size: 13px;">Housing<span style="white-space:pre"></span>Metal</span></div><div><span style="font-size: 13px;">DIP Switch & Functionality<span style="white-space:pre"></span>4-position DIP switch</span></div><div><span style="font-size: 13px;">CO or CPE mode selectable</span></div><div><span style="font-size: 13px;">Selectable G.INP and interleaved mode</span></div><div><span style="font-size: 13px;">Selectable target Band plan</span></div><div><span style="font-size: 13px;">Selectable target SNR mode</span></div><div><span style="font-size: 13px;">Switch Specifications</span></div><div><span style="font-size: 13px;">Switch Processing Scheme<span style="white-space:pre"></span>Store-and-Forward</span></div><div><span style="font-size: 13px;">Address Table<span style="white-space:pre"></span>2K entries</span></div><div><span style="font-size: 13px;">Flow Control<span style="white-space:pre"></span>Back pressure for half duplex</span></div><div><span style="font-size: 13px;">IEEE 802.3x pause frame for full duplex</span></div><div><span style="font-size: 13px;">Maximum Packet Size<span style="white-space:pre"></span>1522bytes</span></div><div><span style="font-size: 13px;">System Specifications</span></div><div><span style="font-size: 13px;">VDSL Compliance<span style="white-space:pre"></span>VDSL-DMT:</span></div><div><span style="font-size: 13px;">ITU-T G.993.1 VDSL</span></div><div><span style="font-size: 13px;">ITU-T G.997.1</span></div><div><span style="font-size: 13px;">ITU-T G.993.2 VDSL2 (Profile 17a/30a support)</span></div><div><span style="font-size: 13px;">ITU-T G.993.5 G.vectoring</span></div><div><span style="font-size: 13px;">ITU-T G.998</span></div><div><span style="font-size: 13px;">G.INP</span></div><div><span style="font-size: 13px;">ADSL Compliance<span style="white-space:pre"></span>Capable of ADSL2/2+ standard:</span></div><div><span style="font-size: 13px;">ITU G.992.3 G.dmt.bis</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">ITU G.992.5 G.dmt.bisplus</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Data Rate: Up to 24Mbp</span></div><div><span style="font-size: 13px;">Performance*(Downstream/Upstream)<span style="white-space:pre"></span></span></div><div><span style="font-size: 13px;">CO, Interleave, Asym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 190Mbps/87Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 161Mbps/60Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 118Mbps/36Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 59Mbps/24Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 47Mbps/7Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 39Mbps/4Mbps</span></div><div><span style="font-size: 13px;"> 1400M -> 25Mbps/4Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Sym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 147Mbps/139Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 112Mbps/110Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 75Mbps/73Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 44Mbps/44Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 26Mbps/25Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 24Mbps/13Mbps</span></div><div><span style="font-size: 13px;"> 1400M -> 20Mbps/9Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, ASym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 197Mbps/101Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 168Mbps/65Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 109Mbps/34Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 65Mbps/20Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 53Mbps/7Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 44Mbps/4Mbps</span></div><div><span style="font-size: 13px;"> 1400M -> 28Mbps/4Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, sym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 150Mbps/150Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 117Mbps/117Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 77Mbps/77Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 43Mbps/43Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 29Mbps/28Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 27Mbps/15Mbps</span></div><div><span style="font-size: 13px;"> 1400M -> 22Mbps/10Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Asym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 178Mbps/84Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 143Mbps/53Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 99Mbps/32Mbps </span></div><div><span style="font-size: 13px;"> 800M -> 48Mbps/22Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 41Mbps/5Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 33Mbps/3Mbps</span></div><div><span style="font-size: 13px;"> 1400M -> 23Mbps/3Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Sym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 135Mbps/127Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 96Mbps/96Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 61Mbps/59Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 40Mbps/40Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 23Mbps/18Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 22Mbps/9Mbps</span></div><div><span style="font-size: 13px;"> 1400M -> 16Mbps/7Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, Asym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 185Mbps/89Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 148Mbps/54Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 95Mbps/32Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 58Mbps/14Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 46Mbps/6Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 37Mbps/3Mbps</span></div><div><span style="font-size: 13px;"> 1400M -> 25Mbps/3Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, Sym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 140Mbps/140Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 97Mbps/97Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 60Mbps/60Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 35Mbps/35Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 26Mbps/21Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 25Mbps/11Mbps</span></div><div><span style="font-size: 13px;"> 1400M -> 18Mbps/8Mbps</span></div><div><span style="font-size: 13px;">Standards Conformance</span></div><div><span style="font-size: 13px;">Standards Compliance<span style="white-space:pre"></span>IEEE 802.3 Ethernet</span></div><div><span style="font-size: 13px;">IEEE 802.3u Fast Ethernet</span></div><div><span style="font-size: 13px;">IEEE 802.3ab Gigabit Ethernet</span></div><div><span style="font-size: 13px;">IEEE 802.3x Full-duplex flow control</span></div><div><span style="font-size: 13px;">IEEE 802.1p Class of Service</span></div><div><span style="font-size: 13px;">ITU-T G.993.1 VDSL</span></div><div><span style="font-size: 13px;">ITU-T G.997.1</span></div><div><span style="font-size: 13px;">ITU-T G.993.2 VDSL2 (Profile 17a/30a support)</span></div><div><span style="font-size: 13px;">ITU-T G.993.5 G.Vectoring & G.INP</span></div><div><span style="font-size: 13px;">ITU-T G.998</span></div><div><span style="font-size: 13px;">Environment</span></div><div><span style="font-size: 13px;">Temperature<span style="white-space:pre"></span>Operating: 0~50 degrees C</span></div><div><span style="font-size: 13px;">Storage: -10~70 degrees C</span></div><div><span style="font-size: 13px;">Humidity<span style="white-space:pre"></span>Operating: 5~95% (non-condensing)</span></div><div><span style="font-size: 13px;">Storage: 5~95% (non-condensing)</span></div></div>

<table><tbody><tr><td> Address Table</td><td> 2K</td></tr><tr><td> Ambient Relative Humidity</td><td> 10 - 90% (non-condensing)</td></tr><tr><td> Certifications</td><td> FCC Part 15 Class A, CE</td></tr><tr><td> Dimensions</td><td> 97 x 70 x 26mm (W*D*H)</td></tr><tr><td> Dip Switch</td><td> 4-position DIP switch<br /> - CO/CPE mode selectable<br /> - Selectable G.INP and interleaved mode<br /> - Selectable target band plan<br /> - Selectable target SNR mode</td></tr><tr><td> Ethernet Port</td><td> 1*10/100/1000Tx RJ45 auto MDI/MDI-X port</td></tr><tr><td> Flow Control</td><td> Back pressure for half duplex<br /> IEEE 802.3x pause frame for full duplex</td></tr><tr><td> Free Fall / Shock / Vibration</td><td> IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6</td></tr><tr><td> Housing</td><td> Metal</td></tr><tr><td> Input Voltage</td><td> 5VDC, 2A</td></tr><tr><td> Jumbo Frame</td><td> 9Kbytes</td></tr><tr><td> LED Indicators</td><td> Power: Green<br /> 1000Base-Tx Link/Act: Green<br /> 100Base-Tx Link/Act: Green<br /> VDSL: Green<br /> CO: Green<br /> CPE: Green</td></tr><tr><td> Operating Temperature</td><td> 0° ~ 50°C</td></tr><tr><td> Phone Port</td><td> Additional Splitter for POTS connection</td></tr><tr><td> Power Connection</td><td> AC power adapter</td></tr><tr><td> Power Consumption</td><td> 3.5 Watts/11.93 BTU @ AC 110V (full loading)<br /> 3.6 Watts/12.28 BTU @ AC 220V (full loading)</td></tr><tr><td> Standards</td><td> IEEE 802.3 Ethernet<br /> IEEE 802.3 Fast Ethernet<br /> IEEE 802.3ab Gigabit Ethernet<br /> IEEE 802.3x Full-duplex flow control<br /> IEEE 802.1p Class of Service<br /> ITU-T G.993.1 VDSL<br /> ITU-T G.997.1<br /> ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)<br /> ITU-T G.993.5 G.Vectoring & G.INP<br /> ITU-T G.998</td></tr><tr><td> Storage Temperature</td><td> -40° ~ 70°C</td></tr><tr><td> Switching Architecture</td><td> Store-and-Forward</td></tr><tr><td> VDSL Port</td><td> 1*VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG24 or better) up to 1.4km</td></tr><tr><td> Warranty</td><td> 2 Years</td></tr><tr><td> Weight</td><td> Unit: 0.88 lbs.; Shipping: 1.0 lbs.</td></tr></tbody></table>

<div><div>VC-231GP, PLANETi <strong>Long Reach Ethernet (LRE)</strong> lahendus, on <strong>üheportiline Gigabit Ethernet-over-VDSL2-muundur koos PoE-toiteallikaga</strong>, mis paigaldatakse kaugemasse asukohta, et ühendada ja varustada toitega PoE-IP-kaamerat, PoE-traadita juurdepääsupunkti või PoE-IP-VoIP-telefoni/uksekella. Seade ühendab endas kolme arenenud tehnoloogiat:</div><ul><li><strong><strong>VDSL2/ADSL2+ digitaalsed abonendiliini tehnoloogiad</strong></strong></li><li><strong><strong>Gigabit Ethernet</strong></strong></li><li><strong><strong>IEEE 802.3at Power over Ethernet Plus</strong></strong></li></ul><div>VC-231GP töötab koos PLANET VDSL2 konverterite või mitmekanaliliste VDSL2 lülititega, et suuta edastada Ethernet-andmeid samaaegselt kuni <strong>1,4 km (4593 jalga)</strong> kaugusele telefonikaabli kaudu. VC-231GP edastab Ethernet-andmeid ja pakub maksimaalselt <strong>30-vattist</strong> väljundvõimsust täiendava 100 m UTP-kaabli kaudu kaugele asuvale IP-seadmele, mis vastab <strong>802.3af/at PoE</strong> PD (toidetav seade) standardile võrgu kasutuselevõtuks. Kasutajatel on võimalus laiendada olemasolevate võrkude struktuuri veelgi suurema paindlikkusega.</div><div><strong>IEEE 802.3at Power over Ethernet Plus</strong></div><div>IEEE 802.3at Power over Ethernet Plus standardile vastav PoE-toide võimaldab VC-231GP-l edastada Gigabit-kiirusega Ethernet-andmeid ja kuni 30-vattist toidet kaugsetele PoE PD-dele ühe Cat.5E/6 Ethernet-kaabli kaudu. VC-231GP pakub suuremat paindlikkust toitenõuete osas igat liiki PD-dele taskukohaste paigalduskuludega.</div><div><strong><strong>150/150 Mbps allalaadimis-/üleslaadimiskiirusega kõrge jõudlusega Gigabit Ethernet telefoniliini kaudu</strong></strong></div><div>Uusima VDSL2 tehnoloogia abil pakub VC-231GP valitavat asümmeetrilist/sümmeetrilist ribaprofiili võimekust. See töötab hästi laialt levinud telefoniliinivõrgus sümmeetrilise andmeedastuskiirusega kuni <strong>150/150 Mbps (G.INP, Sym, 8 dB)</strong> 300 m kaugusel ja 21/11 Mbps 1,4 km pikkusel vahemaal. PLANET Gigabit Ethernet üle VDSL2 seeria pakub absoluutselt kiireimat andmeedastuskiirust olemasolevate vasest telefoniliinide kaudu, ilma et oleks vaja uuesti juhtmestikku paigaldada.</div><div><strong><strong>Mitmekülgne, paindlik ja lihtne paigaldamine</strong></strong></div><div>PLANET Gigabit Ethernet-over-VDSL2 konverterid on varustatud plug-and-play disainiga. VC-231GP pakub kasutamiseks kahte töörežiimi, CPE ja CO – CPE režiimi kasutatakse kliendi poolel ja CO režiimi keskjaama poolel. CPE või CO režiimi saab reguleerida sisseehitatud DIP-lüliti abil.</div><div>Punkt-punkt-ühenduse jaoks tuleb ühenduse loomiseks seadistada CPE-režiimis olev VC-231GP ja CO-režiimis olev VC-231G või VC-234G üheks konverteripaariks. See annab administraatoritele võimaluse luua erinevates asukohtades uus kohalik intranet, kasutades ära olemasolevat võrgustikustruktuuri ilma lisakuludeta.</div><div><strong><strong>Stabiilne ja usaldusväärne DSL-andmeside</strong></strong></div><div>Tänu integreeritud toele ITU-T uuele G.993.5 vektorimistehnoloogiale töötab VC-231GP koos vektorimist toetavate DSLAM-idega, et kõrvaldada ristkõne häired ja parandada maksimaalset liini ribalaiust olemasolevas vasest infrastruktuuris.</div><div><strong><strong>Rakendamine olemasoleva telefonisüsteemiga</strong></strong></div><div>Kasutage VC-231GP pakendist kaasasolevat lisajagajat, et jagada olemasolevat telefoniliini POTS-iga, mistõttu olemasoleva vaskjuhtmestiku asendamine ei ole vajalik. Ühendage lihtsalt VC-231GP koos lisajagajaga olemasolevasse RJ11 telefonipistikusse ja kõrge jõudlusega VDSL2-võrk on ühendatud. See on ideaalne kasutamiseks Etherneti pikendajana olemasolevas Ethernet-võrgus.</div><div><strong><strong>ADSL2+ varuvõimalus</strong></strong></div><div>Nende internetiteenuse pakkujate jaoks, kes pakuvad endiselt ADSL-lairibateenust, toetab VC-231GP ADSL2+ tehnoloogia abil andmeedastuskiirusi kuni 24 Mbps allalaadimiseks ja 1 Mbps üleslaadimiseks. VC-231GP loob ühenduse internetiteenuse pakkujaga ja seda saab pärast internetiteenuse pakkuja võrgu uuendamist ka otse VDSL2-le ümber lülitada.</div></div>

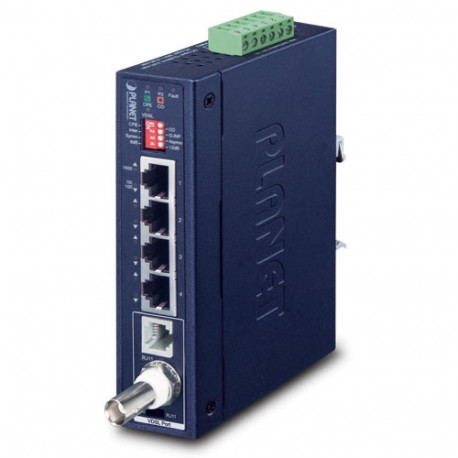

<div><div><span style="font-size: 13px;">Suure jõudlusega tööstuslik Gigabit Ethernet Extender </span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Selleks, et rahuldada pika vahemaa ja suurema kiirusega nõutavaid Ethernet-rakendusi üle koaksiaal- või 2-juhtmeliste UTP-rakenduste, pakub PLANET Technology uut tööstuslikku Ethernet Extenderit, IVC-234GT. Sellel on üks BNC-port ja üks RJ11-port pikamaaühenduseks VDSL2 (Very-high-bit-rate Digital Subscriber Line 2) tehnoloogiaga ning 4 10/100/1000BASE-T RJ45 Ethernet-porti. Selle õhukese suurusega metallkorpus muudab seadme paigutamise mugavaks. IVC-234GT, mis töötab hästi läbivalt koaksiaal- või RJ11-võrguga, pakub suurepärast ribalaiust kuni 300Mbps kogu dupleksandmeside kiirusega, mis võib ulatuda maksimaalselt kuni 1,2 km kaugusele. </span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Kui IP-võrk, mis koosneb HD-IP-kaamerast, traadita juurdepääsupunktist, NVRist ja digitaalsest kuvarist, vajab laiendamist üle 100 meetri, on IVC-234GT parim valik, kuna see suudab edastada andmeid üle koaksiaalkaabli või telefonijuhi. 100-meetrist vahemaad saab pikendada ainult UTP-kaabli abil.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Suurepärane üles- ja allavoolu edastamine</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">IVC-234GT konstruktsioon põhineb kahetüvelisel võrgutehnoloogial, Gigabit Ethernetil ja VDSL2-l. IVC-234GT pakub stabiilset, kuid samas kiiret punktist-punkti võrguühendust kuni 300Mbps dupleksse andmeedastuse kiiruseni. See pakub 2 selektiivset ülekanderežiimi - asümmeetriline režiim või sümmeetriline režiim - üles- ja allavoolu signaalide edastamiseks.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> ■ Asümmeetriline režiim - allavoolu kuni 200Mbps ja ülesvoolu kuni 100Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> ■ Sümmeetriline režiim - allavoolu kuni 150Mbps ja ülesvoolu kuni 150Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Sümmeetriline režiim tagab sarnase edastamiskiiruse nii allavoolu kui ka ülesvoolu, samas kui asümmeetriline režiim tagab kõrgema ülekandekvaliteedi lühikeses vahemikus. Kui IVC-234GT on sümmeetrilises režiimis, pakub ta paremat ülesvoolu jõudlust ja kui ta on asümmeetrilises režiimis, pakub ta paremat allavoolu jõudlust.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Ethernet üle pika vahemaa olemasoleva koaksiaal- või RJ11-kaabli kaudu</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">IVC-234GT on ka Long Reach Ethernet (LRE) lahendus, mis pakub kiiret asendust ja sujuvat üleminekulahendust olemasolevast analoogsüsteemist täielikult digitaalsele süsteemile. Sellel on kaks ülekandetüüpi, koaksiaal- või RJ11-kaabel. Tavalist UTP-kaablit saab pikendada ainult kuni 100 meetrini, kuid IVC-234GT abil saab Ethernet-võrgu kaugust pikendada kuni 1200 meetrini, mis on ideaalne järgmisteks võrgurakendusteks:</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> ■ kaugele ulatuvad IP-võrguseadmed</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> ■ IP-digitaalnäidikud </span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> ■ kaabeltelevisioon IPTV-le</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> ■ Kaugvideoõpe</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> ■ Elektroonilised reklaamtahvlid</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> ■ Muud rakendused</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Kui teie olemasolevas keskkonnas on koaksiaal- või RJ11-kaabel, saate väga lihtsalt paigaldada paar IVC-234GT, ilma et oleks vaja ehitada täiendavaid võrgukaableid, säästes seega võrgu ehitamise kulusid.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">Lihtne ja paindlik paigaldus</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">IVC-234GT pakub kahte töörežiimi, kliendipoolset CPE-d ja keskseadmepoolset CO-d, mis muudab mis tahes võrgurakendused lihtsaks ja paindlikuks. CPE- või CO-režiimi saab reguleerida sisseehitatud DIP-lüliti abil. Punkt-punkt ühendamiseks tuleb üks IVC-234GT CPE-režiimis ja teine CO-režiimis seadistada konverterite paarina, et ühendus saaks toimuda. See võimaldab administraatoril tõhusalt hallata võrku koaksiaalkaabli kaudu, muutes pikamaaülekande paremaks.</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">ADSL2+ tagasilangus</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">ADSL-lairibateenuseid pakkuvatele Interneti-teenusepakkujatele võib IVC-234GT toetada ADSL2+ tehnoloogia abil kuni 24Mbps allavoolu kiirust ja 1Mbps ülesvoolu kiirust. IVC-234GT saab pärast võrgu uuendamist ka otse VDSL2-le üle minna.</span></div><div><span style="font-size: 13px;">Hardware Specifications</span></div><div><span style="font-size: 13px;">TP interface<span style="white-space:pre"></span>4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports</span></div><div><span style="font-size: 13px;">VDSL BNC<span style="white-space:pre"></span>1 BNC female Ethernet over Coaxial port</span></div><div><span style="font-size: 13px;">Cabling:</span></div><div><span style="font-size: 13px;"> Coaxial cable: 75 ohm</span></div><div><span style="font-size: 13px;"> RG-6/U cable, less than12Ω/1000 ft</span></div><div><span style="font-size: 13px;"> RG-59/U cable, less than 30Ω/1000 ft.</span></div><div><span style="font-size: 13px;">Maximum Distance:</span></div><div><span style="font-size: 13px;"> Max. 1.2km with data transmission (3,937ft.)</span></div><div><span style="font-size: 13px;">VDSL RJ11<span style="white-space:pre"></span>1 VDSL2/ADSL2+ RJ11 female phone jack</span></div><div><span style="font-size: 13px;">Twisted-pair telephone wires (AWG-24 or better) up to 1.2km (3,937ft.)</span></div><div><span style="font-size: 13px;">DIP Switch & Functionality<span style="white-space:pre"></span>DIP-1: Select CO or CPE mode</span></div><div><span style="font-size: 13px;">DIP-2: Select G.INP or Interleaved mode</span></div><div><span style="font-size: 13px;">DIP-3: Select Band Profile (Asymmetric or Symmetric)</span></div><div><span style="font-size: 13px;">DIP-4: Select SNR of 12dB or 8dB</span></div><div><span style="font-size: 13px;">LED Indicators<span style="white-space:pre"></span>Power 1/Power 2: Green</span></div><div><span style="font-size: 13px;">FAULT: Red</span></div><div><span style="font-size: 13px;">1000BASE-T LNK/ACT: Green</span></div><div><span style="font-size: 13px;">10/100BASE-TX LNK/ACK: Green</span></div><div><span style="font-size: 13px;">VDSL: Green</span></div><div><span style="font-size: 13px;">CO: Green</span></div><div><span style="font-size: 13px;">CPE: Green</span></div><div><span style="font-size: 13px;">ESD Protection<span style="white-space:pre"></span>6KV DC</span></div><div><span style="font-size: 13px;">Enclosure<span style="white-space:pre"></span>IP30 slim metal case</span></div><div><span style="font-size: 13px;">Installation<span style="white-space:pre"></span>DIN-rail kit or wall-mount ear</span></div><div><span style="font-size: 13px;">Dimensions (W x D x H)<span style="white-space:pre"></span>32 x 135 x 87.8mm</span></div><div><span style="font-size: 13px;">Weight<span style="white-space:pre"></span>185g</span></div><div><span style="font-size: 13px;">Power Requirement<span style="white-space:pre"></span>DC input: Dual 12~48V DC, 0.4A max.</span></div><div><span style="font-size: 13px;">24V AC</span></div><div><span style="font-size: 13px;">Power Consumption<span style="white-space:pre"></span>5.7 watts</span></div><div><span style="font-size: 13px;">Performance</span></div><div><span style="font-size: 13px;">Upstream/ Downstream Performance Table with RJ11 Cable<span style="white-space:pre"></span></span></div><div><span style="font-size: 13px;">CO, Interleave, Asym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 93Mbps/190Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 67Mbps/164Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 38Mbps/116Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 24Mbps/59Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 9Mbps/45Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 6Mbps/30Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Sym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 143Mbps/148Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 118Mbps/119Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 71Mbps/75Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 49Mbps/36Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 21Mbps/25Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 16Mbps/24Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, ASym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 92Mbps/190Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 68Mbps/165Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 37Mbps/112Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 27Mbps/56Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 9Mbps/46Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 5Mbps/31Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, sym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 143Mbps/148Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 116Mbps/115Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 71Mbps/69Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 49Mbps/32Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 19Mbps/27Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 16Mbps/23Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Asym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 85Mbps/174Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 59Mbps/146Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 28Mbps/94Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 22Mbps/49Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 7Mbps/40Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 3Mbps/28Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Sym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 132Mbps/126Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 103Mbps/104Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 59Mbps/60Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 38Mbps/27Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 15Mbps/24Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 6Mbps/20Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, Asym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 85Mbps/174Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 57Mbps/144Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 28Mbps/94Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 22Mbps/49Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 7Mbps/40Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 3Mbps/28Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, Sym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 129Mbps/136Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 99Mbps/96Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 61Mbps/55Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 39Mbps/24Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 15Mbps/26Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 12Mbps/20Mbps</span></div><div><span style="font-size: 13px;">Upstream/ Downstream Performance Table with Coaxial Cable<span style="white-space:pre"></span></span></div><div><span style="font-size: 13px;">CO, Interleave, Asym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 54Mbps/184Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 49Mbps/148Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 36Mbps/100Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 21Mbps/50Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 7Mbps/42Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 5Mbps/27Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Sym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 131Mbps/148Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 93Mbps/118Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 77Mbps/66Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 44Mbps/30Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 20Mbps/25Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 13Mbps/27Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, ASym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 89Mbps/185Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 57Mbps/155Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 33Mbps/75Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 17Mbps/66Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 13Mbps/59Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 4Mbps/32Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, sym, 8dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 140Mbps/144Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 104Mbps/113Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 62Mbps/73Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 40Mbps/29Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 20Mbps/27Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 14Mbps/20Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Asym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 75Mbps/169Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 54Mbps/128Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 26Mbps/80Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 17Mbps/39Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 5Mbps/29Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 3Mbps/28Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">CO, Interleave, Sym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 125Mbps/128Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 89Mbps/99Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 64Mbps/53Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 37Mbps/26Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 19Mbps/28Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 15Mbps/20Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, Asym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 79Mbps/166Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 47Mbps/137Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 31Mbps/73Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 13Mbps/45Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 6Mbps/38Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 3Mbps/22Mbps</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;">G.INP, Sym, 12dB</span></div><div><span style="font-size: 13px;"><br></span></div><div><span style="font-size: 13px;"> 200M -> 117Mbps/123Mbps</span></div><div><span style="font-size: 13px;"> 400M -> 89Mbps/96Mbps</span></div><div><span style="font-size: 13px;"> 600M -> 52Mbps/43Mbps</span></div><div><span style="font-size: 13px;"> 800M -> 39Mbps/24Mbps</span></div><div><span style="font-size: 13px;"> 1000M -> 15Mbps/26Mbps</span></div><div><span style="font-size: 13px;"> 1200M -> 12Mbps/20Mbps</span></div><div><span style="font-size: 13px;">Switch Specifications</span></div><div><span style="font-size: 13px;">Switch Processing Scheme<span style="white-space:pre"></span>Store-and-Forward</span></div><div><span style="font-size: 13px;">Address Table<span style="white-space:pre"></span>2K entries</span></div><div><span style="font-size: 13px;">Flow Control<span style="white-space:pre"></span>Back pressure for half duplex</span></div><div><span style="font-size: 13px;">IEEE 802.3x pause frame for full duplex</span></div><div><span style="font-size: 13px;">Jumbo Packet Size<span style="white-space:pre"></span>9K bytes</span></div><div><span style="font-size: 13px;">System Specifications</span></div><div><span style="font-size: 13px;">VDSL Compliance<span style="white-space:pre"></span>VDSL-DMT</span></div><div><span style="font-size: 13px;">ITU-T G.993.1 VDSL</span></div><div><span style="font-size: 13px;">ITU-T G.997.1</span></div><div><span style="font-size: 13px;">ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)</span></div><div><span style="font-size: 13px;">ITU-T G.993.5 G. Vectoring</span></div><div><span style="font-size: 13px;">ITU-T G.998</span></div><div><span style="font-size: 13px;">G.INP</span></div><div><span style="font-size: 13px;">ADSL Compliance<span style="white-space:pre"></span>Capable of ADSL2/2+ standard</span></div><div><span style="font-size: 13px;">ITU G.992.3 G.dmt.bis</span></div><div><span style="font-size: 13px;">ITU G.992.5 G.dmt.bisplus</span></div><div><span style="font-size: 13px;">Data Rate: Up to 24Mbps</span></div><div><span style="font-size: 13px;">Standards Conformance</span></div><div><span style="font-size: 13px;">Standards Compliance<span style="white-space:pre"></span>IEEE 802.3 Ethernet</span></div><div><span style="font-size: 13px;">IEEE 802.3u Fast Ethernet</span></div><div><span style="font-size: 13px;">IEEE 802.3ab Gigabit Ethernet</span></div><div><span style="font-size: 13px;">ITU-T G.993.1 VDSL</span></div><div><span style="font-size: 13px;">ITU-T G.997.1</span></div><div><span style="font-size: 13px;">ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)</span></div><div><span style="font-size: 13px;">ITU-T G.993.5 G.Vectoring and G.INP</span></div><div><span style="font-size: 13px;">ITU-T G.998</span></div><div><span style="font-size: 13px;">Regulatory Compliance<span style="white-space:pre"></span>FCC Part 15 Class A, CE</span></div><div><span style="font-size: 13px;">Environment</span></div><div><span style="font-size: 13px;">Temperature<span style="white-space:pre"></span>Operating: -40~75 degrees C</span></div><div><span style="font-size: 13px;">Storage: -40~75 degrees C</span></div><div><span style="font-size: 13px;">Humidity<span style="white-space:pre"></span>Operating: 5~95% (non-condensing)</span></div><div><span style="font-size: 13px;">Storage: 5~95% (non-condensing)</span></div></div>
