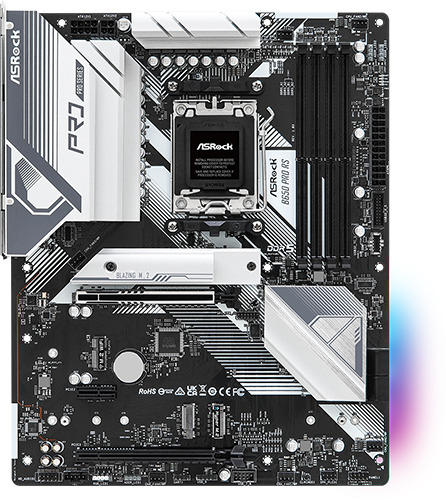

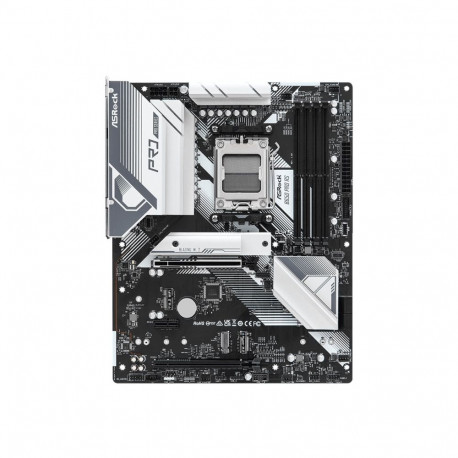

AMD B650, ATX, Audio 7.1 channels, CPU AMD, Socket Socket AM5, Series AMD Ryzen 7000 Series, Supported memory types DDR5-SDRAM, 4xNumber of memory slots, Memory slots type DIMM, Supported storage drive interfaces M.2, SATA III, 6xUSB 2.0 ports quantity, 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity, 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity, 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity, 1xEthernet LAN (RJ-45) ports, 1xHDMI ports quantity

Built for the Most Advanced PCs AM5 Changes Everything AMD EXPO Technology Optimised VRM design Dr. MOS incorporates the latest SPS (Smart Power Stage) technology. It monitors the voltage and temperature of each phase ensuring the right amount of power is delivered to the processor for enhanced performance and overclocking capabilities. Robust components and smooth power transfer to the CPU translate into enhanced performance for gamers. 8-Layer PCB Design The 8-layer PCB provides stable signal paths and power shapes for lower temperatures and higher power efficiency, ensuring reliable operation and top performance without compromise. Extreme Overclocking Performance DDR5 EXPO and XMP support Starting from the concept of designing build for stability and reliability, ASRock does not compromise on any details. All B650 motherboards are built with an 8-layer PCB design, so enthusiasts can enjoy enhanced DDR5 memory overclocking performance of up to 6400 MHz and beyond by using pre-tested profiles. Ensure memory modules support AMD EXPO/Intel XMP and overclocking can be affordable, rewarding and effortless. Blazing OC Tuner The Blazing OC Tuner allows the AM5 processor to switch between OC mode and PBO (Precision Boost Overdrive) mode when the CPU voltage reaches the required threshold. Anything above the current threshold will trigger manual OC mode; if it is below the current threshold, Precision Boost Overdrive mode will be activated. The idea is to combine overclocking on all cores and automatically boosting power on one core to get the best CPU performance. There is no need for configuration from the BIOS, all settings can be modified in the operating system in real time. DDR5 memory with protection circuitry Due to the unique electrical architecture of the DDR5 DIMM, there is a high risk of damaging the memory module if the AC power is not properly disconnected during removal or installation. To prevent this, ASRock has implemented a seamless protection circuit on each DDR5 motherboard, reducing the risk of memory module damage. Nahimic Audio Audio That Matters Whether you use headphones, speakerphone, external or internal speakers via USB, Wi-Fi, analogue output or HDMI, Nahimic Audio offers the best audio experience, vivid and full of detail. Improved Communication Quality Powerful algorithms for the best noise-free conversation, ensuring consistent voice levels regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue. - Static suppression - Echo cancellation - Side sound reduction - Voice stabilisation Best Gaming Experience -Sound Tracker Sound Tracker is a visual indicator that shows the directions from which the dominant sounds are coming. Each sound is appropriately positioned on a 360° radar to ensure full immersion into the game. -Works on all devices! Enjoy vivid and high quality surround sound on all your favourite audio devices: jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favourite audio tools and delivers the best sound with each of them. Nahimic measures and improves to optimise our technology and provide the best experience. POLYCHROMATIC RGB In addition to the built-in RGB backlighting, the board also features integrated, regular and addressable RGB headers that allow the connection of compatible LED devices such as LED strips, CPU fans, fans, cases, etc. Users can synchronise RGB LED devices with the certified Polychrome RGB Sync accessories to create their own unique backlighting style. High Speed M.2 Solution PCIe Gen5 Blazing M.2 This motherboard is ready to accept a host of M.2 devices, including support for PCI Express 4.0 M.2 SSDs, ready to operate at twice the speed of the previous 3rd generation, delivering lightning fast data transfer rates. XXL M.2 heatsink An extra-large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep high-speed M.2 SSDs as cool as possible. Provides better stability while maintaining top performance. USB3.2 Gen2 Gen2 Type-C The latest USB 3.2 Gen2x2 Type-C enables data transfer speeds of up to 20 Gbps, 2x faster than the previous generation. The lightning-fast interface also features a reversible USB Type-C design, so you can connect your device either side. EZ Settings Automatic Driver Installation No need to worry about missing drivers! The ASRock board comes with the LAN driver pre-installed, offering you a convenient option to install the rest of the drivers. Step1: Install Auto Driver Installer Step2: Update your drivers Step3: Done! BIOS Flashback Update the BIOS with a simple click. Users can easily upload the latest BIOS with a USB stick and power supply. No processor, RAM or other components are needed for this. Flexible integrated I/O port bezel Unlike most pre-installed bezels, which are merely decorated with a colour scheme, our port cover can be adjusted during installation, guaranteeing a perfect fit to the case without any technical problems.

<p>- Supports AMD Ryzen™ 7000 Series Processors<br /> - 14+2+1 Phase Power Design, SPS<br /> - 4 x DDR5 DIMMs, supports up to 6200+(OC)<br /> 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,<br /> 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi<br /> - Graphics Output Options: 1 HDMI, 1 DisplayPort<br /> - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio<br /> - 1 Blazing M.2 (PCIe Gen5x4),<br /> 1 Hyper M.2 (PCIe Gen4x4),<br /> 1 M.2 (PCIe Gen3x2 &amp; SATA3),<br /> 4 SATA3<br /> -1 USB 3.2 Gen2x2 Type-C (Front),<br /> 2 USB 3.2 Gen2 Type A+C (Rear),<br /> 4 USB 3.2 Gen1 (2 Rear, 2 Front),<br /> 9 USB 2.0 (6 Rear, 3 Front)<br /> -Realtek 2.5G LAN</p>
