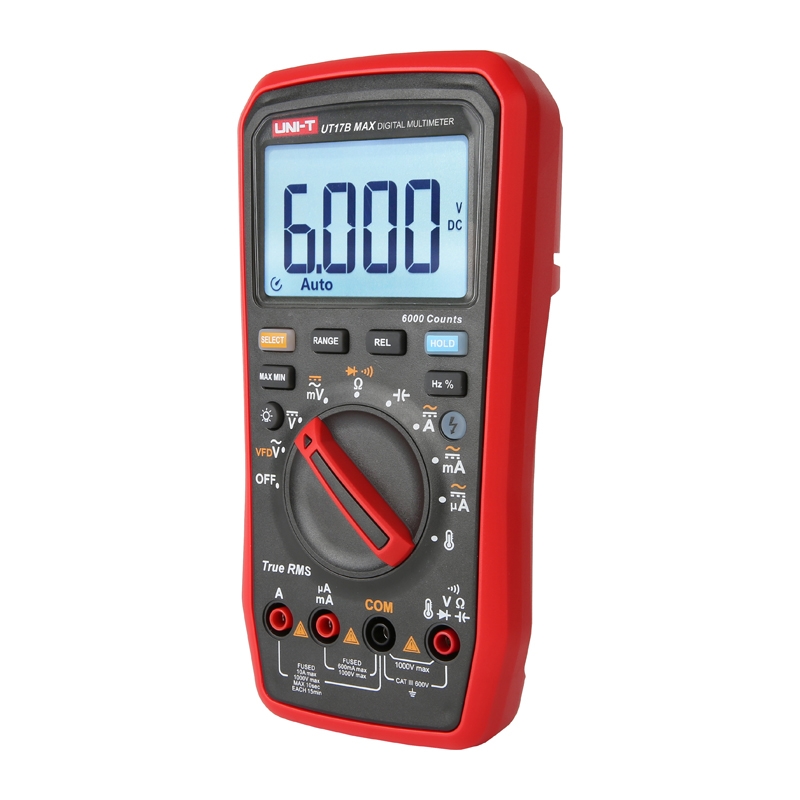

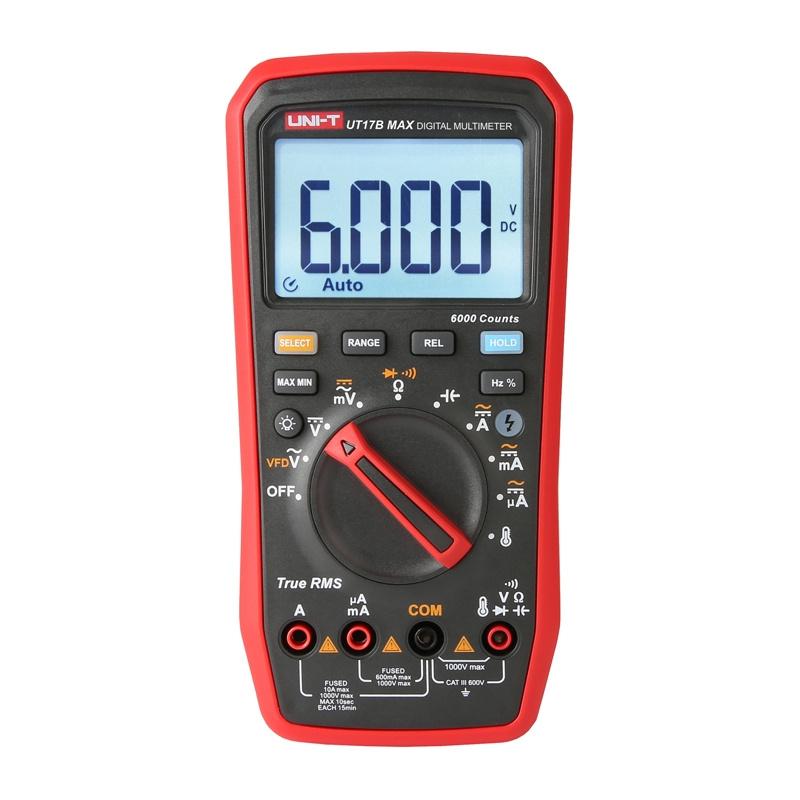

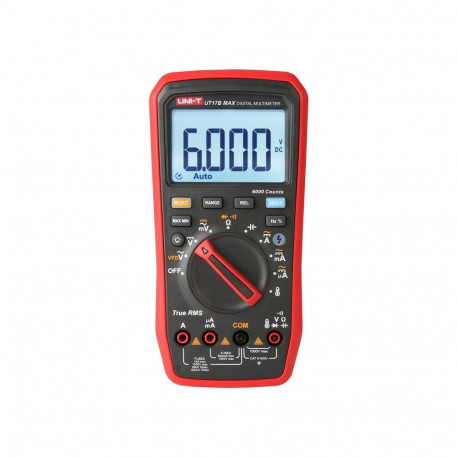

Uni-T True RMS UT17B MAX Digital MultimeterThe Uni-T UT17B MAX is an enhanced version of the True RMS series multimeter, which, in addition to a wide range of basic measurements, also offers a temperature measurement function. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz. With a temperature range from -55°C to 500°C, this model is better suited for a wider variety of service and diagnostic applications.Features that simplify daily diagnosticsLike the UT15B MAX, the UT17B MAX is equipped with a display with a maximum reading of 6000, as well as continuity and diode test functions, Data Hold, MAX/MIN, and relative mode. Adjustable backlight, automatic and manual range switching, auto-off, and wake-up with any button enhance the convenience of daily use. As a result, the device performs well in both basic and more demanding measurements.Greater capabilities and ready to use right awayA major advantage of this model is the inclusion of a Type K thermocouple in the kit, allowing you to use the temperature measurement function right away. Safety is enhanced by a wrong-wire connection alarm and CAT III 600V overvoltage protection. It is a good choice for those who expect more advanced diagnostic capabilities without sacrificing ease of use.IncludedDigital multimeterUser manualStandard gold-plated test leads x2Test leads with fine tips x2Batteries x2Type K thermocouple x1 SpecificationsManufacturerUni-TModelUT17B MAXTypeTrue RMS digital multimeterDC voltage600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4%+3)AC Voltage600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5%+5)VFD600.0 V ±(8%)AC current600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)DC current600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)Resistance600.0Ω to 60.00MΩ ±(0.5%+2)Capacitance6.000nF to 6000µF ±(2.0%+5)Frequency10Hz ~ 10MHz ±(0.1%+3)Duty Cycle1% ~ 99.9% ±(1.0%+4)Temperature-55°C to 500°C ±2°C / ±4°FDisplay6000Continuity TestYesDiode TestYesData HoldYesMAX/MIN ModeYesRelative ModeYesBacklightAdjustableRange selectionAutomatic and manualAuto power offYesWake-up with any buttonYesVisual and audible alarmYesWiring error alarmYesVoltage categoryCAT III 600VPower Supply2x 1.5V AA batteriesWeight455 gDimensions182 mm × 91 mm × 45 mmColorRed and gray
