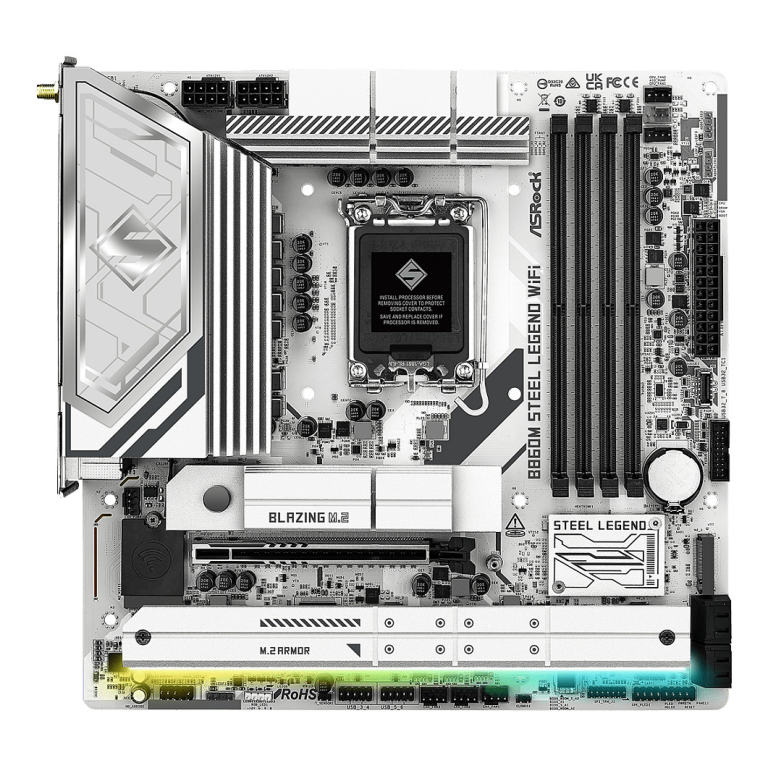

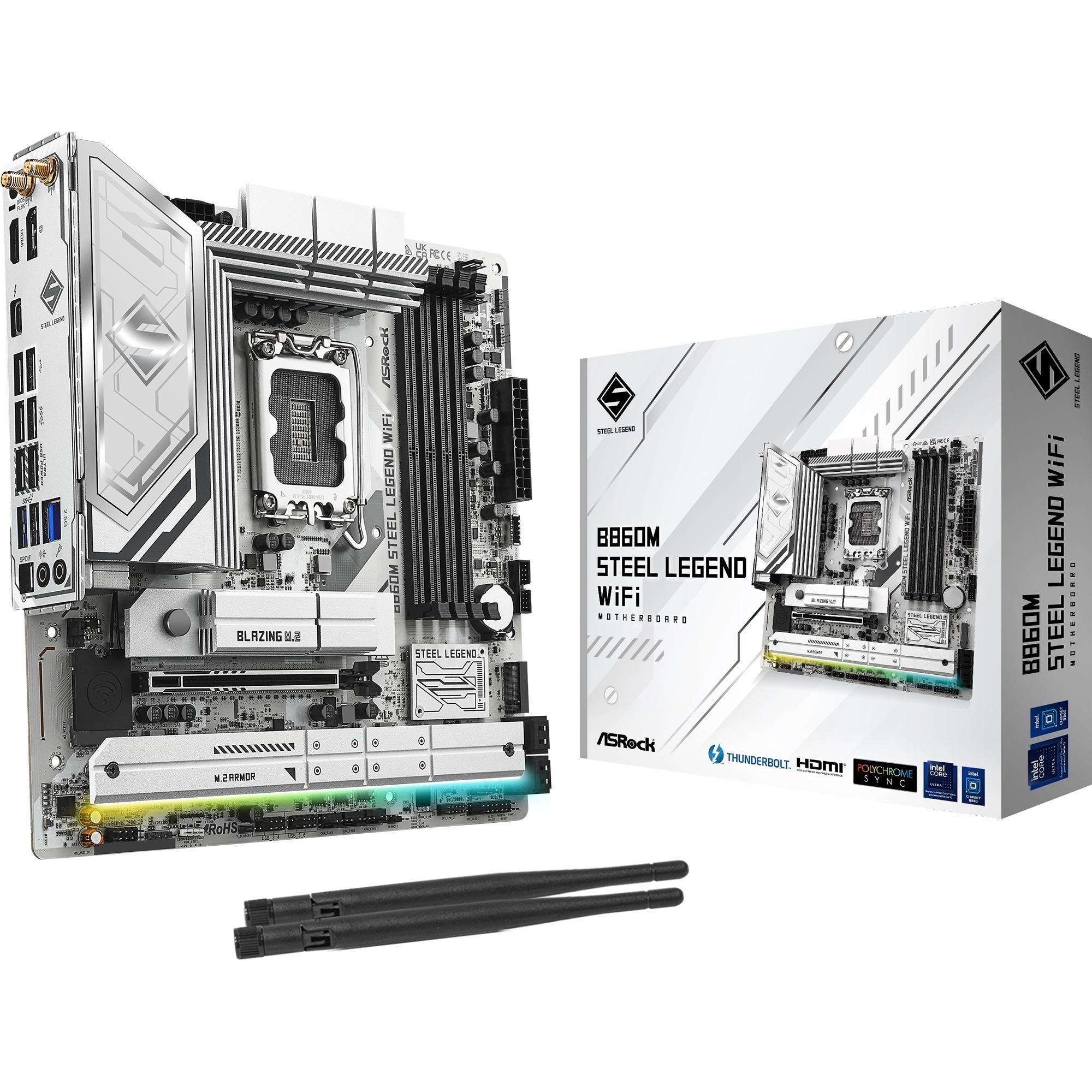

The ASRock B860M Steel Legend WiFi is based on the Intel® B860 chipset and supports Intel® Socket 1851 processors. It features four DDR5 slots for up to 256 GB of RAM. Other features include a PCIe 5.0 x16 slot. The ASRock B860M Steel Legend WiFi also features 8-channel audio, a 2.5 Gigabit LAN interface, WiFi 6E, Bluetooth 5.3, four SATA3 ports, four M.2 ports, and a range of USB ports. Mainboard type EAN 4711581490215 Manufacturer No. 90-MXBQF0-A0UAYZ Base 1851 Max. supported CPUs 1 Processor Supported Models Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake) Intel® B860 chipset Slots PCIe x16 1x (of which: 1x PCIe x16) BIOS 256Mb Flash ROM, UEFI AMI BIOS Form factor µATX Use PC Power supply ATX12V (24-pin + 2x 8-pin) Maximum storage 256 GB 802.11ax Wi-Fi 6E Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 2 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 SATA controller Intel® B860 directly usable RAID levels 0, 1, 10, 5 USB Controller Intel® B860 Sound Realtek ALC1220 7.1 surround sound LAN Dragon RTL8125BG 2.5GbE Ethernet Features 1x Thunderbolt 4 USB-C port with DisplayPort support. Further information A BIOS update may be required to support the latest processor cores. Accessories available 2 x SATA cable, 2 x ASRock WiFi 2.4/5/6 GHz antennas, 1 x thermistor cable Warnings and safety instructions Warnings: Caution: Product contains a button cell or coin battery.

ASROCK B860M Steel Legend WiFi LGA1851 DDR5 mATX MBSteel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA 4 x DDR5 DIMMs Supports Dual Channel, up to 8666+ (OC) 1 PCIe 5.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5x4) 3 Hyper M.2 (PCIe Gen4x4) 1 Thunderbolt™ 4 Type-C (Rear) 3 USB 3.2 Gen2 (2 Rear, 1 Front Type-C) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front) Realtek 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth Supports BIOS Flashback, M.2 Bottom Heatsink
