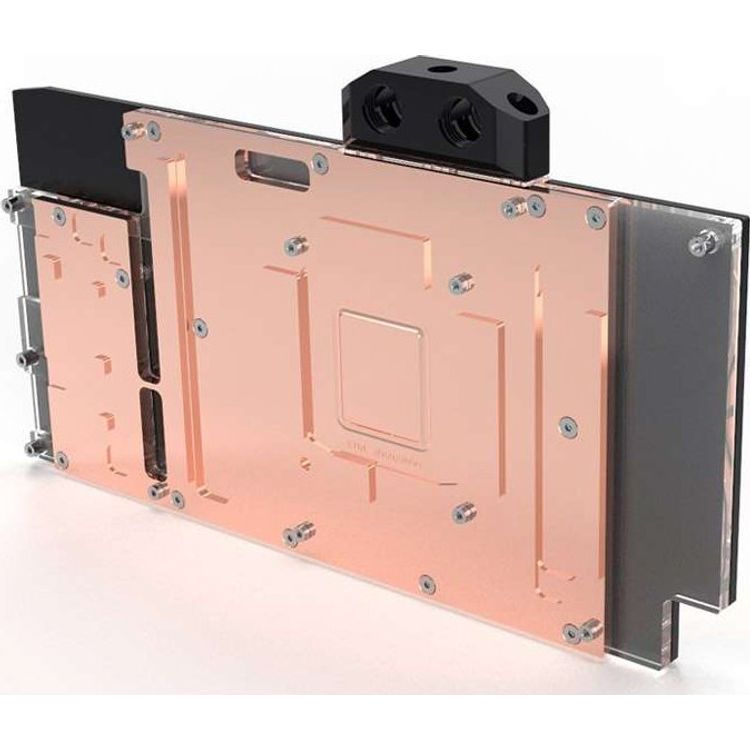

The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090 Founders Edition with backplate (article number: 11941)- Alphacool Eiswolf 2 AIO 360mm RTX 3090 Founders Edition with backplate (article number: 14463) Technical dataL x W x H206,54 x 120,71 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight704 g
The Alphacool Eisblock Aurora Acrylic GPX graphics card water cooler with backplate combines style with performance. Extreme cooling performance and an extensive digital RGB lighting characterize it. Experience and technical know-how from more than a decade have gone into the development, without making any technical compromises. The Eisblock Aurora Acryl GPX is a significant evolution of the previous Alphacool graphics card water cooler, which has been improved in every area. More performance! During the development of the Eisblock Aurora Acryl GPX graphics card water cooler, emphasis was naturally placed on increasing performance. First, the cooler was brought closer to the individual components by reducing the thickness of the heat conducting pads. Next, the nickel-plated copper block was also made thinner. Step 3 involves the constant optimisation of the water flow within the cooler. The result: All important components such as voltage converters and RAM are cooled much better and more effectively by the water and the cooling performance increases significantly. Brilliant design! The addressable digital aRGB LEDs are embedded directly in the cooling block and run along the sides of the entire cooler. The effect is an illumination that engulfs the entire cooling block. No corner or edge is left unlit by the aRGB LEDs. The new design is more angular, with all edges bevelled. The result is better light diffusion in the water cooler due to the reflections on these bevels. They also create various contours that give the Eisblock Aurora Acryl GPX cooler its very own visual touch. Copper or aluminium? Alphacool only uses copper in its water coolers. In the case of the Eisblock Aurora Acryl GPX, the copper is nickel-plated. Compared to the previous models, however, Alphacool has once again improved the type of nickel plating, which has significantly increased the acid resistance. This should prevent the nickel plating from flaking off. Why does Alphacool use copper instead of aluminium? Copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Other special features The Eisblock Aurora Acryl GPX GPU cooler has the patented screw plugs, which sit flush with the surface of the terminal. The Alphacool logo sits in the corner on the top and is also fully illuminated. On the front of the terminal, corresponding designations of the compatible graphics card manufacturers can be seen. Of course, these are also fully illuminated by the adressable digital LEDs. IN and OUT are marked by small discreet triangles. They are easily recognisable and fit perfectly into the overall visual line of the graphics card water cooler.Compatibility: - Colorful iGame GeForce RTX 3080 Advanced 10G - Colorful iGame GeForce RTX 3080 Advanced 10G OC - Colorful iGame GeForce RTX 3090 Advanced - Colorful iGame GeForce RTX 3090 Advanced OC Technical data cooler L x W x H 267 x 122 x 24,55 mm Material cooler Nickle-plated copper Material cooler top acrylic Threads 4 x G1/4 Thickness cooling fins 0,6 mm Illumination digital aRGB LEDs Power connector digital aRGB LEDs 3-Pin JST Power digital aRGB LEDs 5V Number of digital aRGB LEDs 14 Technical data backplate L x W x H 267 x 96,9 x 6 mm Material aluminium Color black
The Alphacool Aurora Acryl GPX-N RTX 3080/3090 Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Acryl GPX EisblockMore Performance! During the development of the EIsblock Aurora GPX-N RTX 3080/3090 graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance.New Design! The Eisblock Aurora GPX-N RTX 3080/3090 cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-N RTX 3080/3090 Eisblock cooler its very own unique identity.Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling.Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080/3090 also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080/3090 Acryl is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation.Technical data:L x W x H: 146 x 269,5 x 25 mmMaterial cooler: Nickle-plated copperMaterial cooler top: AcrylThreads: 4 x G1/4“Thickness cooling fins: 0,6 mmIllumination: Digital RGB LEDsPower connector Digital RGB LEDs: 3-Pin JSTPower Digital RGB LEDs: 5V Graphics Card Configurator: Click here!List of Compatibility: Nvidia graphic cards Compatibility:RTX 3080TIGigabyte Aorus GeForce RTX 3080 Ti Xtreme 12GB (GV-N308TAORUS X-12GD)Gigabyte Aorus GeForce RTX 3080 Ti Master 12GB (GV-N308TAORUS M-12GD)RTX 3080Gigabyte Aorus GeForce RTX 3080 Master 10G, 10GB GDDR6X, 3x HDMI, 3x DP (GV-N3080AORUS M-10GD)Gigabyte Aorus GeForce RTX 3080 Xtreme 10G, 10GB GDDR6X, 3x HDMI, 3x DP (GV-N3080AORUS X-10GD)RTX 3090Gigabyte Aorus GeForce RTX 3090 Master 24G, 24GB GDDR6X, 3x HDMI, 3x DP (GV-N3090AORUS M-24GD)Gigabyte Aorus GeForce RTX 3090 Xtreme 24G, 24GB GDDR6X, 3x HDMI, 3x DP (GV-N3090AORUS X-24GD) Download data sheet PDF: Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 Aorus Master Xtreme with BackplateDownload manual PDF: Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 Aorus Master Xtreme with Backplate
The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock with Backplate combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Acryl GPX Eisblock More Performance! During the development of the Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 GameRock is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Technical details cooler L x W x H 215,6 x 144,5 x 25 mm Material cooler Nickle-plated copper Material cooler top POM clear Threads 4 x G1/4“ Thickness cooling fins 0,6 mm Illumination Digital RGB LEDs Power connector Digital RGB LEDs 3-Pin JST Power Digital RGB LEDs 5V Graphics Card Configurator: Click here!List of Compatibility: Nvidia graphic cards Compatibility: - Palit GeForce RTX 3080 Ti GameRock, 12GB GDDR6X, HDMI, 3x DP (NED308T019KB-1020G) - Palit GeForce RTX 3080 Ti GameRock OC, 12GB GDDR6X, HDMI, 3x DP (NED308TT19KB-1020G) - Palit GeForce RTX 3080 GameRock, 10GB GDDR6X, HDMI, 3x DP (NED3080U19IA-1020G) - Palit GeForce RTX 3080 GameRock OC, 10GB GDDR6X, HDMI, 3x DP (NED3080H19IA-1020G) - Palit GeForce RTX 3090 GameRock OC, 24GB GDDR6X, HDMI, 3x DP (NED3090H19SB-1021G) - Palit GeForce RTX 3090 GameRock, 24GB GDDR6X, HDMI, 3x DP (NED3090T19SB-1021G)- Gainward GeForce RTX 3080 Phantom, 10GB GDDR6X, HDMI, 3x DP (2119) - Gainward GeForce RTX 3080 Phantom GS, 10GB GDDR6X, HDMI, 3x DP (2140) - Gainward GeForce RTX 3080 Ti Phantom, 12GB GDDR6X, HDMI, 3x DP (2393) - Gainward GeForce RTX 3080 Ti Phantom GS, 12GB GDDR6X, HDMI, 3x DP (2416) - Gainward GeForce RTX 3090 Phantom, 24GB GDDR6X, HDMI, 3x DP (2058) - Gainward GeForce RTX 3090 Phantom GS, 24GB GDDR6X, HDMI, 3x DP (2072) Download Datasheet PDF: Alphacool_Eisblock_Aurora_Acryl_GPX-N_RTX_3080-3090_GameRock_with_BackplateDownload Manual PDF: Alphacool_Eisblock_Aurora_Acryl_GPX-N_RTX_3080-3090_GameRock_Backplate
The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Acryl GPX Eisblock More Performance! During the development of the Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Technical data cooler L x W x H 266,65 x 122,4 x 24,35 mm Material cooler Nickle-plated copper Material cooler top Acrylic Threads 4 x G1/4“ Thickness cooling fins 0,6 mm Illumination Digital RGB LEDs Power connector Digital RGB LEDs 3-Pin JST Power Digital RGB LEDs 5V Technical data backplate L x W x H 266,65 x 97,6 x 6 mm Material Aluminium Color Black Compatibility list:- ASUS Turbo GeForce RTX 3080 10GB (TURBO-RTX3080-10G) - ASUS Turbo GeForce RTX 3080 V2 10GB (TURBO-RTX3080-10G-V2) - ASUS Turbo GeForce RTX 3090 (90YV0FK0-M0NB00) Downloads:Datasheet PDF | Manual PDF | Nvidia List of Compatibility PDF Links: Graphics Card Configurator
The Alphacool Aurora Acryl GPX-N RTX 3080/3090 XC3 Ultra Gaming Eisblock combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Acryl GPX Eisblock More Performance! During the development of the EIsblock Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming Eisblock cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming Eisblock, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming Acryl is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Technical data:L x W x H: 125 x 264 x 24,5 mmMaterial cooler: Nickle-plated copperMaterial cooler top: AcrylThreads: 4 x G1/4“Thickness cooling fins: 0,6 mmIllumination: Digital RGB LEDsPower connector Digital RGB LEDs: 3-Pin JSTPower Digital RGB LEDs: 5V Graphics Card Configurator: Click here!List of Compatibility: Nvidia graphic cards Compatibility:RTX 3080TIEVGA GeForce RTX 3080 Ti XC3 Ultra Gaming (12G-P5-3955-KR)EVGA GeForce RTX 3080 Ti XC3 Gaming, 12GB GDDR6X, HDMI, 3x DP (12G-P5-3953-KR)RTX 3080EVGA GeForce RTX 3080 XC3 Black Gaming, 10GB GDDR6X, HDMI, 3x DP (10G-P5-3881-KR)EVGA GeForce RTX 3080 XC3 Ultra Gaming, 10GB GDDR6X, HDMI, 3x DP (10G-P5-3885-KR) Download data sheet PDF: Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 XC3 Ultra Gaming with BackplateDownload manual PDF: Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 XC3 Ultra Gaming with Backplate
The Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF combines style with performance and extensive digital RGB lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high quality and fantastic performance. This perfectly describes the Aurora Acryl GPX Eisblock More Performance! During the development of the Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. All important components such as the voltage transformers and the memory are now significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance. New Design! The Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF cooler has been designed so that lighting is more important than the previous models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create various contours, which give the Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF cooler its very own unique identity. Copper or Aluminium? Of course, Alphacool only uses copper for its water coolers. With the Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF, the copper is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking. Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling. Is There Anything Else New? The Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF also relies on the new patented stop fittings, which sit flush with the surface of the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the front of the terminal you can see the corresponding names of the compatible graphic card types. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water cooler. The Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF is a complete redevelopment of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how flowed into the development and implementation. Technical Data cooler L x W x H 295 x 150 x 24,7 mm Material cooler Nickle-plated copper Material cooler top POM clear Threads 4 x G1/4“ Thickness cooling fins 0,6 mm Illumination Digital RGB LEDs Power connector Digital RGB LEDs 3-Pin JST Power Digital RGB LEDs 5V Technical Data backplate L x W x H 295 x 125,25 x 6 mm Material Aluminium Color Black Graphics Card Configurator: Click here!List of Compatibility: Nvidia graphic cards Compatibility: - GALAX GeForce RTX 3080 Ti HOF 12GB (38IOM5MD3BHX) - GALAX GeForce RTX 3090 HOF - KFA2 GeForce RTX 3080 Ti HOF Premium (38IOM5MD3BAK) Download Datasheet PDF: Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF with Backplate Download Manual PDF: Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF wih Backplate
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Aorus Master/Xtreme with backplate (article number: 11974)- Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 Aorus Master/Xtreme with backplate (article number: 11952) Technical dataL x W x H269,27 x 120,74 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight844 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 FTW3 with backplate (article number: 14414)- Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 FTW3 with backplate (article number: 11943) Technical dataL x W x H289,90 x 125,65 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight1032 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 Gaming/Eagle with backplate (article number: 11942)- Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Gaming/Eagle with backplate (article number: 14416) Technical dataL x W x H233,5 x 97 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight662 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 ROG Strix with backplate (article number: 14418)- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 ROG Strix with backplate (article number: 11940) Technical dataL x W x H266,6 x 129 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight925 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 Suprim X with backplate (article number: 11938) Technical dataL x W x H295 x 127,25 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight1054 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090 TI Founders Edition with Backplate (article number: 13056) Technical dataL x W x H220,5 x 121,4 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight753 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 TI HOF with backplate (article number: 11967) Technical dataL x W x H295 x 125,25 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight1013 g
The Alphacool Eisblock Aurora GPX-N Acrylic Active Backplate for Geforce RTX 3080/3090 graphics cards is the perfect upgrade for Alphacool's Eisblock Aurora Acrylic GPX-N GPU custom water coolers as well as Alphacool's Eiswolf 2 GPU AIOs (see compatibility details). With the help of the backplate, consisting of nickel-plated copper, the back of Geforce RTX 3080/3090 graphics cards can now also be actively water-cooled, thus achieving a significant increase in cooling performance.Connection optionsThere are 2 different ways to incorporate the backplate into your existing watercooling loop: Variant 1The cooler has an inlet and outlet with G1/4" internal thread on the top side respectively. With suitable connections and hoses/hard tubes, the backplate can be easily integrated into the water circuit. Variant 2The cooler has an inlet and outlet on the side suitable for 5/3mm hoses. With the help of Alphacool's MCX 2x manifold with 5/3mm tubing (item 1022250), the active backplate can be easily integrated into the water circuit in a space-saving way. This variant is a sensible choice if there is little space in the PC case and tubing runs will be difficult to do. (Note: Only works with Eisblock Aurora Acryl/ES Acetal GPX-N GPU custom water coolers. Cannot be used in combination with Alphacool Eiswolf 2 AIOs!)The connection options are very flexible for both variants, as the inlet and outlet can be freely selected depending on the design.Brilliant illuminationSix addressable digital RGB LEDs are directly recessed and run along the sides of the entire cooling block. This illuminates the entire cooling block and creates unique lighting effects. The Digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a Digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a Digital RGB capable motherboard. Compatibility:- Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Ventus with backplate (article number: 14420)- Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 Ventus with backplate (article number: 11937) Technical dataL x W x H260 x 107,25 x 13,3 mmMaterial backplatecopper, nickel-platedMaterial cooleracrylicThreads Water cooling2x G1/4" | 2x 5/3mm tube connectionIllumination6x digital addressable RGB LEDsPower connector digital aRGB LEDs3-pin JST (male & female switch)Power digital aRGB LEDs5VMaximum working temperature60 °CPressure tested0,8 BarWeight718 g
The Alphacool Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo was specially developed for the Alphacool Enterprise series. The full-cover cooler with aluminium backplate cools the GPU and all important components such as voltage converters and the graphics memory directly with water. Connections to the top? Server cases offer different dimensions than normal PC cases. To save space in width and height, the connections were moved to the top. Another advantage is that it is easier to connect the tubing of a complete server rack with this kind of positioning of the connections. This means that even quick-release fasteners with G1/4" external thread can be screwed directly to the graphics card as already offered by Alphacool. More performance! During the development of the Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo graphics card waterblock, we naturally placed great emphasis on increasing performance. For the first step, the cooler was brought closer to the individual components by reducing the thermal pads to a thickness of 1 mm. Next, the nickel-plated copper block was also made thinner. Instead of 7 mm, it is now only 5.5 mm thick. The water flow within the cooler was also optimized. All important components such as the voltage converters and the RAM are now cooled much better and more effectively by water. All this provides a significant increase in cooling performance. Copper or aluminum? Alphacool, of course, only uses copper in its water coolers. In the Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo the copper is nickel-plated. However, compared to the previous models, Alphacool has improved the type of nickel plating once again. This has significantly increased the acid resistance and is intended to prevent nickel plating from flaking off. Why does Alphacool use copper instead of aluminum? Copper simply has almost twice the thermal conductivity of aluminum and is therefore clearly the better material for water cooling. Technical data cooler L x W x H 266,7 x 97,90 x 14,75 mm Material cooler Nickle-plated copper Material cooler top acetal Threads 2 x G1/4“ Thickness cooling fins 0,6 mm Technical data backplate L x W x H 266,7 x 97,6 x 6 mm Material aluminium Color Black Compatibility list: - ASUS Turbo GeForce RTX 3090 (90YV0FK0-M0NB00) - ASUS Turbo GeForce RTX 3080 10GB (TURBO-RTX3080-10G) - ASUS Turbo GeForce RTX 3080 V2 10GB (TURBO-RTX3080-10G-V2) Downloads:Datasheet PDF | Manual PDF | Nvidia List of Compatibility PDF Links: Graphics Card Configurator

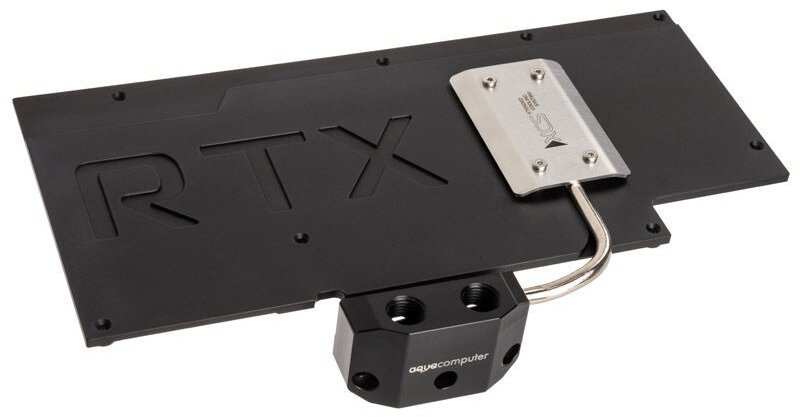

Aquacomputer backplate for kryographics NEXT RTX 3080 Extended / RTX 3090...
Tootekood: 23698GTIN: 4260473313984GPU Backplates
This back plate is manufactured from massive aluminum and can be mounted in addition to a kryographics NEXT RTX 3080 Extended / RTX 3090 Extended water block, giving additional stability especially in the voltage regulator area of the graphics card. The back plate is anodized in black color. Scope of delivery: One Back plate Thermal conductive pads Mounting material Compatibility: Please check compatibility using the PDF from Aqua Computer under Awards and Documents. Please note: Graphics card and kryographics water block are not included in delivery, please order separately.
This back plate is manufactured from massive aluminum and can be mounted in addition to a kryographics NEXT RTX 3080 Strix / RTX 3090 Strix water block, giving additional stability especially in the voltage regulator area of the graphics card. Additionally, the RAM modules on the back of the RTX 3090 Strix graphics card are cooled effectively. The back plate is anodized in black color. Scope of delivery: One Back plate Thermal conductive pads Mounting material Compatibility: Please check compatibility using the PDF from Aqua Computer under Awards and Documents. Please note: Graphics card and kryographics water block are not included in delivery, please order separately.
Aquacomputer backplate for kryographics NEXT RTX 3080, passive
Tootekood: 23686GTIN: 4260473313861GPU Backplates
The backplate, made of solid aluminium, is the matching counterpart for the kryographics NEXT 3080 water cooler from Aqua Computer. The stability is enormously improved, especially around the voltage regulator area. The backplate is black anodised. Important: Delivery without graphics card and without kryographics water cooler! Technical Data: Back plate: Aluminum, anodized Scope of Delivery: 1x back plate Thermal conductive pads mounting material
NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities. OC edition: Boost clock 1815 MHz (OC mode)/1785 MHz (Gaming mode). Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence. Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs. Military-grade Capacitors and other TUF components enhance durability and performance. GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

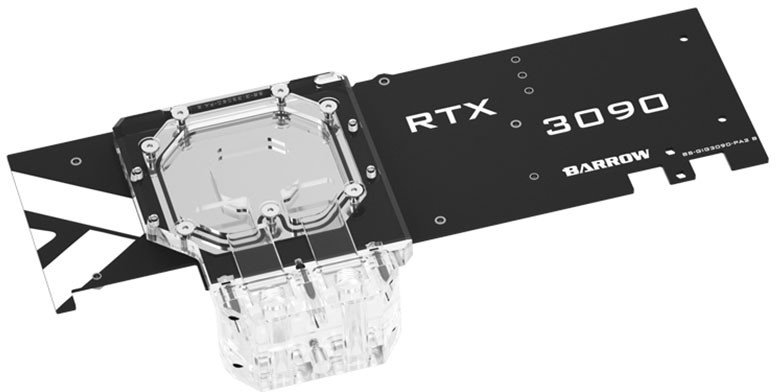

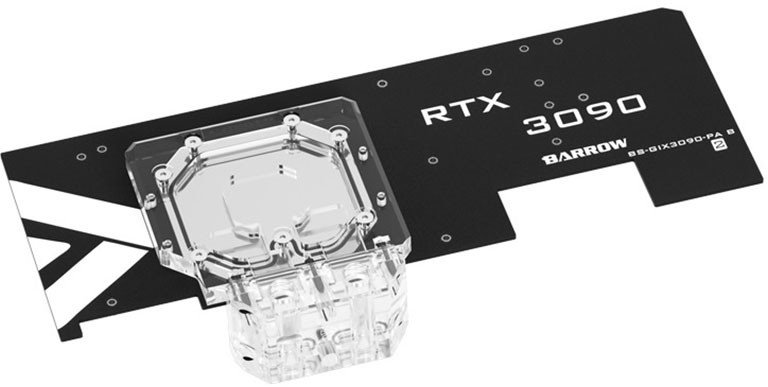

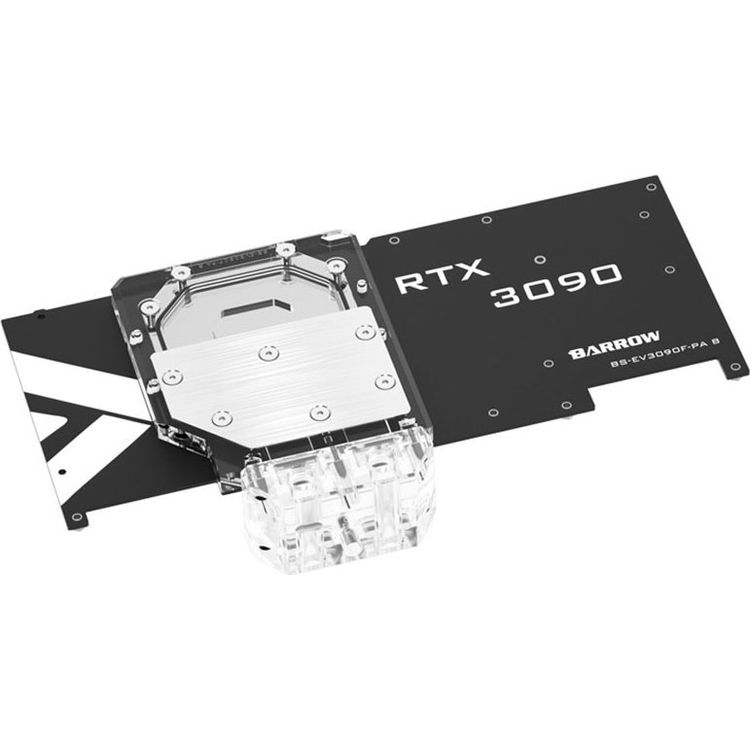

The Barrow Backplate for GALAX/GAINWARD 3090 full coverage GPU Water Block - Black Backplate is made of aluminium. This ensures improved cooling. Compatibility: GALAX RTX 3090 OC GALAX RTX 3090 GALAX RTX 3080 OC GALAX RTX 3080 Gainward RTX 3090 OC Gainward RTX 3090 Gainward RTX 3080 10G Gainward RTX 3080 OC 10G Technical Data Material: Aluminium Dimensions: 215.8 x 106.6 x 5.5mm Colour: Black Weight: 100g Scope of Delivery Barrow Backplate for GALAX/GAINWARD 3090 full coverage GPU Water Block - Black
