Uni-T UT620C+ digitaalne mikro-oommeeter

UNI-T UT620C+ Digital Micro-Ohmmeter

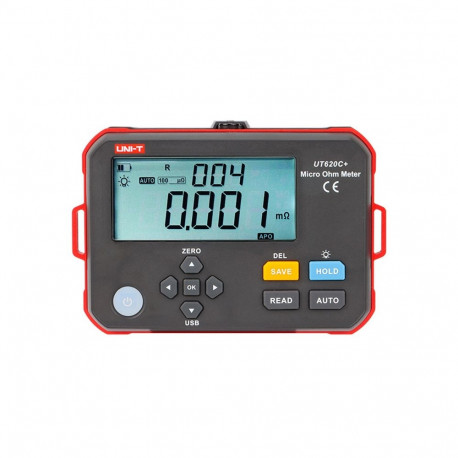

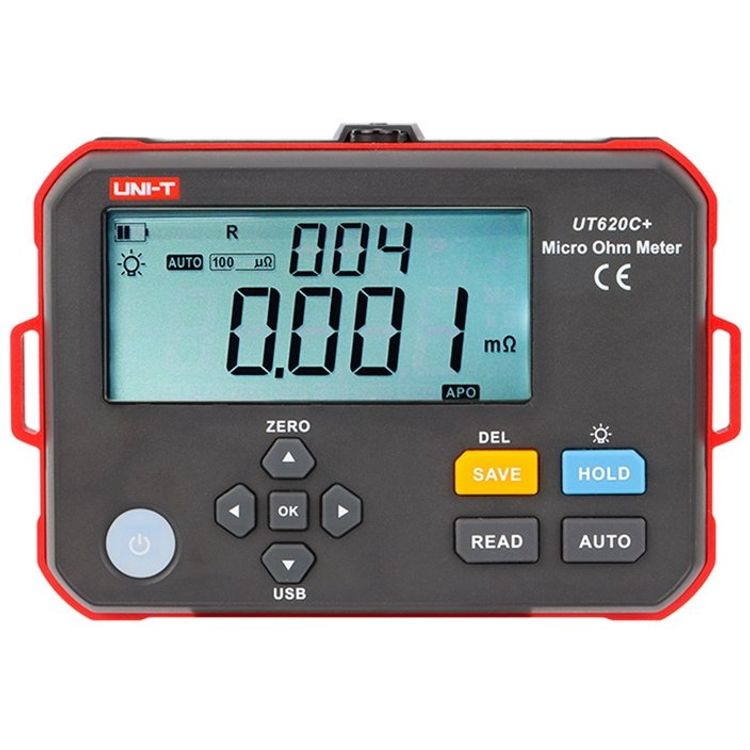

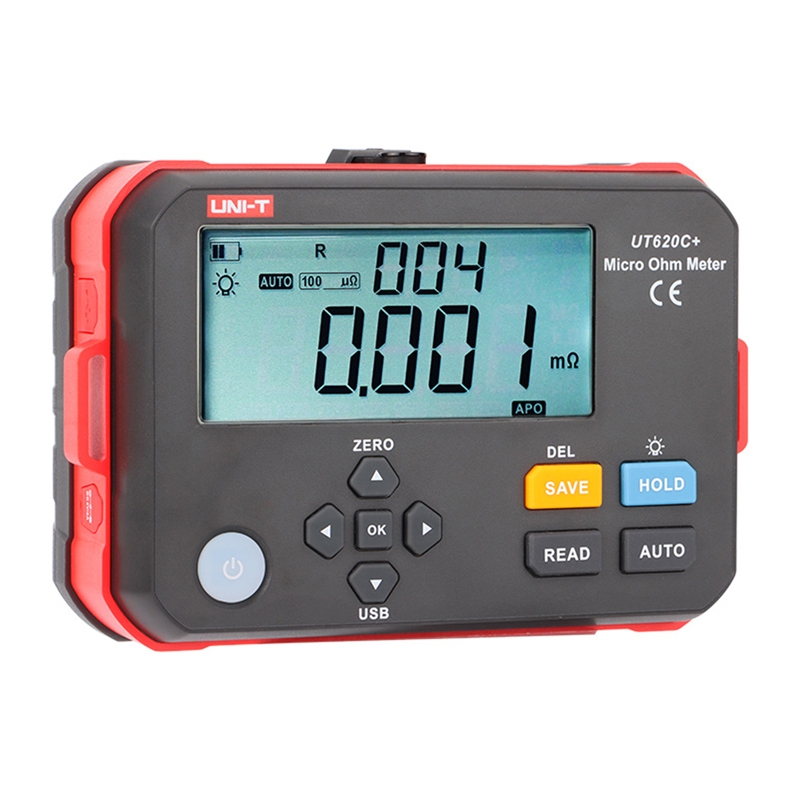

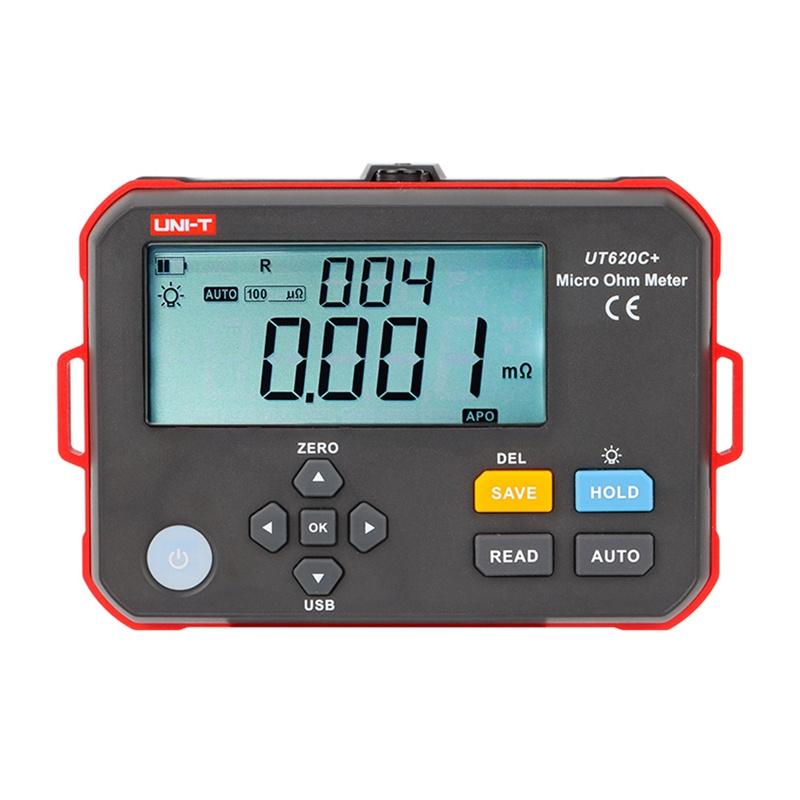

Uni-T UT620C+ Digital Micro-Ohm MeterThe Uni-T UT620C+ Digital Micro-Ohm Meter is a precision instrument designed for measuring very low resistances—from 0.001 mΩ up to 300 kΩ—making it ideal for testing both small components and more complex systems. High resolution down to 1 μΩ and accuracy of ±0.1% FS allow for the detection of even slight changes in resistance, which is crucial for technical diagnostics. The use of the four-wire method minimizes the influence of test leads on the result, and a test current of up to 1 A enables stable measurements under various conditions. Additionally, the device offers storage for up to 500 results, a clear backlit LCD display, and a compact, portable design with battery power. ManufacturerUni-TModelUT620C+Resistance measurement range0.001 mΩ – 300.0 kΩResolutionup to 1 μΩOpen-circuit voltage≤ 4.2 VMeasurement rateapprox. 2 measurements/sMemoryup to 500 data setsDisplaybacklit segment LCDInterfaceUSB Type-CInput protectionup to 36 V AC/DCProtection ratingIP54Power supply3.7 V / 3200 mAh Li-ion batteryPower consumption≤ 8 WDimensions161 × 117 × 68 mmWeight480 g (with battery)
