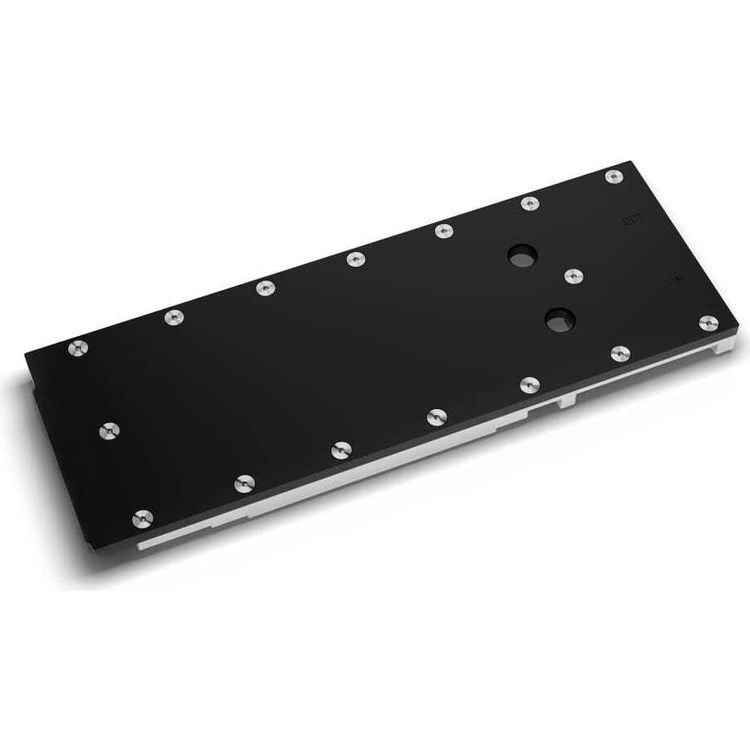

Alphacool's Core product series is characterized by high quality, outstanding performance, and a consistent, functional design language.The copper cooler, as well as the end terminal, is milled from a single piece of copper and forms the core of this cooler. The precise workmanship, together with the hard and durable chrome plating that covers the entire copper cooler, meets the highest quality standards. The chrome-plated brass G1/4" threads integrated on both sides are visually distinct from the terminal and represent a central element of the new design language featured throughout the Core series.The aluminum backplate, designed to match, together with the terminal, forms the complete unit and enhances the back of the cooler with a clean and unified look. The lighting features digitally addressable RGB LEDs that evenly and effectively illuminate the entire cooler.Technical innovations are evident in the water delivery to the jet plate as well as the optimization of the jet plate itself. The jet plate has been entirely redesigned based on numerous simulations and practical tests in cooperation with board partners. The fin thickness and spacing have been improved, the cooling surface has been increased, and water flow to the core components with the highest heat generation has been optimized. The included special soft thermal pads, with up to 7 W/mK, adapt perfectly even to the smallest tolerances. Compatibility:- AMD Radeon RX 7900 XTX, 24GB GDDR6- ASRock Radeon RX 7900 XTX, 24GB GDDR6- Asus Radeon RX 7900 XTX, RX7900XTX-24G, 24GB GDDR6 (90YV0IT0-U0NM00)- Biostar Radeon RX 7900 XTX, 24GB GDDR6 (VA7906AEF4)- Gigabyte Radeon RX 7900 XTX 24G, 24GB GDDR6 (GV-R79XTX-24GC-B)- PowerColor Radeon RX 7900 XTX, 24GB GDDR6 (RX 7900 XTX 24G)- XFX Radeon RX 7900 XTX, 24GB GDDR6 (RX-79XMBABF9) Technical data coolerDimensions (L x W x H)269 x 135 x 32.15mmMaterial coolerchrome-plated copperMaterial cooler topacrylicMax working temperature60°CPressure tested0.8 barThreads4 x G1/4"Thickness cooler bottom11.3mmThickness cooling fins0.4mmDistance cooling fins0.4mmIlluminationdigital aRGB LEDsPower connector digital aRGB LEDs3-Pin JSTPower digital aRGB LEDs5VNumber of digital aRGB LEDs15ColortransparentTechnical data backplateDimensions (L x W x H)269 x 221 x 5mmMaterialaluminiumColorblackWarranty: 3 years Warranty Terms
The next generation - the Alphacool Eisblock Aurora water cooler for Radeon RX 7XXX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.Technical HighlightsThe fin structure of this Eisblock cooler generation was developed together with AMD board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.Chrome-plated copperThe cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.DesignThe Aurora design of the Radeon RX 7XXX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.Thermal paste & thermal padsThe included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850.000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK. Compatibility:- PowerColor Radeon RX 7900 XTX Red Devil Limited Edition, 24GB GDDR6, HDMI, 3x DP (RX 7900 XTX 24G-E/OC/LIMITED)- PowerColor Radeon RX 7900 XTX Red Devil, 24GB GDDR6, HDMI, 3x DP (RX 7900 XTX 24G-E/OC) Technical data coolerDimensions (L x W x H)285,50 x 144,50 x 34,20mmMaterial coolerchrome-plated copperMaterial cooler topacrylicMax working temperature60°CPressure tested0,8 barThreads4 x G1/4"Thickness cooling fins0,4mmDistance cooling fins0,4mmIlluminationdigital aRGB LEDsPower connector digital aRGB LEDs3-Pin JSTPower digital aRGB LEDs5VNumber of digital aRGB LEDs15ColortransparentTechnical data backplateDimensions (L x W x H)285,50 x 120,00 x 6mmMaterialaluminiumColorblack

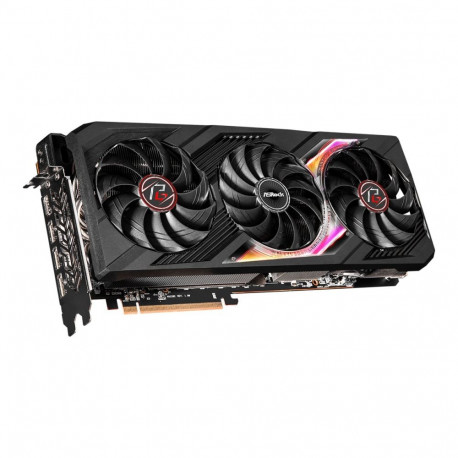

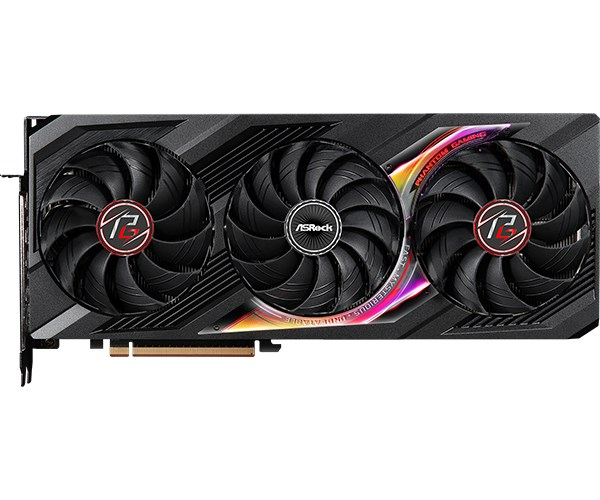

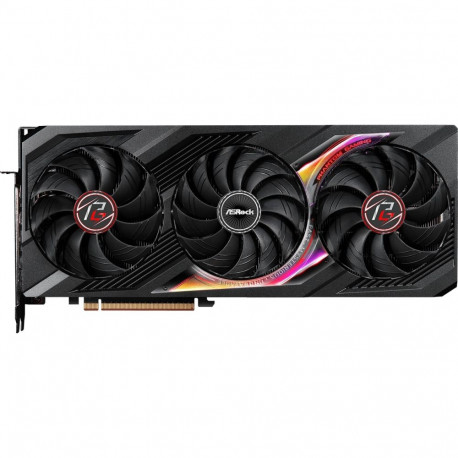

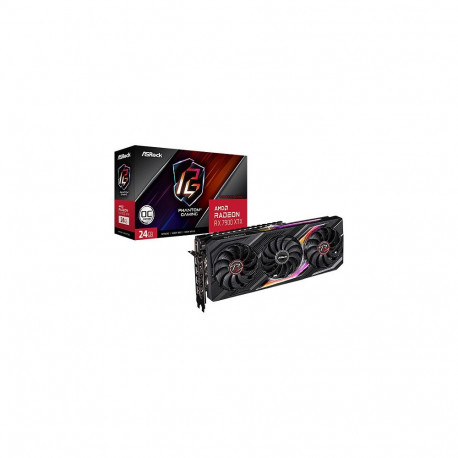

Phantom Gaming 3X cooling system. For cool and quiet. Created for the best balance between thermal performance and silence thanks to all the details. Striped ring fan Designed for Improved Airflow ASRock's all-new Striped Ring Fan has a larger air intake on the side and allows better airflow through the cooling system. Air reflective fin Direct the airflow to be more regular and fast to increase cooling efficiency with V-shaped cutting fins and V-shaped vents. Ultra fit heat pipe. Consolidated to maximize contact. The heatpipes are consolidated to maximize contact with each other as well as the GPU baseplate to optimize heat dissipation. Memory heat pipe Designed to improve and balance temperature and heat dissipation for video memory. Nickel-plated copper base. Maximize GPU contact area. With the high-quality design of the copper-based heatsink, the direct contact area with the GPU would be maximized to effectively improve the heat transfer. High-density metal welding. Improve heat dissipation. They effectively insulate the entire gap cover between the pipe and the stacked fins, thus effectively improving heat dissipation. Nano thermal paste. Excellent thermal teamwork. Eliminate gaps in the contact area to maximize heat transfer and thermal efficiency. Top quality thermal pad. Better heat transfer. A high-quality thermal pad helps transfer component heat to the heatsink, improving heat dissipation. Precise screw tightening torque. Optimized assembly pressure. ASRock uses precise screw torque when assembling its graphics cards to optimize cooler mounting pressure to improve thermal performance while avoiding damage to the GPU die. 0dB silent cooling. Spin to cool, pause to calm down. The fan spins when the temperature rises for optimal cooling, and stops when the temperature drops for complete silence. Polychrome synchronization. Create your own unique colorful lighting effects. Thanks to the integrated ARGB LEDs, you can create your own unique colorful lighting effects, which can also be switched on and off. It can also be synchronized with ASRock motherboards that support Polychrome SYNC. LED on/off switch. Enabled or disabled? Switch as you like. You can simultaneously switch not only the built-in ARGB LEDs, but also ARGB LEDs equipped with connected strips/devices. Reinforced metal frame. Reinforced metal frame Reinforces the structure to prevent PCB bending. Stylish metal backplate. Solid, fancy, cool. Designed to avoid PCB bending. The fancy look makes the graphics card more visually legendary. It also helps to improve cooling with high quality thermal pads fitted on the back. ASRock Tweak 2.0. Professional and easy to use tuning program. Provides intelligent fan speed control and instant performance tuning. 8K resolution support It not only supports 4K graphics, but also supports next-generation 8K video output for the best viewing experience. PCI Express 4.0 support This graphics card supports PCI Express 4.0 with a bandwidth of 16 GT/s and provides twice the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
