APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
APC SurgeArrest + Battery Backup 325VA GermanBattery and surge protected outletsSurge only outletsAutomatic self-testBattery failure notificationIntelligent battery managementAudible alarmsLED status display PowerVAW 325 VA PowerW 185 W Runtime 10.9/2.9 InputVoltage 230 V OutputVoltage 230 V InputFrequency 50 Hz +/- 3 Hz OutputFrequency 47 - 63 Hz InputConnections Schuko CEE 7/7P OutputConnections (2) Schuko CEE 7 (Battery Backup)(2) Schuko CEE 7 (Surge Protection) WaveformType Stepped approximation to a sinewave RechargeTime 24 h BatteryType Maintenance-free sealed Lead-Acid battery with suspended electrolyteleakproof Serial n/a USB n/a SmartSlot n/a RJ45 n/a InterfacePorts n/a ControlPanel LED Status display with On LineOn Battery Alarm Alarm when on batterydistinctive low battery alarm Color Charcoal FormFactor n/a PackageContents User Manual Width 360 mm Depth 95 mm Height 115 mm Weight 4.000 Kg Warranty 2 years
Original part number SURT1000XLI Product name APC Smart-UPS RT 1000 Producer APC by Schneider Electric Class of product UPS Apparent power 1000 VA Real power 700 Watt UPS architecture on-line Max. time of switching on battery 0 ms Number and type of outlets with power maintenance 6 x IEC320 C13 (10A) Input connector type IEC320 C14 (10A) Sustain time with full load 10.2 min Sustain time with 50% load 24.4 min Input voltage range for main operations 160-280 V Input voltage alternating range 100-280 V Cold start Yes (AVR) Automatic Voltage Regulation Yes Sine while working on battery Yes Communication ports RS232 (DB9) Data line surge protection port N/A LED work on linerequired battery changeby-pass modeUPS overloadWork on battery Sound alarm Work on batteryUPS overloadconsiderable battery flat Type of computer case Rack 19"Tower Standard accessory RS232 (DB9) serial cableCD with softwaremanual (user guide)SmartSlot for extra cards (1 pcs.) Software included PowerChute Business Edition Width 432 mm19 inches Height 85 mm2 U Depth 483 mm Net weight 23 kg Gross weight 27.8 kg Colour Black

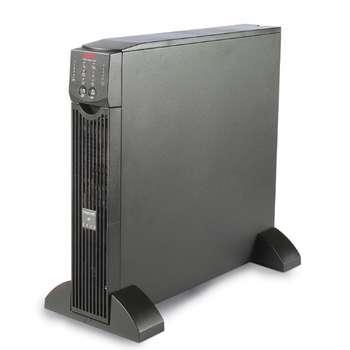

SOOVITUSLIK MAA: UniversalKAUGJUHTIMINE: LisaARHITEKTUUR: ON-LINESARILIIDESED: 1POWERCHUTE TARKVARA: OnSERVERI SHUTDOWN: On, OnNIMIVÕIMSUS (VA): 2000 VANIMIVÕIMSUS (W): 1400WLAIENDUSPESAD : SerialMÕÕTMED (K X L X S CM): 43.2 x 8.5 x 48.3VÄRV: MustTÖÖAEG TÄISKOORMUSEL (MIN): 4.1, 4.9 min (1400W)
APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
