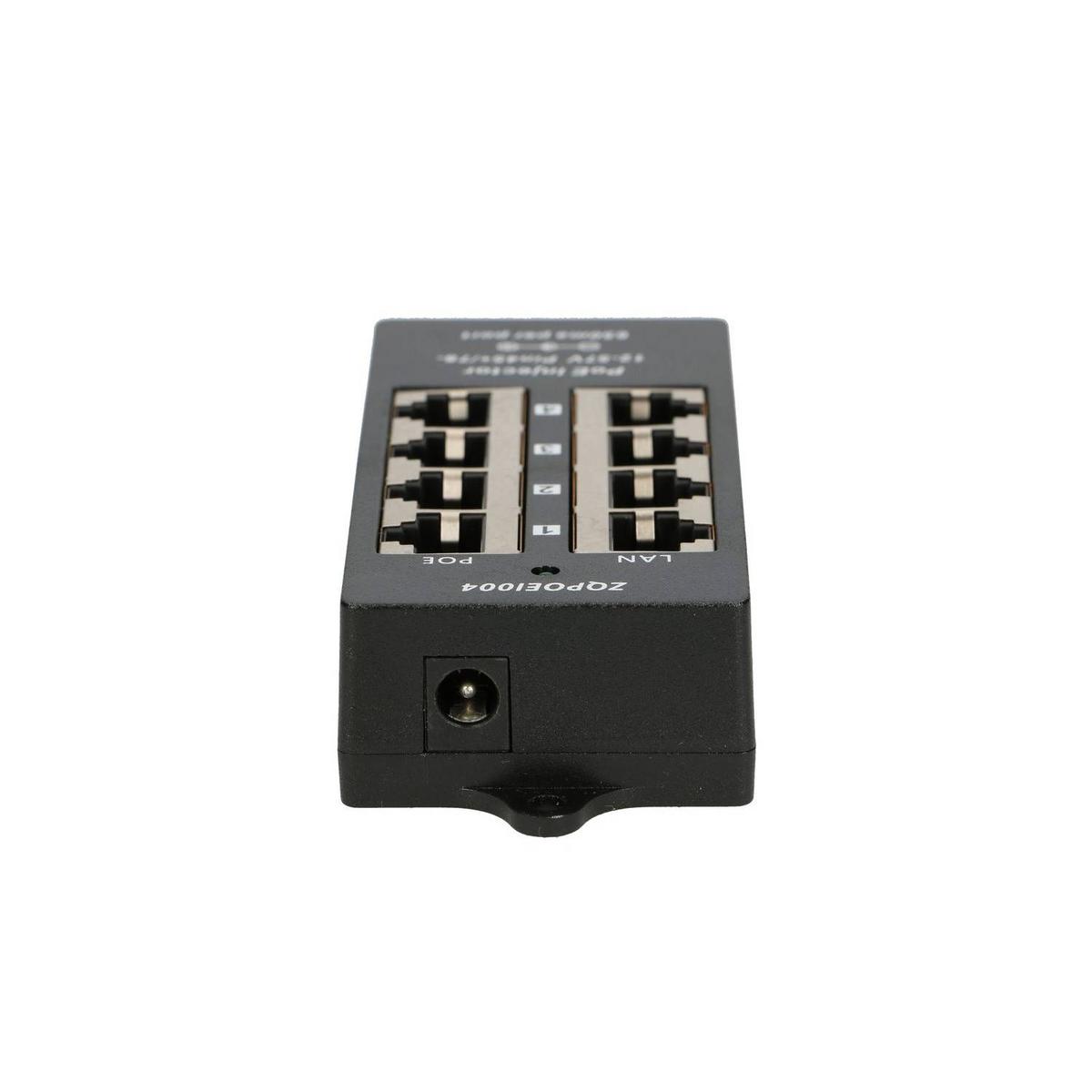

8 PORT POE INJECTOR GIGABIT supports 10/100/1000M Ethernet, LAN RJ45 sockets is for Switch/PC/HUB 1/2 & 3/6 & 4/5 &7/8 are transmitting data. FEATURES: – Use with any ethernet switch– Flexible power(DC 12V TO 57V)– 10/100/1000Mbps Gigabit Ethernet– Ideal for IP Cameras,VOIP,WiFi– 8 Port Injector(8 Lan & 8Lan + PoE port) OVERVIEW 8 PORT POE INJECTOR GIGABIT supports 10/100/1000M Ethernet, LAN RJ45 sockets is for Switch/PC/HUB 1/2 & 3/6 & 4/5 &7/8 are transmitting data. POE RJ45(power+data) socket is to deliver data and power. Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+) & 7/8(-) is for power. Passive PoE is composed of 4 set of RJ45 sockets and one 60V DC power jack. Input power requests 90W or more AC to DC power converter. The input DC hole diameter is 2.1mm and the other end OD is 5.5mm.The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x RJ45 sockets). For example, 8 x 10W = 80W for 8 port Passive PoE panel LED Indicator POWER LED:-POWER OFF –Off– 4/5 (V+),7/8 (V-) - Green LED– 4/5 (V-),7/8 (V+) - Red LED SPECIFICATIONS Input: 12-57V DC 2.1MM, Phoenix 3.5mmOutput: 12-57V PER PORT(1A Max)Data: 1/2&3/6&4/5&7/8Power: 4/5 & 7/8Data In: Connects PC/HUB/SwitchWeight: 160gDimensions: 180mm×60mm×25mmEthernet Cable: TIA/EIA 568 Cat. 5Data rate: 10/100/1000MbpsConnector: RJ-45Operating Temperature: 0°C ~ 40°CStorage Temperature: -40°C~+70°COperating Humidity: 10%~80%RHStorage Humidity: 5%~90%RHCertification: CE , FCC
