Otsing: fan controller (arhiveeritud tooted)

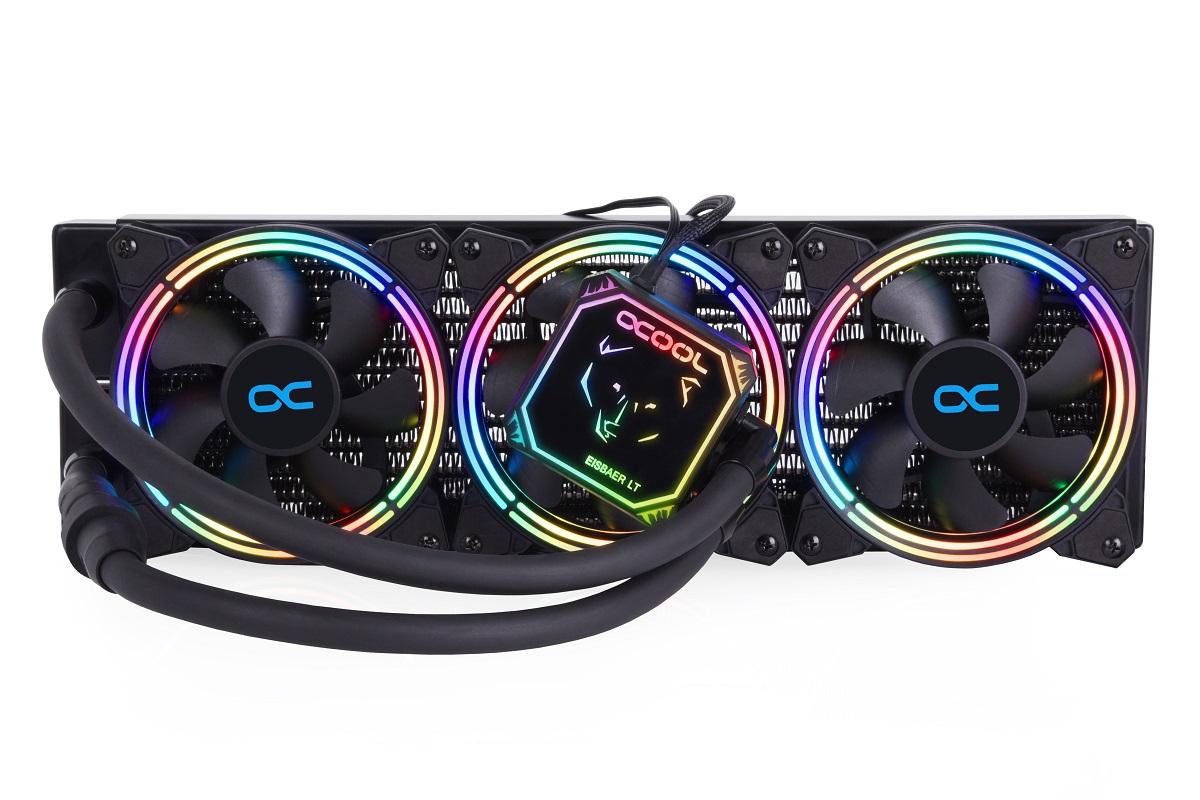

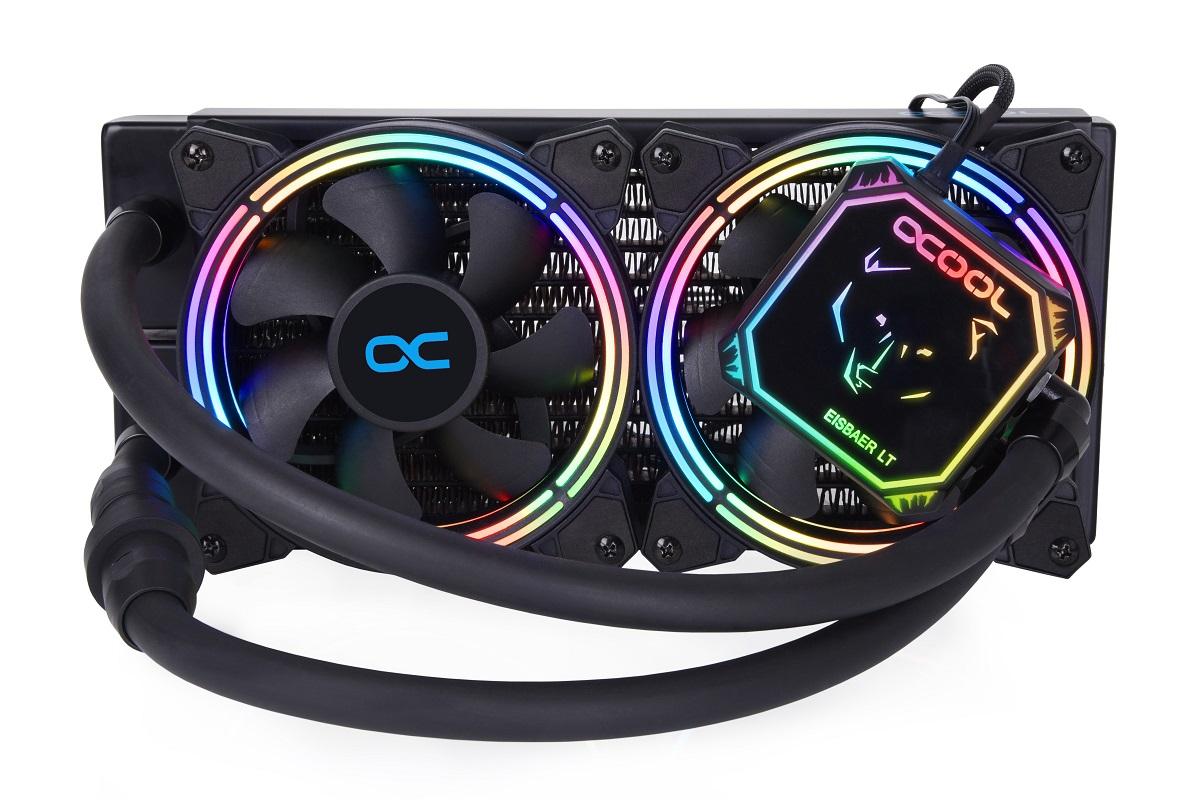

The Eisbaer LT Aurora CPU AIO water cooler offers extremely good cooling performance due to the high-end components, which includes a full copper radiator. The components used are all from Alphacool’s classic custom water cooling sector and can also be found in its enterprise products for servers. The Eisbaer LT Aurora can be expanded with additional components thanks to the quick-release fastener. At its heart, the DC-LT 2 pump The exceedingly small and compact DC-LT 2 pump has been further optimized compared to its predecessor. The impeller sits suspended on a ceramic axle and is supported by two magnets. A 3-phase sinusoidal drive ensures a much smoother running of the pump, which significantly contributes to minimizing noise. The pump offers enough power to add another component, such as a GPU water cooler or another radiator, to the loop. Ideally, it is coupled with an Eiswolf 2 GPU AIO water cooler. This also uses a DC-LT 2 pump. DIY fittings and ES tubing The tubing and fittings come from the standard custom cooling segment and all use a standard G1/4" thread. Therefore, it is extremely easy to replace them. The black TPV hose comes, like the connectors, from the Alphacool ES series which is primarily installed in servers and workstations. The hose does not contain any plasticizers and, unlike classic PVC hoses, does not deform at high temperatures. The quick connector is not made of heavy brass, but of extremely light, durable and, robust nylon. The quick connector is compatible with many other models from the Alphacool product line. Cooler As with all Alphacool products, the cooler base is made of nickel-plated copper and is equipped with exceptionally fine cooling fins that are distributed over almost the entire base. A flow plate provides an accelerated flow over the cooling fins which increases the cooling performance. The water flow is optimized so that all areas of the cooler base are cooled evenly. Full Digital RGB Mounting The pump unit and fans are fully equipped with Digital RGB LEDs, also known as Addressable RGB or aRGB. Extensive effects can be set with the included controller or with the Digital RGB controller on the motherboard. For a nice visual effect, there is an illuminated polar bear (Eisbaer). For easier control via a controller, the fans and also the pumps can be connected in series via daisy-chain. This ensures a clean wiring of the individual LED components. Technical data radiator L x W x H 274 x 120 x 25 mm (+/- 3%) Material cooling fins, chambers & cooling channels Copper Material threads Brass Material outer housing stainless steel G 1/4“ threads 2 x for tubes For fan size 120 mm Possible fan assembly 2 x one-sided / 4 x both-sided Technical data cooler & pump L x W x H 69 x 69 x 45 mm Material cooler bottom Nickel plated copper Material cooler top PMMA Threads 2 x G1/4“ (+ 1x Fillport G1/4“) Pump type DC-LT 2 Pump speed 2600 rpm (+/- 10%) Technical data fan Speed 800 - 2000 RPM Static pressure 2,0 mm H 2 O Air flow rate 104,49 m³/h Bearings Hydraulic Fan connector 4-Pin PWM Connection Digital aRGB 3-Pin JST + 3-Pin 5V Dimensions 120 x 120 x 25 mm Compatibility list: - Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066 - AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / TR4 / sTRX4 / sWRX / SP3 Downloads: Datasheet PDF | Manual PDF

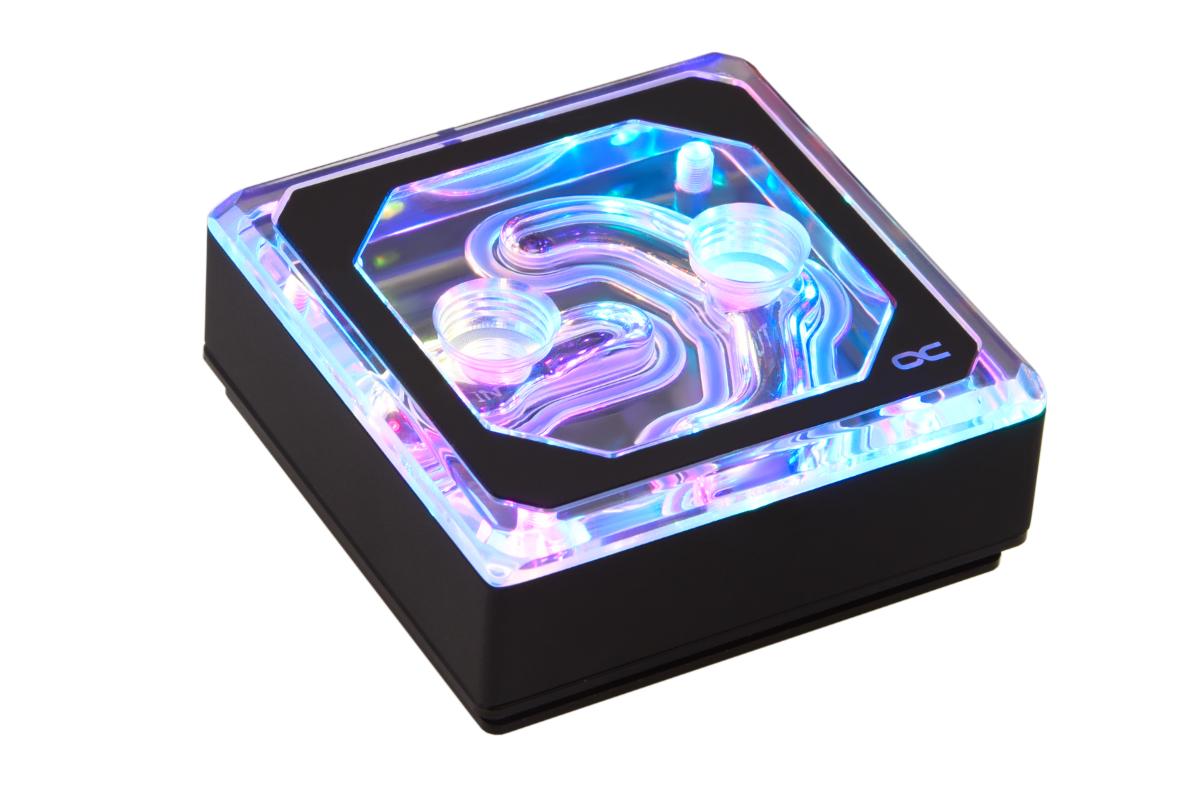

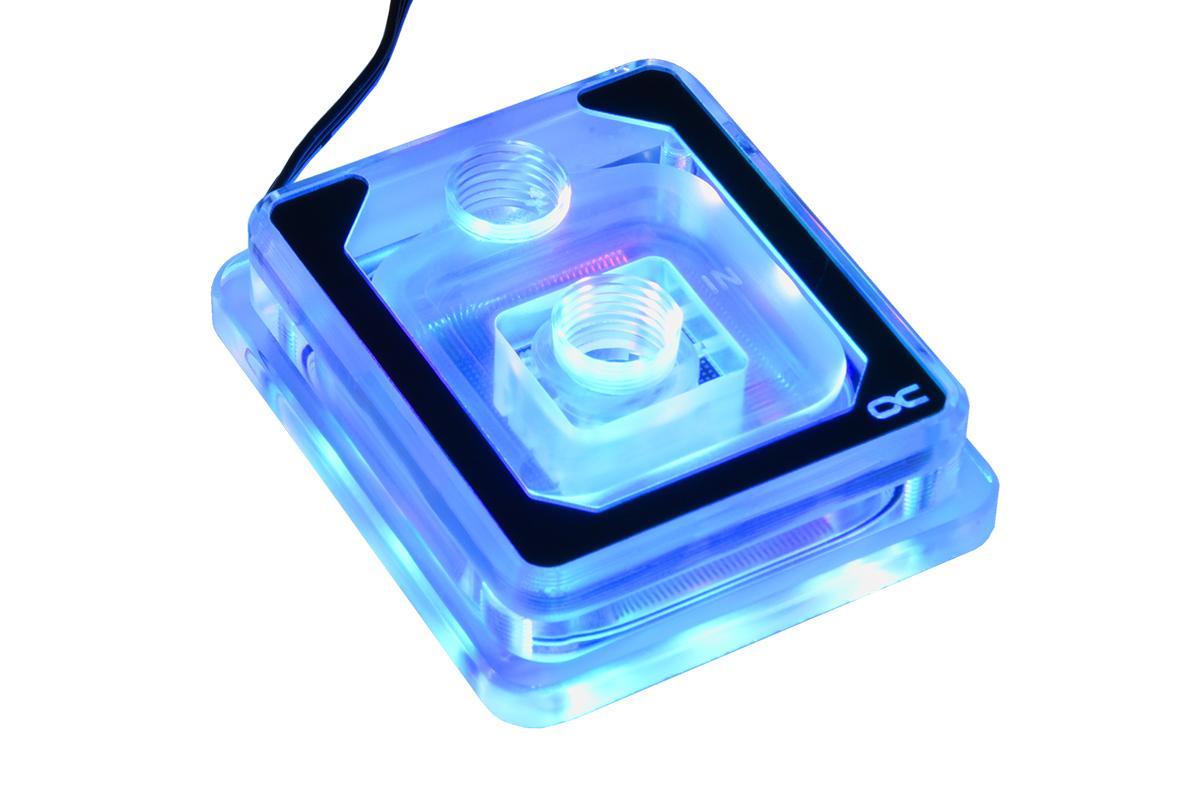

With the Eisblock Aurora XP³ light you get a very compact CPU water block for all current mainstream sockets from AMD and Intel. It offers the typical high Alphacool quality paired with excellent performance at a fantastic price. High cooling capacity! The cooling plate has been optimised to give the best performance for the price point. The nickel-plated copper radiator bottom has a surface area of 56 x 56 mm with a cross-slot structure and only 0.4 x 1 mm thick pins through which the water can flow. Due to the extremely large cooling surface, the water can effectively absorb the heat from the radiator bottom and remove it from the CPU area. The pin area is about 27.6 x 37.6 mm ensuring that most mainstream CPUs are covered completely which guarantees high cooling performance. The new multiple slotted nozzle plate was developed especially for this cooler to achieve a perfect interplay of water flow and inflow of the base plate. Only the combination of all these little things ensures the high performance. Let’s Have All the Colours! 9 digital RGB LEDs in a U-shaped configuration are inside the Alphacool Eisblock Aurora XP³. This ensures penetrating and extensive lighting. With the right addressable Digital RGB Controller each LED can be controlled individually. All known effects and colours can be displayed as desired. The connection is made via the usual 3-pin 5V connector. The outgoing cable has an integrated Y-adapter so you can easily and quickly connect several Aurora products together. This means that you don’t have to buy any special cables and means that you can create a cleaner look as you don’t have as many cables. Quick assembly! The mounting bracket is simply put over the CPU cooler. All mounting screws can be pre-assembled onto this Then you can simply screw it down. A well-illustrated manual with large render graphics is included so that the installation is easy to understand. The Eisblock Aurora XP³ Light offers not only a visual masterpiece with an extensive addressable digital RGB LED lighting, it also offers high performance thanks to the many small technical details. Technical details: Dimensions (L x W x H): 73 x 63 x 21 mm Net weight: 136 g Maximum working temperature: 60 °C Material cooler bottom: Nickel plated copper Material cooler: Plexi Connections: 2 x G1/4“ Power connector Digital RGB: 3-Pin 5V Pressure tested: 2 Bar Compatibility Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066 Compatibility AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 Download manual: Alphacool Eisblock Aurora XP³ Download data sheet: Alphacool Eisblock Aurora XP³

The Eisbaer LT Aurora CPU AIO water cooler offers extremely good cooling performance due to the high-end components, which includes a full copper radiator. The components used are all from Alphacool’s classic custom water cooling sector and can also be found in its enterprise products for servers. The Eisbaer LT Aurora can be expanded with additional components thanks to the quick-release fastener. At its heart, the DC-LT 2 pump The exceedingly small and compact DC-LT 2 pump has been further optimized compared to its predecessor. The impeller sits suspended on a ceramic axle and is supported by two magnets. A 3-phase sinusoidal drive ensures a much smoother running of the pump, which significantly contributes to minimizing noise. The pump offers enough power to add another component, such as a GPU water cooler or another radiator, to the loop. Ideally, it is coupled with an Eiswolf 2 GPU AIO water cooler. This also uses a DC-LT 2 pump. DIY fittings and ES tubing The tubing and fittings come from the standard custom cooling segment and all use a standard G1/4" thread. Therefore, it is extremely easy to replace them. The black TPV hose comes, like the connectors, from the Alphacool ES series which is primarily installed in servers and workstations. The hose does not contain any plasticizers and, unlike classic PVC hoses, does not deform at high temperatures. The quick connector is not made of heavy brass, but of extremely light, durable and, robust nylon. The quick connector is compatible with many other models from the Alphacool product line. Cooler As with all Alphacool products, the cooler base is made of nickel-plated copper and is equipped with exceptionally fine cooling fins that are distributed over almost the entire base. A flow plate provides an accelerated flow over the cooling fins which increases the cooling performance. The water flow is optimized so that all areas of the cooler base are cooled evenly. Full Digital RGB Mounting The pump unit and fans are fully equipped with Digital RGB LEDs, also known as Addressable RGB or aRGB. Extensive effects can be set with the included controller or with the Digital RGB controller on the motherboard. For a nice visual effect, there is an illuminated polar bear (Eisbaer). For easier control via a controller, the fans and also the pumps can be connected in series via daisy-chain. This ensures a clean wiring of the individual LED components. Technical data radiator L x W x H 390 x 120 x 25 mm (+/- 3%) Material cooling fins, chambers & cooling channels Copper Material threads Brass Material outer housing stainless steel G 1/4“ threads 2 x for tubes For fan size 120 mm Possible fan assembly 3 x one-sided / 6 x both-sided Technical data cooler & pump L x W x H 69 x 69 x 45 mm Material cooler bottom Nickel plated copper Material cooler top PMMA Threads 2 x G1/4“ (+ 1x Fillport G1/4“) Pump type DC-LT 2 Pump speed 2600 rpm (+/- 10%) Technical data fan Speed 800 - 2000 RPM Static pressure 2,0 mm H 2 O Air flow rate 104,49 m³/h Bearings Hydraulic Fan connector 4-Pin PWM Connection Digital aRGB 3-Pin JST + 3-Pin 5V Dimensions 120 x 120 x 25 mm Compatibility list: - Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066 - AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / TR4 / sTRX4 / sWRX / SP3 Downloads: Datasheet PDF | Manual PDF

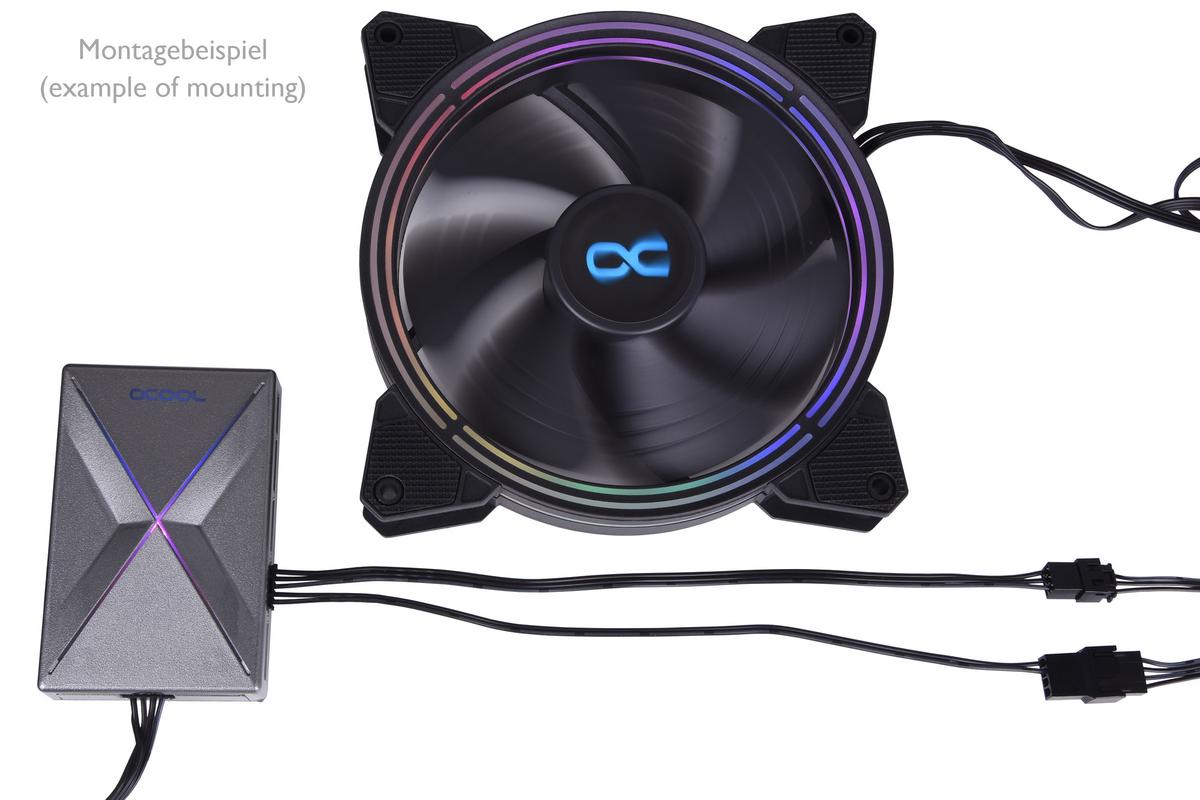

The Alphacool Eiszyklon Aurora LUX fan impresses with its aRGB LEDs and light defusing areas that distribute the light evenly. It shows its strengths particularly on radiators due to a high static pressure, even if it rotates more slowly. Its maximum speed is 1100 rpm. Due to its naturally decoupled frame, it remains quiet with less vibrations. Unlike many other fans, it has only one cable, which ends with a 6-pin connector. With the Aurora LUX Digital RGB controller from Alphacool, this one cable can be used to regulate the speed as well as adjust the lighting effects and colours. Technical data: Fans Size: 120 x 120 x 25 mm Speed: 1100 rpm Static Pressure: 2.23 mm H2O Air flow rate: 87.32 m³/h Bearings: Hydraulic Fan/ aRGB Connector: 6-Pin Illumination: Digital addressable 5V RGB LEDs Controller Dimensions: 93 x 47 x 17 mm (L x W x H) Fan Connector: 10 x 6-Pin Digital RGB LED Strip Connector: 2x JTS 4-Pin Fan voltage: 12V Digital RGB LED Voltage: 5V Max. Power Output: 50W Control Via: Remote controller Mounting: Adhesive Tape

The Alphacool Eiszyklon Aurora LUX fan impresses with its aRGB LEDs and light defusing areas that distribute the light evenly. It shows its strengths particularly on radiators due to a high static pressure, even if it rotates more slowly. Its maximum speed is 1100 rpm. Due to its naturally decoupled frame, it remains quiet with less vibrations. Unlike many other fans, it has only one cable, which ends with a 6-pin connector. With the Aurora LUX Digital RGB controller from Alphacool, this one cable can be used to regulate the speed as well as adjust the lighting effects and colours. Important: You can connect this fan only on the Controller wich comes with the fan set Alphacool Eiszyklon Aurora Lux Digital RGB - 3pcs kit. Technical data: Size: 120 x 120 x 25 mm Speed: 1100 rpm Static Pressure: 2.23 mm H2O Air flow rate: 87.32 m³/h Bearings: Hydraulic Fan/ aRGB Connector: 6-Pin

The Alphacool Eiszyklon Aurora LUX fan offers extensive RGB lighting whilst operating efficiently and quietly. With a wide control range up to a maximum of 1500 rpm it can be operated from powerful to pleasantly quiet. The frame of the fan is naturally decoupled, which further underlines the silent capability. Addressable Digital RGB Lighting Standard RGB has come and gone, the future lies in addressable digital RGB LEDs that can be controlled individually. Therefore, the Eiszyklon Aurora LUX fan uses digital aRGB LEDs. To illuminate the frame of the fan optimally, a diffuser is used. The milky white fan frame scatters the light over the entire fan frame and provides a perfect and extensive illumination of the entire fan. Since each LED can be controlled individually, all known effects are possible. These include effects such as wave, pulse, breathing and much more. Flow Optimized Fan Blades The fan blades have been specially adapted for use on radiators. The most important point is a high static pressure. In order to achieve this even at low speeds, the fan blades are slightly bent. They act like a blade which pulls the air inwards and presses it downwards with overpressure. The 9 closely spaced fan blades also ensure a continuously high static pressure even at low speeds, perfect for use with a radiator. Of course, the Eiszyklon Aurora LUX fan is also suitable as a case fan. Connections? The fan is controlled via a 4-pin PWM connector. The cable is 44 cm long. This allows the fan to be connected to the mainboard or a special controller without any additional adapter cables or extensions. The digital aRGB LED lighting is controlled via a JST 3-pin connector. Technical Data: Size: 140 x 140 x 25 mm Speed: 1500 U/min Static pressure: 1,93 mm H2O Air flow rate: 118,93 m³/h Bearing: Hydraulisch Fan / RGB Connector: 4-Pin PWM, 3-Pin JST Lighting: Digital adressierbare 5V RGB LEDs Weight: 180 g Download Datenblatt PDF: Alphacool Eiszyklon Aurora LUX Digital RGB (140x140x25mm

You may have already seen the Alphacool Eiszyklon Aurora LUX Pro fan on the Alphacool Eisbaer Aurora series. It offers a wide control range as well as outstanding digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the special design of the fan frame create unique effects. Ingenious Lighting The frame is equipped with digital addressable 5V RGB LEDs which illuminate both sides of the whole frame. The frame is not completely transparent, but the illumination is done through narrow slits in four places. On the upper side there are two rows of these slits. Each narrow frame runs along the inside and outside of the frame. This creates a unique illumination which looks very noble. Thanks to the recessed light diffusers the light is distributed evenly. This means that Individual LEDs are no longer visible. Wide Control Range and Silent The fan can be controlled from 700 to 2000 rpm via the 4-pin PWM connector. At 700 rpm the fan is almost silent, but still offers a good airflow rate as well as a high static pressure. Therefore, the fan can also be used very well on radiators for a wa-ter cooling system. Thanks to the high airflow, the fan is also ideal for ventilating a case. Decouplers are also found directly on the frame. The soft foam padding reduces the transmission of vibrations to the case. A further plus point for the silent capabili-ty of the fan. Connections? The fan is controlled via a 4-pin PWM connector. The cable is 50 cm long. This allows the fan to be connected to the mainboard or a special controller without any additional adapter cables or extensions. The digital aRGB LED lighting is controlled via a JST 3-pin connector. Tecnical data L x W x H: 120 x 120 x 25mm Speed: 700 - 2000 rpm Static pressure: 2,0 mm H2O Air flow rate: 104,49 m³/h Bearing: Hydraulic Fan connector: 4-Pin PWM aRGB connector: 3-Pin JST + 3-Pin 5V LEDs: Adressable Digital RGB LEDs Noise: 21,5 - 33,8 dB(A) MTBF: 40.000h LEDs: 16x aRGB LEDs Download Data sheet PDF: Alphacool Eiszyklon Aurora LUX PRO 2 Digital RGB f an

The Alphacool Eiszyklon fan is the ideal combination of silence and performance for a fan of its size. The airflow and high static pressure that is created in such a small space makes it the ideal fan for 92 mm radiators. The extensive Digital RGB lighting also provides the right mood in the system. Wide Control Range and Silence With a fan speed of 600 - 1800 rpm, Alphacool Eiszyklon offers a very high control range and means it is also well suited for silent systems. The 11 fan blades with a steep angle of attack provide a high static pressure and are ideally suited for operation on radiators. Decouplers can also be found directly on the frame. The soft foam pads reduce the transmission of vibrations to the case. Addressable Digital RGB Lighting The Alphacool Eiszyklon houses 12 Digital RGB LEDs. The entire fan frame serves as a diffuser, distributing the light evenly over the entire frame. This not only optimally illuminates the transparent fan blades, but also the fan's surroundings. This ensures a homogeneous illumination of the entire fan and surrounding areas. How is the fan controlled? The fan is controlled via a 4-pin PWM connector. The fan cable is 23cm long. The Digital RGB LED lighting is controlled via a JST 3-pin connector. The cable of the JST connector is 50cm long and has a splitter at the end, which makes it possible to connect other Digital RGB products with a JST connector in series. This helps to reduce cable chaos and allows you to control all products at the same time via one controller connector. The Alphacool Aurora LUX fan is an all-around carefree package with perfect airflow and outstanding 5V Digital RGB LED lighting. And all functions can be controlled via just one cable on one controller. It could hardly be simpler. Technical data: L x W x H: 92 x 92 x 25 mm Weight: 94 g Speed: 600 - 1800rpm Bearing: Hydraulisch Connection fan: 4-Pin PWM Connection Digital RGB: 3-Pin JSP + 3-Pin 5V Power consumption: 0,14A (1,68W) Cable length PWM: 23 cm Cable length 3-Pin JST: 50 cm Operating oltage: 12V Static pressure: 0,4 - 0,9 H2O Airflow: 23 - 51 m³/h Noise: 17,9 - 32 dB(A) MTBF: 50.000h Download data sheet PDF: Alphacool Eiszyklon Aurora LUX Digital RGB (92x92x25mm)

The Alphacool Eiszyklon Aurora LUX PRO 200mm fan offers a wide control range as well as outstanding digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the special design of the fan frame create unique effects. Ingenious Lighting The frame is equipped with digital addressable 5V RGB LEDs which illuminate the front of the whole frame. The frame is not completely transparent, but the illumination is done through narrow slits in four places. On the upper side there are two rows of these slits. Each narrow frame runs along the inside and outside of the frame. This creates a unique illumination which looks very noble. Thanks to the recessed light diffusers the light is distributed evenly. This means that Individual LEDs are no longer visible. Wide Control Range and Silent The fan can be controlled from 400 to 800 rpm via the 4-pin PWM connector. At 400 rpm the fan is almost silent, but still offers a good airflow rate as well as a high static pressure. Therefore, the fan can also be used very well on radiators for a wa-ter cooling system. Thanks to the high airflow, the fan is also ideal for ventilating a case. Decouplers are also found directly on the frame. The soft foam padding reduces the transmission of vibrations to the case. A further plus point for the silent capabili-ty of the fan. Connections? The fan is controlled via a 4-pin PWM connector. The cable is 48 cm long. This allows the fan to be connected to the mainboard or a special controller withou t any additional adapter cables or extensions. The digital aRGB LED lighting is controlled via a JST 3-pin connector. Technical data: L x W x H: 200 x 200 x 27 mm Weight: 343 g Speed: 400 - 800rpm Bearing: Rifle bearing Connection fan: 4-Pin PWM Connection Digital RGB: 3-Pin JSP + 3-Pin 5V Cable length fan: 48 cm Cable length Digital RGB: 48 cm Operation voltage fan: 12V Operation voltage Digital RGB: 5V Power consumption: 0,14A (1,68W) Static pressure: 1,3 - 1,52 mm H2O Air flow: 27 - 56 m³/h Noise: 7,4 - 23,7 dB(A) MTBF: 50.000h Download data sheet PDF: Alphacool Eiszyklon Aurora LUX PRO Digital RGB (200x200x25mm)

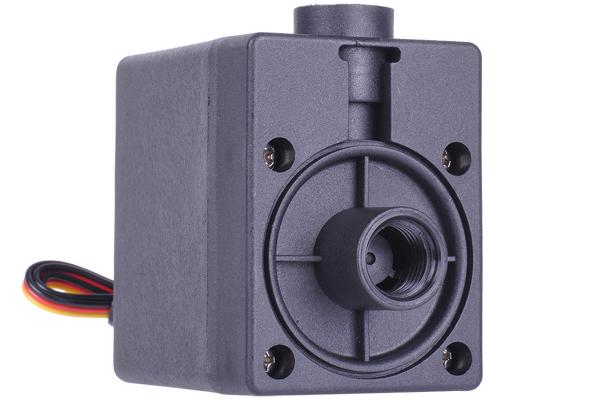

The Alphacool ES Solution Laing DDC310 pump serves as the foundation for various 1 to 4U server solutions from Alphacool. The unit is based around the very popular Alphacool DDC pump and has been coupled with a simple pump base to maintain compatibility with various Enterprise Solution reservoirs. Compact and powerful. The flat design of the Laing DDC310 pump saves space and fits with the corresponding Enterprise reservoirs from chassis as small as a 1U server rack. This results in a very powerful pump that can be used in the smallest of spaces. The DDC310 variant offers with a delivery height of 2.44m enough power to operate an extensive water loop. The performance is enough to operate a dual or quad socket system including reservoir and radiators. The performance of the pump is also sufficient to operate a render server with up to 4 graphics cards. Spherical Ceramic Bearing The pump uses a shaftless ball motor or spherical bearing. The motor is driven by magnets while the rotor is mounted on a ball-ceramic bearing. This makes the pump maintenance-free, as the bearing is self-adjusting and maintenance-free. The pump is lubricated by the coolant during operation. This makes the Alphacool ES Solution Laing DDC310 pump a so-called wet rotor pump. Due to its design, even small particles of dirt are no problem for the pump. Installation and Commissioning The pump is delivered with a classic plastic bottom which ensures a high compatibility to all Enterprise Solution products. However, the pump can also be mounted on all existing DDC pump tops from Alphacool. The pump comes with a corresponding O-ring, only the mounting screws must be used from the respective reservoir, as these may differ in length. The power is supplied via a 4-pin Molex connector, the speed can be read out via a 3-pin Molex connector. This is usually done via the 3-pin fan connector on the mainboard or via an appropriate fan controller. Technical data: L x W x H: 62 x 62 x 28 mm Weight: 167 g Material: Stainless steel, EPDM, Ceramics Voltage range: 12 V Starting voltage: 12 V Voltage: 12 V DC Power consumption: 10W Max delivery height: 2,28m Max flow rate: 400 l/h Power connector: 4-Pin Molex Speedometer signal: 3-Pin Molex Max working temperature: 60° C Scope of delivery: 1 pcs DDC310 Pump 1 pcs O-ring Plastic bottom Download data sheet PDF: Alphacool ES Solution Laing DDC310 Pump Technical data sheet for DDC310 pump: Please click here!

The Alphacool Rise fan offers a wide range of control as well as superior Digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fan's special design can create some unique effects whilst offering performance. Brilliant illumination There are 20 digitally addressable 5V RGB LEDs built into the frame and hub that illuminate the entire fan. This creates a unique illumination that looks very impressive. Thanks to the recessed light diffusers, the light is distributed evenly, and you will not see sporadic uneven lighting. Wide control range and silent The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. In addition, it offers a silent mode, with which the fan can be regulated down to 0 rpm and then they will only start when they are needed above 350rpm. At 800 rpm, the fan is nearly silent, but still offers a good airflow (118.9m3/h) paired with a high static pressure (3.17mm/H2O). This makes the fan perfect for mounting on radiators of a water cooling system or for alternatively, as a case fan. Decouplers are located directly on the corners of the frame. The soft foam pads reduce the transmission of vibrations to the case, which in turn reduces noise. Tear-off edges on the fan blades also provide a significant reduction in noise. Connectors? The fan is controlled via a 4-pin PWM connector. The cable is 40 cm long. This allows the fan to be connected to the motherboard or a fan controller without the need for additional adapter cables or extensions. The digital aRGB LED illumination is controlled via a JST 3-pin connector and adapters are available to change this into a standard 3 pin aRGB connector if required. Note: The cable for connecting the ARGB LEDs is not included in the scope of delivery, but is optionally available in the shop! ( Art. 18604, Alphacool connection cable 3pin to 3pin Digital RGB ) Technical Data fan L x W x H 120 x 120 x 25 mm Speed 0—2500 rpm (+/-10%) Bearing Sleeve Bearing Connection 4-Pin PWM Cable length 40 cm Voltage 12V DC Current consumption. 0,65A (0,72 max) Static pressure 3,17 H2O Max. air flow 118,9 m³/h Noise max. 31,5 dB(A) MTBF 50.000h Speedometer signal Yes Auto-Restart Yes Technical data digital RGB LED type 5V aRGB Connection 3-Pin JST Cable length 50cm (Splitter after 40cm) Max. current consumption LEDs 3,5W LED quantity Frame: 12 / Hub: 8 Download Data sheet PDF: Alphacool Rise Aurora 120 mm fan (120x120x25mm)

The Alphacool Rise fan offers a wide range of control as well as superior Digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fan's special design can create some unique effects whilst offering performance. Brilliant illumination There are 24 digitally addressable 5V RGB LEDs built into the frame and hub that illuminate the entire fan. This creates a unique illumination that looks very impressive. Thanks to the recessed light diffusers, the light is distributed evenly, and you will not see sporadic uneven lighting. Wide control range and silent The fan can be controlled from 0 to 2000 rpm via the 4-pin PWM connector. In addition, it offers a silent mode, with which the fan can be regulated down to 0 rpm and then they will only start when they are needed above 600rpm. At 800 rpm, the fan is almost silent. At 2000 rpm, it offers an air flow rate of 154.1m 3 /h coupled with a high static pressure of 2.20mm/H 2 O. This makes the fan perfect for mounting on radiators of a water cooling system or for alternatively, as a case fan. Decouplers are located directly on the corners of the frame. The soft foam pads reduce the transmission of vibrations to the case, which in turn reduces noise. Tear-off edges on the fan blades also provide a significant reduction in noise. Connectors? The fan is controlled via a 4-pin PWM connector. The cable is 40 cm long. This allows the fan to be connected to the motherboard or a fan controller without the need for additional adapter cables or extensions. The digital aRGB LED illumination is controlled via a JST 3-pin connector and adapters are available to change this into a standard 3 pin aRGB connector if required. Technical data fan L x W x H 140 x 140 x 25 mm Speed 0—2000 rpm (+/-10%) Bearing Sleeve Bearing Connection 4-Pin PWM Cable length 40 cm Voltage 12V DC Power consumption 6,6W (max) Current consumption 0,50A (0,55 max) Static pressure 2,20 H 2 O Max. air flow 154,1 m³/h Noise max. 38,4 dB(A) MTBF 30.000h Speedometer signal Yes Auto-Restart Yes Technical data aRGB LED type 5V aRGB Connection 3-Pin JST Cable length 50 cm (Splitter after 40 cm) Max. current consumption LEDs 3,5W LED quantity Frame: 16 / Hub: 8 Downloads: Datasheet PDF

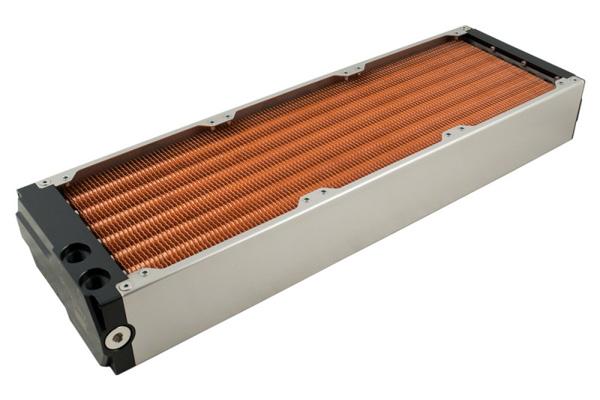

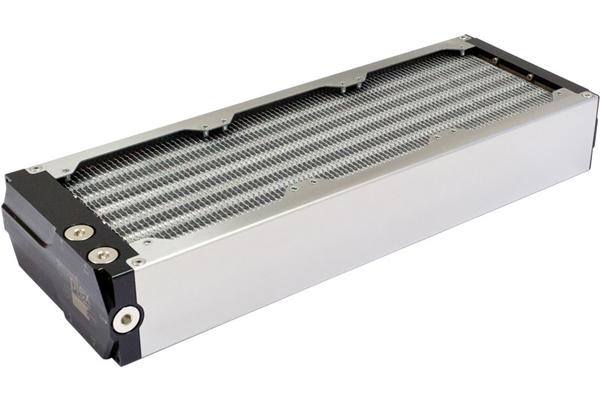

The airplex modularity system is a fully modular radiator system for water cooling systems and shows competence and know-how of the 10 years of company history at Aqua Computer. The most important features of the airplex modularity summarized: - Fully modular system - Extremely high cooling performance - Very compact - shorter than most other radiators for the same fan site and only 146mm wide - Indefinitely expandable in all dimensions - No solder residue due to solder-free manufacturing - Completely demountable for thorough cleaning - System with multiple loops possible in one radiator - Optimal flow / parallel tubing - No lacquer coating for perfect thermal transfer - Pump modules with reservoir available - Many colours for side panel available (Brushed stainless steel, black aluminium, blue, red) - Fins optimized for low fan speeds and excellent passive cooling performance - No ignoble materials in contact with the coolant, only copper and stainless steel - CC-manufactured components made from Delrin and stainless steel - Highest precision on the individual components ensures easy mounting - Riveted-in threads for fan mounting - Large range of accessories available (Reservoirs, pump modules, feet, filter, sensors, ...) - Tested for pressures of up to 0,8 bar - Copper fins available for maximum performance in compact dimensions The system is based on a fin package with 21 copper tubes and pressed-on stainless steel flanges. On both sides of the fin package Delrin terminals are integrated. These terminals create a safe seal with the stainless steel flanges with a gasket ring and are screwed together. The Delrin terminals have integrated connection terminals which are lowered from the surface and have a round spacing above the thread. This spacing allows a connection adaptor to be pushed in two connect two radiator modules directly without any tubing pieces. The orientation of the radiator to each other determines the flow direction of the coolant: When connected side by side the connected radiators are connected serially, horizontally stacked radiators create a parallel flow set-up. Additionally the system can also grow in length indefinitely. For this the fin packages are connected via optional Delrin connection modules. Radiators in all lengths use the same Delrin Terminals, only the side panels and fin packages are different, hence by buying the components, a radiator can be rebuilt and modified. All sizes have a width of 146mm and hence fit perfetly into 5.25". The height of the radiator in standard configuration (without the pump module) is 63.5mm and the length is 44mm longer than the according fan (e.g. 3x120mm fans -> Length is 360+44mm = 404mm). The connection threads are G1/4" in size and all 1/4" fittings from our shop can be used with the system. With the airplex modularity system. It is now possible for the first time to operate two separate loops in one radiator with the airplex modularity system. On radiators operated this way the cooling surface is split approximately at a 70:30 ratio between the primary respective secondary loop. This allows extremely compact two-loop cooling systems, to allow e.g. separate cooling of the heat-sensitive HDDs from the CPU and graphics card. The two cooling loops are completely separated from each other, mixing of the coolant is completely impossible. By equipping the system with an optional pump module an extremely compact and easy to handle water cooling system can be realized. The offered radiators with pump module have the reservoir and pump already integrated directly into the Delrin terminal of the radiator. Depending on the type it even features an USB fan controller with water temperature measuring and optionally flow meter and/ or water filter. An especially interesting feature is the Compact 600 pump module in the 12V version: It is equipped with the proven ceramic bearing from Aqua computer and allows whisper-quiet operation as well as many monitoring and control options via the integrated pump controller with USB interface. Mounting of a flow sensor and filter is easily possible and can be done quickly and hassle-free. Extent of delivery: One radiator, assembled and ready to use Dieses Produkt wurde für Sie getestet: ComputerBase

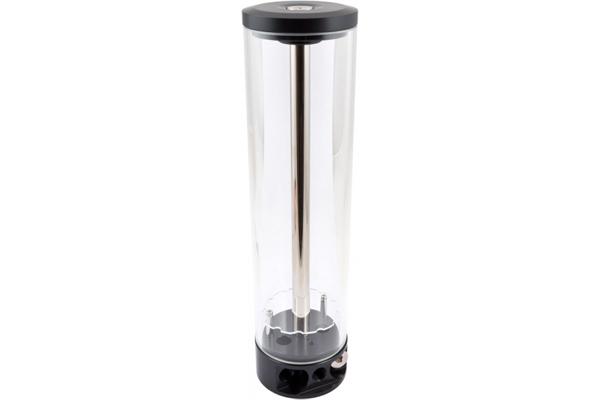

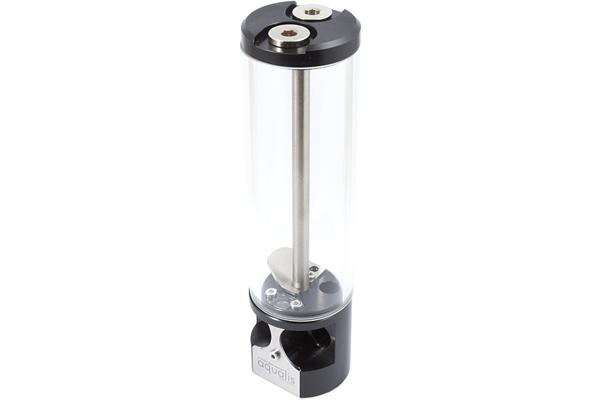

All reservoirs of the aqualis series are equipped with a borosilicate glass tube. In contrast to acrylic glass, which is often used for tube reservoirs, borosilicate glass is extremele hard and scratch-resistant, features superb thermal and chemical resistance and a very low thermal expansion. The glass tube of the 100 ml and 150 ml variants has an outer diameter of 50 mm and a wall thickness of 5 mm. Base and top of the aqualis reservoirs are made from Delrin and connected by a stainless steel rod. A deflector plate is installed above the return channel into the reservoir to effectively remove air from the water circuit. The aqualis XT 100/150 ml variants feature an acrylic window in the base part and one LED (5 mm size) can be installed into the base part. Additionally, the XT variants feature an electronic fill level sensor with USB and aquabus interface, a programmable alarm output and an external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the fill level sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Fill level and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors. All 100 ml and 150 ml variants are also available with a nano coating that will cause water to roll off the inner surface of the borosilicate glass tube. Technical details: Dimensions without stainless steel bracket: approx. 50 x 50 x 189 mm Filling volume: approx. 150 ml Connection threads: G1/4 Scope of delivery: One Reservoir One stainless steel bracket One sealing screw G1/4 (preinstalled) One pressure equalisation membrane (preinstalled) One internal USB connection cable Monting material Please note: Fittings are not included in delivery, please order seperately.

The airplex modularity system is a fully modular radiator system for water cooling systems and shows competence and know-how of the 10 years of company history at Aqua Computer. The most important features of the airplex modularity summarized: - Fully modular system - Extremely high cooling performance - Very compact - shorter than most other radiators for the same fan site and only 146mm wide - Indefinitely expandable in all dimensions - No solder residue due to solder-free manufacturing - Completely demountable for thorough cleaning - System with multiple loops possible in one radiator - Optimal flow / parallel tubing - No lacquer coating for perfect thermal transfer - Pump modules with reservoir available - Many colours for side panel available (Brushed stainless steel, black aluminium, blue, red) - Fins optimized for low fan speeds and excellent passive cooling performance - No ignoble materials in contact with the coolant, only copper and stainless steel - CC-manufactured components made from Delrin and stainless steel - Highest precision on the individual components ensures easy mounting - Riveted-in threads for fan mounting - Large range of accessories available (Reservoirs, pump modules, feet, filter, sensors, ...) - Tested for pressures of up to 0,8 bar - Copper fins available for maximum performance in compact dimensions The system is based on a fin package with 21 copper tubes and pressed-on stainless steel flanges. On both sides of the fin package Delrin terminals are integrated. These terminals create a safe seal with the stainless steel flanges with a gasket ring and are screwed together. The Delrin terminals have integrated connection terminals which are lowered from the surface and have a round spacing above the thread. This spacing allows a connection adaptor to be pushed in two connect two radiator modules directly without any tubing pieces. The orientation of the radiator to each other determines the flow direction of the coolant: When connected side by side the connected radiators are connected serially, horizontally stacked radiators create a parallel flow set-up. Additionally the system can also grow in length indefinitely. For this the fin packages are connected via optional Delrin connection modules. Radiators in all lengths use the same Delrin Terminals, only the side panels and fin packages are different, hence by buying the components, a radiator can be rebuilt and modified. All sizes have a width of 146mm and hence fit perfetly into 5.25". The height of the radiator in standard configuration (without the pump module) is 63.5mm and the length is 44mm longer than the according fan (e.g. 3x120mm fans -> Length is 360+44mm = 404mm). The connection threads are G1/4" in size and all 1/4" fittings from our shop can be used with the system. With the airplex modularity system. It is now possible for the first time to operate two separate loops in one radiator with the airplex modularity system. On radiators operated this way the cooling surface is split approximately at a 70:30 ratio between the primary respective secondary loop. This allows extremely compact two-loop cooling systems, to allow e.g. separate cooling of the heat-sensitive HDDs from the CPU and graphics card. The two cooling loops are completely separated from each other, mixing of the coolant is completely impossible. By equipping the system with an optional pump module an extremely compact and easy to handle water cooling system can be realized. The offered radiators with pump module have the reservoir and pump already integrated directly into the Delrin terminal of the radiator. Depending on the type it even features an USB fan controller with water temperature measuring and optionally flow meter and/ or water filter. An especially interesting feature is the Compact 600 pump module in the 12V version: It is equipped with the proven ceramic bearing from Aqua computer and allows whisper-quiet operation as well as many monitoring and control options via the integrated pump controller with USB interface. Mounting of a flow sensor and filter is easily possible and can be done quickly and hassle-free. Extent of delivery: One radiator, assembled and ready to use

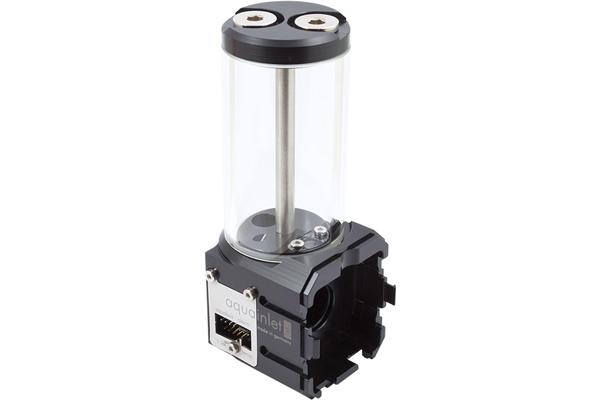

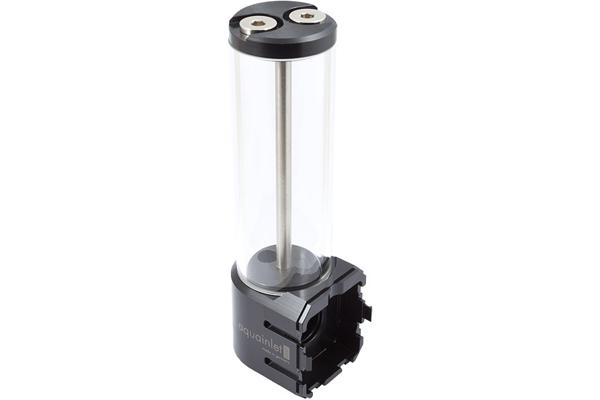

The reservoirs aquainlet PRO and aquainlet XT are designed to be directly mounted onto an aquastream XT or Eheim 1046 pump. The design is perfectly matched to the pump, after installation pump and reservoir form a virtually seamless unit. In particular, the mounting rails of the pump are extended into the reservoir, which for the first time allows for the mounting plate to be installed beneath the center of gravity. This is especially helpful when using rubber decouplers or a shoggy sandwich. When installed onto the suction port of the pump, an o-ring seals the connection between pump and reservoir and two latches secure the reservoir to the pump housing, preventing accidental release of the bayonet coupling between pump cover and pump housing. Two connection threads for the return line located at the front and the side of the unit allow for flexible installation options and are paticularly useful if the reservoir is to be installed with limited space. The reservoirs aquainlet PRO and aquainlet XT are closely related to the aqualis series and are also equipped with a borosilicate glass tube. In contrast to acrylic glass, which is often used for tube reservoirs, borosilicate glass is extremele hard and scratch-resistant, features superb thermal and chemical resistance and a very low thermal expansion. The glass tube has an outer diameter of 50 mm and a wall thickness of 5 mm. Base and top of the aquainlet reservoirs are made from Delrin and connected by a stainless steel rod. The aquainlet XT variants feature an acrylic window in the base part and one LED (5 mm size) can be installed into the base part. Additionally, the XT variants feature an electronic fill level sensor with USB and aquabus interface, a programmable alarm output and an external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the fill level sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Fill level and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors. All variants are also available with a nano coating that will cause water to roll off the inner surface of the borosilicate glass tube. Technical details: Dimensions without pump: approx. 56 x 67 x 198 mm Filling volume: approx. 150 ml Connection threads: G1/4 Compatible to the following pumps: - aquastream XT - Eheim 1046 and pumps identical in construction Scope of delivery: One Reservoir Three sealing screws G1/4 (preinstalled) Please note: Fittings and pump are not included in delivery, please order seperately.

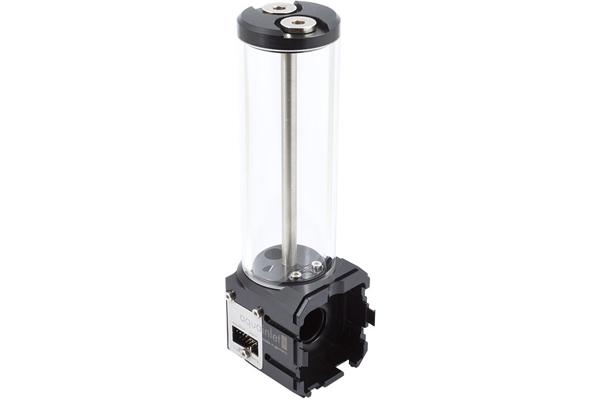

The reservoirs aquainlet PRO and aquainlet XT are designed to be directly mounted onto an aquastream XT or Eheim 1046 pump. The design is perfectly matched to the pump, after installation pump and reservoir form a virtually seamless unit. In particular, the mounting rails of the pump are extended into the reservoir, which for the first time allows for the mounting plate to be installed beneath the center of gravity. This is especially helpful when using rubber decouplers or a shoggy sandwich. When installed onto the suction port of the pump, an o-ring seals the connection between pump and reservoir and two latches secure the reservoir to the pump housing, preventing accidental release of the bayonet coupling between pump cover and pump housing. Two connection threads for the return line located at the front and the side of the unit allow for flexible installation options and are paticularly useful if the reservoir is to be installed with limited space. The reservoirs aquainlet PRO and aquainlet XT are closely related to the aqualis series and are also equipped with a borosilicate glass tube. In contrast to acrylic glass, which is often used for tube reservoirs, borosilicate glass is extremele hard and scratch-resistant, features superb thermal and chemical resistance and a very low thermal expansion. The glass tube has an outer diameter of 50 mm and a wall thickness of 5 mm. Base and top of the aquainlet reservoirs are made from Delrin and connected by a stainless steel rod. The aquainlet XT variants feature an acrylic window in the base part and one LED (5 mm size) can be installed into the base part. Additionally, the XT variants feature an electronic fill level sensor with USB and aquabus interface, a programmable alarm output and an external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the fill level sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Fill level and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors. All variants are also available with a nano coating that will cause water to roll off the inner surface of the borosilicate glass tube. Technical details: Dimensions without pump: approx. 58 x 67 x 153 mm Filling volume: approx. 100 ml Connection threads: G1/4 Compatible to the following pumps: - aquastream XT - Eheim 1046 and pumps identical in construction Scope of delivery: One Reservoir Two sealing screws G1/4 (preinstalled) One pressure equalisation membrane (preinstalled) One internal USB connection cable Please note : Fittings and pump are not included in delivery, please order seperately.

All reservoirs of the aqualis series are equipped with a borosilicate glass tube. In contrast to acrylic glass, which is often used for tube reservoirs, borosilicate glass is extremele hard and scratch-resistant, features superb thermal and chemical resistance and a very low thermal expansion. The glass tube of the 450 ml and 880 ml variants has an outer diameter of 75 mm and a wall thickness of 5 mm. Base and top of the aqualis reservoirs are made from Delrin and connected by a stainless steel tube. As a optical highlight, a fountain effect can be realized. If the return line is connected to the center connector of the reservoir, the water flows through the stainless steel tube to the top of the reservoir, where it is ejected through eight nozzles. In combination with illumination, this is a real eye catcher effect. A thin acrylic plate near to the bottom of the reservoir reduces air ingestion to a minimum. Alternatively, the return line can be connected to a lateral connector of the reservoir, the water then exits directly from the base part. For this configuration, a deflector plate is included in delivery to ensure can be installed to effectively remove air from the water circuit. The aqualis PRO 450/880 ml variants additionally feature an acrylic window in the base part and up to six LEDs (5 mm size) can be installed into the base part. The PRO variants can be upgraded with an electronic fill level sensor at a later date. The aqualis XT 450/880 ml variants feature the same acrylic window and LED mounting as the PRO variants. Additionally, the XT variants feature an electronic fill level sensor with USB and aquabus interface, a programmable alarm output and an external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the fill level sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Fill level and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors. All variants are also available with nano coating that will cause water to roll off the inner surface of the borosilicate glass tube. Technical details: Dimensions without stainless steel bracket: approx. 80 x 80 x 290 mm Filling volume: approx. 880 ml Connection threads: G1/4 Scope of delivery: One Reservoir One stainless steel bracket One stainless steel deflector plate Two sealing screws G1/4 (preinstalled) Monting material Please note: Fittings are not included in delivery, please order seperately.

The reservoirs aquainlet PRO and aquainlet XT are designed to be directly mounted onto an aquastream XT or Eheim 1046 pump. The design is perfectly matched to the pump, after installation pump and reservoir form a virtually seamless unit. In particular, the mounting rails of the pump are extended into the reservoir, which for the first time allows for the mounting plate to be installed beneath the center of gravity. This is especially helpful when using rubber decouplers or a shoggy sandwich. When installed onto the suction port of the pump, an o-ring seals the connection between pump and reservoir and two latches secure the reservoir to the pump housing, preventing accidental release of the bayonet coupling between pump cover and pump housing. Two connection threads for the return line located at the front and the side of the unit allow for flexible installation options and are paticularly useful if the reservoir is to be installed with limited space. The reservoirs aquainlet PRO and aquainlet XT are closely related to the aqualis series and are also equipped with a borosilicate glass tube. In contrast to acrylic glass, which is often used for tube reservoirs, borosilicate glass is extremele hard and scratch-resistant, features superb thermal and chemical resistance and a very low thermal expansion. The glass tube has an outer diameter of 50 mm and a wall thickness of 5 mm. Base and top of the aquainlet reservoirs are made from Delrin and connected by a stainless steel rod. The aquainlet XT variants feature an acrylic window in the base part and one LED (5 mm size) can be installed into the base part. Additionally, the XT variants feature an electronic fill level sensor with USB and aquabus interface, a programmable alarm output and an external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the fill level sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Fill level and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors. All variants are also available with a nano coating that will cause water to roll off the inner surface of the borosilicate glass tube. Technical details: Dimensions without pump: approx. 58 x 67 x 198 mm Filling volume: approx. 150 ml Connection threads: G1/4 Compatible to the following pumps: - aquastream XT - Eheim 1046 and pumps identical in construction Scope of delivery: One Reservoir Two sealing screws G1/4 (preinstalled) One pressure equalisation membrane (preinstalled) One internal USB connection cable Please note: Fittings and pump are not included in delivery, please order seperately.

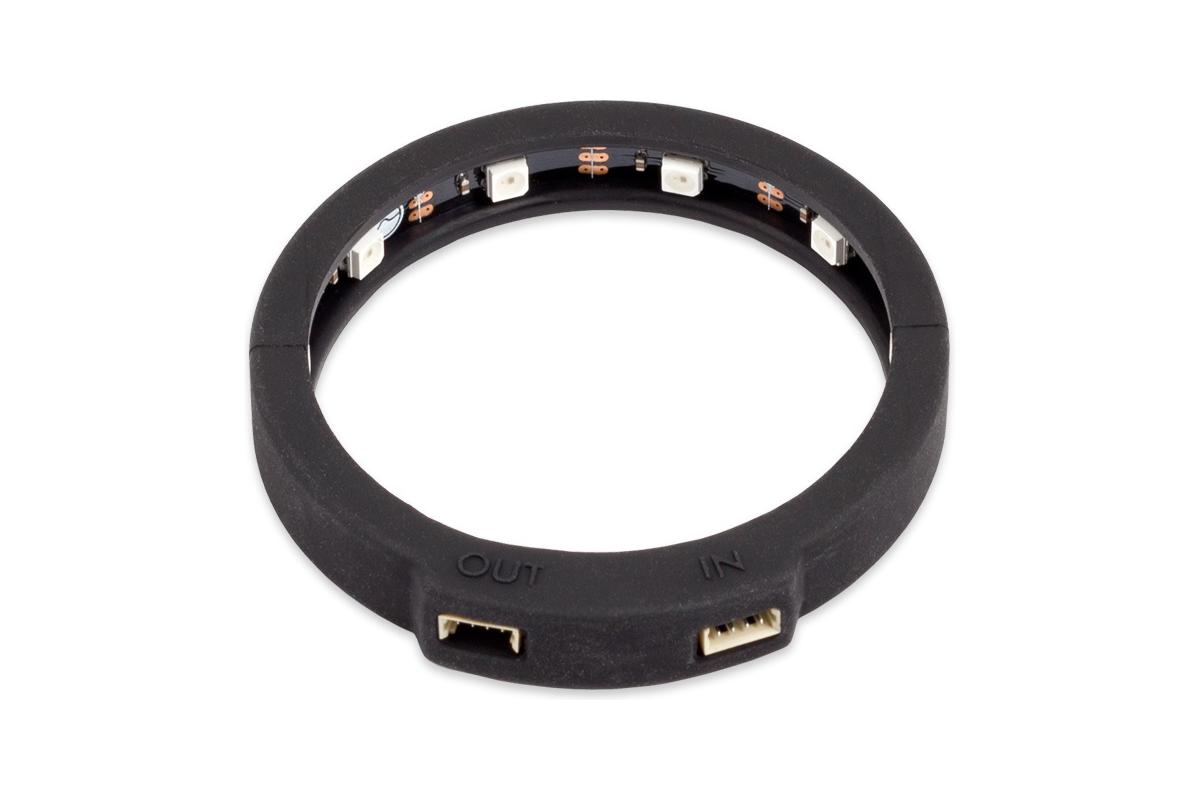

RGBpx LED ring for aqualis 100/150, 10 addressable LEDs The RGBpx-compatible LED ring for aqualis 100 and aqualis 150 expansion tanks with a total of 10 individually addressable LEDs. The LEDs are mounted in a black rubber ring which is slid onto the glass tubes of the aqualis 100 and aqualis 150 expansion tank series. To operate the LED strip, an appropriate control unit with RGBpx output is required (not included in delivery). At the end of the strip there is an additional connector to connect another RGBpx component. Technical data: Inner diameter 50 mm Dimensions approx. 60 x 62 x 10 mm 10 individually controllable LEDs Scope of delivery: RGBpx LED ring one RGBpx connection cable, length 50 cm Compatible to: D5 NEXT QUADRO fan controller

The MasterAir MA610P ARGB CPU cooler from Cooler Master features CDC 2.0 technology, which increases the cooling surface of the cooler base by 45%. The powerful MasterFan 120 Air Balance RGB fans effectively keep the cooler cool. The lighting can be easily and conveniently adjusted using the included controller. Technical Data Exterior Color: Silver, Black CPU Socket: Intel: 2066, 2011-v3, 2011, 1200, 1366, 1156, 1155, 1151, 1150, AMD: AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 Dimensions (L x W x H): 130,9 x 112,8 x 170,4 mm / 5,2 x 4,4 x 6,7 inch Heat Sink Material: 6 Heat Pipes, Aluminum Fins Fan Dimensions (L x W x H): 120 x 120 x 25 mm / 4,7 x 4,7 x 1 inch Fan Quantity: 2 PCS Fan Speed: 650-1800 RPM ± 5% Fan Airflow: 62 CFM (Max) Fan Noise Level: 8 - 27 dBA Fan Air Pressure: 2.52 mmH2O Fan MTTF: 160,000 Hours Fan Power Connector: 4-Pin (PWM) Fan Rated Voltage: 12VDC Fan Rated Current: 0.21A Fan Safety Current: 0.37A Fan Power Consumption: 2.52W Warranty: 2 years Cooler Type: Air Cooler Series: MasterAir Heatpipes: 6

The EK-AIO Basic 240 is a non-RGB, price-conscious all-in-one liquid cooling solution for your CPU. It offers all the water cooling benefits in a compact, easy to install, and maintenance-free design. This EK AIO comes with a universally compatible CPU water-block, along with a pre-filled pump-reservoir combo. It is ready to go straight out of the box. Less fuss, more cooling! Easy installation with Universal Compatibility The EK AIO Basic comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO offers compatibility with almost all modern case designs. Ultra-durable design with diamond-cut rotary fittings The EK AIO Basic comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces. EK-Vardar High-Performance Fans Two EK-Vardar S Black Edition fans included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 - 2200RPM for either high airflow or silent running. Technical Specifications Radiator Dimensions: 275 x 120 x 27mm Radiator Material: Aluminum Fan Compatibility: 120 mm Pump Unit Dimensions: 88 x 70 x 53 mm Pump Unit Material: PETG and ABS Housing, Copper Cold plate, Steel Mounting Pump Pump Speed Range: 850 - 2600 RPM ± 10% Pump PWM Range: 20 - 100% Pump Cable Length: 50 mm Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve Tubing Length: 350 mm Fan Dimensions: 120 x 120 x 25mm Fan Speed Range: 550 - 2200 ± 10% Fan Noise Level: 33,5dBA (at maximum speed) Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed) Fan Air Flow: 77 CFM = 131 m³/h (at maximum speed) Fan Cable Length: 500 mm System Requirements: 4-Pin PWM Header for pump and fan operation Enclosed: EK-AIO Basic 240 unit 2x EK-Vardar S 120 Dark Edition Tube of Thermal Paste Mounting Kit User Manual Mounting kit: Zip Bag 1: 8x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length) 8x Phillips Head Screw UNC 6-32 x 6mm 8x Phillips Head Screw UNC 6-32 x 34mm Zip Bag 2: 4x Thumb nut (Intel /AMD) 4x Spring Zip Bag 3: 4x Mounting screws (Intel 1150,1151,1155,1156,1200/AMD) Zip Bag 4: 4x Mounting screws (Intel 2011,2011-3,2066) Zip Bag 5: 2x Intel Mounting Bracket Zip Bag 6: 2x AMD Mounting Bracket Zip Bag 7: 5x Mounting screws for Brackets M4x6mm CPU Socket Support: Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 AMD Sockets: AM4 5 Years Limited International Warranty

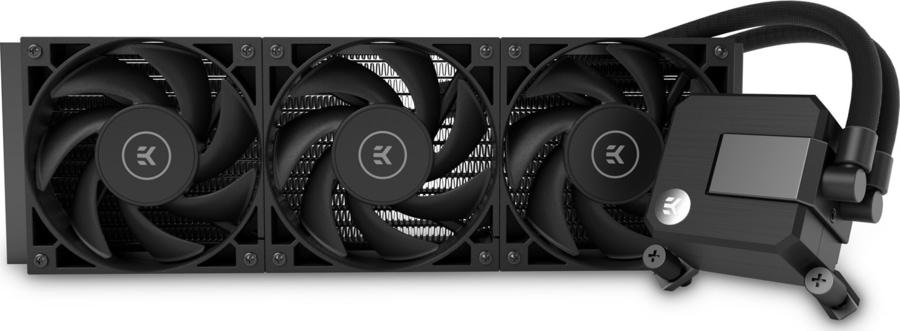

EK-AIO Basic 360 is a non-RGB, price-conscious, all-in-one liquid cooling solution for your CPU. It offers all the water cooling benefits in a compact, easy to install, and maintenance-free design. This EK-AIO comes with a universally compatible CPU water block, along with a pre-filled pump-reservoir combo. It is ready to go straight out of the box. Less fuss, more cooling! Easy installation with Universal Compatibility The EK AIO Basic comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO offers compatibility with almost all modern case designs. Ultra-durable design with diamond-cut rotary fittings The EK AIO Basic comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces. EK-Vardar High-Performance Fans Three EK-Vardar S Black Edition fans included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 - 2200RPM for either high airflow or silent running. Technical Specifications Radiator Dimensions: 395 x 120 x 27 mm Radiator Material: Aluminum Fan Compatibility: 120 mm Pump Unit Dimensions: 88 x 70 x 53 mm Pump Unit Material: PETG and ABS Housing, Copper Cold plate, Steel Mounting Pump Pump Speed Range: 850 - 2600 RPM ± 10% Pump PWM Range: 20 - 100% Pump Cable Length: 50 mm Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve Tubing Length: 400 mm Fan Dimensions: 120 x 120 x 25mm Fan Speed Range: 550 - 2200 ± 10% Fan Noise Level: 33,5dBA (at maximum speed) Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed) Fan Air Flow: 77 CFM = 131 m³/h (at maximum speed) Fan Cable Length: 500 mm System Requirements: 4-Pin PWM Header for pump and fan operation Enclosed: EK-AIO Basic 360 unit 3x EK-Vardar S 120 Dark Edition Tube of Thermal Paste Mounting Kit User Manual Mounting kit: Zip Bag 1: 12x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length) 12x Phillips Head Screw UNC 6-32 x 6mm 12x Phillips Head Screw UNC 6-32 x 34mm Zip Bag 2: 4x Thumb nut (Intel /AMD) 4x Spring Zip Bag 3: 4x Mounting screws (Intel 1150,1151,1155,1156,1200/AMD) Zip Bag 4: 4x Mounting screws (Intel 2011,2011-3,2066) Zip Bag 5: 2x Intel Mounting Bracket Zip Bag 6: 2x AMD Mounting Bracket Zip Bag 7: 5x Mounting screws for Brackets M4x6mm CPU Socket Support: Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 AMD Sockets: AM4 5 Years Limited International Warranty

EK Vardar was specially developed for the water cooling sector, which embodies the best quality and performance. With the Vardar Evo range, these have been further refined. Like their predecessors, they have a 4-pin PWM connector for automatic control on the mainboard or on a suitable fan controller. Of course the fans can also be operated at maximum speed on a 3-pin connector. Since they are primarily intended to generate a very high static pressure on radiators, special attention was paid to this, as well as to low noise. Furthermore, this fan is the ER-version, which allows a larger PWM control range (25 - 100%). The corresponding special start-stop function is also practical. The hydrodynamic slide bearing also guarantees a long service life of 50,000 hours. Technical Data: Dimensions: 140 x 140 x 25 mm Material: Plastic Color: Black (Frame), Black (Blades) Speed: 2000 rpm (+/- 10%) PWM Duty Cycle: 25 - 100% (Extended Range) Noise Level: 40,7 dBA Max Air Flow: 184 m³/h Static Pressure: 3,15 mm H2O Bearing durability: 50.000 hrs @ 40°C (MTBF) Rated Voltage: 12V DC Connector: 4-Pin PWM header Scope of Delivery: 2x EK-Vardar EVO BB Fan, 4x Screws

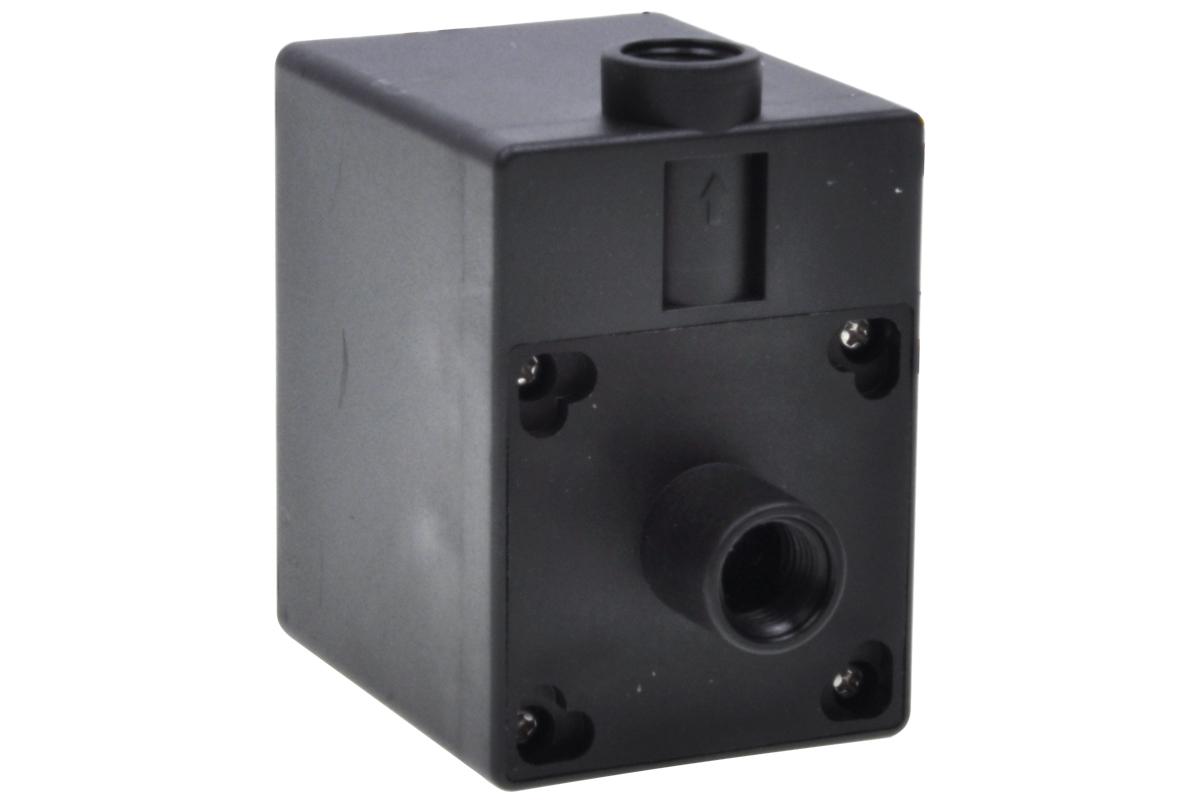

The new Phobya pumps: A revolution begins! After the first products the manufacturer consortium Phobya now introduces a pump series which rattles the cages in the performance-pump sector. This product perfectly combines all the requirements from different watercooling users: Quiet: At less than 22dB even most fans in the system emit more noise. For decoupling and therefore further noise reduction two kits are included with the pump: The first a map for quick and easy mounting on the case floor. The mat is self-adhesive on both sides and therefore reliably fixates the pump. The second possibility for pump installation are two brackets with which the pump can be fixated in the case. A ceramic-based centrifugal bearing promises quiet operation and a long lifespan. Compact: With the small outer dimensions (see technical specifications) the pump can be installed in almost any corner of the case, even in Midi- or Mini-towers. The compact dimensions of the pump also make connection to the cooling loop easy as the pump's position can easily be varied. Powerful: Such a small and quiet pump so far always required compromises regarding the power. Not anymore! 4m of pressure head and 800l/h of flow are the kind of performance that will not be stopped even by cooling loops even with multiple waterblocks. G1/4" connection: No adaptors, no annoyingly long connectors any more! Simply screw in the desired connector and you are set to go! 12V connector: The first advantage of a 12V connector is that it makes the connection with a 230V cable obsolete and that internal operation is made safe and easy. The other great feature of this pump is the connector: It is not a standard 4-Pin Molex connector, it is a 4-Pin PWM connector. This pump can therefore be operated at a fan connector on a Mainboard or a fan controller. This also allows a speed reduction of the pump: Only 8V are required for starting and operation of the pump which makes it additionally quiet and smooth in operation. The fan connector also offers the advantage of rpm monitoring with a compatible controller. Technical specifications: Color: Black Casing material: Plastic Outer dimensions: (L x W x H): 82 x 66 x 54mm Connection thread size: G1/4" Power connector: 4-Pin PWM Nominal operating voltage: DC 12V Starting voltage: DC 8V Power consumption: 18W Current draw: 1.8A Max. pressure head: 4m Flow rate: 800 l/h Lifespan: 50.000hrs Noise emission: below 25 db Extent of delivery: 1x Pump Decoupling mat Decoupling bracket with 2x 4mm holes

The new Phobya pumps: A revolution begins! After the first products the manufacturer consortium Phobya now introduces a pump series which rattles the cages in the performance-pump sector. This product perfectly combines all the requirements from different watercooling users: Quiet: At less than 22dB even most fans in the system emit more noise. For decoupling and therefore further noise reduction two kits are included with the pump: The first a map for quick and easy mounting on the case floor. The mat is self-adhesive on both sides and therefore reliably fixates the pump. The second possibility for pump installation are two brackets with which the pump can be fixated in the case. A ceramic-based centrifugal bearing promises quiet operation and a long lifespan. Compact: With the small outer dimensions (see technical specifications) the pump can be installed in almost any corner of the case, even in Midi- or Mini-towers. The compact dimensions of the pump also make connection to the cooling loop easy as the pump's position can easily be varied. Powerful: Such a small and quiet pump so far always required compromises regarding the power. Not anymore! 2,6m of pressure head and 600l/h of flow are the kind of performance that will not be stopped even by cooling loops even with multiple waterblocks. G1/4" connection: No adaptors, no annoyingly long connectors any more! Simply screw in the desired connector and you are set to go! 12V connector: The first advantage of a 12V connector is that it makes the connection with a 230V cable obsolete and that internal operation is made safe and easy. The other great feature of this pump is the connector: It is not a standard 4-Pin Molex connector, it is a 3-Pin fan connector which powers this pump (Important: Check the requirements and capabilities of the sockets to which you connect the pump). This pump can therefore be operated at a fan connector on a Mainboard or a fan controller. This also allows a speed reduction of the pump: Only 8V are required for starting and operation of the pump which makes it additionally quiet and smooth in operation. The fan connector also offers the advantage of rpm monitoring with a compatible controller. Technical specifications: Color: Black Casing material: Plastic Outer dimensions: (L x W x H): 61,7 x 59,7 x 46,7mm Connection thread size: G1/4" Power connector: 3-Pin Nominal operating voltage: DC 12V Starting voltage: DC 8V Power consumption: 8W Current draw: 1A Max. pressure head: 2,6m Flow rate: 600 l/h Lifespan: 50.000hrs Noise emission: below 22 db Extent of delivery: 1x Pump Decoupling mat Decoupling bracket with 2x 4mm holes This product has been reviewed for you: Aquainfos Xpert-OC-Team Awardfabrik Freezelabs (NO) Itrends (DK) Coolingtechnique (IT) Freeocen Hardware-academy Hardwaremax Xtremehardware (IT) Xtremehardware (Engl) Topzone (LT) Xtremesystems (Engl) (Userreview) Hardwareluxx (Userreview) Deviceunknown (us/engl)

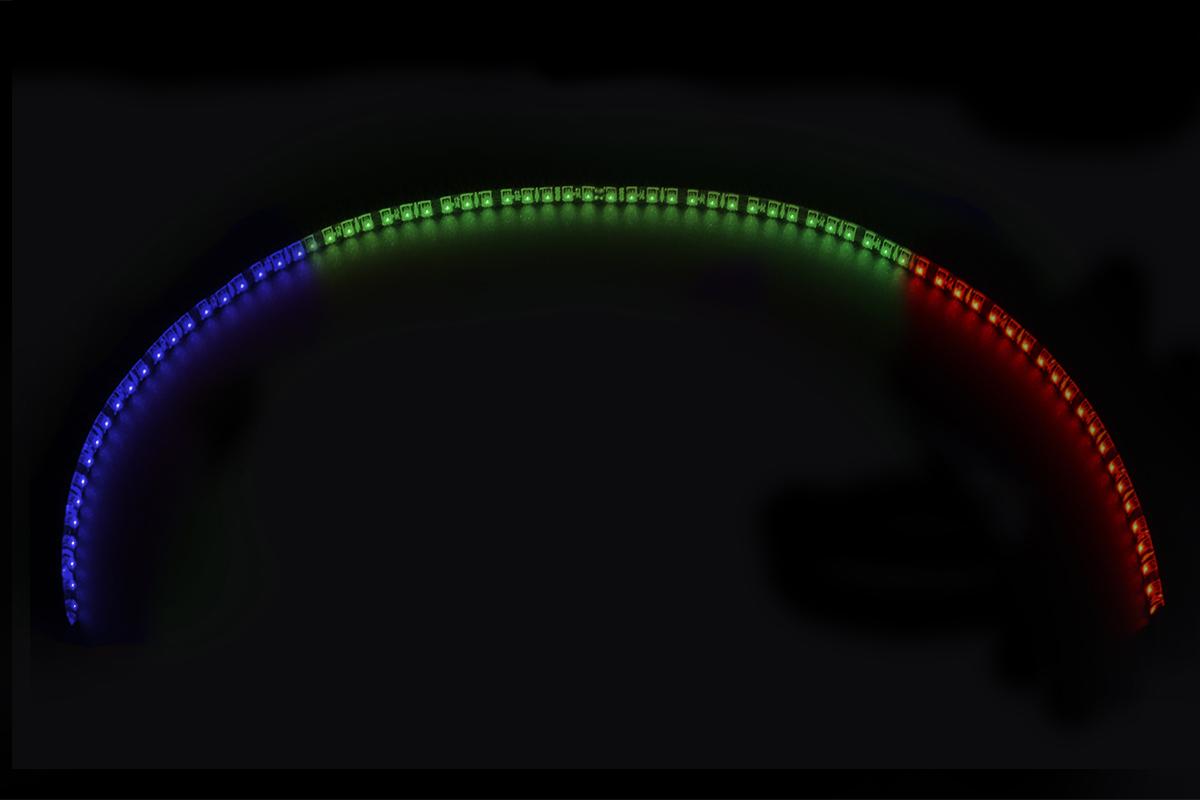

The ultimate modding highlight! Make your PC true eye-candy! With the use of the Phobya Flexlight strip it is now possible to shine a light into every corner of your enclosure with even more LEDs! The 4-Pin Molex extension loops through the required energy and hence still allows use of the PSU connector. For mounting the pre-applied adhesive tape at the back of the strips. Hence mounting of the Flexlights is easy to do in any spot in the enclosure. Many possibilities allow many different lighting effects: At the in- or outside of the enclosure, wrapped around the reservoir or simply put at the base of the enclosure. Thanks to the LED technology the Flexlights have an extremely low power consumption and barely any heat dissipation. Additionally the Flexlight strip is watertight, giving many new possibilities in combination with a water cooling system. The Flexlights can even be hung into a reservoir for a completely new look! The great quality of manufacturing and advanced technology makes Flexlights the ultimate lighting solution! Of course shortening of the Flexlight strips is possible without problems, simply cut them to the desired length! Please note that the cut should only be made at the cut marks (every third LED), as the last LEDs will not functions otherwise. Even extension is possible for users with soldering experience. This even allows combination of Flexlights in different colours! Control only possible with Item No. 83156 New generation: The combination of the TriBright technology in combination with the closely spaced high-density LEDs allows extreme lighting power! Beautifully black sleeved allow this component to be integrated cleanly into high-end systems. Flexlights outside of the PC? Of course! Use Flexlights to illuminate a table from the bottom, a couch from the rear or even a photo frame! All of these beautiful possibilities can be realized with the Phobya external power supplies: No PC is required, no noisy fans are disturbing the silence. Simply order one of the Phobya PSUs (Item No. 84006 or 84011) and enter the world of endless lighting possibilities! RGB These three letters stand for red, green and blue. With these base colour LEDs virtually all colours of the rainbow can be mixed. With the right controller unit (not included, optionally available with the Item No. 83156) even more effects can be achieved. More details can be found in the item description of the Phobya LED Flexlight RGB controller and remote control. Technical specifications: Length: 60cm Colour: RGB Width: 10mm (strip only) Number of LEDs: 36 Voltage: 12VDC to 14VDC Extent of delivery: 1x Phobya LED-Flexlight HighDensity 60cm RGB (36x SMD LED) Multiple review sites have tested this product for your: incl. large image gallery: Hardwaremax Userreview von Overclockingstation Aquainfos Whitex Computerbase (User review) Powerbase Dexgo Profesionalreview (esp) Whitex-Modd Octeamdenmark (dk) Chlodzenie (pl) Review-Center Zwame (pt) (Userreview)

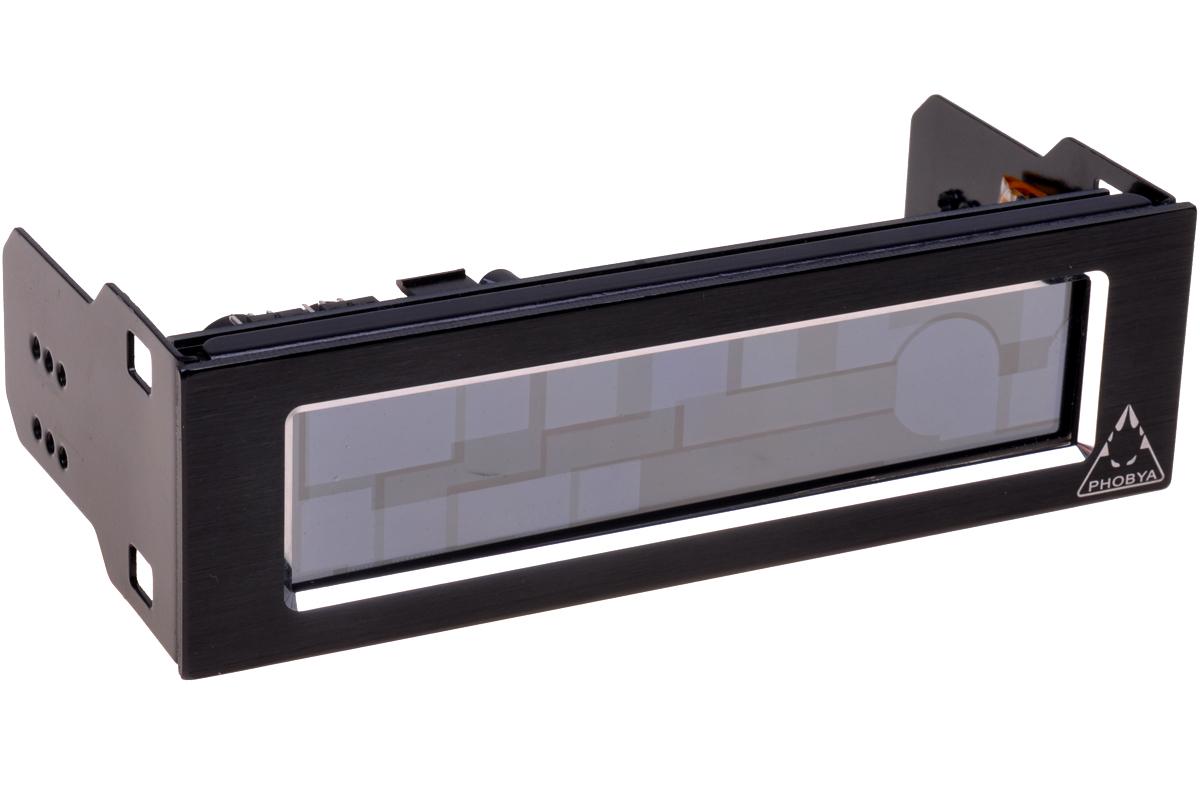

Phobya presents the "Touch 530" an innovative fan controller, which satisfies both, the high technical demands of high-end cooling systems as well as looking great in your modded PC. These features makes the Phobya Touch 530 - Fan controller to an attractive building block in particular for users of water cooling. Even the budget-conscious users will be happy because there are hardly any comparable fan controllers that provide at this price level, this abundance of power. The Phobya Touch 530 has an easy to use touch panel. It can easily adjust the speed with your finger for each channel. Particularly suitable for computer water cooling, as can be driven up to 30 watts per channel, which means depending on the performance of the fan that even 9 fans can be controlled via a channel (at

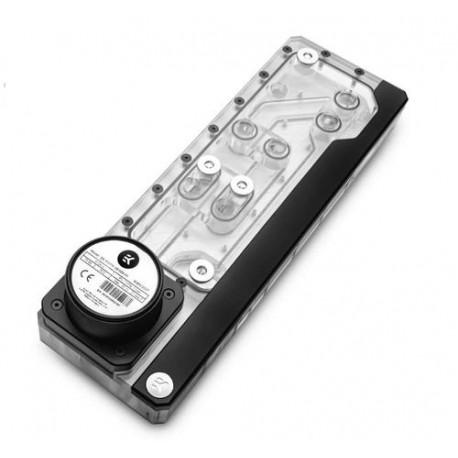

EK-Quantum Reflection Evolv X D5 PWM D-RGB is a water cooling reservoir, routing and pump solution made to fit Phanteks Evolv X and P600s cases. This "distro plate" is specifically designed to provide an advanced water cooling solution with a market-leading D5 pump for users who are building custom loop liquid cooling solutions with select Phanteks cases. Supported Phanteks cases: •Phanteks Evolv X •Phanteks P600s The EK-Quantum Reflection Evolv X D5 PWM D-RGB offers multiple industry-standard G1/4" threaded inlet and outlets. The placement of these inlets and outlets is perfectly aligned to fit inline with the PC components in order to minimize the number of bends the user has to make in order to create the loop. It is able to support 1 CPU, 4 GPUs, and up to an EK-CoolStream XE360 radiator in the top of the case. The radiator compatibility with the distro plate allows for up to XE 360 in the top of the case for both the Evolv X and P600s Engineered to be mounted next to the motherboard, the EK-Quantum Reflection Evolv X D5 PWM D-RGB can fit elegantly within the two supported Phanteks cases. The built-in addressable D-RGB LED strip runs down the entire length of the unit while the anodized black aluminum cover hides the unwanted LED hotspots. The installed addressable D-RGB LED strip connects to the motherboard 5V D-RGB (A-RGB) header via an industry-standard connector. It is compatible with all major motherboard vendor software for a coordinated lighting effect. Other excellent and recommended addressable D-RGB controller units are the EK-Loop Connect or the Phanteks digital controller hub. Reservoir: - Dimensions with the attached pump (W x D x H): 105 x 71 x 323mm - D-RGB LED count: 19 - D-RGB cable length: 500mm - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Technical specifications: - Motor: Electronically commuted spherical motor - Rated voltage: 12V DC - Power consumption: 23W - Maximum pressure head: 3.9m - Maximum flow: 1500L/h - Maximum system temperature: 60°C - Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal - Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector Operational regime: - PWM duty cycle: ~ 20-100% - Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

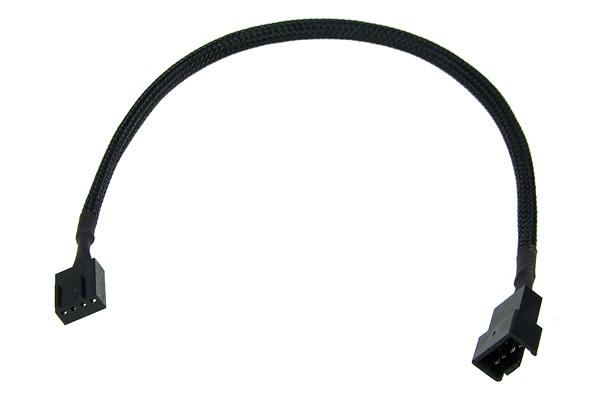

An extension for a 4-Pin PWM connector. As fan control via the Mainboard with a PWM fan is much more affordable than a fan controller, this cable is perfect to give more flexibility. The extension cable is sleeved with a black mesh which additionally protects the cable and looks great! This further expands the lifespan of the cable. The ends towards the connectors are fixated with heatshrink for a clean finish. Sleeving: This cable is not only practical, it is also optically appealing, The surrounding mesh, also called mesh, which is surrounding the cable itself offers the advantages that every Pro-modder is looking for: A completely unique look, even of the cables in the system! Special attention was paid to the combination of cable connectors, sleeve and heatshrink which were used to ensure great design and a unique as well as elegant look. The idea behind these cables: Phobya's goal is to make the work of professional and hobby modders a bit easier with these cables. Sleeving is a lot of work and requires much time. But with these cables by Phobya the whole system can be redesigned any way you like by simply adding these cables. Technical specifications: Length: 30cm Colour: Black 4-Pin PWM Extent of delivery: 1x Phobya extension 4-Pin PWM 30cm - black This product has been reviewed for you: Aquainfos Tech-Review

This cable is designed to connect multiple fans to one PWM socket, e.g. on a Mainboard, to allow control and monitoring, Important: To allow precise monitoring and control of the fans, they must be identical respectively from the same series. Different fans can also be used, but the monitored speed values will not be accurate. Please note: Connecting multiple fans to one socket may exceed the power envelope of the socket, damaging the controller unit! Sleeving: This cable is not only practical, it is also optically appealing, The surrounding mesh, also called mesh, which is surrounding the cable itself offers the advantages that every Pro-modder is looking for: A completely unique look, even of the cables in the system! Special attention was paid to the combination of cable connectors, sleeve and heatshrink which were used to ensure great design and a unique as well as elegant look. The idea behind these cables: Phobya's goal is to make the work of professional and hobby modders a bit easier with these cables. Sleeving is a lot of work and requires much time. But with these cables by Phobya the whole system can be redesigned any way you like by simply adding these cables. Technical specifications: Length: 40cm - 20cm, 10cm and 10cm Color: Black sleeve Connectors: 1x 4-Pin PWM male 3x 4-Pin PWM female Extent of delivery: 1x Phobya 4-Pin PWM to 3x4-Pin PWM extension 40cm - black This product has been reviewed for you: Aquainfos Tech-Review Overclockingstation Please note the difference between a 4-Pin power connector (Molex) and a 4-Pin fan connector (PWM)

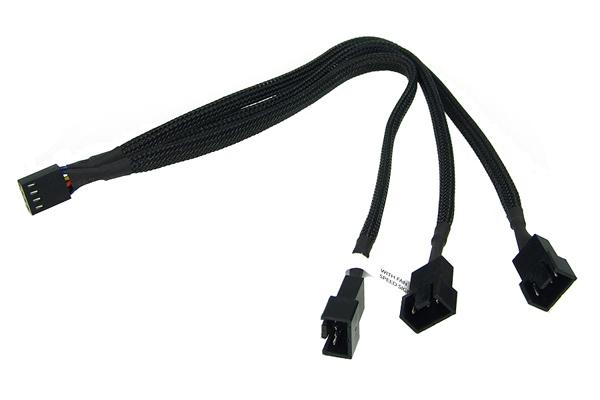

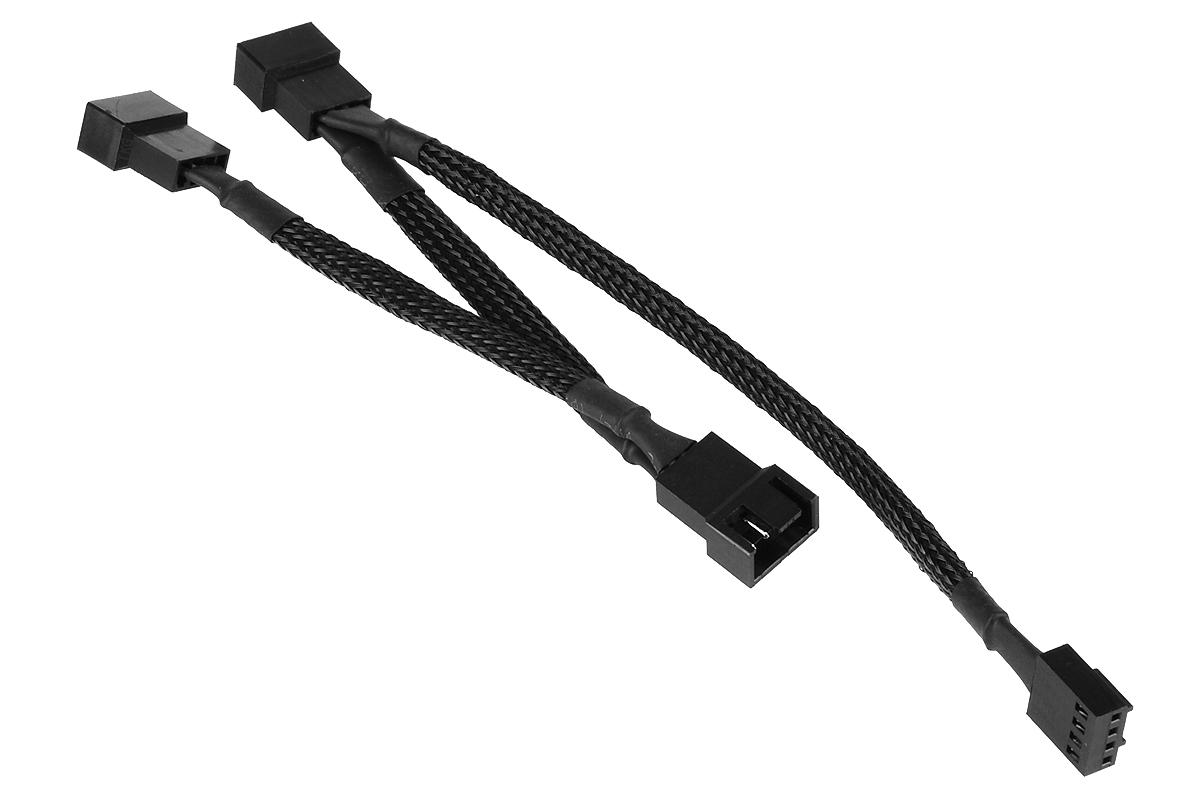

A Y-cable to connect 3x4-Pin PWM fans to one 4-Pin PWM connector. As fan control via the Mainboard with a PWM fan is much more affordable than a fan controller, this cable is perfect to give more flexibility. The extension cable is sleeved with a black mesh which additionally protects the cable and looks great! This further expands the lifespan of the cable. The ends towards the connectors are fixated with heatshrink for a clean finish. A white marking on one of the split cables shows from which cable the rpm signal is transmitted. Sleeving: This cable is not only practical, it is also optically appealing, The surrounding mesh, also called mesh, which is surrounding the cable itself offers the advantages that every Pro-modder is looking for: A completely unique look, even of the cables in the system! Special attention was paid to the combination of cable connectors, sleeve and heatshrink which were used to ensure great design and a unique as well as elegant look. The idea behind these cables: Phobya's goal is to make the work of professional and hobby modders a bit easier with these cables. Sleeving is a lot of work and requires much time. But with these cables by Phobya the whole system can be redesigned any way you like by simply adding these cables. Technical specifications: Connectors: 1x 4-Pin PWM male 3x 4-Pin PWM female Colour: Black sleeve, black connectors, black heatshrink Dimensions: Overall 30cm Conforms with RoHS Extent of delivery: 1x Phobya Y-cable 4-Pin PWM to 3x4-Pin PWM 30cm - black This product has been reviewed for you: Aquainfos Tech-Review Overclockingstation

A Y-cable to connect 3x4-Pin PWM fans to one 4-Pin PWM connector. As fan control via the Mainboard with a PWM fan is much more affordable than a fan controller, this cable is perfect to give more flexibility. The extension cable is sleeved with a black mesh which additionally protects the cable and looks great! This further expands the lifespan of the cable. The ends towards the connectors are fixated with heatshrink for a clean finish. A white marking on one of the split cables shows from which cable the rpm signal is transmitted. Sleeving: This cable is not only practical, it is also optically appealing, The surrounding mesh, also called mesh, which is surrounding the cable itself offers the advantages that every Pro-modder is looking for: A completely unique look, even of the cables in the system! Special attention was paid to the combination of cable connectors, sleeve and heatshrink which were used to ensure great design and a unique as well as elegant look. The idea behind these cables: Phobya's goal is to make the work of professional and hobby modders a bit easier with these cables. Sleeving is a lot of work and requires much time. But with these cables by Phobya the whole system can be redesigned any way you like by simply adding these cables. Technical specifications: Connectors: 1x 4-Pin PWM male 3x 4-Pin PWM female Colour: Black sleeve, black connectors, black heatshrink Dimensions: Overall 30cm Conforms with RoHS Extent of delivery: 1x Phobya Y-cable 4-Pin PWM to 3x4-Pin PWM 30cm - black This product has been reviewed for you: Aquainfos Tech-Review

Description: PowerEdge T250 Server Intel Xeon E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s No Controller Chassis with up to 4, 3.5" Cabled Hard Drives and Software RAID 1x 16GB 3200MT/s DDR4 ECC UDIMM (up to 4 DIMMs) 1x 1TB 7.2K RPM SATA Entry 3.5in Cabled Hard Drive Single cabled PSU 450W Platinum PCIe Riser with Fan with 1 x16 and 1 x8 Slots iDRAC9, Basic (15GEN) TPM 2.0 V3 On-Board LOM 3Yr Basic Warranty - Next Business Day Accessories: Standard Bezel 1U/2U Static Rails for 2-Post and 4-Post Racks European Power Cord 220V C13 to C14, PDU Style, 10 AMP, 6.5 Feet (2m), Power Cord Factory Settings: Performance Optimized Power Saving BIOS Settings UEFI BIOS Boot Mode with GPT Partition

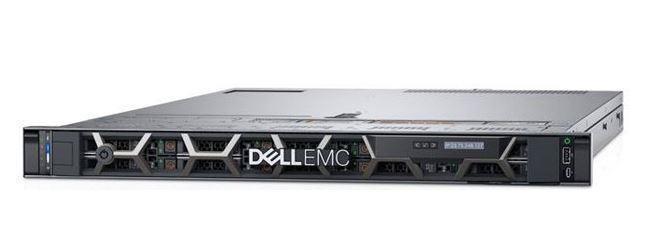

PowerEdge R450 Server Intel Xeon Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666 PERC H745 Controller, Front Chassis with up to 4, 3.5" Hot Plug Hard Drives No Memory (RDIMM - DDR4) No Hard Drive/SSD Single, Hot-Plug, Power Supply (1+0), 600W iDrac9, Enterprise (15GEN) Riser Config 0, 1xOCP 3.0(x16)+ 1x16LP SAS/SATA Backplane Broadcom 57412 Dual Port 10GbE SFP+, OCP NIC 3.0 ?Standard Fan x5 DVD +/-RW, SATA, Internal TPM 2.0 V3 3Yr Basic Warranty - Next Business Day Accessories: ReadyRails Sliding Rails Without Cable Management Arm Cable Management Arm C13 to C14, PDU Style, 10 AMP, 2m, Power Cord European Power Cord 220V Factory Settings: Performance Optimized ?Power Saving BIOS Settings

The EK-Quantum Reflection Fractal ATX D5 PWM D-RGB is a water cooling reservoir, routing and pump solution made to fit several Fractal Design ATX size cases. This "distro plate" is specifically designed to provide an advanced water cooling solution with a market-leading D5 pump for users who are building custom loop liquid cooling solutions with Fractal Design cases. Supported Fractal Design cases: •Define 7 •Define 7 XL •Define R6 •Define S2 •Vector RS •Meshify S2 •Define S2 Vision RGB The EK-Quantum Reflection Fractal ATX D5 PWM D-RGB offers multiple industry-standard G1/4" threaded inlet and outlets. The placement of these inlets and outlets is perfectly aligned to fit inline with the PC components in order to minimize the number of bends the user has to make in order to create the loop. It is able to support 1 CPU, 2 GPUs, and up to 2 radiators. The radiator compatibility per case is as follows (top+front): •Define 7 - EK-CoolStream PE 360 + EK-CoolStream SE 240 •Define 7 XL - EK-CoolStream XE 360 or EK-CoolStream CE 420 + EK-CoolStream PE 360 •Define R6 - EK-CoolStream PE 360 + EK-CoolStream PE 240 •Define S2 - EK-CoolStream PE 360 •Vector RS - EK-CoolStream PE 360 •Meshify S2 - EK-CoolStream PE 360 •Define S2 Vision RGB - EK-CoolStream PE 360 Engineered to be mounted next to the motherboard, the EK-Quantum Reflection Fractal ATX D5 PWM can fit elegantly within the supported Fractal Design cases. The built-in addressable D-RGB LED strip runs down the entire length of the unit while the anodized black aluminum cover hides the unwanted LED hotspots. The installed addressable D-RGB LED strip connects to the motherboard 5V D-RGB (A-RGB) header via an industry-standard connector. It is compatible with all major motherboard vendor software for a coordinated lighting effect. Other excellent and recommended addressable D-RGB controller units are the EK-Loop Connect or the little handy Fractal Design Adjust R1. Reservoir: - Dimensions with the attached pump (W x D x H): 133 x 66 x 349mm - D-RGB LED count: 22 - D-RGB cable length: 500mm - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Technical specifications: - Motor: Electronically commuted spherical motor - Rated voltage: 12V DC - Power consumption: 23W - Maximum pressure head: 3.9m - Maximum flow: 1500L/h - Maximum system temperature: 60°C - Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal - Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector Operational regime: - PWM duty cycle: ~ 20-100% - Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

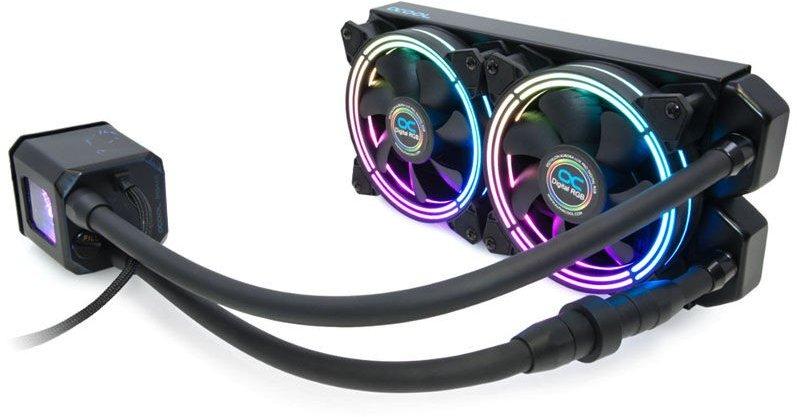

With the “Eisbaer”, Alphacool is fundamentally revolutionizing the AIO cooler market. Where traditional AIO CPU-coolers are disposable products which are neither upgradeable nor refillable, the Alphacool “Eisbaer” is modularly built and can be upgraded, rebuilt or refilled at any time. This means that the “Eisbaer” is not only an AIO, but also fully built on classic water cooling components. That means it is quieter and more powerful than the average AIO solution. Radiator Alphacool depends on a radiator made of pure copper. The base of the radiator is the popular Alphacool NexXxoS series, which is well-loved around the world. The pure copper construction raises the cooling performance enormously compared to the usual aluminium radiators used in classic AIOs. The slight thickness of the fins ensures enormous cooling power in fans with low rotational speed. This ensures that the performance of the “Eisbaer” when adjusting the fans down decreases much more slowly than in radiators with higher fin thickness. Hoses The flexible PVC hoses make installing the “Eisbaer” easy. These hoses are easier to arrange and move into the right position. So the hoses don’t bend and stop the flow of the water, both hoses have been fit-ted with anti-kink springs. The 11/8 mm size is also a standard in the water cooling field, alongside the 13/10 and 16/10. Quick-lock closure The “Eisbaer” was designed with expandability directly in mind. This is why you’ll find a quick-lock closure on one of the hoses. This quick-lock mechanism is compatible with Alphacool HF quick-lock closures (1010383, 1010394, 1010395, 1010442), with which the circuit can easily be expanded to include anything from a radiator to a graphics card cooler. Furthermore, the “Eisbaer” is compatible with the upcoming Alphacool GPX-Pro graphics card AIO, which will use identical quick-lock closures. Fans The Eiswind fans were specially designed for use in radiators and provide very high static pressure to force cool air through the radiator’s cooling fins. Both fans can be regulated via PWM over an enormous range of 550 to 1700 RPM. A PWM Y-adapter is included with the Eisbaer LT, so both fans can be connected to a PWM connection on your motherboard or a separate fan controller. Connectors All connectors are based on the classic G1/4 inch thread, the standard thread in the water cooling field. This way, all attachments can be switched out for others any time as desired. This also means that, for example, you could later decide to switch to thicker hoses or even HardTubes and set your system uniquely apart. All these features make the “Eisbaer” cooler into something extraordinary. Its enhanced appearance from the illuminated logo and the illuminated reservoir, which also contains the pump, lets the interior of your PC shine in a whole new way. The soft-touch surface of the pump case is a further visual highlight. Pumps The basis of the pumps is the Alphacool DC-LT 2 Ceramic, also available separately. The pump runs extremely quietly and can be regulated to between 7 and 12V. It can also be regulated through the motherboard. If the “Eisbaer” is being run alone, the 7V setting will still have next to no performance loss, as shown in diverse test results. The insulated pump case further perfects the noise generation and ensures that vibrations are almost completely absorbed. The smooth and shiny polished copper base of the cooler ensures optimal heat absorption and can relay the heat over the fine slit structure of the cooler to the water quickly and efficiently. With the “Eisbaer”, you get an all-around perfect product that is not only extremely high-powered but also works very quietly. Notice for expansion Please take care not to mix up the IN and OUT ports. On the “Eisbaer”, the “outlet” is marked in “red” and the “inlet” in “blue”. On the components to be connected, it is the opposite. The coupling with the “blue” marking denotes the “outlet” and the coupling with the “red” marking is the “inlet”. This is important as in many coolers the flow direction is crucial for optimal cooling performance. Note on application Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well. Compatibility: Compatibility Intel 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066 Compatibility AMD AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5 Technical Details Pump (Alphacool DC-LT 2 2600 Ceramic) Speed 2600 RPM Voltage 7-13.5V DC Power consumption 4W Maximum flow rate 75L/h Maximum head 0.95 m hose length 30 cm Technical Details Fans Fans Eiswind Bearing Sleeve Bearing Voltage 12V Power connector 4-Pin PWM Rated speed (rpm) 550 -1700 (+/-10%) Fan efficiency 63,85 cfm / 108m³/h Air pressure 1,66 mm H2O Volume 29 dB(A)

With the “Eisbaer”, Alphacool is fundamentally revolutionizing the AIO cooler market. Where traditional AIO CPU-coolers are disposable products which are neither upgradeable nor refillable, the Alphacool “Eisbaer” is modularly built and can be upgraded, rebuilt or refilled at any time. This means that the “Eisbaer” is not only an AIO, but also fully built on classic water cooling components. That means it is quieter and more powerful than the average AIO solution. Radiator Alphacool depends on a radiator made of pure copper. The base of the radiator is the popular Alphacool NexXxoS series, which is well-loved around the world. The pure copper construction raises the cooling performance enormously compared to the usual aluminium radiators used in classic AIOs. The slight thickness of the fins ensures enormous cooling power in fans with low rotational speed. This ensures that the performance of the “Eisbaer” when adjusting the fans down decreases much more slowly than in radiators with higher fin thickness. Hoses The flexible PVC hoses make installing the “Eisbaer” easy. These hoses are easier to arrange and move into the right position. So the hoses don’t bend and stop the flow of the water, both hoses have been fit-ted with anti-kink springs. The 11/8 mm size is also a standard in the water cooling field, alongside the 13/10 and 16/10. Quick-lock closure The “Eisbaer” was designed with expandability directly in mind. This is why you’ll find a quick-lock closure on one of the hoses. This quick-lock mechanism is compatible with Alphacool HF quick-lock closures (1010383, 1010394, 1010395, 1010442), with which the circuit can easily be expanded to include anything from a radiator to a graphics card cooler. Furthermore, the “Eisbaer” is compatible with the upcoming Alphacool GPX-Pro graphics card AIO, which will use identical quick-lock closures. Fans The Eiswind fans were specially designed for use in radiators and provide very high static pressure to force cool air through the radiator’s cooling fins. Both fans can be regulated via PWM over an enormous range of 550 to 1700 RPM. A PWM Y-adapter is included with the Eisbaer LT, so both fans can be connected to a PWM connection on your motherboard or a separate fan controller. Connectors All connectors are based on the classic G1/4 inch thread, the standard thread in the water cooling field. This way, all attachments can be switched out for others any time as desired. This also means that, for example, you could later decide to switch to thicker hoses or even HardTubes and set your system uniquely apart. All these features make the “Eisbaer” cooler into something extraordinary. Its enhanced appearance from the illuminated logo and the illuminated reservoir, which also contains the pump, lets the interior of your PC shine in a whole new way. The soft-touch surface of the pump case is a further visual highlight. Pumps The basis of the pumps is the Alphacool DC-LT 2 Ceramic, also available separately. The pump runs extremely quietly and can be regulated to between 7 and 12V. It can also be regulated through the motherboard. If the “Eisbaer” is being run alone, the 7V setting will still have next to no performance loss, as shown in diverse test results. The insulated pump case further perfects the noise generation and ensures that vibrations are almost completely absorbed. The smooth and shiny polished copper base of the cooler ensures optimal heat absorption and can relay the heat over the fine slit structure of the cooler to the water quickly and efficiently. With the “Eisbaer”, you get an all-around perfect product that is not only extremely high-powered but also works very quietly. Notice for expansion Please take care not to mix up the IN and OUT ports. On the “Eisbaer”, the “outlet” is marked in “red” and the “inlet” in “blue”. On the components to be connected, it is the opposite. The coupling with the “blue” marking denotes the “outlet” and the coupling with the “red” marking is the “inlet”. This is important as in many coolers the flow direction is crucial for optimal cooling performance. Compatibility: Compatibility Intel 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066 Compatibility AMD AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5 Technical Details Pump (Alphacool DC-LT 2 2600 Ceramic) Speed 2600 RPM Voltage 7-13.5V DC Power consumption 4W Maximum flow rate 75L/h Maximum head 0.95 m hose length 30 cm Technical Details Fans Fans Eiswind Bearing Sleeve Bearing Voltage 12V Power connector 4-Pin PWM Rated speed (rpm) 550 -1700 (+/-10%) Fan efficiency 63,85 cfm / 108m³/h Air pressure 1,66 mm H2O Volume 29 dB(A)

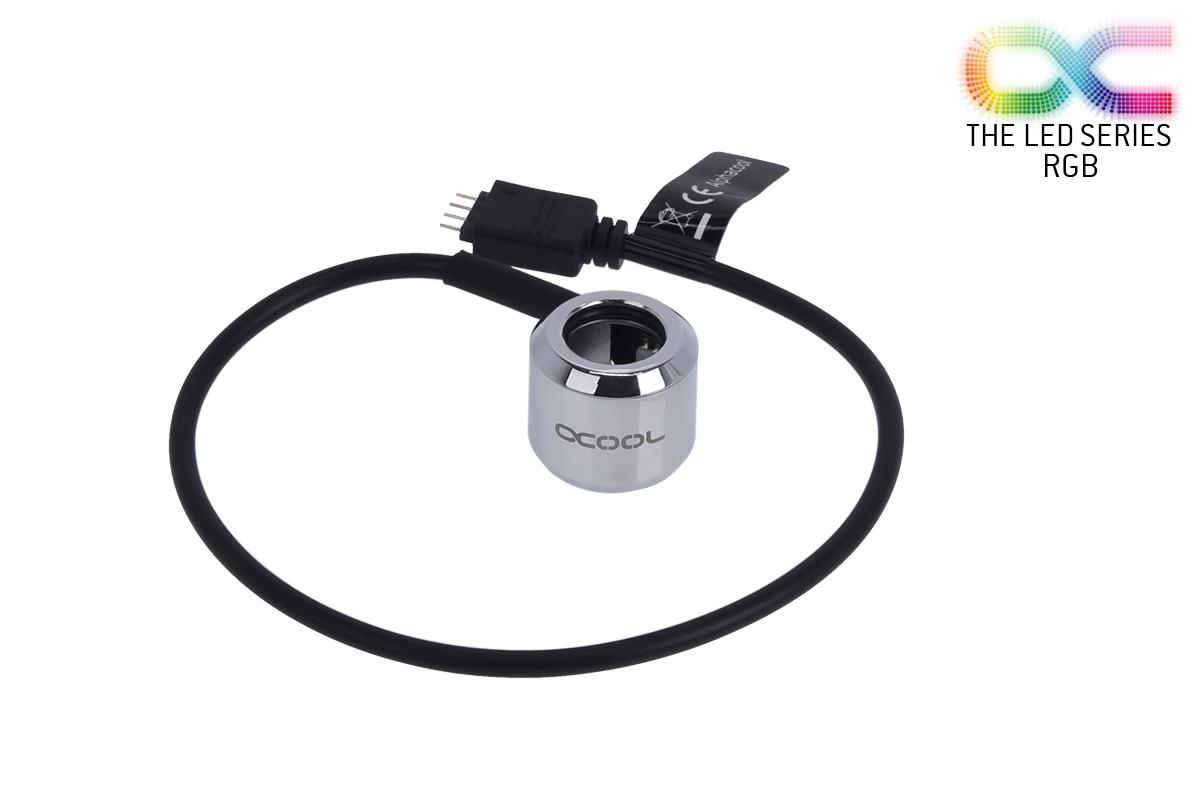

The Alphacool Aurora HardTube RGB LED Ring is the perfect solution for illuminating the HardTubes or water cooling tubes. Simply slide the Aurora HardTube RGB LED ring over the tube or HardTube and it will shine perfectly. The connection is made via a 4-pin male RGB connector. The ring itself is made of pure brass. Inside the ring are 3 RGB LEDs and two O-rings. The O-rings are used to hold the Aurora HardTube RGB LED ring in its desired position and to prevent scratches when passing over the HardTubes. Using these, completely new possibilities of lighting for your own water cooling are available. The classic RGB LED strips or RGB fans can be connected to achieve a harmonious and impressive appearance. Combined with the Alphacool Eiswater liquids for the fluid, you are limited only by your imagination for the colourful effects. The Alphacool Aurora HardTube RGB LED rings are compatible with all common RGB controllers. They can also be used with any motherboard and their included controllers including ASUS ROG Aura Sync, ASRock RGB LED, MSI Mystic Light and GIGABYTE RGB Fusion. Depending on the connection, a suitable adapter may be required. The simplest way to control the LEDs is by using of the Alphacool Aurora RGB controller. Technical Details Size: for 13mm HardTubes Dimensions (DxH): 22 x 20 mm Casing: plastic chrome LED colour: RGB Cable: RGB Male connector 30 cm Scope of Delivery 1x Alphacool Aurora HardTube LED ring 13mm chrome - RGB

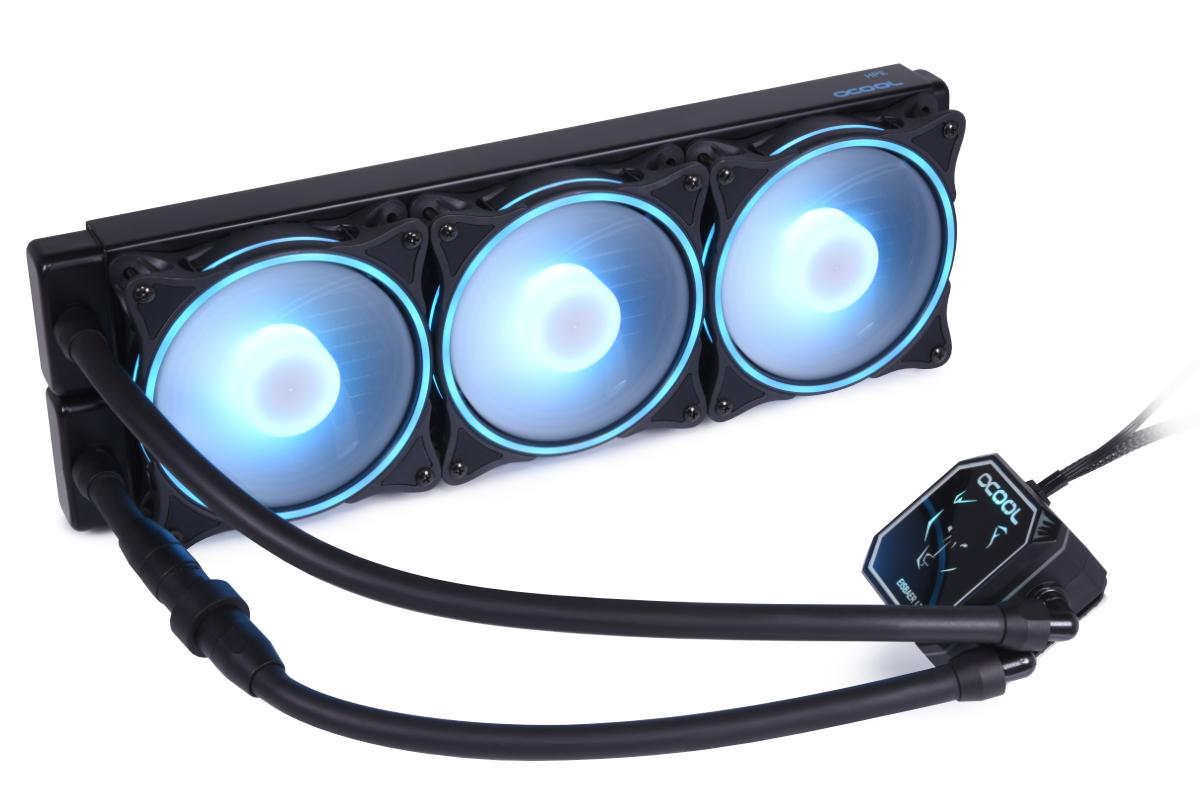

The Eisbaer Aurora HPE Edition 360 CPU AIO water cooling features the extremely powerful NexXxos HPE Performance all-copper radiator equipped with the high-throughput Aurora Rise 120mm fans. All of the components used come from the classic DIY water cooling range and are also used for the most part in the enterprise products for servers. The Eisbaer LT Aurora can be expanded with additional components thanks to the quick-release fastener. Alphacool's Eisbaer Aurora HPE Edition 360 CPU AIO is a high performance all-in-one water cooling system that is as easy to install as an AIO, but offers the performance of a pre-assembled and pre-filled custom loop. New HPE Radiator! The NexXxos ST30 HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K. Radiator & Pump As with all Alphacool products, the radiator base is made of nickel-plated copper and is equipped with very fine cooling fins that are distributed over the entire base. A nozzle plate provides an accelerated flow over the cooling fins which increases the cooling performance. The water flow is optimized so that all areas of the cooler base are cooled evenly. The Eisbaer LT Aurora cooler uses the very compact and small DC-LT 2 pump. It provides enough power to add another component such as a GPU water cooler or another radiator to the circuit. Fan The Alphacool Rise Aurora fan offers a wide control range as well as superior Digital aRGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fan's special design create unique effects. The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. Additionally, it offers a Zero control, which allows the fan to be regulated down to 0 RPM and then starts at approximately 350 RPM. At 800 rpm, the fan is nearly silent, but still offers good airflow (118.9 m³/h) paired with high static pressure (3.17mm/H₂O). DIY connections and ES hoses The hose connections are from the normal DIY segment and therefore use a G1/4" thread. Thus, it is very easy to replace them. The black TPV hose comes, like the connectors, from the Alphacool ES series which is primarily installed in servers and workstations. The hose does not contain any plasticizers and, unlike classic PVC hoses, does not deform at high temperatures. The quick connector is not made of heavy brass, but of extremely light, durable and robust nylon. The quick disconnect is compatible with many other models in the Alphacool product line. Full Digital aRGB Illumination The cooler pump assembly and fans are fully equipped with Digital RGB LEDs, also known as addressable RGB or aRGB. Extensive effects can be set with the included controller or a Digital RGB controller on the motherboard. For a nice visual effect, of course, the illuminated polar bear on the cooler pump unit. For easier control via a controller, the fans and also the pump can be connected in series as a daisy chain. This enables a neat wiring of the individual LED components. Compatibility: Intel: 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066 AMD: AM4 / AM5 / TR4 / sTRX4 / sWRX8 / SP3 Technical data radiator L x W x H 391,5 x 124 x 30mm (+/- 3%) Material cooling fins, pre-chambers & channels copper Material threads brass Material outer housing stainless steel Threads 2x G1/4" Possible fan size 120mm Possible fan assembly 3x one-sided / 6x both-sided Pressure tested 0,8 Bar Maximum working temperature 60°C Fin density 18 FPI Technical data cooler with pump L x W x H 66 x 66 x 69mm Material cooler bottom nickel plated copper Material cooler top & reservoir nylon, acrylic Threads 2x G1/4“ (+ 1x Fillport G1/4“) Pump type DC-LT2 Pump speed 2600 rpm (+/- 10%) Head of delivery 0,95 m Maximum flow rate 75 L/h Voltage 12V DC Power consumption 4W Pressure tested 0,8 Bar Maximum working temperature 60°C Technical data fans L x W x H 120 x 120 x 25mm Speed 0-2500 rpm (+/- 10%) Bearing Sleeve Bearing Connection 4-Pin PWM Cable length 40cm Voltage 12V DC Current consumption 0,65A (0,72 max) Static pressure 3,17 mm/H₂O Max. air flow 118,9 m³/h Noise max. 31,5 dB(A) Number of digital aRGB LEDs 20 Technical data liquid Color clear Ingredient 1 destilled water (CAS-Nummer 7732-18-5) Ingredient 2 Glysantin (CAS-Nummer 1017-21-1) Working temperatures 15C°/+90°C Technical data quick-release coupling Dimensions 95 x 27mm Material Nylon Tube size 12,7/7,6mm Color black Technical data connectors Dimensions (connection straight) 24 x 18mm Quantity (connection straight) 2x Dimensions (connection 90°) 35 x 27 x 17mm Quantity (connection 90°) 2x Tube size 12,7/7,6mm Material brass Technical data tube Length 40cm Material TPV (EPDM/PP) Tube size 12,7/7,6mm Hardness grade 35 Shore-A to 50 Shore-D Maximum working temperature -50 to +155°C Color black

The Eisbaer LT360 Aurora HPE CPU AIO water cooling features the extremely powerful NexXxos HPE Performance all-copper radiator equipped with the high-throughput Aurora Rise 120mm fans. All of the components used come from the classic DIY water cooling range and are also used for the most part in the enterprise products for servers. The Eisbaer LT Aurora can be expanded with additional components thanks to the quick-release fastener. Alphacool's Eisbaer LT360 Aurora HPE CPU AIO is a high performance all-in-one water cooling system that is as easy to install as an AIO, but offers the performance of a pre-assembled and pre-filled custom loop. New HPE Radiator! The NexXxos ST30 HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K. Radiator & Pump As with all Alphacool products, the radiator base is made of nickel-plated copper and is equipped with very fine cooling fins that are distributed over the entire base. A nozzle plate provides an accelerated flow over the cooling fins which increases the cooling performance. The water flow is optimized so that all areas of the cooler base are cooled evenly. The Eisbaer LT Aurora cooler uses the very compact and small DC-LT 2 pump. It provides enough power to add another component such as a GPU water cooler or another radiator to the circuit. Fan The Alphacool Rise Aurora fan offers a wide control range as well as superior Digital aRGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fan's special design create unique effects. The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. Additionally, it offers a Zero control, which allows the fan to be regulated down to 0 RPM and then starts at approximately 350 RPM. At 800 rpm, the fan is nearly silent, but still offers good airflow (118.9 m³/h) paired with high static pressure (3.17mm/H₂O). DIY connections and ES hoses The hose connections are from the normal DIY segment and therefore use a G1/4" thread. Thus, it is very easy to replace them. The black TPV hose comes, like the connectors, from the Alphacool ES series which is primarily installed in servers and workstations. The hose does not contain any plasticizers and, unlike classic PVC hoses, does not deform at high temperatures. The quick connector is not made of heavy brass, but of extremely light, durable and robust nylon. The quick disconnect is compatible with many other models in the Alphacool product line. Full Digital aRGB Illumination The cooler pump assembly and fans are fully equipped with Digital RGB LEDs, also known as addressable RGB or aRGB. Extensive effects can be set with the included controller or a Digital RGB controller on the motherboard. For a nice visual effect, of course, the illuminated polar bear on the cooler pump unit. For easier control via a controller, the fans and also the pump can be connected in series as a daisy chain. This enables a neat wiring of the individual LED components. Compatibility: Intel: 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066 AMD: AM4 / AM5 / TR4 / sTRX4 / sWRX8 / SP3 Technical data radiator L x W x H 391,5 x 124 x 30mm (+/- 3%) Material cooling fins, pre-chambers & channels copper Material threads brass Material outer housing stainless steel Threads 2x G1/4" Possible fan size 120mm Possible fan assembly 3x one-sided / 6x both-sided Pressure tested 0,8 Bar Maximum working temperature 60°C Fin density 18 FPI Technical data cooler with pump L x W x H 69 x 69 x 45mm Material cooler bottom nickel plated copper Material cooler top acrylic Threads 2x G1/4“ (+ 1x Fillport G1/4“) Pump type DC-LT2 Pump speed 2600 rpm (+/- 10%) Head of delivery 0,95 m Maximum flow rate 75 L/h Voltage 12V DC Power consumption 4W Pressure tested 0,8 Bar Maximum working temperature 60°C Technical data fans L x W x H 120 x 120 x 25mm Speed 0-2500 rpm (+/- 10%) Bearing Sleeve Bearing Connection 4-Pin PWM Cable length 40cm Voltage 12V DC Current consumption 0,65A (0,72 max) Static pressure 3,17 mm/H₂O Max. air flow 118,9 m³/h Noise max. 31,5 dB(A) Number of digital aRGB LEDs 20 Technical data liquid Color clear Ingredient 1 destilled water (CAS-Nummer 7732-18-5) Ingredient 2 Glysantin (CAS-Nummer 1017-21-1) Working temperatures 15C°/+90°C Technical data quick-release coupling Dimensions 95 x 27mm Material Nylon Tube size 12,7/7,6mm Color black Technical data connectors Dimensions (connection straight) 24 x 18mm Quantity (connection straight) 2x Dimensions (connection 90°) 35 x 27 x 17mm Quantity (connection 90°) 2x Tube size 12,7/7,6mm Material brass Technical data tube Length 40cm Material TPV (EPDM/PP) Tube size 12,7/7,6mm Hardness grade 35 Shore-A to 50 Shore-D Maximum working temperature -50 to +155°C Color black

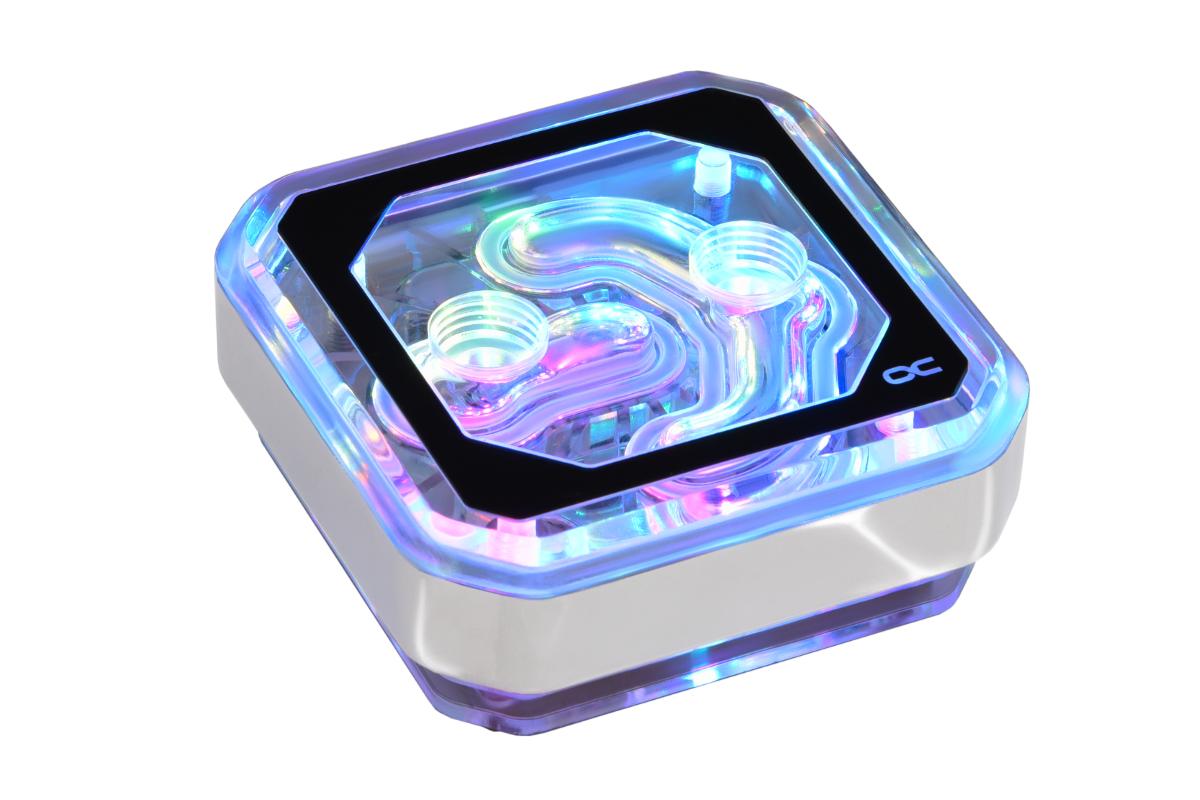

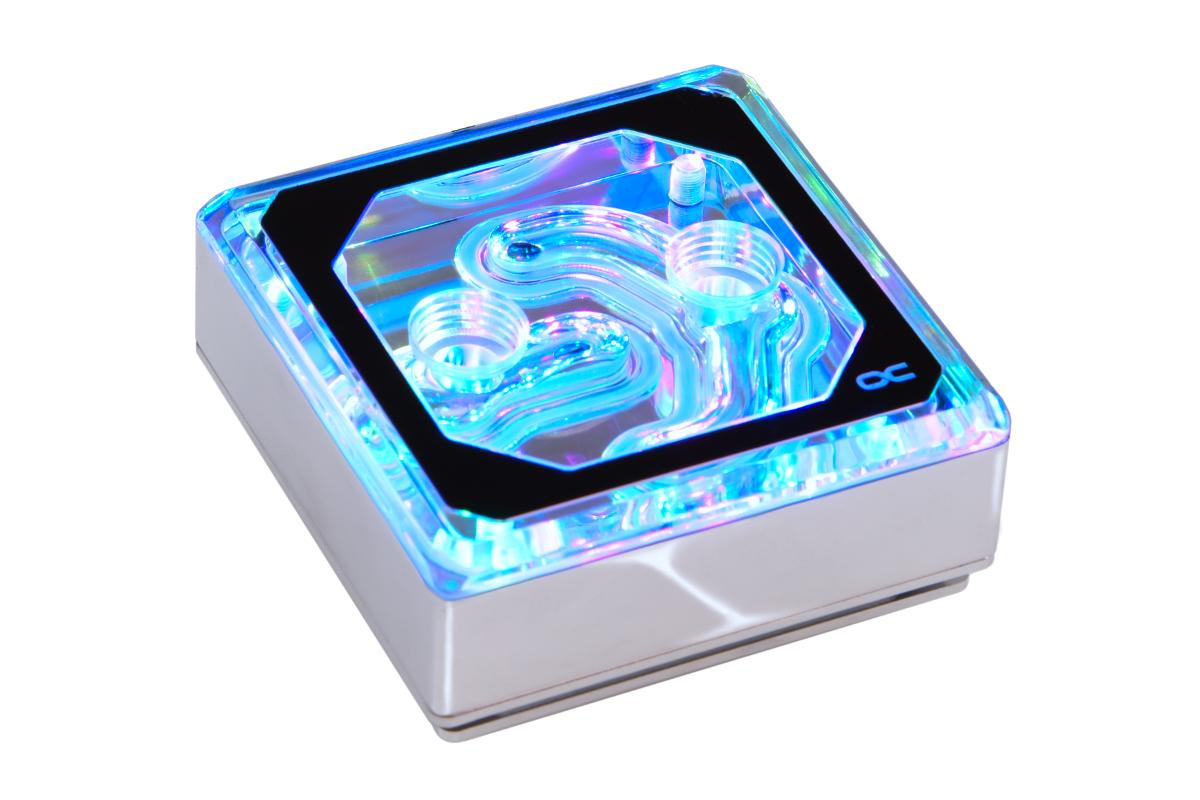

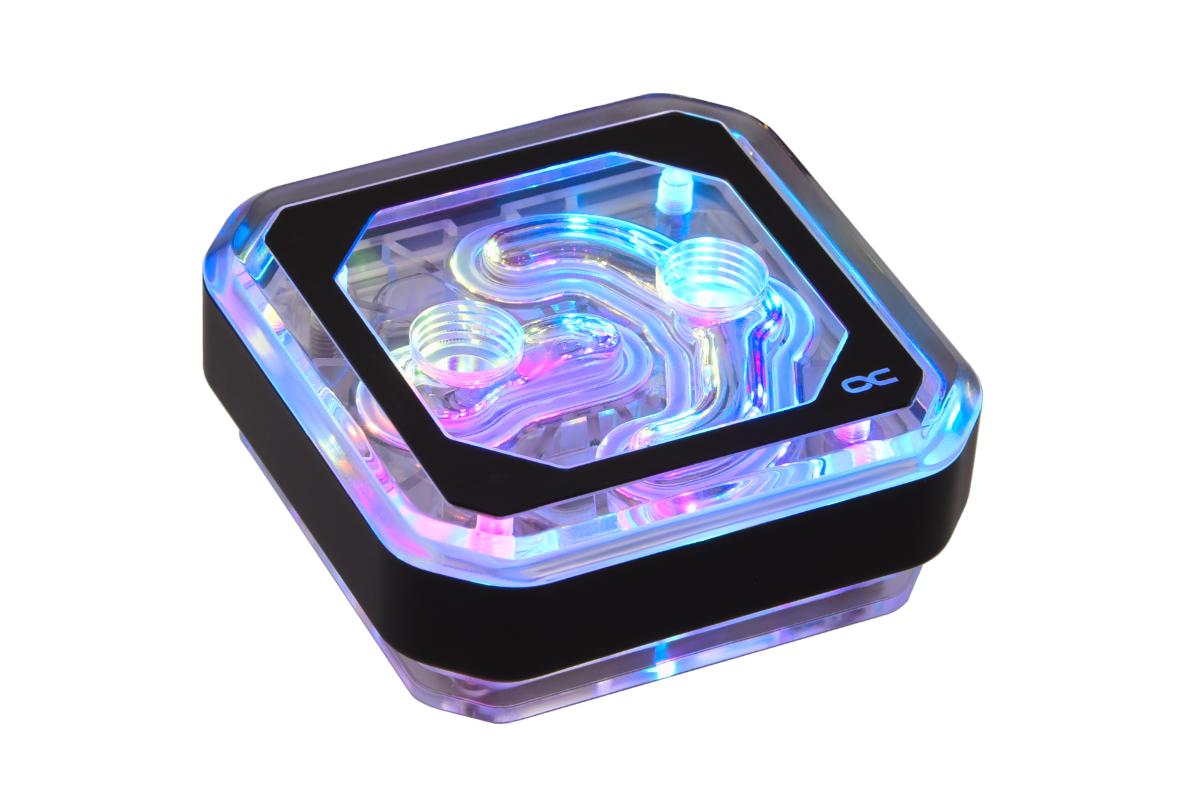

The new Alphacool Eisblock XPX Aurora Edge CPU water cooler offers fantastic performance thanks to the patented ramp design as well as boasting excellent quality. The new Aurora design in combination with the addressable digital RGB illumination offers many possibilities for outstanding illumination of the CPU water block. Performance in abundance! Alphacool already developed and patented new flow technology for the first Alphacool Eisblock XPX series. The so-called "ramp system" ensures an even flow of water inside the cooler and sits in front of the diffuser plate. This ensures that the water is pressed evenly through the diffuser plate, which in turn pushes the water evenly over the cooling base. The cooling channels on the CPU cooler base has also been enlarged to a proud 34 x 32 mm to accommodate the ever-growing CPU DIEs. This is especially true for multi-core processors with 4, 6, 8 or even 12 and more CPU cores. So that the heat from the CPU can be transferred to the water as quickly as possible. 81 cooling fins can be found on the cooling plate to ensure maximum heat diffusion. The fin structure has been reduced to just 0.2 mm in order to create the largest possible surface area in the smallest possible space. And the lighting? All new Eisblock XPX Aurora Edge CPU waterblocks come with addressable digital RGB lighting. The aRGB LEDs are integrated directly into the CPU water cooler and run once around the entire cooling block. With up to 15 digital RGB LEDs the entire CPU block is evenly and Intensively lit. Of course, the brightness can be controlled by an appropriate controller. And as with all aRGB LED products all known effects can be created. From simple colour changes to wave effects and rainbow lighting, everything is possible. Of course, the Alphacool Eisblock Aurora coolers can also be connected and controlled via mainboards using the standard 3-pin 5V connector. The cable also has an integrated Y-adapter. This makes it easy to connect further Alphacool Aurora products in series without having to order separate Y-adapters. Extension cables may be needed if you want to connect the products in series, depending on the size of the case. Is installation difficult? Mounting the XPX Aurora Edge Eisblock cooler is simple. The backplate is simply attached to the mainboard from behind. The mounting frame for the AMD or Intel socket is clamped to the cooler and the corresponding mounting screws are pre-attached to this frame. Next, you simply apply thermal paste and you attach the cooler using the screws. Please note: Remove the protective foil on the cooler base before use! Unique Aurora Design The Alphacool Eisblock Aurora Edge has been significantly changed in some points to its predecessor, the Eisblock XPX. The lower part of the cooler is completely made of brass and no longer of Acrylglass or transparent nylon. This changes the overall feel and quality of the cooler. Not only is it heavier in the hand, but it is also much more stable than the usual Acryl CPU water coolers. In order to stand out visually from the normal Eisblock XPX Aurora CPU water cooler, the bottom of the cooler was kept completely in black. This emphasizes the visual effect of the water flow. The corners of the CPU cooler are more angular, which makes the cooler stand out from the normal Aurora Acryl Eisblock. Compatibility: Compatibility Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 2011 / 2011-3 / 2066 / 1700 AMD Compatibility: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5 Technical data GPU cooler W x T x H 75,8 x 75,8 x 33 mm Net weight 206 g Max working temperature 60 °C Material cooler nickel plated copper Material bottom part Nylon Material top Acryl Threads 2 x G1/4“ Power supply Digital RGB 3-Pin 5V Pressure tested 0,8 bar Certificates CE, FC, ROHS
